USER MANUAL 135.002 BARTSCHER

1.1 Information about the instruction manual 18
1.2 Key to symbols 18
1.3 Liability and Warrantees 19
1.4 Copyright protection 19
1.5 Declaration of conformity 19

2. Safety 20

2.1 General information 20
2.2 Safety instructions for use of the device 20-21
2.3 Intended use 21

3. Delivery, packaging and storage 22

3.1 Delivery check 22
3.2 Packaging 22
3.3 Storage 22

4. Technical data 23

4.1 Overview of parts 23
4.2 Technical specification 24

5. Installation and operation 24

5.1 Safety instructions 24-25
5.2 Installation and connection 25
5.3 Operating 26-30

6. Cleaning and maintenance 30

6.1 Safety advice 30
6.2 Cleaning 31
6.3 Safety instructions for maintenance 31

7.Waste disposal 32

Bartscher GmbH

1.1 Information about the instruction manual

This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide.

Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.

In addition to the information given here, you should comply with any local Health and safety Controls and generally applicable safety regulations.

The instruction manual forms part of the product and should be kept near the device and easily accessible for anyone carrying out the installation, servicing, maintenance or cleaning.

1.2 Key to symbols

In this manual, symbols are used to highlight important safety instructions and any advice relating to the device. The instructions should be followed very carefully to avoid any risk of accident, personal injury or material damage.

WARNING!

This symbol highlights hazards, which could lead to injury.

Please follow the instructions very carefully and proceed with particular attention in these cases.

WARNING! Electrical hazard!

This symbol draws attention to potential electrical hazards. If you do not follow the safety instructions, you may risk injury or death.

CAUTION!

This symbol highlights instructions, which should be followed to avoid any risk of damage, malfunctioning and/or breakdown of the device.

NOTE!

This symbol highlights tips and information, which have to be followed for an efficient and trouble-free operation of the device.

1.3 Liability and Warrantees

All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years.

The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. The German version of this instruction manual is definitive.

If the delivery consists of a special model, the actual scope of delivery may differ from the descriptions and illustrations in this manual. This is also the case for special orders or when the device has been modified in line with new technology. If you have any questions, you should contact the manufacturer.

NOTE!

Read the instruction manual carefully before using the device. The manufacturer does not accept liability for any damage or malfunction resulting from not following the instructions for use.

The instruction manual should be kept near the device, easily accessible for anyone wishing to work with or using it. We reserve the right to make technical changes for purposes of developing and improving the useful properties.

1.4 Copyright protection

The instruction manual including any texts, drawings, images or other illustrations is copyright. No part of this publication may be reproduced, transmitted or used in any form or by any means without permission in writing from the manufacturer. Any person who commits any unauthorized act in relation to this publication shall be liable to claims for damages. All rights reserved.

NOTE!

The contents, texts, drawings, pictures and any other illustrations are copyright and subject to other protection rights. Any person unlawfully using this publication is liable to criminal prosecution.

1.5 Declaration of conformity

The device complies with the current standards and directives of the EU.

We certify this in the EC declaration of conformity.

If required we will be glad to send you the according declaration of conformity.

2. Safety

This section provides an overview of all important safety aspects.

In addition every chapter provides precise safety advice for the prevention of dangers which are highlighted by the use of the above mentioned symbols.

Furthermore, attention should be paid to all pictograms, markers and labels on the device, which must be kept in a permanent state of legibility.

By following all the important safety advice you gain an optimal protection against all hazards as well as the assurance of a safe and trouble-free operation.

2.1 General Information

This device is designed in accordance with the presently applicable technological standards. However, the device can pose a danger if handled improperly and inappropriately.

Knowing the contents of the instruction manual as well as avoiding mistakes and thus operating this device safely and in a fault-free manner is very essential to protect yourselves from the hazards.

To prevent hazards and to ensure optimum efficiency, no modifications or alterations to the device that are not explicitly approved by the manufacturer may be undertaken.

This device may only be operated in technically proper and safe condition.

2.2 Safety instructions for use of the device

The specifications regarding the industrial safety are based on the Regulations of the European Union applicable at the time of manufacturing the device.

If the device is used commercially, the user is obliged to ensure that the said industrial safety measures concur with the state of the rules and regulations applicable at the time in question for the entire period of use of the device and to comply with the new specifications.

Outside the European Union, the industrial safety laws applicable at the place of installation of the device and the regional territorial provisions must be complied with.

Besides the industrial safety instructions in the instruction manual, the general safety and accident prevention regulations as well as environment protection regulations applicable for area of application of the device must be followed and complied with.

CAUTION!

The device is not intended for use by individuals (including children) with physical or mental disabilities, insufficient experience, and/or insufficient knowledge unless such persons are under the care of a person responsible for their safety or have received instructions regarding appropriate use of the device.
Children should be observed to ensure that they are not playing with the device.
o Preserve this manual safely. When passing on/selling the device to a third party, the manuals must be handed over along with the device.
○ Every person using the device must act in accordance to the manuals and under consideration of the safety advice.
The device is to be used indoors only.

2.3 Intended use

Safe operation is only guaranteed when using the device for its intended purpose.

Any technical interventions, as well as assembly and maintenance are to be made by a qualified customer service only.

The device is not intended for commercial use.

The ice cream maker is intended only for making ice cream, sorbets and frozen yoghurt.

CAUTION!

Any use going beyond the intended purpose and/or any different use of the device is forbidden and is not considered as conventional.

Any claims against the manufacturer or his authorized representative as a consequence of experiencing damages resulting from unconventional use are impossible.

The operator is liable for all damages resulting from inappropriate use.

3. Transport, packaging and storage

3.1 Delivery check

Please check the delivery upon completeness and transport damage immediately after receipt.

In case of visible damage do not accept or accept the delivery with reservation only.

Note the extent of damage on the carrier's bill of delivery. Trigger off the complaint.

Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.

3.2 Packaging

Please do not throw away the covering carton of your device as it might be useful for storage purposes, when moving or, in case of damages, when the device must be sent back to a repair center. The outer and inner packing material should be removed completely from the device before installation.

NOTE!

If you liked to dispose the packing, consider the regulations applicable in your country. Supply re-usable packing materials to the recycling.

Please inspect the device upon completeness. In case any part is missing please contact our customer service center immediately.

3.3 Storage

Keep the package closed until installation and under consideration of the outside indicated positioning- and storage markings.

Packages should be stored under consideration of the following:

• Do not store outdoors.
• Keep it dry and dust-free.
• Do not expose it to aggressive media.
• Do not expose it to direct sunlight.
• Avoid mechanical shocks and vibration.
• In case of longer storage ( >3 months) make sure you check the state of the packaging and the parts regularly. If required refresh or renew.

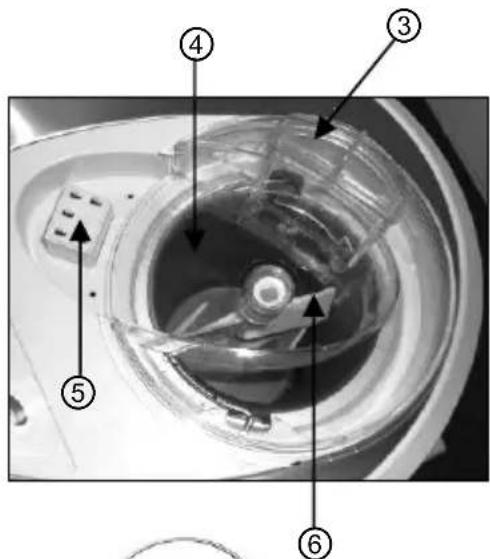

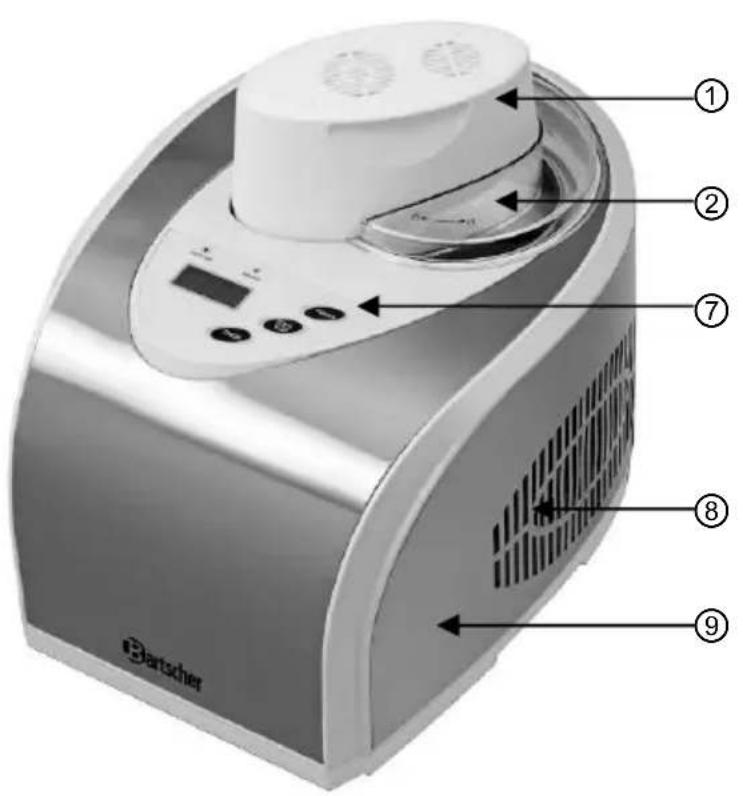

4. Technical data 4.1 Overview of parts

① Engine
(2) Transparent lid
③ Filling port in the lid
④ Removable ice cream container
⑤ Engine connector
⑥ Stirring staff
⑦ Control panel
(8) Ventilation slots
Housing
10 Measuring cup
⑪ Ice cream scoop

4.2 Technical specification

Name Ice cream maker
Article no.:	135.002
Finish:	Housing: plastic with stainless steel coating; ice cream container: aluminum
Power: 230 V ~ 50 Hz 150 W
Energy safety class: 1
Coolant: R134a
Minimum temperature:	to approx. -35°C
Ice cream production cycle: approx. 30 – 60 min.
Dimensions: W 295 x D 395 x H	315 mm
Ice cream container capacity: 1.4 litres
Weight: 10.6 kg
Equipment:	1 x measuring cup (capacity 200 ml); 1 x ice cream scoop

We reserve the right to make technical changes!

5. Installation and operation

5.1 Safety instructions

WARNING! Electrical hazard!

The device must only be connected to a properly installed single socket with protective contact.

Never yank cord to disconnect from outlet.

Cable must not touch any hot parts.

• See that the cable does not touch any heat sources or sharp edges. Do not let the cable dangle over the counter edge.
• Do not use the device in case it does not function properly, has been damaged or dropped.

• Do not use any accessory or spare parts that have not been recommended by the manufacturer. These can be dangerous for the user or lead to damages of the device or personal injury, and further, the warranty expires.

• Do not lay the cable over carpets or heat insulations. Do not cover the cable. Keep away the cable from operating range and do not dunk it into water.

• Do not move or tilt the device when in operation.

WARNING! Hazard via electrical current!

The device can cause injuries due to improper installation!

Before installation the local power grid specification should be compared with that of the device (see type label).

Connect the device only in case of compliance!

Take note of the security advice!

5.2 Installation and connection

• Discard the complete packing material after unpacking the device.
• Place the device on top of an even and safe surface which supports the weight of the device and is stable.
• Not at any time should you place the device on an inflammable surface (such as: table cloth, etc.).
• You must not position the device near open fireplaces, electric ovens/arc furnaces, furnaces/electric heaters or other heat sources.
• Place the device in an area inaccessible to children.
• Make sure there is a minimum distance of 15cm between the wall and the back and the sides of the device, in order to provide sufficient air circulation
• Never block the ventilation slots.
• Wait at least one hour until the refrigerant has settled before connecting the device to a socket.
• The electrical circuit in the socket must be secured to at least 16A. Only connect the device directly to the wall socket; do not use any extension cords or power strips.
• Place the device so that the plug is easily accessible and can be quickly removed from its socket in case of necessity.

5.3 Operating

Preparing the device

• Prior to first use, wash all parts of the device that will be in contact with food products with warm water and a mild cleaning agent (transparent lid, filling port, ice cream container, stirring staff, measuring cup, ice cream scoop). Rinse all parts in clean water and dry thoroughly.
• Wipe the device with a soft, moist cloth.
• Ensure the device is not connected to a socket.
• Prepare all the ingredients for making ice cream and fill the removable ice cream container with them.

CAUTION!

Never fill the ice cream container beyond half of its capacity! Ice cream expands during the last few minutes of production and will fill the entire container.

NOTE!

Always fill the ice cream container with cooled ingredients and never hot ingredients!

• Place the ice cream container into the cooling cylinder.
• Place the stirring staff into the ice cream container.

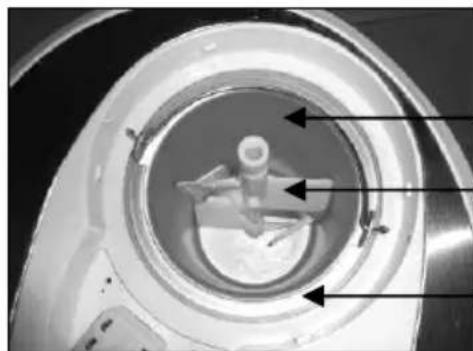

Ice cream container

Stirring staff

Cooling cylinder

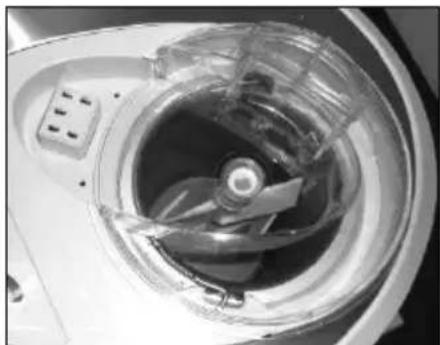

• Mount the lid safely on to the housing, so that it snaps into the provided grooves (see picture at right).
• Now mount the engine so that it is connected with the stirring staff and the connector of the housing.
• Close the filling port of the lid with provided cover.

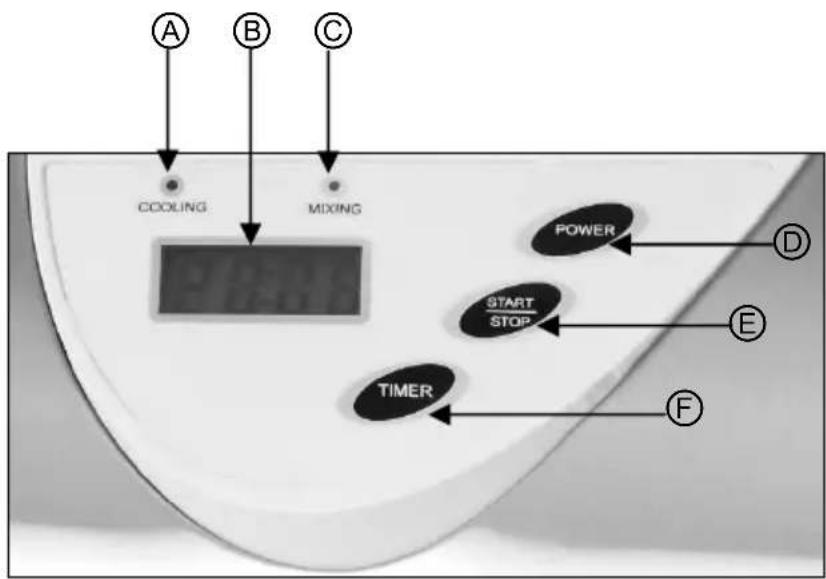

Control panel

A Cooling control light (red)
Digital display
Mixing control light (green)
POWER (on/off button)
E START/STOP button
⑤ TIMER

Preparing ice cream

• Connect the device to an appropriate single power socket.
• Turn the device on by the POWER button on the control panel. The factory-set time of "60:00" will be displayed and both control lights will come on.
• By pressing the TIMER button on the control panel the time can be set to 50, 40, 30, 20 or 10 minutes.
  After setting the time, press START/STOP to begin making ice cream.
• The display alternated between the remaining time and temperature in the ice cream container.

• During ice cream preparation, according to your taste, you may add e. g. fruits, chocolate chips, raisins, nuts, almonds etc. through the filling port of the lid.

• When the set time is reached a signal tone resounds and the device stops making ice cream off automatically. Ice cream preparation is finished.

• If the device is not activated within 10 minutes, it automatically enters into cooling mode and the compressor cools for the next 10 minutes. The stirring staff does not operate. The cooling process is continued at 10-minute intervals, and after 60 minutes the device shuts off entirely.
• If the stirring staff stops before the set time has elapsed, turn the device off manually by pressing START/STOP. Ice cream preparation is then finished.
• Disconnect the device by removing its plug from the socket, and remove the device and lid from the device. Follow the instructions on the lid.
• Lastly, remove the stirring staff from the ice cream container.

Removing and serving ice cream

• Remove the ice cream container from the cooling cylinder and transfer the ice cream to an appropriate container or serving dish.

CAUTION!

Use only a plastic or wooden spoon to remove ice cream, in order to avoid damaging the ice cream container!

• Stir the ice cream for a few minutes before serving, in order to achieve proper consistency.
• The ice cream container can be washed with warm water and a soft cloth after it has been emptied of ice cream and reached room temperature.
• Frozen ice cream can be stored for a limited time in appropriate containers, but after long storage it loses its flavour and quality. This process begins after approx. one to two weeks of storage.
• Store ice cream at a maximum temperature of -12^ C . Mark the container with the date of production and flavour.

CAUTION!

Ice cream is a good environment for bacteria growth.

The ice cream maker and containers for ice cream storage must be kept in perfect cleanliness and dryness. Never re-freeze melted or thawed ice cream!

• Approximately 20 minutes before serving the ice cream, take it out of the freezer and put the container into the refrigerator for 10 minutes. The ice cream may also be stored at room/ambient temperature for 10 to 15 minutes in order to reach the appropriate temperature for consumption.

Settings while the device is operating

• The ice cream making process can be interrupted by pressing the START/STOP button for three seconds, or by pressing POWER. To reactivate the device, start from the beginning and reset the time by pressing the button marked TIMER.
• To change the operating time while the device is in use, press TIMER; time can be only increased (not decreased) by 5-minute intervals. The time set will be shown on the digital display.

Extending operating time

• To continue making ice cream after the operating time has expired (e.g. because the consistency of the ice cream is unsatisfactory), the operating time can be set again (10/20/30/40/50/60) by pressing TIMER then START/STOP.
  Cooling will resume after 3 minutes.
• The ice cream making process will return to the beginning with the set operating time.
• When the set time is reached a signal tone sounds and the device switches off automatically. The device enters into cooling mode and keeps the ice cream cold for 10 minutes. The cooling process is continued at 10-minute intervals (up to 60 minutes). After 60 minutes the device switches off completely.

Tips for preparing ice cream

Always cool the ingredients before making ice cream.
- Do not cool the ingredients in a freezer, as frozen ingredients can block the stirring staff.
- Most recipes contain cream, milk, eggs and sugar. For better results in ice cream preparation we recommend that you beat the eggs and sugar with an electric blender prior to preparation, in order to increase the volume of the ice cream
- Taste and consistency of the ice cream very much depend on the chosen ingredients: the more fat content, the firmer the ice cream. A heavy cream contains at least 36% fat. Light cream contains 10 - 18% fat.
- Try to use a constant amount of liquid every time, e. g.: the lightest ice cream can be produced by using more milk than cream or milk only.
- You may also use low fat milk, although this affects the consistency of the ice cream.
- Sorbet's taste very much depends on the ripeness and sweetness of the fruits and the juice. Taste the fruits before using them as ingredients. If they are too sour, add some sugar; if they are very ripe instead, add little sugar or none at all. Please remember that cold reduces sweetness.

• In order to sweeten the ice cream during the preparation/production process, do not add the sugar or sweetener directly into the ice cream container (it will not dissolve). Instead dissolve the sugar in a bit of water or low-fat milk and pour the syrup (cooled) into the ice cream container.
• When using fruits in the recipe, they must always be washed and dried before preparation, pulses always must be shelled and pitted. Fix a separate mix with these ingredients using a blender before adding them to the ice cream.
• When using eggs, make sure they are fresh.
• Many recipes recommend cooking ingredients, so prepare them a day before preparation in order to ensure they are cold.

Recipe ideas

Strawberry ice cream

200 g sweet cream

100 g milk

150 g sugar

1 pack vanilla sugar

300 g strawberries

Chocolate ice cream

200 g sweet cream

100 g milk

150 g sugar

100 g chocolate

2 egg yolk

6. Cleaning and maintenance

6.1 Safety advice

Before beginning with repair or cleaning works make sure the device has been disconnected from power socket (pull the power plug!!!) and has cooled down.
o Do not use any acid agents and make sure no water ingresses the device.
To protect yourself from electric shock, never immerse the device, its cables and the plug in water or other liquids.

CAUTION!

The device is not suited for direct washing via water jets. Therefore, you must not use any kind of pressure water jet for cleaning the device!

6.2 Cleaning

Clean the device regularly.
o Wash all parts of the device that come into contact with food products thoroughly (transparent lid, filling port, ice cream container, stirring staff, measuring cup, ice cream scoop), using warm water and a mild cleaning agent. Rinse them in clean water to remove all traces of cleaning products. Lastly, dry the washed parts or leave them to air-dry.
○ Replace all the parts of the device after they have dried.
o Wipe the housing and engine with a soft, moist cloth.

ATTENTION!

Never clean the housing and engine under running water!

Use only soft cloths and never use any harsh cleaning agents that could scratch the device.
After washing the device, dry and polish it with a soft, dry cloth.

6.3 Safety instructions for maintenance

Check the mains connection cable for damage from time to time. Never operate the device when the cable is damaged. A damaged cable must immediately be replaced by customer service or a qualified electrician to avoid dangers.
In case of damage or malfunction, please contact your stockist or our customer service centre.
○ Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device. Do not attempt to repair the device yourself.

7. Waste disposal

Discarding old devices

At the end of its service life the discarded device has to be disposed in accordance with the national regulations. It is advisable to contact a company which is specialized in waste disposal, or just contact the local disposal service in your community.

WARNING!

To exclude any abuse and the dangers involved make the waste device unfit for use before disposal. For that purpose disconnect device from mains supply and remove mains connection cable from the device.

NOTE!

For the disposal of the device please consider and act according to the national and local rules and regulations.

Bartscher GmbH

4.2 Indications techniques
