Product type	Hand blender (immersion blender)
Brand	TEAM
Model	MS 9
Power supply	Mains, 220-240 V ~ 50 Hz
Estimated power	300 W
Beaker capacity	0.5 L
Foot material	Aluminium compliant with EN 601:1994
Main functions	Blending, milkshakes, soups, eggs, emulsifying
Maximum continuous use duration	3 minutes
Mandatory pause after use	minimum 10 minutes
Cleaning the foot	By hand, do not put in dishwasher
Cleaning the motor unit	Slightly damp cloth, do not immerse
Safety	Very sharp blades, do not touch while in operation, do not blend boiling liquids
Wall mounting	Wall bracket supplied for storage
Included accessories	Beaker, wall bracket
Repairability	Repair by qualified competent service only
Maintenance of the aluminium foot	Dry vigorously, coat with olive oil to maintain shine

Frequently Asked Questions - MS 9 TEAM

How to use the MS 9 TEAM blender for the first time?

Before first use, clean the appliance with a slightly damp cloth. Screw the detachable foot onto the motor unit by turning in the closing direction (left-hand thread). Plug in the appliance, immerse the foot in the ingredients, then turn on. Do not exceed 3 minutes of continuous operation.

What is the maximum continuous use duration of the MS 9 blender?

The maximum continuous use duration is 3 minutes. After this period, the motor must be paused for at least 10 minutes to avoid any damage.

How to clean the detachable metal foot of the MS 9 blender?

Unplug the appliance. Unscrew the detachable metal foot in the opening direction. Wash it by hand with soapy water (do not put in the dishwasher). Dry it vigorously. To maintain shine, lightly coat the aluminium surface with olive oil.

Can I blend hot liquids with the MS 9 TEAM?

Yes, but with caution. Never blend boiling liquids. For hot liquids, avoid splashes by first plunging the foot into the liquid before turning on the appliance. Proceed carefully to avoid burns.

What to do if the power cord of the MS 9 blender is damaged?

If the cord is damaged, it must be replaced by a qualified competent service (manufacturer's after-sales service, importer, or authorized person) to avoid any danger. Do not use the appliance with a damaged cord.

Can the foot of the MS 9 blender go in the dishwasher?

No, the detachable metal foot should not be put in the dishwasher. The chemicals used in dishwashers would mark and stain the aluminium surface. Clean it by hand only.

How to mount the MS 9 blender on the wall?

The blender comes with a wall bracket. Fix the bracket to the wall using suitable screws. When not using the appliance, you can hang the blender by the motor unit on this bracket.

What types of food can be blended with the MS 9 TEAM?

This blender is suitable for milkshakes, soups, eggs, and other small quantity culinary preparations. It is designed for domestic use, not professional. Do not blend large quantities at once.

Is the motor unit of the MS 9 blender waterproof?

No, the motor unit must never be immersed in water or any other liquid. To clean it, use a slightly damp cloth. Make sure no liquid enters inside.

How to ensure safety when using the MS 9 blender?

Never leave the appliance unattended while operating. Keep hands and utensils out of the container during blending. Use the appliance only for domestic use and according to instructions. Unplug after use and before cleaning.

USER MANUAL MS 9 TEAM

3D rendered image of a vacuum cleaner with a pointed tip and base (no text or symbols visible)

Stabmixer

Stickmixer

Mixeur Plongeant

Staafmixer

Batidora De Varilla

Varimha

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

2

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

D

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

HALTERUNG

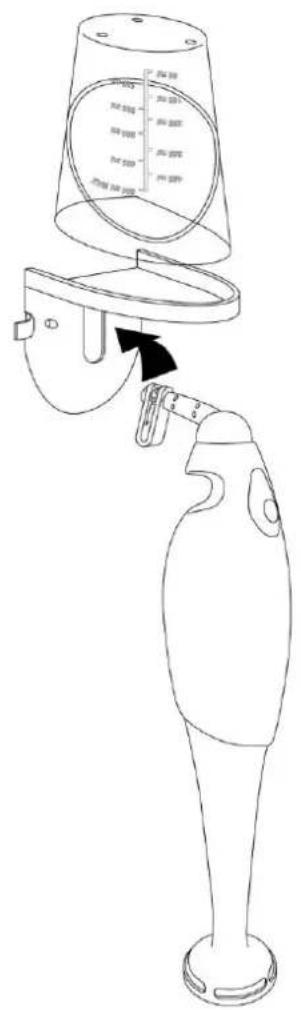

Mount the support on the wall. You will now be able to suspend the mixer when it is not in use.

SUPPORT MURAL

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

BETRIEBSDAUER

☐ Please read these instructions carefully before using the appliance.
☐ Check that your mains voltage corresponds to that stated on the appliance.
□ Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.
From time to time check the cord for damages. Never use the appliance if cord or appliance show any signs of damage.
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
☐ Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
□ Never use the appliance near hot surfaces.
☐ Should the cord be damaged, it must be replaced by a competent qualified electrician ^(*) .
Before cleaning, always unplug the appliance from the power supply.
☐ All repairs should be made by a competent qualified electrician ^15 .
□ Never use the appliance outside and always place it in a dry environment.
☐ Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
□ Unplug the appliance when not in use.
☐ Only use this mixer for cooking purposes.
☐ This kind of appliance can not function continuously; it is not a professional type of appliance. It is necessary to make temporary stops. Check the section « Important information » in the instruction manual.
☐ It is absolutely necessary to keep this appliance clean at all times as it comes into direct contact with food.
☐ The blade of this appliance is extremely sharp, always be very careful when handling the appliance.
☐ Make sure your hands and/or any kind of utensil stay clear of the recipient when the appliance is in use in order to avoid serious injuries.
☐ You may use a scraper (to clean the blades) when the appliance is unplugged.
☐ When mixing warm liquid, be particularly careful as a projection of warm liquid could cause serious burns. Never use this appliance to mix boiling liquids.
☐ The appliance is designed for the preparation of small quantities of food, which have to be consumed rather quickly. It is not designed for the preparation of large quantities at once.
☐ Never touch the blade when the appliance is in use. Furthermore, never try to stop the movement of the blade in any way whatsoever.

IMPORTANT INFORMATION

This appliance is not for professional use. You should follow the requested breaks. Failure to follow this instruction carefully may result in damage to the motor. Please refer to the rating label for the maximum continuous usage time (KB xx min. or xx is the maximum usage time). The breaks should last at least 10 minutes.

UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY)

This product must only be used from a 13 amp power socket. If a BS1363 approved 13 amp plug is used, it should be fitted with a 13 amp fuse. The wires on the power cord are colour coded: blue = neutral, brown = live, green or green & yellow = earth.

The blue wire must be connected to the terminal marked N or coloured in black.

The brown wire must be connected to the terminal marked L or coloured in red.

The green & yellow wire must be connected to the terminal marked E or coloured in green & yellow.

HOW TO USE

Your new stick mixer is a convenient and easy to use for powerful high speed blending. It is great for shakes, soups, sauces, omelettes and much, much more.

• Before using for the first time, the appliance should be cleaned with a damp cloth. Ensure the unit is unplugged first!
• Screw the shaft onto the screw thread at the bottom of the motor unit. Take care to screw the shaft in the direction shown by the locked symbol 🔒. This is a left-hand screw thread. Using gentle hand pressure only ensures that the shaft is fully tightened on to the motor unit.
• Put the ingredients into a suitable container such as a mixing bowl, cooking pan or mixing beaker (if included). Do not over fill to avoid splashing when the motor is switched on.
• Plug in at the mains.
• Put the shaft of the appliance into the ingredients before pressing the on switch. This will avoid splashing when the motor is switched on.
• Switch on motor and blend but remember to use for no longer than 3 minutes continuous use. The motor must then be rested for 10 minutes.

HOW TO CLEAN DETACHABLE METAL LEG

• Always unplug the unit before cleaning.
- The motor unit should only be wiped down with a moist cloth.
- Unscrew the shaft from the screw thread at the bottom of the motor unit. Take care to screw the shaft in the direction shown by the unlocked symbol ⚙, This is a left-hand screw thread.
- Wash the shaft under running water immediately after use. If it is very dirty, it can be washed in warm washing-up water.
- DO NOT wash the metal detachable shaft in a DISHWASHER. The chemicals used in dishwashers will mark and stain the surface of the aluminium leg.
• Dry the metal detachable shaft thoroughly after washing.
- For best results after cleaning and drying, lightly coat the metal surfaces with cooking oil. This will keep the finish bright and stain free.
• NEVER IMMERSE THE MOTOR UNIT IN ANY LIQUID.

- The metal detachable shaft is made from food grade aluminium which complies with the European Standard EN 601:1994.
