ST 29 ET - Vacuum Cleaner TEAM - Free user manual and instructions

Product Type	Canister vacuum cleaner with bag
Brand	Team
Model	ST 29 ET
Rated power	Approx. 1200 W (estimate)
Supply voltage	220-240 V ~ 50/60 Hz (estimate)
Power cord length	Approx. 5 m (with automatic cord winder)
Dust bag capacity	Approx. 3 L (estimate)
Filtration system	Motor filter + micro filter + air filter
Power control	Electronic slider control
Bag full indicator	Yes, red indicator
On/off pedal	Yes
Cord winder pedal	Yes
Telescopic tube	Yes, adjustable length
2-position universal brush	Smooth floors / carpets and rugs
Crevice tool for baseboards and furniture included	Yes
Weight	Approx. 4.5 kg (estimate)
Dimensions (W x D x H)	Approx. 40 x 25 x 30 cm (estimate)
Motor filter maintenance	Every 3 months approximately
Paper bag replacement	When the indicator is red
After-sales service	Fox [phone]

Frequently Asked Questions - ST 29 ET TEAM

How to assemble the TEAM ST 29 ET vacuum cleaner?

Insert the flexible hose into the connection port and turn until it clicks. Connect the tube to the hose handle. Attach the brush or nozzle to the end of the tube. Adjust the telescopic tube length by turning the OPEN-CLOSE ring.

How to use the 2-position universal brush?

For carpets and rugs, set the brush to extended position (A). For smooth floors (tiles, parquet), use the retracted position (B). Simply operate the lever to change the position.

When and how to change the dust bag?

Replace the paper bag when the fill indicator is fully red. Unplug the appliance, open the cover, remove the old bag, insert the new bag by pushing the cardboard disc into the slot, close the cover.

How to clean or replace the filters?

The motor filter should be cleaned approximately every 3 months. The air filter should also be replaced every 3 months. For the air filter, lift the rear grille, replace the filter, close the grille. Always unplug the appliance before any intervention.

What to do if the vacuum cleaner no longer sucks properly?

First check that the bag is not full (red indicator). If the indicator is red but the bag is not full, there may be a blockage in the tube or hose. Unplug the appliance and remove the obstruction. Also check the filters.

How to adjust the suction power?

The power is adjusted electronically using the power control slider on the appliance. Use low power for delicate fabrics and maximum power for carpets and hard floors.

How to use the cord winder?

After use, turn off the appliance, unplug it, then press the cord winder pedal to store the cord automatically. Never exceed the red mark when unwinding.

What are the important safety instructions?

Do not use the vacuum cleaner outdoors or on wet surfaces. Do not vacuum liquids, hot embers, or sharp objects. Keep out of reach of children. Unplug before any maintenance. Do not pull on the cord.

Can the vacuum cleaner be used without a bag?

No, this vacuum cleaner is designed exclusively for use with a paper dust bag. Using it without a bag would damage the appliance and void the warranty. Always use a suitable bag.

Where to find spare parts for the TEAM ST 29 ET?

Contact after-sales service at Fox [phone]. Only use accessories recommended by the manufacturer to avoid danger and damage.

USER MANUAL ST 29 ET TEAM

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

Bodenstaubsauger

Vacuum Cleaner

Aspirateur

Sledestofzuiger

Aspirador

Aspirador

Aspirapolvere

CE

I/B Version 030418

TEAM ST 29 ET

230V~1500Wmax

Front cover page (first page)

Fox [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

D

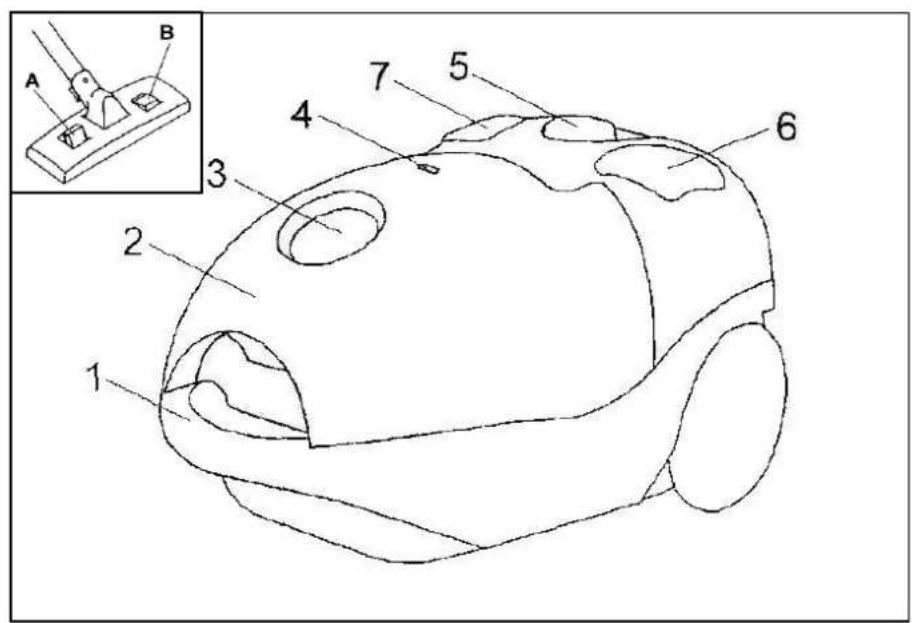

1. Handle
2. Dust cover
3. Hose connection inlet
4. Dust bag level indicator
5. Electronic power control switch
6. ON/OFF switch
7. Cable rewind button

F

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

Fig. 1

Fig. 2

Fig. 3

Fox [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

ZUSAMMENBAUEN DES STAUBSAUGERS

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

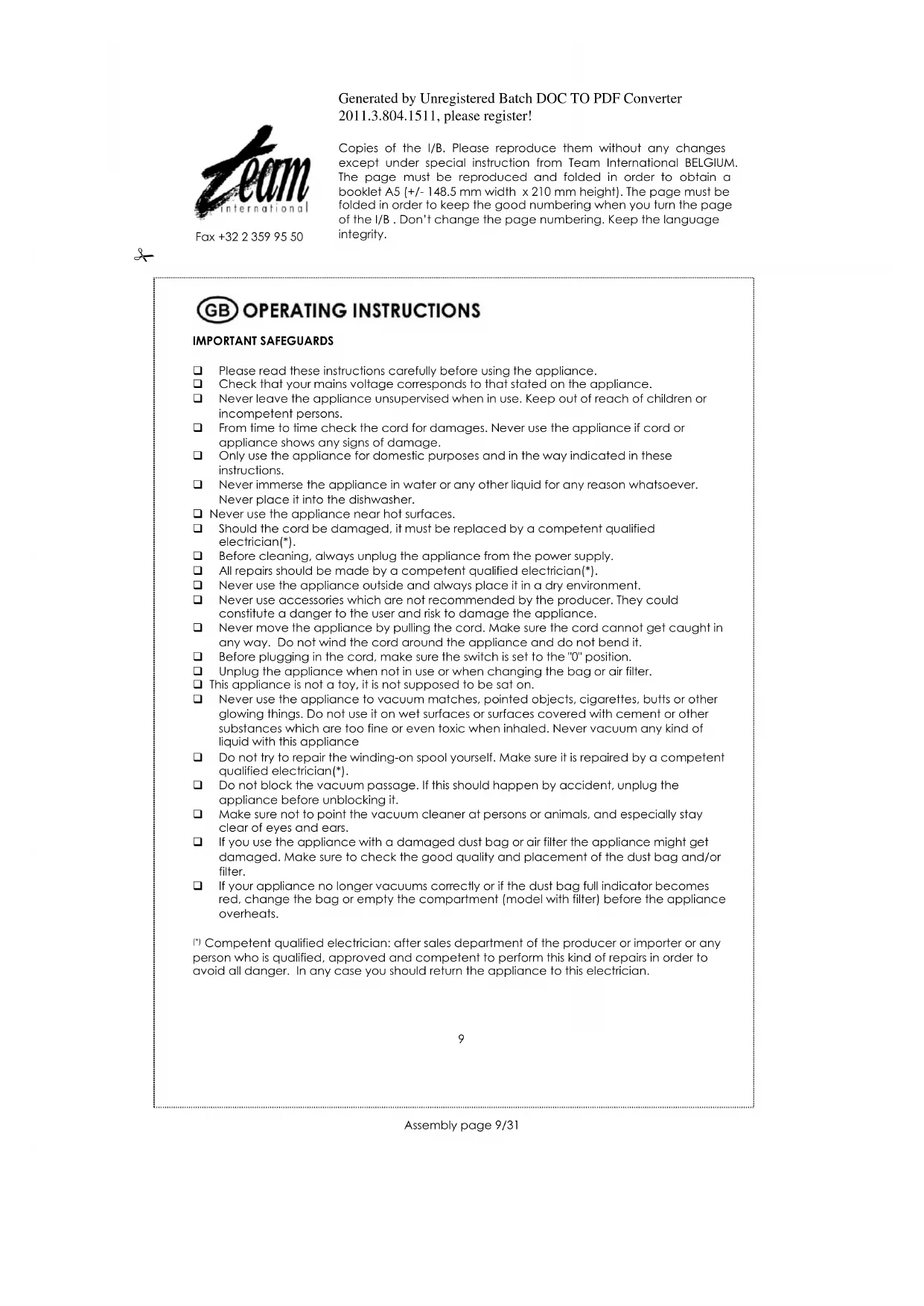

GB OPERATING INSTRUCTIONS

IMPORTANT SAFEGUARDS

Please read these instructions carefully before using the appliance.

Check that your mains voltage corresponds to that stated on the appliance.

Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.

From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage.

Only use the appliance for domestic purposes and in the way indicated in these instructions.

Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.

Never use the appliance near hot surfaces.

Should the cord be damaged, it must be replaced by a competent qualified electrician*.

Before cleaning, always unplug the appliance from the power supply.

All repairs should be made by a competent qualified electrician*

Never use the appliance outside and always place it in a dry environment.

Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.

Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.

Before plugging in the cord, make sure the switch is set to the "0" position.

Unplug the appliance when not in use or when changing the bag or air filter.

This appliance is not a toy, it is not supposed to be sat on.

Never use the appliance to vacuum matches, pointed objects, cigarettes, butts or other glowing things. Do not use it on wet surfaces or surfaces covered with cement or other substances which are too fine or even toxic when inhaled. Never vacuum any kind of liquid with this appliance

Do not try to repair the winding-on spool yourself. Make sure it is repaired by a competent qualified electrician*

Do not block the vacuum passage. If this should happen by accident, unplug the appliance before unblocking it.

Make sure not to point the vacuum cleaner at persons or animals, and especially stay clear of eyes and ears.

If you use the appliance with a damaged dust bag or air filter the appliance might get damaged. Make sure to check the good quality and placement of the dust bag and/or filter.

If your appliance no longer vacuums correctly or if the dust bag full indicator becomes red, change the bag or empty the compartment (model with filter) before the appliance overheats.

(1) Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

Fox [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY)

This product must only be used from a 13 amp power socket. If a BS1363 approved 13 amp plug is used, it should be fitted with a 13 amp fuse. The wires on the power cord are colour coded:

blue = neutral, brown = live, green or green & yellow = earth.

The blue wire must be connected to the terminal marked N or coloured in black.

The brown wire must be connected to the terminal marked L or coloured in red.

The green (& yellow) wire must be connected to the terminal marked E or coloured in green (& yellow).

ASSEMBLING THE VACUUM CLEANER

Always remove the plug from the power socket before fitting or removing accessories!
- Insert the connection wand into hose connection inlet until it locks (Fig. 1).
- Connect both parts of the tube.
- Fitting the telescopic tube to the handle (Fig. 2).
- Fitting the telescopic tube to the floor brush (Fig. 3).
- You can adjust the length of the telescopic tube. Grasp the upper tube in order to read the text on the locking ring (OPEN-CLOSE) and twist the lower tube from right to left to loosen the locking ring, then pull the lower half down to the desired length, and then turning the locking ring from left to right to lock the assembly. For storage of the tube assembly, reverse the above procedure.
- Removing telescopic tube and accessories: to remove the accessories, pull firmly apart.
The floor brush is ideal for the daily cleaning of carpets and hard floors.
Press the lever (A) for cleaning carpets.
Press the lever (B) for cleaning hard floors.
The appliance is delivered with a crevice tool: for radiators, crevices, corners, baseboards and between cushions.

OPERATIONS

Pull out a sufficient length of power cord and insert the plug into the power socket. A yellow mark on the power cable shows the ideal cable length. Do not extend the cable beyond the red mark.
It is advisable to set the electronic power regulator to MIN before switching the appliance on. By moving the regulator button, the suction power can be adjusted.

WHEN CLEANING IS FINISHED

• Stop the vacuum cleaner by depressing on the switch button.
• Disconnect plug from electrical outlet
  Simply press lightly with your foot on cable rewind button on top of cleaner.

REPLACING THE DUST BAG AND CLEANING THE FILTERS

The filter system consists of: 1 Motor filter

1 Air filter, to vacuum the smallest particles

It is necessary to clean the filters regularly to avoid operating problems.

Fox [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

Replacing the dust bag

• The dust bag level indicator indicates when the dust bag should be replaced. Caution: The hose might get blocked by a larger object. In this case the dust bag level indicator will be red. However this does not mean that you have to replace the dust bag. Just remove the object, which blocks your tube or flexible hose, and your appliance will function properly again.
• Unplug the appliance and replace the dust bag when the dust bag level indicator is completely red.
• Lift dust cover catch and raise dust cover.
• Remove the dust bag from its holder and throw it in the dust bin without folding it.
  Put a new dust bag in the appliance, by sliding its cardboard part in the slots.
• Close the front cover by pressing it slightly. The flexible hose will be connected automatically with the opening of the dust bag.

Motor Filter

Filter should be rinsed clean at least three times a year or when it becomes visibly solid.

Air Filter

This filter guarantees pure air when using your vacuum cleaner. It should be replaced approximately every 3 months.
- Unplug the appliance and remove the grid at the back of the appliance. Replace the filter and put the grid back on the filter.

PRACTICAL HINTS

• When cleaning stairs, we advise you to keep the unit in a vertical orientation. The hose is mounted on a 360 degree swivel joint to make the cleaning task easier.
  The vacuum cleaner requires no other regular maintenance other than the filter cleaning and bag replacement tasks as detailed elsewhere.
  We advise that you ensure the power cord does not become tangled or knotted, as this will impair the performance of the machine. Always ensure the unit is OFF and unplugged when de-knotting or untangling the power cord.
  If you notice a loss of suction power, it is probably due to one or a combination of the following events:

blocked filter; clean as described elsewhere.
full or punctured bag: replace as described elsewhere

blockage in tubes: switch OFF before disassembling and removing the blockage

Always switch OFF before attempting to clean or unblock the unit.

CAUTION: Please insert the dust bag in its support, paying attention to locate the bag opening in the centre of the support.

Fox [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

FR MODE D'EMPLOI

POUR VOTRE SECURITE

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

Fox [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

MONTAGE DE L'APPAREIL

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

GEBRUIKSAANWIJZING

BELANGRIJKE VEILIGHEIDSVOORSCHRIFTEN

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

Fox [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

MONTAGE VAN HET APPARAAT

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

MONTAJE DEL APARATO

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

P MODO DE EMPREGO

PENSANDO NA VOSSA SEGURANCA

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

MONTAGEM DO ASPIRATOR

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

Micro filtro do ar

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

1 ISTRUZIONI PER L'USO

AVVERTENZE

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

INSTALLAZIONE DELL'APPARECCHIO

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

Fox [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

TEAM ST 29 ET

Deutsch	5
English	8
François	11
Nederlands	14
Espano	17
Portugues	20
Italiano	23
