ST 40 - Vacuum Cleaner TEAM - Free user manual and instructions

Product Type	Canister vacuum cleaner
Brand	Team
Model	ST 40
Power supply	Mains, 230 V ~ 50 Hz
Cord length	Approx. 6 m (with automatic rewind)
Bag type	Paper bag Swirl Y101
Bag capacity	3 L (estimated)
Motor filter	Washable, clean every 3 months
Air filter	Washable, clean every 3 months
Bag full indicator	Yes, red indicator
On/off switch	Yes, on the body of the appliance
Cord rewind	Yes, rewind button
Combination nozzle	2 positions: brush retracted for carpets, brush extended for hard floors
Included accessories	Combination nozzle, combination crevice tool/brush for furniture, narrow nozzle
Usage	Household
Maintenance	Clean filters regularly, replace bag if necessary
Safety	Do not vacuum liquids or hot substances; do not use without bag or filter
Repairability	Have repaired by a qualified service
Environmental protection	Do not dispose with household waste, take to a recycling center

Frequently Asked Questions - ST 40 TEAM

How to assemble the Team ST 40 vacuum cleaner?

Unpack the appliance and its accessories. Connect the hose into the opening on top until it clicks. Assemble the tube onto the hose handle, then attach the combination nozzle or another accessory to the end of the tube.

How to use the combination nozzle on different floors?

The combination nozzle has two positions: brush retracted for carpets and rugs, brush extended for hard floors (tile, parquet). Change the position by pushing the pedal or turning the brush.

What to do if the bag full indicator turns red?

The red indicator means the bag is full or there is a blockage. First check if an object is blocking the suction. If not, replace the dust bag. Note: on thick carpet, the indicator may light up temporarily: lift the brush and if it stays red, change the bag.

How to replace the dust bag?

Unplug the appliance, detach the hose, open the cover by pressing the release button, remove the bag holder, discard the old bag, insert a new Swirl Y101 bag by sliding the cardboard, replace the holder, close the cover and reconnect the hose.

How to clean the filters?

The motor filter (at the motor inlet) and the air filter (under the rear grille) can be cleaned with water and detergent. Remove them, wash, rinse and let them dry completely before putting them back. Clean them about every 3 months.

Can the Team ST 40 vacuum liquids?

No, this vacuum cleaner is designed for dry vacuuming only. Do not vacuum any liquids, as this could damage the appliance and pose a danger.

The vacuum cleaner no longer picks up properly, what should I do?

First check if the bag is full or if there is a blockage in the tube or hose. If the indicator is red, replace the bag. If the problem persists, check that the filters are not clogged and clean them. If nothing works, take the appliance to an authorized service center.

How to rewind the power cord?

After use, unplug the vacuum cleaner and press the cord rewind button. The cord will retract automatically. Hold the plug to prevent it from whipping.

Does the vacuum cleaner have an automatic shut-off?

No, this appliance does not have an automatic shut-off. You must turn it off manually using the on/off switch. Never leave it unattended while powered.

What accessories are included with the vacuum cleaner?

The included accessories are: a combination nozzle (for floors), a combination crevice tool/brush for upholstered furniture, and a narrow nozzle for hard-to-reach areas. They attach to the handle or tube.

USER MANUAL ST 40 TEAM

team International

Compact vacuum cleaner

Aspirateur compact

Aspirador compacto

Aspirador compacto

I/B Version

070523

TEAM ST 40

230 V\~ 1300 W max

2 TEAM ST 40 - 070523

GB

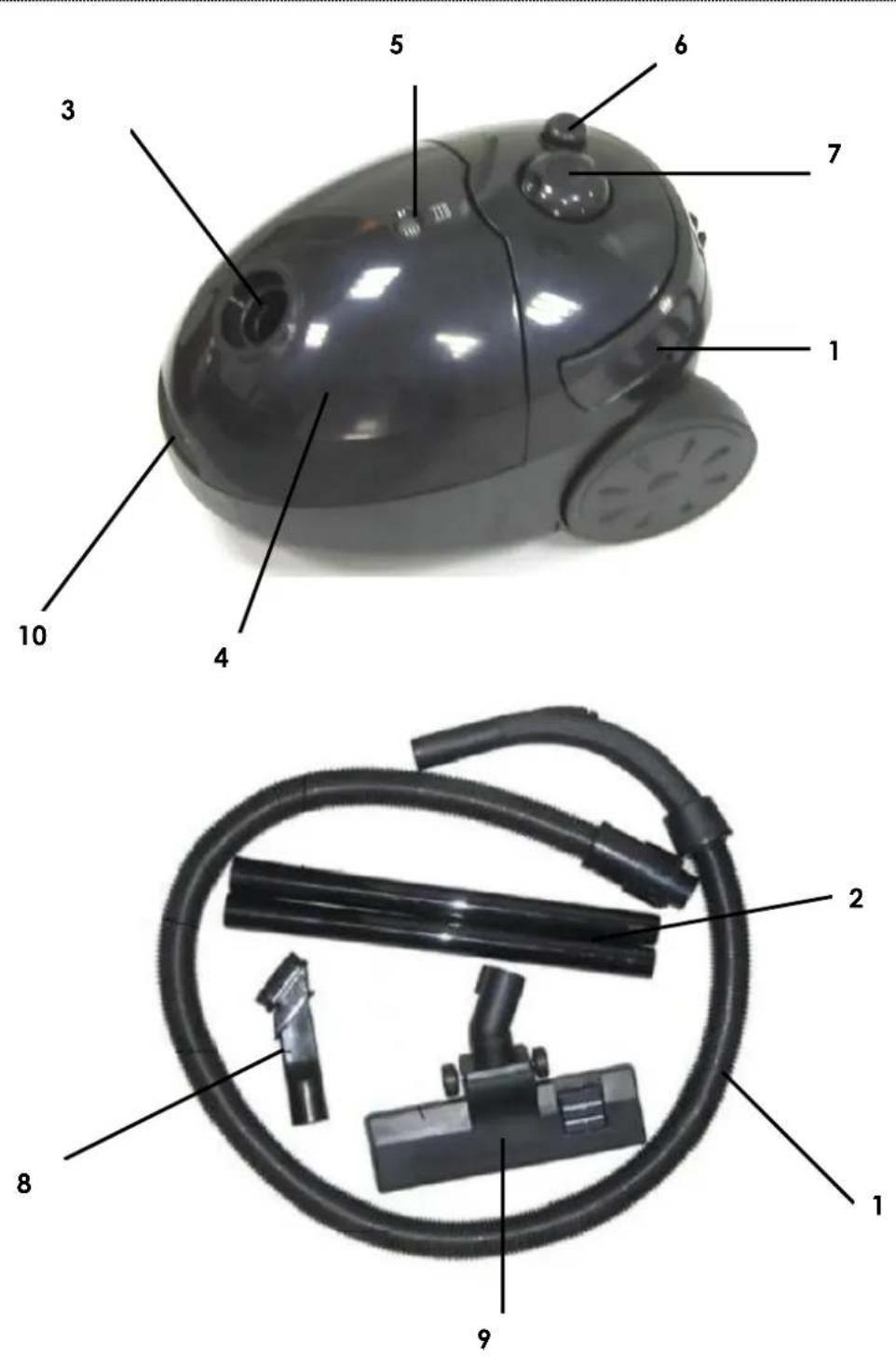

1. Flexible hose
2. Tube
3. Hose connection
4. Cover
5. Dust bag level indicator
6. Cable rewind button
7. ON/Off switch
8. Combined crevice tool and upholstery brush
9. Floor brush
10. Release button of the cover

F

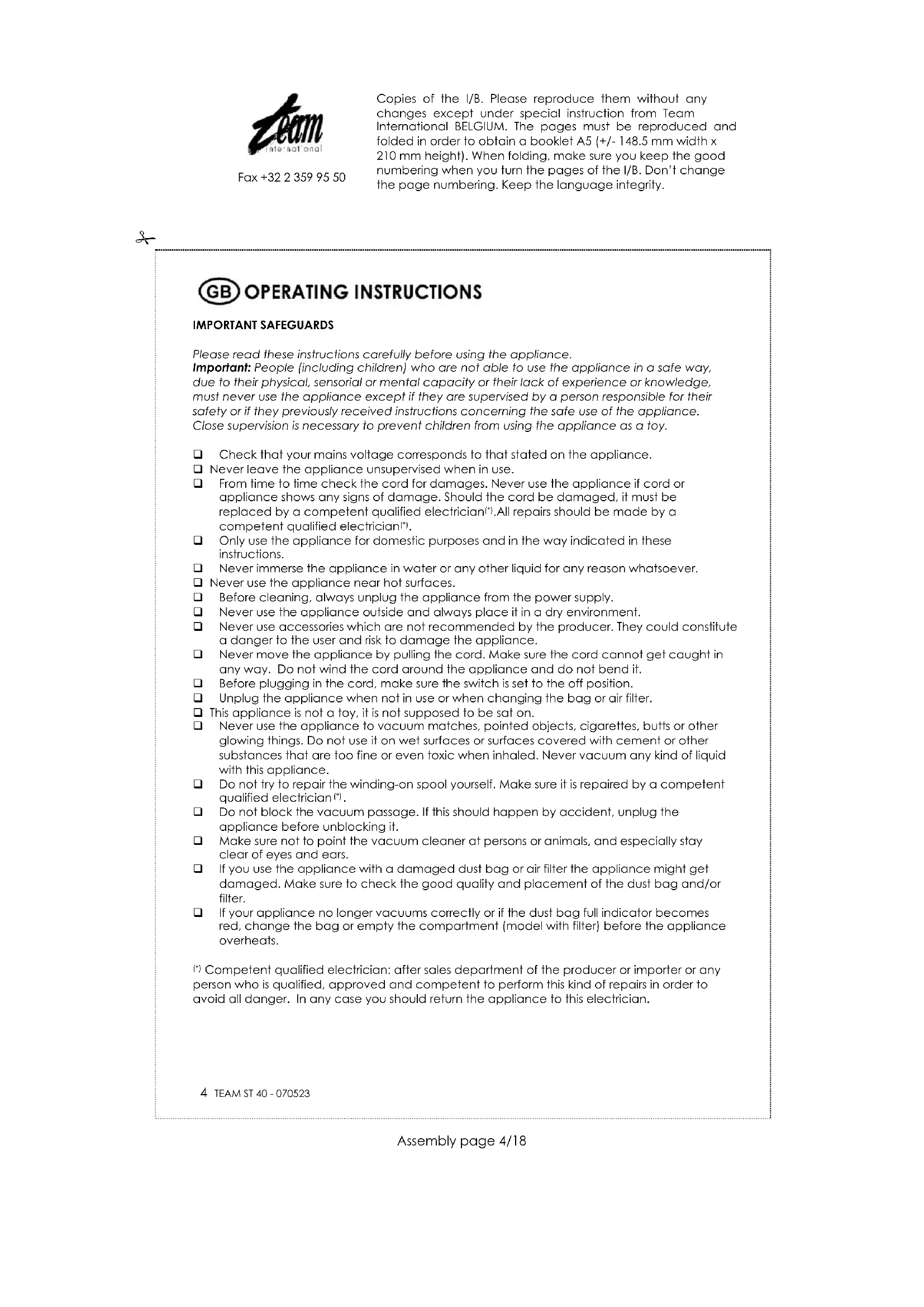

Please read these instructions carefully before using the appliance.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy.

☐ Check that your mains voltage corresponds to that stated on the appliance.
☐ Never leave the appliance unsupervised when in use.
From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage. Should the cord be damaged, it must be replaced by a competent qualified electrician ^[1] . All repairs should be made by a competent qualified electrician ^[2] .
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
☐ Never immerse the appliance in water or any other liquid for any reason whatsoever.
□ Never use the appliance near hot surfaces.
Before cleaning, always unplug the appliance from the power supply.
☐ Never use the appliance outside and always place it in a dry environment.
☐ Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
Before plugging in the cord, make sure the switch is set to the off position.
☐ Unplug the appliance when not in use or when changing the bag or air filter.
☐ This appliance is not a toy, it is not supposed to be sat on.
☐ Never use the appliance to vacuum matches, pointed objects, cigarettes, butts or other glowing things. Do not use it on wet surfaces or surfaces covered with cement or other substances that are too fine or even toxic when inhaled. Never vacuum any kind of liquid with this appliance.
☐ Do not try to repair the winding-on spool yourself. Make sure it is repaired by a competent qualified electrician ^[1] .
☐ Do not block the vacuum passage. If this should happen by accident, unplug the appliance before unblocking it.
☐ Make sure not to point the vacuum cleaner at persons or animals, and especially stay clear of eyes and ears.
☐ If you use the appliance with a damaged dust bag or air filter the appliance might get damaged. Make sure to check the good quality and placement of the dust bag and/or filter.
☐ If your appliance no longer vacuums correctly or if the dust bag full indicator becomes red, change the bag or empty the compartment (model with filter) before the appliance overheats.

(1) Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

ASSEMBLING THE VACUUM CLEANER

• Always remove the plug from the power socket before fitting or removing accessories!
- Insert the hose connector into hose connection inlet until it locks. To remove the hose, press the sides of the hose connector and pull at the hose.
• Fit the tube to the handle.
• Fit the tube to the floor brush.
- Removing tube and accessories: to remove the accessories, pull firmly apart.
• The floor brush is ideal for the daily cleaning of carpets and hard floors.
Setting with the bristles inside for cleaning carpets. Setting with the bristles outside for cleaning hard floors.

OPERATIONS

• Pull out a sufficient length of power cord and insert the plug into the power socket. A yellow mark on the power cable shows the ideal cable length. Do not extend the cable beyond the red mark. Switch on the appliance by pressing the ON/OFF switch with your foot.
• With the supplied accessory you can clean surfaces that are hard to reach, such as furniture (use the crevice tool) and delicate surfaces such as curtains (use the small brush). This accessory can be mounted on the handle or on the tube.

AFTER USE

• Stop the vacuum cleaner by pressing the ON/OFF switch.
• Unplug the appliance from the power supply.
  • Simply press the cable rewind button to activate the cable rewind mechanism.

REPLACING THE DUST BAG AND CLEANING THE FILTERS

Motor filter

The motor filter is situated in front of the motor. To clean it (approximately every 3 months), unplug the appliance, open the dust compartment and remove the filter to wash it in soapsuds and rinse it. When it is completely dry, put it back in the appliance.

Air Filter

• This air filter (situated under the protection grid on the back of the appliance) guarantees fresh air during cleaning. It should be replaced approximately every 3 months (depending on the operation frequency)
• To clean it, unplug the appliance, open the protection grid, remove the filter, clean it in soapsuds and rinse it. When it is dry, put it back and close back the protection grid.

NOTE: After a certain number of cleanings the filters will be damaged or impossible to get back in their initial shape. In such case you will have to replace them.

Paper dust bag (swirl Y101)

• The dust bag level indicator indicates when the dust bag should be replaced.
- The hose might get blocked by a larger object. In this case the dust bag level indicator will be red. However this does not mean that you have to replace the dust bag. Just remove the object, which blocks your tube or flexible hose, and your appliance will function

5 TEAM ST 40 - 070523

properly again. Do not forget to unplug the appliance before removing the blocking object. Replace the dust bag when the dust bag level indicator is completely red.

• Switch off the appliance.
• Disconnect the hose.
• Open the dust compartment by pressing the release button.
  • Take the dust bag holder out of the appliance.
• Remove the dust bag from its holder and throw it in the dustbin.
• Put a new dust bag by sliding it along the holder's grooves.
• Put the holder with new dust bag back in the appliance.
• Close the dust compartment by slightly pressing on the front cover.
• Connect the hose again to the appliance.

PRACTICAL HINTS

• When cleaning stairs, we advise you to keep the unit in a vertical position.
• The floor brush is equipped with a hook, allowing you to attach the tube to the rear part of the appliance when it is in use, for instance when you want to move piece of furniture or when storing the appliance.
• The vacuum cleaner requires no other regular maintenance other than the filters cleaning and bag replacement tasks as detailed here above.
• If you notice a loss of suction power, it is probably due to one or a combination of the following events: blocked filter, full or punctured bag or blockage in tubes. If your appliance still does not work properly after you have checked those problems, please ask a qualified electrician for advice.

SPARE DUST BAGS AND FILTERS

In order to get new dust bags or filters, please contact the shop where you bought your vacuum cleaner, or contact our customer service.

PROTECTION OF THE ENVIRONMENT- DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol — the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
