5. Dust container with filter unit inside

10. Combined accessory (crevice

tool/upholstery brush)

11. Combined accessory holder

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

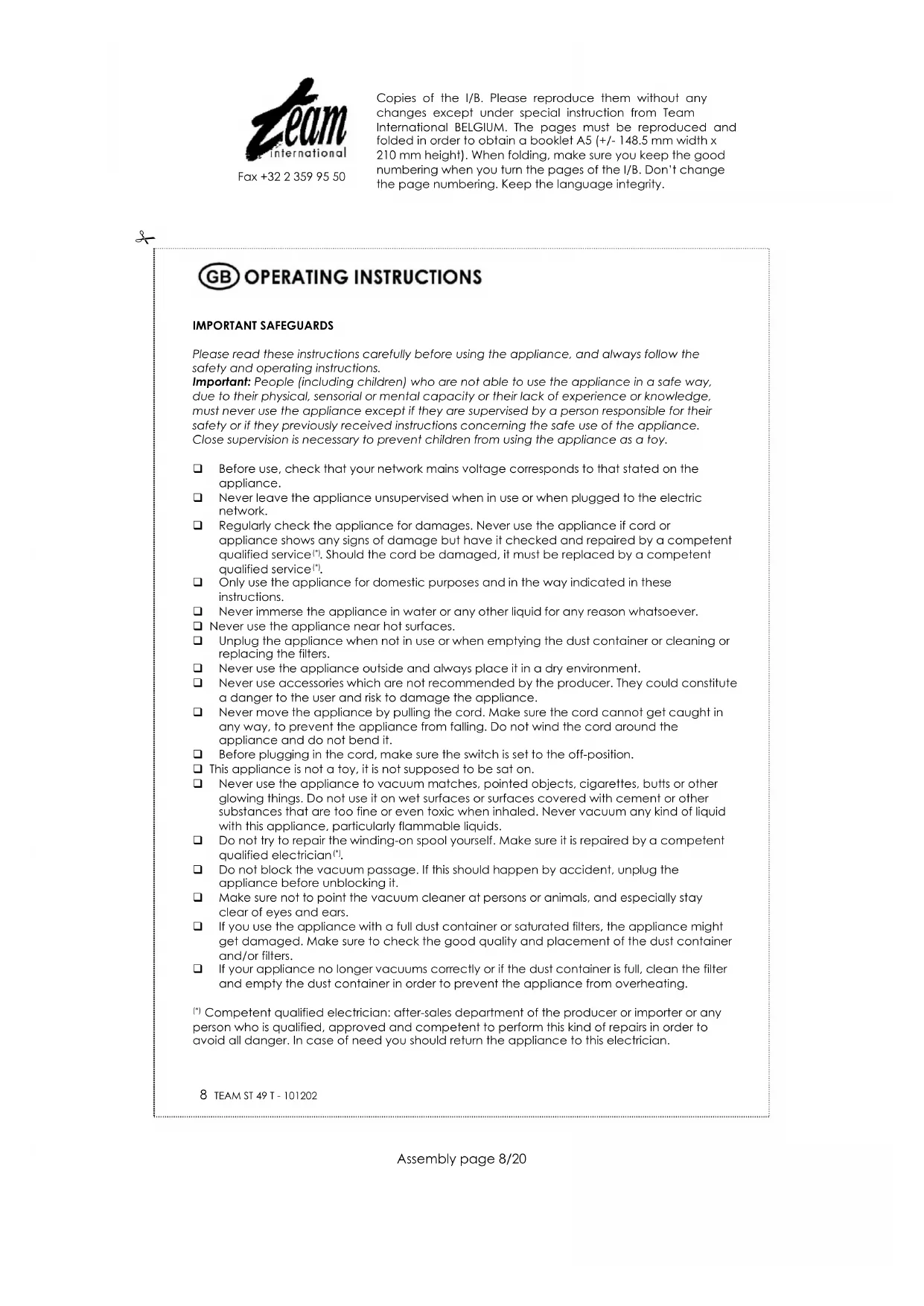

IMPORTANT SAFEGUARDS Please read these instructions carefully before using the appliance, and always follow the safety and operating instructions. Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy. Before use, check that your network mains voltage corresponds to that stated on the appliance. Never leave the appliance unsupervised when in use or when plugged to the electric network. Regularly check the appliance for damages. Never use the appliance if cord or appliance shows any signs of damage but have it checked and repaired by a competent qualified service

. Should the cord be damaged, it must be replaced by a competent qualified service

Only use the appliance for domestic purposes and in the way indicated in these instructions. Never immerse the appliance in water or any other liquid for any reason whatsoever. Never use the appliance near hot surfaces. Unplug the appliance when not in use or when emptying the dust container or cleaning or replacing the filters. Never use the appliance outside and always place it in a dry environment. Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance. Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way, to prevent the appliance from falling. Do not wind the cord around the appliance and do not bend it. Before plugging in the cord, make sure the switch is set to the off-position. This appliance is not a toy, it is not supposed to be sat on. Never use the appliance to vacuum matches, pointed objects, cigarettes, butts or other glowing things. Do not use it on wet surfaces or surfaces covered with cement or other substances that are too fine or even toxic when inhaled. Never vacuum any kind of liquid with this appliance, particularly flammable liquids. Do not try to repair the winding-on spool yourself. Make sure it is repaired by a competent qualified electrician

Do not block the vacuum passage. If this should happen by accident, unplug the appliance before unblocking it. Make sure not to point the vacuum cleaner at persons or animals, and especially stay clear of eyes and ears. If you use the appliance with a full dust container or saturated filters, the appliance might get damaged. Make sure to check the good quality and placement of the dust container and/or filters. If your appliance no longer vacuums correctly or if the dust container is full, clean the filter and empty the dust container in order to prevent the appliance from overheating.

Competent qualified electrician: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this electrician. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Always remove the plug from the power socket before fitting or removing accessories! Press the sides of the hose connector and insert the hose connector into the hose connection. To remove the hose, press the sides of the hose connector and pull at the hose. Fit the tube to the handle. Fit the tube to the floor brush. Removing telescopic tube and accessories: to remove the accessories, pull firmly apart. The floor brush is ideal for the daily cleaning of carpets and hard floors. Setting with the bristles inside for cleaning carpets. Setting with the bristles outside for cleaning hard floors. The appliance is delivered with the following accessories: a crevice tool: for radiators, crevices, corners, baseboards and between cushions. an upholstery brush: for curtains, cushions, edges, doors, mattresses etc.

OPERATION Pull out a sufficient length of power cord and insert the plug into the power socket. A yellow mark on the power cable shows the ideal cable length. Do not extend the cable beyond the red mark. Switch on the appliance by pressing the ON/OFF switch with your foot. You can adjust the suction power by using the wind-force adjuster on the handle of the flexible hose. Use a low suction power for furniture and other delicate surfaces and use high suction power for fitted carpet and other floors.

AFTER USE Stop the vacuum cleaner by pressing the ON/OFF switch. Unplug the appliance from the power supply. Simply press the cable rewind button to activate the cable rewind mechanism. The carrying handle can be used to move the appliance. After use we advise you to empty the dust collector to avoid smells and mildew that could be caused by damp dust particles that may have been vacuumed, and also to guarantee an optimal efficiency during the next use. To do so, see below.

Press the release button of the dust container and pull the dust container out. Hold the dust collector over a dustbin, press the unlocking button at the bottom of the handle of the dust collector to open the lower cover of the dust container and spill the rubbish. Close the dust collector and put the dust collector back in the appliance until it locks in place. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

CLEANING THE FILTERS

Filters The filter system consists of: 1 cyclone filter to vacuum the smallest particles (in the dust container) 2 motor filters (on top of the dust collector) 1 air filter, to vacuum the smallest particles (at the back of the appliance) It is necessary to clean the 3 last filters regularly to avoid operating problems. Motor filter To clean the motor filters (filters situated under the lid of the dust collector), switch off the appliance, take out the dust collector and turn its lid anticlockwise to take it off. Take the bracket with the white filter and also remove the black filter to wash them both in soapsuds (approximately every 3 months). Rinse the filters and let them dry. When the filters are completely dry, put them back in the appliance. To do so, put the black filter and the bracket with the white filter back in place correctly. Then put the lid back on, making sure that the lugs of the lid fit into the slots of the dust collector, and turn the lid clockwise gently to lock it in place. Make sure that the handle is aligned with the decorative part of the dust collector. Air filter This air filter (situated behind the grid at the back of the appliance) guarantees fresh air during cleaning. It should be replaced approximately every 3 months (depending on the operating frequency). Switch off the appliance, open the grid, remove the filter and clean it in soapsuds. When it is dry, put it back and close back the grid. NOTE: After a certain number of cleanings the filters will be damaged or impossible to get back in their initial shape. In such case, please contact the nearest customer service to obtain new filters. Cleaning the dust collector Press the release button of the dust container and pull the dust container out. Turn the lid of the dust collector anticlockwise to take it off and remove the motor filters. Put your fingers into the two half circles indicated by an arrow and turn anticlockwise gently. Then pull to take the cyclone filter out. You can unscrew the plastic bottom part to rinse it with water. Screw it back on after cleaning. Clean the inside of the dust collector, the lid and the cyclone filter with a damp cloth or sponge, but make sure they are totally dry before using the appliance again. When the dust collector and its lid are completely dry, put the cyclone filter back into the dust collector and turn the cyclone filter clockwise gently to lock it in place, making sure that the “triangle” of the filter is right next to the opening of the dust collector. Put the motor filters back in place and put the lid back on the dust collector in a correct way. Put the dust collector back in the appliance until it clicks into place. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

PRACTICAL HINTS When cleaning stairs, we advise you to keep the unit in a vertical position. The floor brush is equipped with a hook, allowing you to attach the tube to the rear part of the appliance when it is in use, for instance when you want to move a piece of furniture, or after use when storing your appliance. The vacuum cleaner requires no regular maintenance other than the filter cleaning tasks as detailed here above. If you notice a loss of suction power, it is probably due to one or a combination of the following events: blocked filter, full dust collector or blockage in tubes. If your appliance still does not work properly after you have checked those problems, please ask a qualified electrician for advice.
