USER MANUAL ST 47 TEAM

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.

Front cover page (first page) Assembly page 1/40

230V~ 50Hz 1400Wmax Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.

6. Dust container with filter unit inside

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.

3. Interruptor On/Off

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.

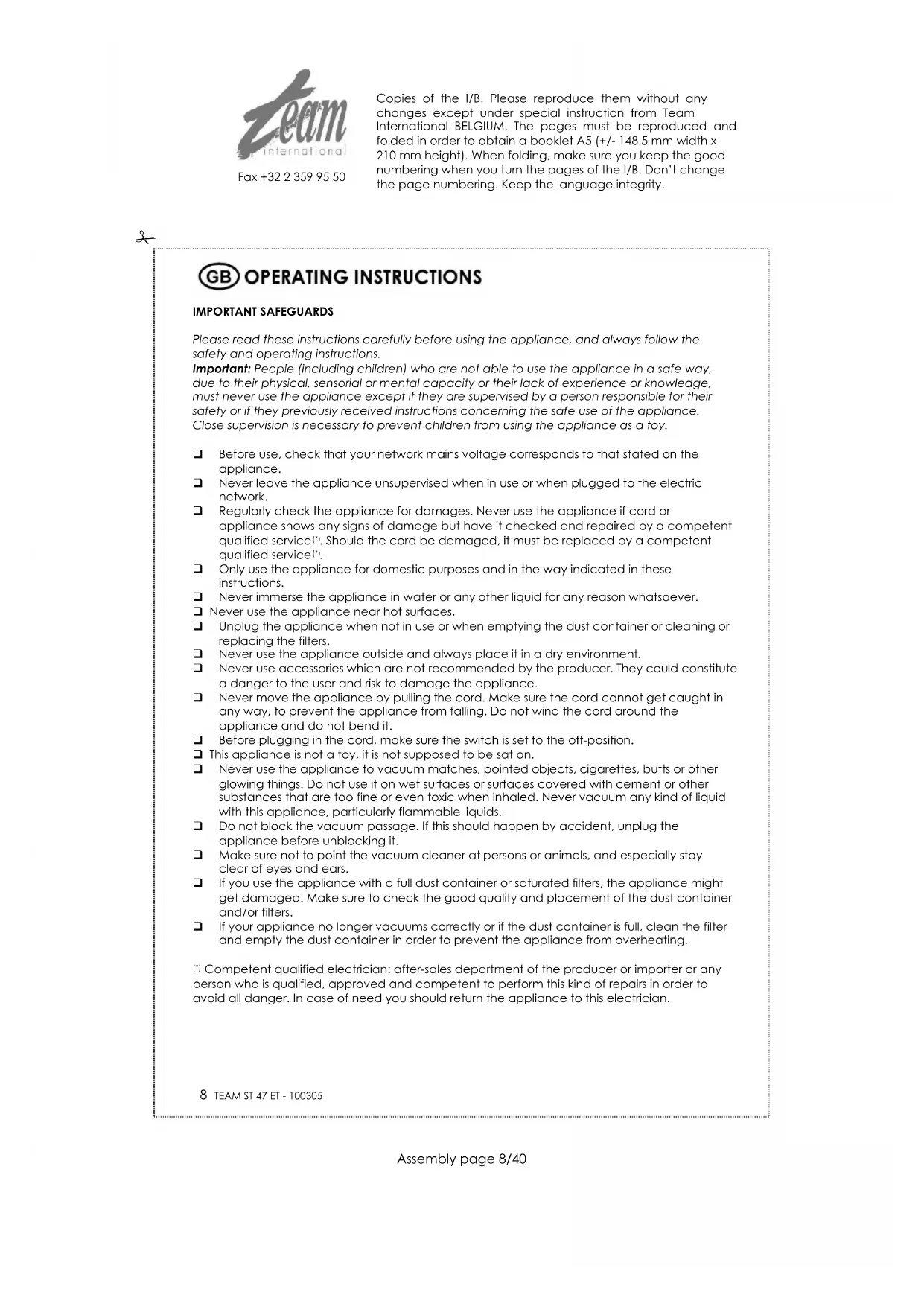

IMPORTANT SAFEGUARDS Please read these instructions carefully before using the appliance, and always follow the safety and operating instructions. Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy. Before use, check that your network mains voltage corresponds to that stated on the appliance. Never leave the appliance unsupervised when in use or when plugged to the electric network. Regularly check the appliance for damages. Never use the appliance if cord or appliance shows any signs of damage but have it checked and repaired by a competent qualified service

. Should the cord be damaged, it must be replaced by a competent qualified service

Only use the appliance for domestic purposes and in the way indicated in these instructions. Never immerse the appliance in water or any other liquid for any reason whatsoever. Never use the appliance near hot surfaces. Unplug the appliance when not in use or when emptying the dust container or cleaning or replacing the filters. Never use the appliance outside and always place it in a dry environment. Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance. Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way, to prevent the appliance from falling. Do not wind the cord around the appliance and do not bend it. Before plugging in the cord, make sure the switch is set to the off-position. This appliance is not a toy, it is not supposed to be sat on. Never use the appliance to vacuum matches, pointed objects, cigarettes, butts or other glowing things. Do not use it on wet surfaces or surfaces covered with cement or other substances that are too fine or even toxic when inhaled. Never vacuum any kind of liquid with this appliance, particularly flammable liquids. Do not block the vacuum passage. If this should happen by accident, unplug the appliance before unblocking it. Make sure not to point the vacuum cleaner at persons or animals, and especially stay clear of eyes and ears. If you use the appliance with a full dust container or saturated filters, the appliance might get damaged. Make sure to check the good quality and placement of the dust container and/or filters. If your appliance no longer vacuums correctly or if the dust container is full, clean the filter and empty the dust container in order to prevent the appliance from overheating.

Competent qualified electrician: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this electrician. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.

Always remove the plug from the power socket before fitting or removing accessories! Insert the hose connector into the hose connection inlet until it locks. To remove the hose, press the sides of the hose connector and pull at the hose. Fit the tube to the handle. Fit the tube to the floor brush. Removing telescopic tube and accessories: to remove the accessories, pull firmly apart. The floor brush is ideal for the daily cleaning of carpets and hard floors. Setting with the bristles inside for cleaning carpets. Setting with the bristles outside for cleaning hard floors. The appliance is delivered with the following accessories: a crevice tool: for radiators, crevices, corners, baseboards and between cushions. an upholstery brush: for curtains, cushions, edges, doors, mattresses etc. OPERATION Pull out a sufficient length of power cord and insert the plug into the power socket. A yellow mark on the power cable shows the ideal cable length. Do not extend the cable beyond the red mark. Switch on the appliance by pressing the ON/OFF switch with your foot. It is advisable to set the electronic power regulator to the minimum position MIN before switching on the appliance. By sliding the regulator button, the suction power can be adjusted. You can also adjust the suction power by using the wind-force adjuster on the handle. Use a low suction power for furniture and other delicate surfaces and use high suction power for fitted carpet and other floors. AFTER USE Stop the vacuum cleaner by pressing the ON/OFF switch. Unplug the appliance from the power supply. Simply press the cable rewind button to activate the cable rewind mechanism. The carrying handle can be used to move the appliance. After use we advise you to empty the dust collector to avoid smells and mildew that could be caused by damp dust particles that may have been vacuumed, and also to guarantee an optimal efficiency during the next use. To do so, see below.

EMPTYING THE DUST COLLECTOR

Press the release button of the dust container and pull the dust container out. Remove the lid of the dust container by turning it clockwise and spill the rubbish. Turn the lid back on the dust collector and put the dust collector back in the appliance until it locks in place.

CLEANING THE FILTERS

Filters The filter system consists of: 1 accordion filter to vacuum the smallest particles (in the dust container) 1 nylon filter (around the accordion filter) 1 air filter, to vacuum the smallest particles (at the back of the appliance) It is necessary to clean the filters regularly to avoid operating problems. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.

Fax [phone] Cleaning the accordion filter If you notice that even after having emptied the dust collector, the suction power is reduced, clean the accordion filter. To do so: Take out the dust collector as described above. Rotate the dust collector's lid clockwise to take it off. Rotate the accordion filter from the dust collector's lid until it is unlocked. Take the nylon filter from the accordion filter. If necessary, wash it in soapsuds. Make sure it is dry before putting it back in place. Rinse the bracket and accordion filter in water, if necessary with help of a soft brush, and dry them completely. Never put them in the washing machine and never dry them with a hair dryer. To put the nylon filter and the accordion filter back, proceed inversely. Air Filter This air filter (situated behind the grid at the back of the appliance) guarantees fresh air during cleaning. It should be replaced approximately every 3 months (depending on the operating frequency). Switch off the appliance, open the grid, remove the filter and clean it in soapsuds. When it is dry, put it back and close back the grid. NOTE: After a certain number of cleanings the filters will be damaged or impossible to get back in their initial shape. In such case, please contact the nearest customer service to obtain new filters. Cleaning the dust collector Clean the inside of the dust collector with a damp cloth or sponge, but make sure it is totally dry before using the appliance again. PRACTICAL HINTS When cleaning stairs, we advise you to keep the unit in a vertical position. The floor brush is equipped with a hook, allowing you to attach the tube to the rear part of the appliance when it is in use, for instance when you want to move a piece of furniture, or after use when storing your appliance. The vacuum cleaner requires no regular maintenance other than the filter cleaning tasks as detailed here above. If you notice a loss of suction power, it is probably due to one or a combination of the following events: blocked filter, full dust collector or blockage in tubes. If your appliance still does not work properly after you have checked those problems, please ask a qualified electrician for advice.

PROTECTION OF THE ENVIRONMENT – DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.

Quando limpe escadas, aconselhamo-lo a manter a unidade na posição vertical. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.

comun acord intre vanzator si consumator. In cazul in care vanzatorul dupa toate eforturile si Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.

Pentru lista actualizata de Service-uri autorizate va rugam sunati la tel:[phone] sau verificati pe site la adresa: www.team-int.ro Team International Romania Srl; Str. Industriilor 56A, sector 3, Bucuresti CUI 16991287; R.C. J40/19685/29.11.2004 Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.
