Brand	TEAM
Model	ST 50
Product type	Bagless vacuum cleaner
Filtration system	Multi-cyclone + motor filter + air filter
Number of filters	5 (2 multi-cyclone, 2 motor protection, 1 air)
Included accessories	Crevice tool, flat nozzle, upholstery brush
Power control	Electronic on the appliance and manual on the handle
Cord rewinder	Automatic with pedal
Dust container	Removable, bottom opening
Carrying handle	Yes, on the body of the appliance
Usage	Household, for hard floors and carpets
Filter maintenance	Clean with water and detergent, dry completely before reinstalling
Filter cleaning frequency	About every 3 months
Filter lifespan	Varies depending on use, replace if worn or irreparable
Power supply	Mains (voltage not specified)
Safety	Unplug before maintenance, do not use near heat sources or outdoors, do not vacuum liquids or glowing objects
Repairability	Call a qualified service for any repairs
Weight	Not specified
Dimensions	Not specified

Frequently Asked Questions - ST 50 TEAM

How to assemble the ST 50 TEAM vacuum cleaner?

Connect the hose end into the front opening of the appliance until it clicks. Assemble the tube onto the hose handle, then attach the combined nozzle or another accessory to the end of the tube.

How to empty the dust container?

Press the release button of the container, take it out, then place it over a trash can. Press the button under the handle to open the bottom and empty it. Close and put it back until it clicks.

How to clean the motor filters?

Turn off the appliance, remove the dust container, then take off the filter housing above the motor. Remove the filter holder, clean the gray filter and white holder with water and detergent, rinse, let dry completely before reassembling.

How to clean the air filter?

Open the grill at the back of the appliance, take out the filter, clean it with water and detergent, rinse, let dry completely, then replace it and close the grill.

What to do if suction decreases?

First check that there is no blockage in the tube or hose. If everything is clear, clean the filters and empty the dust container. A saturated filter or full bin can cause overheating.

Can I use the vacuum cleaner to pick up liquids?

No, the appliance is designed only for dry waste. Never vacuum liquids, especially flammable ones, as this could damage the appliance and pose a danger.

How to use the power control?

Power can be adjusted electronically via the adjustment button on the appliance, or manually at the hose handle. Use low power for delicate surfaces (curtains, furniture) and maximum for carpets and floors.

How to store the vacuum cleaner after use?

Turn off and unplug the appliance. Press the cord rewinder button to store the cord automatically. Use the carrying handle to move the appliance. Store it in a dry place.

What accessories are included?

The vacuum cleaner comes with a combined nozzle (2 positions for hard floors and carpets), a flat nozzle for narrow spaces, and a brush for upholstery.

What safety precautions are important?

Always unplug the appliance before maintenance. Do not use it near heat sources, outdoors, or to vacuum glowing objects. Do not pull on the cord and do not immerse the appliance in water.

USER MANUAL ST 50 TEAM

1. Flexible hose
2. Tube
3. Floor brush
4. Flexible hose connector
5. Dust container with filter unit inside
6. Release button of the dust container
7. Carrying handle
8. Cable rewind button
9. Electronic power control switch
10. On/off switch
11. Crevice tool
12. Upholstery brush

FR

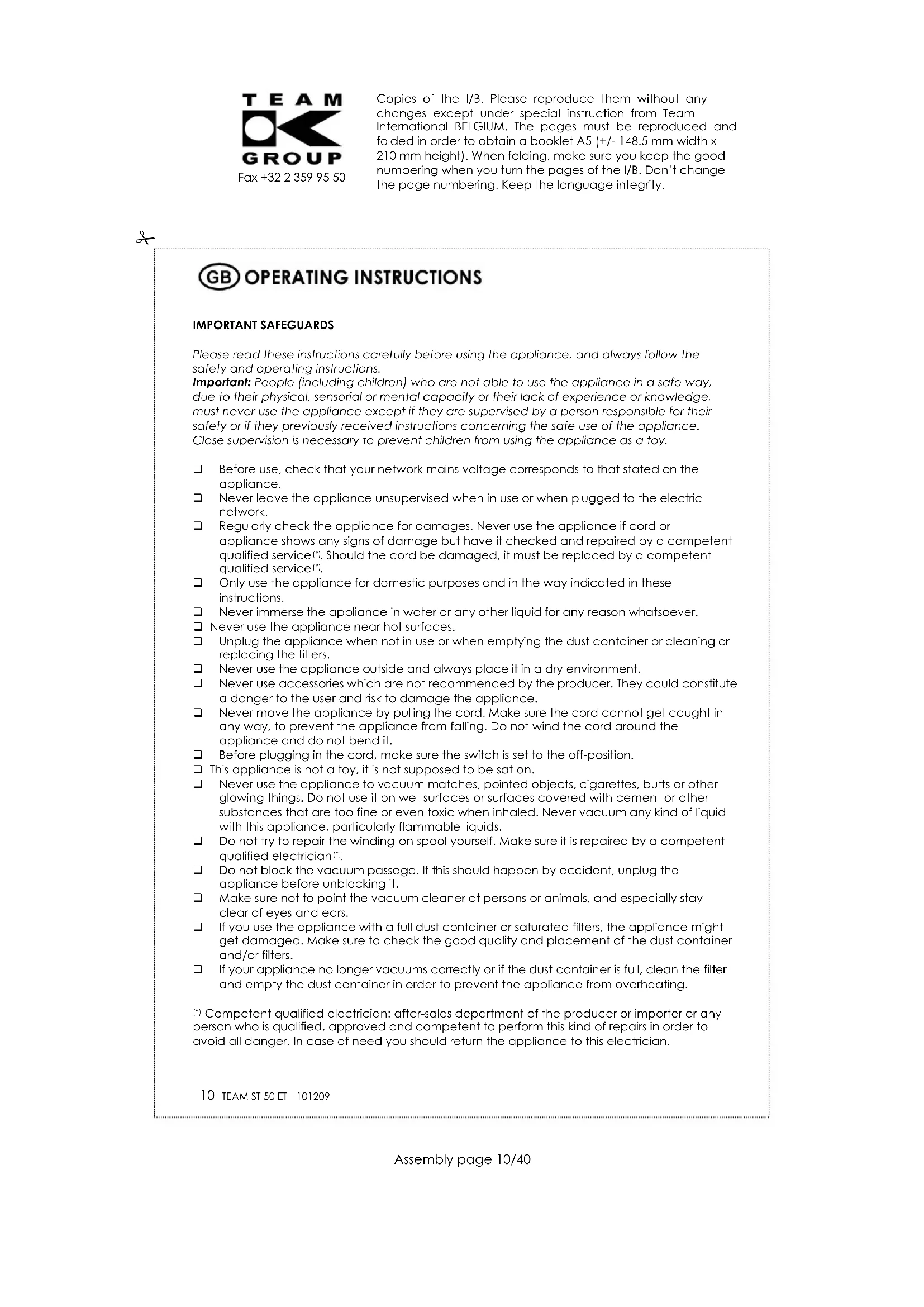

Please read these instructions carefully before using the appliance, and always follow the safety and operating instructions.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance.

Close supervision is necessary to prevent children from using the appliance as a toy.

Before use, check that your network mains voltage corresponds to that stated on the appliance.
Never leave the appliance unsupervised when in use or when plugged to the electric network.
Regularly check the appliance for damages. Never use the appliance if cord or appliance shows any signs of damage but have it checked and repaired by a competent qualified service.[1]. Should the cord be damaged, it must be replaced by a competent qualified service.[1].
Only use the appliance for domestic purposes and in the way indicated in these instructions.
Never immerse the appliance in water or any other liquid for any reason whatsoever.
Never use the appliance near hot surfaces.
Unplug the appliance when not in use or when emptying the dust container or cleaning or replacing the filters.
Never use the appliance outside and always place it in a dry environment.
Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way, to prevent the appliance from falling. Do not wind the cord around the appliance and do not bend it.
Before plugging in the cord, make sure the switch is set to the off-position.
This appliance is not a toy, it is not supposed to be sat on.
Never use the appliance to vacuum matches, pointed objects, cigarettes, butts or other glowing things. Do not use it on wet surfaces or surfaces covered with cement or other substances that are too fine or even toxic when inhaled. Never vacuum any kind of liquid with this appliance, particularly flammable liquids.
Do not try to repair the winding-on spool yourself. Make sure it is repaired by a competent qualified electrician ^1 .
Do not block the vacuum passage. If this should happen by accident, unplug the appliance before unblocking it.
Make sure not to point the vacuum cleaner at persons or animals, and especially stay clear of eyes and ears.
If you use the appliance with a full dust container or saturated filters, the appliance might get damaged. Make sure to check the good quality and placement of the dust container and/or filters.
If your appliance no longer vacuums correctly or if the dust container is full, clean the filter and empty the dust container in order to prevent the appliance from overheating.

Competent qualified electrician: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this electrician.

10 TEAM ST 50 ET-101209

ATTENTION: never use the handle of the dust collector to carry the appliance, but ALWAYS USE THE CARRYING HANDLE OF THE APPLIANCE!

ASSEMBLING THE VACUUM CLEANER

Always remove the plug from the power socket before fitting or removing accessories!
- Insert the hose connector into the hose connection inlet until it locks. To remove the hose, press the release button of the hose connector and pull at the hose.
- Fit the tube to the handle.
- Fit the tube to the floor brush.
- Removing telescopic tube and accessories: to remove the accessories, pull firmly apart.
The floor brush is ideal for the daily cleaning of carpets and hard floors.

Setting with the bristles inside for cleaning carpets.

Setting with the bristles outside for cleaning hard floors.

The appliance is delivered with the following accessories:

a crevice tool: for radiators, crevices, corners, baseboards and between cushions.
an upholstery brush: for curtains, cushions, edges, doors, mattresses etc.

OPERATION

• Pull out a sufficient length of power cord and insert the plug into the power socket. A yellow mark on the power cable shows the ideal cable length. Do not extend the cable beyond the red mark. Switch on the appliance by pressing the ON/OFF switch with your foot.
• It is advisable to set the electronic power regulator to the minimum position MIN before switching on the appliance. By sliding the regulator button, the suction power can be adjusted. You can also adjust the suction power by using the wind-force adjuster on the handle of the flexible hose. Use a low suction power for furniture and other delicate surfaces and use high suction power for fitted carpet and other floors.

AFTER USE

• Stop the vacuum cleaner by pressing the ON/OFF switch.
• Unplug the appliance from the power supply.
  Simply press the cable rewind button to activate the cable rewind mechanism.
• The carrying handle can be used to move the appliance. Never use the handle of the dust container to carry the appliance!
  After use we advise you to empty the dust collector to avoid smells and mildew that could be caused by damp dust particles that may have been vacuumed, and also to guarantee an optimal efficiency during the next use. To do so, see below.

EMPTYING THE DUST COLLECTOR (see page 4)

• Press the release button of the dust container (fig. A) and pull the dust container out.
• Hold the dust collector over a dustbin, press the unlocking button underneath the handle of the dust collector to open the lower cover of the dust container and spill the rubbish (fig. B).
• Close the dust collector and put the dust collector back in the appliance until it locks in place.

CLEANING THE FILTERS (see pages 4-5)

Filters

The filter system consists of: 2 multi-cyclone filters to vacuum the smallest particles (in the dust container)

2 motor filters (on top of the appliance, next to the dust collector)

1 air filter, to vacuum the smallest particles (at the back of the appliance)

It is necessary to clean the 3 last filters regularly to avoid operating problems.

Motor filter (fig. C-D-E)

To clean the motor filters (filters situated next to the dust collector), switch off the appliance, take out the dust collector and take out the filter housing that is situated on top of the motor. Take the bracket with the filters out of the filter housing and remove the grey filter to wash it in soapsuds (approximately every 3 months). Then wash the bracket with the white motor filter in soapsuds. When the filters are completely dry, put them back in the appliance. To do so, put the grey filter back in the bracket with the white filter. Then put the bracket with the motor filters back in the filter housing and put it back into the appliance in a correct way.

Air filter (fig. F)

This air filter (situated behind the grid at the back of the appliance) guarantees fresh air during cleaning. It should be replaced approximately every 3 months (depending on the operating frequency).
- Switch off the appliance, open the grid, remove the filter and clean it in soapsuds. When it is dry, put it back and close back the grid.

NOTE: After a certain number of cleanings the filters will be damaged or impossible to get back in their initial shape. In such case, please contact the nearest customer service to obtain new filters.

Cleaning the dust collector

Press the release button of the dust container (fig. A) and pull the dust container out.
- Press the unlocking button on top of the handle of the dust collector to remove the lid of the dust container with the multi-cyclone filters (fig. B).
Clean the inside of the dust collector and the lid with the multi-cyclone filters with a damp cloth or sponge, but make sure they are totally dry before using the appliance again.
- When the dust collector and its lid are completely dry, put the lid back on the dust collector and press until it clicks into place. Put the dust collector back in the appliance until it locks in place.

PRACTICAL HINTS

• When cleaning stairs, we advise you to keep the unit in a vertical position.

• The floor brush is equipped with a hook, allowing you to attach the tube to the rear part of the appliance when it is in use, for instance when you want to move a piece of furniture, or after use when storing your appliance.

• The vacuum cleaner requires no regular maintenance other than the filter cleaning tasks as detailed here above.
  If you notice a loss of suction power, it is probably due to one or a combination of the following events: blocked filter, full dust collector or blockage in tubes. If your appliance still does not work properly after you have checked those problems, please ask a qualified electrician for advice.

PROTECTION OF THE ENVIRONMENT - DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
