USER MANUAL DAI 31 TEAM

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.

Front cover page (first page) Assembly page 1/28

TEAM DAI 31 230 V ~ 1800 W Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.

Fax [phone] Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.

5. Variable steam/dry dial

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.

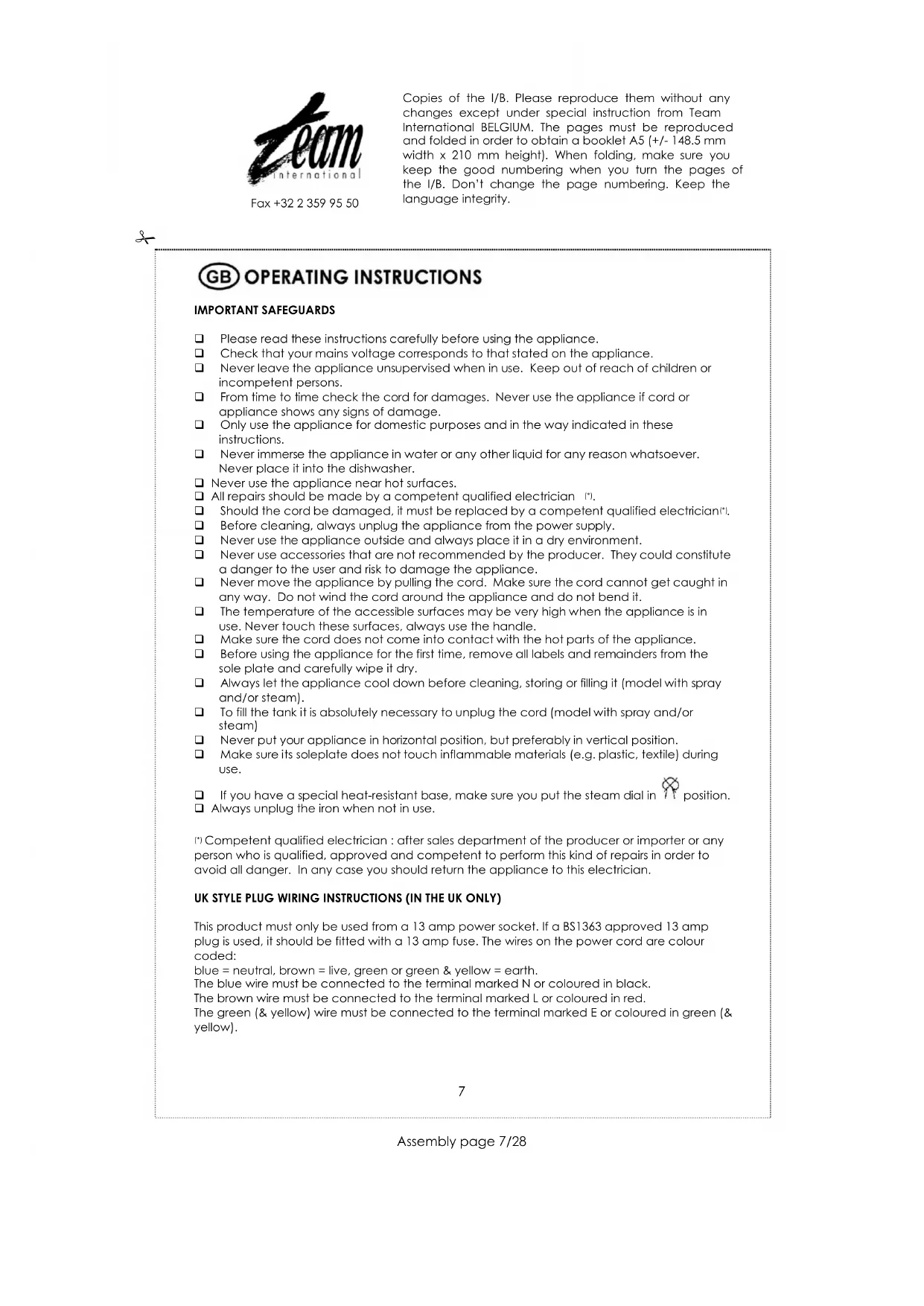

IMPORTANT SAFEGUARDS Please read these instructions carefully before using the appliance. Check that your mains voltage corresponds to that stated on the appliance. Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons. From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage. Only use the appliance for domestic purposes and in the way indicated in these instructions. Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher. Never use the appliance near hot surfaces. All repairs should be made by a competent qualified electrician

Should the cord be damaged, it must be replaced by a competent qualified electrician

Before cleaning, always unplug the appliance from the power supply. Never use the appliance outside and always place it in a dry environment. Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance. Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it. The temperature of the accessible surfaces may be very high when the appliance is in use. Never touch these surfaces, always use the handle. Make sure the cord does not come into contact with the hot parts of the appliance. Before using the appliance for the first time, remove all labels and remainders from the sole plate and carefully wipe it dry. Always let the appliance cool down before cleaning, storing or filling it (model with spray and/or steam). To fill the tank it is absolutely necessary to unplug the cord (model with spray and/or steam) Never put your appliance in horizontal position, but preferably in vertical position. Make sure its soleplate does not touch inflammable materials (e.g. plastic, textile) during use. If you have a special heat-resistant base, make sure you put the steam dial in position. Always unplug the iron when not in use.

Competent qualified electrician : after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician. UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY) This product must only be used from a 13 amp power socket. If a BS1363 approved 13 amp plug is used, it should be fitted with a 13 amp fuse. The wires on the power cord are colour coded: blue = neutral, brown = live, green or green & yellow = earth. The blue wire must be connected to the terminal marked N or coloured in black. The brown wire must be connected to the terminal marked L or coloured in red. The green (& yellow) wire must be connected to the terminal marked E or coloured in green (& yellow). Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.

Fax [phone] ! BEFORE USING IRON, remove any labels from soleplate and wipe any manufacturing residue from soleplate using a soft cloth. FILLING the WATER TANK You can use demineralised water or tap water. If you use tap water, make sure you descale the appliance regularly according to the amount of scale the water contains. If you want to use the steam dial fill the water tank as follows:

1) Unplug the iron from the outlet to let it cool down and set it horizontally on a stable level

2) Turn the temperature dial to "MIN" and variable steam dial to the setting.

3) To fill the water tank, pour water through the fill opening using a measuring cup.

4) When ironing, unplug the appliance before refilling. Fill the water tank by holding the

appliance in horizontal position without putting down the hot soleplate, unless you have a heat-resistant base. TEMPERATURE SETTINGS You can chose the temperature setting in function with the cloth to iron. In order to turn the iron on, please turn the temperature knob clockwise into the required position (see table below). If you doubt, take a look at the garment label. DRY PRESSING Turn on the iron. Set temperature dial for the desired fabric. Turn the variable steam dial on position . Set iron on heel rest and wait until temperature indicator light goes out. STEAM PRESSING Kind of textile Temperature dial Steam ironing Synthetic (e.g. acetate, acrylic, viscose, Polyamide, polyester, ….) MIN

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.

Fax [phone] Fill the water tank (variable steam dial on position). Put the plug of the appliance into the power socket. Turn the temperature dial clockwise into the required position. Turn variable steam dial to the position for minimum steam or to the position for a larger amount of steam. Set the iron on its heel and wait until the temperature indicator goes out. Caution: Set the temperature dial within the steam range. If temperature setting is too low, water may drip from soleplate. Check the garment label before ironing because some cloths may be damaged when exposed to steam or water. SPRAY Produces a mist for removing stubborn creases. Spray can be used at any temperature setting and during either dry or steam pressing. Press down the spray button to spray.

The burst of steam feature provides additional steam for removing stubborn creases.

Cleaning the inside parts of the iron is done by turning the steam dial into the position and holding the iron horizontally for about one minute so steam can escape. When you turn the variable steam dial into the , this goes up a little bit and you can take it out. There is no problem. YOU JUST HAVE TO PUT IT BACK IN ITS PROPER PLACE BEFORE EACH USE. Therefore just keep it deep (in the good position) and turn it clockwise. Caution, this cleaning function allows you to remove some scale particles but it does not replace a full descaling. To clean the plastic parts of the iron, use a humid cloth. To clean the soleplate, make sure you use a product made especially for this purpose. Never use abrasive products.

WHEN YOU HAVE FINISHED IRONING

Turn temperature dial to "MIN" and unplug iron from electrical outlet. With soleplate facing away from you, turn iron upside down to empty water. Then store the hot iron on its heel rest so that any remaining moisture will evaporate. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.
