Product type	Steam iron
Brand	Team
Model	DAI 5
Power supply	220-240 V, 50/60 Hz
Tank capacity	200 ml (estimate)
Soleplate type	Non-stick (estimate)
Main functions	Dry ironing, steam, spray
Temperature adjustment	Yes, by rotary knob
Heating indicator	Yes
Dry/steam switch	Yes
Safety - disconnection	Required before filling, cleaning and storage
Use	Domestic only
Rest position	On the heel, never on the hot soleplate
Cleaning	Soft cloth, no abrasive products
Descaling	With specific products for steam irons
Environmental protection	Directive 2002/96/EC - do not dispose of with household waste
Languages of the manual	FR, DE, EN, ES, IT, NL, PT and others

Frequently Asked Questions - DAI 5 TEAM

How to fill the water tank of the Team DAI 5 iron?

Unplug the appliance and let it cool down. Set the adjustment knob to MIN and the dry/steam switch to dry. Pour water through the filling opening without exceeding the maximum level.

What water to use in the steam iron?

You can use distilled water or tap water. If you use tap water, perform regular descaling according to the hardness of your water.

How to adjust the temperature according to the fabric?

Turn the temperature adjustment knob until the symbol corresponding to the fabric (synthetic, silk/wool, cotton/linen) is aligned with the mark. Refer to the chart on the appliance or the garment label.

What to do if water leaks from the soleplate?

Make sure the temperature is high enough (position ●● or ●●●). If the temperature is too low, water may leak. Use steam only at high temperature.

How to use the spray function?

The spray function moistens stubborn creases. It can be used regardless of temperature, with or without steam. Press the spray button.

How to descale the steam iron?

Use specific descaling products for steam irons, available in stores. Follow the product instructions for dosage.

How to clean the soleplate?

Unplug and let cool. Do not use any abrasive products or pads. Use a special soleplate cleaner or a soft cloth.

How to store the iron after use?

Set the thermostat to MIN, unplug, empty the tank by holding the iron tip down. Place it vertically on its heel to cool and release moisture, then store it.

What to do if the iron does not heat?

Check the mains voltage, the power outlet and that the thermostat is not on MIN. If the problem persists, contact a qualified service.

Where to find the manual in other languages?

On the website notice-facile.com, you can request a free translation by choosing your language and providing your email.

USER MANUAL DAI 5 TEAM

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

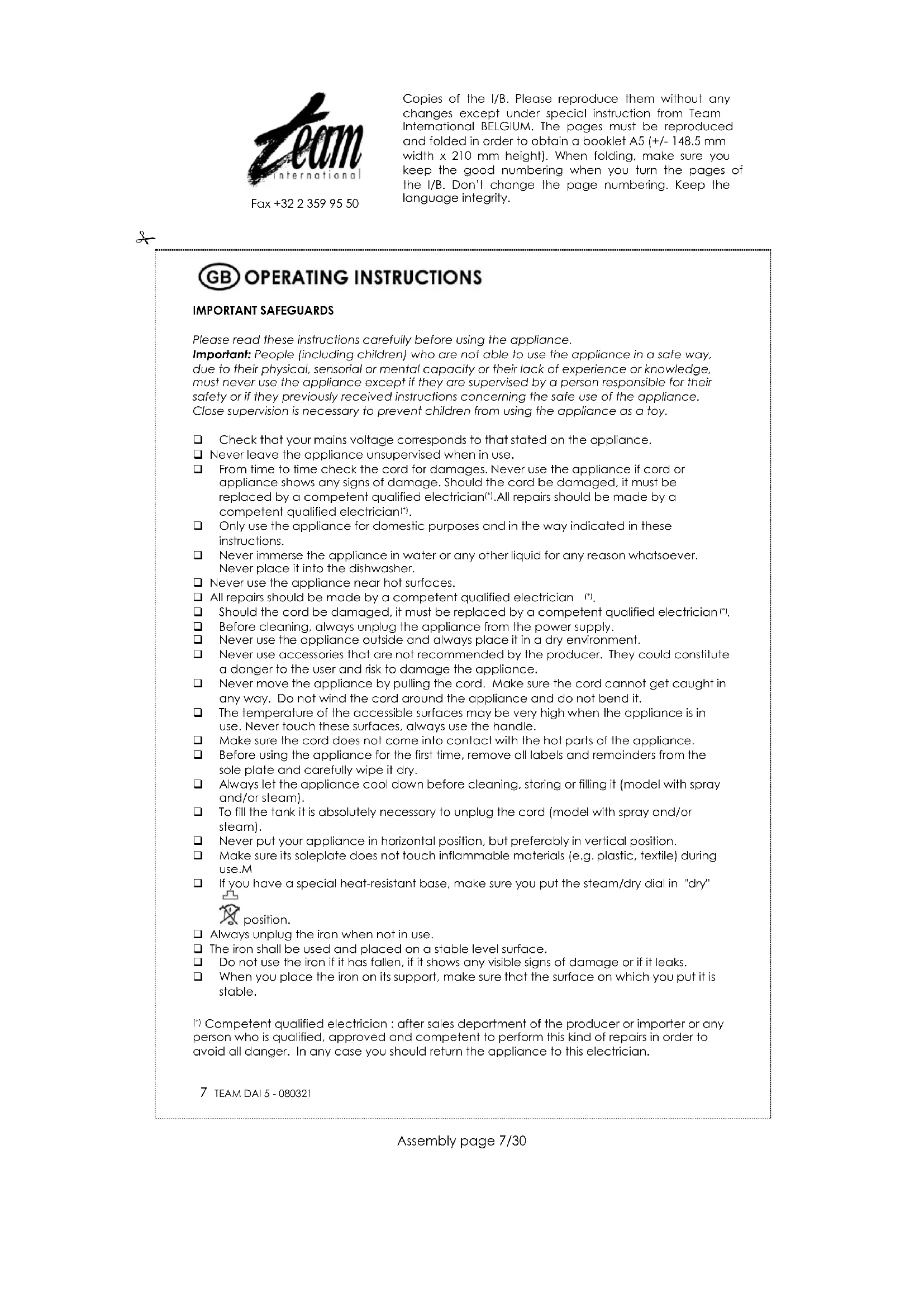

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Dampfbügeleisen

Steam Iron
FeràVapeur
Stoomstrijkijzer
Plancha a Vapor
Ferro a Vapor
Ferro a Vapore
Fier calcat cu aburi

CE

I/B Version

080321

TEAM DAI 5

230V~50Hz 1800W

D

1. Spray nozzle
2. Fill Opening
3. Steam/dry dial
4. Spray button
5. Temperature indicator
6. Temperature dial
7. Soleplate

F

Please read these instructions carefully before using the appliance.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy.

Check that your mains voltage corresponds to that stated on the appliance.
Never leave the appliance unsupervised when in use.
From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage. Should the cord be damaged, it must be replaced by a competent qualified electrician. All repairs should be made by a competent qualified electrician.
Only use the appliance for domestic purposes and in the way indicated in these instructions.
Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
Never use the appliance near hot surfaces.
All repairs should be made by a competent qualified electrician (1).
Should the cord be damaged, it must be replaced by a competent qualified electrician.
Before cleaning, always unplug the appliance from the power supply.
Never use the appliance outside and always place it in a dry environment.
Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
The temperature of the accessible surfaces may be very high when the appliance is in use. Never touch these surfaces, always use the handle.
Make sure the cord does not come into contact with the hot parts of the appliance.
Before using the appliance for the first time, remove all labels and remainders from the sole plate and carefully wipe it dry.
Always let the appliance cool down before cleaning, storing or filling it (model with spray and/or steam).
To fill the tank it is absolutely necessary to unplug the cord (model with spray and/or steam).
Never put your appliance in horizontal position, but preferably in vertical position.
Make sure its soleplate does not touch inflammable materials (e.g. plastic, textile) during use.M
If you have a special heat-resistant base, make sure you put the steam/dry dial in "dry"

position.

Always unplug the iron when not in use.
The iron shall be used and placed on a stable level surface.
Do not use the iron if it has fallen, if it shows any visible signs of damage or if it leaks.
When you place the iron on its support, make sure that the surface on which you put it is stable.

Competent qualified electrician : after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

7 TEAM DAI 5-080321

! BEFORE USING IRON, remove any labels from soleplate and wipe any manufacturing residue from soleplate using a soft cloth.

FILLING the WATER TANK

You can use demineralised water or tap water. If you use tap water, make sure you descale the appliance regularly according to the amount of scale the water contains. If you want to use the steam dial fill the water tank as follows:

1) Unplug the iron from the outlet to let it cool down and set it horizontally on a stable level surface.
2) Turn the temperature dial to "MIN" and variable steam dial to the setting.
3) To fill the water tank, pour water through the fill opening using a measuring cup.
4) When ironing, unplug the appliance before refilling. Fill the water tank by holding the appliance in horizontal position without putting down the hot soleplate, unless you have a heat-resistant base.

TEMPERATURE SETTINGS

You can choose the temperature setting according to the cloth to iron.
In order to turn the iron on, please turn the temperature knob clockwise into the required position (see table below). If you doubt, take a look at the garment label.

DRY PRESSING

Put the steam/dry dial on position

• Plug in the iron.
• Set temperature dial for the desired fabric. Always check the label of the garment before choosing the temperature setting.
• Set iron on heel rest and wait until temperature indicator light goes out.

STEAM PRESSING

Kind of textile	Temperature dial	Steam ironing
Synthetic (e.g. acetate, acrylic, viscose, Polyamide, polyester, ...)	MIN
	|
	●
	|
Silk Wool	|
	●●
	|
Cotton Linen	|
	●●●
	| MAX

• Fill the water tank (steam/dry dial on position).
• Put the plug of the appliance into the power socket.
• Turn the temperature dial clockwise into the required position.

• Put the steam/dry dial in position.
• Set the iron on its heel and wait until the temperature indicator goes out.

Caution: Set the temperature dial within the steam range (' or ' ). If temperature setting is too low, water may drip from soleplate.

Check the garment label before ironing because some cloths may be damaged when exposed to steam or water.

SPRAY

• The spray button produces a mist for removing stubborn creases.
  Spray can be used at any temperature setting and during either dry or steam pressing. Press down the spray button to spray.

DESCALING

To descale your appliance, use products made especially for this purpose that you will find in commerce and follow their instruction manual carefully.

CARE AND CLEANING

Always unplug the appliance and let it cool down before cleaning.
- To clean the plastic parts of the iron, use a damp cloth.
To clean the soleplate, make sure you use a product made especially for this purpose. Never use abrasive products.

WHEN YOU HAVE FINISHED IRONING

• Turn temperature dial to "MIN" and unplug iron from electrical outlet.
• With soleplate facing away from you, turn iron upside down to empty water.
• Then store the hot iron on its heel rest so that any remaining moisture will evaporate.

PROTECTION OF THE ENVIRONMENT-DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
