USER MANUAL DAI 8 TEAM

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Dampfbügeleisen

Steam Iron

FeràVapeur

Stoomstrijkijzer

Plancha a Vapor

Ferro a Vapor

Ferro a Vapore

Fier de calculat cu aburi si spray

CE

I/B Version

090225

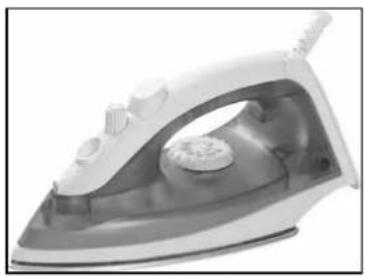

TEAM DAI 8

230V~50Hz 1400W

2 TEAM DAI 8-090225

D

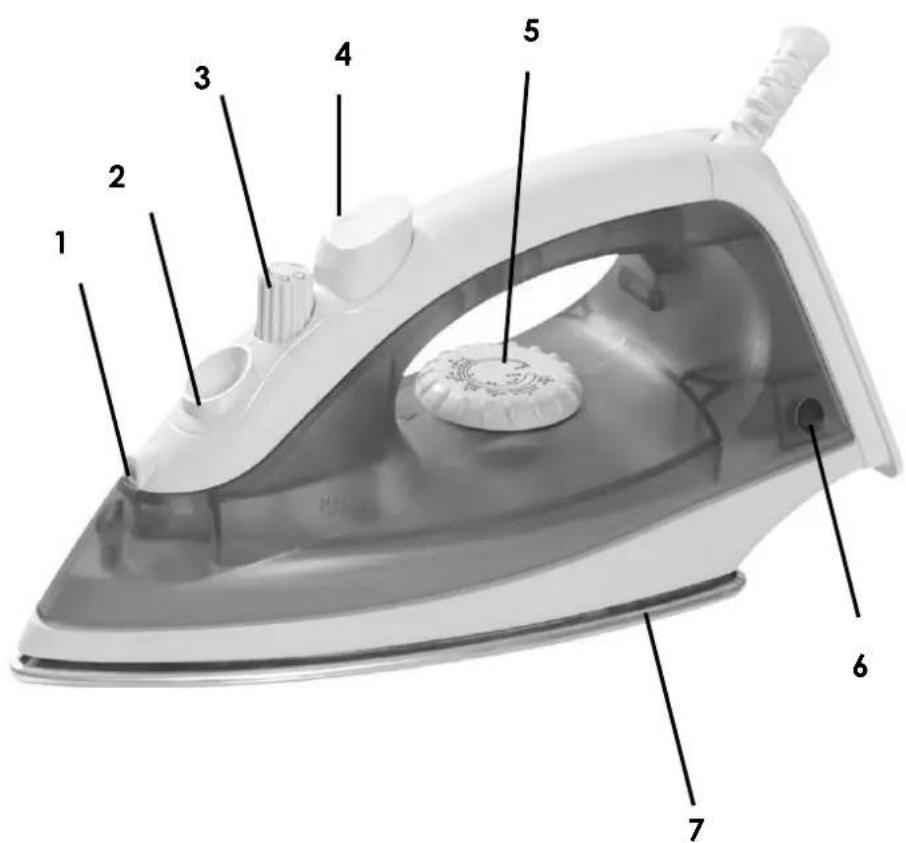

1. Spray nozzle
2. Fill opening
3. Steam control knob
4. Spray button
5. Temperature dial
6. Temperature indicator
7. Soleplate

F

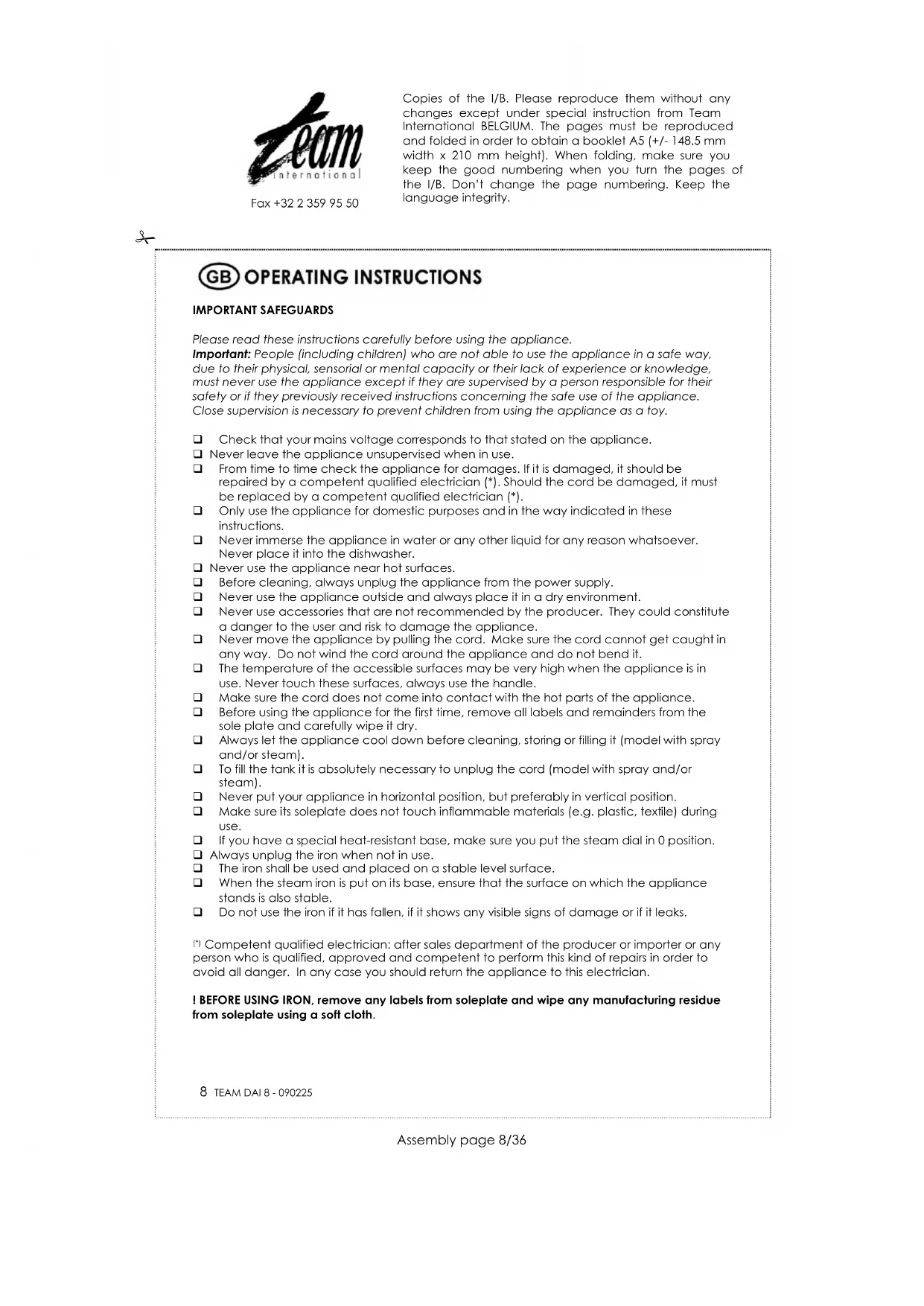

Please read these instructions carefully before using the appliance.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy.

Check that your mains voltage corresponds to that stated on the appliance.
Never leave the appliance unsupervised when in use.
From time to time check the appliance for damages. If it is damaged, it should be repaired by a competent qualified electrician (^) . Should the cord be damaged, it must be replaced by a competent qualified electrician (^) .
Only use the appliance for domestic purposes and in the way indicated in these instructions.
Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
Never use the appliance near hot surfaces.
Before cleaning, always unplug the appliance from the power supply.
Never use the appliance outside and always place it in a dry environment.
Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
The temperature of the accessible surfaces may be very high when the appliance is in use. Never touch these surfaces, always use the handle.
Make sure the cord does not come into contact with the hot parts of the appliance.
Before using the appliance for the first time, remove all labels and remainders from the sole plate and carefully wipe it dry.
Always let the appliance cool down before cleaning, storing or filling it (model with spray and/or steam).
To fill the tank it is absolutely necessary to unplug the cord (model with spray and/or steam).
Never put your appliance in horizontal position, but preferably in vertical position.
Make sure its soleplate does not touch inflammable materials (e.g. plastic, textile) during use.
If you have a special heat-resistant base, make sure you put the steam dial in 0 position.
Always unplug the iron when not in use.
The iron shall be used and placed on a stable level surface.
When the steam iron is put on its base, ensure that the surface on which the appliance stands is also stable.
Do not use the iron if it has fallen, if it shows any visible signs of damage or if it leaks.

Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

! BEFORE USING IRON, remove any labels from soleplate and wipe any manufacturing residue from soleplate using a soft cloth.

FILLING THE WATER TANK

Only use demineralised water. If you want to use the steam/dry dial fill the water tank as follows:

1) Unplug the iron from the outlet to let it cool down and set it horizontally on a stable level surface.
2) Turn the temperature dial to "MIN" and variable steam/dry dial to the setting.
3) Using a measuring cup, fill the tank through the fill opening. Do not exceed the MAX mark! NOTE: never fill with anything but water.

TEMPERATURE SETTINGS

You can choose the temperature setting in function with the cloth to iron.
In order to turn the iron on, please turn the temperature knob clockwise into the required position.

DRY PRESSING

• Turn on the iron.
• Set temperature dial for the desired fabric.

NOTE: be sure to check the garment label for fibre content and set for the fabric requiring the lowest temperature.

• Turn the variable steam/dry dial on position
• Set iron on heel rest and wait until temperature indicator light goes out.

STEAM PRESSING

Kind of textile	Temperature dial	Steam ironing
Synthetic (e.g. acetate, acrylic, viscose, Polyamide, polyester,...)	MIN	∞
Silk Wool	●●	○
Cotton Linen	●●● MAX	○
CLEANING	●●● MAX	○

• Fill the water tank (variable steam/dry dial on position

• Turn on the iron.
• Turn the temperature dial clockwise into the required position.
  Turn variable steam/dry dial between and for minimum steam or on the position for a larger amount of steam.
• Set the iron on its heel and wait until the temperature indicator goes out.

! Set the temperature dial within the steam range. If temperature setting is too low, water may drip from soleplate.

! Check the garment label before ironing because some cloths may be damaged when exposed to steam or water.

SPRAY

• Produces a mist for removing stubborn creases.
  Spray can be used at any temperature setting and during either dry or steam pressing. Press down the spray button to spray.

! Be sure to check the garment label for care instructions. Some fabrics may be damaged when exposed to steam or water.

CLEANING

After using the iron for a long period of time and regularly (at least once every month) you can clean your iron by using the self-cleaning function as follows:

• Fill the water tank halfway and put the iron on its heel.
  Set the temperature dial to its highest position and let the iron heat up until the pilot light goes out.

• Unplug the iron, turn the steam button to the self-cleaning position and shake the iron to the left and to the right above a sink. Hot water and steam will come out of the soleplate. This way, dust particles can be eliminated.

• When the water tank is empty, turn the steam button to

• Pour water in the water tank, let the iron heat again and pass the soleplate on an old but clean cotton cloth. The water remaining in the soleplate will evaporate, which will complete the cleaning process.
  To clean the plastic parts of the iron, use a humid cloth.

WHEN YOU HAVE FINISHED IRONING

• Turn temperature dial to "MIN" and unplug iron from electrical outlet.
  With soleplate facing away from you, turn iron upside down to empty water.
  Then store the hot iron on its heel rest so that any remaining moisture will evaporate.

PROTECTION OF THE ENVIRONMENT-DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol -the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
