Product type	Combination microwave with grill and convection
Brand	Blomberg
Model	MEE 4150
Capacity	30 liters
External dimensions (W x D x H)	520 x 530 x 300 mm
Internal dimensions (W x D x H)	350 x 372 x 232 mm
Net weight	Approximately 19 kg
Power supply	230 V ~ 50 Hz, 1450 W
Microwave power	900 W
Grill power	1200 W
Convection power	1350 W
Operating frequency	2,450 MHz
Microwave power levels	5 (100%, 70%, 50%, 30%, 10%)
Maximum cooking time	60 minutes
Cooking functions	Microwave, Grill, Convection, Combination, Auto defrost, Auto menu, Memory cooking
Additional functions	Clock, Timer, Child lock
Included accessories	Glass tray, grill rack, roller ring
Safety	Door safety lock, child lock, automatic shut-off
Cleaning	Glass tray dishwasher safe; exterior surface cleanable with a damp cloth
Usage	Indoor domestic use only

Frequently Asked Questions - MEE 4150 BLOMBERG

How to set the clock of the Blomberg MEE 4150 oven?

Press the Clock button. The display flashes. Turn the duration adjustment knob to set the hour, then press Clock again to confirm. Repeat for minutes.

How to use the auto defrost function?

Select the Auto Defrost function by turning the knob to the food weight (max 2000 g). Press Start. The power and time are set automatically.

Which utensils should not be used in this microwave oven?

Do not use metal utensils, dishes with melamine decorations, Centura dinnerware, sealed containers, or conventional thermometers. Use only microwave-safe utensils.

What to do if the oven does not heat?

Check that the timer is set, the door is properly closed, and the safety locks are engaged. If the problem persists, contact an authorized service agent.

How to activate the child lock?

Press the Auto Menu and Combi buttons simultaneously for 2 seconds. To deactivate, repeat the same operation.

How to clean the glass tray?

Remove the tray and wash it in warm soapy water or in the dishwasher. The roller ring can also be washed in the same way.

What is the grill power?

The grill power is 1200 W. During use, cooking is divided into two stages with a pause in the middle to turn the food.

How to program a delayed cooking with the timer?

First set the clock. Press Timer, set the start time, then set the power and cooking time. Press Start. The oven will turn on automatically at the set time.

How to use the combination cooking?

Press Combi to choose among three options: C-1 (convection + microwave), C-2 (grill + convection), C-3 (grill + microwave). Set the duration and press Start.

What to do in case of smoke inside the oven?

Turn off or unplug the appliance, and keep the door closed to suffocate the flames. Do not open the door. If necessary, cut off the power at the circuit breaker.

USER MANUAL MEE 4150 BLOMBERG

Owner's Instruction Manual

Blomberg

Read the Instructions carefully and Keep for Future Reference

IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

WARNING: when the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated;

WARNING: if the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;

WARNING: it is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy;

WARNING: liquids and other foods must not be heated in sealed containers since they are liable to explode

WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use;

• Only use utensils that are suitable for use in microwave ovens
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;
• If smoke is observed, switch of or unplug the appliance and keep the door closed in order to stifle any flames;
• Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container;
• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns;
• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended;
• The oven should be cleaned regularly and any food deposits removed;
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation;
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The temperature of accessible surfaces may be high when the appliance is operating.

1 Specifications 4
2 Radio Interference 5
3 Installation. 5
4 Important Safety Instructions 7
5 Safety Instructions For General Use ....8
6 Operation Instruction 11
7 Care Of Your Microwave Oven 14

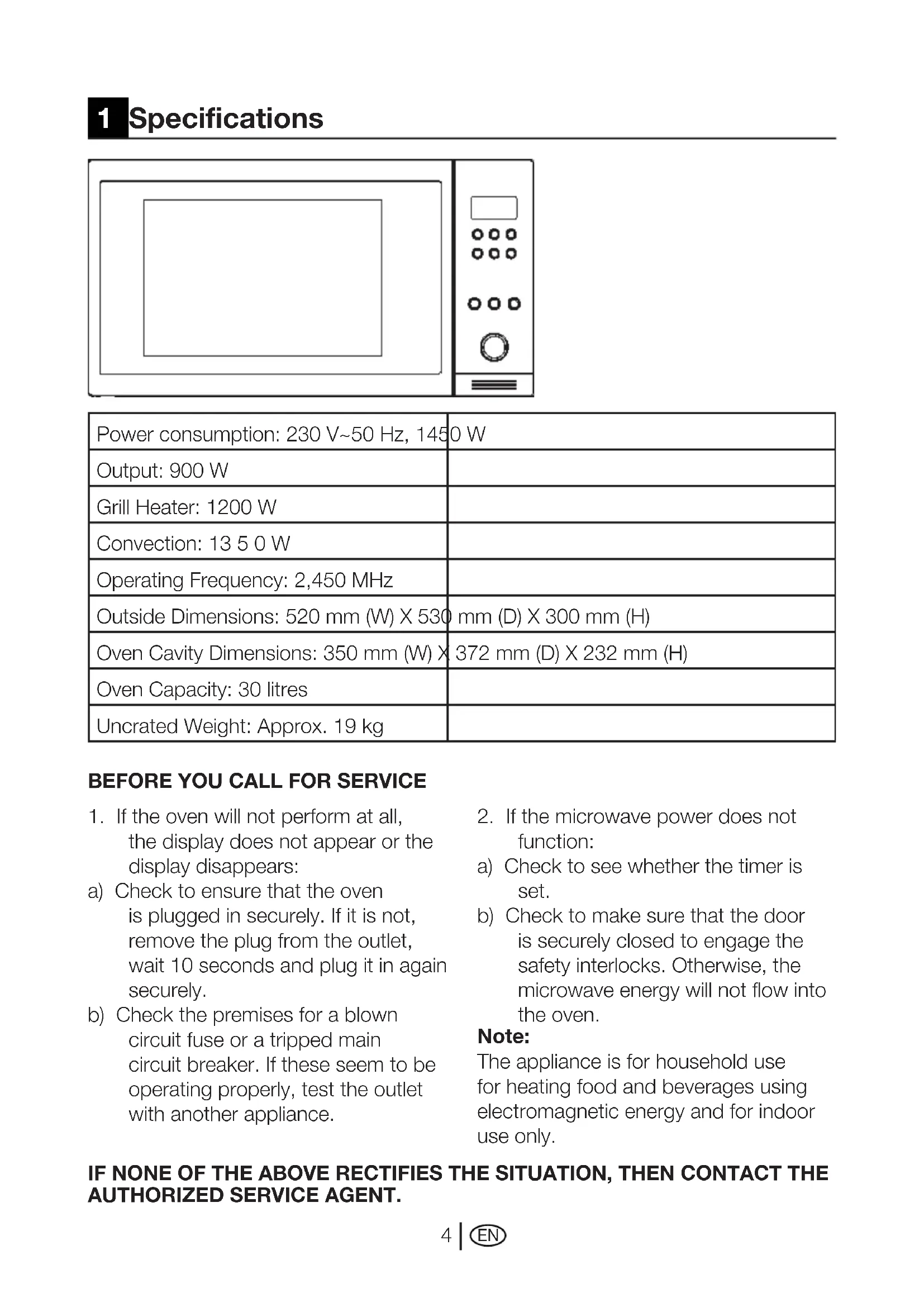

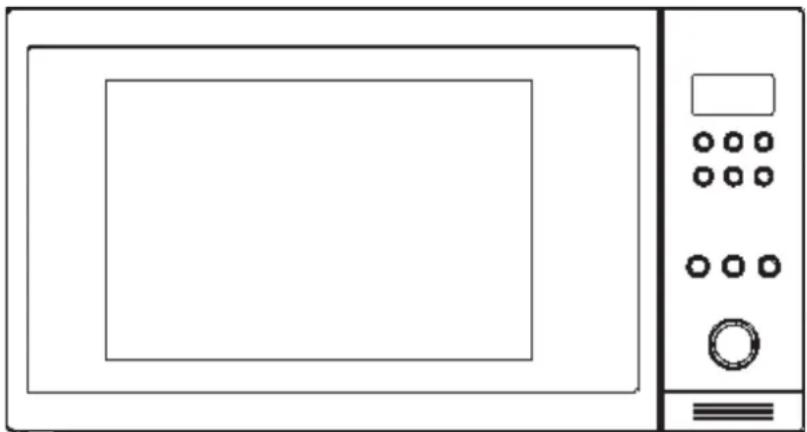

1 Specifications

Power consumption: 230 V~50 Hz, 1450 W
Output: 900 W
Grill Heater: 1200 W
Convection: 13 5 0 W
Operating Frequency: 2,450 MHz
Outside Dimensions: 520 mm (W) X 530 mm (D) X 300 mm (H)
Oven Cavity Dimensions: 350 mm (W) X 372 mm (D) X 232 mm (H)
Oven Capacity: 30 litres
Uncrated Weight: Approx. 19 kg

BEFORE YOU CALL FOR SERVICE

1. If the oven will not perform at all, the display does not appear or the display disappears:

a) Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely.
b) Check the premises for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

1. If the microwave power does not function:

a) Check to see whether the timer is set.
b) Check to make sure that the door is securely closed to engage the safety interlocks. Otherwise, the microwave energy will not flow into the oven.

Note:

The appliance is for household use for heating food and beverages using electromagnetic energy and for indoor use only.

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT THE AUTHORIZED SERVICE AGENT.

2 Radio Interference

Microwave oven may cause interference to your radio, TV, or similar equipment. When interference occurs, it may be eliminated or reduced by the following procedures.

a. Clean the door and sealing surface of the oven.
b. Place the radio, TV, etc. as far away from your microwave oven as possible.
c. Use a properly installed antenna for your radio, TV, etc. to get a strong signal reception.

3 Installation

1. Make sure all the packing materials are removed from the inside of the door.

2. Inspect the oven after unpacking for any visual damage such as:

3. Misaligned Door

4. Damaged Door

5. Dents or Holes in Door Windows and Screen

6. Dents in Cavity
   If any of the above are visible NOT use the oven.

7. This Microwave Oven weighs 19 kg and must be placed on a horizontal surface strong enough to support this weight.

8. The oven must be placed away from high temperature and steam.

9. DO NOT place anything on top of the oven.

10. DO NOT remove the turn -table drive shaft.
11. As with any appliance, close supervision is necessary when used by children.

WARNING - THIS APPLIANCE MUST BE EARTHED.

1. The plug socket should be within, DO easy reach of the power cord
2. This oven requires 1.5 KVA for its input consultation with service engineer is suggested when installing the oven.

CAUTION: This oven is protected internally by ac 250V, 10 Amp Fuse.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow Earth

As the colours of the wires in the mains leads of the appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured green-andyellow must be connected to the terminal in the plug which is marked with the letter

Neutrālor by the earth symbol coloured, ve green of green-and-yellow.

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

ATTENTION: The following steps are for the Microwave Oven models with the Built-in Trim Kit Frame Only.

1. After taking all the accessories out of the microwave oven, turn the microwave oven over on its back and keep the base of the microwave oven facing towards you.

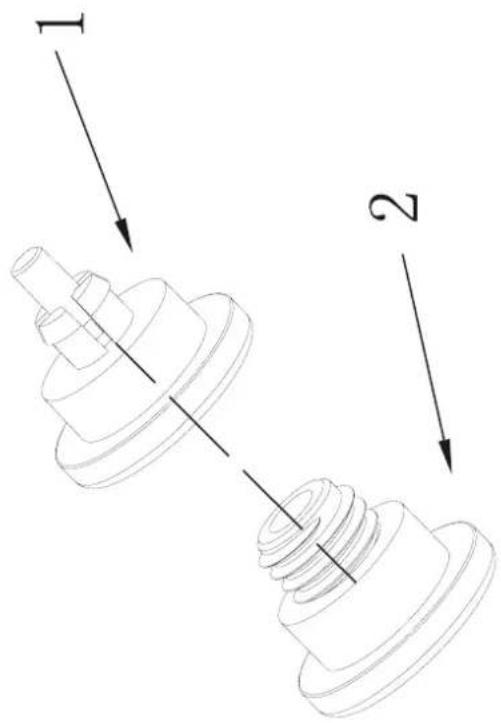

2. Remove the adjustable feet (Fig. No. 2) from the plastic bag and screw them into the holders (Fig. No. 1), one by one.
3. Once all 4 feet are fitted, turn the microwave oven back over onto its feet to check if the adjustable feet are level. If the microwave oven is unstable, adjust the feet by screwing them up or down accordingly.

4 Important Safety Instructions

WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated; (Only for the model with grill function)

WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;

WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy;

WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use;

• The oven must have sufficient airflow. Keep 10cm space at back; 15 cm at both sides and 30cms from top of the oven. Don't remove oven's feet, do not block air events of the oven.
• Only use utensils that are suitable for use in microwave ovens.

• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;

• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames;

• Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container;
• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns;
• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended;
• When cleaning surfaces of door, door seal, cavity of the oven, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth.
• The oven should be cleaned regularly and any food deposits removed;
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation;
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

5 Safety Instructions For General Use

Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance from this oven:

1. Always have the glass tray, roller arms, coupling and roller track in place when operating the oven.
2. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any other nonfood items, or for sterilizing purposes.
3. Do not operate the oven when empty. This could damage the oven.
4. Do not use the oven cavity for any type of storage, such a papers, cookbooks, etc.
5. Do not cook any food surrounded by a membrane, such as egg yolks, potatoes, chicken livers, etc without first being pierced several times with a fork.
6. Do not insert any object into the openings on the outer case.
7. Do not at any time remove parts from the oven such as the feet, coupling, screws, etc.
8. Do not cook food directly on the glass tray. Place food in/on proper cooking utensil before placing in the oven.
9. IMPORTANT-COOKWARE NOT TO USE IN YOUR MICROWAVE OVEN

Do not use metal pans or dishes with metal handles.

Do not use anything with metal trim.

Do not use paper covered wire twist-ties on plastic bags.

Do not use melamine dishes as they contain a material which will absorb microwave energy. This may cause the dishes to crack or char and will slow down the cooking speed.
Do not use Centura Tableware. The glaze is not suitable for microwave use. Corelle Livingware closed handle cups should not be used.
Do not cook in a container with a restricted opening, such as a pop bottle or salad oil bottle, as they may explode if heated in a microwave oven.
Do not use conventional meat or candy thermometers. There are the thermometers available specifically for microwave cooking. These may be used.
10. Microwave utensils should be used only in accordance with manufacturer's instructions.
11. Do not attempt to deep-fry foods in this oven.
12. Please remember that a microwave oven only heats the liquid in a container rather than the container itself. Therefore, even though the lid of a container is not hot to the touch when removed from the oven, please remember that the food/liquid inside will be releasing the same amount of steam and/or spitting when the lid is removed as in conventional cooking.

1. Always test the temperature of cooked food yourself especially if you are heating or cooking food/ liquid for babies. It is advisable never to consume food/liquid straight from the oven but allow it to stand for a few minutes and stir food/ liquid to distribute heat evenly.
2. Food containing a mixture of fat and water, e.g. stock, should stand for 30-60 seconds in the oven after it has been turned off. This is to allow the mixture to settle and to prevent bubbling when a spoon is placed in the food/liquid or a stock cube is added.

3. When preparing/cooking food/ liquid and remember that there are certain foods, e.g. Christmas puddings, jam and mincemeat, which heat up very quickly. When heating or cooking foods with a high fat or sugar content do not use plastic containers.

4. Cooking utensil may become hot because of heat transferred from the heated food. This is especially true if plastic wrap has been covering the top and handles of the utensil. Potholders may be needed to handle the utensil.

5. To reduce the risk of fire in the oven cavity:

(a) Do not overcook food. Carefully attend microwave oven if paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.
(b) Remove wire twist-ties from bags before placing bag in oven.
(c) If materials inside the oven should ignite, keep oven door closed, turn the oven off at the wall switch, or shut off power at the fuse or circuit breaker panel.

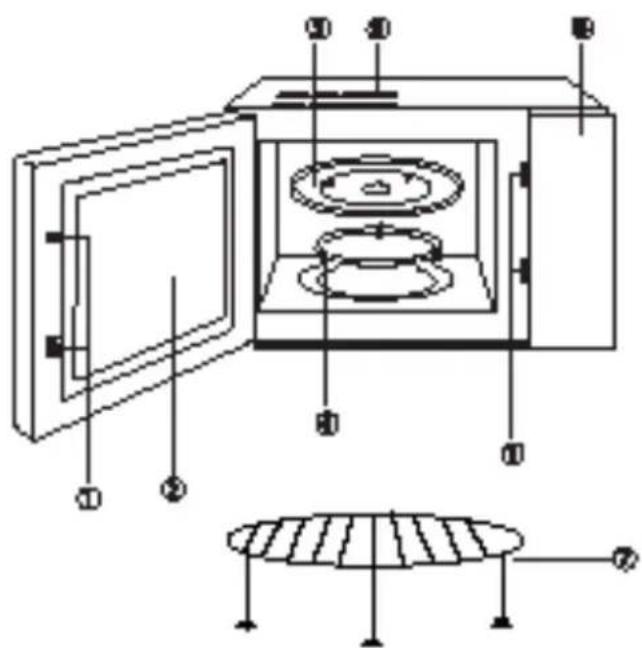

Feature Diagram

(1) Door Safety Lock System
(2) Oven Window
(3) Oven Air Vent
(4) Roller Ring
(5) Glass Tray
(6) Control Panel
(7) Grill rack

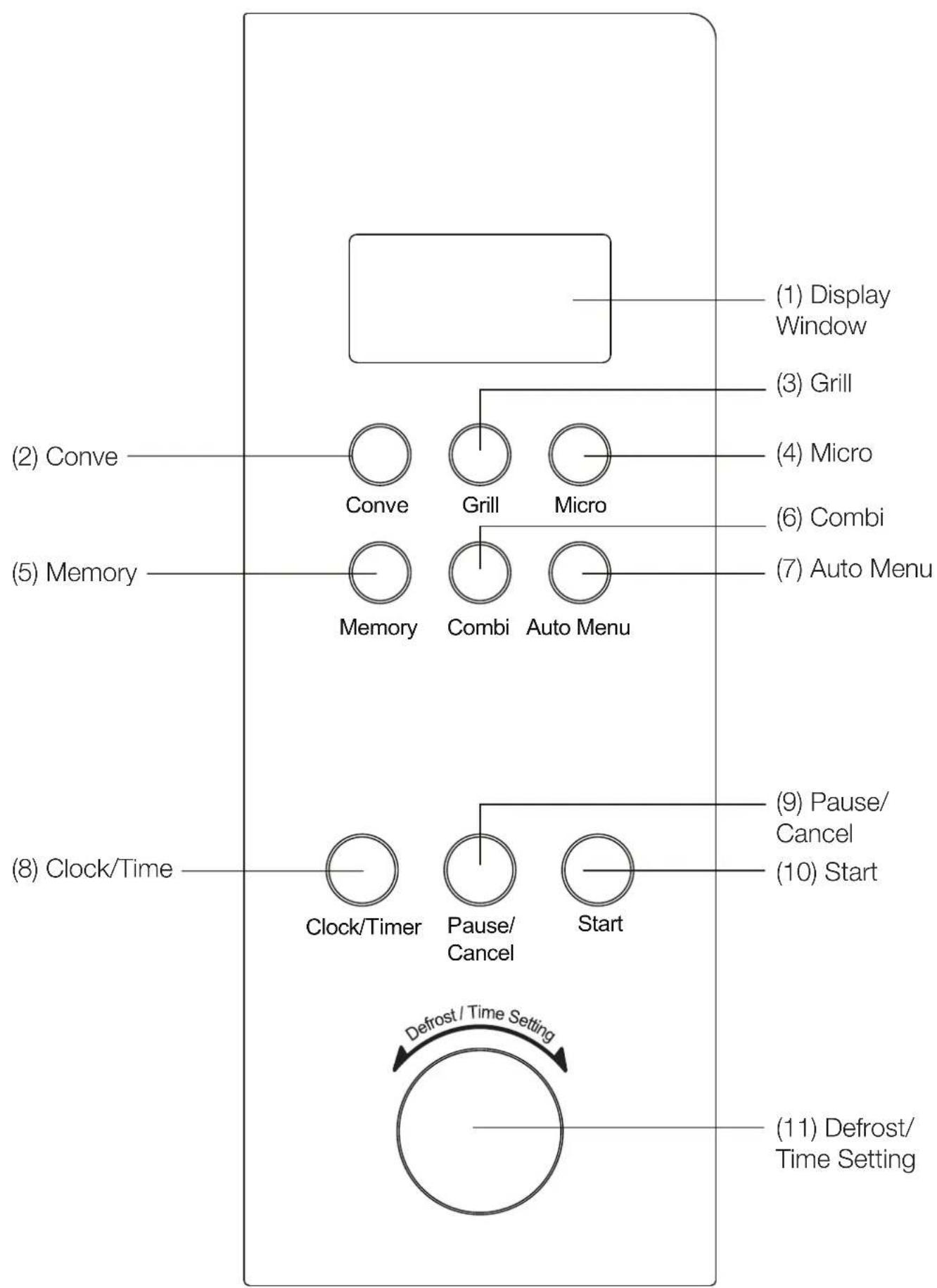

Computer Control Panel

6 Operation Instruction

1. Single Button Heating

Only with a single press of a button, you can start simple cooking, it is very convenient and quick to heat a glass of water etc.

Example: To heat a glass of milk

a) Put a glass of milk onto the glass turntable, and close the door.
b) Press the button "Start", the microwave oven will work on 100% power for 1 minutes.
c) You will hear 5 beeps when cooking is completed.

2. Microwave Heating

This function has two options.

1) Quick microwave heating (100% power)

Example: To heat food on 100% power for 5 minutes

a) Set cooking time to "5:00"
b) Press "Start"
2) Manual-operation microwave heating

Example: To heat food on 70% power for 10 minutes

a) Press "Micro" button, select "70%" power;
b) Set time cooking to "10:00"
c) Press "Start"

There are 5 power levels and the longest microwave heating time is 60 minutes.

Touching times	Microwave power Display
1 100%	P100
2 70%	P70
3 50%	P50
4 30%	P30
5 10%	P10

3. Auto weight defrost

You only need to select the food's weight, it can help you to automatically adjust the power and time. Example: defrost 500g frozen meat

a) Select defrost function by rotating left the knob "Auto defrost" until "500" display.
b) Press "Start"

The weight of food must be less than 2000 g.

4. Auto-Menu

You only need to select the food type and weight, it will automatically adjust the power and time.

Example: Auto cooking 400g fish

a) Press "Auto menu" button until "A-5" display
b) Rotate the knob "Time setting" until "400" display.
c) Press "Start"

Menu Weight (g) Touching Times	A-1 Reheat	A-2 Potato	A-3 Meat	A-4 Pizza	A-5 Fish	A-6 Chicken
1 100 200 100 100 100 200
2 150 300 200 200 200 400
3 200 400 300 250 300 600
4 250 500 400 300 400 800
5 300 600 500 350 500 1000
6 350 700 600 400 600 1200
7 400 900 700 450 700 1400
8 450 1100 800 500 800 1600
9 500 1300 1300 550 900 1800
10	600 150 0 1500 600	1000 2000

5. Memory cooking function:

This function can memorize some useful cooking programs to avoid resetting time and power operation.

a) If no memory has been set press "memory" "1" will be displayed, input cooking power and time, press "memory" again, the set program will be memorized. If you press "Start" instead of "memory" button, the oven will start work, and the program also will be memorized.
b) It there is any memory has been set already, when you press "memory" button, "1" will be displayed, the oven will operate according to the memorized program after you press "Start" button.

The progrume will not be kept when the electricity is off.

6. Grill

You may press "Grill" button to select such functions: (the longest cooking time is 60 minutes). Example: cooking food with grill for 20 minutes

a) Press "Grill" until the LED displayed "G-1".
b) Set cooking time "20:00"
c) Press "Start"

When grilling, the food isn't heated by microwave, heat is radiated from the metal heater at the top of the oven. When grill is working, the cooking time has 2 stages, After the 1st half of the cooking, the program will automatically pause and sound 2 beeps, indicating you to open the oven and turn food over, after turning over, close the door, press "Start" button, the cooking will continue for the 2nd half. If you do not want to turn the food over, the oven will re-start after 1 min pause.

7. Combination Cooking

This appliance offers you a choice of three methods of combination cooking.

Option 1: Convection + Microwave (230 C convection + 40% microwave), display "C-1"

This is ideal for roasting and baking etc.

Option 2: Grill and Convection (50% grill + 230C convection, display "C-2") For fast crisping etc.

Option 3: Grill and Microwave (45% grill + 55% microwave), display "C-3" For fast grilling etc.

Example: Cooking food using option 3 for 30 minutes.

a) Press "Combi" button to select "C-3"
b) Set cooking time for 30 minutes
c) Press "Start"

9. Convection Cooking

This oven can be used as a convection oven and can be programmed to reach a desired temperature for pre-heating. The temperature setting will default to 230^ , you may press "Conve" button to set the different temperature.

Pre-heat functions

Example: To set the oven to pre-heat to 200 C.

a) Press the” Conve" button to choose 200C temperature
b) Press "Start".

When the pre-heating is completed, the appliance will stop work and emit 2 bleeps to remind you to place the food in the oven. Set the convection cooking temperature and time and start cooking. The longest pre-heating time will be 30 minutes.)

II Convection function

Example: Convection cooking, To set the pre-heated oven to cook for 20 minutes at 200^

a) Press "Conve" button to choose convection cooking, press "Conve" button to choose 200^ temperature.
b) Set cooking time for 20 minutes
c) Press "Start"

10. Clock

The oven can be used as a clock.

Example: to input current time 16:30

a) Press "Clock", the clock symbol will flash in display. Rotate the "Time setting" knob to set "16:00".
b) Press "Clock" again, rotate the "Time setting" knob to set "16:30"
c) Press "Clock" again, the clock setting is finished, the time start to go on working.

11. Timer

The timer function helps the microwave oven begin automatic cooking at set time, and automatically stop operation after finishing cooking. (You should set the clock before using timer function). Example: the current time of microwave oven is 16:30, to set cooking at 18:15 on 70% power for 10 minutes.

a) Press "Timer" and set time to 18:15 (same procedure as setting clock).
b) Press "Micro" to set 70% power.
c) Input cooking time 10 minutes by rotating the knob "Time Setting".
d) Press "Start".

If you don't set power and cooking time (omit B and C steps), and directly press "Start" button, the microwave oven will work only as a clock, there will be 10 beeps at 18:15, but no other function will run.

12. Child-safety lock

To activate the child safety lock, press "Auto Menu" and "Combi" button at the same time for 2 seconds.

Press "Auto Menu" and "Combi" button, at the same time for 2 seconds again, it will unlock this function.

13. Pause/Cancel

a) In the course of operation, pressing "Pause/Cancel" button will stop operation.
b) If any program was set before pressing start, pressing this button will cancel all the set program.

7 Care Of Your Microwave Oven

1. Turn the oven off and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. The use of harsh detergent or abrasives is not recommended.
3. The outside oven surface should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Do not allow the Control Panel to become wet. Clean with a soft, damp cloth, Do not use detergents, abrasives or spray-on cleaners on the Control Panel.
5. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates malfunction of the unit.

6. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.

7. The roller ring and oven cavity floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent, water or window cleaner and dry. The roller ring may be washed in mild sudsy water or dish washer. Cooking vapour collect during repeated use but in no way affect the bottom surface or roller ring wheels.

When removing the roller ring from cavity floor for cleaning, be sure to replace it in the proper position.

1. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl. Microwave for 5 minutes. wipe thoroughly and dry with a soft cloth.
2. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.

VAZNE SIGURNOSNE UPUTE. PAZLJIVO PROCTAJTE I CUVAJTE ZA BUDUCU UPORABU

UPOZORENJE: Kad uredaj radi u kombiniranom načinu rada, djeca smiju koristiti pećnicu.
samo pod nadzorom odraslih zbog temperature koja se stvara;

UPOZORENJE: Ako se vrata ili brtva vrata ostete, pecnica ne smije raditi dok je ne popravi ovlašena osoba;

PykoBODCTBO Poinb3ObaTeIe IOn 3KcnpnyaTaun

Blomberg

BHHMaTeJIbHn IpOuTHe pyKOBoIDCTBO n COxpaHnTe dIa NoCneDyUoJero NcNoJIb3OBaHn B CnpaBOuHbIX cIeJax.

BAKHBIE YKA3AHNA NO TEXHNIKE B3ONACHOCTN. BHIMATEJIbHO IPOYTTE IN COXPAHNTE DIA NOCJEYIOUeTO NCIOJb3OBAHNA B CnPABOCHbIX CEJAX.

BHIMAHNE! Kornda neyb pa6oTaet B KOMbHnHPOBaHHOM pexKme, B CBa3N C BBICOKO TeMnepaTypoJ DeTn DOJIxHbI NOJb3OBAbCRA neybTOJbKO NOI npNCMOTpOM B3pocJbIX.

BHIMAHHE! B cnyuae nobpejdeHn DBepui nn ee ynploTHen, 3aPpeaaeTcB KJIouaTb neyb do Tex np, noka He 6ydt npo3BeJeH ee peMOHT KOMneTeHThBIM CneunaJNCTOM.

BHIMAHNE! BbInonHeHne KEM-Jin6o, NOMMO oByeHHoro nepcoHaJa, peMOHTa, TpebyuOero CHATN KOKyXOB 3aunTbI OT MKNPOBOJHOBOr N3nyeHn, OnaCHO.

BHIMAHHE! XnIckOCTn INHbIe NIIeBblpe npOdykTbI He CneJeT pa3OrpeBaTb B repMeTNHbIX EMKoCTaX, NOCKoJIbKy OHI MOrY T B3OpBaTbCra.

BHIMAHNE! Pa3pewaTe DeTAM NOIb3OBA Tbcr NeybTOJbKO IOd Ha6JIIODeHnEM B3pocnbIX, Nocne npoBeDEHn COOTBeTCTByUoSe r HNCTpyKtJa, ecn pe6eHOK cNoCObEn Eo IOnb3OBA Tbcr INOC03HaET ONaCHOCTb HeCuaCTbIX CnyaEB BCJeDCTBHe HeHaDJIeXaSei 3KcPnyatau.

• Nolb3yntecb TOnbKO nocyo, npiroDHOJ dNcNOB3OBaHn B MKNPOBOJHOBbIX neayx.
• Ppi pa3orpeBe npOdyKTOB B pIacTMacCObBIX INI 6yMaXhBIX KOHTeHepax, NOCToHHo HabIOaTe 3a NeYbIO B CBA3N C BO3MOxHOCTbIO BOCnJaMeHeHn.
• Pn o6hApxKeHn DbIma BbIKIOHTe Neyb NJI BbIHbTe BNkY n3 PO3eTKN IOCTaBBTe DBepuy 3aKpbIToJ dJa TyuWeHn PnAmEHn.
  Pa3orpeBaHne B MmKpOBoJHOBOI neu HAnNTKOB MOKeT npNBecTu K 3aAepXaHHOMy BO BpeMeHN BCKnIaHnIO, NO3Tomy CNeDyET CO6IIOdaTb OCTOpOXHOCTB npN O6paueHnC EMKoCTaMn.
  Bo n36eXaHne OxOroB, 6yTbIIOUckn I 6aHOUckn C DeTCKm NITaHHeM NepeD yNoTpe6JIeHHeM B NiuCy CNeDuYET BCTPxAHyTb NII NepMeWAtb COePjXImOe, a TaKKe npOBepNTb TemNepaTypy.
• Raца в скорлупи CBаренье Вкpyтую He сдуet pa3orpeBaTb B MнКpoBOJHOBОI peu, TaK KaK OHI MOrY T B3OpBaTbCЯ джe посе OKOHuaHЯ pa3orpeBa C NOMOuBOMKPOBOH.
• Neyb cneNyet peryIaIpho uHCTnTb n ydaIaTb ocTaTKn nnu.
  HeBbIIOJIHHeHne Tpe6oBaHn IIO NOIDepXaHnIO Neu B YNCOTe MOKeT npNBecTN K IOBpeKJDeHnIO NOBepxHOCTN, UTO MOKeT OTPuCaTeJbHO NOBnIaRb Ha cPOK CnyK6bl 3JIeKTpOpnp6opap n CO3DaTb ONaCHyO CNTyaCNI.
  Bo n36exaHHe HeCuaCTbIX CnyaEB npn NOBpeXdeHnn UHypa NHTAHn, erO 3aMeHy DOJKeH OcyueCTBnTb IPOUN3BOIDTeNb, eRTO PpeDCTaBNTeNb PO CEPBCy ININ JNIO, IMeIOoee aHaIOnuHHyKBAJIINΦnKaUIO.
  Bo BpeMa pa60TbI n3dennr TemnepaTypa ero nobepxHocTe MoKet 6bITb BBICOKoN.

1 Texnueckne XapakTepncTKK 4
2 3neKtpomarHHTbIe Nomexn 5
3 YcTaHOBka 5
4 Baxhble IHctpyKuI No Texnke Be3onacHocTn. 7
5 O6uHe MepbI PpeoctopoxKocTn Ppi PoIb3ObaHnn ....8
6 HctpyKuaI Po 3Kcnpnyatau.. 11
7 Yxod 3a MnkpoBolHOBoi PeybIO 14

ECJN C NOMOUIYKA3AHHbIX DEICTBNI NCNPABNTb NOLOXEHNE HE YDAETCRAOBPATNTECB K BJIHXAIWEMY INPEDCTABNTELIO ABTOPN3OBAHHOI CEPBNUCHO CNJXKbl.

2 3neKtpomarHnTHbIe Pomexn

При заMuKpoBOLHOBOI peuMoTy CO3daBaTbCЯ NOMexДЯ paDIOnpneMnka, TeNeBn3opa n npOuNX NOO6hblx yCTpoiCTB. Ppr HAnuNn NOMex INX MoXHO yMeHbWntb INI yCTpaHHTb nyTeM npINrTa CneDuOuNX MEP:

a) OuInCTnTe DBepy N NOBepxHocTnyNIOHTHeHn ADBepcI Neu.
6) YCTaHOBnte paDnONpneMnK, TeJIeBN3Op N T.I. KaK MoXHO daJIbSe OT MNIKPOBOJHOBOI Neu.
B)ДЯ obecneueHЯнаджHOrO npHema cnHaHa nCNoIb3yIe npaBnIbHO yCTaHOBJeHHy aHTeHHy dIpaDIOnpHMeHHka,TeJIeBn3opa nT.I.

3 YctaHOBka

1. Y6eIntecb, yTO C BHyTpENHei CTOpOHbI DBepuI ydaJIeHbI BCE yNaKOBOUHbI MaTePnAJIbI.

2. После пас納ковский OCMOTРп Te Neч ha npedmet Bn3yaJIbHOrO 6hApyKeHnCNeDyUOxN NOBpeKdEHN:

3. CmeueHHa DBepua

4. NOBpeXdEHHa DBepa
   BmTINbI INI OTBepCTnB OKHe DBePcBi Hn Ha 3KpaHe
   BmTnHb BHyTpHeN NOIOCTN
   He noJIb3yInTeCb neYbIO,ecJIN 3aMeTHbI BblUeYka3aHHbIe IOBpeXKeHnA.

3.Данная МКрOBЛНовап Yeь BeCnT 19Kr.Ee cIeIyET yCTaHbIINBaTb Ha rOpN3OHTaJIbHyIO NOBepxHOCTb DOCTaTOUHoi nPoUHOCn, CnOCo6HyIO BbIePjXnBaTb TaKoI BeC.
4.ПechьследуETyCTaHaBnBaTbHa ydaJIeHnOTNtOCHNKOBTeIIaInapa.

1. HE CTABbTE HnkaKnx npeDmTeOB Ha NOBepxHOCTb Neu.
2. HE CHIMMAITE BaJ npBoJa BpaaUoJeNcR NOCTaBKn.
3. KaK IIO6oB 3JIeKTpOpnp6Op, neyb Tpe6yeT BHNMaTeJIbHOrO HAbIIODeHnA 3a Hei, KOrDa OHa NcNoJIb3YeETcA DeTbMn.

BHHMaHHe! DAHHbI IN Pnp6op DoJxKeH 6bItb 3a3eMJeH.

1. Hyp nItaHn DOJXeH JERKO DOCTaBaTb Do 3JeKTPopo03ETKn.
   2.Данногпун Ha BXOde Tpe6yeTc8 1,5 KBA.Iprn yctaHOBKe neyn peKOMeHdyETcI pOKOHcybTynpOBaTbcC INHXeHepomNo3KcNpyatauIN.

OCTOPOXHO! Θа Neчь 3aшицeha BHyTppeHnM npeOxpaHnTeIeM Ha 250 B, 10 A NepemEHoro Toka.

BAXHAR NHΦOPMALI

PpOBoJa CeTeBOro UHypa HMeOT UBeT B COOTBeTCTBn CO CJeDyUeN KOINPOBKOJ:

3eHeBn-JKeNTbI 3a3emJHne

TolbyoI :KopnHHeBbI :Φa3a

IockoBky pa3HOuBeTHbIe npOBOda ceTeBOrO uHypa np6opapMOrT He COOTBeTCTBOBaTb UBeTHOH MapKInpOBKe KJIeMM B BaWeJ uTeNcIbHOB BNJIke, DeiCTByIte cJeDyUoMm o6pa3OM:

IpoBOD 3eNeHOro-JeENToro UBeTa DOJXeH NOcOeDnHrTbCn K KJIeMMe UTeNceJbHO BnIKn, MapKnipOBaHHo6 ByKBoE nnn

HeTpaMBOJOM 3a3eMJIeHnA 一 3 eJeHOrO nIN 3eJeHOro-JKeIToRTO UBeTa.

IpoBOD roJy6oro cBeTa doJxKeH
IOdcoeINHrTbcK KJIeMMe,
MapKnipOBaHHo 6yKBoN N, nIu YepHoro
cBeTa.

ПювOD КорчHeBOrO uBeTa ДОЛжЕн ПОДСоeДИНЯТьСЯ KКЛeМMe, MapКИрOBaHHoB 6yKBoI L, Илп КpacHOrO uBeTa.

BHIMAHHE! CJeDyUOuNe DeiNCTBnKacAOTcTToJIbKO MoJeIeM MKNPOBOHOBbIX Neue Co BCTpoEHHOpeRyIInpOBOUHOpaMoI.

1. BbHbTe BCE npHaJNeJXHOCTn n3 MKNPOBOJHOBOI neu I nepeBepHITe ee HIXHeY qAcTbIO BBepx.

2. BbHbTe peryIpyEmble HOxKn (Pnc. No 2) n3 pIaCTNkoBOro naKeTa n BKpyTnte nx no OuepeiB pIaCTMaCCOBbie ĀpXaTei (Pnc. No 1).

3.ПоссеТо,кakBce4HoxKn 6ydyT npikpyeHbI, npeBepHnTe neybNyCTaHOBnTe eeHa HOxKn, YTObI pOBepNTb, BCE JN HOxKn HaxOJrTcHa OJHom yPOBHe. Ecnn MmKpOBoJHOBa Neyb CToNT HeycToJUBO,OTpeRyJnPyuTe HOxKn NO BbICOTE,3aKpyuNBa IJI N BbIKpyuNBa IN COOTBETCTBEHHO.

4 BaXHbIe IhCTpyKcIIN Po TexHnke Be3OpacHoCTn.

Hanpimep: TTo6bI HarpeTb CTaKaH MONOKa

a) NocTaBbTe CtaKaH MoJOKa Ha CTeKJIaHHbI NOdHoc I 3aKpOte DBepuy.
6) Haxmte KhoNky Start (Iyck), MKNPOBOHOBaH ney 6yJeT pa6OtaTb co 100% MoUHOCTbIO B TeueHne 1 MNHyTbl.
B)NoOKOHuaHn npiroTOBneHn Bby yCblIuNTe 53ByKObIX CnHaNOB.

2.ПигOTOBJIeHnE c npIMeHHeHem MKNPOBOJHOBOy 3Heprnn

3TaФункиIMeETДBaBapnaHTa.

1)БыICTpoe npnroTOBJIeHne c nOMOuMbOMKPOBOHn (100% MOUHOCTb).
Hanpimep:YTo6bI pa30rpeBaTb Nnuy Co 100% MOUHOCTbIO B TeueHne 5 MNHyT
a) YCTaHOBNTe BpEMn npriROToBneHnHa 《5:00》
6) HaxmTe KhoNky Start (Nyck).
2)При��OTOBJIeHHe c nOMOUI MmKPOBOLHOBOJ 3HeprIn C pyHybIM ynpaBJIeHnEM

Hanpimep: TTo6bI pa3oRpeT bNcUc 70% MOuHOCTbIO B TeueHne 10 MInHyT

a) HaxmTe KhoNky Micro (MnKpOBoHbI), BbI6epnte MouHocTb 70%
6) YCTaHOBNTe BpEMn PnIroTOBHeHnHa 10:00
B) HaxmTe KhoNky Start (Nyck).

Imeetcay5ypoBHe MoUHocTn,aHaNboJeepoJOnKTeJIbHOe BpeMa pa3OrpeBaC NOMOuBu MKNpOBOJHOBo 3HeprNucoCTaBnAET60MnHyT.

MnKpOBoJHOBa NcMbMOKeT NCNoJIb3OBAtBcA B KaueCTBe YacOB.

HaPnIpMep: TTo6bI BBecTn TeKyuuee BpeMa 16:30

a) HaxmTe KhoNky Clock (Yacbl), CnMBOJ YacOB Ha DnCnIe HaUHeT Mrratb. NObepHnte pyuKy Time setting (HacTroNka BpeMeHn), UTo6bl yCTaHOBNTb 16:00
6) Euple pa3 haxmnte KhoNky Clock (Yacbl), nobepnTe pyuKy Time setting (HactpoiKa BpeMeHu), yTo6bI yCTaHOBtB «16:30».
B) Eüe pa3 hαχmnte KhONky Clock (Yacb), HacTpoɪka YacOB 3aBepSeHa, HauHETc OTCuET BpeMeH.

11. TaHmep

Hapnep: Tekyuee BpemHa MmKpoBONHOBOn Neu CoCTaBnReT 16:30, HxKHO HAcTponb Haayano npiroTOBHeHn B 18:15 c MoUHocTbIO 70% B TeueHne 10 MNHyT.

a) Haxmte KhoNky Timer (TaMep) u yctahOBnTe Bpem 18:15 (takajKe npoedypa, KaK i npn HacTpoKe YacOB).
6) Haxmnte KhoNky Micro (MukpoBOnHbI), YTO6bl yCTaHOBnTb MoUHOCTh 70%.
B) Bpaaay pyky Time setting (HactpoynKa BpeMeH), BBeDnte BpeMa npiroTOBneHn 10 MNHyT.
r) Haxmnte KhoNky Start (Nyck).
EcIn Bbl He hAcTpOnTe MoUHocTb N BpeMa npnroTOBLeHna (npOnyCTNe DeiCtBnB N C), n HenocpeDCTBeHHo HaxMeTe KhoNky Start (Nyck), MnkpoBoJHOBa neYb 6yJeT pa60TaTb TOnbKO KaK yacbl, B 18:15 6yJeT noDaHO 10 3ByKOBbIX CNHaJIOB, HO HnKaKaJdpyra fynKcHnHe BKJIouHTcR.
