USER MANUAL Jongo T2X PURE
Quick start guideQuick s
Jongo
T2, T2X
T4, T4X
Thank you for choosing Jongo. This quick start guide will get you up and running in no time. If you need more help setting up your Jongo, you can access our online help in the Pure Connect app or watch our Jongo setup video at:
www.pure.com/jongo-setup-video
ENGLISH
DE
FR
IT
DA
NL
Jongo safety instructions
- Read these instructions - All the safety and operating instructions should be read before this product is operated.
- Keep these instructions - The safety and operating instructions should be retained for future reference.
- Heed all warnings - All warnings on the appliance and in the operating instructions should be adhered to.
- Follow all instructions - All operating and use instructions should be followed.
- Do not use this apparatus near water.
- Clean only with dry cloth.
- Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Only use attachments/accessories specified by the manufacturer.
- Unplug the apparatus during lightning storms or when unused for long periods of time.
- Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
- WARNING: Please refer to the information on the rear of the enclosure for electrical and safety information before installing or operating the apparatus. If you are installing Jongo with the removable stand in portrait mode, this information can be located behind the trim panel.
- WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that objects filled with liquids, such as vases, shall not be placed on apparatus.
- WARNING: The direct plug-in adapter is used as disconnect device, the disconnect device shall remain readily operable.
- Use only power supplies listed in the user instructions (Jongo T2/T2X with model no. PSAA30R-150, manufactured by Pure) (Jongo T4/T4X with model no. CPS065A180361, manufactured by Pure).
- Mains power supply
Jongo T2/T2X: Switching adapter: Input: AC 100 - 240V~, 50/60 Hz, 0.8A; Output: DC 15V, 2A
Main unit: DC 15V 2A
Jongo T4/T4X: Switching adapter: Input: AC 100 - 240V~, 50/60 Hz, 1.6A; Output: DC 18V, 3.61A
Main unit: DC 18V, 3.6A
- This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.
Connecting Jongo to Wi-Fi
EN

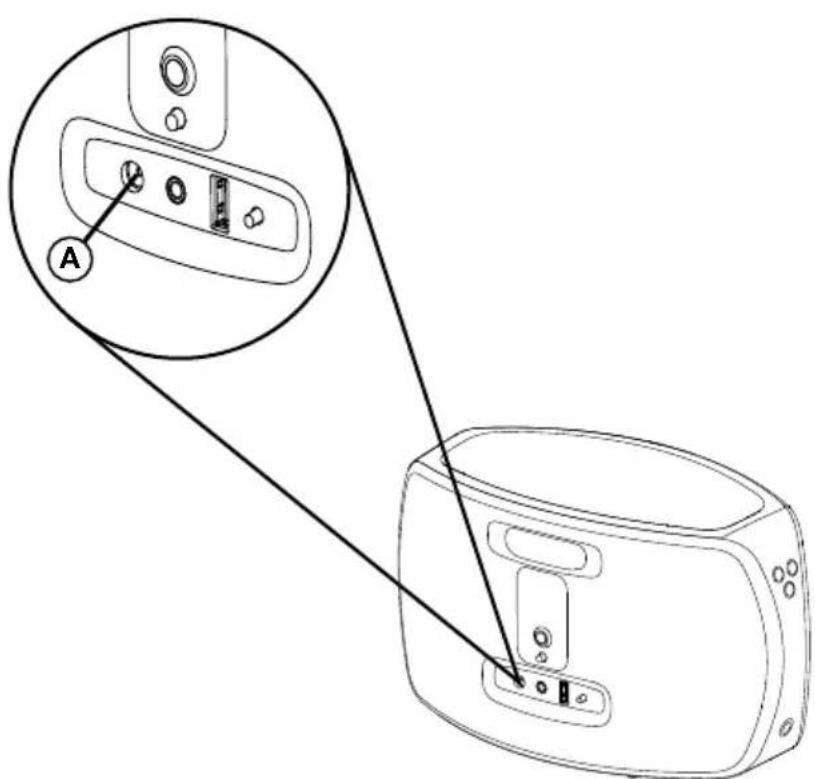

(1) Power up Jongo
Insert the connector of the supplied mains lead into Jongo (A) and switch Jongo on .

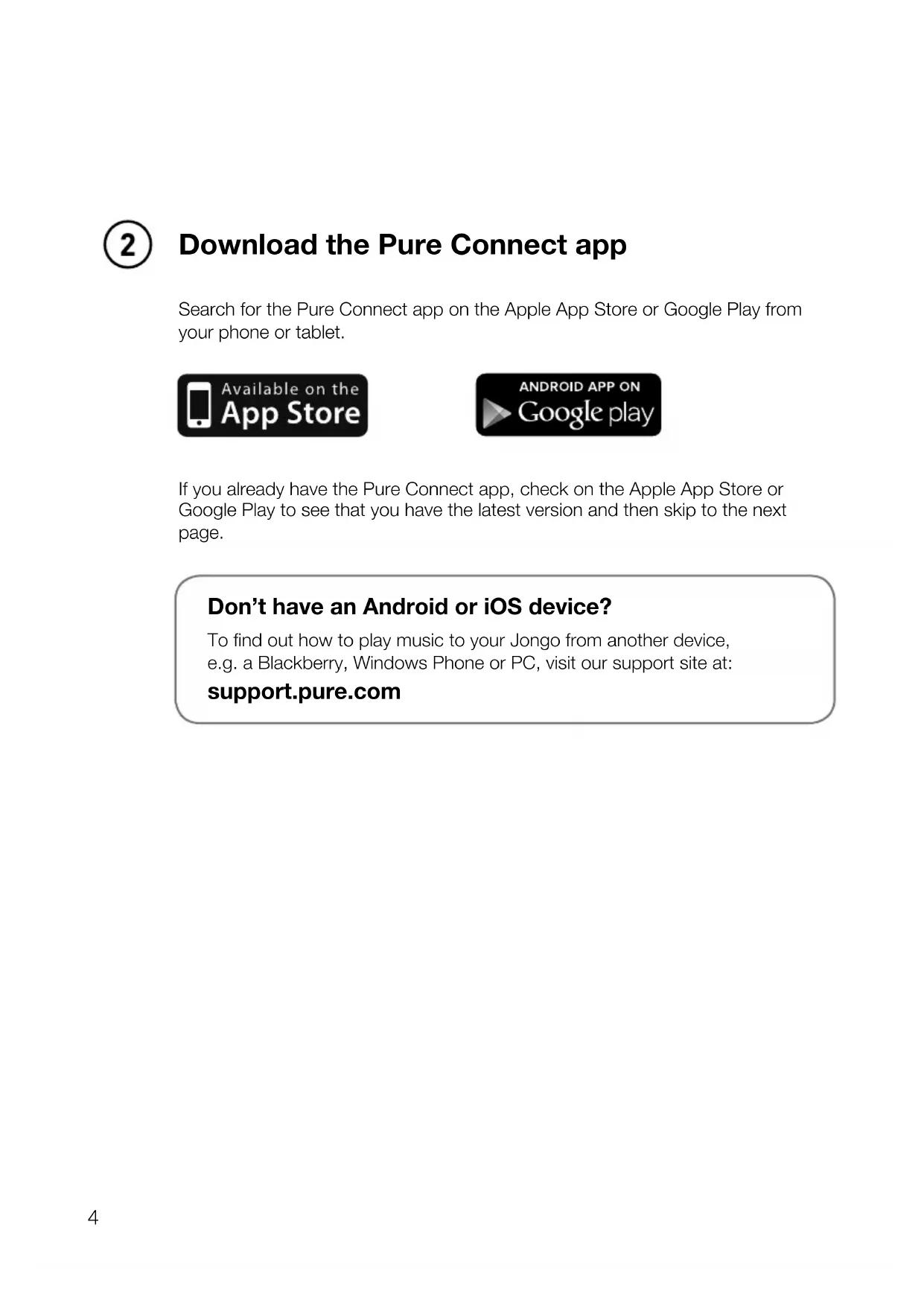

Download the Pure Connect app
Search for the Pure Connect app on the Apple App Store or Google Play from your phone or tablet.
If you already have the Pure Connect app, check on the Apple App Store or Google Play to see that you have the latest version and then skip to the next page.
Don't have an Android or iOS device?
To find out how to play music to your Jongo from another device, e.g. a Blackberry, Windows Phone or PC, visit our support site at:
support.pure.com

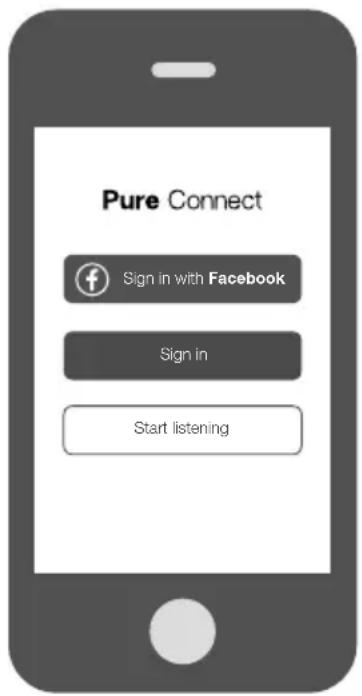

Open the Pure Connect app and sign in
To make the most of your Jongo you really need to create a free Pure Connect account. You can create a Pure Connect account using your Facebook account or your e-mail address*.

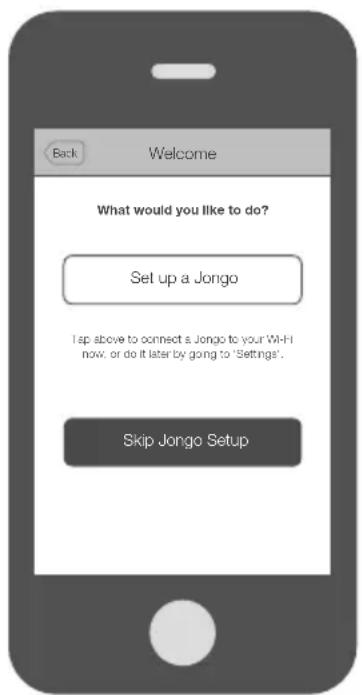

Connect Jongo to your Wi-Fi
The first time you sign in to the app, you will see an option to connect Jongo to your Wi-Fi. Simply tap Set up a Jongo and follow the prompts on screen to connect Jongo to your Wi-Fi.

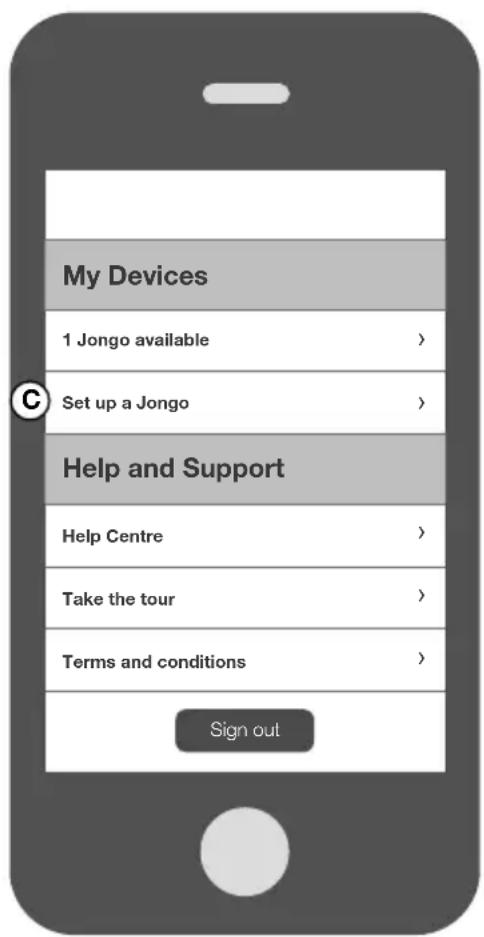

Adding another Jongo to your Wi-Fi
If you have already connected a Jongo to your Wi-Fi, follow the steps below to add another Jongo to your Wi-Fi.
A. Open the Pure Connect app and sign in.
B. Open the Settings menu.
C. Tap Set up a Jongo and follow the prompts on screen.

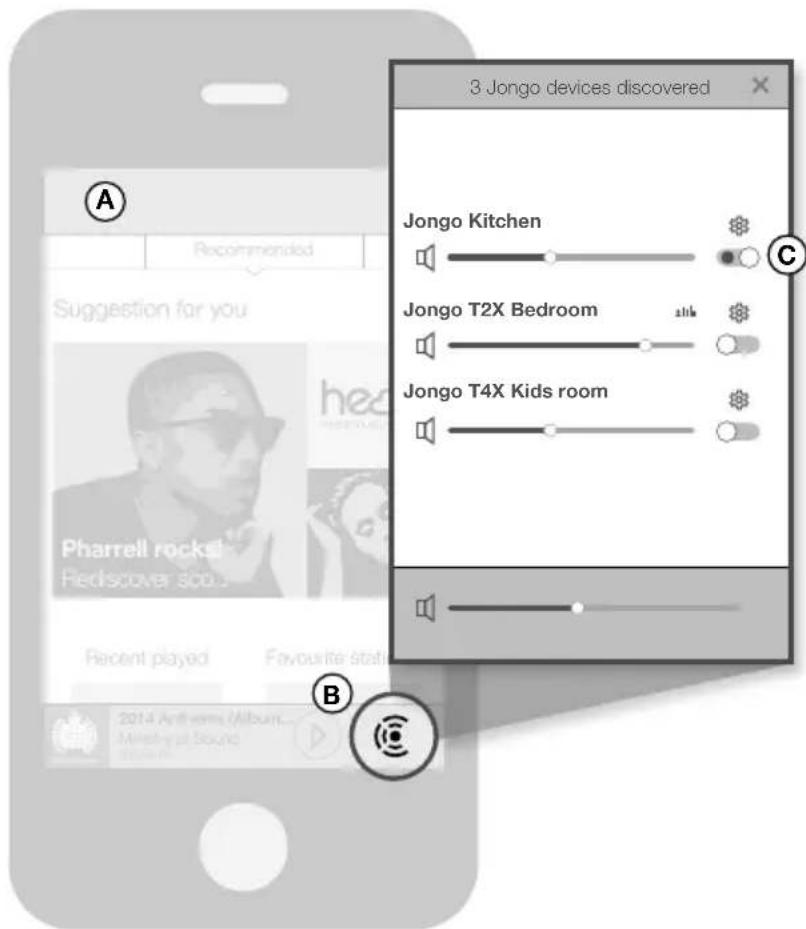

Playing music from the Pure Connect app
EN
You can use the Pure Connect app to play music using Wi-Fi and manage various settings, including the volume, stereo pairing and software updates.
A. Open the Pure Connect app.
B. Tap in the player bar to view a list of available speakers.
C. Switch on the speakers that you want to stream to.
D. Select the music that you want to play.

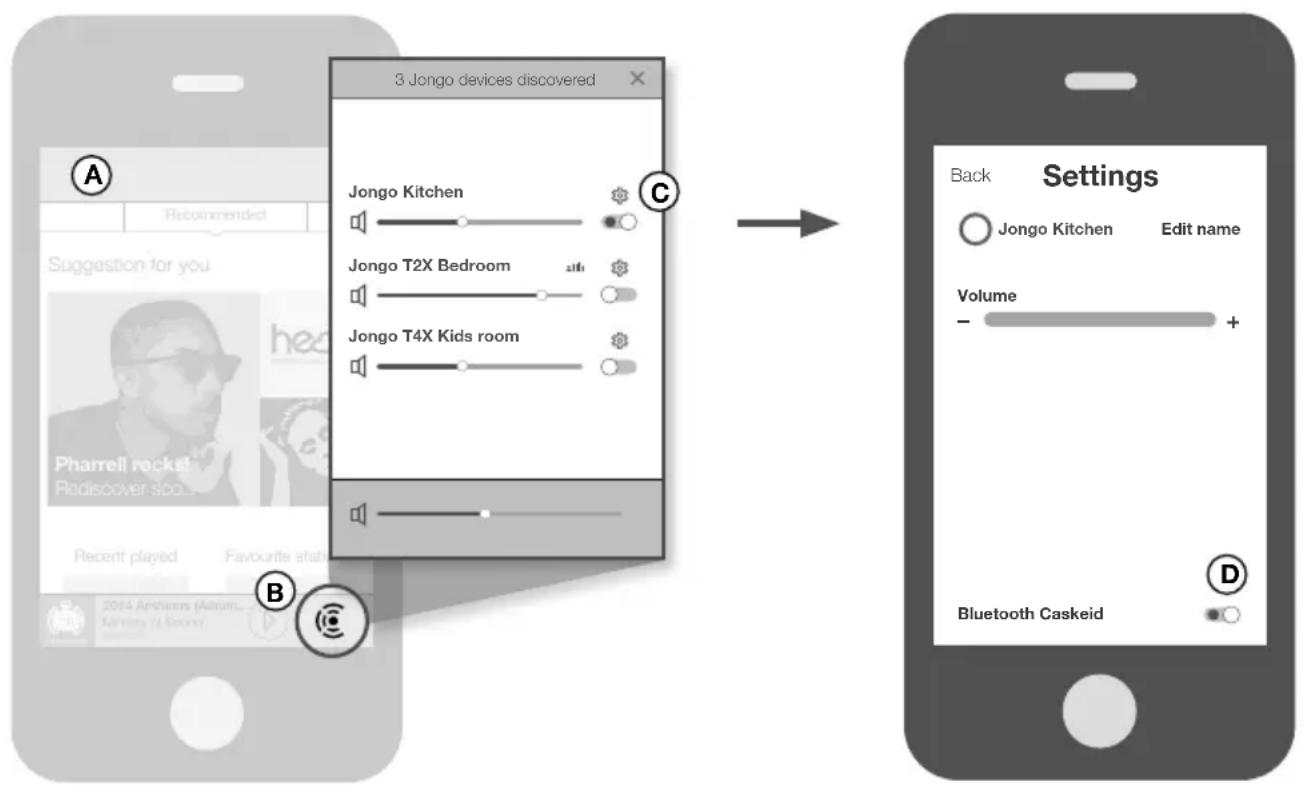

Playing music from other apps
If your speakers are connected to Wi-Fi, you can use Bluetooth Caskeid to stream content from other music services, such as Spotify and Pandora, to all of your speakers.
A. Open the Pure Connect app.
B. Tap in the player bar to view a list of available speakers on your network.
C. Tap next to the speaker that you want to stream to
D. Switch Bluetooth Caskeid on and return to the previous screen.
E. Repeat steps B to D for each speaker that you want to play music on.
F. Enable the Bluetooth option on your mobile device and search for Bluetooth devices.
G. Pair to one of your speakers. If your device requires a key, enter '0000'.
H. Open the music streaming service that you want to listen to and play a track.
Don't have an Android or iOS device?
To find out how to play music to your Jongo from another device, e.g. a Blackberry, Windows Phone or PC, visit our support site at:
support.pure.com
Troubleshooting
EN
Why does the power light on my Jongo change colour?
The power light on the front of Jongo is used to tell you about Jongo's status. The list below explains some of the common colours that you may see when setting up and using your Jongo.
Green (steady): Jongo is ready to play your music or is already playing a track.
Green (pulsing): Jongo is in Wi-Fi setup mode (you'll see this when powering up your Jongo for the first time) or Jongo is busy. The power light will turn steady green when Jongo is ready to play your music.
Amber (steady): Jongo is in sleep mode. Jongo will automatically wake up and play your music when you try to stream a track from your smartphone or tablet.
Red (flashing): Jongo cannot connect to your Wi-Fi. Check that you are within range of your Wi-Fi network and that you have entered the correct password (matching any upper and lower case letters) and run Jongo Setup again. To get more help with setting up your Wi-Fi, visit our support site at support.pure.com.
Why did Jongo Setup not work?
If there was a problem during Jongo Setup, the Pure Connect app will display an error message to help you troubleshoot the problem.
No Wi-Fi detected
This message will appear if your mobile device is not connected to a Wi-Fi network. Check the Wi-Fi settings on your mobile device to see if you are connected to a Wi-Fi network and then tap Try again.
Setup failed
This message will appear if there was a problem during Jongo setup. One common reason for this message to be displayed is an incorrect Wi-Fi password. Tap Try again to try setting up your Jongo again.
Need more help?
If you need more help setting up your Jongo, you can visit our support site at: support.pure.com
Technical specifications
EN
Jongo T2/T2X
Speakers 2 full-range 3'' drive units
Audio output 2x10W RMS
Input connectors 15V DC power adaptor socket (110-230V supplied), 3.5mm line-in for auxiliary devices. USB for product updates and Ethernet connectivity (optional adapter available)
Controls Power, Vol+, Vol-, Mute, Wi-Fi setup
Network Wi-Fi: 802.11b and 802.11g supported with WEP and WPA/WPA2
Ethernet (requires optional adapter): 10/100 Mbps
Bluetooth: A2DP supported
Codec support Includes WMA (Standard V9), AAC, MP3, MP2
Mains power supply Adapter:
Input 100-230V AC, 50/60Hz, 0.5A;
Output 15V DC, 2000mA
Main unit: 15V DC - - , 2000mA
Dimensions 250 mm wide x 120 mm deep x 150 mm high
Weight 1.104kg
Approvals CE marked. Hereby, Pure, declares that this Band II LPD device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The Declaration of Conformity may be consulted at: http://www.pure.com/R&TTE-DoC Australian C-Tick N1600 and Electrical Safety
Jongo T4/T4X
Speakers 2 full-range 4" drive units
Audio output 2x25W RMS
Input connectors 18V DC power adaptor socket (110-230V supplied), 3.5mm line-in for auxiliary devices. USB Type A for product updates and Ethernet connectivity (optional adapter available)
Controls Power, Vol+, Vol-, Mute, Wi-Fi setup
Network Wi-Fi: 802.11b and 802.11g supported with WEP and WPA/WPA2
Ethernet (requires optional adapter): 10/100 Mbps
Bluetooth: A2DP supported
Codec support Includes WMA (Standard V9), AAC, MP3, MP2
Mains power supply Adapter:
Input 100-240~V AC, 50/60Hz, 1.6A;
Output 18V DC, 3.61A
Main unit: 18V DC, 3.61A
Dimensions 305 mm wide x 146 mm deep x 165 mm high
Weight 3kg
Approvals CE marked. Hereby, Pure, declares that this Band II LPD device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The Declaration of Conformity may be consulted at: http://www.pure.com/R&TTE-DoC Australian C-Tick N1600 and Electrical Safety
Warranty information
Imagination Technologies Limited warrants to the end user that this product will be free from defects in materials and workmanship in the course of normal use for a period of three years from the date of purchase. This guarantee covers breakdowns due to manufacturing or design faults; it does not apply in cases such as accidental damage, however caused, wear and tear, negligence, adjustment, modification or repair not authorised by us. Should you have a problem with your unit please contact your supplier or contact Pure Support at http://support.pure.com.
Disclaimer
Imagination Technologies Limited makes no representation or warranties with respect to the content of this document and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. Further, Imagination Technologies Limited reserves the right to revise this publication and to make changes in it from time to time without obligation of Imagination Technologies Limited to notify any person or organization of such revisions or changes.
Trademarks
Jongo, Pure, the Pure logo, Imagination Technologies, and the Imagination Technologies logo are trademarks or registered trademarks of Imagination Technologies Limited.
Caskeid is a superior synchronization technology, providing clear multi-speaker wireless audio.
Caskeid and the Caskeid logo are trademarks or registered trademarks of Imagination Technologies.
Copyright
Copyright © 2014 Imagination Technologies Limited. All rights reserved. No part of this publication may be copied or distributed, transmitted, transcribed, stored in a retrieval system, or translated into any human or computer language, in any form or by any means, electronic, mechanical, magnetic, manual or otherwise, or disclosed to third parties without the express written permission of Imagination Technologies Limited. Version 2 September 2014.
Disposal of Waste Electrical & Electronic Equipment
This symbol on the product or on its packaging indicates that this product should not be treated as household waste. Instead it should be handed over to a suitable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local council office, your household waste disposal service or the shop where you purchased the product.
Jongo
T2, T2X
T4, T4X
Australian C-Tick N1600 and Electrical Safety
Jongo T4/T4X
Australian C-Tick N1600 and Electrical Safety
Garantiererklarung
Australian C-Tick N1600 ed Electrical Safety
Jongo T4/T4X
Numero modello T4X
Australian C-Tick N1600 ed Electrical Safety
Network (Network) Wi-Fi: 802.11b and 802.11g supported with WEP and WPA/WPA2
Ethernet (vereist optionele adapter): 10/100 Mbps
Bluetooth: A2DP ondersteund
Australian C-Tick N1600 and Electrical Safety
Jongo T4/T4X
Modelnummer T4/T4X
Luidsprekers 2 × 4^ HF-drivers
Audiovermogen 2× 25W RMS
Network (Network) Wi-Fi: 802.11b and 802.11g supported with WEP and WPA/WPA2
Ethernet (vereist optionele adapter): 10/100 Mbps
Bluetooth: A2DP ondersteund
Australian C-Tick N1600 and Electrical Safety
Garantie-informatie
Imagination Technologies Limited
Home Park Estate
Kings Langley
Herts,WD4 8LZ
United Kingdom
www.pure.com
http://support.pure.com
