USER MANUAL T1 Ghibli

(Translation of original instructions)

FR

Francais FR-1

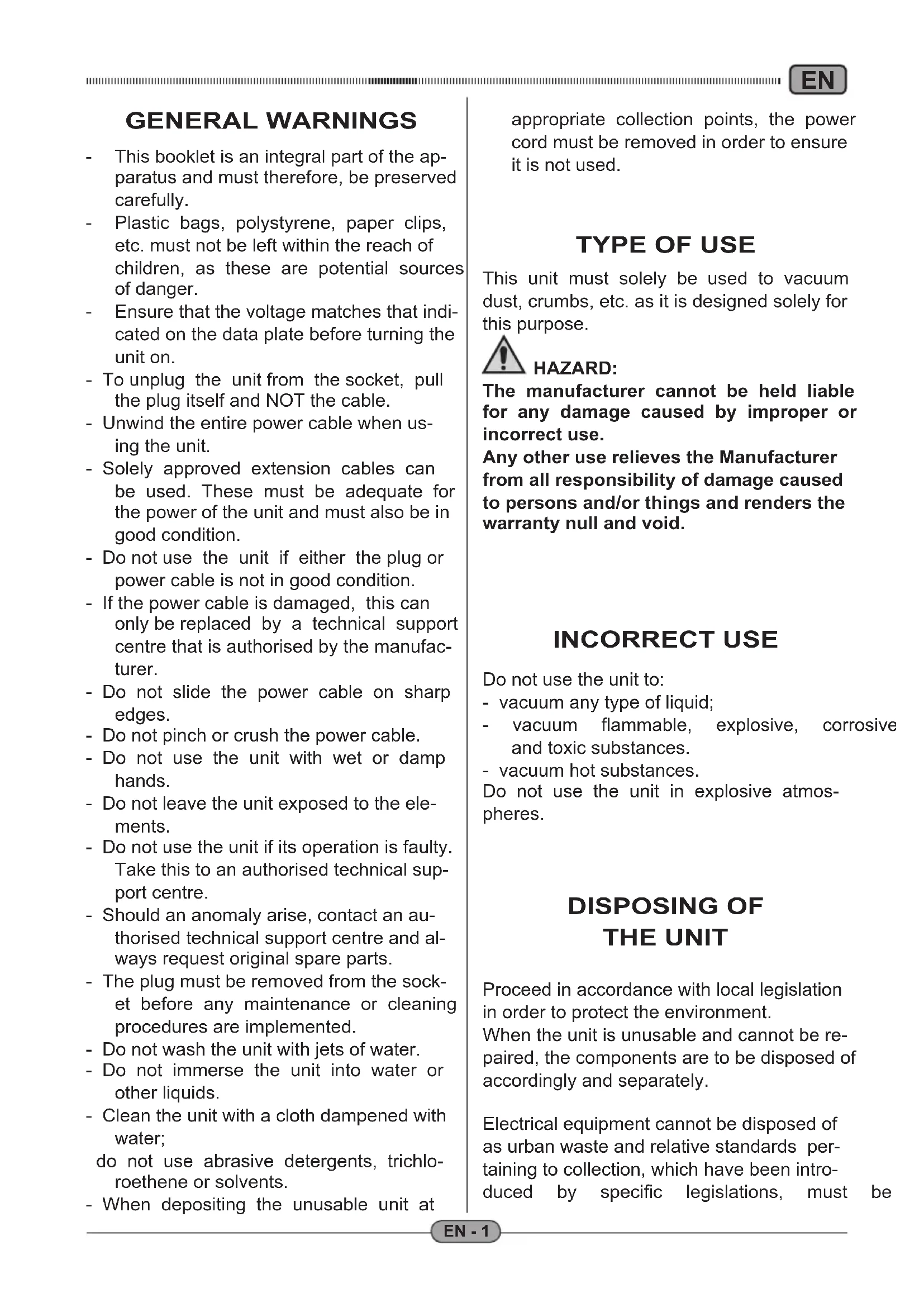

• This booklet is an integral part of the apparatus and must therefore, be preserved carefully.
• Plastic bags, polystyrene, paper clips, etc. must not be left within the reach of children, as these are potential sources of danger.
• Ensure that the voltage matches that indicated on the data plate before turning the unit on.
• To unplug the unit from the socket, pull the plug itself and NOT the cable.
• Unwind the entire power cable when using the unit.
• Solely approved extension cables can be used. These must be adequate for the power of the unit and must also be in good condition.
• Do not use the unit if either the plug or power cable is not in good condition.
• If the power cable is damaged, this can only be replaced by a technical support centre that is authorised by the manufacturer.
• Do not slide the power cable on sharp edges.
• Do not pinch or crush the power cable.
• Do not use the unit with wet or damp hands.
• Do not leave the unit exposed to the elements.
• Do not use the unit if its operation is faulty. Take this to an authorised technical support centre.
• Should an anomaly arise, contact an authorised technical support centre and always request original spare parts.
• The plug must be removed from the socket before any maintenance or cleaning procedures are implemented.
• Do not wash the unit with jets of water.
• Do not immerse the unit into water or other liquids.
• Clean the unit with a cloth dampened with water; do not use abrasive detergents, trichloroethene or solvents.
• When depositing the unusable unit at

appropriate collection points, the power cord must be removed in order to ensure it is not used.

TYPE OF USE

This unit must solely be used to vacuum dust, crumbs, etc. as it is designed solely for this purpose.

HAZARD:

The manufacturer cannot be held liable for any damage caused by improper or incorrect use.

Any other use relieves the Manufacturer from all responsibility of damage caused to persons and/or things and renders the warranty null and void.

INCORRECT USE

Do not use the unit to:

• vacuum any type of liquid;
  vacuum flammable, explosive, corrosive and toxic substances.
• vacuum hot substances.

Do not use the unit in explosive atmospheres.

DISPOSING OF THE UNIT

Proceed in accordance with local legislation in order to protect the environment.

When the unit is unusable and cannot be repaired, the components are to be disposed of accordingly and separately.

Electrical equipment cannot be disposed of as urban waste and relative standards pertaining to collection, which have been introduced by specific legislations, must be

hered with (Legislative Decree No. 151 dated 25/7/05 - 2002/96/CE - 2003/108/CE)

Electrical equipment has a symbol bearing a crossed out wheeled bin. The symbol indicates that the apparatus was introduced on the market after 13 August 2005 and must be disposed off separately.

Improper or illegal disposal of such equipment or using it incorrectly, can be hazardous to persons and the environment due to the substances and materials contained. Administrative and criminal penalties will be imposed for non-compliance with standards pertaining to the disposal of electrical waste.

REFERENCE LEGISLATIONS

The apparatus has been designed in accordance with the Machinery Directive in force and with the standards set out in the EC Declaration of Conformity supplied with the unit.

UNPACKING

After removing the package as indicated in the instructions shown on the package itself, check the integrity of the unit and all components supplied.

If any evident damage is noticed, contact the retailer or an authorised technical support centre.

PREPARED THE UNIT

Checking the filter systems

• Release the lever (1 Fig.1) and remove the cover (2 Fig.2) together with the paper bag (3 Fig.2).

• Remove the cloth filter (4 Fig.3) and ensure that the filter cartridge is inside the unit (5 Fig.4).

• Set the cloth filter back in place (4 Fig.3)

and remount the paper bag (3 Fig.5) on the cover (2 Fig.5). Whilst keeping this in place, put back the cover (2 Fig.6) by hooking the slot (6 Fig.7) found on the cover onto the metal strip (7 Fig.7) found on the body of the unit.

• Block the cover in place by means of the lever (1 Fig.1).

Assembling the pipes

• Insert the sleeve (8 Fig.8) of the flexible pipe supplied into the air suction hole (9 Fig.8).
• Hook the rigid extensions (11 Fig.9) to the ergonomic handle (10 Fig.9) of the flexible pipe.
• Hook the accessory required (suction inlet, brush, crevice tool, etc.) to the rigid extensions (11 Fig.9).

Positioning the power cable

• Form a ring with the power cable, hook it onto the tooth (12 Fig.10) and place it as shown in picture 10.

Positioning the unit onto your shoulders

• Lift the unit and place it on your shoulders.
• Use the buckle (14 Fig.11) to adjust the shoulder straps (13 Fig.11).
• Use the buckle (16 Fig.11) to adjust the belt (15 Fig.11).

NOTE:

Elastic straps (17 Fig.11) are found on the belt (15 Fig.11) and these are used when placing accessories such as the brush, the crevice tool, etc.

mounted

USING THE UNIT

Starting-up the unit

• Insert the plug (18 Fig.12) into the socket.
• Press the "I" on the switch (19 Fig.13) and this will light up.

NOTE:

You can adjust the suction force by sliding the selector (20 Fig.14) found on the ergonomic handle (10 Fig.14). The suction force is decreased by opening the window (21 Fig.14).

Turning the unit off

• Press the switch (19 Fig.13) to turn the unit off and the light will also go off.
• Remove the plug (18 Fig.12) from the socket.

CLEANING AND MAINTENANCE

HAZARD:

The plug must be removed from the socket before any maintenance procedure is implemented.

Remove the dust bag paper filter and replace it

• Release the lever (1 Fig.1) and remove the cover (2 Fig.2) together with the paper bag (3 Fig.2).
• Remove the paper bag (3 Fig.2) from the cover (2 Fig.2), lift the flap (22 and fold it into the hole (23 Fig.15), blocking it onto the rubber edge, then throw it away.
• Replace the paper bag and remount all the parts by following the reverse procedure of the dismantling process.

Checking and cleaning the cloth filter

• Release the lever (1 Fig.1) and remove the cover (2 Fig.2) together with the paper bag (3 Fig.2).
• Remove the cloth filter (4 Fig.4) and clean it by removing the dust.

NOTE:

The cloth filter (4) can be washed with warm water and soap, bearing in mind that it must be completely dry before re-using it.

• Remount all the parts by following the reverse procedure of the dismantling process.

Checking and cleaning the filter cartridge

• Release the lever (1 Fig.1), remove the cover (2 Fig.2), the filter bag (3 Fig.2) and the cloth filter (4 Fig.4).
• Remove the filter (5 Fig. 16) from unit.
  Clean the filter from the inside ou a jet of air. If this is too dirty, it must be changed.
• Remount all the parts by following the reverse procedure of the dismantling process.

Checking and cleaning the safety filter

• Release the lever (1 Fig.1), remove the cover (2 Fig.2), the filter bag (3 Fig.2), the cloth filter (4 Fig.4) and the filter cartridge (5 Fig.16).
• Remove the filter (24) and clean it under running water.

WARNING:

• Ensure that the filter (24) is completely dry before remounting it.
• Remount all the parts by following the reverse procedure of the dismantling process.

Cleaning the shoulder straps and belt

• Clean the shoulder straps (13 Fig.11) and the belt (15 Fig.11) with a cloth dampened with water or a neutral detergent.

Cleaning the unit body

• Clean the unit body with a cloth dampened with water or a neutral detergent.

HAZARD:

Do not wash the unit with jets of water.

SPARE PARTS

Cloth Filter code 6588010

Paper Filter code 2522037

Paper Filter

(Pack of 10 bags) code 6588035

Filter Cartridge code 2512749

PROBLEM CAUSE REMEDY
Vacuum cleaner does not work.	Switch is not pressed.	Press the switch.
	Plug is not inserted.	Insert the plug into the socket.
	Power cut.	Check the power line.
Unsatisfactory suction. Paper bag is full. Filter components are clogged. Clogged accessories or pipes.		Replace the dust bag. Clean the filter components. Check and clean the flexible pipe and the suction outlet.
