HF 210UV - Humidifier Heaven Fresh - Free user manual and instructions

Product Type	Ionic air purifier with germicidal UV lamp
Brand	Heaven Fresh
Model	HF 210UV
Rated Voltage	12 V DC (via 110-120 V or 220-240 V AC adapter)
Power Consumption	8 Watts
Negative Ion Output	60,000,000 / cm³
Ozone Output	0.015 - 0.04 ppm
UV Lamp	Wavelength 254 nm (30 µW)
Coverage Area	Up to 46 m² (500 sq ft)
Dimensions (L x W x H)	35.0 x 22.0 x 12.7 cm
Weight	1.4 kg
Operating Modes	Hi (continuous) / Lo (1 min on, 3 min off cycle)
Fan	Independent control (On/Off)
Dust Collector	Removable stainless steel plates, clean every 20-30 days
Needle Points Cleaning	Auto scrapers when removing collector; deep clean with brush and denatured alcohol
UV Lamp Replacement	Possible, open rear panel
Safety	Auto shut-off if temperature > 40°C; do not cover, do not use near water
Included Accessories	Power adapter, 12 V car adapter
Warranty	3 years (excluding consumable parts: collector plates and adapter)
Distribution Countries	Canada, United States, United Kingdom, France

Frequently Asked Questions - HF 210UV Heaven Fresh

How to clean the dust collector?

Turn the knob on the right side to remove the stainless steel plates. Wipe them with a damp cloth. For stubborn residue, use a mild detergent. Dry thoroughly before reinstalling. Watch out for sharp edges.

Why does the device emit a crackling sound?

The crackling indicates excessive dust buildup on the collector. Clean the collector plates and needle points as described in the manual.

What to do if the ozone smell is too strong?

Increase air circulation around the device (fan, open window) or switch to Lo mode. In a small space, avoid continuous operation. The smell is normal but can be reduced.

How to replace the UV lamp?

Power off the device and open the rear panel. Remove the old UV tube by holding it at the ends. Insert the new tube ensuring the metal pins contact the clips. Close the panel.

The device does not turn on, what should I check?

Make sure the dust collector and rear panel are properly in place. Check the outlet and adapter. If the problem persists, contact an authorized service center.

What is the maximum coverage area of the device?

The device is effective up to 46 m² (500 sq ft). For best results, place it centrally or near the pollution source.

Can I use the device in a bathroom?

No, avoid any humid environment. The device is not waterproof and humidity poses a risk of electric shock.

How to install the device in a car?

Use the provided 12 V car adapter. Place the device behind the rear seat or fix it to the dashboard with adhesive pads. Keep out of reach of children.

What to do if the device produces sparks?

Sparks may occur if the front grille is too dusty. Clean the grille with a brush or vacuum cleaner. Also ensure the collector plates are clean.

Is it safe to leave the device running at night?

Yes, using Lo mode (intermittent cycle). For asthmatic or allergic individuals, this mode is recommended at night. Keep at least 50 cm away from the device.

USER MANUAL HF 210UV Heaven Fresh

Thank you for purchasing the efficient Heaven Fresh HF 210UV ionic air purifier. We wish you many years of healthy indoor air with this innovative product.

SAFETY OPERATION

Ensure that all safety precautions are followed when using electrical appliance for the proper operation of the device.

This instruction booklet describes the safety precautions to be observed during operation to prevent injuries to yourself, other persons and damage to the device. The content not only is suitable for this product but also suitable for electrical appliances in general.

SPECIAL ATTENTION

RATED VOLTAGE

AC 110~120V/50~60Hz. (North America) AC 220~240V/50~60Hz. (Europe et Asie) Over Voltage may cause fire hazard or electric shock.

DISMANTLE

To prevent electric shock,do not dismantle, repair or modify this product freely. Maintenance and cleaning shall be processed as exactly as what instructed in this manual.In case of malfunction,please contact the authorized maintenance center.

DO NOT

Do not use in places where flammable and explosive materials are stored.

DO NOT

Do not subject the device to direct sunlight or near high temperature objects. Internal temperature rise in serious cases may cause fire, in mild cases may cause deformation of the outer casing. (Stop operation when ambient temperature exceeds 104^ F (40^)

DO NOT TOUCH

Do not allow foreign objects into the device. High voltage inside the device may cause electric shock. Children should not be allowed to touch or play with this device to avoid accidents.

MOISTURE PROHIBITED

To prevent fire or electric shock hazard,do not place the unit in wet places where water may enter the device.

CAUTION

Do not use fabrics or other materials to cover this device. Obstructed air inlets and outlets will result in abnormal operation of this device that may lead to fire or other accidents.

CAUTION

To prevent interference and distortion, the device should be placed at least 1 meter away from the computer, television or radio.

UNPLUG ELECTRIC PLUG

For safety reasons and to prevent fire or electric shock, unplug the power cord from the electric outlet socket under the following conditions:

• When you do not use the device for a long period.
• When cleaning, servicing the machine or during replacement of filter materials.
• When you move the device.

WARNING

If the power cord is damaged, it must be replaced by an authorized service personnel in order to avoid electric shocks and fire hazards.

PRODUCT OVERVIEW

1. Negative Ionization. Negative ions magnetically attracts floating particles, causing them to become too heavy to remain airborne. As a result, they settle out of the air, so that they can no longer be inhaled. The negative ions also cause particles to magnetically attract to the collector plates just inside the HF 210UV. The unit uses 25 stainless steel, electrodes to produce a high density of negative ions (60,000,000 per cm^3 ).
2. Electrostatic Precipitation. The electrostatic charge created between the negatively charged ionizer pins and the positively charged dust collection plates causing undesirable particles and pollutants to become magnetically trapped on the plates.
3. Germicidal UV Light. UV (ultraviolet light) is scientifically-proven to destroy a large variety of microbial contaminants, such as viruses, germs, bacteria and fungi (including mould). Ultraviolet light has been used for years by the medical field (including hospitals) to sanitize rooms and equipment, in order to prevent the spread of illness and disease. It is recommended by Centers for Disease Control for its ability to destroy biological pollutants.

PLACEMENT

Where to put the HF 210UV

• Elevated Location. Optimal elevation is 5 feet (1.5 meter) or more off the ground, although it is not absolutely necessary to place the unit high off the ground.
• Air Flow. If you can place the unit near a source of air flow for the room or area, such as by a fan or supply vent, the negative ions will be distributed more effectively.
• Open Area. Place the unit where it's output will achieve more effective distribution.
• Centralized Location. The more this air ionizer is centrally located, the more area it can cover. Placing it in a corner or against a wall will typically suffice for most rooms though.
• Near Source of Pollution. The closer the unit is placed to a source of pollution, the more effective it will be.

NOTE: For people with respiratory problems.

1. Individuals affected by respiratory problems such as asthma or allergies are the ones who most need the pure and fresh air provided by the Heaven Fresh ionizers. We therefore suggest putting the HF 210UV in the room where these individuals would spend most of their time.
2. For individuals who have chronic respiratory problems, we recommend that the HF 210UV be set at low at night time, if the ionizer is in the bedroom, since respiratory activities differ in sleep.

Since the unit produces moderate levels of Active Oxygen (Ozone), it is not recommended to breathe too closely in front of the grill. Maintain a distance of at least 19" (48 cm) from the unit.

Vehicle Placement Instructions:

Either place in the middle console or passenger seat, or attach to the dashboard using the adhesive pads which are included in the box. Do not place in the back seat or rear window.

OPERATING INSTRUCTIONS

1. Insert the end (hollow plug) of the cable of the AC/DC adapter into the DC socket (Marked as DC12V) on the back of the air purifier (The DC adapter is for vehicle use only).
2. Insert the adapter in the electric socket or the vehicle's cigarette lighter socket.
3. Press the power switch, which will activate the unit and the red LED light.
4. The fan is independently controlled. The switch on the side of the HF 210UV turns the fan "ON" for increased effectiveness, or "OFF" for virtually silent operation.

Settings:

Power:

(1) "Hi" - runs at full capacity.
(2) "Lo" - Automatically runs in intervals of 35 seconds "on" and 60 seconds "off".
(3) "Off".

Fan:

(1) "Off" - turns fan off, resulting in virtually silent, ionic air purification.
(2) "On" - increases air flow through unit, increasing effectiveness.

CLEANING AND MAINTENANCE

Make sure unit is unplugged before performing any maintenance!

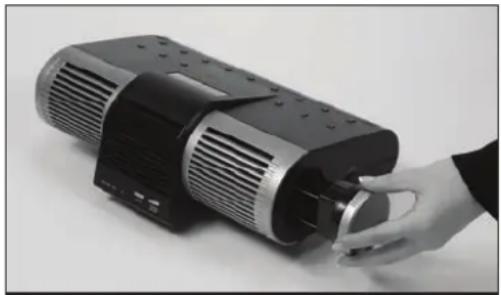

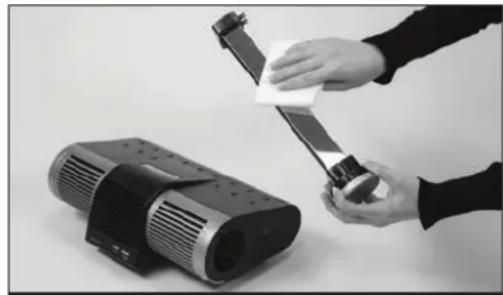

1. Cleaning the Dust Collection Plates:

The dust collection plates should be cleaned about every 20-30 days, or when covered with dirt and residue. Cleaning the dust collection plates is very simple. First, twist the knob on the right hand side of the air purifier and pull the plates out. Second, wipe the plates off with a damp cloth. If there is difficult-to-remove residue on the plate, you should use a mild household cleaner, such as detergent, to help remove it. Third, dry the plates. Fourth, reinsert the plates back into the air purifier. Twist the handle to lock them in place and so that the unit will operate again. Please refer to the lock and unlock symbols on the handle of dust collection plate.

1. Removing the dust collection plates. 2

ng dust collection plates clean.

Note: When removing the collector plates for periodic cleaning, please note that it must be returned to the unit in exactly the same position for a flush fit. Reversing the position will result in an incomplete closure and the unit will not function properly.

CAUTION

Plate's edges are sharp so please use a towel or thick fabric to avoid injuries.

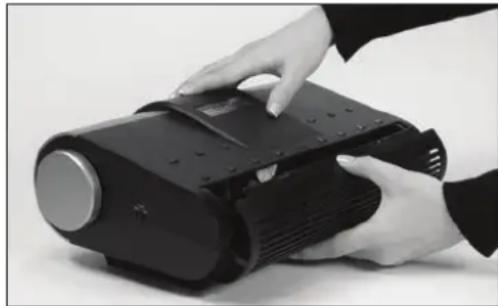

2. Maintenance of the Negative Ion-Producing Electrodes (Needlepoints)

Periodically, enough dust and particulate will accumulate on the tips of each pin, potentially weakening the performance of the air purifier. Every 2-3 months or if the HF 210UV starts making a loud hissing sound, zapping sound, or seems to be "sputtering", follow the instructions below to clean off the tips of each pin.

Light dust coverage cleaning: There are two flexible scraping pads at the end of dust collection plate. When you unlock and pull out the dust-collection plates, these two scrapers will brush against the ends of each pin, removing the dust and particulate. Repeat this process multiple times as needed.

Heavy dust coverage cleaning: Ionizer pins can also be cleaned thoroughly by removing the back panel which can be removed by pressing gently at the two arrow points and pulling in outward direction. The Stainless Steel bar with the ionizer pins in the front can be cleaned by using a brush preferably dipped in rubbing alcohol.

Note: When removing the back panel for periodic cleaning, please note that it must be returned to the unit in exactly the same position for a flush

Removing the back panel.

fit. Reversing the position will result in an incomplete closure and the unit will not function properly.

3. Cleaning the front grill

If the front grill has collected enough dust, the unit can generate sparks. The situation like this arises when Negative Ions generated by the needlepoints gets blocked by the dust collected on the front grill. To avoid this kind of situation, make sure the front grill has no visible sign of dust particles. If there is dust, then use a cleaning brush or a vacuum cleaner and remove the dust.

4. Replacing the UV Bulb

1. Turn the unit off and open the back cover.
2. Remove the expired UV lamp and replace it with the new UV lamp. Handle the UV lamp on each end in order to avoid breaking the lamp.
3. Press the lamp into the UV lamp slot, so that the metal pins at each end of the UV bulb are firmly in contact with the metal conductors inside each clamp.
4. Put the back cover back on. The air purifier is now ready for operation again.

5. Cleaning the Interior of the Purifier

After removing the back panel, Interior can also be cleaned by using a duster or a blower. Dust particles could also accumulate near the fan and if not regularly cleaned, could cause unit to malfunction. Use brush or blower to remove dust around the fan.

TROUBLESHOOTING

Strange smell from the unit

The HF 210UV produces ozone only as a byproduct of the needlepoint ionization, creating only moderate and safe levels. Depending on the size of the room, and the ventilation, it will produce about 0.015 to 0.04 ppm (parts per million) of ozone, which is well within FDA, WHO and OSHA standards.

The best way to remedy a strong ozone smell is to somehow increase air flow near or around the unit, or place it in a more open area, where there is a better air current. Examples can include turning on a ceiling fan, temporarily opening a window, and opening the door to the room. It may become necessary to run the unit on low, since the space may be small enough that it does not require the continuous use of the unit.

Cannot turn on the unit

When removing the collector plates or the back panel for periodic cleaning, please note that they must be returned to the unit in exactly the same position for a flush fit. Reversing the position will result in an incomplete closure and the unit will not function properly.

Unit is making a zapping or hissing noise

This is simply a sign that the dust collection plate and the ionizer needlepoints need to be wiped off. The zapping sound is just a result of a significant amount of dust build-up on the collection plate, which results in a static charge between the dust on the collector, and one of the ion-producing electrodes.

TECHNICAL SPECIFICATIONS

Rated Voltage: 110-120V/50~60Hz, 12 V DC Power (North America)

220-240 V/50-60Hz, 12 V DC Power (Europe and Asia)

Power: 8 Watts

Negative Ion Output: 60,000,000 / cm3

Ozone Output: 0.015-0.04 PPM

UV Lamp Wavelength: 30uW (Frequency : 254 nm)

Fan Speed: 15 ft3 (0.4 m3) per minute

Dimensions: 13.75" (L) x 8.66" (W) x 5.0" (H) / 35.0 x 22.0 x 12.7 (cm)

Weight: 3.1 lbs. / 1.4 kg

Coverage: 500 ft2 (46 m2)

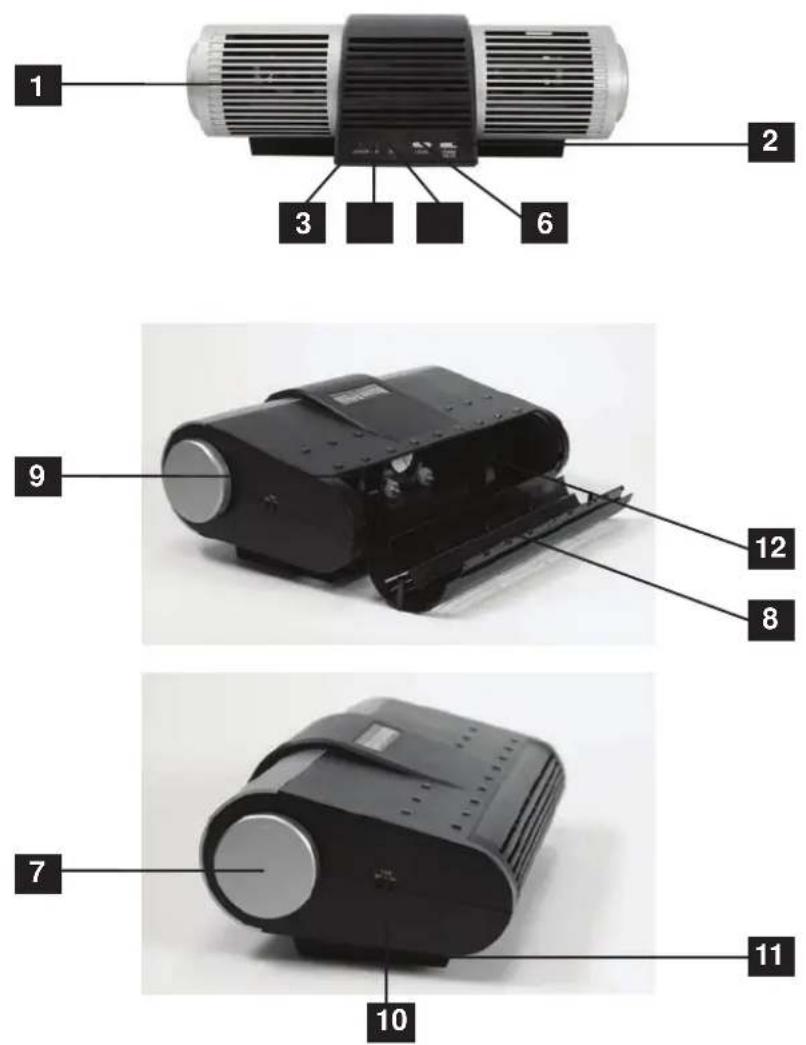

COMPONENTS

1. Front Grill
2. Power On/Off Button
3. Power Indicator (Red Light)
4. Control Indicator - High (Green Light)
5. Control Indicator - Low (Yellow Light)
6. Low/High Adjusting Switch
7. Dust-Collection Plates
8. Removable Back Grill
9. Fan
10. Independent Control for Fan
11. DC Power Socket
12. Germicidal UV Lamp

Spare Parts

Dust-Collection Plates

Germicidal UV Lamp

110-120V AC/DC adapter (North America)

220-240V AC/DC adapter (Europe and Asia)

12V DC vehicle adapter

Where to Buy

Please consult your distributor.

Heaven Fresh products are subject to strict quality control before leaving the manufacturer. This allows our customers to benefit from repairs, replacement of parts and even replacements for free.

What is covered: All parts defective in material and workmanship.

For how long: Three years from purchase date.

What we will do: Repair or replace any defective parts.

Exclusions: Regular replacement parts such as Dust collection plate or the UV Lamps.

90-Day Replacement Policy

If, due to manufacturer defect, any part requires repair during the first 90 days after receiving your item, Heaven Fresh will replace it with a new item.

What You Must Do

1. Contact Heaven Fresh customer support at:

1-866-625-1857

www.heavenfresh.ca

1-800-642-0367

www.heavenfresh.com

0800 952 9962

www.heavenfresh.co.uk

for Return Authorization Number.

1. Pack the product in its original carton, and in the same manner in which you received it, or as identical as possible.
2. Include proof of purchase inside box along with the Return Authorization Number.
3. Label and ship the unit, freight pre-paid, to the address provided.

Other Conditions

The provisions of this warranty are in lieu of any other written warranty whether express or implied, written or oral, including any warranty of merchantability or fitness for a particular purpose. The manufacturer's maximum liability shall not exceed the actual purchase price paid by you for the product. In no event shall the manufacturer be liable for special, incidental, consequential, or indirect damages. This warranty does not cover a defect that has resulted from improper or unreasonable use or maintenance, faulty assembly, accident, natural catastrophes, improper packing, or unauthorized tampering, alteration, or modification as determined solely by us. This warranty is void if the label bearing the serial number has been removed or defaced.

WARRANTY CERTIFICATE / CERTIFICAT DE GARANTIE

WARRANTY CERTIFICATE FOR THE HF 200 PURIFICATION SYSTEM CERTIFICAT DE GARANTIE POUR SYSTEMES DE PURIFICATION D'AIR HF 200

Date of purchase/Date d'achat:

Telephone/Telephone:

Email/Email:

Seller's name/Nom du vendeur:

Address/Adresse:

REEMPLACEMENT DANS LES 90 JOURS

COMMENT PROCÉDER POUR FAIRE APPLIQUEUR LA GARANTIE

www.heavenfresh.co.uk

0800 952 9962

Germany

[e-mail]

www.heavenfresh.de

08006647259

France

[e-mail]

www.heavenfresh.fr

0800 900 991

Ireland

[e-mail]

www.heavenfresh.ie

1-800-550-457

Middle East

[e-mail]

www.heavenfresh.ae

[phone]
