HF20 - Humidifier Heaven Fresh - Free user manual and instructions

Product Type	Ionic Air Purifier / Humidifier
Brand	Heaven Fresh
Model	HF20
Dimensions (L × W × H)	22.4 × 9.1 × 8.1 cm
Weight	249 g
Power Supply	220-240 V ~ 50-60 Hz, 3 W
Technology	Ionization with negative ion and ozone production
Negative ion output	100,000 / cm³
Ozone output	0.015 - 0.04 ppm
Main functions	Air purification, odor neutralization, LED night light
Operating mode	Fanless, silent
Dust collector	Positively charged stainless steel collection plate
Included spare parts	One extra set of collection plates
Installation	Direct plug into wall socket (no cord)
Maintenance and cleaning	Wipe collection plates with a damp cloth
Safety instructions	Do not disassemble, do not expose to water, do not block air inlets/outlets
Warranty	1 year (excluding spare parts)
Customer service contact (France)	0800 900 991 / www.heavenfresh.fr

Frequently Asked Questions - HF20 Heaven Fresh

How to clean the dust collector of the Heaven Fresh HF20?

To clean the collection plates, turn off and unplug the device, carefully remove the plates, wipe them with a clean, damp cloth, then replace them dry in the housing.

Can I use the HF20 in a bathroom?

No, to avoid any risk of electrocution, do not use the device in a shower or place exposed to water splashes.

What is the power consumption of this device?

The Heaven Fresh HF20 consumes only 3 watts, making it very economical.

How does the ionic technology of the HF20 work?

The device generates negative ions and ozone which neutralize odors and capture microparticles on the positively charged collection plate.

Does the device produce ozone? Is it dangerous?

Yes, it produces a small amount of ozone (0.015 to 0.04 ppm), which is safe in normal use and helps purify the air.

What to do if the HF20 does not turn on?

First check that the wall socket works and the device is properly plugged in. If the problem persists, contact an authorized service center.

How to replace the dust collector?

The dust collector is reusable. To replace it, remove the old plates and insert the new ones provided with the device. You can also order spare parts.

Is the HF20 safe for children?

To avoid any accident, prevent children from playing with or touching the device while it is operating.

What is the coverage area of the Heaven Fresh HF20?

This device is designed for small rooms such as a kitchen, bedroom, or office. It effectively purifies the air in a confined space.

How to contact Heaven Fresh customer service?

You can reach customer service in France at 0800 900 991 or visit www.heavenfresh.fr.

USER MANUAL HF20 Heaven Fresh

DO NOT DISMANTLE To prevent electric shock, do not dismantle, repair or modify this product. In case of malfunction contact authorized maintenance center

DO NOT Do not use in places where flammable and explosive materials are stored.

DO NOT Do not subject to direct sunlight or near high temperature objects. Significant rises in internal temperature may cause fire or deformation of outer shell. Stop operation when temperature exceeds 104^

DO NOT TOUCH
Do not allow foreign objects into the machine.
High voltage inside the machine may cause electric shock.
Children should not be allowed to touch or play with this machine to avoid accident.

MOISTURE PROHIBITED Do not place machine in the shower or places where water may wet the machine to prevent electric shock.

CAUTION Do not use fabrics or other materials to cover this machine. Obstructed air inlet and outlet cause abnormal operation of this machine that may lead to fire or other accident.

CAUTION To prevent interference and distortion, it should be placed at least 1 metre away from computer, television or radio.

UNPLUG ELECTRIC PLUG For safety reasons and to prevent fire or electric shock, unplug the machine under following conditions:

• When you temporarily do not use the machine for a long period.
• When cleaning, servicing the machine or during replacement of filter materials.
• When you move the machine.

WARNING If the power cord is damaged, it must be replaced by an authorized service personnel in order to avoid electric shocks and fire hazards.

Thank you for purchasing the efficient Heaven Fresh HF 20 air purifier. We wish you many years of healthy indoor air with this innovative product.

SAFETY OPERATION

Ensure that all safety precautions are followed when using electrical appliances for the proper operation of the device.

This instruction booklet describes the safety precautions to be observed during operation to prevent injuries to yourself, other persons and damage to the device. The content not only is suitable for this product but also suitable for electrical appliances in general.

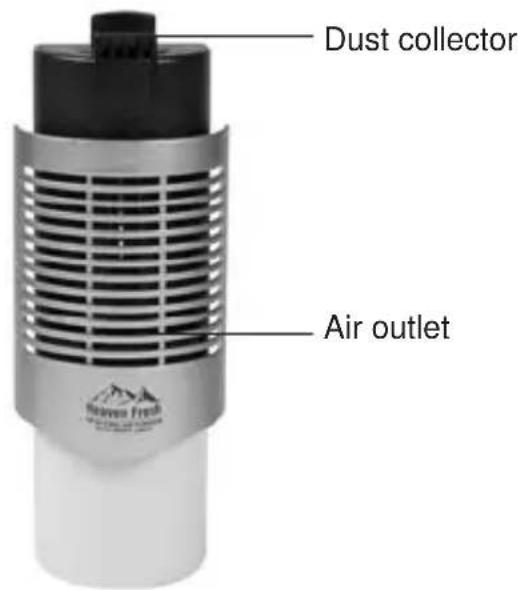

PRODUCT OVERVIEW

• An ideal air purifier and odour neutralizer for kitchens, and other small spaces
• Creates clean, fresh air electronically by circulating a steady stream of negative ions which destroys unpleasant odors.
• Long life LED provides handy light
• Performs silently with no moving parts and no costly filters to replace.
• Electostatically charged stainless steel plate traps dust and any airborne contaminants (An extra set is included)
• The freshwater operates continuously on about 3 watts a day

OPERATING INSTRUCTIONS

Simply install the unit by plugging it into any standard 220V wall socket.

CLEANING & MAINTENANCE

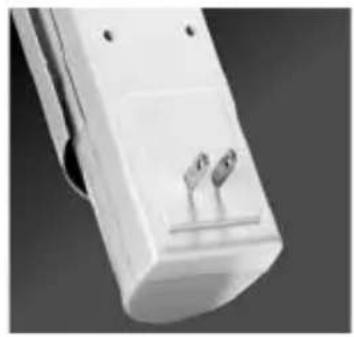

AC electric plug at the back

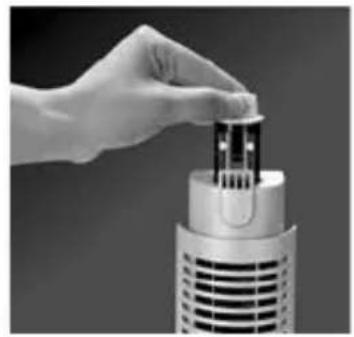

Pull out dust collector for cleaning

Easy to clean : Pull out the dust collector from the unit and wipe with a soft clean cloth. A mild detergent can be used to clean the housing.

TECHNICAL SPECIFICATIONS

Rated Voltage	220 – 240 V/ 50 - 60 Hz
Power consumption	3W
Ion Output	100,000/cm3
Active Oxygen Output	0.015 - 0.04 ppm
Dimension	L: 22.4cm(8.8")×W: 9.1cm(3.6")×H: 8.1cm(3.2")

ATTENTION SPECIALE

VOLTAGE NOMINAL

VOLTAGE NOMINAL

The HF 20 is subjected to strict testing procedures before leaving the factory. If within one year from the date of purchase the product does not perform according to the specifications, because of factory defects, the purchaser is entitled to free repairs or replacement of parts upon presentation of this warranty (provided that the malfunction or damage to the device and/or parts occurred under normal operating conditions).

What is covered: All parts defective in material and workmanship.

For how long: One year from purchase date.

What we will do: Repair or replace any defective parts.

Exclusions: Regular replacement parts such as dust collection plate.

90-Day Replacement Policy

If, due to manufacturer defect, any part requires repair during the first 90 days after receiving your ionizer, Heaven Fresh will replace it with a new machine.

What You Must Do

1. Contact Heaven Fresh customer support at:

0800 952 9962

www.heavenfresh.co.uk

0800 900 991

www.heavenfresh.fr

for Return Authorization Number.

1. Pack the product in its original carton, and in the same manner in which you received it, or as identical as possible.
2. Include proof of purchase inside box along with the Return Authorization Number.
3. Label and ship the unit, freight pre-paid, to the address below.

Mailing Address:

Heaven Fresh UK Ltd

Unit 33 Poplar Industrial Estate Poplar Drive

Birmingham, B6 7AD

Other Conditions

The provisions of this warranty are in lieu of any other written warranty whether express or implied, written or oral, including any warranty of merchantability or fitness for a particular purpose. The manufacturer's maximum liability shall not exceed the actual purchase price paid by you for the product. In no event shall the manufacturer be liable for special, incidental, consequential, or indirect damages. This warranty does not cover a defect that has resulted from improper or unreasonable use or maintenance, faulty assembly, accident, natural catastrophes, improper packing, or unauthorized tampering, alteration, or modification as determined solely by us. This warranty is void if the label bearing the serial number has been removed or defaced.
