Product Type	Ultrasonic Travel Humidifier
Brand	Heaven Fresh
Model	HF 76
Power Supply	AC 100-240V, 50-60Hz / DC 24V
Power Consumption	12 W
Tank Capacity	0.5 L (500 ml)
Evaporation Rate	≤ 120 ml/h
Coverage Area	15 m² (160 sq ft)
Dimensions (L × W × H)	12.5 × 7.2 × 8.82 cm
Weight	Approximately 0.5 kg (estimated)
Main Functions	On/Off, continuous steam output adjustment
Included Accessories	Travel bag, cleaning brush, bottle adapter Type A and Type B, AC/DC power adapter
Cleaning and Maintenance	Daily cleaning with a soft cloth; weekly descaling with white vinegar; clean the sensor with the provided brush
Safety	Do not touch the ultrasonic sensor; use filtered or distilled water; do not use hot water; unplug before cleaning; do not cover the device; keep out of reach of children
Warranty	1 year from date of purchase
After-Sales Service	Contact an authorized service center in case of malfunction

Frequently Asked Questions - HF 76 Heaven Fresh

How to install the HF 76 humidifier?

Place the device on a flat, stable surface, about 60 cm from the floor and 10 cm from the wall. Fill a bottle with fresh water (preferably filtered), close the cap, then place it on the bottle adapter. Plug the AC adapter into a suitable power outlet (100-240 V).

What type of water should I use?

Use fresh filtered or distilled water to prevent limescale buildup. Do not use hot water or unfiltered tap water if it is hard.

How to adjust the steam output?

Press the button (A) to turn on the device. Press again to gradually increase the steam output from low to high. Press again to turn off the device.

What to do if the humidifier does not produce mist?

Check that the bottle is filled with water and the device is plugged in. Make sure the ultrasonic sensor is not scaled: clean it with the provided brush. If the problem persists, the sensor may be broken.

How to clean the humidifier?

Turn off and unplug the device. Remove the bottle and the casing. Rinse the water tank with clean water. For weekly descaling, pour about 200 ml of white vinegar into the basin, let it sit for 15 minutes, then scrub the sensor with the brush and wipe with a soft cloth.

Can I use essential oils?

The manual does not recommend using essential oils, as they may damage the ultrasonic sensor and reduce performance. Use only water.

What is the capacity of the bottle?

The provided bottle has a capacity of 0.5 L (500 ml). You can use any bottle compatible with the included adapter.

Is the humidifier quiet?

Yes, thanks to ultrasonic technology, it operates very quietly, ideal for nighttime use.

How to store the humidifier?

Clean it thoroughly and dry it. Store it preferably in its original packaging, in a place away from heat and direct sunlight.

What does the warranty cover?

The 1-year warranty covers any defective part or manufacturing defect. Heavenly Fresh repairs or replaces free of charge. Keep the proof of purchase and original packaging.

USER MANUAL HF 76 Heaven Fresh

Thank you for purchasing the efficient Heaven Fresh HF 76 ultrasonic humidifier. We wish you many years of healthy indoor air with this innovative product.

SAFETY OPERATION

Ensure that all safety precautions are followed when using electrical appliance for the proper operation of the device.

This instruction booklet describes the safety precautions to be observed during operation to prevent injuries to yourself, other persons and damage to the device. The content not only is suitable for this product but also suitable for electrical appliances in general.

SPECIAL ATTENTION

The inner ultrasonic transducer is highly sensitive. Do not touch it with bare fingers or scrape it with metal tools, or it will reduce mist output. *When cleaning this area please use cleaning brush provided. Do not use hot water and unfiltered tap water to prevent clogging and damage to the misting parts.

RATED VOLTAGE

AC 110~240V, 50~60Hz / DC 24V. Over voltage may cause fire hazard or electric shock.

MOISTURE PROHIBITED

To prevent fire or electric shock hazard,do not place the unit in wet places where water may enter the device.

DO NOT DISMANTLE

To prevent electric shock,do not dismantle, repair or modify this product freely. Maintenance and cleaning shall be processed as exactly as what instructed in this manual.In case of malfunction, please contact the authorized maintenance center.

CAUTION

Do not use fabrics or other materials to cover this device. Obstructed air inlets and outlets will result in abnormal operation of this device that may lead to fire or other accidents.

DO NOT

Do not use in places where flammable and explosive materials are stored.

CAUTION

To prevent interference and distortion, the device should be placed at least 1 meter away from the computer, television or radio.

Do not subject the device to direct sunlight or near high temperature objects. Internal temperature rise in serious cases may cause fire, in mild cases may cause deformation or the outer casing. (Stop operation when ambient temperature exceeds 104^ )

UNPLUG ELECTRIC PLUG

For safety reasons and to prevent fire or electric shock, unplug the power cord from the electric outlet socket under the following conditions:

DO NOT TOUCH

Do not allow foreign objects into the device. High voltage inside the device may cause electric shock. Children should not be allowed to touch or play with this device to avoid accidents.

• When you do not use the device for a long period.
• When cleaning, servicing the machine or during replacement of filter materials.
• When you move the device.

WARNING

If the power cord is damaged, it must be replaced by an authorized service personnel in order to avoid electric shocks and fire hazards.

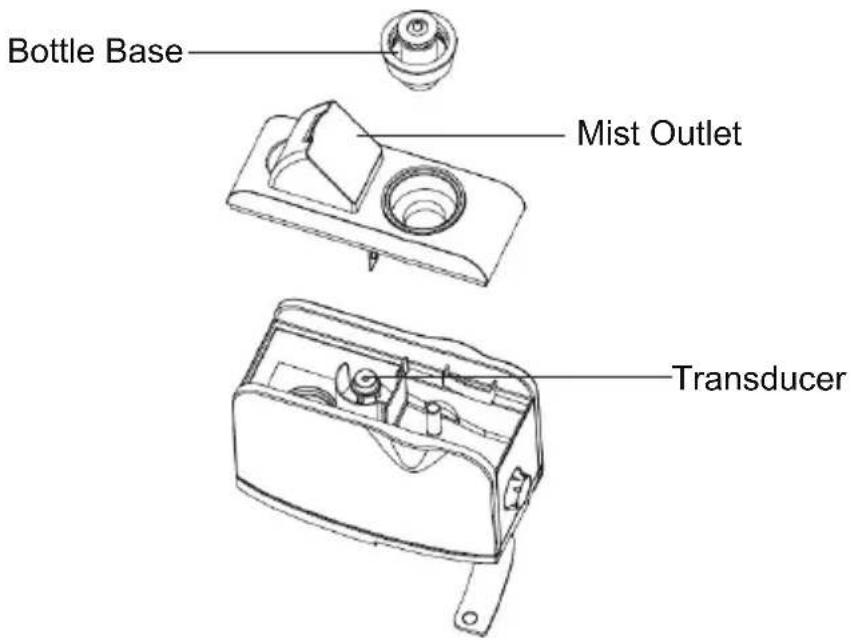

COMPONENTS

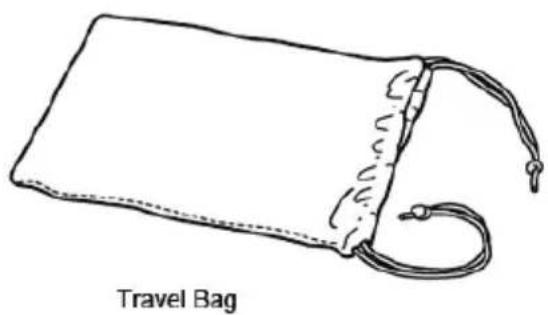

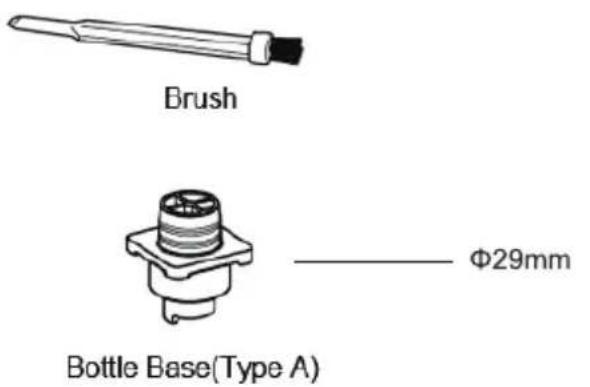

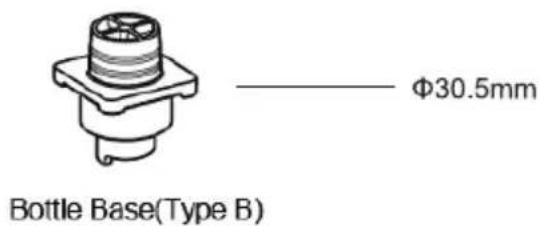

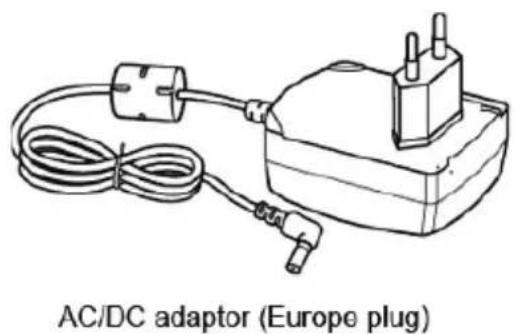

ACCESSORIES

OPERATING INSTRUCTIONS:

1. Make sure the humidifier is OFF and disconnected from the electrical outlet.
2. Place the humidifier on a flat surface, about 60cm away from the floor and 10cm away from the wall. We recommend you not to place the humidifier on important furniture.
3. Remove the bottle and lift straight upward.

a. Fill the bottle with cool, fresh water, filtered water is recommended for better performance. DO NOT FILL WITH WARM WATER AS THIS MAY CAUSE LEAKING.
b. After filling, close the bottle cap by firmly turning clockwise and then place the bottle tank on the base. The bottle will immediately begin to empty into the base.

1. Plug the power cord into a rated electrical outlet.

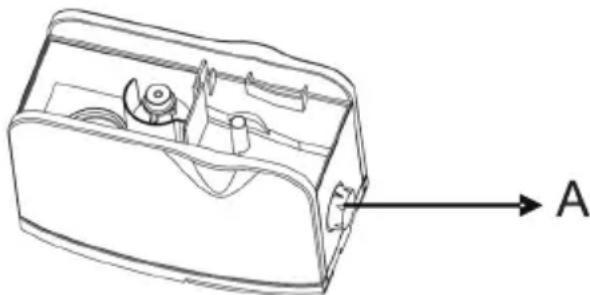

2. Power and Mist control knob use knob (A) to control the power to be ON/OFF and mist outlet from low to high.

CLEANING AND MAINTENANCE

To get the most of the benefit from the humidifier and avoid product failure, please follow all maintenance instructions carefully. If the recommended care and maintenance guidelines are not followed, micro-organisms may grow in the water within the humidifier.

DAILY MAINTENANCE

1. Before cleaning, turn OFF and unplug the unit from the electrical outlet.
2. Lift off the tank and the housing of the humidifier.
3. Carry the water bottle to a sink, then drain and rinse the water bottle thoroughly to remove any sediment and dirt. Wipe clean and dry with a clean soft cloth or paper towel.
4. Refill the bottle with tap water.

WEEKLY MAINTENANCE

1. Repeat steps 1 to 3 mentioned above.
2. Fill one cup of white vinegar (about 200ml ) to the basin for about 15 minutes, then wipe off the scale in the basin especially in the transducer with a soft brush.
3. Remove the scale and white vinegar solution with a clean soft cloth.

CAUTION

1. Make sure the main body is never submerged into water.
2. Do not use any solvents or aggressive cleaning agents to clean the humidifier.
3. Clean the inner parts with a soft cloth only.
4. Only use the brush to clean the transducer. This should be done once a week.
5. Change the water in the bottle at least once a week.

STORING THE HUMIDIFIER

1. Clean the humidifier as described earlier and dry thoroughly.
2. Preferably store the humidifier in its original box.
3. Avoid storing in high temperature.

TROUBLESHOOTING

Problem Cause Suggested Solution
Humidifier does not operate.	Power cable not plugged in	Plug in power cable.
The power light is on, but there is no mist with wind	No water in bottle Fill bottle with water
The water mist produces an unpleasant smell.	New machine.	Open the water bottle and leave it for 12 hours at shady and cool place.
	Dirty water or the water is left in the water tank for too long.	Clean the water tank and change the water.
The power light is on, but the humidifier doesn't work	Too much water in the water flume	Pour away some water from the water flume
The output volume of the mist is low	The transducer is dirty. Clean transducer by a soft brush
	Water is too dirty or water kept too long in the tank	Clean water bottle and change the water
Abnormal noise Resonance in water bottle when water is too less		Fill water into water bottle
		Unit is on an unstable surface	Move the unit to a stable flat surface
Very tight bottle cap	Over tightened Add liquid soap to cap gasket for ease opening

SPECIFICATIONS

Model: HF 76

Power supply: AC 100V-240V, 50~60Hz / 24V DC

Energy Consumption: 12W

Capacity: 0.5L (500 ml)

Mist Evaporation Rate: ≤ 120ml / hr

Coverage Area: 15m^2 (160ft^2)

Dimensions (L x W x H): 12.5 x 7.2 x 8.82 cm (10.8" x 9.0" x 8.8")

Weight: 0.3kg (0.66 lbs.)

DISPOSAL OF THIS DEVICE

At the end of the product life cycle, you should not throw this machine into the normal household garbage but bring the product to a collection point for the recycling of electrical and electronic equipment.

Poids: 0.3kg (0.66 lbs.)

REJET DE CET APPAREIL

Heaven Fresh products are subject to strict quality control before leaving the manufacturer. This allows our customers to benefit from repairs, replacement of parts and even replacements for free.

What is covered: All parts defective in material and workmanship.

For how long: One year from purchase date.

What we will do: Repair or replace any defective parts.

90-Day Replacement Policy

If, due to manufacturer defect, any part requires repair during the first 90 days after receiving your item, Heaven Fresh will replace it with a new item.

What You Must Do

1. Contact Heaven Fresh customer support at:

1-866-625-1857

www.heavenfresh.ca

1-800-642-0367

www.heavenfresh.com

0800 952 9962

www.heavenfresh.co.uk

for Return Authorization Number.

1. Pack the product in its original carton, and in the same manner in which you received it, or as identical as possible.
2. Include proof of purchase inside box along with the Return Authorization Number.
3. Label and ship the unit, freight pre-paid, to the address provided.

Other Conditions

The provisions of this warranty are in lieu of any other written warranty whether express or implied, written or oral, including any warranty of merchantability or fitness for a particular purpose. The manufacturer's maximum liability shall not exceed the actual purchase price paid by you for the product. In no event shall the manufacturer be liable for special, incidental, consequential, or indirect damages. This warranty does not cover a defect that has resulted from improper or unreasonable use or maintenance, faulty assembly, accident, natural catastrophes, improper packing, or unauthorized tampering, alteration, or modification as determined solely by us. This warranty is void if the label bearing the serial number has been removed or defaced.

WARRANTY CERTIFICATE / CERTIFICAT DE GARANTIE

WARRANTY CERTIFICATE FOR HF 76 TRAVEL ULTRASONIC HUMIDIFIER CERTIFICAT DE GARANTIE POUR SYSTÉMES DE HUMIDIFICATEUR ULTRASONIC DE VOYAGE

HF76

Date of purchase/Date d'achat:

Telephone/Telephone:

Email/Email:

Seller's name/Nom du vendeur:

Address/Adresse:

REEMPLACEMENT DANS LES 90 JOURS

COMMENT PROCÉDER POUR FAIRE APPLIQUER LA GARANTIE

www.heavenfresh.co.uk

0800 952 9962

Germany

[e-mail]

www.heavenfresh.de

08006647259

France

[e-mail]

www.heavenfresh.fr

0800 900 991

Ireland

[e-mail]

www.heavenfresh.ie

1-800-550-457

Middle East

[e-mail]

www.heavenfresh.ae

[phone]
