CVP150A - Fridge PROLINE - Free user manual and instructions
Find the device manual for free CVP150A PROLINE in PDF.
| Product type | Domestic freezer |
| Dimensions (H x W x D) | 1400 x 60 x 54 mm |
| Weight | 51 kg |
| Total volume | 175 litres |
| Usable volume | 149 litres |
| Electrical supply | 230 V, 10 A, grounded plug |
| Energy consumption | 0.66 kWh/24h |
| Freezing capacity | 16 kg/24h |
| Climate class | N (+16°C to +32°C) |
| Refrigerant | Isobutane (R600a), flammable |
| Thermostat | Adjustable, positions MIN, MED, MAX; off at OFF |
| Quick freeze function | Button with yellow indicator, active 24h before and after loading |
| Indicator lights | Green (operation), red (temperature too high), yellow (quick freeze) |
| Defrosting | Manual, recommended when frost reaches 10 mm |
| Cleaning | Interior with warm soapy water, condenser to be dusted regularly |
| Door reversal | Possible, spare parts kit provided |
| Included accessories | 2 wall spacers, 2 ice cube trays, frost scraper |
| Safety instructions | Do not use outdoors, do not obstruct ventilation, do not use sharp objects to defrost |
| Repairability | Contact the retailer for any issues |
| Disposal | Do not dispose with household waste; recycle through approved centers |
Frequently Asked Questions - CVP150A PROLINE
User questions about CVP150A PROLINE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fridge in PDF format for free! Find your manual CVP150A - PROLINE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CVP150A by PROLINE.
USER MANUAL CVP150A PROLINE
Dimensions H x L x D (mm)
Poids 51 kg
CARE AND CLEANING 38
DEFROSTING YOUR FREEZER 38
REVERSING THE DOOR 39
SPECIFICATIONS 40
IMPORTANT DISPOSAL INSTRUCTIONS 41

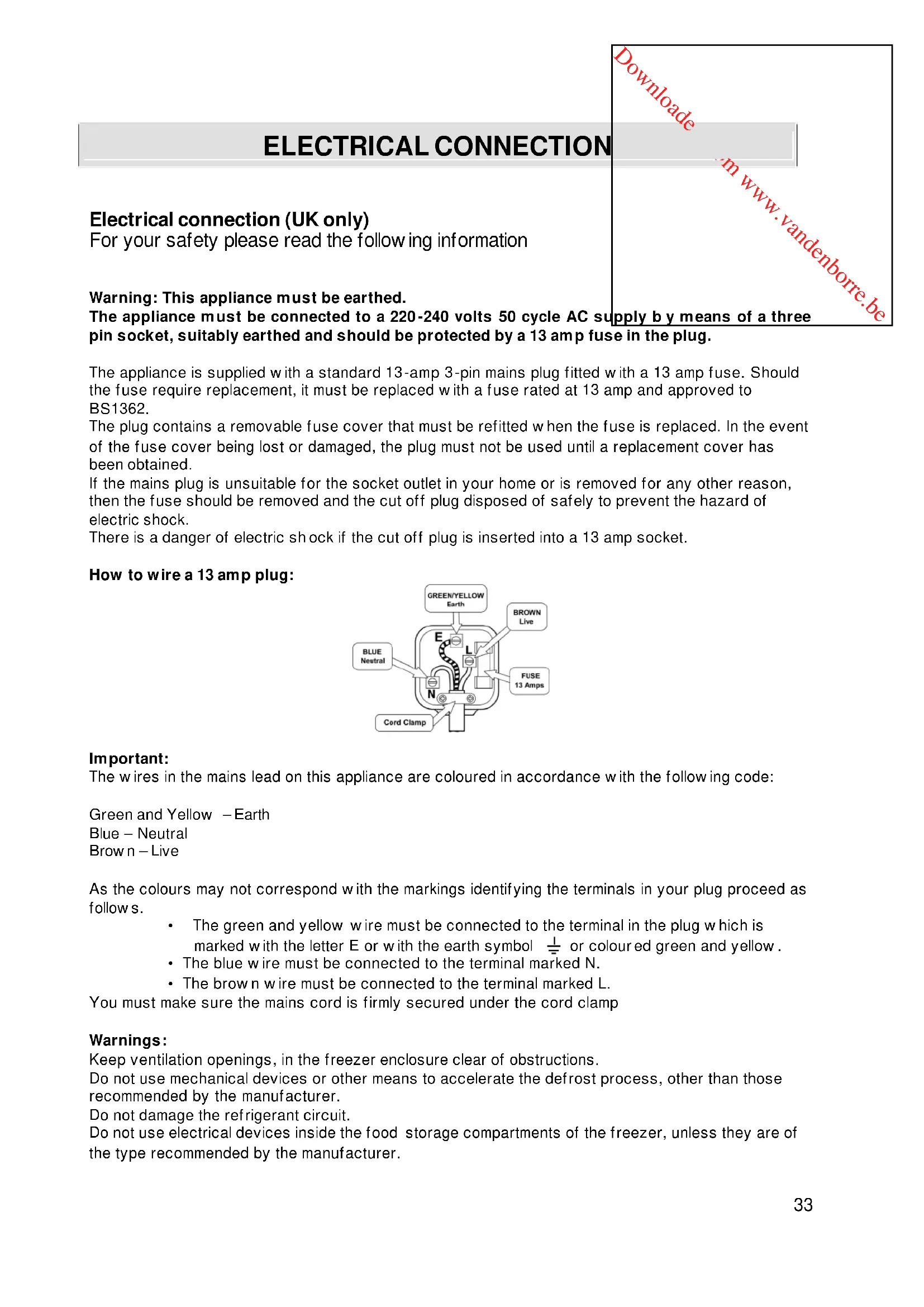

ELECTRICAL CONNECTION
Electrical connection (UK only)
For your safety please read the following information
Warning: This appliance must be earthed.
The appliance must be connected to a 220-240 volts 50 cycle AC supply by means of a three pin socket, suitably earthed and should be protected by a 13 amp fuse in the plug.
The appliance is supplied with a standard 13-amp 3-pin mains plug fitted with a 13 amp fuse. Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and approved to BS1362.
The plug contains a removable fuse cover that must be refitted when the fuse is replaced. In the event of the fuse cover being lost or damaged, the plug must not be used until a replacement cover has been obtained.
If the mains plug is unsuitable for the socket outlet in your home or is removed for any other reason, then the fuse should be removed and the cut off plug disposed of safely to prevent the hazard of electric shock.
There is a danger of electric shock if the cut off plug is inserted into a 13 amp socket.

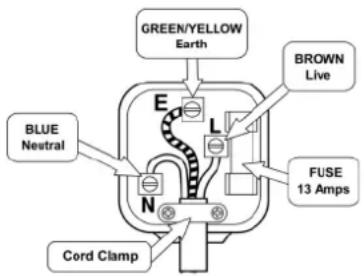

How to wire a 13 amp plug:
Important:
The wires in the mains lead on this appliance are coloured in accordance with the following code:
Green and Yellow - Earth
Blue - Neutral
Brown-Live
As the colours may not correspond with the markings identifying the terminals in your plug proceed as follows.
- The green and yellow wire must be connected to the terminal in the plug w which is marked with the letter E or with the earth symbol 1= or coloured green and yellow.
- The blue wire must be connected to the terminal marked N.
- The brown wire must be connected to the terminal marked L.
You must make sure the mains cord is firmly secured under the cord clamp
Warnings:
Keep ventilation openings, in the freezer enclosure clear of obstructions.
Do not use mechanical devices or other means to accelerate the defrost process, other than those recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical devices inside the food storage compartments of the freezer, unless they are of the type recommended by the manufacturer.
IMPORTANT SAFETY INFORMATION
This freezer must be used on the electric voltage shown on the rating label which is positioned on the wall behind the bottom basket; failure to use the correct voltage will render the guarantee Void and may cause damage to the product.
This freezer is intended for domestic use only, any other use may invalidate the warranty and might be dangerous.
This freezer is intended for indoor use only, do not use outdoors.
To protect against electric shock, do not immerse cord, plugs, or appliance in water or other liquid.
Unplug from outlet when not in use and before cleaning. Remove food before cleaning the freezer.
If the mains lead becomes damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person with a lead of the same type and rating to avoid a hazard.
Do not operate the appliance with a damaged cord or plug or after the freezer malfunctions or has been damaged in any way. Consult the retail store where you bought the freezer or advice.
Do not let cord hang over edge of the surface, or touch hot surfaces.
Do not place the freezer on or near hot surfaces, or in direct sunlight.
Extreme caution must be used when moving an appliance.
Always attach a plug to the freezer, then plug it into the wall outlet. To disconnect, turn the switch OFF, then remove the plug from wall outlet.
A short power-supply cord is provided to reduce the risk of a tripping hazard.
The mains plug is the main disconnecting device and shall be accessible at all times.
If you are discarding an old freezer or refrigerator with a lock/catch fitted to the door, ensure that it is left in a disabled condition to avoid the entrapment of young children when playing.
As old refrigeration equipment may contain CFC's which will damage the ozone layer, when disposing of any refrigeration equipment please contact your local waste disposal department for advice on the correct method of disposal.
This freezer is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the freezer by a person responsible for their safety.
Children should be supervised to ensure that they do not play on the freezer.
Refrigerant
The refrigerating gas contained in the circuit of this appliance is Isobutane (R600a); it causes a low level of pollution but is inflammable.
W When transporting and installing the freezer, be careful not to damage any part of the refrigerant circuit.
W Keep ventilation openings, in the appliance enclosure clear of obstruction.
Do not use any sharp or pointed objects when defrosting the freezer.
W Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
W Do not use electrical appliances inside the food storage compartments of the freezer, unless they are of the type recommended by the manufacturer.
INSTALLATION
Location
-
Place your freezer away from sources of heat (heating, cooking, sunlight, etc). For your freezer to work properly, the ambient temperature of the room must be between + 16^ C and + 32^ C (class N ). Outside these limits,the freezer will not function normally.
-
Make sure there is a good circulation of air behind the freezer; do not place it flat against a wall in order to prevent vibration noise. Make sure that air is circulating freely all round the freezer. Insufficient ventilation will stop your freezer working properly and increase energy consumption.
-
This freezer should be installed so the plug remains accessible. Make sure after installing it that it is not resting on the power cable.
-
Level the freezer using the 2 adjustable feet.
- The freezer is delivered with 2 plastic spacers so it can be positioned at the necessary distance from a wall. This will allow optimal performance of your product. Place the spacers in the holes at the back at the top and turn them 45^ to the right or left.
There must be a 20mm gap between the side of the freezer and the adjacent cabinet.
Connection to power supply
Your freezer is designed to operate at a single phase voltage of 230 volts. It must be connected to a wall socket that is earthed and protected by a 16 A fuse.
Safety information relating to freezers
If you use this freezer in accordance with the instructions, it will operate correctly.
- Only use the freezer to store frozen food products, freeze fresh food products and make ice.
- Do not consume ice cubes or ice lollies straight after taking them out of the freezer because they may cause cold burns.
- Do not store full bottles of liquid in the freezer because they might explode.
USING YOUR FREEZER
Getting your freezer ready
Once the appliance is properly installed, we advise you to clean the inside with slightly soapy warm water (washing-up detergent). Do not use abrasive products or scouring powder which might damage the finish.
Control panel (position 2)
j Green light: lit when appliance is working.
k Red light: lit when temperature of freezer is not low enough.
Yellow light: lit when rapid freeze function is on.
m Rapid freeze button
n Thermostat
The red indicator light will illuminate when the appliance is first plug into the mains supply and will remain on until the correct operating temperature as been reached.
Using your freezer
Household freezers are only designed to store frozen food products, freeze fresh food products and make ice.
The quantity of food to be frozen must not exceed the quantity indicated positioned on the wall behind the bottom basket. If the quantity to be fro always possible to freeze in several batches.
on the rating label which isoften exceeds this value , it is
Food safety
Due to the increasing consumption of prepared meals and other delicate foods, better control of the transport and storage temperature of foods is required:
- Limit the number of times you open the door.
- Adjust the therm ostat to obtain a lower temperature. This adjustment should be done gradually so it does not cause food to thaw.
- Defrost and clean the inside of the freezer regularly.
Adjusting the temperature
The inside temperature is adjusted by the thermostat controlled by the knob on the control panel once the door is opened. The "MAX" position (MAXIMUM) corresponds to the coldest temperature The "MIN" (MINIMUM) corresponds to the warmest temperature. The temperature obtained inside the appliance may vary according to conditions of use: location, ambient temperature, frequency of door opening, quantity of food inside, etc. The setting can be changed taking these conditions into account. In general, an acceptable temperature can be obtained with a "MED" (MEDIUM) setting g; for colder or warmer temperatures, adjust the thermostat knob accordingly.
To switch off the appliance for defrosting without unplugging it, turn the thermostat knob to the left to the "OFF" position. You will hear a click. This does not disconnect the freezer from the mains supply completely, to do this you must remove the mains plug from the wall socket
"Rapid freeze" function
If you want to freeze more than 3 - 4kg of fresh food products in one go, you have to cool the freezer in advance.
At least 24 hours before putting the fresh food products in, press the rapid freeze button on the control panel. The yellow indicator light will illuminate.
After 24 hours place all your fresh food products in the freezer.
Leave it in rapid freeze mode for at least 24 hours after putting the fresh food products in the freezer A After 24 hours press the rapid freeze button again and the yellow indicator light will go off.
The rapid freeze function can be deactivated at any time by pressing the button.
FREEZING FOOD
Package food in appropriate food grade containers to prevent exchanges of bacteria between food.
Wait for dishes to cool before putting them in the freezer.
Freezing fresh products
Only freeze top quality products after cleaning them and preparing them if necessary.
Leave cooked dishes to cool at room temperature before putting them in the freezer.
All products to be frozen should be packaged in plastic bags, special aluminium trays for the freezer or plastic containers. This packaging must be sealed.
The size of each package should be in proportion with family consumption so it is used up in one go. Freezing is quicker and more uniform with smaller packages.
Do not freeze a quantity of product in one go that exceeds the freezing capacity of the appliance indicated on the rating label w which is positioned on the wall behind the bottom basket.
Food to be frozen is not to be placed in direct contact with food in storage and if appropriate that it could be necessary to reduce the quantity to be frozen if freezing every day is anticipated.
To reduce the risk of poor performance ensure all baskets are used at all times.
A frozen product must never be refrozen.
Do not put bottles or cans of fizzy drinks in the freezer; they might explode.
Do not consume ice lollies as soon as they come out of freezer to avoid cold burn.
To freeze fresh products:
Press the rapid freeze button and the yellow indicator light will illuminate.
Do not open the door of the freezer while freezing.
After 24 hours press the rapid freeze button again and the yellow indicator
light will go off.
Keeping frozen products
Frozen products can be grouped together leaving spaces between them for better freezing.
When you buy a frozen product, make sure the packaging is intact, that there are no signs of damp and that it isn't bulging, which would be a sign it has started to defrost.
The recommended storage time indicated by the food product manufacturer must not be exceeded.
Avoid opening the door too frequently and only leave it open for the necessary time. An increase in temperature can reduce the storage time of food.
In the event of a power cut, if the freezer is off for less than 20 hours, there is no risk to frozen foods. However, do not open the door (the time it takes for the temperature to be restored can be significantly reduced if the freezer is not very full). As soon as you notice food is starting to defrost, it must be consumed as soon as possible.
Never refreeze food that has been defrosted.
Making ice cubes
Pour water into the ice cube tray until it is two thirds full, then place it into the freezer between the two freezer packs which are positioned above the top basket. Ice cubes will form in 2 to 3 hours. The ice cubes can be easily removed by twisting the ice tray whilst pouring cold water over the back of the ice tray.
There are two freezer packs supplied, these are positioned above the top basket and should remain in this position incase of any power failures, this will help to keep the temperature in the freezer for a longer period of time.
CARE AND CLEANING
Defrosting your freezer
The formation of frost inside your freezer cannot be avoided. Frost forms in the air comes in contact with the cold surfaces of the freezer. This is well opened when necessary. A thin layer of frost does not harm the operation, it is removed with a plastic or wooden scraper.
When the layer of frost gets to a thickness of about ten millimetres, comp We recommend doing this when the freezer is not very full.
when the humidity contained why the door should only be on of the freezer and can be
Jete defrosting is necessary.
Before defrosting, if the freezer is not empty, press the rapid freeze button to ensure the food is kept at a very low temperature.
Unplug the freezer
Take out the frozen food and keep them in a cool place wrapped in several sheets of new spaper or better still in cool bags or bubble plastic check the frozen food regularly to ensure it has not defrosted. If is has defrosted it must be either eaten or cooked immediately and then refrozen.
Leave the door open.
You can use the spout supplied to help you empty the defrosting water into a bowl.
You can speed up defrosting by getting rid of the some of the frost with a plastic or wooden scraper and putting containers full of hot water (max 60^ ) inside.
Do not use any sharp objects to scrape off the ice or heated electrical appliances (hair dryers, heaters). The freezer might be irreparably damaged.
After melting the ice, carefully wipe and dry the freezer.
Plug it back in press the rapid freeze button and wait for an hour or two before refilling the freezer.
CLEANING
Before cleaning, unplug the freezer from the mains supply.
Never use abrasive products or scouring pads to clean the inside or outside of your freezer.
- Remove all accessories. Wash them in warm water with a gentle scentless detergent (product for washing up for example), rinse with clean water and dry carefully.
- Wash the inner walls in the same way; pay particular attention to the shelf supports
- Wash the door seal, not forgetting to also clean under the seal.
Plug the freezer back into the mains supply.
Clean the freezer whenever you defrost it.
From time to time, dust the condenser at the back of the freezer; as an accumulation of dust might reduce the performance of the freezer.
In the case of prolonged absence, empty and clean the freezer; keep the door open while it is not being used.
REVERSING THE DOOR
You can change the direction of opening of the door of your freezer by moving the hinges. When reassembling, make sure the door is well aligned with the body of the freezer and that the seal adheres correctly.
We remind you that the freezer must be unplugged when changing the direction of opening of the door.
| Remove screw covers Unscrew and remove door lifting upwards | Change position of bottom hinge cover ⑥ |
| Unscrew and remove opening limiter situated under door. Attach new | Change position of top hinge cover using double sided adhesive tape available in bag of spare parts provided with appliance. |
| Unscrew and remove top Unscrew and remove top Screw it on other side in right position | Replace cover and screw on. |
| Unscrew and remove bottom Screw it on other side in right position | Put door back in position on the bottom hinge. Fix and screw the door into position with the top hinge. Replace screw cover. |
| Unscrew and remove bottom Screw it on other side in right position | Remove screw covers on handles, unscrew handles. Use hole cover in bag of spare parts supplied with appliance to cover holes. Screw handle back on other side and replace screw covers. |

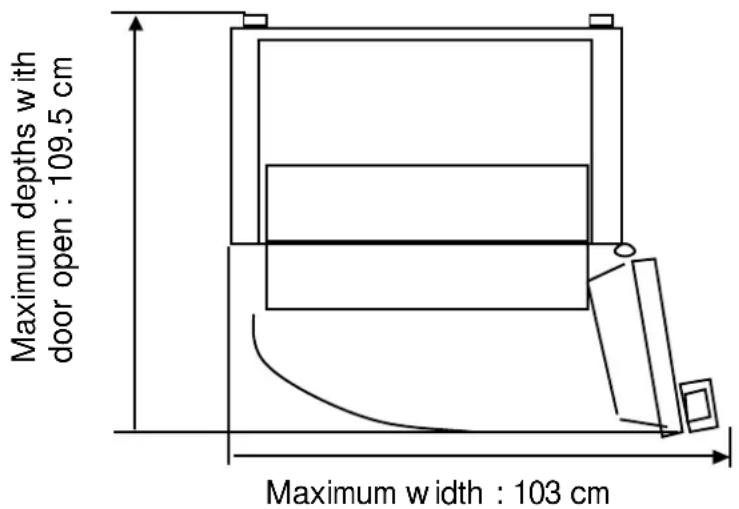

SPECIFICATIONS
Energy consumption 0.66 kWh/24h
Freezing capacity 16 kg/24 hrs
Actual energy consumption depends on the installation and use of the appliance.
This appliance complies with the requirements of the following European Directives: 73/23/EEC modified by 96/68/CE and by 2006/95/EC relating to electrical safety 89/336/EEC modified by 96/68/CE relating to electromagnetic compatibility
IMPORTANT DISPOSAL INFORMATION
As a responsible retailer we care about the environment.
As such we urge you to follow the correct disposal procedure for your product and packaging materials. This will help conserve natural recourses and ensure that it is recycled in a manner that protects health and the environment.
You must dispose of this product and its packaging according to local laws and regulations. Because this product contains electronic components, the product and its accessories must be disposed of separately from household waste when the product reaches its end of life.
Contact your local authority to learn about disposal and recycling.
The product and if applicable, its batteries should be taken to your local collection point for recycling.
Some collection points accept products free of charge.
If something doesn't seem to work
If there is something about your freezer which you do not understand and you live in the UK you can phone our help line during normal office hours on: 0844 800 9595.
Calls are charged at standard rates.
We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.
KESA U.K HU1 3AU 08/10/2008
