USER MANUAL MSK650IX M-SYSTEM

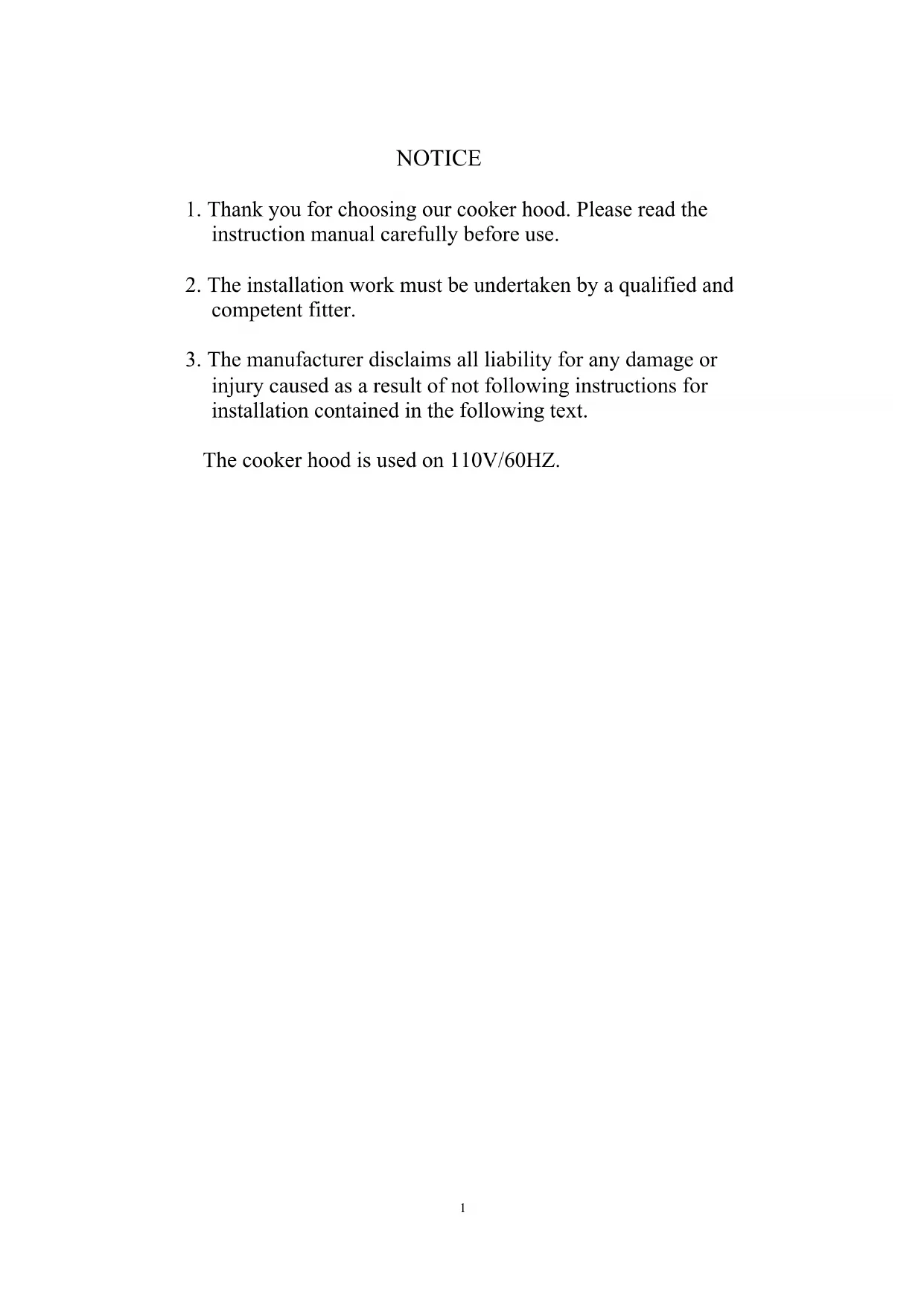

1. Thank you for choosing our cooker hood. Please read the

instruction manual carefully before use.

2. The installation work must be undertaken by a qualified and

3. The manufacturer disclaims all liability for any damage or

injury caused as a result of not following instructions for installation contained in the following text. The cooker hood is used on 110V/60HZ. 1(2)FEATURE

1. The cooker hood uses high quality materials, and is made with a

2. Equipped with a large power low noise electric motor and

centrifugal leaf, it produces strong suction, low noise, non stick grease filter and easy to clean.

3. With the isolated low voltage circuit board control, 12vAC

input, the lights are therefore safer.

4. Special wind tunnel construction and oil collector design, free

dirt will be absorbed in a second. 2(3). Installation If the model without Glass:

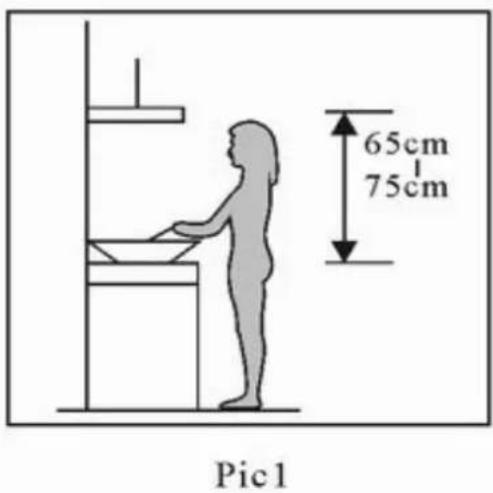

3.1 The cooker hood should be placed at a

distance of 65-75cm (26-30inch) from the cooking surface for the best effect. See Pic

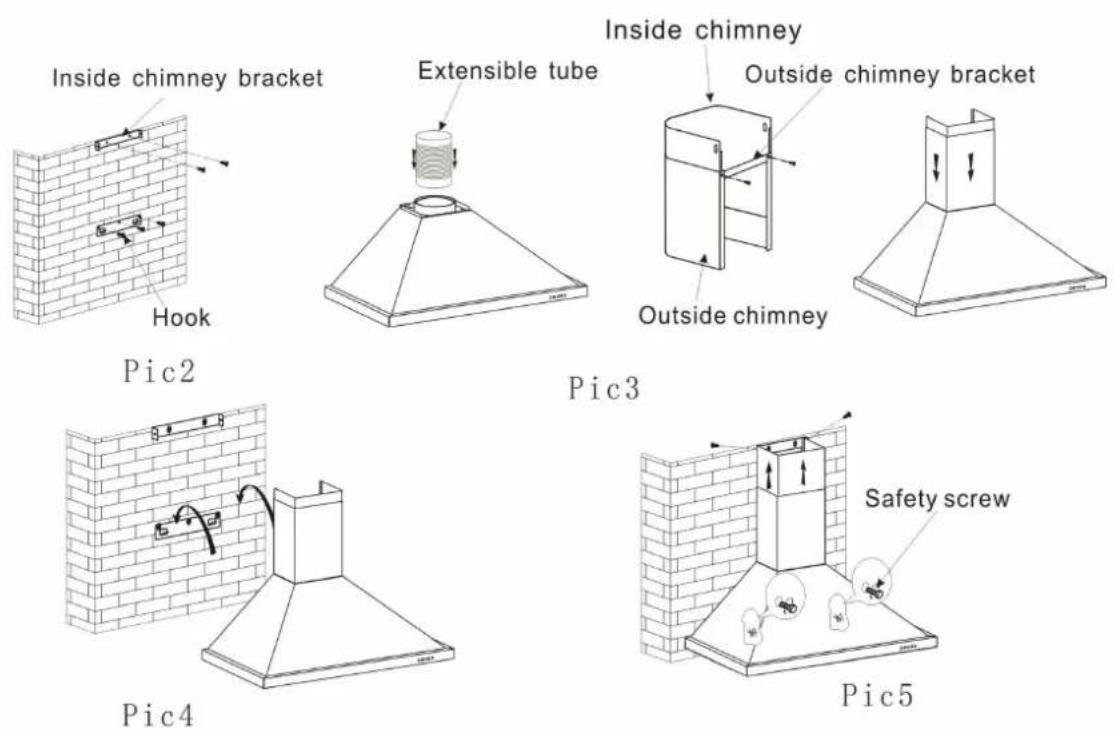

3.2 Install the hook on a suitable place once

the installation height is fixed, and keep it in line. The fixed position of the inside chimney bracket is the place of chimney.

3.3 Fix the outside chimney bracket on the

outside chimney, and be sure that the inside chimney can be adjusted the height in it freely as well as fixing the extensible tubedia.:150mm. Aft erwards, install the extensible tube and chimney on the cooker hood. See Pic 3.

3.4 Put the cooker hood on the hook. See Pic 4.

3.5 Adjust the height of the inside chimney to the position of the inside

chimney bracket and fix on it by screw, after adjusting the position, fix the body with safety screw. See Pic 5. Note: The two safety vents are positioned on the back casing, with diameter of 6mm. 3If the model with Glass:

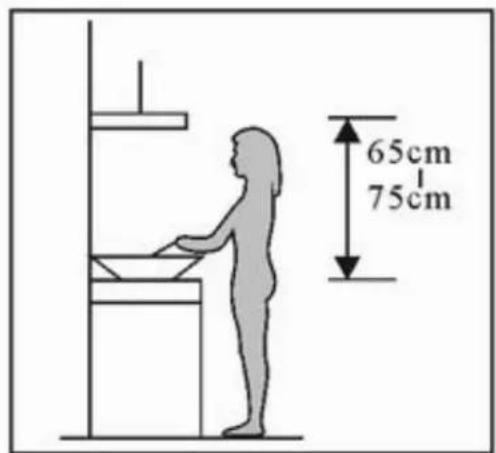

3.1 The cooker hood should be placed at a

distance of 65-75cm (26-30inch) from the cooking surface for the best effect. See Pic 1.

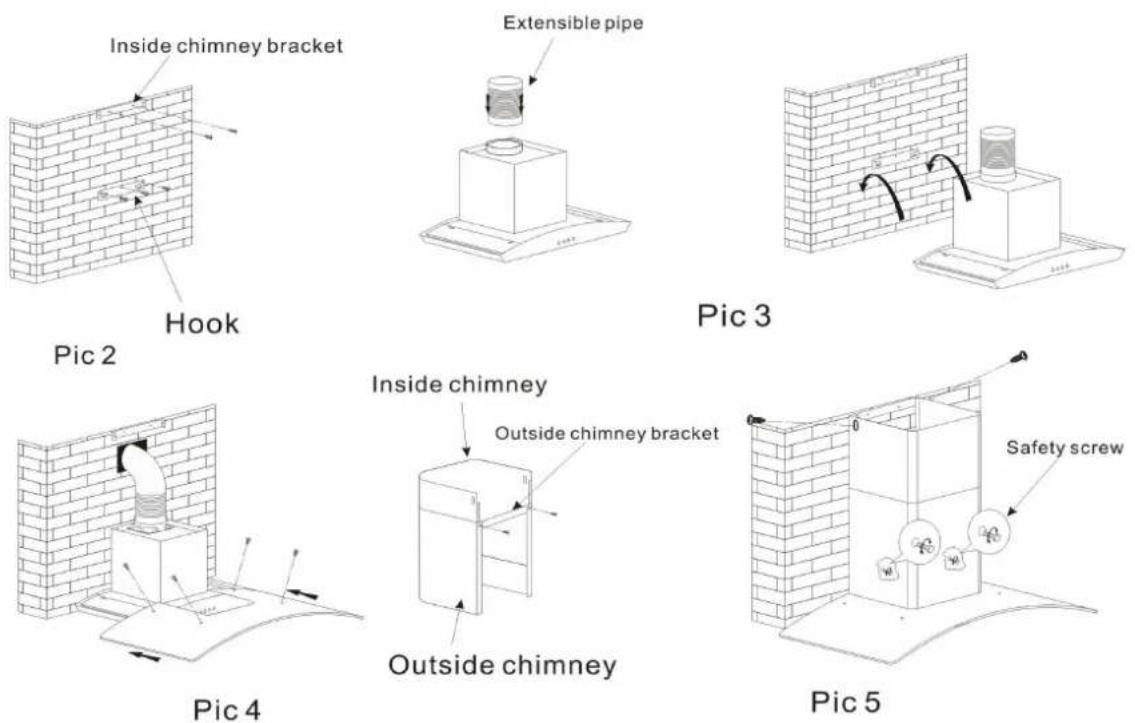

3.2 Install the hook on a suitable place once the

installation height is fixed, and keep it in line. The fixed position of the inside chimney bracket is the place of chimney.

3.3 Fix the extensible pipe (dia.

150mm)ac cording to the lead direction and way, and then put the cooker hood on the hook. See pic 3.

3.4 Put the glass according to the lead direction and way on the cooker

hood, and then use the screws to fix the glass, also lead the extensible pipe outside of the room, meanwhile adjust the height of the inside chimney to the position of the inside chimney bracket and fix on it by screw , here should be sure the inside chimney can be flexed freely. See Pic 4.

3.5 Put the two chimneys together onto the cooker hood body, meanwhile

adjust the height of the inside chimney into the suitable height, and fix the inside chimney to the inside chimney bracket by screw. Finally, fix the body with safety screw. See Pic 5. 4Note: The two safety vents are positioned on the back casing, with diameter of 6mm.

1. Before installation, please ensure the area is clean to avoid

sucti on of the remaining bits of broken wood and dust.

2. It cannot share the same air ventilation tube with other

appliance such as gas tube, warmer tube, and hot wind tube.

3. The bending of ventilation tube should be120°, parallel or

above the start point and should be connected to the external wall.

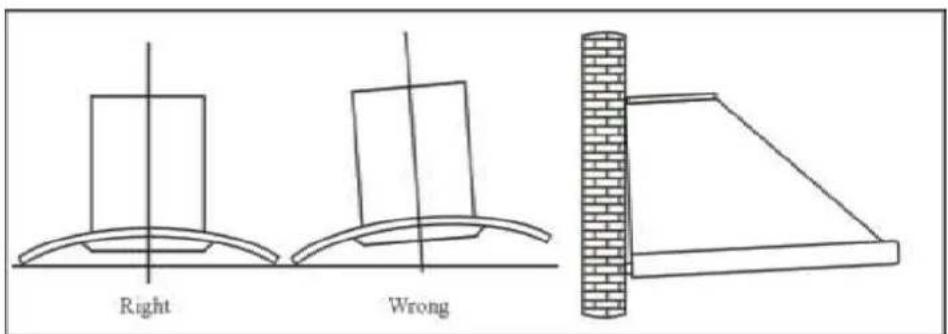

4. After installation, make sure that the extractor is level to avoid

grease collection at one end. 5(5) SAFETY WARNING Keep your children from using the cooker hood. Your cooker hood is for domestic use only, not suitable for barbecue, roast shop and other commercial use. Any installation work must be carried out by a qualified electrician or competent person. The cooker hood and its filter mesh should be cleaned regularly in order to keep in good working order. Before cleaning, always ensure that you have switched your cooker hood off. Clean the cooker hood according to the instruction manual and keep the cooker hood from the danger of burning. No fire for drying your cooker hood. If there is any fault with your cooker hood, please call the service department appointed by agent for servicing. Please keep the room draughty when your cooker hood and gas hob are working. Do not exhaust the gas from cooker hood through the same heated flue which is for the gas from gas hob and other kitchen appliances. Before installation and usage, read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on your cooker hood are exactly the same as the voltage (V) and the frequency (Hz) in your home. In order to get the most out of your cooker hood, please read the instruction manual before installing & using, and keep it in a safe place. Ensure that you could get our guarantee for your cooker hood, pleas e provide the warranty card and purchase receipt, or the guarantee will not be offered.

1. Push the low button, the indicating light 1 on, and the motor

runs at low speed. Push it again and the motor will stop.

2. Push the middle button, the indicating light 2 on, and the

motor runs at mid speed. Push it again and the motor will stop

3. Push the high button, the indicating light 3 on, and motor runs

on high speed. Push it again and the motor will stop

4. Push the light button; the indicating light 4 on, and the two

lighti ng lamps will come on. Push it again and the lamps will turn off. 7Push button

1. Push stop button, and the motor will stop.

2. Push the Low button, and the motor runs at low speed.

3. Push the high button, and the motor runs at mid speed.

4. Push the High button, and the motor runs at high speed.

5. Push the light button and the two lights will come on. Push it

again and the light will turn off. p i c 6 C Low Mid High Light Stop p i c 6 C Low Mid High Light Stop p i c 6 C Low Mid High Light Stop 8LCD Electronic button Pic 7

g the hood; LCD will display 24-hour system with blue backlight. Backlight will be extinguished after 30 seconds without any operation.

2. Press “ ” button once; lights will be on and LCD will show “

”. Press “ ” button again; lights will be off and “ ” on LCD will disappear.

3. Press “ ” button once; the hood works at LOW speed and LCD

will show “ ” and “ ” button will be on. Press “ ” button again; the hood works at MEDIUM speed. Press “ ” button one more time; the hood works at HIGH speed. Press “ ” button again; the hood works at LOW speed again and it repeat. While pressing “ ” button; the “ ” button is always on. If you want to stop the hood now; press the “ ” button once.

4. When the hood is not working; press “ ” button once. The hood

will work at the speed it works last time and LCD will show “ ”. Press “ ” button again; the hood stop working and “ ” will disappear from LCD.

5. When both “ ” button and “ ” button don’t work; “ ”

button is used for time-setting. Press “ ” button for 2 to 3 seconds; will be shown on LCD and flashes; which represents hour. Press “ ” button once the number adds by 01. 9Continue pressing “ ” button; it will display from 13;14… until

23. When LCD shows 23; it doesn’t work by pressing “ ”

button. Press “ ” button once; the number reduces by 01. When LCD shows 00; it doesn’t work by pressing “ ” button. After setting hour; you can start setting minute by pressing “ ” button again. on LCD flashes; which represents minutes. Press “ ” button once the number adds by 01. Continue pressing “

button; it will display from 01;02… until 59. When LCD shows 59; it doesn’t work by pressing “ ” button. Press “ ” button once; the number reduces by 01. When LCD shows 00; it doesn’t work by pressing “ ” button. After setting hour and minute; press “ ” to confirm. When “ ” button doesn’t work; “ ” button is used for delay timer function. Delay timer function allows you to set the hoods automatically power off according to the delay timer you set from 1 minute to 60 minutes. Press “ ” button once; it enters for delay timer setting and LCD shows . Press “ ” button once the number adds by 01. Continue pressing “ ” button; it will display from ; ; … until Press “ ” button once; the number reduces by 01. After setting delay timer you want; press “ ” button to confirm. If you set delay timer as 05:00; the LCD display will show from 05:00; 04:59… until 00:01 00:00. When LCD shows 00:00; the hood will automatically power off and LCD display will only show 24-hour system with blue backlight. After 30 seconds without operation; blue backlight will disappear. But please note the Lamp is not under control of delay timer. Next time; if you want to use delay timer function and you press “ ” button without any change on time. The hood will automatically count time down from your previous setting after 5 seconds. 10LCD Touch control Pic 8

1. Power on: Switch on the power supply, and the backlight is lit,

displaying “24-hour system”. The output is then blocked up,and the soot machine enters standby status. The backlight disappear automatically 30 seconds later under the condition of none operation.

2. Press “Indicator” key: Press the indicator key once, the indicator

is lit, and on the LCD screen is lit. Press it for a second time, of the indicator and the LCD screen will distinguish and it will be repeated again and again.

3. Power on position and increase key , the motor is provided

with three positions, i.e. low, medium and high. 1.Press key once, the is displayed on the display screen, and the motor starts operation. The is the low position (power on position.) 2.Press key once more at the low position, the is displayed on the display screen, and the is the medium position. 3.Press key once more at the medium position, the is displayed on the display screen, and the is the high position. 4.Go on pressing key at the high position, the is still displayed on the display screen, and the motor works normally. It is still at high position at this time.

4. Power on position and decrease key “ ”

1.Press “ ” key once, the motor is adjusted to a lower position, and the LCD screen displays that position in the meantime; 11If it is decreased continuously to none position, then, it is the power off position (namely, the motor stops operation.)

1.The timer key is the timer setting key if the timer key doesn’t work at both the position and indicator. ① Long press timer key for 2-3 seconds, time segment , and the first two hour bit segment flash, use key for the digit increase, and use key for the digit decrease. Namely: The variable is 01 each time it is pressed; the hour segment is with the largest digit of 23. If it exceeds 23, key is null and void. If it is equal to 00, then, the key is null and void. ② Press the timer key for the 2

time , time segment , and the last two minute bit segment flash, use key for the digit increase, and use key for the digit decrease. Namely: The variable is 01 each time it is pressed; the minute segment is with the largest digit of

59. If it exceeds 59, key is null and void. If it is equal

to 00, then, the key is null and void. ③Press the timer key for the 3

time, and it is the time setting exit and confirm key. ④Long press timer key for 2-3 seconds under this operation mode, and it is for the hour setting; Press it for the 2

time: Setting for the minute; Press it for the

time: For the time setting exit and confirm, and it will b e repeated again and again (if the 1

time pressing doesn't exceed 2 seconds, then it can't run this operating procedure.) 2.The timer key is the timer if the timer key works at either the position or the indicator. ① It is provided with three kinds of time segment, and they are 5min/15min/30min/timer cancel in sequence, and the 1

time is 15min, the 3

time is 30min, the 4

time is timer cancel, the 5

time is 5min, and the 6

time is 15min …., and it will be repeated again and again. ② Example: Let the setting time be 15min, the display is 00:15, 00:14, …00:1, with 0:00 displays per minute, and once “00: 00” appears, the motor position and the 12indicator power supply will be cut off automatically, (the display screen displays “24-hour system”, the output is blocked up, and the soot machine enters standby status, and the backlight will be put out automatically 30 seconds later.) ③Time segment change over, 5 seconds later, it starts to decrease gradually (example: 15min is changed over to 30min, with a delay of 5 seconds, and 00: 30 on the display screen starts to decrease gradually). 13(7) MAINTENANCE

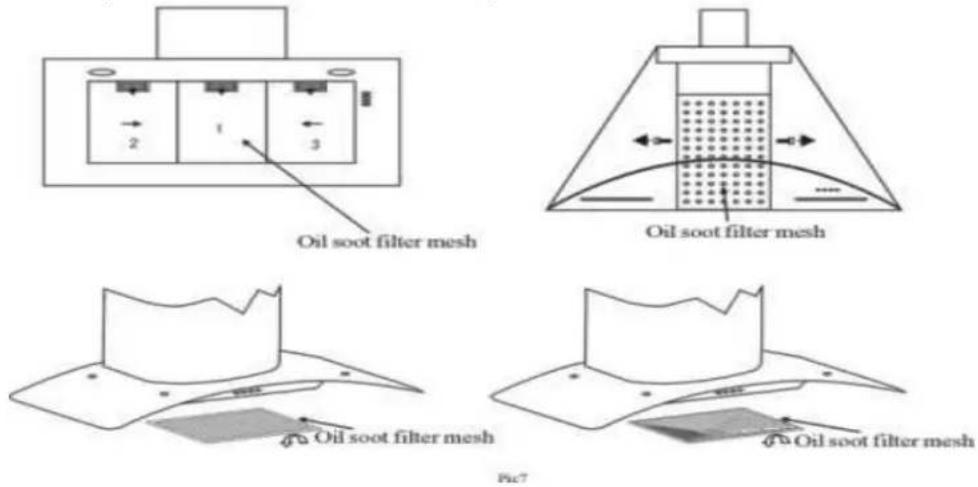

7.1 The cleaning of the carbon grease filter mesh

The filter mesh is made of high-density stainless steel. Please do not use the corrosive detergent on it. Keeping this filter clean will keep the appliance running correctly. Please strictly follow the guidelines below. Method 1: Put the mesh into 40-50 c clean water, pour on detergent, and soak for 2-3 mins. Wear gloves and clean with a soft brush. Please do not apply too much pressure, as the mesh is delicate and will damage easy. Method 2: If instructed to do so, it can be put into a dishwasher, set the temperature at around 60 degrees.

7.2 Notice of cleaning cooker hood

A. To protect the main body from corrosion over a long period of time, the cooker hood should be cleaned with hot water plus non corrosive detergent every two months. B. Please do not use abrasive detergent for it will damage the body. C. Keep the motor and other spare parts free from water, as this will cause damage to the appliance. D. Before cleaning the appliance please remember to cut off power E. The carbon filter shouldn’t be exposed to heat. F. Please don’t tear open the fixed bar around the carbon filter 14G. If the plug or cord is damaged, please replace it with special soft cord. 8.Abnormity and Solution Fault Cause Solution Light on, but motor does no t work The leaf blocked Get rid of the blocking The capacitor damaged Replace capacitor The motor jammed bearing damaged Replace motor The internal with of motor off or a bad smell from the motor Replace motor Light does not work, motor does not work Beside the above mentioned, check the following: Light damaged Replace lights Power cord looses Connect the wires as per the electric diagram Oil leakage One way valve and the air ventilation entrance are not tightly sealed Take down the one way valve and seal with glue Leakage from the connection of U-shaped section and cover Take U-shaped section down and seal with soap or paint Shake of the body The leaf damaged and causes shaking Replace the leaf The motor is not tightly hanged Lock the motor tightly The body is not tightly hanged Fixed the body tightly Insufficient suction The distance between the body and the gas top too long Readjust the distance Too much ventilation from open doors or windows Choose a new place and resemble the machine The machine inclines The fixing screw not tight enough Tighten the hanging screw and make it horizontal 15The hanging screw not tight enough Tighten the hanging screw and make it horizontal
