KB 3538 - Refrigerator CLATRONIC - Free user manual and instructions

Product type	Electric cooler (portable refrigerator / keep warm)
Brand	Clatronic
Model	KB 3538
Capacity	30 liters
Net weight	Approximately 4.80 kg
Power supply	220-240 V~ (AC) and 12 V (DC)
Power (cooling AC)	58 W
Power (keep warm AC)	52 W
ECO power (AC)	8.7 W
Power (cooling DC)	48 W
Power (keep warm DC)	40 W
Climate class	SN/N
Protection class	II
Functions	Cooling and keep warm (Peltier element)
Operating modes	ECO (energy saving) and MAX (maximum power)
Keep warm temperature	Maximum 50-60 °C
Use	Domestic, camping, motorized vehicles
Maintenance	Clean interior/exterior with damp cloth; do not immerse
Safety	Do not use near flames; unplug before cleaning
Included accessories	Connection cable (connector)
Storage	Keep dry; cord storage in the lid
Repairability	Do not repair yourself; contact a qualified technician

Frequently Asked Questions - KB 3538 CLATRONIC

What types of food can I store in the cooler?

You can store pre-refrigerated foods to keep them cool, or hot foods to keep them warm (maximum 50-60 °C). The device is not designed to cool or warm foods at room temperature.

Can I use the device continuously in a car?

Yes, but only when the vehicle engine is running to avoid excessive battery discharge. Use MAX mode and plug into the 12 V cigarette lighter.

What is the difference between ECO and MAX modes?

ECO mode reduces energy consumption and is suitable for light loads. It only works on AC (220-240 V). MAX mode provides maximum power for faster cooling or keeping warm.

How to switch from cold mode to warm mode?

First switch off the device by setting both buttons to OFF, wait about 30 minutes, then select the new mode (COLD or HOT). Never switch directly.

Can I put hot food directly into the cooler?

The device keeps already hot food warm but does not reheat it. Cold foods will take about 2 hours to reach a warm temperature. For best results, preheat food before placing it in the cooler.

What to do if the device does not work?

First check the button settings (OFF/ECO/MAX and COLD/HOT). Ensure the device is properly connected to a working power source. On DC, check the fuse in the 12 V plug and the cigarette lighter.

How to clean the interior of the cooler?

Always unplug the device before cleaning. Use a damp cloth with a little dish soap to clean the interior and exterior. Never immerse the device in water. The lid can be removed by pulling it upward for easy access.

Is the lid removable?

Yes, the lid can be removed by pulling it upward out of its support. This makes cleaning easier. To put it back, align it and push it into place.

Can I plug the device into a car cigarette lighter socket?

Yes, the device can be plugged into a 12 V cigarette lighter socket. Ensure the vehicle engine is running to avoid draining the battery. Use MAX mode (ECO is not available on DC).

What is the maximum capacity of the cooler?

The capacity is 30 liters, which corresponds to about 30 cans of 33 cl or a small portable refrigerator.

USER MANUAL KB 3538 CLATRONIC

Red and silver CTRONC portable water heater with two red circular venters (no visible text or symbols on body)

CE

KÜHLBOX

Koelbox • Glacière • Nevera portátil • Box frigo • Cooler box

Thank you for choosing our product. We hope you enjoy using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE:

This highlights tips and information.

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.
• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING!

Do not allow small children to play with the foil. There is a danger of suffocation!

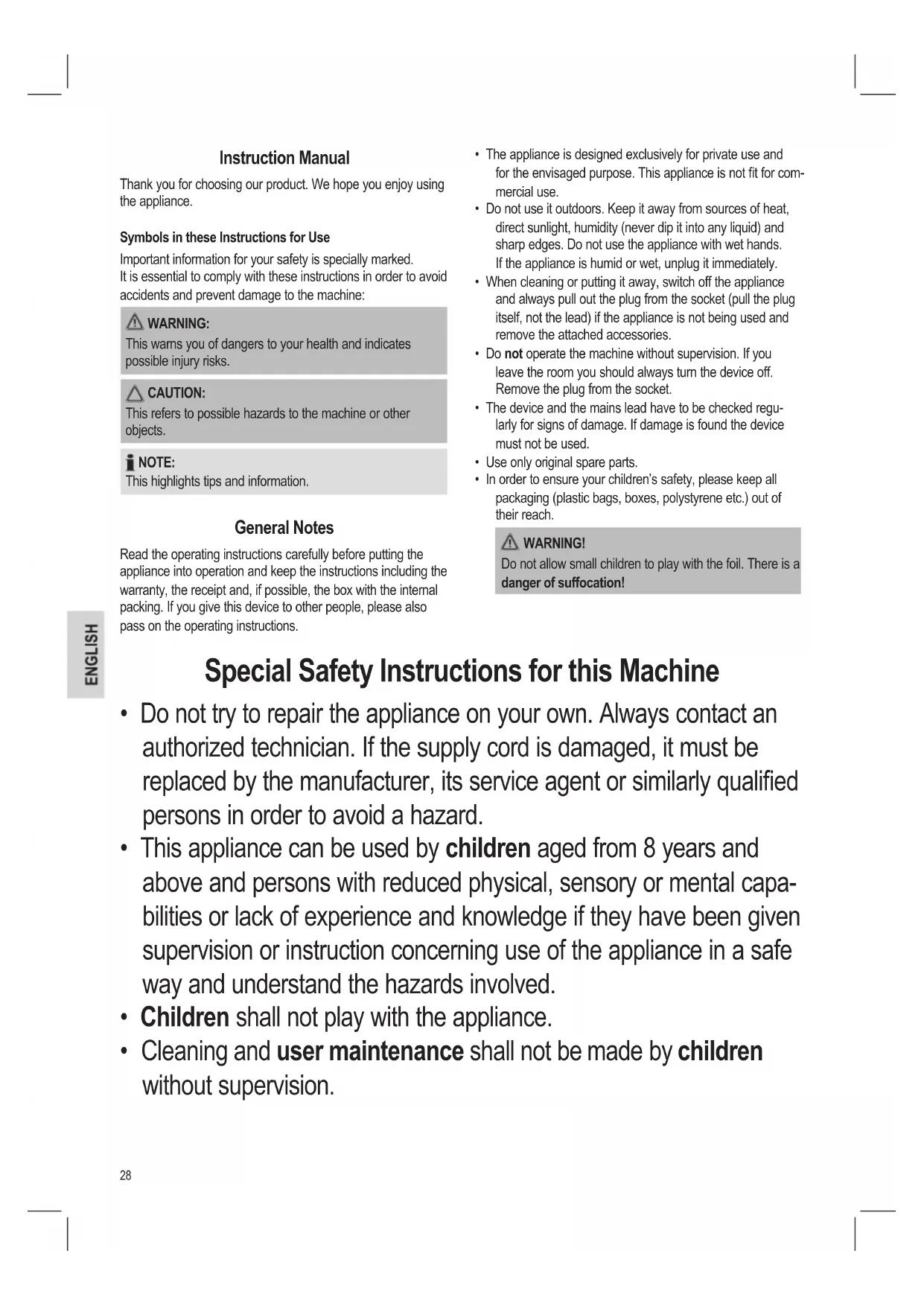

Special Safety Instructions for this Machine

• Do not try to repair the appliance on your own. Always contact an authorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.

- This appliance is not designed to be immersed in water during cleaning. Please follow the instructions that we have included for you in the chapter on “Cleaning”.

△ CAUTION: Risk of overheating!

Keep the ventilation slots free!

If the heat generated by the operation is not properly dissipated, it can result in overheating and fire.

Intended Use

The appliance is designed for the cooling of pre-cooled or for keeping hot dishes and beverages warm.

It is intended for use in the household and in similar applications, such as:

• In personal kitchen areas in shops, offices and other work areas;
- By guests in hotels, motels and other accommodation;
• In bed and breakfast accommodation;
- To use for camping;
- In motor vehicles.

It is not intended for the following use:

• In agriculture;
  • In catering and similar wholesale use.

This appliance may not be exposed to the rain.

Supplied parts

1 Cooler box

1 Barrier strip

Unpacking the appliance

1. Remove the appliance from its packaging.
2. Remove all the packaging material such as plastic bags, filler material, cable ties and cardboard packaging.
3. Check that all parts are supplied in the package.

i NOTE:

The appliance may still contain dust or production residues. We recommend that you clean the appliance as described under "Cleaning".

Instructions

General information

• Never place the appliance next to naked flames or other heat sources.

• The lid is locked when the handle is pushed back and when carrying.

• To open the cooler box, pull the handle forward.

• Do not open the lid more often than required. Do not leave the lid open more often than is necessary. This will influence the duration of the cooling or keeping warm.
• The duration of the cooling or keeping warm is also dependent on the ambient temperature.
• The appliance is not suitable for permanent operation.
• The appliance can be connected to two different energy sources.

- Alternating current 220 – 240 V\~ or

- Direct current 12 V =

• You can switch the appliance on and off using the ECO - OFF - MAX and COLD - OFF - HOT switches. Both switches must be switched on at the required setting to ensure that the appliance functions properly.
• The respective indicator lamp will indicate the mode:

- Green for cooling

- Red for keeping warm

- Do not switch directly from one operating mode into the other. If you would like to change the operating mode, turn the appliance off. Wait about 30 minutes before you switch it to the other operating mode.

Cooling

• You may keep cold foods cold for several hours.
• Turn the switch to the "COLD" position.
• For best results, only store already cooled food / beverages in the cooler. Select a place of use that is protected from direct sunlight.

Keeping warm

• You may keep hot food / beverages warm for several hours, maximum 50 to 60 °C.
• Set the switch to the "HOT" position.
• The Peltier element will switch off and on at intervals to maintain the temperature. The red control light will be lit up when the Peltier element is in operation and when the fan is running.
• The appliance is not designed for reheating. Cold food will only warm up slightly after about 2 hours.

ECO or MAX?

In order to operate the device in energy-efficient mode, use the setting ECO.

i NOTE:

• You may only use the device with the function ECO when connecting it to alternating current 220 - 240 V.
• The output is reduced in the operating mode ECO. Use this operating mode when there are smaller loads in the cooler box, for example.

Using the Appliance

1. There are two covers on the lid. Slide the cover with the arrow symbol to the side.

1. Make sure that both switches are in the "OFF" position.
2. Place the connection cable that you want to use into the cable guide. By doing so, you may close the cover again after switching the appliance on.

Connection to the alternating current

1. Remove the power cord for the direct current, if necessary.
2. Check to make sure that the mains voltage that you want to use is 220 - 240 V\~.
3. Connect the device to a properly installed earthed socket.
4. Set the switch to ECO or MAX.
5. Set the switch to COLD for cooling and to HOT for keeping warm.

Connection to the direct current

1. Remove the power cord for the alternating current, if necessary.
2. Turn on the engine of the motor vehicle.
3. Connect the appliance to the cigarette lighter in the motor vehicle.
4. Set the switch to MAX.
5. Set the switch to COLD for cooling or to HOT for keeping warm.

i NOTE:

Save the battery of your motor vehicle. Only run the appliance in the motor vehicle while the engine is running.

Terminating operation

There is no automatic shut-off. The appliance runs permanently while it is connected to a power supply and switched on.

1. Set both switches to the "OFF" position.
2. Unplug the power cord from the socket or the cigarette lighter.

Cleaning

WARNING:

• Prior to cleaning, always disconnect the connection cable from the socket / the cigarette lighter!
• Never immerse the appliance in water! Otherwise this might result in an electric shock or fire.

CAUTION:

• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.
• The lid is removable. Pull the lid upwards out of the holder.
• Use a moist towel to clean the inside and the outside. You may add a dishwashing liquid to the towel.
  • Dry it with a cloth afterwards.
• Fasten the lid back into the holder.

Storage

• Clean the appliance as described and allow it to dry.
• Store the cables in the power cord storage compartment of the lid.
• We recommend that you keep the appliance in the original packaging if it will not be used for long periods.
• Always store the appliance out of the reach of children in a dry, well ventilated place.

Troubleshooting

Appliance is not functioning

Possible cause:

The switch setting has not been selected correctly.

Remedy:

Check the switch setting.

Possible cause:

There is no current being supplied to the appliance.

Remedy:

Check the connection to the energy source.

• Check the domestic power socket with a different appliance.
• Check the fusebox.
• Is the plug safely connected to the power supply?
• Does the cigarette lighter of your motor vehicle work without a problem?

Appliance does not function with direct current

Possible cause:

The fuse in the plug of the 12 V power cord is faulty.

Remedy: Replace the fuse. You can obtain one from a specialized dealer.

Possible cause:

The cigarette lighter of your motor vehicle is faulty.

Remedy:

Contact a specialist for motor vehicles.

The appliance shuts off during operation

Possible cause:

Inadequate ventilation.

Remedy:

• Keep the ventilation slots free
• Position the appliance so that the air may circulate freely.

The appliance is faulty.

Remedy:

Contact our service or a specialist.

Technical Data

Model: KB 3538
Net weight: .... approx. 4.80 kg
Capacity: max. 30 Litre
Climate class: SN/N

Alternating current

Power supply: 220 - 240 V\~, 50/60 Hz

Power consumption Cooling: 58 W

Keeping warm: 52 W

ECO: 8.7 W

Protection class: ....II

Direct current

Power supply: 12 V

Power rating Cooling: 48 W

Keeping warm: 40 W

The right to make technical and design modifications in the course of continuous product development remains reserved.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
