TA 2756 - Toaster CLATRONIC - Free user manual and instructions

Brand	Clatronic
Model	TA 2756
Product type	Toaster
Power supply	230 V, 50 Hz
Power	Approximately 800 W (estimation)
Dimensions (approx.)	30 x 20 x 20 cm
Weight (approx.)	1.2 kg
Number of slices	2
Browning control	6 positions (1 to 6)
Automatic shut-off	Yes
Reheat function	Yes (S button)
Defrost function	Yes (❄ button)
Burger function	Yes ( button) – grills only one side
Emergency stop function	Yes (STOP button)
Removable rack for pastries	Yes
Crumb tray	Yes, removable
Cleaning	Exterior: damp cloth; crumb tray: empty and close
Safety	Automatic shut-off, hot surfaces (caution), do not insert utensils
Warranty	24 months
Country of manufacture	Not specified (estimation: China)

Frequently Asked Questions - TA 2756 CLATRONIC

How many slices can you toast at once?

The Clatronic TA 2756 toaster can toast up to 2 slices of bread simultaneously.

How to adjust the browning level?

Turn the dial clockwise from setting 1 (light) to 6 (dark). Start at a lower setting if unsure.

What to do if the bread burns?

Use a lower browning setting. If the problem persists, make sure you haven't accidentally activated the reheat or defrost function.

How to use the defrost function?

Insert frozen bread, lower the lever, then press the ❄ button. The indicator lights up. The appliance defrosts then toasts automatically.

Can I toast pastries?

Yes, use the provided removable rack. Place the pastries on it before lowering the lever.

How to clean the toaster?

Unplug and let cool. Clean the exterior with a damp cloth. Open the crumb tray at the bottom, empty it, and close it. Never use abrasive cleaners.

What to do in case of malfunction?

First check the plug and cable. If the appliance still doesn't work, contact a qualified technician or customer service. Do not repair it yourself.

How to interrupt the toasting process?

Press the STOP (⏹) button to immediately stop the toaster. The lever will pop up automatically.

Can I use metal utensils to remove the bread?

No, never insert forks, knives, or other utensils into the appliance, as they could damage the heating elements or cause a short circuit.

How does the burger function work?

Lower the lever, then press the button. Only the outer walls heat up, allowing to toast only one side of the hamburger bun. Place the inside facing outward.

USER MANUAL TA 2756 CLATRONIC

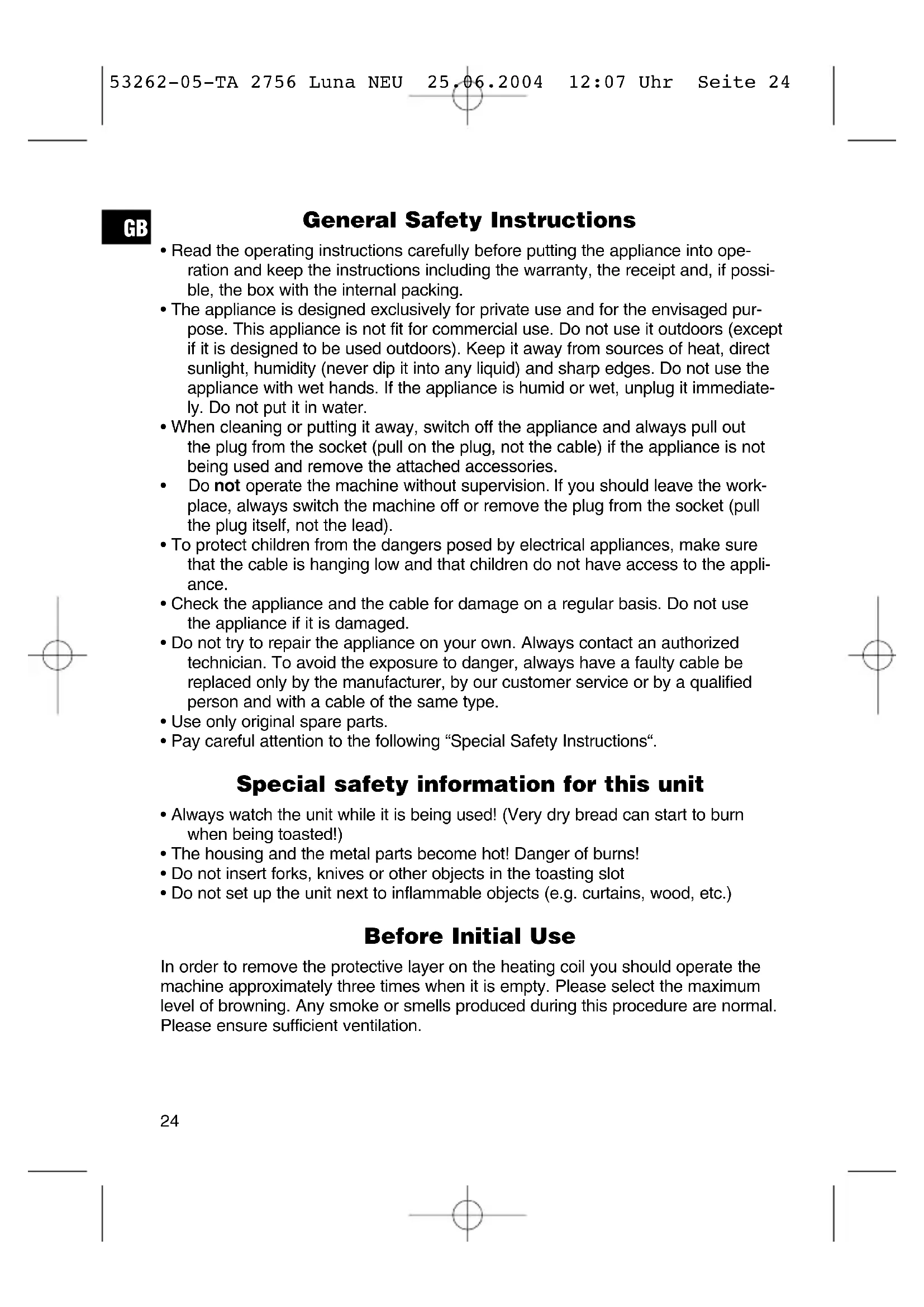

General Safety Instructions

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Special safety information for this unit

• Always watch the unit while it is being used! (Very dry bread can start to burn when being toasted!)
• The housing and the metal parts become hot! Danger of burns!
• Do not insert forks, knives or other objects in the toasting slot
• Do not set up the unit next to inflammable objects (e.g. curtains, wood, etc.)

Before Initial Use

In order to remove the protective layer on the heating coil you should operate the machine approximately three times when it is empty. Please select the maximum level of browning. Any smoke or smells produced during this procedure are normal. Please ensure sufficient ventilation.

Operation

1. Only connect the unit to a properly installed and earthed power socket (230 volts, 50 Hz).
2. To set the browning level, turn the selector clockwise to the preferred level starting from the lightest - level 1 - to the darkest - level 6. If you are not sure start with a lower setting. (The marking on the selection switch shows you the setting).
3. Insert the slices of bread in the toasting slot and lower the slide with the lever until it snaps into place.
4. The appliance starts the toasting. When the set level of browning is reached, the appliance switches off automatically. The slide pops up automatically.
5. As the housing and the metal parts become hot during operation, please allow the device to cool down before putting it away.

In order to use the special functions, first press down the lever and then the appropriate button ( ) or ( ). The accompanying control lamp shows the function.

Warming (S): To warm bread already toasted.

Thawing (To thaw and toast deep-frozen bread.

Hamburgers (Fortoasting "hamburger" roll halves on one side.

Here only the external heating spirals of the toaster are in operation. The internal spirals remain cold. The cut surfaces of the roll must face the external sides of the toaster.

STOP (): To stop toasting in advance.

Removable

toasting attachment: For the toasting of bread rolls.

Cleaning

• Pull the mains plug out of the mains socket before you clean the unit and allow the unit to cool down.
• Only use a slightly damp cloth to clean the outside of the unit.
• Do not use abrasive or aggressive cleaners.
• Remove the crumb tray from the slot, remove the crumbs and insert the tray again.

GB

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

*) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

3KcIIyatau/npaokpa60tbI

1. BkIIOuAte npio6op TOnbKO B po3eTKy C 3aUHTbIMN KOHTaKTamn (230 B, 50 T), yCTaHOBJIeHHyO B COOTBeTCTBmN C npEINHcHnMn.
   2.ДяperylnpoBknцBaTe noJxapnBaHnYcTaHOBnte nepeKlIOaTeJIb, Bpaazra erno yacobOi cTpeJIke,B OndHO n3 noJoxKeHn 1-6,OT CBetIoro do TEMHOrO.B Cnyae HeyBepeHHocTn,HaHHaTe C nepBOrO noJoxKeHn.(MeTKa Ha nepeKlIOaTeJe noka3bIbaET yCTaHOBHeHHb peXm pa60tbl).
2. BCTaBbTe KycOueK (Kn) xIe6a B nIa3 (bl) TocTepa I, HaxKaB Ha pbIar, ONyCTnTe caIa3Kn BHN3, Do INx ΦNkCaun.
3. TocTeP NaHHaET NOJXapNBaTb Xne6. KaK ToIbKO OH NOJXapNTcdo yCTaHOBJIeHHOrO UBeTa, TocTeP aBTOMaTnueCKN BbIKJIIOuHTcR. CaIa3Kn aBTOMaTnueCKN BbIeDyT HaBepx.
4. Tak KaK Kopnycи MeTaNIIueckne YacTN TocTepa CInbHO HArpeBaIOTcB BO BpeMa paOTobl, DaIte Emy OCTbITb, NpeD Tem KaK y6paTb.

ДяakTNBn3aUNOJHONI3ДОПONHITeNBbIXФyHKUIN，HAXMITE NOcJIe ONyCKAHnPBuHaRaOHyN3KHOPOK（）u（）CoETBETCTByIOUaJ KOHTpOBHaJ lamNoCuCA CnHAn3npyET BkLIOUeHne.
