Product type	2-slice toaster
Brand	Clatronic
Model	TA 2955
Power supply	220-240 V, 50/60 Hz
Power	800 W
Dimensions (approx.)	25 x 15 x 20 cm
Weight (approx.)	1.2 kg
Color	White
Capacity	2 slices of bread
Browning level	Adjustable from LIGHT to DARK
Special functions	Defrost, Reheat, Cancel, Pastry rack
Crumb tray	Yes, removable
Cool Touch walls	Yes
Automatic shut-off	Yes
Cable length (approx.)	0.8 m
Warranty	24 months
Material	Plastic, metal
Care	Damp cloth, empty crumb tray
Included accessories	Pastry rack
Repairability	Repair by qualified professional
Safety	Automatic shut-off, overheating protection

Frequently Asked Questions - TA 2955 CLATRONIC

How to adjust the browning level?

Turn the function selector between LIGHT and DARK to choose the desired browning. If in doubt, start with a lighter setting.

How to use the defrost function?

After lowering the lever, press the Defrost button. The toaster defrosts and then toasts the frozen bread automatically.

Can I toast pastries?

Yes, use the provided rack. Place one bread roll or brioche at most. Do not cover with butter or grease to avoid any fire risk.

What to do if the toaster does not turn on?

Check that the plug is connected and that the lever is pressed down until it clicks. If the problem persists, contact a professional.

How to clean the toaster?

Unplug the appliance and let it cool. Clean the exterior with a damp cloth. Open the crumb tray to empty the crumbs.

The bread burns too quickly, what to do?

Reduce the browning level towards LIGHT. If the problem persists, the bread may be very dry: monitor the toasting.

The device emits smoke during first use, is it normal?

Yes, it is normal. Run the appliance empty 3 times at the highest setting to remove the protective layer. Ensure good ventilation.

The lever does not stay down, why?

This may be due to a power supply issue or blockage. Check the plug and that the bread is inserted correctly. Otherwise, contact customer service.

Can I use a fork to remove the bread?

No, never insert metal utensils into the slots. Use the lever to raise the bread or wait for it to cool.

How to store the power cord?

The cord can be wrapped around the base of the appliance. Make sure not to bend it excessively.

USER MANUAL TA 2955 CLATRONIC

D-47906 Kempen/Germany

Consommation: 735-860 W

Classe de protection: I

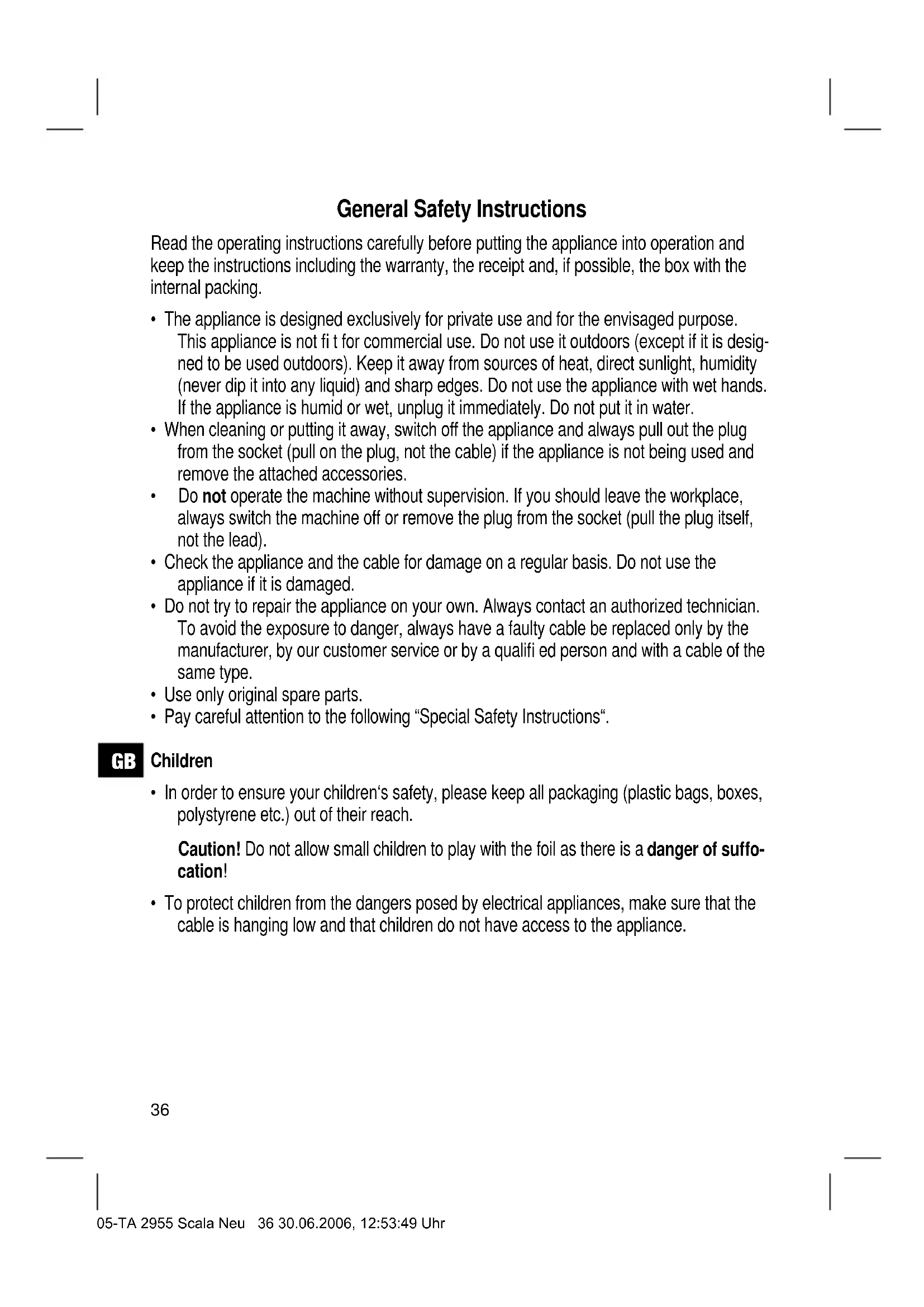

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

GB

Children

• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.

Special safety information for this unit

• Always watch the unit while it is being used!

WARNING: Very dry bread can start to burn when being toasted!

• The metal parts get hot. Danger of burns!
• Do not insert forks, knives or other objects in the toasting slot.
• Do not set up the unit next to infl ammable objects (e.g. curtains, wood, etc.).

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION: This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

Instructions

Please read these operating instructions carefully and keep them in a safe place. If you sell or give this article to other people please also pass on these instructions.

Before Initial Use

CAUTION:

In order to remove the protective layer on the heating coil you should operate the machine approximately three times when it is empty. Please select the maximum level of browning.

I NOTE:

Any smoke or smells produced during this procedure are normal. Please ensure sufficient ventilation.

I NOTE:

The section of the mains lead that is not required can be wound up on the base of the device.

Operation

1. Only connect the unit to a properly installed and earthed power socket (230 volts, 50 Hz).
2. Adjust the degree of browning on the selector switch as required between the lightest level „LIGHT“ to the darkest level „DARK“. If you are not sure start with a lower setting.

NOTE: The setting can be read off on the round scale.

1. Insert the slices of bread in the toasting slot and lower the slide with the lever until it snaps into place.
2. The appliance starts the toasting. When the set level of browning is reached, the appliance switches off automatically. The slide pops up automatically.
3. The appliance has a heat-insulated "cool-touch" housing.

WARNING:

During operation the exposed metal parts become hot. Please allow the device to cool down before storing it away.

Special Functions

To use the desired special function, press the relevant key, after pressing down the lever:

I NOTE: Heating or thawing: the relevant LED indicates the function.

Thawing to thaw and toast deep-frozen bread.

Warming to warm bread already toasted.

Stop to stop toasting in advance.

Bun Warmer

For the toasting of bread rolls.

WARNING:

• Do not overload the roasting attachment! Only one roll or piece of bread of comparable weight should be placed on top.
• Under no circumstances should you spread fat or better on the bread or roll. Fat may drip down and catch fire!

Cleaning

• Pull the mains plug out of the mains socket before you clean the unit and allow the unit to cool down.
• Only use a slightly damp cloth to clean the outside of the unit.
• Do not use abrasive or aggressive cleaners.
• Pull the crumb tray out by the handle, remove the small pieces of bread and push the tray back in place.

Technical Data

Model: .TA 2955

Power supply: 220-240 V, 50/60 Hz

Power consumption: 735-860 W

Protection class:

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

Defects to consumables or parts subject to wearing as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
