USER MANUAL FR 3126 CLATRONIC

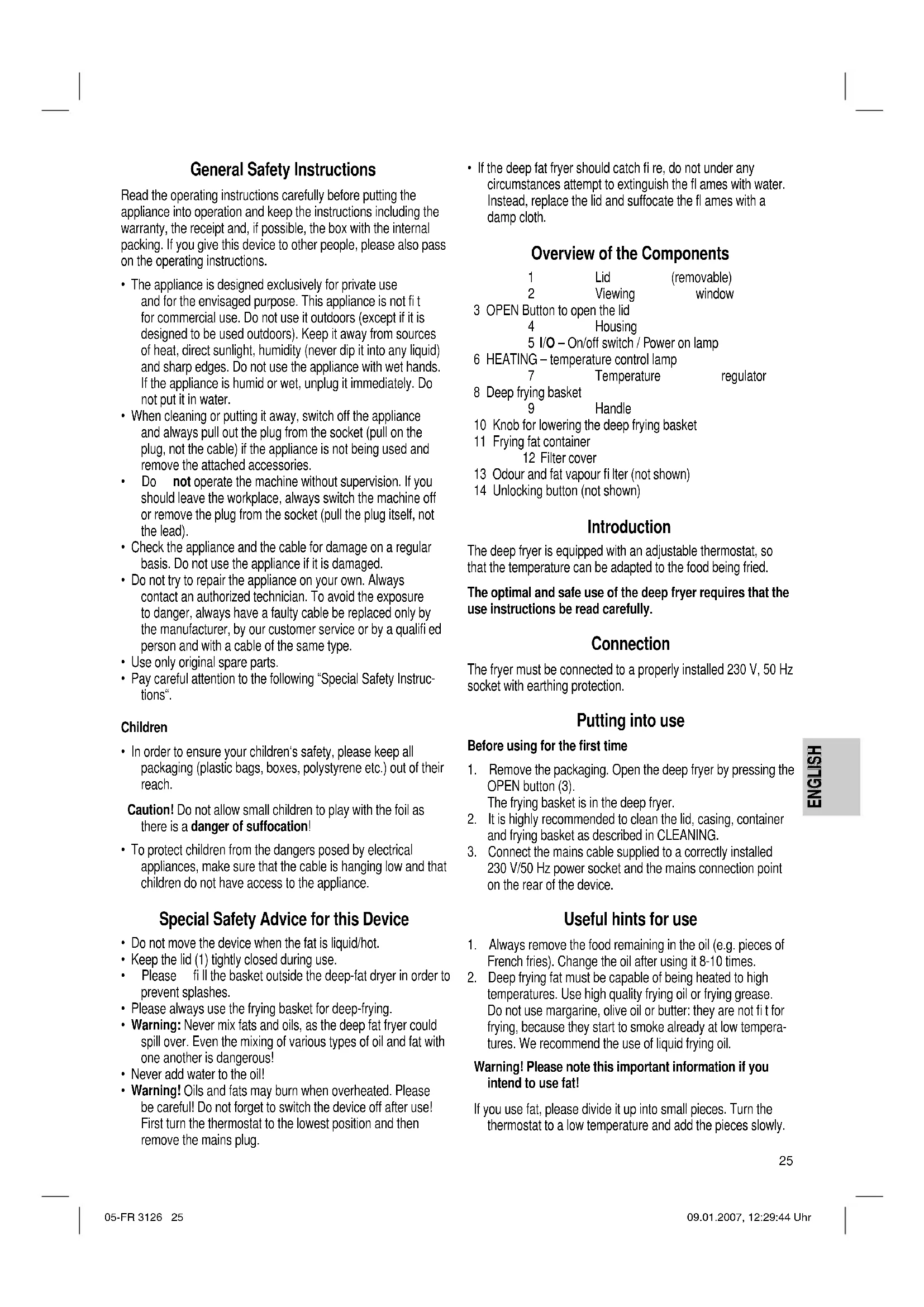

General Safety Instructions Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fi t for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.

• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.

• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).

• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.

• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualifi ed person and with a cable of the same type.

• Use only original spare parts.

• Pay careful attention to the following “Special Safety Instruc- tions“. Children

• In order to ensure your children‘s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach. Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance. Special Safety Advice for this Device

• Do not move the device when the fat is liquid/hot.

• Keep the lid (1) tightly closed during use.

• Please fi ll the basket outside the deep-fat dryer in order to prevent splashes.

• Please always use the frying basket for deep-frying.

• Warning: Never mix fats and oils, as the deep fat fryer could spill over. Even the mixing of various types of oil and fat with one another is dangerous!

• Never add water to the oil!

• Warning! Oils and fats may burn when overheated. Please be careful! Do not forget to switch the device off after use! First turn the thermostat to the lowest position and then remove the mains plug.

• If the deep fat fryer should catch fi re, do not under any circumstances attempt to extinguish the fl ames with water. Instead, replace the lid and suffocate the fl ames with a damp cloth. Overview of the Components 1 Lid (removable) 2 Viewing window 3 OPEN Button to open the lid 4 Housing 5 I/O – On/off switch / Power on lamp 6 HEATING – temperature control lamp 7 Temperature regulator 8 Deep frying basket 9 Handle 10 Knob for lowering the deep frying basket 11 Frying fat container 12 Filter cover 13 Odour and fat vapour fi lter (not shown) 14 Unlocking button (not shown) Introduction The deep fryer is equipped with an adjustable thermostat, so that the temperature can be adapted to the food being fried. The optimal and safe use of the deep fryer requires that the use instructions be read carefully. Connection The fryer must be connected to a properly installed 230 V, 50 Hz socket with earthing protection. Putting into use Before using for the fi rst time

1. Remove the packaging. Open the deep fryer by pressing the

OPEN button (3). The frying basket is in the deep fryer.

2. It is highly recommended to clean the lid, casing, container

and frying basket as described in CLEANING.

3. Connect the mains cable supplied to a correctly installed

230 V/50 Hz power socket and the mains connection point on the rear of the device. Useful hints for use

1. Always remove the food remaining in the oil (e.g. pieces of

French fries). Change the oil after using it 8-10 times.

2. Deep frying fat must be capable of being heated to high

temperatures. Use high quality frying oil or frying grease. Do not use margarine, olive oil or butter: they are not fi t for frying, because they start to smoke already at low tempera- tures. We recommend the use of liquid frying oil. Warning! Please note this important information if you intend to use fat! If you use fat, please divide it up into small pieces. Turn the thermostat to a low temperature and add the pieces slowly. 05-FR 3126 25 09.01.2007, 12:29:44 UhrENGLISH ENGLISH

Once the fat has melted and the correct oil level is reached you can set the desired temperature on the thermostat.

3. In order to reduce the acrylamide content of food containing

starch (potatoes, cereals) the temperature during deep-fat frying should not exceed 170° C (or possibly 175° C). Fur- thermore, the frying time should be kept as short as possible and the food only fried until it turns golden yellow.

4. Choose the right frying temperature and check the conditi-

ons of the food to be fried. A rule of thumb is that pre-fried foods require a higher temperature than raw foods.

5. Do not carry or move the deep fryer if the oil or grease is still

6. When frying dough-like foods scrape off the excess dough

and put the pieces carefully into the oil.

7. The deep frying basket must not be more than two-thirds

full. Do not overfi ll the basket.

8. Rub dry humid foods with a cloth before frying.

9. After use, unplug the deep fryer.

10. If you should switch on your deep fat fryer by accident when

there is no oil or fat in it, the overheating protection device will switch on automatically. The device is then no longer operable. Remove the plug from the socket. Use

1. Make sure that the appliance is unplugged and switched off.

2. Unlock the lid by pressing the release button (3).

3. Remove the deep-frying basket, insert your hand inside

the device and pull the handle (9) upwards until it locks into place. Then fi ll oil or fat into the frying fat container. Only fi ll between the MIN. and MAX. mark. Please note the following important information! If you use fat, divide it up into small pieces and place it on the fl oor of the deep frying vessel. Under no circumstances should you place the fat in the deep frying basket!

4. Insert the plug into a correctly installed 230 V, 50 Hz socket

with earthing contact and switch the deep fryer on by the I/O switch (5). Then close the lid during the heating-up phase.

5. The power on switch (5) and the HEATING control lamp

(6) light up. Please set the temperature regulator (7) to the desired temperature (Min. – approx. 130° C, middle position – approx. 160 °C, Max. – approx. 190°C).

6. Once the set temperature has been reached, the HEATING

control lamp (6) goes off. The power on lamp remains on and shows that the device is working.

7. Now fi ll the deep-fry basket. Please ensure that the basket

is not fi lled above the hot fat. Open the lid and insert the basket with the items to be fried carefully into the recess.

8. Now close the lid. Release the handle (by pushing the

button (10) on the handle). The deep-fry basket is now in the hot fat.

9. During the deep-frying process the HEATING control lamp

switches on and off several times. This is normal and shows that the temperature is being thermostatically controlled and maintained. After the frying time has elapsed (frying times are to be found on the food packaging or in the recipe), open the lid carefully (as it is possible that hot steam will be released). Now remove the deep-frying basket.

10. Allow the oil to drain off the food being fried by suspending

the deep-frying basket on the edge of the frying fat contai- ner.

11. To switch off the device press the I/O switch (5) and remove

the plug from the socket. Cleaning

1. Make sure that the plug is pulled out.

2. Wait until the deep fryer is completely cool before cleaning.

Wait in any case for 1 to 2 hours after use before using again to avoid burns.

3. When you want to change the oil, pour the old oil out of the

4. Please do not immerse the device in water.

5. The lid can be removed by pushing the two retaining devices

on the side of the lid hinge towards the rear at the same time. This makes cleaning easier.

6. Clean the deep frying fat container, the lid and the housing

with a damp cloth and household detergent if necessary. Please do not immerse in water.

7. The deep frying basket can be cleaned in the usual way in

damaging the deep fryer! Changing the Odour and Fat Vapour Filter The fi lter in the lid can be replaced.

• Press down the holder of the fi lter cover on the inside of the lid and pull out the cover towards the front.

• Then reassemble the cover. Tip: When these fi lters have been used up it is possible to cut universal fi lters to size, e.g. from cooker hoods. Technical Data Model:...............................................................................FR 3126 Power supply:............................................................230 V, 50 Hz Power consumption:.......................................................... 1800 W Protection class:........................................................................... Ι Filling quantity: .........................................................max. 1,8 Litre This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations. Subject to technical changes without prior notice! 05-FR 3126 26 09.01.2007, 12:29:46 UhrENGLISH ENGLISH

Guarantee The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt). During the life of the guarantee any fault of the device or its accessories ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee! Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out. If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt. Defects to consumables or parts subject to wearing as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid! The guarantee lapses in case of unauthorized tampering. After the expiry of the guarantee After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs. Meaning of the “Dustbin” Symbol Protect our environment: do not dispose of electrical equipment in the domestic waste. Please return any electrical equipment that you will no longer use to the collection points provided for their disposal. This helps avoid the potential effects of incorrect disposal on the environment and human health. This will contribute to the recycling and other forms of reutilisati- on of electrical and electronic equipment. Information concerning where the equipment can be disposed of can be obtained from your local authority. 05-FR 3126 27 09.01.2007, 12:29:49 Uhr28
