Product type	Range hood
Brand	Falcon
Model	LEIHDC120BCEU
Width	120 cm
Minimum safety distance	650 mm above the cooking surface
Lighting	Halogen lamp 28 W
Suction speeds	3 speeds (low, medium, high)
Evacuation mode	Extracting or recirculating (recycling)
Grease filters	Self-supporting metal, dishwasher safe
Charcoal filters	Disposable, replace every 4 months
Grease filter maintenance	Clean every 2 months
Power supply	220-240 V ~ 50/60 Hz (estimated)
Electrical class	Class I (grounding required)
Air outlet diameter	150 mm or 125 mm (with reducer)
Noise level	Quiet at minimum speed
Chimney dimensions	Telescopic (adjustable height)
Usage	Domestic use only
Destination countries	Europe (BE, FR, etc.)

Frequently Asked Questions - LEIHDC120BCEU FALCON

What is the minimum distance between the hood and the cooking surface?

The minimum safety distance is 650 mm between the cooking surface and the hood.

How to clean the grease filters?

The metal grease filters are dishwasher safe. Clean them approximately every 2 months or more often with heavy use. Let them dry before reinstalling.

How often should the charcoal filters be replaced?

Charcoal filters are not washable and must be replaced at least every 4 months, or more often with heavy use.

How to replace the hood light?

First remove the grease filters. Unscrew the 28 W halogen lamp and replace it with a lamp of the same specifications. Then reassemble the filters.

Can I use the hood in recirculation mode without external extraction?

Yes, the hood can operate in recirculation mode. In this case, ensure the charcoal filters are installed and use the supplied air outlet connector.

What type of electrical cable is needed?

The hood must be connected to the mains via a bipolar switch with a contact opening of at least 3 mm. The voltage must match that indicated on the rating plate inside the appliance (usually 220-240 V).

How to install the hood above a gas cooktop?

Respect the minimum safety distance of 650 mm. Also, ensure sufficient room ventilation if using non-electric appliances (gas, etc.). An opening to the outside may be necessary.

What to do in case of hood malfunction?

First check the power supply and that the filters are not clogged. If the problem persists, consult the full manual or contact a professional. Do not attempt to repair it yourself.

Is the hood compatible with a 120 mm diameter exhaust?

Yes, the hood is supplied with a ∅ 120-125 mm connection ring and a ∅ 150-120 mm reduction flange to adapt the air outlet.

How to clean the exterior of the hood?

Use a damp cloth and a neutral liquid detergent. Do not use abrasive products. Before any cleaning, unplug the hood.

USER MANUAL LEIHDC120BCEU FALCON

Isometric line drawing of a three-tiered industrial chimney or duct (no text or symbols)

RECOMMENDATIONS AND SUGGESTIONS....11

CHARACTERISTICS....12

INSTALLATION 13

USE....16

MAINTENANCE....17

SOMMAIRE

FR

CONSEILS ET SUGGESTIONS ....18

CARACTERISTIQUES 19

INSTALLATION 20

UTILISATION....23

ENTRETIEN....24

INHALTSVERZEICHNIS

DE

Illustration of a heating setup with a stove and a fire, featuring a crossed green diagonal line (no text or symbols)

Ingombro

Componenti

Diagram showing a mechanical component with an inset view of a green arrow indicating direction (no text or symbols present)

Montaggio Camino

Camino superiore

Illustration of a hand pressing a green arrow on a device component, enclosed in a circular frame (no text or symbols)

Line drawing of a hand holding a tool, no text or symbols present

The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.

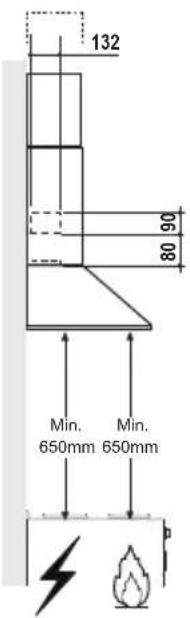

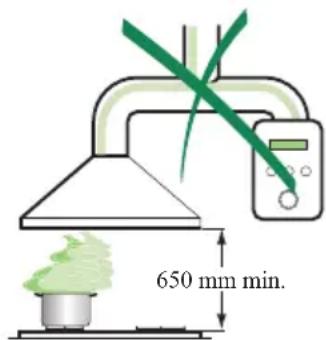

• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.
  Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambè under the range hood; risk of fire
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• Clean the hood using a damp cloth and a neutral liquid detergent.

The symbol 📄 on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Illustration of a greenhouse with a stove and smokestack emitting green smoke, crossed by a green X-shaped line (no text or symbols)

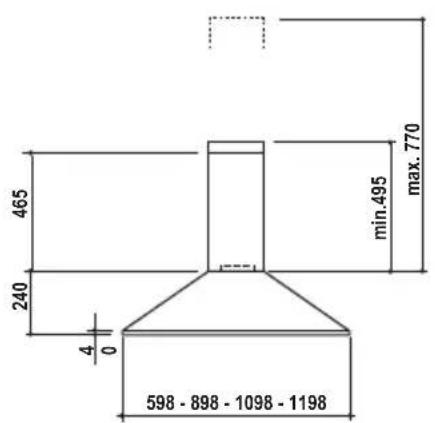

Dimensions

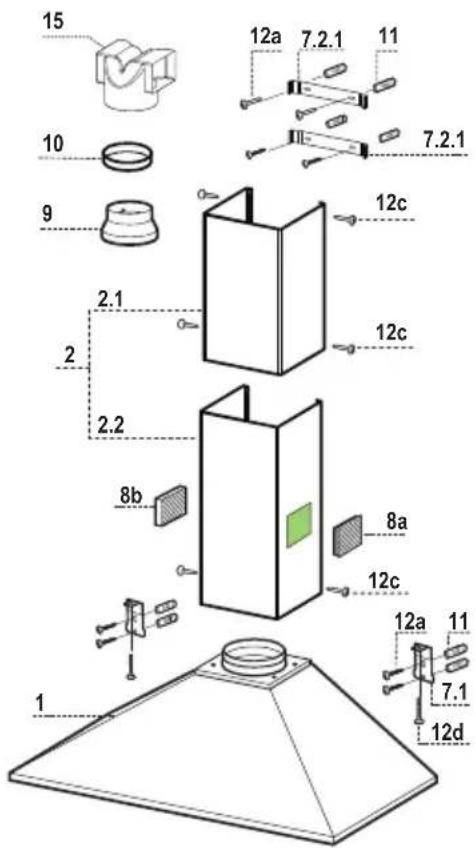

Components

Ref. Q.ty Product Components

1	1	Hood Body, complete with: Controls, Light, Blower, Filters
2	1	Telescopic Chimney comprising:
2.1	1	Upper	Section
2.2	1	Lower	Section
8a	1	Right Air Outlet Grill
8b	1	Left Air Outlet Grill
9	1	Reducer Flange ø 150-120 mm
10	1	Adapting ring ø 120-125 mm
15	1	Air Outlet Connection
Ref. Q.ty Installation Components
7.1	2	Hood Body Fixing Brackets
7.2.1	2	Upper Chimney Section Fixing Brackets
11	8	Wall	Plugs
12a	8	Screws 4.2 x 44,4
12c	6	Screws 2.9 x 9.5
12d	2	Screws M4 x 25
Q.ty Documentation
	1	Instruction Manual

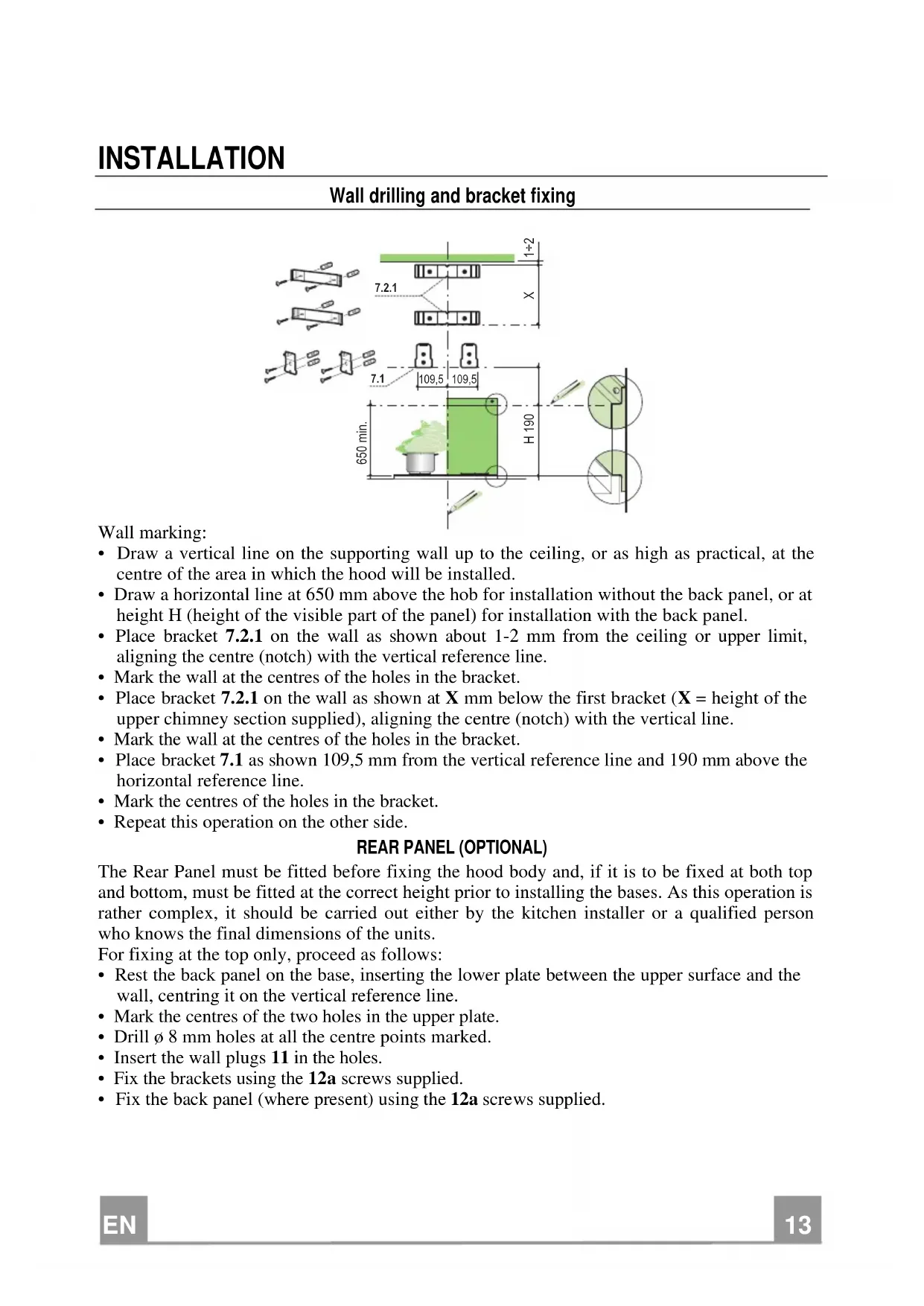

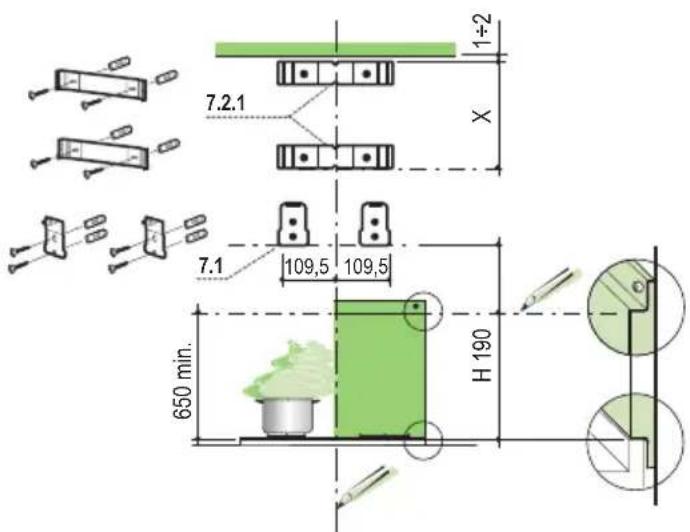

Wall drilling and bracket fixing

Wall marking:

• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed.
• Draw a horizontal line at 650 mm above the hob for installation without the back panel, or at height H (height of the visible part of the panel) for installation with the back panel.
• Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit, aligning the centre (notch) with the vertical reference line.
• Mark the wall at the centres of the holes in the bracket.
• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket (X = height of the upper chimney section supplied), aligning the centre (notch) with the vertical line.
• Mark the wall at the centres of the holes in the bracket.
• Place bracket 7.1 as shown 109,5 mm from the vertical reference line and 190 mm above the horizontal reference line.
  • Mark the centres of the holes in the bracket.
• Repeat this operation on the other side.

REAR PANEL (OPTIONAL)

The Rear Panel must be fitted before fixing the hood body and, if it is to be fixed at both top and bottom, must be fitted at the correct height prior to installing the bases. As this operation is rather complex, it should be carried out either by the kitchen installer or a qualified person who knows the final dimensions of the units.

For fixing at the top only, proceed as follows:

• Rest the back panel on the base, inserting the lower plate between the upper surface and the wall, centring it on the vertical reference line.
• Mark the centres of the two holes in the upper plate.
• Drill 8 mm holes at all the centre points marked.
• Insert the wall plugs 11 in the holes.
  • Fix the brackets using the 12a screws supplied.
  • Fix the back panel (where present) using the 12a screws supplied.

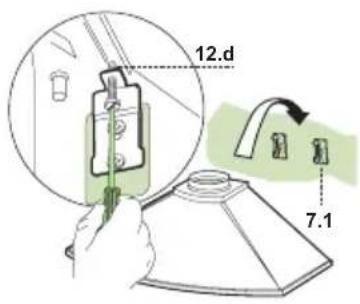

Mounting the hood body

• Screw the two screws 12d supplied onto the brackets 7.1.
• Hook the hood body onto the bracket 7.1, centring it around the vertical line.
• Use the adjusting screws 12d underneath the hood to level the hood body.

Connections

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 125 mm, the choice of which is left to the installer.

• To install a 125 mm air exhaust connection, insert the reducer flange 9 on the hood body air outlet and the adapting ring 120-125 10 on the reducer flange.
• Fix the pipe in position using sufficient pipe clamps (not supplied).
• Remove any activated charcoal filters.

RECIRCULATION VERSION AIR OUTLET

• Push fit the air outlet fitting 15 onto the air outlet of the hood body.
• Ensure that the activated charcoal filters have been inserted.

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.
• Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.

Diagram showing a mechanical component with an inset view of a green arrow indicating direction (no text or symbols present)

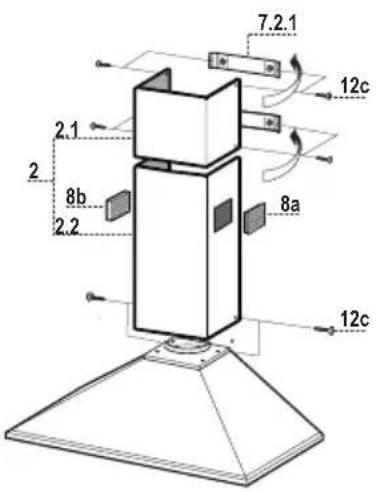

Chimney assembly

Upper chimney section

• Slightly widen the two sides of the upper chimney and hook them behind the brackets 7.2.1, making sure that they are properly housed.
• Secure the sides to the brackets using the 4 screws 12c (2,9 x 9,5) supplied.

Lower chimney section

• Slightly widen the two sides of the section and hook them between the upper section and the wall, making sure that they are properly housed.
• Fix the sides of the bottom section to the hood body using the 2 screws 12c (2,9 x 9,5) supplied.
• When installing the recirculation version, fit the directional grills 8a – 8b in their housings so that the directional symbols are at the top and towards the front of the hood. Ensure that they are inserted correctly in the outlet connection piece 15.

L Light Switches the lighting system on and off

M Motor Switches the extractor motor on and off

V Speed Sets the operating speed of the extractor:

1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour.

2. Medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio.

3. Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

Grease filters

CLEANING METAL SELF- SUPPORTING GREASE FILTERS

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time.
• Wash the filters, taking care not to bend them. Allow them to dry before refitting.
• When refitting the filters, make sure that the handle is visible on the outside.

Illustration of a hand pressing a green arrow on a device component, enclosed in a circular frame (no text or symbols)

Activated charcoal filter (Recirculation version)

These filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage.

REPLACING THE ACTIVATED CHARCOAL FILTER

• Remove the metal grease filters
• Remove the saturated activated charcoal filter as shown (A).
  • Fit the new filters (B).
• Replace the metal grease filters.

Lighting

LIGHT REPLACEMENT

28 W halogen light.

• Remove the metal grease filters.
• Unscrew the bulbs and replace them with new ones having the same characteristics.
• Replace the metal grease filters.

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present
