USER MANUAL EH1372 Prem-I-Air

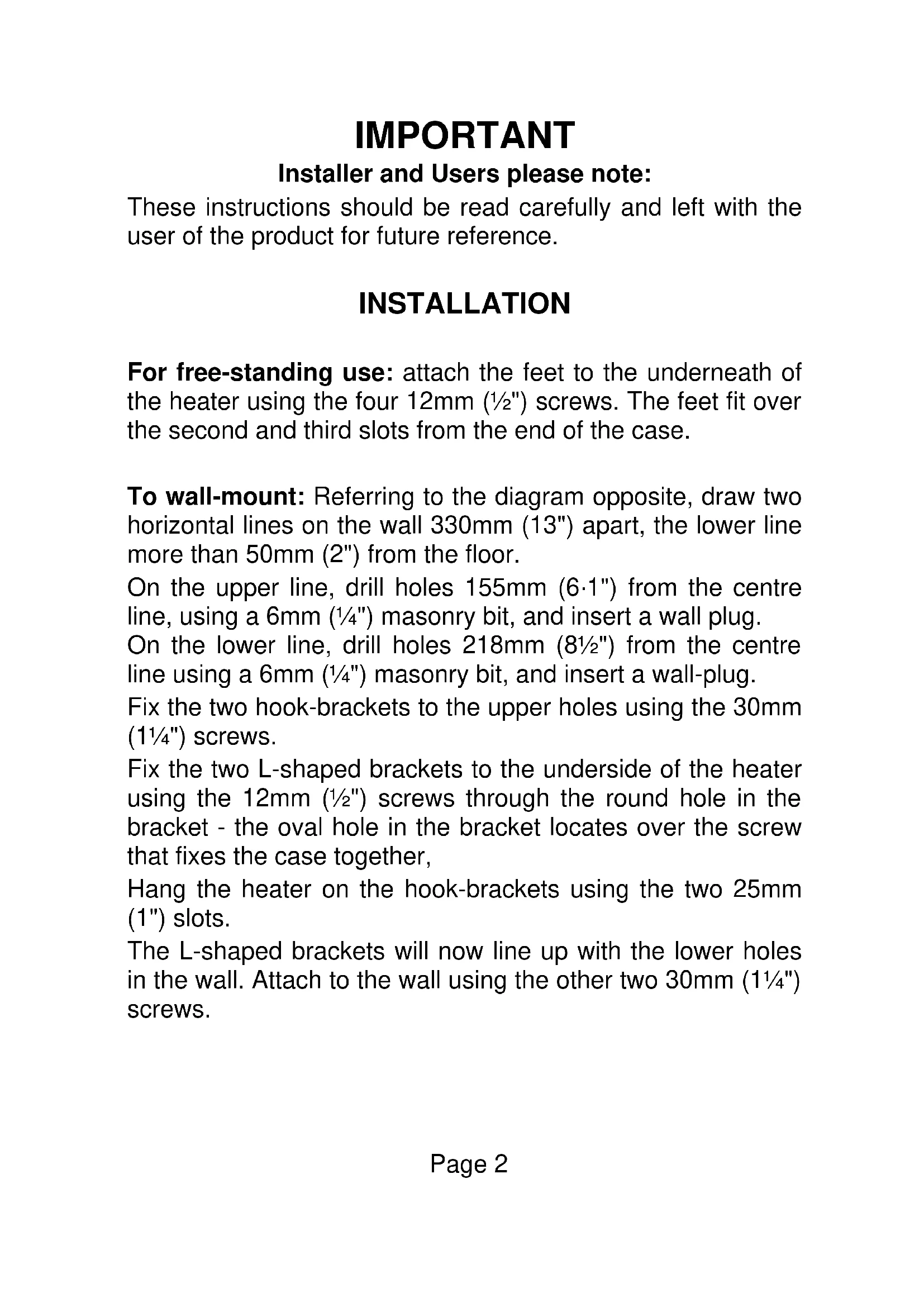

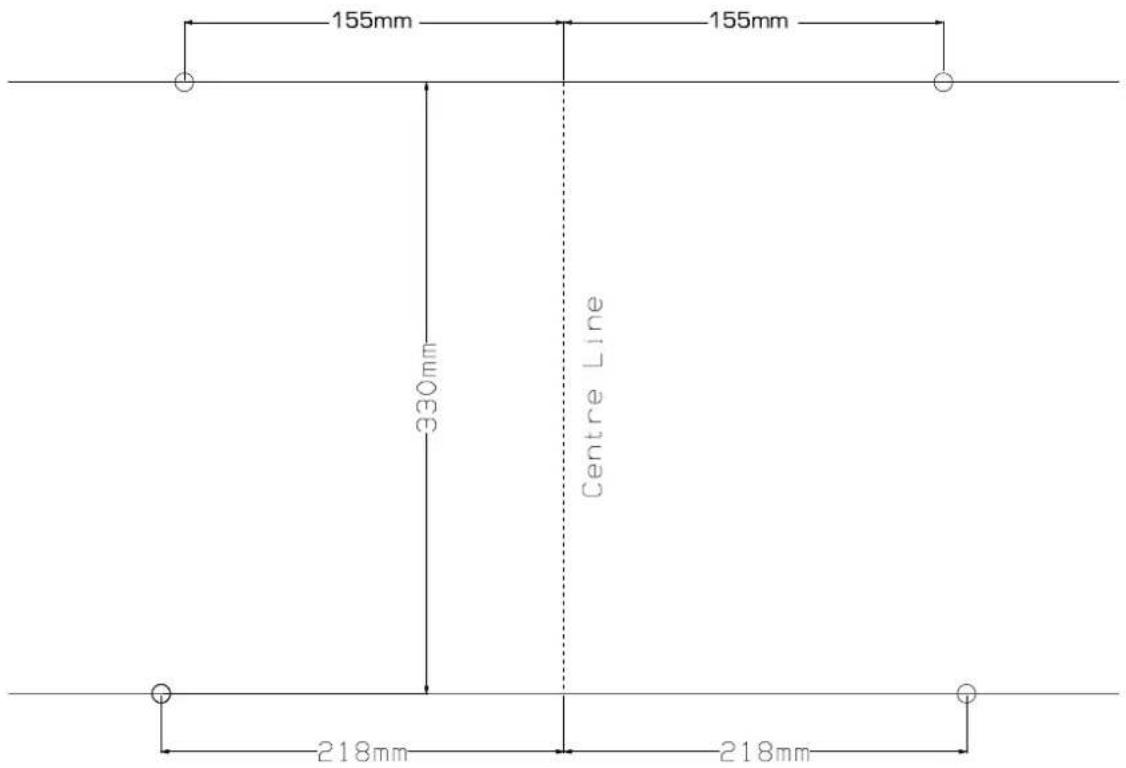

EH1372 2 kW Convector Heater Radiateur Convecteur 2 kW 2 Heat settings Adjustable thermostat Free-standing or wall mounting Convenient built-in carrying handle Safety overload cut-out 2 year guarantee 2 Réglages de Chaleur Thermostat réglable Installation au Sol ou au Mur Poignée de Transport très pratique Coupure de Sécurité en cas de Surchauffe Garantie 2 Ans Page 1IMPORTANT Installer and Users please note: These instructions should be read carefully and left with the user of the product for future reference. INSTALLATION For free-standing use: attach the feet to the underneath of the heater using the four 12mm (½") screws. The feet fit over the second and third slots from the end of the case. To wall-mount: Referring to the diagram opposite, draw two horizontal lines on the wall 330mm (13") apart, the lower line more than 50mm (2") from the floor. On the upper line, drill holes 155mm (6·1") from the centre line, using a 6mm (¼") masonry bit, and insert a wall plug. On the lower line, drill holes 218mm (8½") from the centre line using a 6mm (¼") masonry bit, and insert a wall-plug. Fix the two hook-brackets to the upper holes using the 30mm (1¼") screws. Fix the two L-shaped brackets to the underside of the heater using the 12mm (½") screws through the round hole in the bracket - the oval hole in the bracket locates over the screw that fixes the case together, Hang the heater on the hook-brackets using the two 25mm (1") slots. The L-shaped brackets will now line up with the lower holes in the wall. Attach to the wall using the other two 30mm (1¼") screws. Page 2DRILLING DIMENSIONS FOR WALL MOUNTING 155mm155mm Page 3PRODUCT SAFETY

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision.

• Place the EH1372 on a firm flat surface. Ensure that the air inlets (at the bottom) and the air outlets (at the top) are not obstructed.

• Ensure that curtains are at least 900mm (3') from the top of the heater.

• Leave a gap of at least 50mm (2") at the sides of the heater.

• If used free-standing, do not operate unless the feet are correctly attached.

• Do not place on soft surfaces.

• Do not cover. This symbol shown on the casing of the heater means that the heater should not be covered.

• Do not use outdoors.

• Do not use in bathrooms, or in wet or damp locations.

• Do not use in the immediate surroundings of a bath, a shower or a swimming pool.

• Do not place the mains lead beneath a carpet or rug.

• Do not use the heater in locations where paint, petrol or other flammable liquids are used or stored.

• Do not locate the appliance immediately below a socket outlet

• Do no insert any object into the heater through the grilles. This may damage the heater or result in overheating or electric shock. Page 4Page 5PAT TESTING When used in an office environment, this product must be safety-tested yearly by a qualified electrician (PAT Tested) in order to comply with the Electricity at Work Regulations. We recommend that it is PAT tested regularly when used in a domestic environment.

GENERAL SAFETY REQUIREMENTS

Domestic wiring must be tested periodically by a qualified electrician at least once every 10 years or at every change of occupancy. For office and retail premises, and buildings such as village halls, the wiring must be inspected at least once every 5 years. It is recommended that all building be fitted with smoke alarms (it is mandatory for new buildings). OPERATION Plug the mains lead into a 13 Amp mains socket. If connecting via an extension lead, make sure that the lead is rated at 10 Amps or more, and that it is fully unwound. Switch the unit on at the mains socket. Use the two switches on the side to select the required operation:

• One switch on = Low Heat (1000W)

• Both switches on = High Heat (2000W) Do not touch the air output grille when the heater is in operation, because it will be hot and may cause burns. Unplug the heater from the mains when not in use. Page 6USING THE THERMOSTAT The thermostat can be use to regulate the room temperature. Turn both switches on (high heat), and rotate the temperature control fully clockwise. The heater will then operate at maximum output. When the desired temperature is reached, rotate the temperature control anticlockwise until a click is heard. The heater will then switch on and off to keep the room at the desired temperature. The indicator light will show that this is happening. Either the "low heat" or the "high heat" setting may be used. If the temperature control is rotated fully anticlockwise, it will operate as a "frost-stat" and switch the heater on if the temperature drops below 4°C, preventing damage by frost. OPERATING COSTS At time of going to press, the average cost of electricity is £0.12 per unit (kilowatt-hour). The amount you are being charged will be shown on your electricity bill. At this cost, the EH1372 will cost £0.12 per hour to run on the "low heat " setting, and £0.24 per hour to run on the "high heat" setting with the thermostat set to its maximum. If the thermostat is used to regulate the temperature the operating costs will be lower, depending on the room temperature. FAULT-FINDING The EH1372 has an overheat protection switch, which disconnects the power if the element gets too hot. The usual reason for this is because the air-flow has been obstructed, or the grilles have been blocked. If the heater ceases to operate, leave it for 20 minutes to cool down, then check that the grilles are not being obstructed. Page 7Switch back on, and check that the unit is operating normally. If not, contact an authorised service agent for repair. MAINTENANCE Before cleaning, turn the heater off, and disconnect from the mains supply. The heater may then be cleaned using a damp cloth with a drop of washing-up liquid to remove any dust or dirt from the case. Do no use stronger detergents or solvents as these may damage the paint finish. Using a dry 1" (25mm) paint-brush, remove any dust from the grilles. If the mains lead is damaged, it must be replaced by the manufacturer or and authorised service centre. If the mains plug needs to be replaced, proceed as follows:

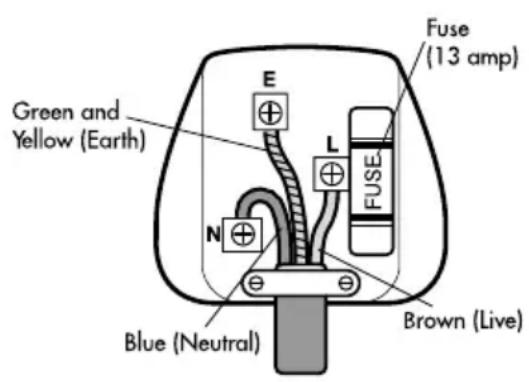

• Connect the brown wire to the terminal labelled "L".

• Connect the blue wire to the terminal labelled "N".

• Connect the green/yellow wire to the terminal labelled with the earth symbol or "E".

• Make sure that the cord-grip is positioned correctly (over the outer sheath of the cable) and it fully tightened.

DISPOSAL AND RECYCLING
