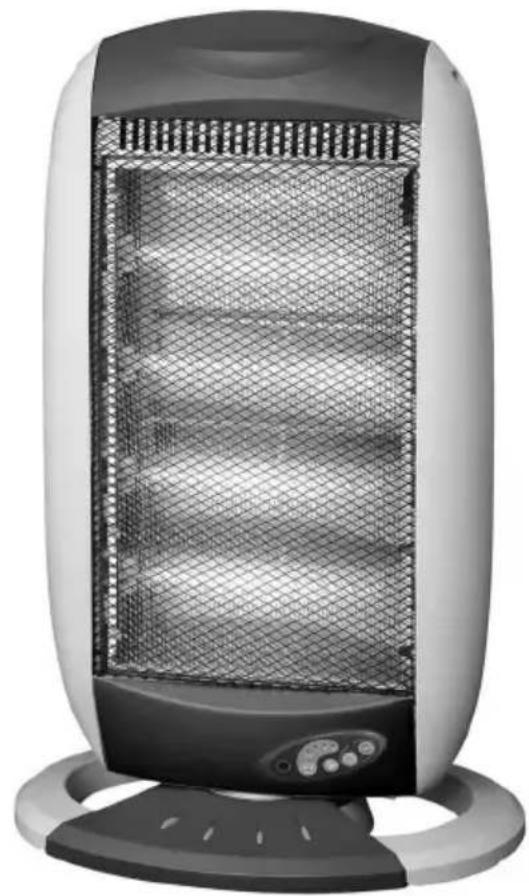

USER MANUAL EH1425 Prem-I-Air

• Built-in carrying handle

• Safety overload cut-out

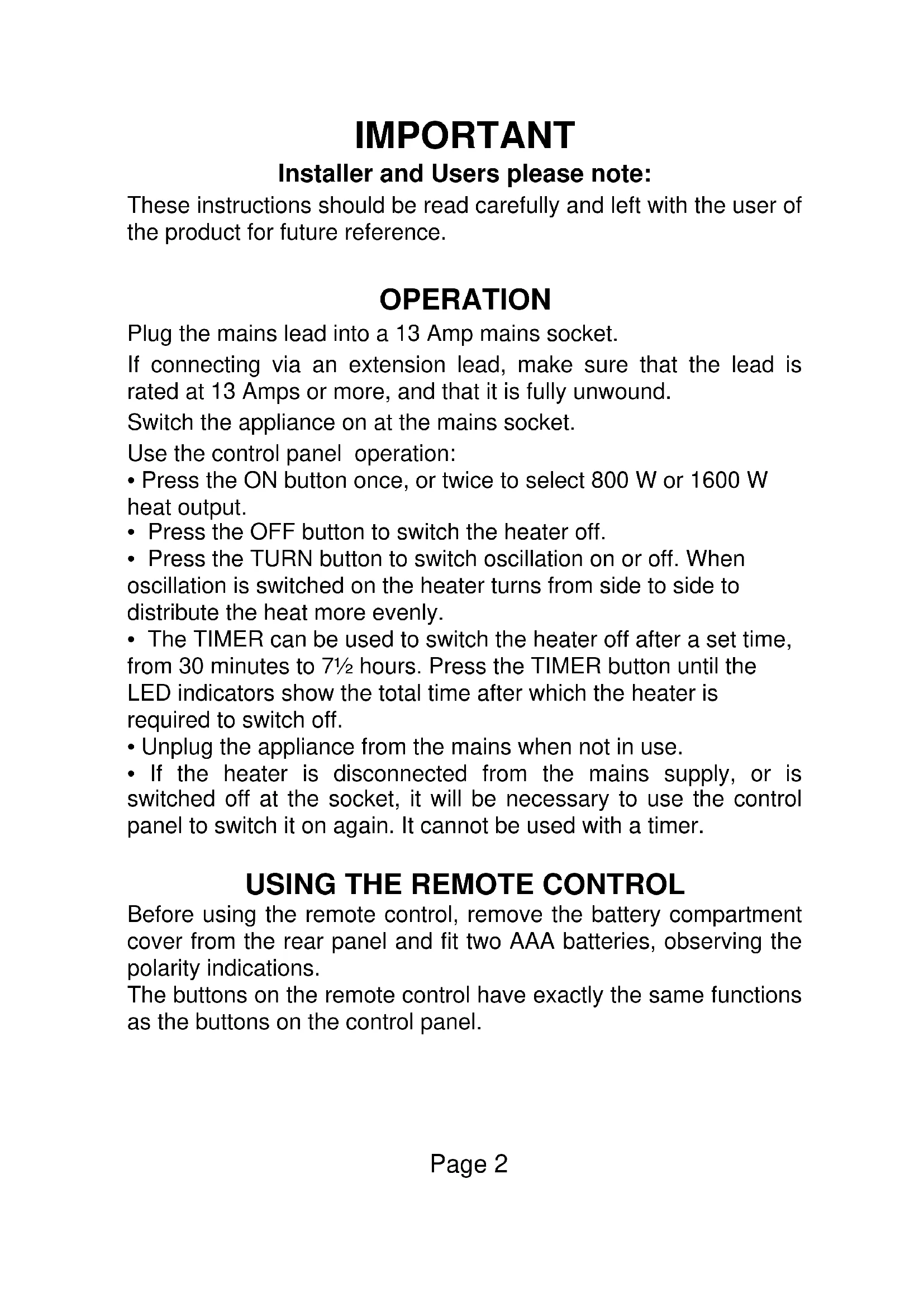

• Coupure de Sécurité en cas de Surchauffe Page 1IMPORTANT Installer and Users please note: These instructions should be read carefully and left with the user of the product for future reference. OPERATION Plug the mains lead into a 13 Amp mains socket. If connecting via an extension lead, make sure that the lead is rated at 13 Amps or more, and that it is fully unwound. Switch the appliance on at the mains socket. Use the control panel operation:

• Press the ON button once, or twice to select 800 W or 1600 W heat output.

• Press the OFF button to switch the heater off.

• Press the TURN button to switch oscillation on or off. When oscillation is switched on the heater turns from side to side to distribute the heat more evenly.

• The TIMER can be used to switch the heater off after a set time, from 30 minutes to 7½ hours. Press the TIMER button until the LED indicators show the total time after which the heater is required to switch off.

• Unplug the appliance from the mains when not in use.

• If the heater is disconnected from the mains supply, or is switched off at the socket, it will be necessary to use the control panel to switch it on again. It cannot be used with a timer.

USING THE REMOTE CONTROL

Before using the remote control, remove the battery compartment cover from the rear panel and fit two AAA batteries, observing the polarity indications. The buttons on the remote control have exactly the same functions as the buttons on the control panel. Page 2PRODUCT SAFETY

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance

• Place the appliance on a firm flat surface.

• Ensure that there is at least 300mm (1') between the sides of the appliance and any flammable materials

• Ensure that there is at least 900mm (3') from the top of the appliance and any flammable materials.

• Do not place on soft surfaces.

• Do not cover. This symbol shown on the casing of the appliance means that the appliance should not be covered.

• Do not use with a programmer, timer, remote control system or other device that switches the heater on auto matically (because a fire risk exists if the heater is incorrectly positioned or covered)

• Do not use outdoors.

• Do not use in a moving vehicle, boat or ship.

• Do not use in the immediate surroundings of a bath, a shower or a swimming pool.

• Do not use in bathrooms, or in wet locations.

• Do not place the mains lead beneath a carpet or rug.

• Do not use the appliance in locations where paint, petrol or other flammable liquids are used or stored.

• Do not use the appliance without the feet attached.

• Do not locate the appliance immediately below a socket outlet

• The fireguard of this heater is intended to prevent direct access to heating elements and must be in place when the heater is in use.

• The fireguard does not give full protection for young children and infirm persons. Page 3PAT TESTING When used in an office environment, this product must be safety- tested yearly by a qualified electrician (PAT Tested) in order to comply with the Electricity at Work Regulations. It is good practice that appliances are regularly PAT tested when used in a domestic environment.

GENERAL SAFETY REQUIREMENTS

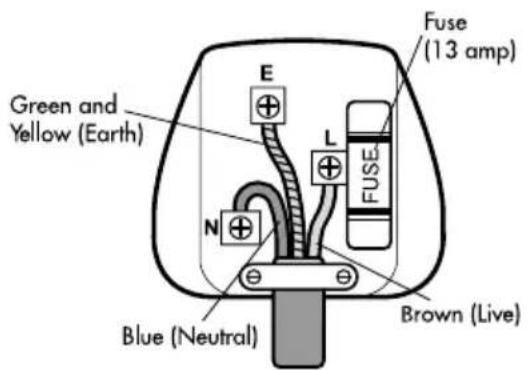

Domestic wiring must be tested periodically by a qualified electrician at least once every 10 years or at every change of occupancy. For office and retail premises, and buildings such as village halls, the wiring must be inspected at least once every 5 years. It is recommended that all building be fitted with smoke alarms (it is mandatory for new buildings). MAINTENANCE Before cleaning, turn the appliance off, and disconnect from the mains supply. The appliance may then be cleaned using a damp cloth with a drop of washing-up liquid to remove any dust or dirt from the case. Do no use stronger detergents or solvents as these may damage the plastic. Using a dry 1" (25 mm) paint-brush, remove any dust from the grilles. If the mains lead is damaged, it must be replaced by the manufacturer or and authorised service centre. If the mains plug needs to be replaced, proceed as follows: Page 4• Connect the brown wire to the terminal labelled "L".

• Connect the blue wire to the terminal labelled "N".

• Connect the green/yellow wire to the terminal labelled with the earth symbol or "E".

• Make sure that the cord-grip is positioned correctly (over the outer sheath of the cable) and it fully tightened. OPERATING COSTS At time of going to press, the average cost of electricity is £0.12 per unit (kilowatt-hour). The amount you are being charged will be shown on your electricity bill. At this cost, the appliance will cost 9½p per hour to run on the 800 W setting, or 19p per hour to run on the 1600 W setting. FAULT-FINDING If the appliance is not operating, proceed as follows: Check that the mains plug is firmly in the socket, and that the socket is switched ON. Press the ON button to switch at least one of the heating elements on. Check that the timer is not selected. The appliance also has a overload protection device to prevent overheating. If this operates, disconnect the appliance from the mains supply, and remove any objects on or adjacent to the appliance that could have caused the overheating. Wait 10 minutes, and reconnect to the mains supply. If the appliance still does not function, or the overload protection device operates again, consult an authorised service agent. The appliance is also fitted with a tip-over switch which will disconnect the power if if falls over. If it does not operate, make sure that it is standing upright. Page 5DISPOSAL AND RECYCLING You must not dispose of this appliance with domestic household waste. Most local authorities have specific collection system for appliances and disposal is free of charge to the end-user. When replacing an existing appliance with a similar new appliance your retailer may take the old appliance for disposal. TECHNICAL SPECIFICATION Dimensions: 330×150×560 mm Weight: 4.1 kg Power supply: 230 V ~ Power consumption: 1600 W Operating current: 6.9 A SERVICE WARRANTY Prem-i-Air guarantees the product free from defects in materials and workmanship for a period of two years. Should this appliance be operated under conditions other than those recommended, at voltages other than the voltage indicated on the appliance, or any attempts made to service or modify the appliance, then the warranty will be rendered void. The product you buy may sometimes differ slightly from illustrations. This warranty is in addition to, and does not affect, your statutory rights. If you have any problems with this product, please call our Help Desk on (0845) 459 4816. Prem-i-Air Appliances Ltd., Lancots Lane, Sutton, St. Helens, Merseyside. WA9 3EX website: www.prem-i-air.com Page 6IMPORTANT: Installateurs et Utilisateurs, veuillez noter: Vous devez lire attentivement cette notice et la conserver précieusement pour une éventuelle future consultation. FONCTIONNEMENT
