USER MANUAL EH1432 Prem-I-Air

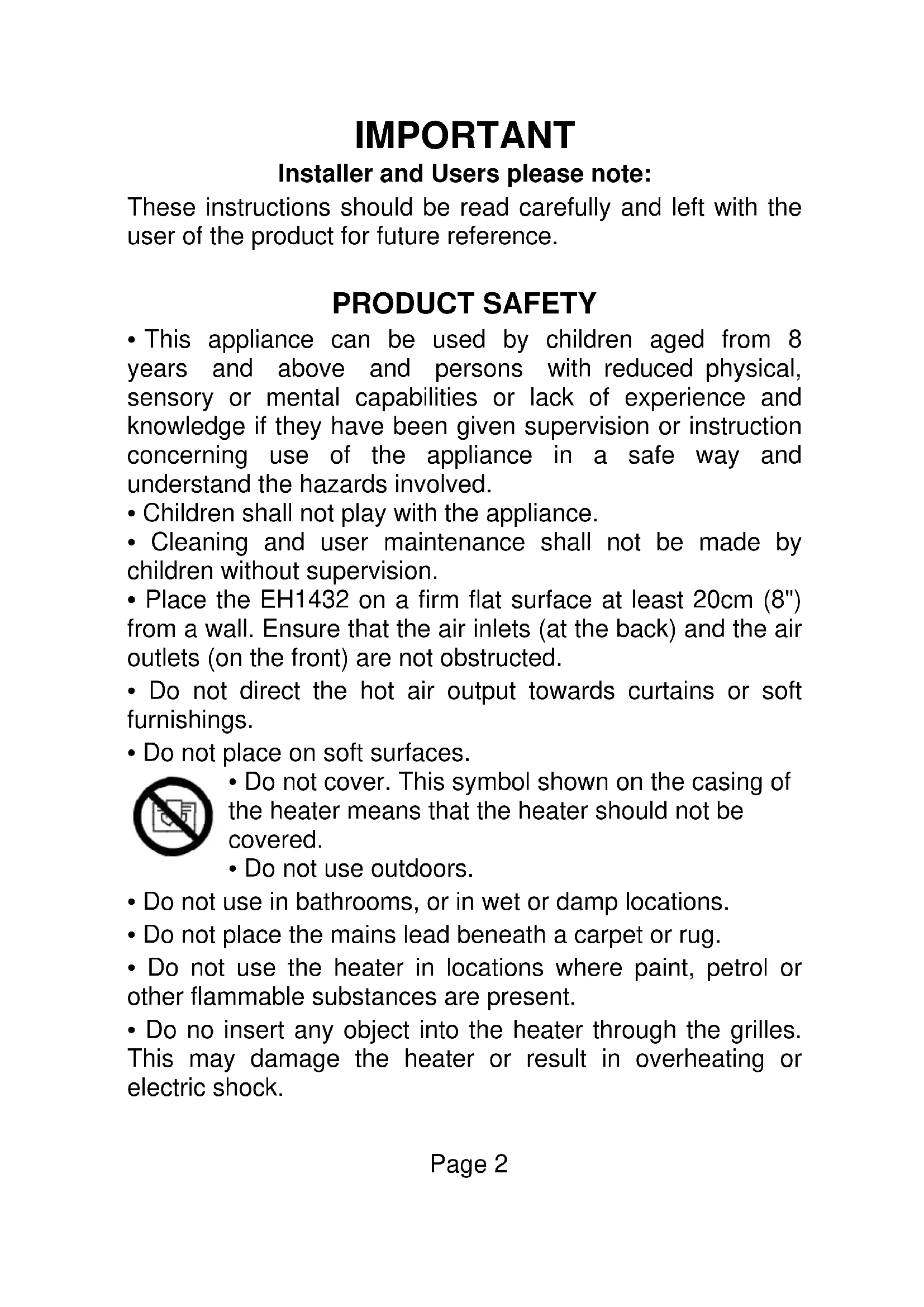

• 2 Réglages de Chaleur Page 1IMPORTANT Installer and Users please note: These instructions should be read carefully and left with the user of the product for future reference. PRODUCT SAFETY

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision.

• Place the EH1432 on a firm flat surface at least 20cm (8") from a wall. Ensure that the air inlets (at the back) and the air outlets (on the front) are not obstructed.

• Do not direct the hot air output towards curtains or soft furnishings.

• Do not place on soft surfaces.

• Do not cover. This symbol shown on the casing of the heater means that the heater should not be covered.

• Do not use outdoors.

• Do not use in bathrooms, or in wet or damp locations.

• Do not place the mains lead beneath a carpet or rug.

• Do not use the heater in locations where paint, petrol or other flammable substances are present.

• Do no insert any object into the heater through the grilles. This may damage the heater or result in overheating or electric shock. Page 2OPERATION Plug the mains lead into a 13 Amp mains socket. If connecting via an extension lead, make sure that the lead is rated at 10 Amps or more, and that it is fully unwound. Switch the unit on at the mains socket. Open the door and use the three switches to select the required operation:

• For flame effect only, put the ON/OFF switch in the ON position, and the other two switches OFF

• For low heat, put the ON/OFF switch and the I switch in the ON position, and the other switch OFF

• For high heat, put all three switches in the ON position. Do not touch the air output grille when the heater is in operation, because it will be hot and may cause burns. Unplug the heater from the mains when not in use. OPERATING COSTS At time of going to press, the average cost of electricity is £0.11 per unit (kilowatt-hour). The amount you are being charged will be shown on your electricity bill. At this cost, the EH1432 will cost £0.16 per hour to run on the high heat setting, or £0.08 per hour on the low heat settingz. On the "flame effect only" setting, the EH1432 will cost 1p per hour to run. PAT TESTING When used in an office environment, this product must be safety-tested yearly by a qualified electrician (PAT Tested) in order to comply with the Electricity at Work Regulations. It is good practice that appliances are regularly PAT tested when used in a domestic environment. Page 3GENERAL SAFETY REQUIREMENTS Domestic wiring must be tested periodically by a qualified electrician at least once every 10 years or at every change of occupancy. For office and retail premises, and buildings such as village halls, the wiring must be inspected at least once every 5 years. It is recommended that all building be fitted with smoke alarms (it is mandatory for new buildings). MAINTENANCE Before cleaning, turn the heater off, and disconnect from the mains supply. The heater may then be cleaned using a damp cloth with a drop of washing-up liquid to remove any dust or dirt from the case. Do no use stronger detergents or solvents as these may damage the paint finish. Using a dry 1" (25mm) paint-brush, remove any dust from the grilles. If the mains lead is damaged, it must be replaced by the manufacturer or and authorised service centre. If the mains plug needs to be replaced, proceed as follows:

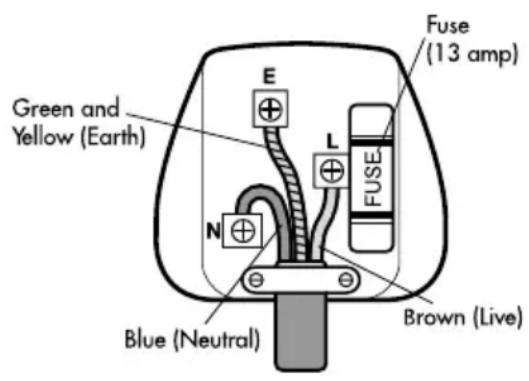

• Connect the brown wire to the terminal labelled "L".

• Connect the blue wire to the terminal labelled "N".

• Connect the green/yellow wire to the terminal labelled with the earth symbol or "E".

• Make sure that the cord-grip is positioned correctly (over the outer sheath of the cable) and it fully tightened. Page 4If the lamp providing the flame effect fails, it can be replaced as follows: Disconnect from the mains supply and remove the cover from the back panel labelled "please change the bulb here". Remove the failed lamp, and replace by a new 40 W lamp with a small Edison screw (E14) base. Replace the cover. FAULT-FINDING The EH1432 has a tilt switch which disconnects the power if the heater falls over. If the heater is not operating, restore it to an upright position. The EH1432 has an overheat protection switch, which disconnects the power if the element gets too hot. The usual reason for this is because the air-flow has been obstructed, or the grilles have been blocked. If the heater ceases to operate, leave it for 20 minutes to cool down, then check that the grilles are not being obstructed. Select "Flame effect only" on the switches, and reconnect to the mains supply. If the flame effect operates, then it is safe to select the "low heat" or "high heat" settings. If the flame effect does not operate, or overheat protection switch operates again, contact an authorised service agent for repair. Page 5TECHNICAL SPECIFICATION Dimensions: 370×415×190 mm Weight: 7 kg Power supply: 230V ~ Power consumption: 1500W Operating current: 6.5 A

DISPOSAL AND RECYCLING

You must not dispose of this appliance with domestic household waste. Most local authorities have specific collection system for appliances and disposal is free of charge to the end-user. When replacing an existing appliance with a similar new appliance your retailer may take the old appliance for disposal. Page 6SERVICE WARRANTY Prem-i-Air guarantees the product free from defects in materials and workmanship for a period of twelve months. This Elite product is guaranteed for a further twelve months subject to the enclosed registration card being completed and returned to the address printed on it, or the registration form being completed on-line at www.prem-i-air.com Should this unit be operated under conditions other than those recommended, at voltages other than the voltage indicated on the unit, or any attempts made to service or modify the unit, then the warranty will be rendered void. The product you buy may sometimes differ slightly from illustrations. This warranty is in addition to, and does not affect, your statutory rights. If you have any problems with this product, please call our Help Desk on (0845) 459 4816. Prem-i-Air Appliances Ltd., Lancots Lane, Sutton Oak, St. Helens, Merseyside. WA9 3EX website: www.prem-i-air.com Page 7IMPORTANT Installateurs et Utilisateurs, veuillez noter: Vous devez lire attentivement cette notice et la conserver précieusement pour une éventuelle future consultation.
