USER MANUAL EH1558 Prem-I-Air

PREM~I~AIR

EH1558

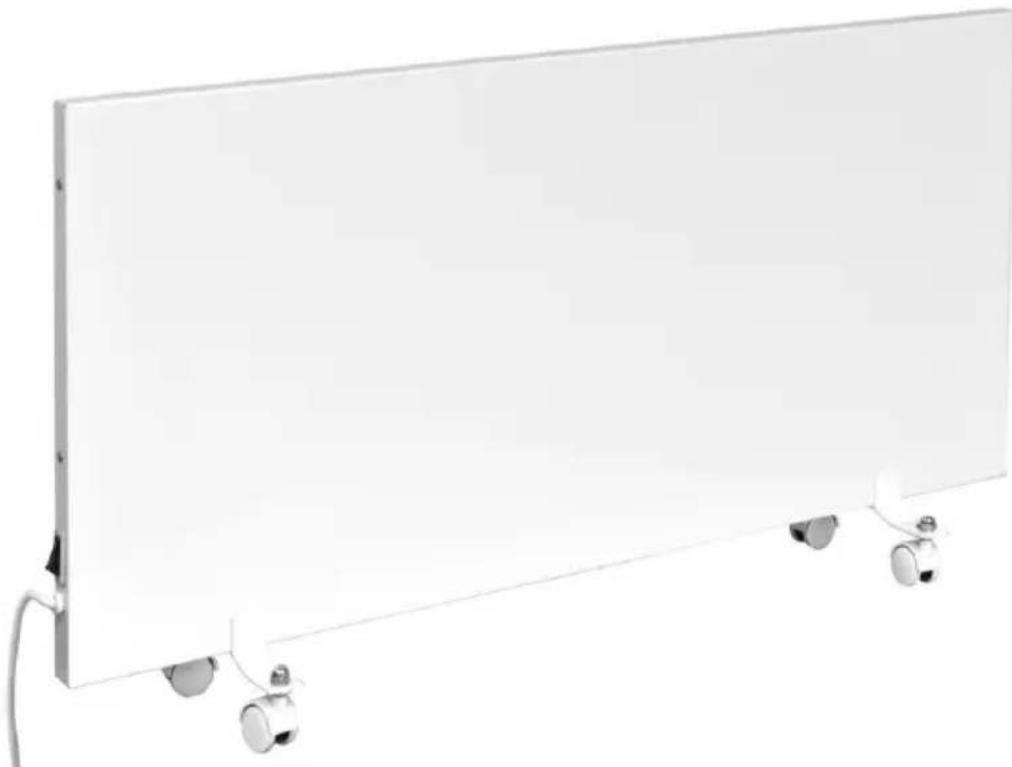

Exterior view of a white rectangular electronic panel mounted on a stand with three small circular components attached (no text or symbols visible)

240 W Radiant Panel Heater Chauffage Radiant 240W

IMPORTANT

Installer and Users please note:

These instructions should be read carefully and left with the user of the product for future reference.

BEFORE USE

You must inspect the appliance including its cable and plug for any signs of damage. If the product is damaged, DO NOT use it, and contact your supplier immediately.

INSTALLATION

For free-standing use: Attach the two castor-wheel brackets to the underneath of the heater using the two M5 × 8 mm screws (one in each beacket). Attach the castor-wheels to each bracket using the dome-nuts provided.

To wall-mount: Referring to the diagram opposite, draw two horizontal lines on the wall 330 mm (13") apart, the lower line more than 50 mm (2") from the floor.

On the upper line, drill holes 189 mm (7½") from the centre line, using a 6 mm (1/4") masonry bit, and insert a wall plug.

On the lower line, drill holes 275 mm (11") from the centre line using a 6 mm ( 14 ) masonry bit, and insert a wall-plug.

Attach the two keyhole brackets to the upper holes in the back of the heater using the four 10 mm self-tapping screws provided.

Fix the two L-shaped brackets to the underside of the heater the two M5 × 8 mm screws. The screw goes through the ROUND hole in the bracket.

Insert two 25 mm (1") screws into the upper holes and tighten until a gap of about 1.5 mm ( ^1/_16 ) remains between the screw head and the wall.

Using the keyhole slots, hang the heater on the upper screws.

The L-shaped brackets will now line up with the lower holes in the wall. Attach to the wall using the other two 25 mm (1") screws.

If the EH1558 is to be used in a bathroom, then it must be wall mounted, and connected to the mains supply via a fused spur; and must be installed by a qualified electrician in accordance with Section 701 of the 17 ^th Edition of the IEE Wiring Regulations.

PAT TESTING

When used in a workplace, this product must be safety-tested yearly by a qualified electrician (PAT Tested) in order to comply with the Electricity at Work Regulations.

We recommend that it is PAT tested regularly when used in a domestic environment.

DRILLING DIMENSIONS FOR WALL MOUNTING

194mm 194mm 330mm Centre line 275mm 275mm

PRODUCT SAFETY

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Place the EH1558 on a firm flat surface. Ensure that the air inlets (at the bottom) and the air outlets (at the top) are not obstructed.
• Ensure that curtains are at least 900mm (3') from the top of the heater
• Leave a gap of at least 50mm (2") at the sides of the heater.
• If used free-standing, do not operate unless the feet are correctly attached.
• Do not place on soft surfaces.

- Do not cover. This symbol shown on the casing of the heater means that the heater should not be covered.

• For indoor use only.
• Do not use in the immediate surroundings of a bath, a shower or a swimming pool. (refer to Section 701 of the 17^th Edition of the IEE Wiring Regulations)
• Do not place the mains lead beneath a carpet or rug.
• Do not use the heater in locations where paint, petrol or other flammable liquids are used or stored.
• Do not locate the appliance immediately below a socket outlet

GENERAL SAFETY REQUIREMENTS

Domestic wiring must be tested periodically by a qualified electrician at least once every 10 years or at every change of occupancy.

For office and retail premises, and buildings such as village halls, the wiring must be inspected at least once every 5 years.

It is recommended that all buildings be fitted with smoke alarms (it is mandatory for new buildings)

OPERATION

Plug the mains lead into a 13 Amp mains socket.

If connecting via an extension lead, make sure that the lead is rated at 6 Amps, and that it is fully unwound.

Switch the unit on at the mains socket, and at the switch on the side of the heater.

Do not touch the case when the heater is in operation, because it will be hot.

Unplug the heater from the mains when not in use.

OPERATING COSTS

At time of going to press, the average cost of electricity is £0.13 per unit (kilowatt-hour). The amount you are being charged will be shown on your electricity bill.

At this cost, the EH1558 will cost £0.03 per hour to run with the thermostat set to its maximum.

MAINTENANCE

Before cleaning, turn the heater off, and disconnect from the mains supply. The heater may then be cleaned using a damp cloth with a drop of washing-up liquid to remove any dust or dirt from the case. Do no use stronger detergents or solvents as these may damage the plastic.

If the mains lead is damaged, it must be replaced by the manufacturer or and authorised service centre.

If the mains plug needs to be replaced, proceed as follows:

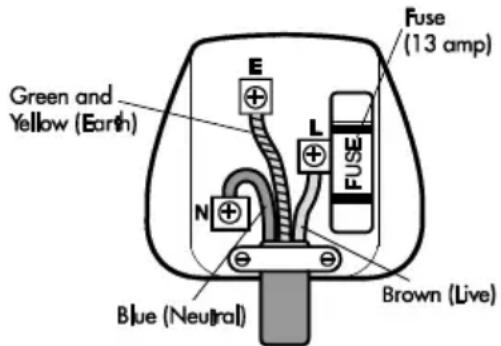

Green and Yellow (Earth) E FUSE (13 amp) L FUSE N Blue (Neutral) Brown (Live)

cable) and it fully tightened.

• Connect the brown wire to the terminal labelled "L".
• Connect the blue wire to the terminal labelled "N".
• Connect the green/yellow wire to the terminal labelled with the earth symbol or "E".
• Make sure that the cord-grip is positioned correctly (over the outer sheath of the

FAULT-FINDING

The EH1558 has an overheat protection switch, which disconnects the power if the element gets too hot. The usual reason for this is because the air-flow has been obstructed. If the heater ceases to operate, leave it for 20 minutes to cool down, then check that the grilles are not being obstructed.

Switch back on, and check that the unit is operating normally. If not, contact an authorised service agent for repair.

DISPOSAL AND RECYCLING

You must not dispose of this appliance with domestic household waste.

Most local authorities have specific collection system for appliances and disposal is free of charge to the end-user.

When replacing an existing appliance with a similar new appliance your retailer may take the old appliance for disposal.

TECHNICAL SPECIFICATION

Dimensions (wall mounting): 815×380×25 mm

Dimensions (floor standing): 815×425×150 mm

Weight: 4.8 kg

Power supply: 230 V AC

Power consumption: 240 W

Operating current: 1 A

IP Rating IP44

SERVICE WARRANTY

- Prem-i-Air guarantees the product free from defects in materials and workmanship for a period of twelve months.

- Should this appliance be operated under conditions other than those recommended, at voltages other than the voltage indicated on the appliance, or any attempts made to service or modify the appliance, then the warranty will be rendered void.

- The product you buy may sometimes differ slightly from illustrations. This warranty is in addition to, and does not affect, your statutory rights.

- Our guarantee is administered by our retailers.

- If your product arrives damaged, you must contact the retailer from whom you bought it. The retailer's contact details will be on the invoice that arrived with the product, or on the e-mail you received when you placed the order. Do not contact Prem-i-air, only your retailer can arrange a replacement.

- If your product fails within the guarantee period, firstly read the "fault finding" section of this manual, because temperature and weather conditions can affect the performance of certain products. If the product needs to be repaired or replaced, you must contact the retailer from whom you bought it.

- The retailer's contact details will be on the invoice that arrived with the product, or on the e-mail you received when you placed the order.

- If you have just received your product and require technical help in using it, please call our Help Desk on [phone]

- If you have any other technical queires about the product, please call our Help Desk on [phone]

Prem-i-Air Appliances Ltd.,

Lancots Lane, Sutton,

St. Helens, Merseyside.

WA9 3EX

website: www.prem-i-air.com
