USER MANUAL EH0287 Prem-I-Air

Installer and Users please note:

These instructions should be read carefully and left with the user of the product for future reference.

INSTALLATION

Attaching the feet.

Turn the appliance upside down and place on a flat surface.

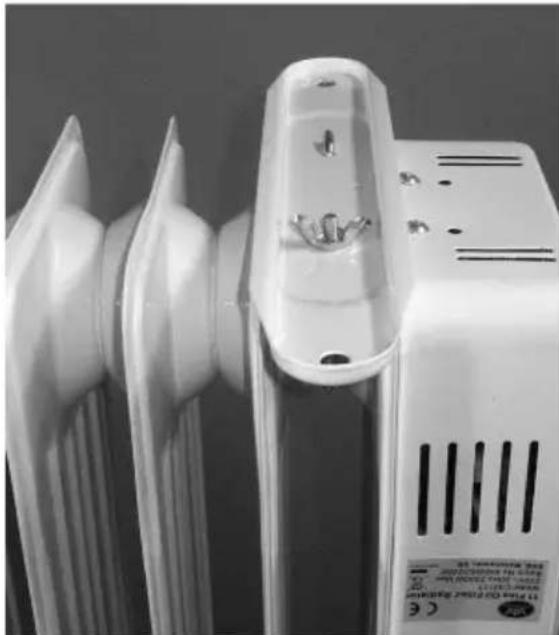

Hook the U-shaped brackets between the first and second fins (from each end). Push the ends of the U-shaped bracket through the holes in the castor bracket.

Fix the wing nut to the threads on one end of the U-shaped bracket, and tighten. The castor bracket should fit neatly between the two fins.

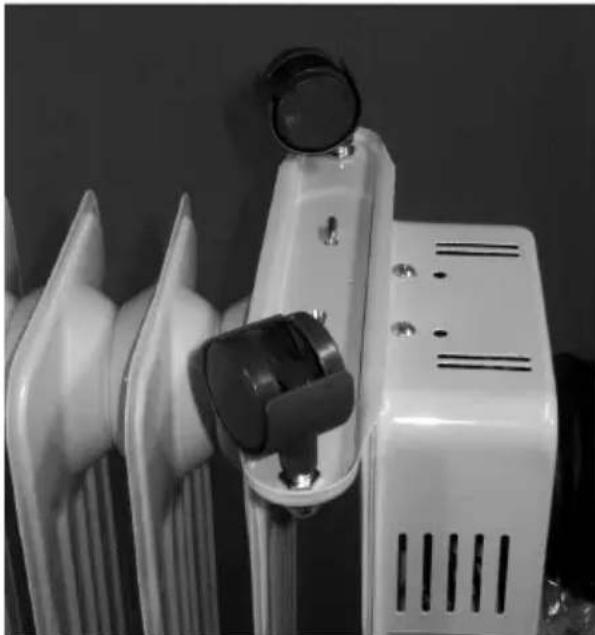

Attach the castors to the holes in the ends of the castor brackets using the domenuts (the castors will already be fitted to the brackets in some models).

Return the appliance to the upright position. The controls should be towards the top, and the cable entry towards the bottom.

PRODUCT SAFETY

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Place the appliance on a firm flat surface.
• Ensure that there is at least 300mm (1') between the sides of the appliance and any flammable materials
• Ensure that there is at least 900mm (3') from the top of the appliance and any flammable materials.
• Do not place on soft surfaces.

Do not cover. This symbol shown on the casing of the appliance means that the appliance should not be covered.

• Do not use outdoors.
• Do not use in the immediate surroundings of a bath, a shower or a swimming pool.
• Do not use in bathrooms, or in wet locations.
• Do not place the mains lead beneath a carpet or rug.
• Do not use the appliance in locations where paint, petrol or other flammable liquids are used or stored.
• Do not use the appliance without the feet attached.
• Do not locate the appliance immediately below a socket outlet

OPERATION

Plug the mains lead into a 13 Amp mains socket.

If connecting via an extension lead, make sure that the lead is rated at 13 Amps or more, and that it is fully unwound.

Switch the appliance on at the mains socket.

Use the two power control switches on the side to select the required operation:

• Both switches off = OFF
• Left switch ON = Low Heat (800 W)
• Right switch ON = Medium heat (1200 W)
• Both switches ON = High Heat (2000 W)

Unplug the appliance from the mains when not in use.

USING THE THERMOSTAT

The thermostat can be used to regulate the room temperature.

Turn both switches on (high heat), and rotate the temperature control fully clockwise.

The appliance will then operate at maximum output. When the desired temperature is reached, rotate the temperature control anticlockwise until a click is heard. The appliance will then switch on and off to keep the room at the desired temperature. The indicator light will show that this is happening.

Either the low, medium or high heat setting can be used.

OPERATING COSTS

At time of going to press, the average cost of electricity is £0.12 per unit (kilowat-hour). The amount you are being charged will be shown on your electricity bill.

At this cost, the appliance will cost 10p per hour to run on the "low heat" setting, and 14p per hour to run on the "medium heat" setting or 24p per hour to run on the "high heat" setting, with the thermostat set to its maximum.

If the thermostat is used to regulate the temperature the operating costs will be lower, depending on the room temperature.

PAT TESTING

When used in an office environment, this product must be safety-tested yearly by a qualified electrician (PAT Tested) in order to comply with the Electricity at Work Regulations.

We recommend that it is PAT tested regularly when used in a domestic environment.

GENERAL SAFETY REQUIREMENTS

Domestic wiring must be tested periodically by a qualified electrician at least once every 10 years or at every change of occupancy. For office and retail premises, and buildings such as village halls, the wiring must be inspected at least once every 5 years.

It is recommended that all building be fitted with smoke alarms (it is mandatory for new buildings).

MAINTENANCE

Before cleaning, turn the appliance off, and disconnect from the mains supply. The appliance may then be cleaned using a damp cloth with a drop of washing-up liquid to remove any dust or dirt from the case. Do no use stronger detergents or solvents as these may damage the plastic.

Using a dry 1" (25 mm) paint-brush, remove any dust from the grilles.

This appliance is filled with a precise quantity of special oil. Repairs requiring the opening of the oil container are only to be carried out by the manufacturer or his service agent who should be contacted if there is an oil leak.

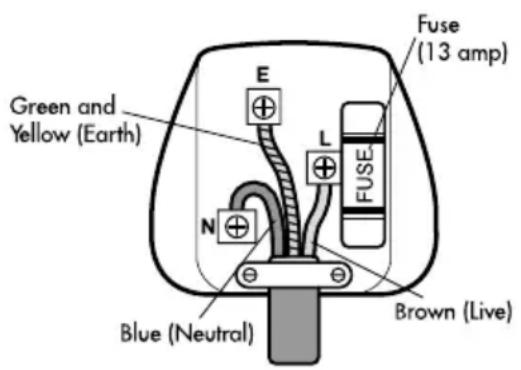

If the mains lead is damaged, it must be replaced by the manufacturer or and authorised service centre. If the mains plug needs to be replaced, proceed as follows:

• Connect the brown wire to the terminal labelled "L".
• Connect the blue wire to the terminal labelled "N".
• Connect the green/yellow wire to the terminal labelled with the earth symbol or "E".
• Make sure that the cord-grip is positioned correctly (over the outer sheath of the cable) and it fully tightened.

FAULT-FINDING

If the appliance is not operating, proceed as follows:

Check that the mains plug is firmly in the socket, and that the socket is switched ON.

Check that at least one of the power control switches is switched ON.

The appliance also has a overload protection device to prevent overheating. If this operates, disconnect the appliance from the mains supply, and remove any objects on or adjacent to the appliance that could have caused the overheating. Wait 10 minutes, and reconnect to the mains supply.

If the appliance still does not function, or the overload protection device operates again, consult an authorised service agent.

The appliance is also fitted with a tip-over switch which will disconnect the power if it falls over. If it does not operate, make sure that it is standing upright.

DISPOSAL AND RECYCLING

You must not dispose of this appliance with domestic household waste.

Most local authorities have specific collection system for appliances and disposal is free of charge to the end-user.

When replacing an existing appliance with a similar new appliance your retailer may take the old appliance for disposal.

This appliance is filled with a quantity of special oil, When disposing of the appliance, follow the regulations concerning the disposal of oil.

TECHNICAL SPECIFICATION

Dimensions: 630 × 245 × 420 ~mm

Weight: 9.6 kg

Power supply: 230 V ~

Power consumption: 2000 W

Operating current: 8.7 A

IMPORTANT

Consommation: 2000 W

Prem-i-Air guarantees the product free from defects in materials and workmanship for a period of twelve months.

Should this appliance be operated under conditions other than those recommended, at voltages other than the voltage indicated on the appliance, or any attempts made to service or modify the appliance, then the warranty will be rendered void.

The product you buy may sometimes differ slightly from illustrations. This warranty is in addition to, and does not affect, your statutory rights.

If you have any problems with this product, please call our Help Desk on [phone].

Prem-i-Air Appliances Ltd.,

Lancots Lane, Sutton,

St. Helens, Merseyside.

WA93EX

website: www.prem-i-air.com
