USER MANUAL RKG176E Redmond

Black and white photo of a modern glass coffee maker with liquid bubbles, no visible text or symbols on the device itself.

User manual

GBR 4
FRA 9
DEU 14
NLD 19
ITA 24
ESP 29
PRT 34
DNK 39
NOR 44
SWE 49
FIN 54
LTU 58
LVA 63

EST 68
ROU 73
HUN 78
BGR 83
HRV 89
SVK 93
CZE 98
POL 103
RUS 108
GRE 113
TUR 119
UKR 125
KAZ 130

1 MAX 1.7 L 1.0 L 0.5 L MIN 2 3 4 6 5 7 8

A1

REDMOND

Carefully read all instructions before operating the unit and save them for future reference. By carefully following these instructions you can considerably prolong the service life of your appliance.

The safety measures and instructions contained in this manual do not cover all possible situations that may arise during the operation of the appliance. When operating the device the user should be guided by common sense, be cautious and attentive.

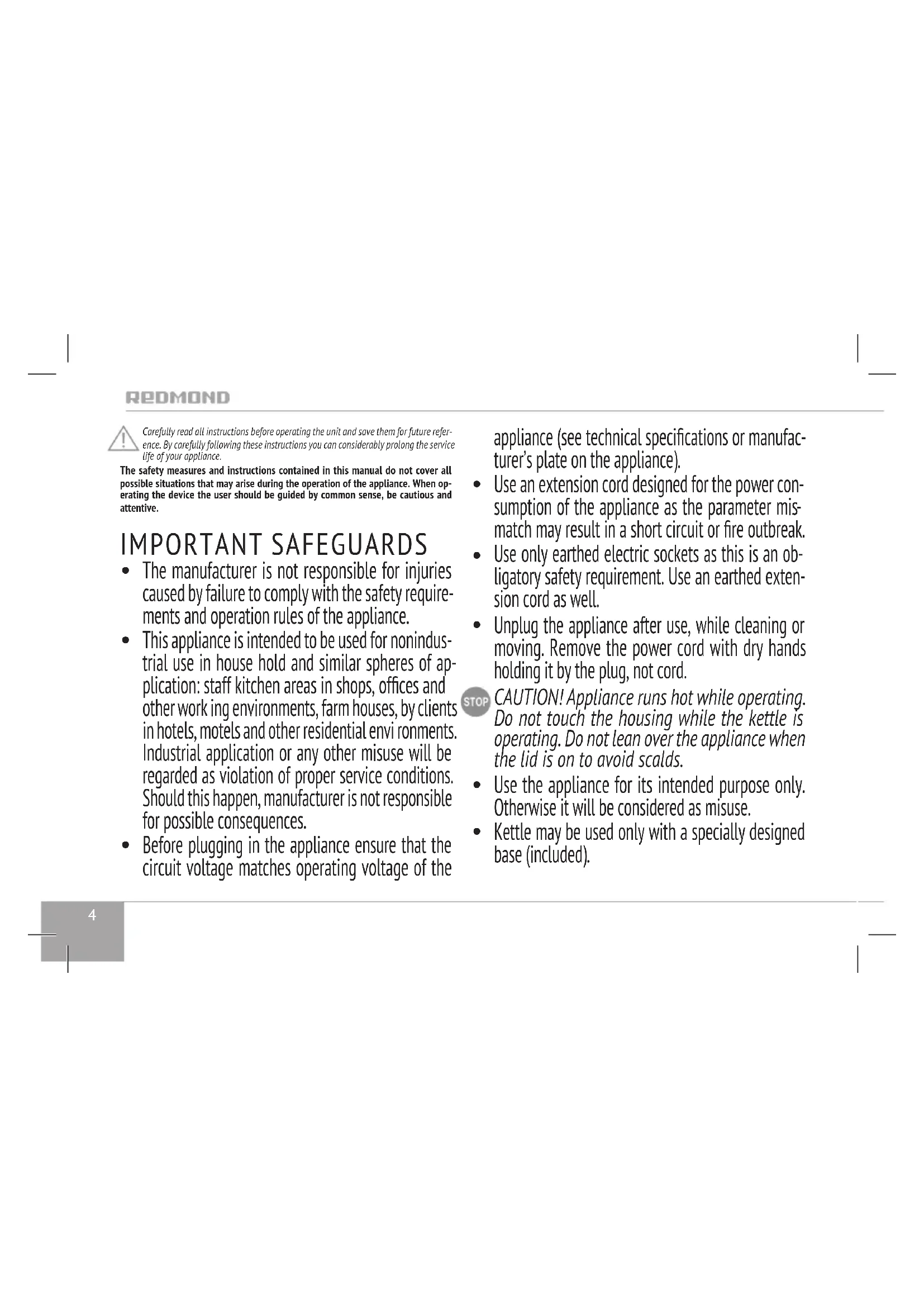

IMPORTANT SAFEGUARDS

• The manufacturer is not responsible for injuries caused by failure to comply with the safety requirements and operation rules of the appliance.
• This appliance is intended to be used for nonindustrial use in house hold and similar spheres of application: staff kitchen areas in shops, offices and other working environments, farm houses, by clients in hotels, motels and other residential environments. Industrial application or any other misuse will be regarded as violation of proper service conditions. Should this happen, manufacturer is not responsible for possible consequences.
• Before plugging in the appliance ensure that the circuit voltage matches operating voltage of the

appliance (see technical specifications or manufacturer's plate on the appliance).

• Use an extension cord designed for the power consumption of the appliance as the parameter mismatch may result in a short circuit or fire outbreak.
• Use only earthed electric sockets as this is an obligatory safety requirement. Use an earthed extension cord as well.
• Unplug the appliance after use, while cleaning or moving. Remove the power cord with dry hands holding it by the plug, not cord.

STOP CAUTION! Appliance runs hot while operating. Do not touch the housing while the kettle is operating. Do not lean over the appliance when the lid is on to avoid scalds.

• Use the appliance for its intended purpose only. Otherwise it will be considered as misuse.
• Kettle may be used only with a specially designed base (included).

- Do not place the cord in doorframes or by heat sources. Do not twist or bend the power cord, ensure that it is not in contact with sharp objects, corners and edges of furniture.

REMEMBER! Accidental damage to the power cord may cause electric shock or breakdown not covered by the terms of warranty. Promptly contact the service centre to have the damaged power cord replaced. Do not place the appliance on soft, unstable surface.

• Do not put the kettle on temperature-sensitive surface, do not cover the appliance while it is in operation as it may result in a fault or breakdown of the appliance.
• Do not use the appliance outdoors as ingress of moisture or foreign objects inside the housing can result in damage.
• Before cleaning the appliance ensure that it is unplugged and has cooled down. Follow the instructions while cleaning the device.

STOP

DO NOT immerse the appliance in water or keep in running water!

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children without supervision.
• Keep the packaging (film, foam plastic and other) out of reach of children as they may choke on them.
• No modifications or adjustments to the product are allowed. All service and repair works should be carried out by an authorized service centre. Failure to do so may result in device and property damage or injury.

STOP

CAUTION! Do not use the appliance in case any breakdown has been noticed.

REDMOND

Technical specifications

Model RK-G176-E

Power....1850-2200 W

Voltage 220-240 V, 50/60 Hz

Electrical safety......class I

Capacity 1.7 L

Housing material ....heat-resistant glass, stainless steel

Descale filter available

Auto-off....available

Boil-dry shut-off....available

Disc heating element....available

Inner illumination....available

Rotation on the base 360°

Power cord storage......available

Power cord length 0.75 m

Overall dimensions 211 × 160 × 250 mm

Net weight 1.1 kg ± 3%

Package includes

Electric kettle 1 pc.

Kettle base....1 pc.

User manual 1 pc.

Service booklet.... 1 pc.

In accordance with the policy of continuous improvement, the manufacturer reserves the right to make any modifications to design, packaging arrangement, or technical specifications of the product without prior notice.

Model configuration (scheme A1, p. 3)

1. Glass housing with water level graduated scale

2. I/O button

3. Descale filter

4. Base with recess for cable

5. Lid

6. Power cord

7. Lid release button

8. Handle

I. PRIOR TO FIRST USE

Carefully take the appliance and its detachable parts out of the package. Remove all wrapping materials and stickers except for the serial number identification sticker.

Keep all warning labels and the serial number identification label located on the housing! After the appliance transportation or storage at low temperature keep it at room temperature for at least two hours before plugging in.

Wipe the base of the appliance with a damp cloth, then let it dry. You may notice foreign smell when using the appliance for the first time. This does not mean its malfunction.

You are advised to boil water in the kettle a few times before the first use to get foreign smell out and disinfect the appliance

II. OPERATING THE APPLIANCE

1. Fix the kettle with the base to the solid even dry horizontal surface. Ensure the escaping steam does not fall on wallpaper, decorative coats, electric units and other items, which can be damaged by steam and high temperature.
2. Unwind the power cord to the desired length. Put the excessive part into the compartment located on the base bottom. If necessary use the extender of a suitable power (no less than 2.5 kW).
3. Remove the kettle from the base. Press the lid release button.
4. Pour water into the kettle, water level should be between the MIN and MAX points on the scale. If water level is higher than MAX point, the boiling water may be splashed. In case of water undersupply the appliance may be switched off in advance.

ATTENTION! The unit is meant only for water heating and boiling.

1. Close the kettle lid, press the lock button and set the kettle to the base. The appliance will be operated only if it is properly fixed.
2. Ensure that the kettle is off (I/O button on the handle is in 0 position).
3. Plug in the appliance.
4. Press I/O button on the kettle handle. Blue inner illumination will be on, the appliance will start operating.
5. After water comes to a boil indication will go out. The appliance will switch to the standby mode.
6. To switch off the appliance press I/O button in 0 position.

CAUTION! In case you take the kettle off the base without switching it off, inner illumination will be off, while I/O button will remain in I position. The kettle will resume operation once you have placed it on the base. You are advised to switch off the appliance every time you take it off pressing I/O button in O position.

1. Once you have finished, unplug the device.

Safety system

• The kettle is supplied with an automatic shut-off system upon boiling.
• In case of water shortage the automatic overheat protection turns off the kettle.
  Wait till the appliance is cooled, thereafter it will be ready for operation.

III. CLEANING AND MAINTENANCE

CAUTION! Before cleaning the kettle or the kettle base unplug the appliance, drain water and let the unit cool down.

Regularly clean the kettle housing and wipe the base with a damp cloth. Let the kettle and kettle base dry thoroughly before use.

DO NOT immerse the base of the appliance in water or keep in running water!

DO NOT use coarse tissues or sponges, abrasive pastes for cleaning. It is also not recommended to use any chemically aggressive or other substances, not recommended for use with items which contact with food.

While in operation scale deposits may form on both the heating element and the housing inner walls of the appliance depending on water type being used. Use special nonabrasive cleaning substances for kitchen utensils and appliances.

1. Let the kettle cool down before cleaning.
2. Follow the product cleaning and application instructions.
3. Thoroughly wash the kettle with water after cleaning.
4. Wipe the appliance with a damp cloth.

CAUTION! Before use ensure that electric contacts of the appliance are dry.

Before repeated operation or storage completely dry all parts of the appliance. Store the assembled appliance in a dry, ventilated place away from heating appliances and direct sunlight.

During transportation and storage, do not expose the device to mechanical stress, that may lead to damage of the device and/or violation of the package integrity.

Keep the device package away from water and other liquids.

IV. BEFORE CONTACTING SERVICE CENTRE

Problem Possible cause Solution
Kettle does not switch on (inner illumination is off)	No electric power supply	Connect the appliance to a properly working electric socket
Early switch-off	There is scale on the heating element	Descale the heating element (see 'Cleaning and Maintenance')
Kettle switches off in a few seconds	There is no water in the kettle, boil-dry protection system has gone off	Unplug the appliance, let it cool down. Fill the kettle up above MIN (0.5 L) mark

In case you didn't manage to eliminate the defects, please, refer to the authorized service centre.

V.PRODUCT WARRANTY

We warrant this product to be free from defects for a period of 2 years from the date of purchase. If the appliance fails to operate properly within the warranty period and is found to be defective in material or workmanship, we will repair or replace it free of charge. This warranty comes into force only in case an original warranty service coupon with a serial article number and an accurate impress of the company of the seller proves the purchase date. This limited warranty does not cover damage caused by the failure to use this product for its normal purpose or in accordance with the instructions on the proper use and maintenance of the product, or any kind of repair works. Do not try to disassemble the appliance and keep all package contents. This warranty does not cover normal wear of the appliance and its parts (filters, bulbs, non-stick coating, gaskets, etc.)

Service life and the applicable product warranty period start on the date of purchase or the date of manufacture (if the purchase date cannot be established).

You can determine manufacture date by serial number, located on the identification label on the housing of the appliance. The serial number consists of 13 digits. 6th and 7th digits of the serial number identify the month, 8th digit the year of manufacture.

Service life of the product, established by the manufacturer is 3 years from the date of purchase, provided that the appliance is used and maintained in accordance with the user manual and applicable technical standards.

REDMOND

Environmentally friendly disposal (WEEE)

The packaging, user manual and the device itself shall be taken to the applicable collection point for the recycling of electrical and electronic equipment. Do not throw away the electronic waste to help protect the environment.

Old appliances must not be disposed with other household waste but must

be collected separately. Municipal disposal of recyclable wastes is free of charge. The owners of old appliances are required to bring it to a waste facility centre. With this little extra effort, you can help to ensure that valuable raw materials are recycled and pollutants are treated as appropriate.

This appliance is labelled in accordance with European Directive 2012/19/EU – concerning used electrical and electronic appliances (waste electrical and electronic equipment WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

II. APPARATETS DRIFT

Snaga....1850-2200 W

Napon....220-240 V, 50/60 Hz

Volumen....1,7 l

© REDMOND. All rights reserved. 2017.

Reproduction, transfer, distribution, translation or other reworking of this document or any part thereof without prior written permission of the legal owner is prohibited.

Produced by Redmond Industrial Group LLC

One Commerce Plaza, 99 Washington Ave, Ste. 805A

Albany, New York, 12210, United States

www.redmond.company

www.multivarka.pro

www.store.redmond.company

www.smartredmond.com

Made in China

RK-G176-E-UM-3
