GA 500 - Barbecue Efbe-Schott - Free user manual and instructions

Product type	Charcoal barbecue with integrated electric lighter
Brand	Efbe-Schott
Model	GA 500
Use	Outdoor cooking, electric charcoal ignition
Power supply	220-240 V ~ 50/60 Hz (grounded plug)
Rated power	Approximately 1000 W (estimated)
Recommended fuel	Charcoal or charcoal briquettes
Approximate dimensions	40 cm (L) x 30 cm (W) x 20 cm (H) (estimated)
Approximate weight	2.5 kg (estimated)
Main components	Grill tray, heating element with handle, stand, power cord
Ignition function	Plug-in heating element to ignite charcoal in 10-15 min
Safe use	Do not use in rain, do not immerse, unplug before cleaning
Maintenance and cleaning	Allow to cool completely, clean with a damp cloth, do not put in dishwasher
Storage	After cooling, store in a dry place, cord not wrapped around the appliance
Environmental protection	Do not dispose of with household waste, take to a recycling center or WEEE collection point
Warranty	Legal warranty of 2 years, covers manufacturing defects (excluding wear parts)
After-sales service	Contact the retailer or send the appliance to the after-sales service in Bad Blankenburg
Spare parts available	Heating element, power cord (defective accessories replaced free of charge under warranty)
Repairability	Repairs possible after warranty by a qualified service

Frequently Asked Questions - GA 500 Efbe-Schott

How to light the barbecue with the electric lighter?

Fill half of the tray with charcoal, place the heating element in the middle, add the rest of the charcoal without exceeding the metal mark, plug into a grounded outlet and wait 10 to 15 minutes until the charcoal is glowing.

What type of fuel to use?

Use only charcoal or charcoal briquettes. Never use lighter fluid or other fuels.

Can I use an extension cord?

Yes, provided that the extension cord's amperage is equal to or greater than that of the appliance and that it does not hang from a table or lie on the floor to avoid any risk of accident.

How to clean the barbecue after use?

Unplug the appliance, let it cool completely, then clean the exterior parts with a damp cloth. Never immerse the appliance in water and do not put any parts in the dishwasher.

What to do if the heating element does not heat up?

Check that the plug is properly connected and that the cord is not damaged. If the problem persists, contact after-sales service.

Is it dangerous to leave the barbecue unattended?

Yes, never leave the appliance unattended when it is powered or in operation, especially with glowing charcoal.

Can I use this barbecue in rainy weather?

No, never use the appliance in rain or humidity to avoid any risk of electrocution.

How to store the appliance correctly?

After complete cooling, store the appliance in a dry place. Make sure not to wrap the cord around the appliance and not to twist it.

What to do in case of breakdown or breakage?

If the appliance is under warranty, return it with the receipt to the retailer. After warranty, contact a qualified service. Defective accessories can be exchanged free of charge under warranty.

How to dispose of the barbecue at end of life?

Do not throw it in household waste. According to the WEEE directive, take it to a selective collection point or recycling center for recycling.

USER MANUAL GA 500 Efbe-Schott

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

#

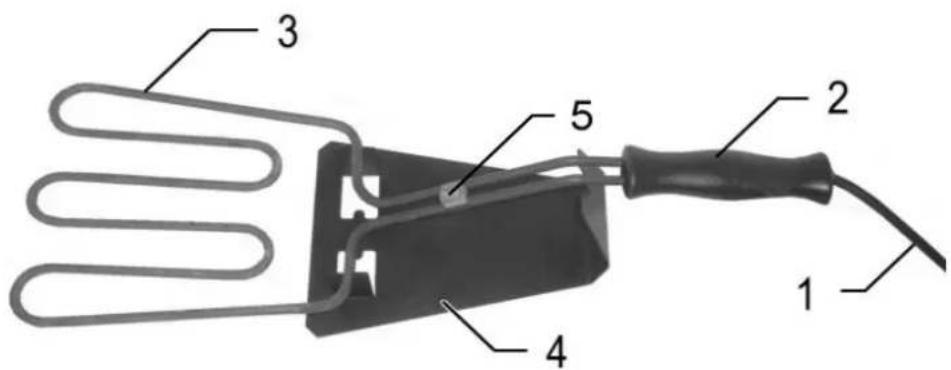

Labeled diagram of an electrical heating element with numbered parts

D

q Please read these instructions carefully before using the appliance.
q Only use the appliance in the way indicated in this instruction manual.
q Should you hand over the appliance to another user, make sure to hand over the instruction manual together with the appliance.
q Check that your mains voltage corresponds to that stated on the appliance. The appliance must be connected to an earthed power outlet.
q To ensure a major security, it is recommended to set up a current flight jump 30 mA in the electric circuit. Ask your electrician for advice.
q Never leave the appliance unsupervised when in use.
q People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance.
q Close supervision is necessary to prevent children from using the appliance as a toy.
q From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage. Should the cord be damaged, it must be replaced by a competent qualified electrician(*). All repairs should be made by a competent qualified electrician(*).
q Only use the appliance for domestic purposes and in the way indicated in these instructions.
Never immerse the appliance in water or any other liquid for any reason whatsoever. Do not use the appliance as a plunger. Never put it in the dishwasher.
q Do not use the appliance when it is raining or when it is wet.
q Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
q Make sure the cord never comes into contact with the hot parts of the appliance. Make sure the appliance never comes into contact with inflammable materials, such as curtains, cloth, etc... when it is in use, as a fire might occur.
q The temperature of the accessible surfaces may be very high when the appliance is in use or before it has cooled down. Do not touch these surfaces but use the handle.
q Unplug the appliance before cleaning it.
q Make sure the appliance has cooled down before cleaning and storing it.
q Only use charcoal or charcoal briquettes as fuel!

#

USE

• Fill about half of the grill tray with the necessary fuel.
• Position the heating element on the fuel in such a way that the handle of the firelighter remains outside the grill tray.
• Now fill the grill tray with the remaining fuel but do not exceed the metal mark. Handle and cord shouldn't come into contact with the fuel.
• Check again if appliance and cord are in the right position.
• Put the plug in an earthed power outlet.
  • Depending on quantity and quality of the fuel, it will start glowing within 10 to 15 minutes.
• Unplug the appliance, then lift it carefully out of the grill tray. Grab the handle with one hand only and let the appliance cool down on its support, which should stand on a sufficiently large and heat-resistant surface.

SHORT CORD INSTRUCTIONS

• A short power supply cord is provided to reduce the risk resulting from becoming entangled in, or tripping over a longer cord. Extension cords may be used if care is exercised in their use.
  •The electrical rating of the extension cord should be at least that of the appliance.
  •The longer cord should be arranged so that it will not drape over the counter top or table top, where it can be pulled on by children or tripped over.

PROTECTION OF THE ENVIRONMENT- DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it free of charge to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.

TERMS OF GUARANTEE

For our products, the legal terms concerning claims under guarantee are valid. During the legal period, all material and manufacturing defects are covered. No claims will be accepted for broken accessories, defects resulting from inappropriate use or care, excessive wear due to intensive use, wrong use due to the non-observance of the instruction manual, or normal wear and tear. No guarantee claims will be accepted if the appliance has been modified or if attempts have been made to repair the appliance. In such case, the vendor cannot be held responsible in case of accidents.

If you detect a defect, please contact your vendor or shop and return your complete appliance in its original packaging together with the receipt. Claims under guarantee will only be valid if the receipt or a copy of a repair bill is handed over with the appliance that needs repair.

#

Or send the appliance cleaned, well packed and with a short, easily readable description of the default as well as the receipt freight prepaid to our customer service in our firm in Bad Blankenburg.

In case of a defective accessory, the complete appliance will not be exchanged, but only the accessory will be sent free of charge. In such case, do not return the complete appliance but only order the accessory! In case of glass damages, glass spare parts will be charged. Pieces undergoing wear and tear as well as cleaning and maintenance or the exchange of worn out pieces are not covered by the guarantee and will thus be charged!

AFTER THE LEGAL PERIOD OF GUARANTEE

Repairs after the guarantee period can be performed at a charge by a competent qualified technician or a repair service.

#
