USER MANUAL Aquaspeed FV5185 TEFAL

• Reducer dampstrømmen.

4. Knapp for Super Pressing

4- VEDLIKEHOLD AV STRYKJERNET

• Knappen for Super Pressing brukes for ofte.

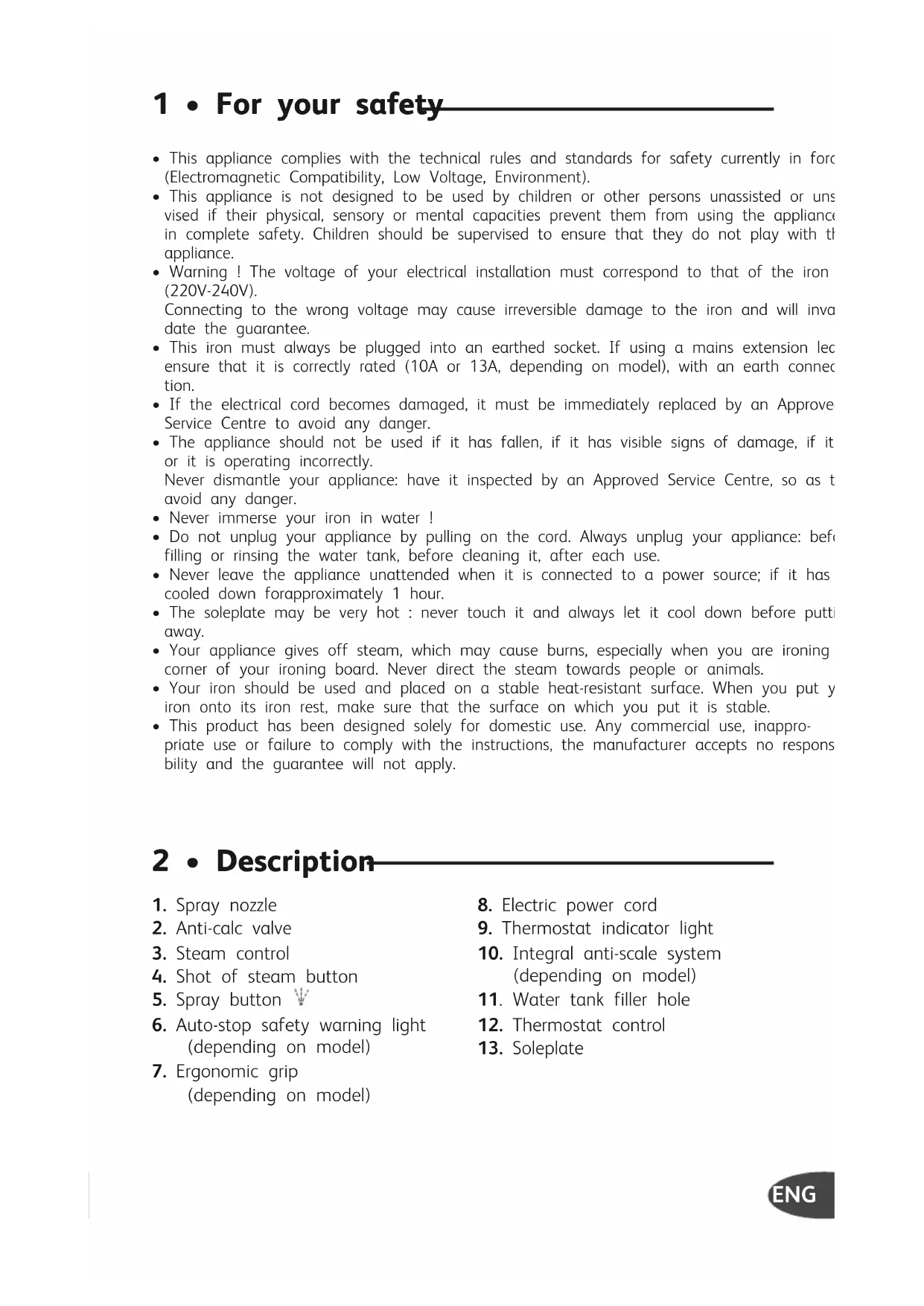

• This appliance complies with the technical rules and standards for safety currently in force (Electromagnetic Compatibility, Low Voltage, Environment).

• This appliance is not designed to be used by children or other persons unassisted or unsuper- vised if their physical, sensory or mental capacities prevent them from using the appliance in complete safety. Children should be supervised to ensure that they do not play with the appliance.

• Warning ! The voltage of your electrical installation must correspond to that of the iron (220V-240V). Connecting to the wrong voltage may cause irreversible damage to the iron and will invali- date the guarantee.

• This iron must always be plugged into an earthed socket. If using a mains extension lead, ensure that it is correctly rated (10A or 13A, depending on model), with an earth connec- tion.

• If the electrical cord becomes damaged, it must be immediately replaced by an Approved Service Centre to avoid any danger.

• The appliance should not be used if it has fallen, if it has visible signs of damage, if it leaks or it is operating incorrectly. Never dismantle your appliance: have it inspected by an Approved Service Centre, so as to avoid any danger.

• Never immerse your iron in water !

• Do not unplug your appliance by pulling on the cord. Always unplug your appliance: before filling or rinsing the water tank, before cleaning it, after each use.

• Never leave the appliance unattended when it is connected to a power source; if it has not cooled down forapproximately 1 hour.

• The soleplate may be very hot : never touch it and always let it cool down before putting it away.

• Your appliance gives off steam, which may cause burns, especially when you are ironing on a corner of your ironing board. Never direct the steam towards people or animals.

• Your iron should be used and placed on a stable heat-resistant surface. When you put your iron onto its iron rest, make sure that the surface on which you put it is stable.

• This product has been designed solely for domestic use. Any commercial use, inappro- priate use or failure to comply with the instructions, the manufacturer accepts no responsi- bility and the guarantee will not apply. 2 • Description

4. Shot of steam button

6. Auto-stop safety warning light

10. Integral anti-scale system

• Your a ppliance has been designed to function with untreated tap water. Howe- ver, Self-cleaning of the appliance should be carried out once a month in order to eliminate hard water deposits from the steam chamber. If you have very hard water, mix untreated tap water with commercially available demineralised or distilled water in the following ratio: 50% untreated tap water / 50% demineralised or distilled water.

• Types of water not to use : Heat concentrates the elements contained in water during evaporation. The types of water listed below may contain organic waste, mineral or chemical elements that can cause spitting, brown staining or premature wear of the appliance: water from clothes dryers, scented or softe- ned water, water from refrigerators, batteries, air conditioners, rain water, boi- led, filtered or bottled water. These types of water should not be used in your TEFAL iron. Also only use distilled or demineralised water as advised above.

• The integrated anti-calc system (according to model) gives better quality iro- ning: a constant flow of steam throughout the ironing session and longer lasting performance of your appliance. 4 • Steam ironing Filling the water tank - Unplug your iron before filling it. - Set the steam control to DRY (A). - Take the iron in one hand and hold it with the point of the soleplate tilted downwards. - To open the water tank stopper, turn it anticlockwise until the arrow on the stopper points to the “open padlock” symbol (B). It will lift automatically. - Fill the tank up to the “MAX” line (C). - Close the water tank stopper again by pressing it in and turning it clockwise until the arrow points to the “closed padlock” symbol (B). Setting the temperature - Set the thermostat control (D) referring to the table below. - The thermostat light comes on. It will go out when the soleplate is hot enough (E). 1800117037 FVZ E0 10/07/09 10:53 Page 114Setting the steam level - In order to avoid water dripping from the iron onto the linen:

• Turn off the steam when ironing silk or synthetic fabrics.

• Set it at the minimum position for wool. What temperature and which steam setting to use ? - Set the thermostat control (D) referring to the table below. - The thermostat light comes on. It will go out when the soleplate is hot enough (E). FABRIC POSITION OF THERMOSTAT CURSOR STEAM SETTING POSITION COTTON WOOL SILK SYNTHETIC Polyester, Acetate, Acry-lic, Nylon

• Your iron heats up quickly : so begin by ironing fabrics that are ironed at low temperatures first, then go on to those requiring a higher temperature,

• If you turn down the thermostat, wait until the thermostat light comes back on before beginning to iron again,

• when ironing fabrics with mixed fibres, set the ironing temperature for the most delicate fibre. For delicate fabrics we recommend testing the fabric first on an inconspicious place eg (inside the hem). Spray function - Whether steam or dry ironing, you are able to use the spray button (F) to dampen laundry to remove stubborn creases. - Make sure that there is water in the tank before using this button. For more steam - Press the Shot of Steam button from time to time (G) - Wait a few seconds between each shot before pressing the button again. Vertical steam ironing - Hang the garment on a hanger and hold the fabric slightly taut with one hand. The steam is very hot, so you should always do this with the garment on a hanger – never while someone is wearing it. - Set the thermostat control to MAX (H). - Press the Shot of Steam button ( ) repeatedly (I), moving the iron from top to bottom (See illustration) (J), wait a couple of seconds between each use of the button. - Hold the iron a few centimetres from the fabric to avoid burning delicate fabrics. ENG 1800117037 FVZ E0 10/07/09 10:53 Page 115Integral anti-scale system (depending on model) - Your iron is equipped with an integral anti-scale system (K). - This system will help to provide:

• a better ironing quality with a constant flow of steam,

• lasting performance from your appliance. Auto-stop safety feature (depending on model) - The electronic system cuts off the electric power and the Auto-Stop warning light flashes if the iron is left vertically on its heel for more than 8 minutes, or in a horizontal position for more than 30 seconds (L). - To restart the iron, just move it gently until the warning light stops flashing. Note : when the Auto-Stop warning light is on, it is normal for the thermostat light to re- main off. Anti-drip function (depending on model) - If the soleplate temperature is too low, the iron will not produce steam be- cause of the anti-drip technology which prevents droplets of water leaking from the soleplate. When using the iron for the first time, allow 2 minutes for steam to be pro- duced. - Set the temperature for the fabric to be ironed. - Set the steam control to DRY (see diagram A). - You may start ironing when the thermostat light goes out. Self-cleaning In order to extend the life of your iron, use the Self-Cleaning function once a month. - Fill the tank of your iron with untreated tap water. Stand the iron on it’s heel with the thermostat set to max and heat it up. - When the thermostat light goes out, unplug the iron and hold it in a horizontal position, over a sink. - Remove the anti-calc valve. - Shake the iron gently, over the sink, until some of the water in the water tank (with the impurities) has flowed out through the soleplate. - At the end of the operation, push the anti-calc valve back into position. - Unplug the iron, and when the soleplate is just warm, wipe it with a soft cloth. RECOMMENDATIONS : the self-cleaning function helps to slow down the scaling up of your iron. Cleaning the soleplate - While the soleplate is still slightly warm, clean it by wiping over it with a damp non-metallic cloth. 5 • Dry ironing - Unplug the iron and wait for the soleplate to cool down. Empty the water tank and set the steam control to DRY. A little water may remain in the tank. - Wind the cord around the heel at the back of the iron. Store the iron on its heel. 6 • Storing your iron 1800117037 FVZ E0 10/07/09 10:53 Page 1167 • If there is a problem

PROBLEM POSSIBLE CAUSE SOLUTION

Water drips from theholes in the soleplate.The chosen temperature is toolow and does not allow for theformation of steam.You are using steam while theiron is not hot enough.You are using the Shot ofSteam button too often.The steam flow is too highYou have stored the iron hori-zontally, without emptying itand without setting it to DRYPosition the thermostat in the steamrange (from •• to MAX).Wait until the thermostat light goes out.Wait a few seconds between each use ofthe button.Reduce the steam flowSee the section "Storing your iron".Brown streaks comethrough the holes inthe soleplate andstain the linen.You are using chemical desca-ling agents.You are not using the righttype of water.Fabric fibres have accumulatedin the holes of the soleplateand are burning.Your linen has not been rinsedsufficiently or you have ironeda new garment before washing it. Do not add any descaling agents to thewater in the water tank.Perform a self-cleaning operation andconsult the section "What water to use?"Perform the self-cleaning operation andclean the soleplate with a damp sponge.Vacuum the holes of the soleplate fromtime to time.Make sure that your laundry is rinsedsufficiently so as to remove any depositsof soap or chemical products on newclothes.The soleplate is dirtyor brown and canstain the linen.Your are ironing with an inap-propriate setting (temperaturetoo high).You are using starch.Clean the soleplate as indicated above.Select the appropriate setting.Clean the soleplate as indicated above.Always spray starch onto the reverseside of the fabric to be ironed.There is little or nosteam. The water tank is empty.The anti-calc valve is dirty.Your iron has a build-up ofscale.Your iron has been used dry fortoo long.Fill it.Clean the anti-calc valve.Clean the anti-calc valve and carry out aself-clean.Carry out a self-clean. The soleplate is scrat- ched or damaged. You have placed your iron flat on a metallic rest-plate or iro- ned over a zip. Always set your iron on its heel. Do not iron over zips and rivets. Steam or water comefrom the iron as youfinish filling the tank.The steam control is not set tothe DRY position.You have not closed the tankstopper properlyCheck that the steam control is set tothe DRY position.Make sure that the stopper is properlyclosed and that the arrow points to the“closed padlock” symbole The spray does not spray There is not enough water in the water tank. Fill up the water tank. If you have any problem or queries, please contact our Customer Relations team first for experthelp and advice : 0845 602 1454 - UK / (01) 4610390 - Irelandor consult our website - www.tefal.co.uk ENG 1800117037 FVZ E0 10/07/09 10:53 Page 1171800117037 - 27/09 1800117037 FVZ E0 10/07/09 10:53 Page 118
