Product type	Wood stove
Brand	Lincar
Model	Gioia 470
Dimensions (W x D x H)	412 x 460 x 880 mm
Weight (steel/ceramic)	87 kg
Fuel	Log wood (length 30 cm) and lignite briquettes
Nominal thermal output	6.0 kW
Maximum thermal output	8.3 kW
Heated volume (favorable insulation)	150 m³
Heated volume (unfavorable insulation)	80 m³
Flue outlet diameter	120 mm
Minimum / maximum draft	10 Pa / 20 Pa
Efficiency (wood)	71.8 %
Flue gas temperature (wood)	327 °C
CO emissions (wood)	0.29 % at 13 % O₂
Air supply	External air intake, free section 200 cm²
Safety distances (front / side / rear / above)	1000 / 350 / 250 / 1500 mm (combustible materials)
Floor protection	Front protrusion ≥ 500 mm, side ≥ 300 mm, rear ≥ 100 mm
Firebox cleaning	Daily: grate and ash pan
Exterior cleaning	Soft cloth and specific product, glass with special product
Annual maintenance	By an approved technician (flue, seals, glass)
Safety	Doors closed, thermal gloves, do not obstruct openings
Original spare parts	Mandatory for warranty
Standard	EN 13240
Warranty	Void in case of non-compliant installation or improper use

Frequently Asked Questions - Gioia 470 Lincar

How to light the Gioia 470 stove?

Place a firelighter cube or paper, add 0.5 kg of wood chips and three small pieces of wood. Fully open the primary and secondary air. Light, close the door. After 15-25 minutes, adjust the air inlets according to the regulation table. Use only dry wood, never flammable liquids.

What fuel to use?

The recommended fuel is dry log wood (moisture content below 14%), length 30 cm, preferably beech. Lignite briquettes are also allowed. It is forbidden to use liquid fuels, coal, straw, corn, hazelnuts, pine cones, pellets or treated wood.

What safety distances must be observed?

For combustible materials: front (A) ≥ 1000 mm, sides (B) ≥ 350 mm, rear (C) ≥ 250 mm, above (D) ≥ 1500 mm. For non-combustible objects: front ≥ 500 mm, sides ≥ 200 mm, rear ≥ 200 mm, above ≥ 1500 mm. The floor must be protected with a non-combustible material extending 500 mm at the front, 300 mm on the sides and 100 mm at the rear.

How to clean the stove glass?

Clean the glass only when the stove is cold. Use a sponge soaked with a specific stove glass cleaner, then wipe with a dry cloth. Avoid abrasive products. If the glass gets dirty quickly, check the draft, fuel quality and air settings.

What to do in case of broken or cracked glass?

Do not use the stove anymore and have the glass replaced by an approved technician. Only original parts are allowed. Using with damaged glass may cause smoke leakage and fire risks.

How to adjust primary and secondary air?

For wood: primary air open to 1/3, secondary air open to 2/3. For lignite: primary air open to 2/3, secondary air open to 1/3. These settings are indicative; adjust according to combustion. Secondary air is mainly used to regulate the fire in normal operation.

Why does the glass blacken quickly?

Possible causes: draft too low (< 10 Pa), incorrect air settings, excess fuel, wood too moist (> 20% moisture) or unsuitable fuel. Solutions: check that the flue is clear, increase draft (chimney height), reduce wood quantity, use dry wood, and adjust air inlets.

How to maintain the flue?

Have the flue swept at least once a year by a professional. Regularly check that it is not blocked. In case of flue fire, close all air inlets and call the fire brigade. Do not use water, but a powder or CO2 extinguisher.

Where to install the Gioia 470 stove?

Install it in a well-ventilated room, on a non-combustible floor (or with protection). Respect the safety distances. Do not install it in a bedroom, bathroom, shower, or near other heating appliances without an independent air supply. The room must have an external air intake of at least 200 cm² free section.

What to do in case of smoke in the room?

First check that all doors (firebox, ash pan) are closed. Make sure the seals are in good condition. Insufficient draft may be due to a blocked flue or too low depression (10-20 Pa required). Clean the appliance and flue, or call a technician for a diagnosis.

USER MANUAL Gioia 470 Lincar

Cod. 90002825 Rev. 2

INDICE

1.1 Normative and prescriptions 19
1.2 Preliminary operations 19
1.3 Appliance positioning 19
1.4 Connection 20
1.5 Technical details 24

2 Using

25

2.1 Important warnings 25
2.2 Combustible 25
2.3 Starting 26

3 Maintenance and cleaning 30

3.1 Cleaning to be carried out by the User 30
3.2 Ordinary maintenance 31
3.3 Accessories 31
3.4 Possible failure and its solution 32

4 Technical data plate

64

1 INSTALLATION RESERVED TO INSTALLER

1.1 Normative and prescriptions

• Read carefully the contents of this handbook, it contains important information and instructions for installation, use, maintenance and product safety.
• The appliance must be installed inside an environment considered suitable for installation and use by competent authorities. All laws, standards and regulations in force on the installation site must be observed, especially regarding fire prevention.
• Technological connection and appliance installation must be carried out by qualify staff authorized to release a conformity certificate according with the normative in force and current standards.
• All the normative concerning civil town planning and/or industrial in force must be respected inside the environment of installation of the appliance. In every case the safety devices should be always employed.
• The installation must be carried out and certified according to the normative in force regarding installations, exhaust fumes connections, electricity, water, ventilation / suction.
• The manufacturer disclaims all responsibility caused by no correct installation, using, tampering, maintenance or no respect of normative in force.

1.2 Preliminary operations

Take away the packing
- Before installation, check the appliance integrity. In case of doubt, do not use the appliance and call the dealer.
- Packing materials is for recycle, getting it in the specify container

1.3 Appliance positioning

• The installation environment should have :
• A suitable floor for stove weight and calorific radiation, otherwise preventive measures should be adopted. (i.e. Plate for charge distribution).
• A suitable floor for stove calorific radiation to guarantee the building against any fire risk.
• The stove should be installed so that gas flue, chimney and cleaning could be easily done.
• A minimal distance from flammable materials (Security Distances)
• A suitable ventilation as normative in force.
• It's prohibited to install the equipment into sleeping rooms, bathroom or where another heating equipment ( without an independent air supply ) is just installed.
• It's prohibited product positioning in environments with explosive atmosphere

FLOOR PROTECTION

• The equipment must be installed on a non-combustible surface. In case of flammable floor (as wood, moquette, etc.) is necessary to prepare a protective base of the floor (sheet steel, ceramic or other) with the following dimensions:

Hold up in front ≥ 500mm
Hold up lateral ≥ 300mm
Hold up back ≥ 100mm

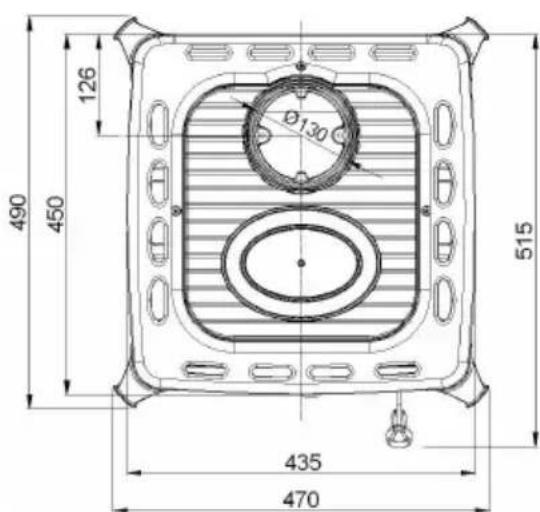

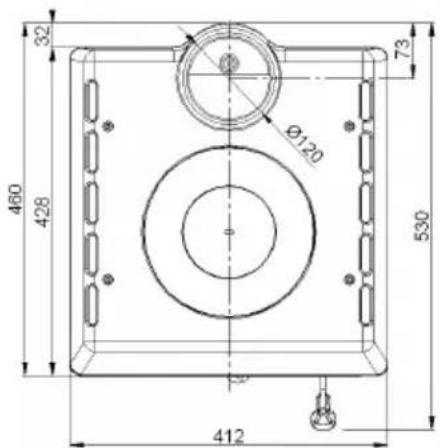

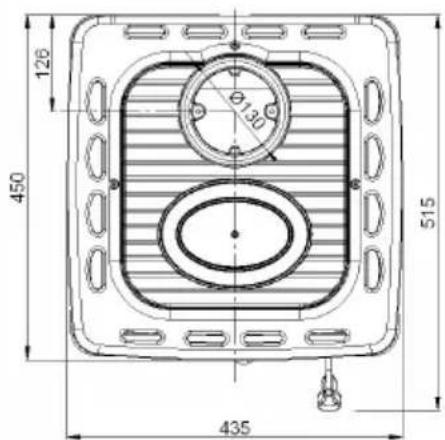

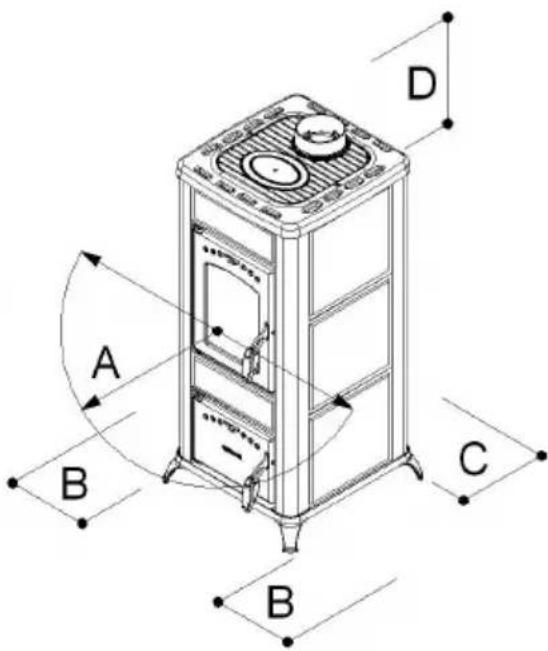

SECURITY DISTANCES

From NOT combustible object :

-A > 500 ~mm B > 200 ~mm C > 200 ~mm D > 1500 ~mm

From combustible object and from principal wall in rein forced concrete :

A > 1000 mm B > 350 mm C > 250 mm D > 1500 mm

• The minimal distance between the stove and every flammable object around it is 1.5 meter.

Mod 470

Mod 480N-490N

Mod 480LZ-490LZ

Valid for all the Models To measure from apparatus external surface for every models

1.4 Connection

• Before connection check technical data reported in the technical plate (Chap. 4) and control that it correspond to the ones required in the order.
• All heating biomass equipment especially wood stove has to evacuate the combustion products in a flue built in conformity with normative in force.
• The following instructions describes, informations for a good installation, and it refers to a normative in force but it are not to be consider exhaustive for installations laws.

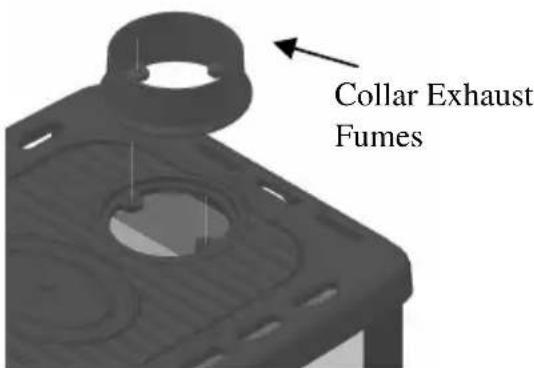

COLLAR EXHAUST FUMES ASSEMBLY Only for mod. 480LZ-490LZ-480N-490N

Take off the collar from the fire door.
- Place the collar on the top of the stove ( see the picture ) assemble it with the screws.

CHIMNEY OR FLUE

• The chimney or flue should have the following characteristics:

It's advisable to read, follow and respect what indicated in the paragraph 1.1
Good sel of combustion products, impermeable and completely insulated as normative condition
- The flue has to be built with raw material suitable for normal mechanical stress, warmth, action of combustion products and its condenses
- The flow has to be vertical with deflections no hihgher that 45^
- A right distance from combustible or flammable material, insulated with an air cavity or right insulator
- Internal round section, the square or rectangular section should have round corner with a ray not less than 20mm
- Internal section should be constant, free and independent
- Rectangluar section with sides ration max of 1,5
- All manufacturer instruction should be respected concerning the section and the building characteristic of the chimney or flue. For particular section, deviation of section or path it will be necessary a complete inspection of exhaust fumes system.
- It's advisable that the flue should be supplied by a, chamber, for solid material and condenses collection, placed under the flue throat and easy to reach and to open. It should be also supplied by a completely seal, little door" for inspection.
In case of fire of chimney or flue, employ the right system to suffocate the flames and call for firefighter.
- The chimney and gas tubes should be easy to log on for every maintenance and cleaning operation.

EQUIPMENT CONNECTION TO FLUE AND EVACUATION OF COMBUSTION PRODUCTS

It's advisable to read, follow and respect what indicated in the paragraph 1.1
The flue should receive the exhaust fumes from an only heating equipment
- It's possible to realise an equipment composed from chimney and cooking oven with an only exhaust fumes point head the chimney, for which the manufactures has to provide the building characteristics of exhaust fumes channel
It's prohibited to connect in the same flue, the heating equipment and the suction hood
It's prohibited to connect the exhaust pipe head closed space even if it is in open air
The direct exhaust fumes has to be done ahead roof and the exhaust pipe should have the above characteristics.
Horizontal tubes connection should have a min slope steep of 3% .
- The gas tubes should be sealed against combustion products, in case of outside passage it should be insulated.
- The chimney and gas tubes should be easy to log on for every maintenance and cleaning operation.

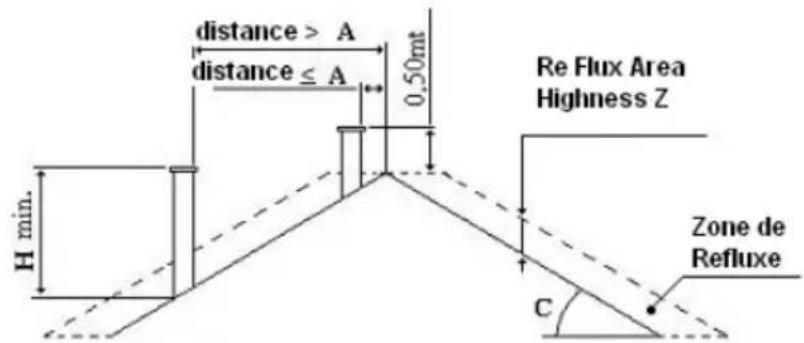

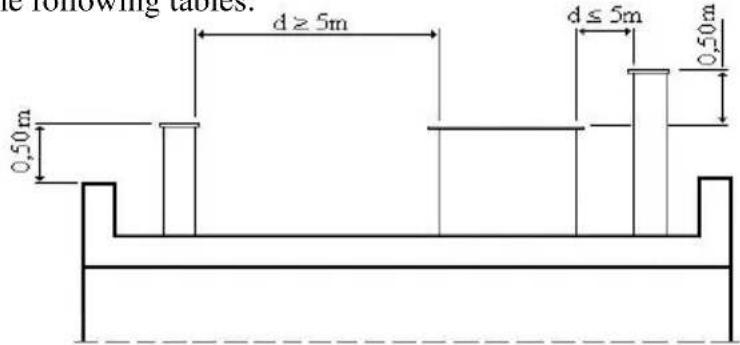

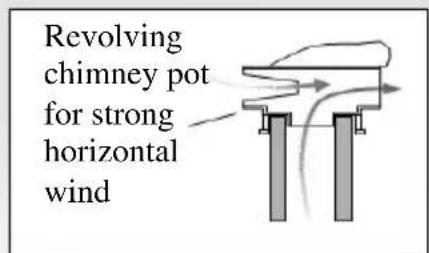

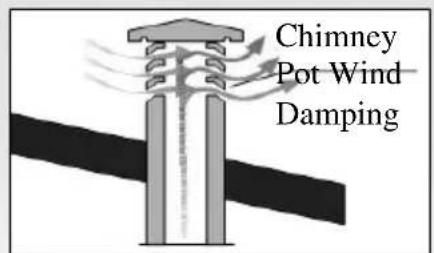

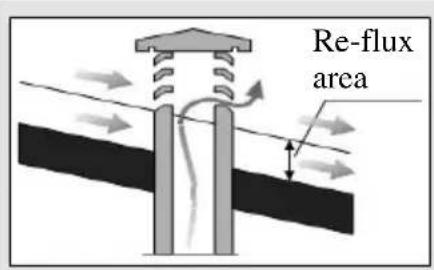

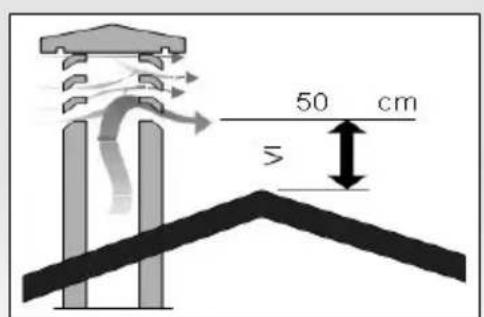

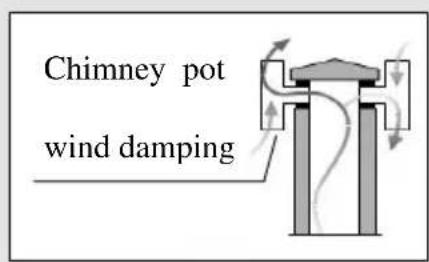

CHIMNEY CAP

• The chimney cap should have the following characteristics:

It's advisable to read, follow and respect what indicated in the paragraph 1.1
- Internal section equivalent with the chimney one
- Exhaust section exit not lower to the double of the chimney internal one
Built in a way to avoid rain, snow or external body entrance, to ensure the right exit of combustion products with any type of wind
- Positioned to guarantee the right fumes dispersion especially out of re-flux area. This area has several dimensions and conformations in function of inclination corner of the covering so it's necessary to apply the minimal highness as indicated in the following tables:

Inclination Roof	C (°)	A H Re	Flux	Area Highness	Z (m)
15		1,85	1,00		0,50
30		1,50	1,30		0,80
45		1,30	2,00		1,50
60		1,20	2,50		2,10

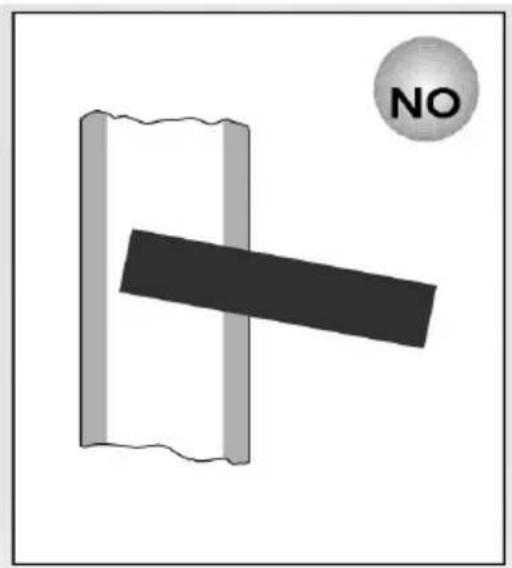

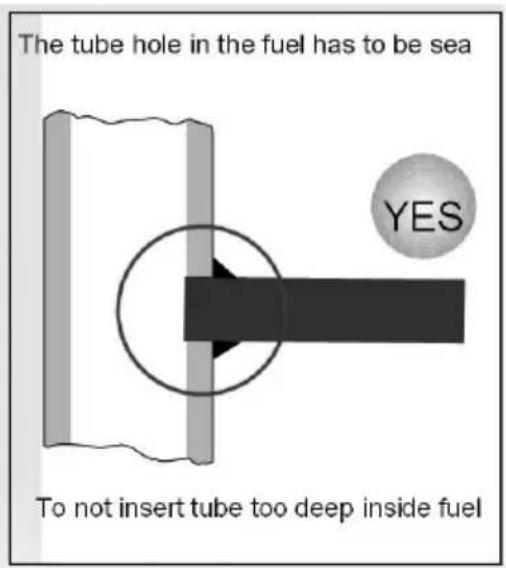

CONNECTION TO FLUE

• The connect the heating equipment to the flue / chimney checking that the exhaust pipe don't take up the free section of flue.
• Employ only tubes supplied by seal gasket.
• To not use horizontal tubes (max 1 meter) and curves.

FEED AIR COMBUSTION DIRECT FROM ENVIRONMENT

It's advisable to read, follow and respect what indicated in the paragraphe 1.1
- The equipment should have the necessary air for combustion, supplied by external air intake.
The air intake should have the following characteristics :

a) Total free section min 200~cm^2
b) Connected directly with installation environment ;
c) Protected with grate or lath ( attention to not reduce the min. section required on point a) and placed so that to avoid obstruction.

• The air inflow can be also supplied from the adjacent room but the air intake should be always free and connecter ahead outside. No chimney or suction hood should be present in the environment of installation or into the nears ones.
• Inside the adjacent room the air intake should have the characteristics required in letter a and c.
  The adjacent room can not be use as garage, warehouse of combustible material etc.

NOTE: The air inflow whole must be placed at the low.

NOTE: Extractor fans when operating in the same room or space as the appliance may cause problems.

NOTE :The installation room should not be put in depression by other appliances such as suction hoods, chimneys, evacuation flues, present in the room itself or in the adjacent rooms, which are in communication.

1.5 Technical Details

Description Mod.		GIOIA ALICE
		470 48	OLZ 480N	490LZ	490N
Width mm 412 470 435 470	435
Depth	mm 460 490 450	490	450
Height	mm 880 970 900	1260	1190
Appliance weight Stell / Ceramic	kg	87	106	89	126
Appliance weight Stell / S.Stone	kg	--	121	--	143
Ø Diameter Exhaust Fumes	mm	120	130		130
Exhaust Fumes		Vertical	Vertical		Vertical
Global heat Input	kW	8.3	8.2		7.7
Nominal heat output	kW	6.0	6.0		6.0
Emissions of CO: Wood/Lignite (to 13% O2)	%	0.29/0.20	0.10/0.11		0.40/0.16
Efficiency : Wood/Lignite	%	71.8/72.0	72.8/70.3		78.1/74.8
Flue gas temperature: Wood/Lignite	°C	327 / 280	327 / 280		272 / 212
Flue gas mass flow: Wood/Lignite	g/sec	7.0 / 8.9	6.1 / 9.3		5.8 / 9.0
Heating volume (favourable insulation)	m³	150	150		150
Heating volume (unfavourable insulation)	m³	80	80		80
Chimney draft in Test	Pa	12	10		10
Depression Chimney Min - Max	Pa	10 ÷ 20	10 ÷ 20		10 ÷ 20
Combustible	Wood logs of Beech size “1” and Lignite Bricks
Combustible loading Max pro h Wood/Lignite	kg	2.0 / 1.6	1.9 / 1.7		1.8 / 1.7

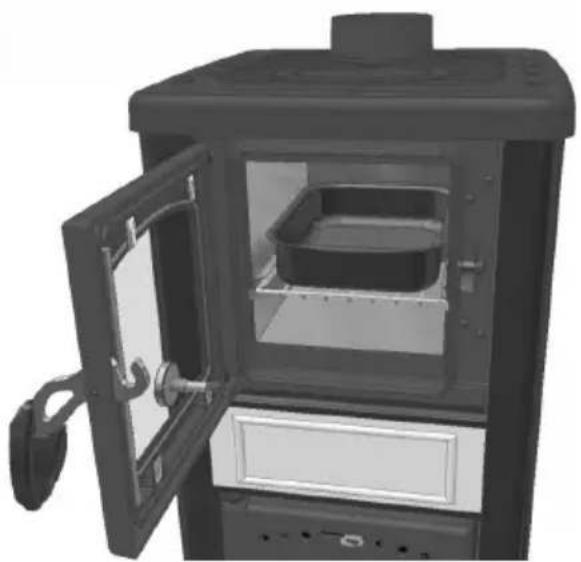

Oven Dimensions WxDxH	mm	-	-		215x315x220
Oven Volume liters	liters	-	-		15
Oven Light		NO	NO		NO
Flame Visible		YES	YES		YES

2 USING - RESERVED TO USER

2.1 Important warnings

• To read carefully this section's instruction which are very important for use, maintenance and appliance safety.
• This handbook has to be ridden completely, in case of lack it can be consider an improper use of the equipment so a not right use of it. To take care of this handbook to use it every time it's necessary.
  The appliance illustrated in this handbook must be employed only from qualify staff.
• The appliance should not be employ as incinerator.
• The appliance functioning, create high temperature on some internal and external surfaces, with which user could get in touch so it's necessary the maximum attention!
• The appliance should be consider as active area of thermal exchange with warmth surfaces so it's necessary to be cautious to avoid the direct contact with children, animals etc.
• Employ the specific utensil to open the fire door.
• The right stove functioning is with closed doors and top rings completely assembled. If the fire door window is broken and / or damaged or in case of bad functioning, the stove can not be lighted till the problem has been solved.
  The operation of the machine must always happen under surveillance.
  The operation of the machine must always happen under surveillance.
• Every maintenance operation, every repairs or substitution, should be done from qualify staff or assistance centre. Use only original spare parts.
• To not tamper the appliance. Do not obstruct air vents or heat dissipation openings.
• Every local, National or European normative in force has to be respected during the installation.
• The safety distances from flammable material has to be observed and all the prescriptions contained in chapter 1.

2.2 Combustible

The equipment is built to burn only woods :

BURNING WOODS

• Attention: It's not allowed to use liquid combustible or coke/coal. It's also prohibited to use combustible different from woods as straw, mais, peanuts or pinecone. The use of pallet or wood's rejection or type of woods as acacia, conifers or fruit's trees can compromise the goods functioning of the stove and damage some stove's parts.

INFORMATION ON BURNING WOODS

The wood for its use is classified by the: SIZE - MATERIAL - HUMIDITY

The wood that we recommend for combustible is: saisoned beech length 25÷ 30 cm with P.C.I. (calorific power inside) 4,3kWh / kg

IDENTIFICATION	NR.	LETTERS
WOOD DIM :
Tondello	1	BIG
Trucioli	2	FLAKE
Sawdust	3	FINE
MATERIAL:
Fir - Larch	1	CONIFERS
Oak - Beech	2	LATIFOGLIE
HUMIDIT % :
>35	1	FRECH
14÷35	2	MID.SEASONED
<14	3	SEASONED

• To guarantee a perfect combustion, it's necessary to keep the combustible in a very dry and protected area.

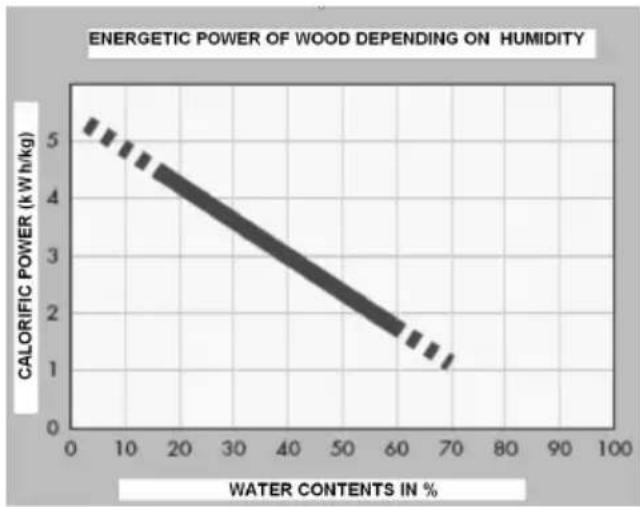

  The wood - output depends on its relative humidity in % (see the schedule enclosed).

2.3 STARTING

• The appliance should set at work only after having completed the following operations: complete assembling, connection to exhaust fumes duct and to the heating plant. A new appliance needs to complete the drying process of the paint. During the first heatings you can notice the following situations:

• During the first ignitions the appliance may exhale bad smell. We suggest a good aeration of the room till bad smells have been eliminated.

• The complete drying process will be obtained after some heating operations

• The equipment is a wood stove with a functioning as Normative EN 13240. Thanks to combustion chamber structure, the equipment has an high calorific efficiency.

WOOD LOADING

• The stove should be loaded manually during the functioning.
• The loading of combustible should be done when the flame is minimum to avoid combustion products or fumes outlet from the fire door.
• To open the fire door, employ the fixture enclosed.

STARTING AND FUNCTIONNING

N.B. For starting never use alcohol, fuel or other liquid combustibles

• In case of starting during particular cold days or with low pressure, it's advisable to heat the chimney burning papers in stove.
• For wood burning loads please read the chapter "Technical Data" and follow the instructions indicated for quantities.

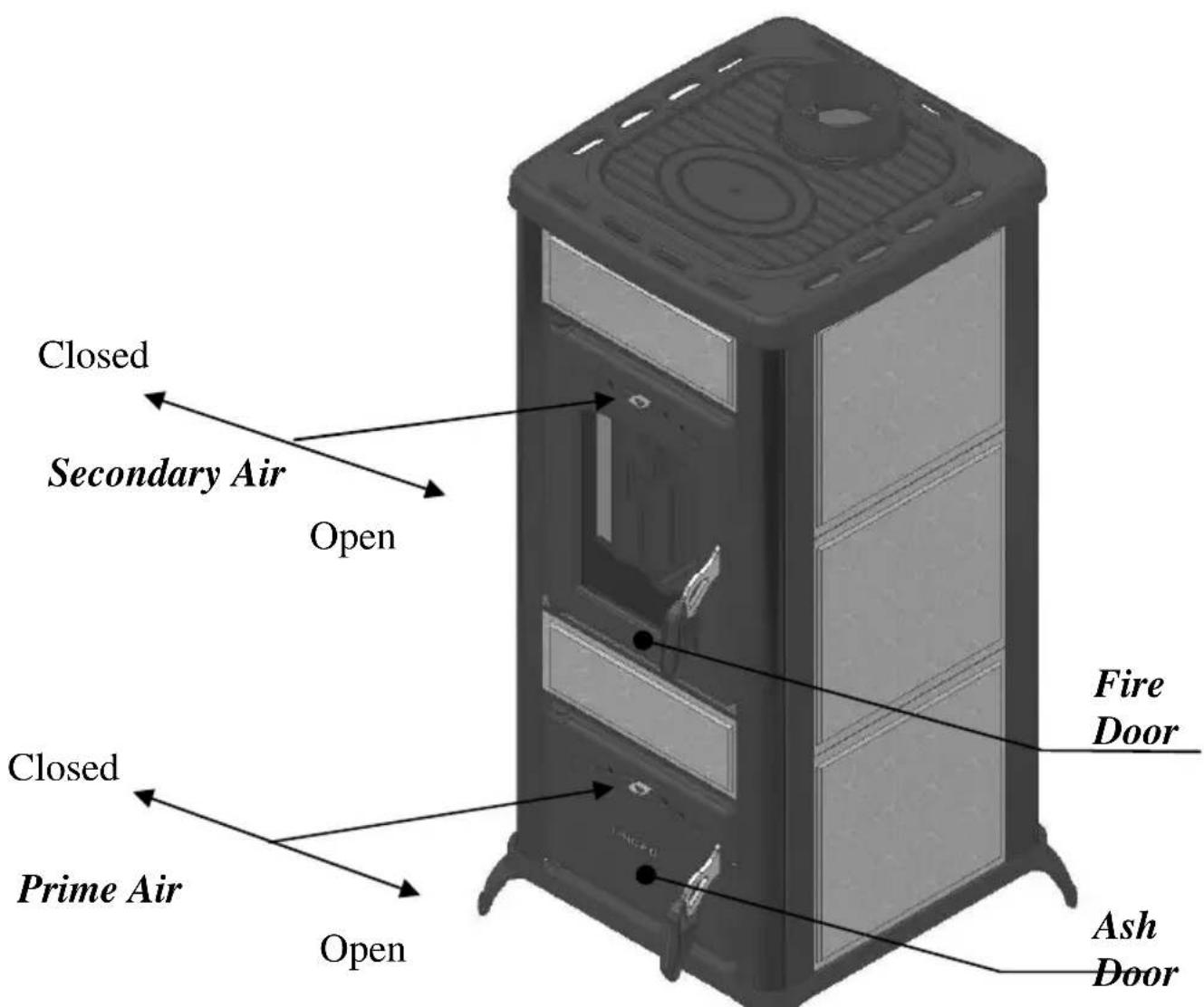

IGNITION

• To arrange on foyer a cube-lighting or a small quantity of paper, around 0.5kg of wood in small pieces. Open entirely the prime and secondary air, light the paper and close the foyer door.
• When the stove is completely lighted, add some larger wood pieces. Repeat this operation till when the stove has reached the "Hourly Charge" as indicated in the technical details, than regulate the prime and secondary air as indicated in the chapter Regulations.
  It's advisable to load the stove when the flame is not too high, to avoid the exit of combustion products.
• During the stove's functioning, it's advisable to set several times the ash-grate to clean often the brazier.

Fig. 1

LOADING - TO RESTART WITH EMBERS (Moderates flames)

In case of starting with embers, go on as follows :

• Thicken the embers in the middle of the foyer.
• Open totally the prime air.
  Wait few minutes till in the brazier appears a flame sufficient for a new starting.
• Load some wood pieces and wait for the complete starting.
• Replace the prime air in the normal position as indicated in the chapter "Regulations".

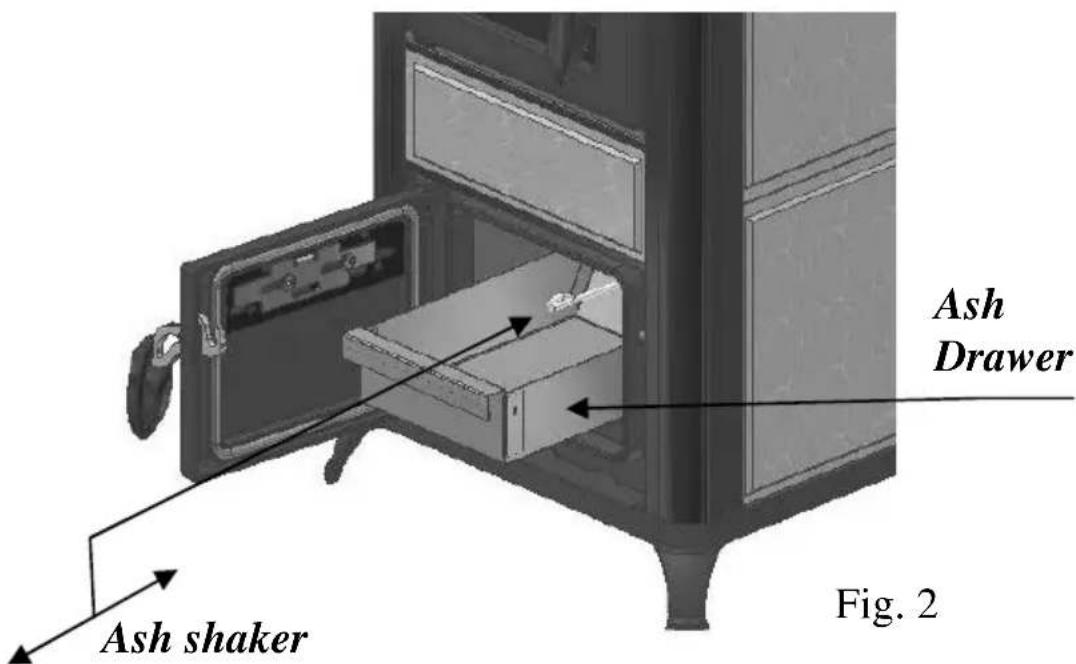

SHAKING FOYER GRATE (Fig.1 - Fig.2)

• Open the ash door using the thermic glove and employing the poker, shake the grate of the foyer. The ash will fall down into the ash drawer and the foyer will be always clean and ready for next wood loading.

ASH DRAWER

• The ash drawer should be emptied from ash using the thermic glove. The ash drawer emptying should be done when the stove is cold.
  The ash drawer is placed under the foyer, to reach it, it's necessary to open the ash door.
  The emptying of ash drawer must be done when the stove is completely cold. Be careful to the presence of ambers or warm pieces.
• Do not forget to insert the ash drawer in its place. The functioning of the stove without the ash drawer has to be considered dangerous.
• Please employ the thermic glove in case of ash drawer's emptying when the stove is still warm.

FIRE CONTROL

• To obtain always a good compromise between the thermic performance and the combustible consumption, it's advisable to keep the following regulations : during the normal employing the fire intensity can be regulated employing the prime and secondary air lever.
  After the starting phase, the stove can be regulated as the following fire control position :

Gioia 470		TYPE OF COMBUSTIBLE: WOOD LOGS
FIRE CONTROL POSITION WOOD		Lignite
Position Prime Air Open 1/3 O		pen 2/3
Position Secondary Air Open 2/3		Open 1/3
Alice 480LZ-490LZ-480N-490N		TYPE OF COMBUSTIBLE
FIRE CONTROL POSITION WOOD		Lignite
Position Prime Air Closed M		dle Open
Position Secondary Air		Open	Middle Open
Fire Control Positions Air
Closed	Open 1/3	Middle Open	Open 2/3	Open

OVEN (Only Mod. Alice 490LZ-490N)

The oven's employ is submitted to the usual cooking norms as time, temperature and quantity.

The oven is supplied by a thermometer to measure the internal temperature, an internal grate and a small pot.

3 MAINTENANCE AND CLEANING RESERVED TO USER

IMPORTANT WARNING

• Every maintenance and cleaning operations must be done when the stove is light off and cold.
• The stove's conditions must be checked by our qualify staff.

3.1 Cleaning to be carried out by the User

• The frequency of the stove cleaning and maintenance is depending from wood quality and quantity. An high degree of humidity, ash, powder or chemicals adds inside the wood could increase the necessary cleaning and maintenance operations; so we recommend again to employ a very high quality of wood.
• Foyer Cleaning. To obtain the best performance during stove's functioning, EVERY DAY it's necessary to clean the foyer grate, empty it from every residuals, clean all the holes on the bottom and replace it into its place.

• External Cleaning. This operation must be done when the stove is cold.

• Steel/cast iron parts : use a duster with specific detergent

• Windows/Ceramic: Use a sponge with specific detergent than dry the parts with a dry duster.
• Painted parts : Use a duster and neutral soap than dry the parts with duster.

Cleaning Internal Lateral Exhaust gas fumes Mod. 490LZ - 490N :

At least one per year or every time it's necessary
- The inside cleaning must be done always when the stove is cold. All the necessary equipment should be prepared before operations.

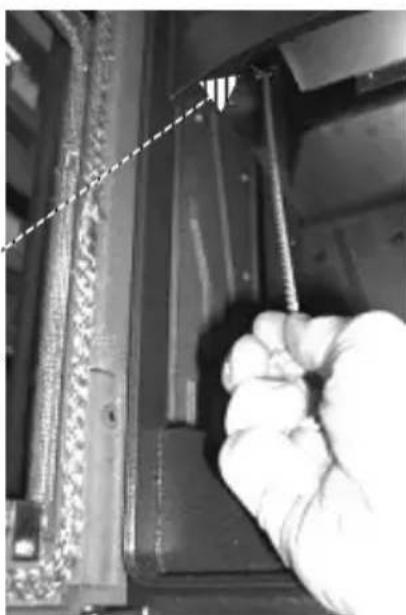

- The cleaning of lateral exhaust gas fumes should be done removing the flame conveyor then employing the hook poker clean the internal parts ( as in the picture)
- When the cleaning operations are finished, reassemble the stove parts.

3.2 Ordinary maintenance (by qualify staff)

• Complete check up of the stove by qualify staff.
• Cleaning of exhaust gas.
• To check and eventually to replace of seal..
• To check the flue seal.

• To check integrity of the glass fire door and/or oven

• We recommend to stipulate a contract with an after-sales service.

We recommend to execute a regular maintenance of the appliance, of the fumes exhaust ducts and of the chimney. In case of a long time of non utilization of the appliance, before lighting the appliance, verify that fume exhaust ducts and chimney are not obstructed.

3.3 Accessories

The following accessories are supplied with the stove :

• To move residuals into the combustion chamber and to move ash-drawer.
• For warm parts
• Only for mod. 490LZ-490N Lateral exhaust gas fumes cleaning

3.4 Possible failure and its solution

DEFFECT CAUSE SOLUTION
Windows fire door and/or combustion chamber are dirty of soot.	- Low draft <10 Pa.- Wrong regulation.- Too much combustible introduced.- Combustible with high humidity level.- Not good quality combustible.
Not regular draft	- Flue / exhaust fumes unsuitable or dirty.- Stove is dirty inside.
Too much dark fumes from the exhaust	- Stove light on with green wood.- Stove dirty inside.
Fumes escape from the stove	- The fire/ash door is open while the fire is burning.- Draft insufficient.- Not correct regulation during ignition operation- The stove should be cleaned.

Every intervention has be done from qualify staff!

Lincar S.r.l is not responsible for damages to thing or people due to a wrong installation, equipment tampering, improper use, bad maintenance or no observation of normative in force. If considerate appropriate, Lincar S.r.l. reserves the right to make modifications without notice and in every moment.

Some particulars and accessories illustrated in this handbook are not mass produced item so its extra costs are to check at contract release.

CHERCLIENT,
