USER MANUAL Super 100.005 TTM

Our classic appliances... 28

Raclette easy 30

Raclette accessories... 31

Safety Instructions 32

Français

Bonjour 13

Montage 14

Preparation de la raclette 16

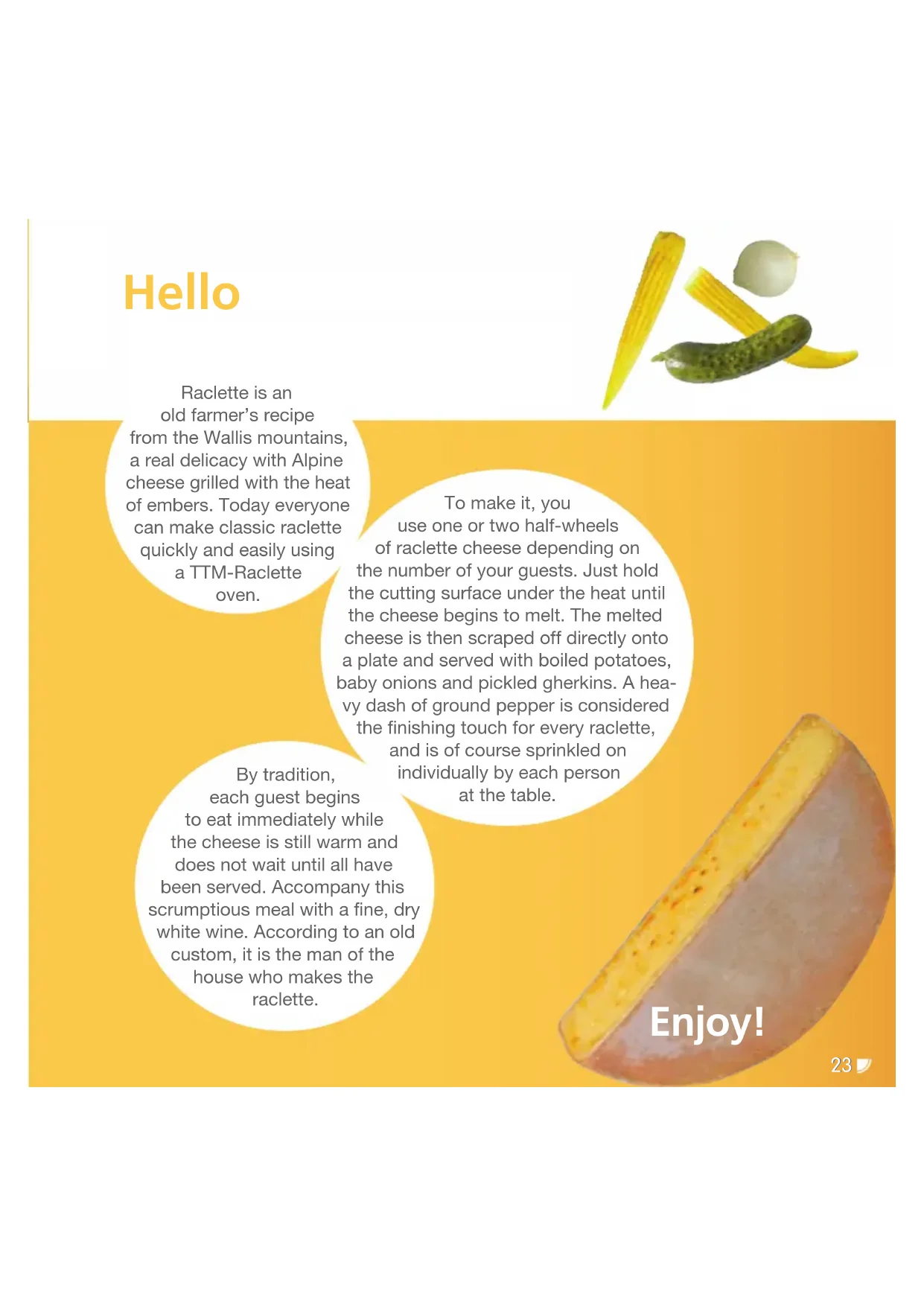

Raclette is an old farmer's recipe from the Wallis mountains, a real delicacy with Alpine cheese grilled with the heat of embers. Today everyone can make classic raclette quickly and easily using a TTM-Raclette oven.

To make it, you use one or two half-wheels of raclette cheese depending on the number of your guests. Just hold the cutting surface under the heat until the cheese begins to melt. The melted cheese is then scraped off directly onto a plate and served with boiled potatoes, baby onions and pickled gherkins. A heavy dash of ground pepper is considered the finishing touch for every raclette, and is of course sprinkled on individually by each person at the table.

By tradition, each guest begins to eat immediately while the cheese is still warm and does not wait until all have been served. Accompany this scrumptious meal with a fine, dry white wine. According to an old custom, it is the man of the house who makes the raclette.

Enjoy!

Assembly / Set-up

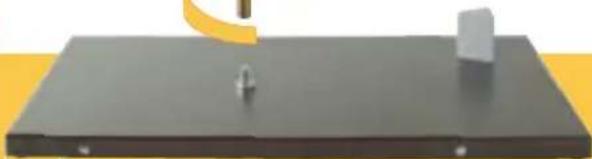

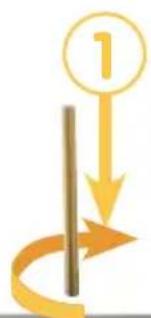

Screw the spindle onto the ground plate using a screwdriver or a coin.

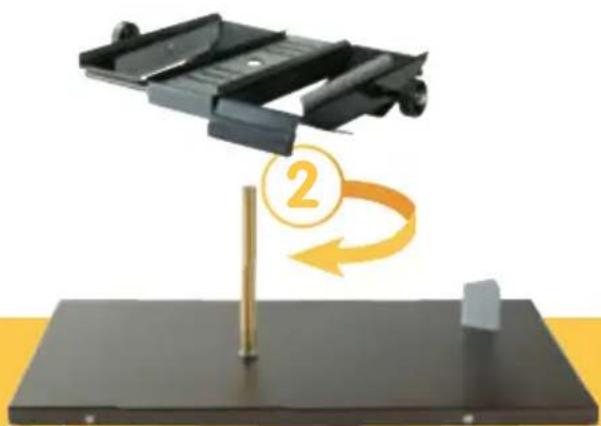

Screw the cheese holder onto the spindle and turn downward clockwise.

Cleaning

Only clean with a damp cloth. Rub the machine dry after cleaning. Never submerge the metal parts in water.

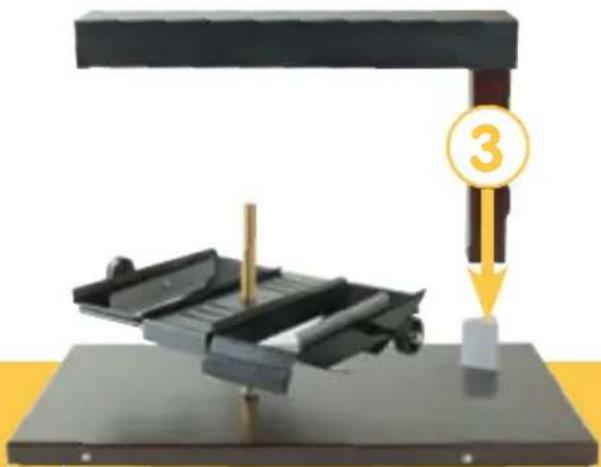

3 Place the heating arm with the column onto the aluminium bolt.

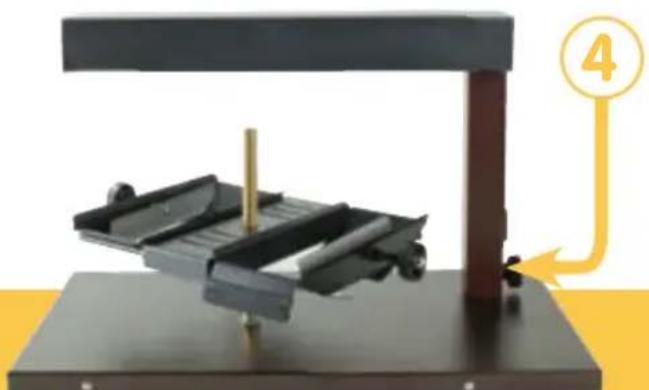

4 Attach the heating arm with the knurled screw, insert the power cable. A small amount of smoke can result during initial usage. This is normal and does not indicate any danger.

Lubricate the black metallic parts occasionally with cooking oil.

Preparing the Raclette

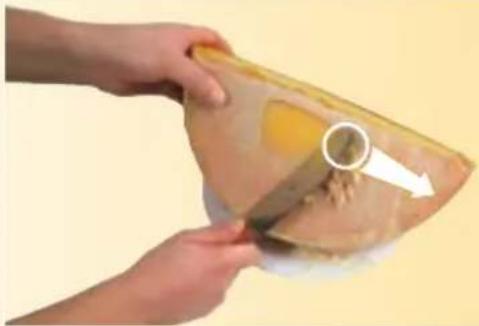

If necessary, clean the cheese rind by gently scraping it (do not cut off!).

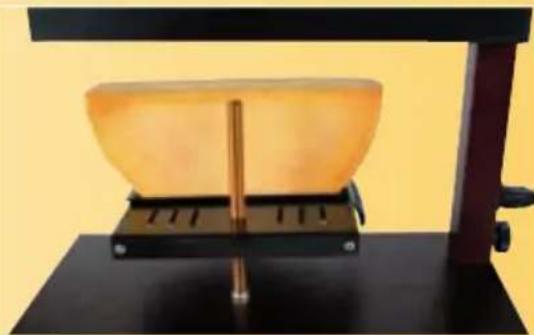

Place the cheese onto the cheese holder.

5 Position the cheese holder centrally under the heater by means of the knurled screws.

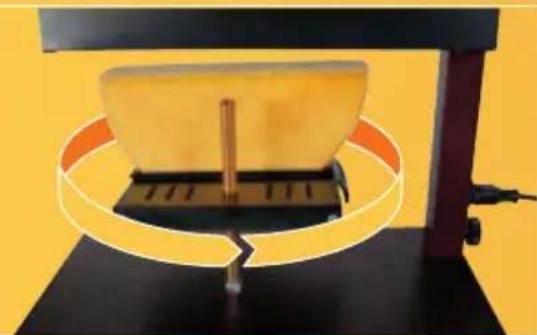

Turn the cheese holder around the spindle.

3

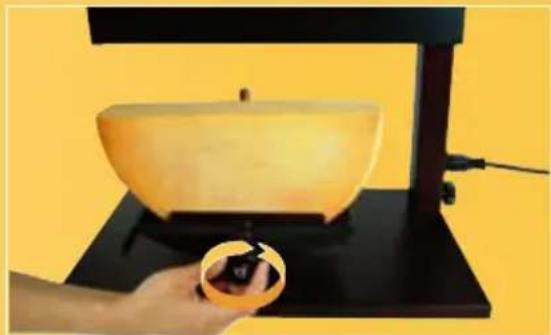

Clamp the cheese in position.

4

Turn the cheese upward to the heater (distance 2cm). Switch on: Set switch to 1 or connect cable

7

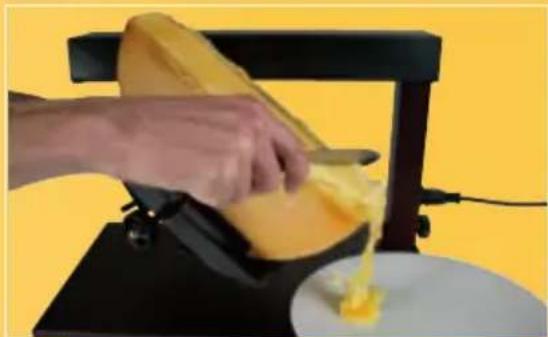

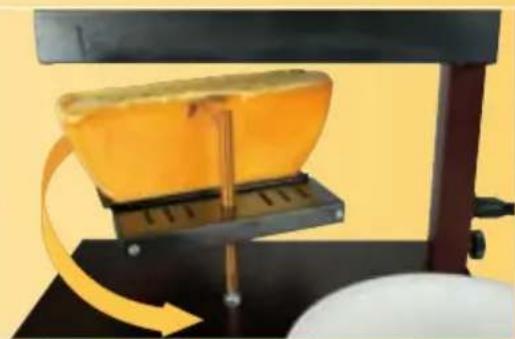

Lift the cheese holder into an angled position and scrape off onto the plate with the raclette knife (smooth side).

Tipp

A grilled crust forms on the edges after 4-5 raclettes each. Cut off this fine crust with the serrated side of the raclette knife and serve with a raclette (in French it's called "religieuse" ("religious raclette") because it tastes so heavenly!). Freeze remaining cheese or use it for gratins, sandwiches or as cheeseslices. Large left-over pieces keep for up to 8 weeks in the refrigerator, small ones for 2-3 weeks.

Our classic appliances…

		Party	Party Caro	Racletta
	Cheese 1/4 round 1/4 square		½ square
	Power	600W	600W	600W
	On-off-switch	No	Yes	No
	Swivel arm	Yes	No	Yes

		Super	Evolène «Top range»-model
	Cheese	2 x 1/2 round and square	2 x 1/2 round and square
	Power	1000W	2 x 1000W
	On-off-switch	Yes	2 x (1 per heater)
	Swivel arm	Yes	2 x (1 per cheese)
Ambiance	POP	Zinal «Top range»-model	DS 2000
1/2 round and square	1/2 round and square	1/2 round and square	2 x 1/2 round and square
1000W	1000W	1000W	1000W
Yes	No	Yes	Yes
No	Yes	Yes	No

Trio	Gas Appliances
	Easy-Gaz	Brio-Gaz	Balthasar
3 x 1/2 round	1/2 round and square	2 x 1/2 round and square	1/2 round and square
2 x 1000 W	1.9 – 2.5 kW	2.6 – 3.4 kW	2.6 – 3.4 kW
2 x (1 per heater)	No	No	No
No	No	Yes	Yes

Raclette easy (without electricity or gaz)

Twiny Cheese red Twiny Cheese black	Twiny Cheese stainless steel
Heater	6 candles
Order number	No. 100.024

Pico Racly	Raclette à deux
Heater	3 candles	1 gel burner
Order number	No. 100.033	No. 100.021

Raclette accessories...

Profi Chef		Support in stainless steel	Handle for cheese-holder
Knife to scrape off the cheese	With anti-stick coating Long bracket for square cheeses		Heat protection made of rubber
No. 800.001	No. 800.071	No. 102.1032	No. 102.065

Holder for 1/2 cheese (round and square)	Holder for 2 x 1/2 cheese (round and square)	Potato fork	Brienz
With non-stick coating	With non-stick coating	4 forks with 3 prongs each	Wooden bucket to keep the potatoes warm
No. 101.052.1	No. 101.101.1	No. 800.070	No. 800.068

Safety Instructions

Never let the appliance come into contact with water or other liquids. Danger of short circuiting!

Only place onto secure surfaces. Minimum distance to the wall 30 cm.

Never operate without cheese • Never use near easily flammable materials • Children may not use the appliance • Turn off the machine even when the heating of the cheese is briefly interrupted • Always position the cheese holder and clamping screw outside of the heat source when without cheese • Never place the machine on combustible materials (paper towels, etc.) • The spindle and the top of the heater get hot • Never touch the heater from below • Do not touch the machine for twenty minutes after turning it off • Without cheese the bottom of the appliance and the underlying surface become hot: keep away from combustible materials

Disposal: The power cable must be disconnected from the machine. Follow the regulations of your residential community.

Garantie • Guarantee

Garantie · Warranty
