USER MANUAL TTK 30 S TROTEC

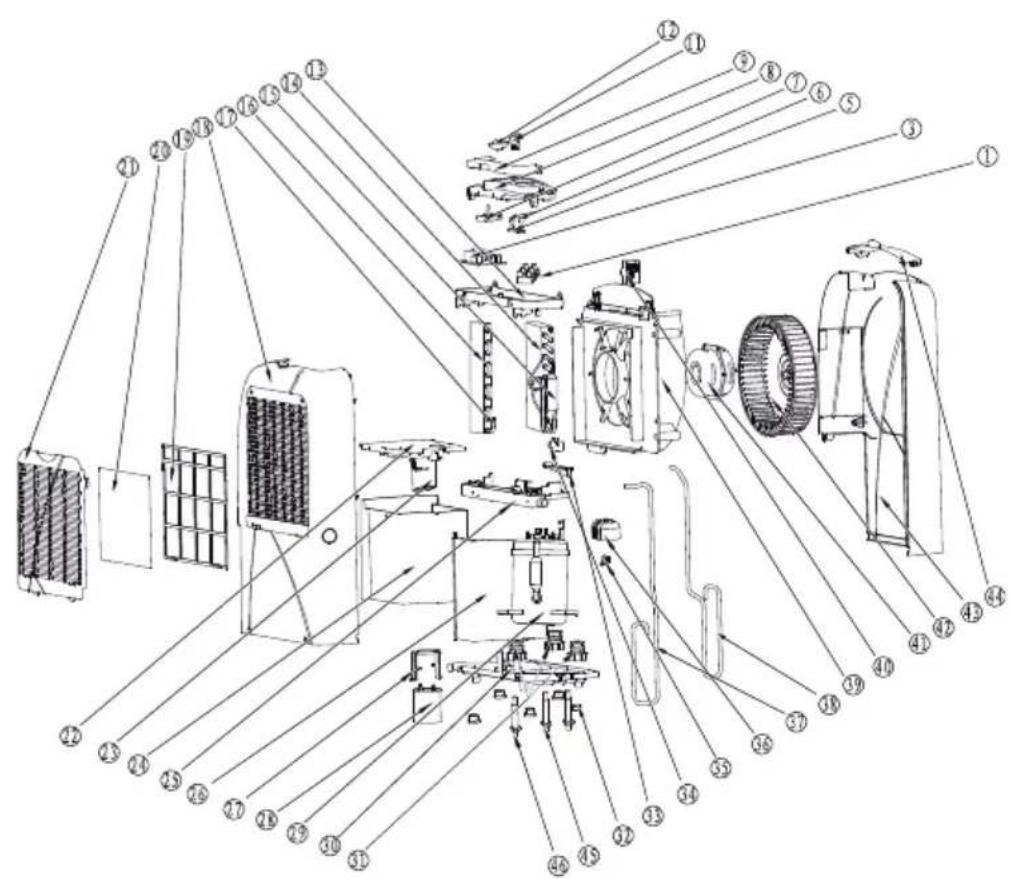

Nr. Ersatzteil
1 terminal board
3	d e f r o s t
5 indicator light board
6 indicator light cap
7 switch for selecting level
8 control panel
9 carry handle
11 mains switch
12 button for selecting level
13 electrical box
14 condenser
15 dry filter
16 evaporator
17 inlet pipe for evaporator
18 left part of case
19 filter cover
20 dust filter
21 air inlet grid
22 water tank cover
23 float
24 condensation tank
25 condensation tray

P C B

Nr. Ersatzteil

26 frame

27 compressor condensor clip

28 compressor condensor

29 compressor

30 base of case

31 rubber cushion for compressor

32 power cord cover

33 microswitch

34 switch block

35 compressor protector

36 junction box cover for compressor

37 suction pipe

38 drainage pipe

39 wind duct

40 electric capacitor

41 fan motor

42 fan

43 right part of case

44 air outlet

45 bolt fixture

46 feet cushion

Entsorgung

Notes regarding the operation Manual B-01

Information about the device B-02

Safety. B-04

Transport. B-05

Operation B-05

Errors and faults.. B-08

Maintenance. B-09

Disposal B-13

Declaration of conformity. B-13

Notes regarding the operation Manual

Symbols

Hazardous electric current!

Warns about hazards from electric current which can lead to injuries or even death.

Danger!

Wards of a hazard which can lead to personal injury.

Caution!

Wards of a hazard which can lead to damage to property.

Legal notice

This release replaces all previous releases. No part of this publication may be reproduced without written permission. The same applies for electronically processing, duplicating or spreading the publication. Subject to technical changes. All rights reserved. Trademarks are used without guarantee that they may be used freely and primarily following the spelling of the manufacturer. The product names used are registered and should be treated appropriately. The delivered product may vary from product images. This document was produced with all due care. We accept no liability whatsoever for mistakes or omissions.

© TROTEC

Warranty

The warranty is for 12 months. Damages caused by incorrect use by untrained people or commissioning by unauthorised people are excluded from the warranty.

The device complies with the fundamental health and safety requirements of the applicable EU regulations and was tested at the factory for perfect functionality multiple times. However, if faults in the functionality occur and cannot be remedied with the information in the chapter "Error and faults", please get in touch with your dealer or distributor. When making a warranty claim, supply the device number (see nameplate). The invoice acts as warranty certificate. When manufacturer's instructions or legal regulations have not been followed, or after unauthorised changes to the device are made, the manufacturer is not responsible for the resulting damages. Changes to the device or unauthorised replacement of individual parts can drastically impact the electrical safety of this product and leads to the forfeiture of the warranty. Liability does not extend to damages to people or property caused by the device being used other than as described in the instructions in this operating manual. Subject to changes to technical design and model changes as part of constant development and product improvement without prior notice.

No liability is accepted for damages resulting from improper use. In such cases, entitlements to a warranty are also forfeited.

The current version of the operating manual can be found at: www.trotec.de

Information about the device

Description of the device

This device uses the principle of condensation to automatically dehumidify rooms.

The fan sucks damp room air through the air inlet (7), the air filter (5), the evaporator and to the condenser located behind it. The air is cooled at the cold evaporator until it is below the dew point. Water vapour contained in the room air precipitates on the evaporator fins as either condensation or frost. The dehumidified, cooled air is rewarmed at the condenser and blown out at a temperature of approx. 5^ above room temperature. The drier air which is prepared in this way mixes with the air in the room. The humidity in the room where the device is positioned is reduced as air constantly circulates through the device. Depending on the air temperature and the relative humidity, the condensed water either drops continuously or only during the defrost phase into the condensation tray and through the integrated drain nozzle into the condensation tank (3) below. The condensation tank (3) is fitted with a float to measure the fill level.

The device has a control panel (4) for operating and controlling the functions. Once the maximum fill level of the condensation tank (3) is reached, the condensation tank indicator light ("FULL") on the control panel (4) is lit. The device switches off. The condensation tank indicator light only goes out again once the emptied condensation tank (3) is reinserted.

The device is not suitable for keeping the relative humidity at a very low level (below 50% ). It provides additional assistance for drying wet washing or clothing in living or working spaces. Because of the heat radiation which is tied up in operation, the room temperature can rise by approx. 1 - 4^ .

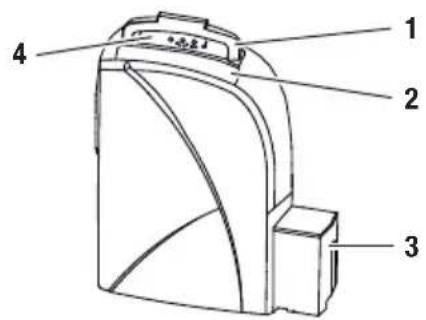

Device depiction

No. Operating element

1 carry handle

2 air outlet

3 condensation tank

4 control panel

5 air filter

6 p o w e r c a b l

7 air inlet

Technical data

Parameters Values
Model TTK 30 S
Dehumidifying capacity, max. 12 l/24 h
Operating temperature 5-35 °C
Working range for relative humidity 49-100 %
Volume of airflow, max. 100 m³/h
Electric connection 230 V / 50 Hz
Power consumption, max. 210 W
Fuse (home) 10 A
Condensation tank 1,6 l
Refrigerant R134a
Amount of refrigerant	120 g
Weight	9.1 kg
Dimensions (HxDxW)	510 x 310 x 160 mm
Minimum distance from walls of other objects	A: Above: 30 cm B: Behind: 20 cm C: Side: 20 cm D: Front: 10 cm
Sound pressure level LpA (1 m; complies with DIN 45635-01-KL3)	40 dB(A)

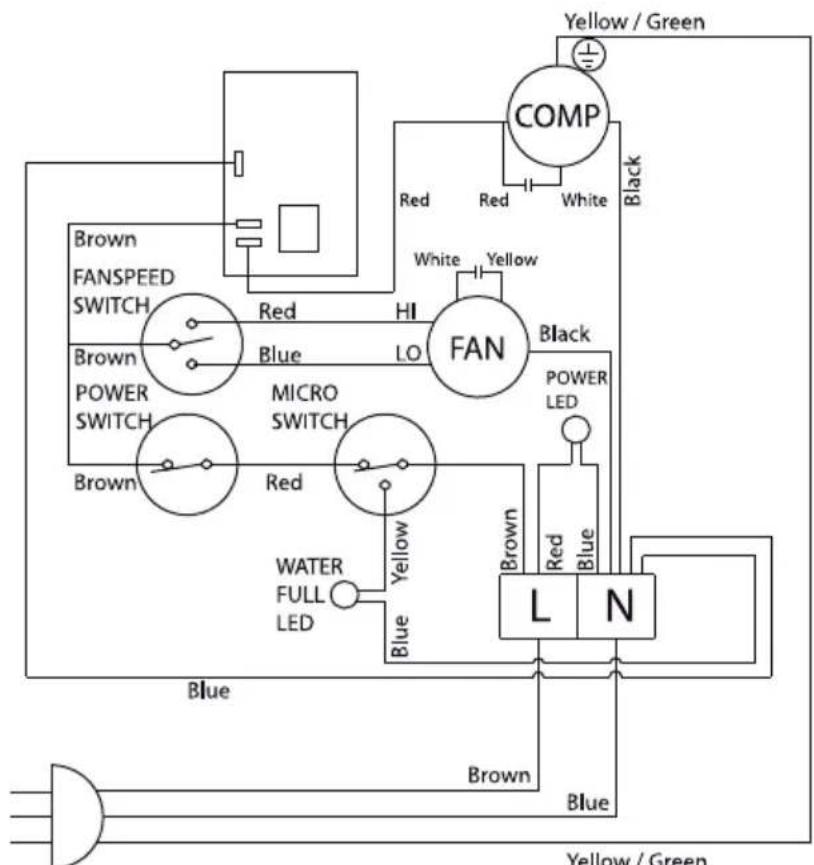

Circuit diagram
AC SOURCE

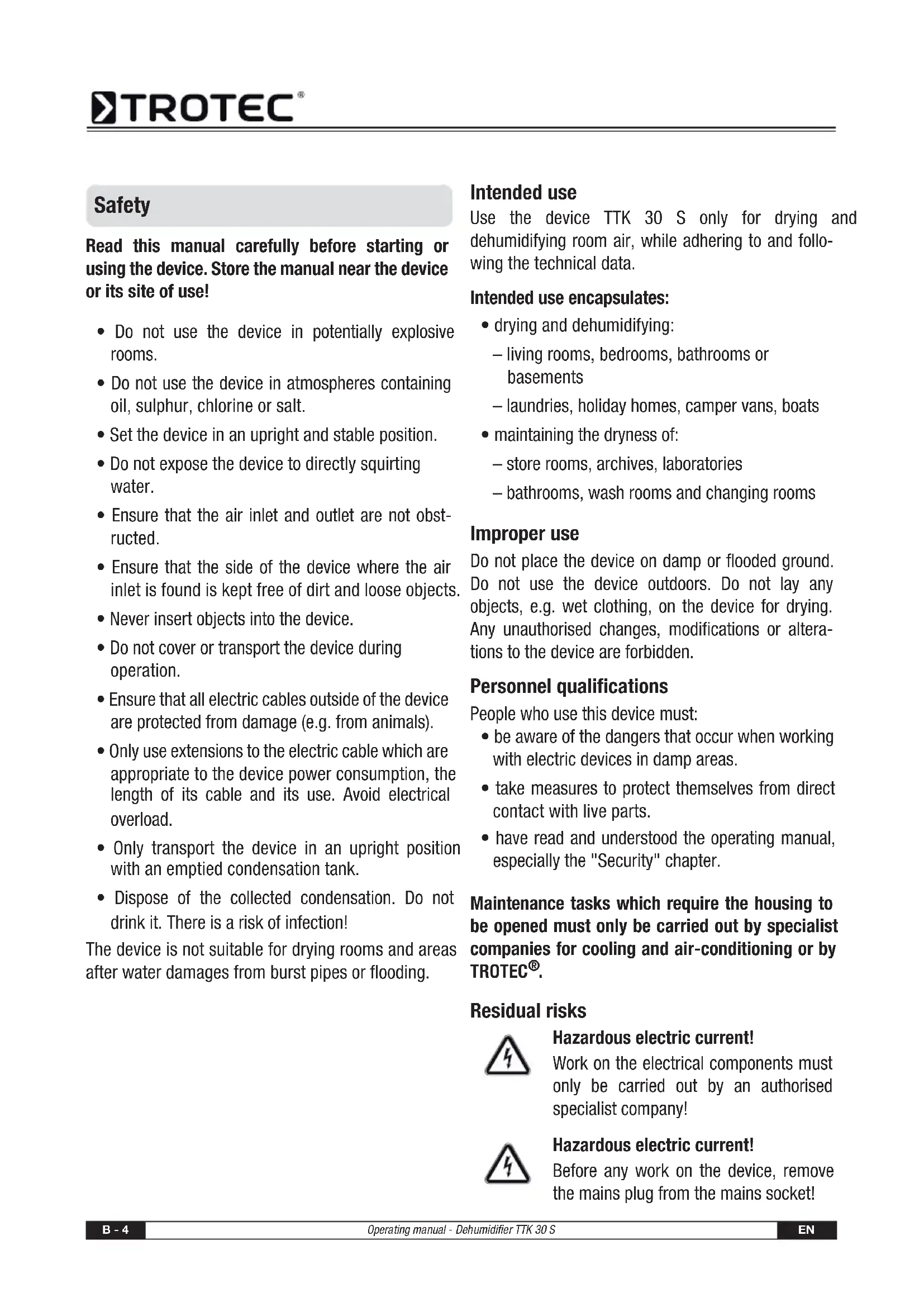

Safety

Read this manual carefully before starting or using the device. Store the manual near the device or its site of use!

• Do not use the device in potentially explosive rooms.
• Do not use the device in atmospheres containing oil, sulphur, chlorine or salt.
• Set the device in an upright and stable position.
• Do not expose the device to directly squirting water.
• Ensure that the air inlet and outlet are not obstructed.
• Ensure that the side of the device where the air inlet is found is kept free of dirt and loose objects.
• Never insert objects into the device.
• Do not cover or transport the device during operation.
• Ensure that all electric cables outside of the device are protected from damage (e.g. from animals).
• Only use extensions to the electric cable which are appropriate to the device power consumption, the length of its cable and its use. Avoid electrical overload.
• Only transport the device in an upright position with an emptied condensation tank.
• Dispose of the collected condensation. Do not drink it. There is a risk of infection!

The device is not suitable for drying rooms and areas after water damages from burst pipes or flooding.

Intended use

Use the device TTK 30 S only for drying and dehumidifying room air, while adhering to and following the technical data.

Intended use encapsulates:

• drying and dehumidifying:

living rooms, bedrooms, bathrooms or basements
- laundries, holiday homes, camper vans, boats

• maintaining the dryness of:

• store rooms, archives, laboratories

• bathrooms, wash rooms and changing rooms

Improper use

Do not place the device on damp or flooded ground. Do not use the device outdoors. Do not lay any objects, e.g. wet clothing, on the device for drying. Any unauthorised changes, modifications or alterations to the device are forbidden.

Personnel qualifications

People who use this device must:

• be aware of the dangers that occur when working with electric devices in damp areas.
• take measures to protect themselves from direct contact with live parts.
  have read and understood the operating manual, especially the "Security" chapter.

Maintenance tasks which require the housing to be opened must only be carried out by specialist companies for cooling and air-conditioning or by TROTEC.

Residual risks

Hazardous electric current!

Work on the electrical components must only be carried out by an authorised specialist company!

Hazardous electric current!

Before any work on the device, remove the mains plug from the mains socket!

Caution!

To avoid damages to the device, never operate the device without an air filter inserted!

Danger!

Dangers can occur at the device when it is used by untrained people in an unprofessional or improper way! Observe the personnel qualifications!

Behaviour in the event of an emergency

1. Disconnect the device from the mains power in an emergency.
2. Do not reconnect a defective device to the mains power.

Transport

To make the device easier to transport, it is fitted with a carry handle.

Before transporting the device, proceed as follows:

1. Switch the device off at the mains switch (see chapter "Operating elements").
2. Remove the mains plug from the mains socket. Do not use the power cable to drag the device!
3. Empty the condensation tank. Check for dripping condensation.

After transporting the device, proceed as follows:

1. Set the device in an upright position after transport.
2. Wait one hour before switching the device on!

Storage

When out of use, store the device as follows:

• dry,
  with a roof overhead,
• in an upright position where it is protected from dust and direct sunlight,

with a plastic cover to protect it from invasive dust, if necessary.
- The storage temperature is the same as the range given for the operating temperature in the chapter "Technical Data".

Operation

• After being switched on, the device operates fully automatically until the float indicates that the condensation tank is full and the device switches itself off.
• So that the built in sensor can correctly detect the humidity, the fan continues to operate until the device is switched off.
• Avoid open doors and windows.

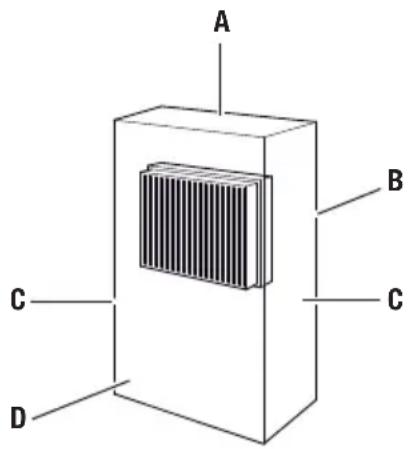

Positioning

When positioning the device, observe the minimum distance from walls of other objects as described in chapter "Technical Data".

• Set the device in a level and stable position.

• If possible, set the device in the middle of a room and keep it away from sources of heat.

• When positioning the device in wet areas such as laundries, bath rooms or the like, secure the device locally with an RCD (Residual Current protective Device) which complies with the appropriate regulations.

• Ensure that extension cords are completely unrolled.

Notes regarding the dehumidifying capacity

The dehumidifying capacity depends on:

• the spatial composition of the room
• the room temperature
  the relative humidity

The higher the room temperature and relative humidity, the higher the dehumidifying capacity.

For using in living rooms, a relative humidity of approx. 50 - 60% is sufficient. In store rooms and archives, the humidity should not exceed approx. 50% .

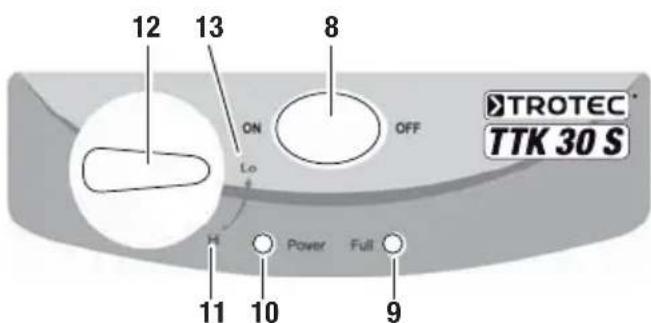

Operating elements

No. Operatng element

8 M a i n s s w i t l ("ON") = switch device on 0 ("OFF") = switch device off

9 Condensation tank full indicator light (yellow)

10 Operation indicator light (red)

11 Position "Hi" = fast ventilation

12 Selector switch to choose the level of power (Hi or Lo)

13 Position "Lo" = slow ventilation

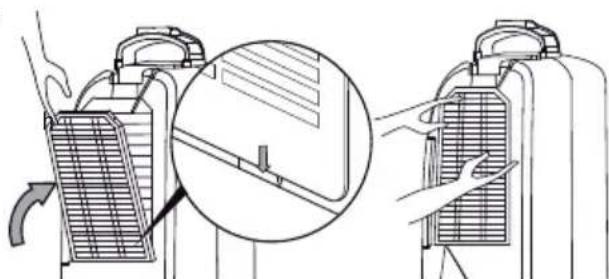

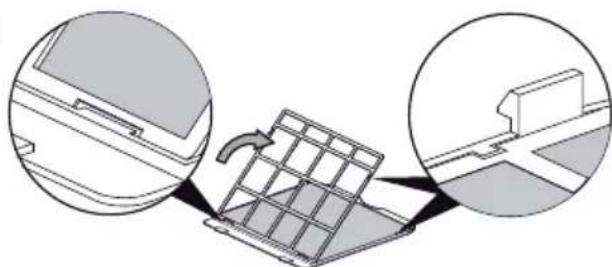

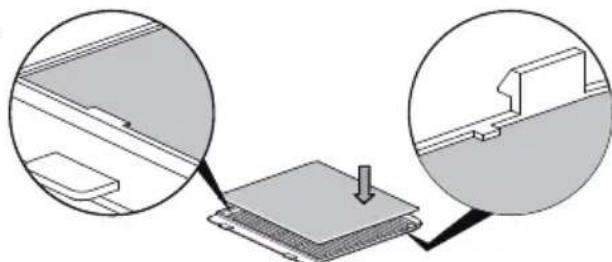

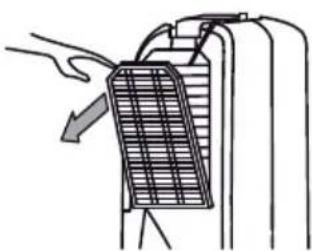

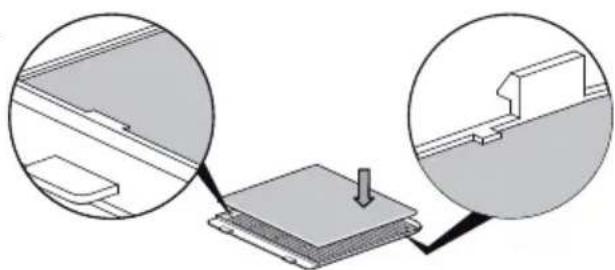

Start procedure Insert air filter

A.

B.

C.

D.

E.

Switch device on

1. Ensure that the condensation tank is empty and inserted correctly. Otherwise, the device will not operate!
2. Insert the mains plug into a properly secured mains power socket.
3. Open the flap at the air outlet (2).
4. Switch on the device at the mains switch (8).
5. Check whether the operation indicator light (10) lights up red.
6. Check whether the condensation tank indicator light (9) is out.
7. The first time that you use the device, turn the selector switch (12) to "Hi" (11).
8. Let the device run for approx. one hour in the "Hi" position (11).
9. To maintain the current humidity level, turn the selector switch (12) to "Lo" (13).

Automatic defrost

If the room temperature is below 15^ , the evaporator becomes covered in frost while dehumidifying. The device then carries out an automatic defrost approx. every 30 minutes (duration: approx. 5 minutes).

• The automatic defrost is interrupted when the mains switch (8) is pressed or the selector switch (12) is turned.
• Do not turn off the device during the automatic defrost. Do not remove the mains plug from the mains socket.

Emptying the condensation tank

A.

B.

C.

Shut down procedure

1. Switch off the device at the mains switch (see chapter "Operating elements").
2. Do not touch the mains plug with wet or damp hands.
3. Remove the mains plug from the mains socket.
4. Empty the condensation tank and wipe it dry with a clean cloth. Check for dripping condensation.
5. Clean the device, and especially the air filter, according to chapter "Maintenance".
6. Store the device according to chapter "Storage".

Errors and faults

The accurate functionality of the device was tested during production a number of times. However, if functionality faults do occur, then check the device according to the following list.

The device does not start:

• Check the mains power (230 V/1~/50 Hz).
• Check the mains plug for damages.
• Have the electrics checked by a specialist company for cooling and air-conditioning or by TROTEC®.

The device runs but forms no condensation:

• Check the condensation tank is positioned correctly. Check the fill level of the condensation tank and empty it if necessary. The condensation tank indicator light must not light up.
• Check the float in the condensation tank for damages. If necessary, clean the float and condensation tank. The float must be able to move freely.
• Check the room temperature. The working range of the device is between 5^ and 35^ .
• Ensure that the relative humidity complies with the technical data (min. 49%).
• Check the set level of operation. The humidity in the room must be above the selected range. If necessary, turn the selector switch (12) clockwise to "Hi".

• Check the air filter is not dirty. If necessary, clean or replace the air filter (see chapter "Maintenance").

• From the outside, check the condenser is not dirty (see chapter "Maintenance"). If your condenser is dirty, have it cleaned by a specialist company for cooling and air-conditioning or by TROTEC®.

The device is loud or vibrates; condensation leaks:

• Check whether the device is standing upright and on an even surface.

The device gets very warm, is loud or is losing performance:

• Check the air inlets and air filter are not dirty. Remove external dirt.
• Check the inside of the device and especially the fan, the fan housing, the evaporator and the condenser for external dirt (see chapter "Maintenance").

If the inside of the device is dirty, have it cleaned by a specialist company for cooling and air-conditioning or by TROTEC®.

The device stops while dehumidifying:

• Check whether the room temperature is above or below the specified operating temperature (see chapter "Technical Data").

Wet laundry does not dry:

• Point the air flow onto the washing.
• Check the room temperature. Ensure the room temperature is sufficiently high.

Does your device still not operate correctly after these checks?

Bring the device to a specialist company for cooling and air-conditioning or to TROTEC® for repairs.

Maintenance

Maintenance intervals

Maintenance and care interval	before every start	when necessary	at least every 2 weeks	at least every 4 weeks	at least every 6 months	at least annually
empty condensation tank X
check air inlets and outlets for dirt and foreign objects and clean if necessary	X

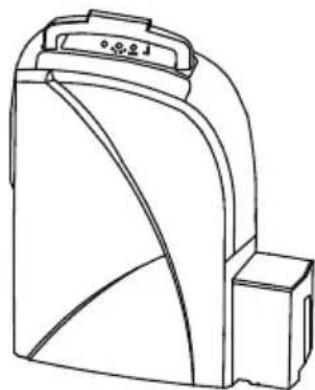

clean housing XX

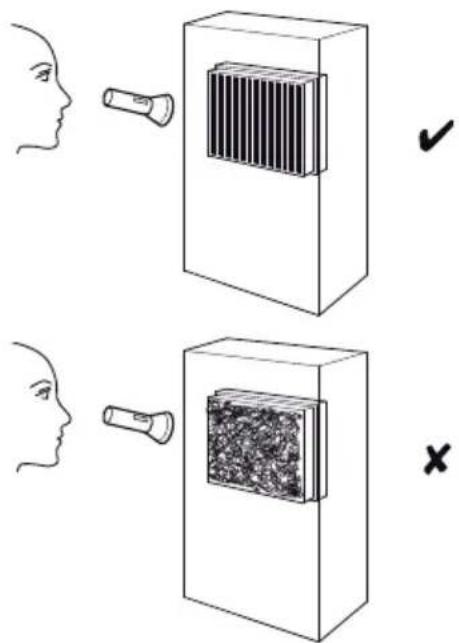

visually check whether the inside of the device is dirty		X		X

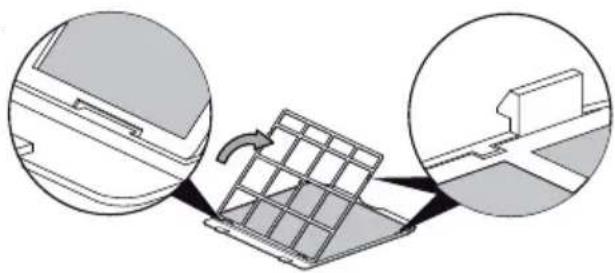

check air inlet grid and air filter for dirt and foreign objects and clean or replace if necessary	X		X
replace air filter X
check for damages X
check attachment screws XX
carry out a test run X

Maintenance and care log

Device type: Device number:

Maintenance and care interval	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16
check air inlets and outlets for dirt and foreign objects and clean if necessary
clean housing
visually check whether the inside of the device is dirty
check air inlet grid and air filter for dirt and foreign objects and clean or replace if necessary
replace air filter
check for damages
check attachment screws
carry out a test run
Remarks:

1. Date: Signature:	2. Date: Signature:	3. Date: Signature:	4. Date: Signature:
5. Date: Signature:	6. Date: Signature:	7. Date: Signature:	8. Date: Signature:
9. Date: Signature:	10. Date: Signature:	11. Date: Signature:	12. Date: Signature:
13. Date: Signature:	14. Date: Signature:	15. Date: Signature:	16. Date: Signature:

Activities for before the start of maintenance

1. Do not touch the mains plug with wet or damp hands.
2. Before any work, detach the mains plug!
3. Do not remove the float from the condensation tank.

Maintenance tasks which require the housing to be opened must only be carried out by specialist companies for cooling and air-conditioning or by TROTEC.

Visual check for dirt in the inside of the device

1. Remove the air filter (see chapter "Cleaning the air inlets and the air filter").
2. Shine a torch through the opening of the device.
3. Check the inside of the device for dirt.
4. If you see a thick layer of dust, have the inside of the device cleaned by a specialist company for cooling and air-conditioning or by TROTEC®.
5. Put the air filter back in.

Cleaning the housing and condensation tank

1. Use a soft, lint-free cloth for cleaning.
2. Dampen the cloth with clean water. Do not use sprays, solvents, alcohol-based or abrasive cleaners to dampen the cloth.

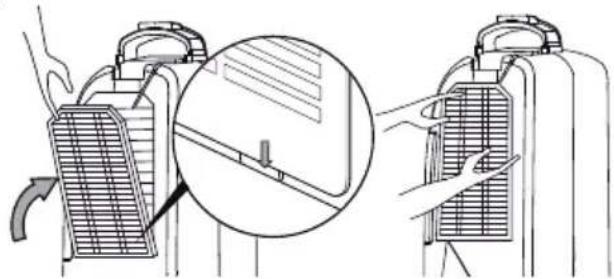

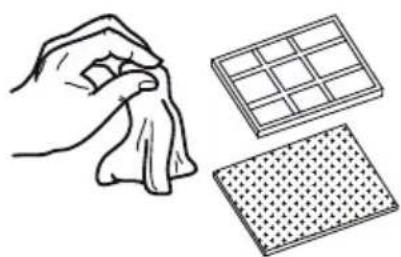

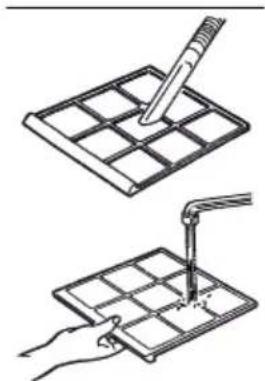

Cleaning the air inlets and the air filter

A.
B.

C.

E.

F.

Caution!

Ensure that the air filter is not worn or damaged. The corners and edges must not be rounded or misshaped.

Before reinserting the air filter, ensure that it is dry and is not damaged!

Read the chapter "Maintenance intervals" and replace the air filter punctually!

D.

Overview and list of spare parts

NOTE!

The position numbers of the spare parts differ from those describing the positions of other parts mentioned in this operating manual.

No. Spare part

1 terminal board

3 d e f r o s t

5 indicator light board

6 indicator light cap

7 switch for selecting level

8 control panel

9 carry handle

11 mains switch

12 button for selecting level

13 electrical box

14 condenser

15 dry filter

16 evaporator

17 inlet pipe for evaporator

18 left part of case

19 filter cover

20 dust filter

21 air inlet grid

22 water tank cover

23 float

24 condensation tank

25 condensation tray

P C B

No. Spare part

26 frame

27 compressor condensor clip

28 compressor condensor

29 compressor

30 base of case

31 rubber cushion for compressor

32 power cord cover

33 microswitch

34 switch block

35 compressor protector

36 junction box cover for compressor

37 suction pipe

38 drainage pipe

39 wind duct

40 electric capacitor

41 fan motor

42 fan

43 right part of case

44 air outlet

45 bolt fixture

46 feet cushion

Disposal

In the European Union, electronic equipment must not be treated as domestic waste, but must be disposed of professionally in accordance with Directive

2002/96/EC of the European Parliament and Council of 27th January 2003 concerning old electrical and electronic equipment. At the end of its life, please dispose of this instrument in a manner appropriate to the relevant legal requirements.

The device uses an environmentally friendly and ozone-neutral refrigerant (see chapter "Technical Data"). Dispose of the refrigerant/oil mixture appropriately and according to the national regulations.

Declaration of conformity

in accordance with the EC Low Voltage Directive 2006/95/EC, Annex III, Section B and the EC Directive 2004/108/EC about electromagnetic compatibility.

Herewith, we declare that the dehumidifier TTK 30 S was developed, constructed and produced in compliance with the named EC directives.

Applied harmonised standards:

IEC 60335-1:2001/A2:2006

IEC 60335-2-40:2002/A1:2005

IEC 62233:2005

Manufacturer:

Trotec GmbH & Co. KG Phone: [phone]

1 Date: Signature:	2 Date: Signature:	3 Date: Signature:	4 Date: Signature:
5 Date: Signature:	6 Date: Signature:	7 Date: Signature:	8 Date: Signature:
9 Date: Signature:	10 Date: Signature:	11 Date: Signature:	12 Date: Signature:
13 Date: Signature:	14 Date: Signature:	15 Date: Signature:	16 Date: Signature:

N° Pièce de rechange

1 terminal board

3 d e f r o s t

5 indicator light board

6 indicator light cap

7 switch for selecting level

8 control panel

9 carry handle

11 mains switch

12 button for selecting level

13 electrical box

14 condenser

15 dry filter

16 evaporator

17 inlet pipe for evaporator

18 left part of case

19 filter cover

20 dust filter

21 air inlet grid

22 water tank cover

23 float

24 condensation tank

25 condensation tray

P C B

N° Pièce de rechange

26 frame

27 compressor condensor clip

28 compressor condensor clip

29 compressor

30 base of case

31 rubber cushion for compressor

32 power cord cover

33 microswitch

34 switch block

35 compressor protector

36 junction box cover for compressor

37 suction pipe

38 drainage pipe

39 wind duct

40 electric capacitor

41 fan motor

42 fan

43 right part of case

44 air outlet

45 bolt fixture

46 feet cushion

N. Componente
1 terminal board
3	d e f r o s t
5 indicator light board
6 indicator light cap
7 switch for selecting level
8 control panel
9 carry handle
11 mains switch
12 button for selecting level
13 electrical box
14 condenser
15 dry filter
16 evaporator
17 inlet pipe for evaporator
18 left part of case
19 filter cover
20 dust filter
21 air inlet grid
22 water tank cover
23 float
24 condensation tank
25 condensation tray

P C B

N. Componente

26 frame

27 compressor condensor clip

28 compressor condensor

29 compressor

30 base of case

31 rubber cushion for compressor

32 power cord cover

33 microswitch

34 switch block

35 compressor protector

36 junction box cover for compressor

37 suction pipe

38 drainage pipe

39 wind duct

40 electric capacitor

41 fan motor

42 fan

43 right part of case

44 air outlet

45 bolt fixture

46 feet cushion

Smaltimento

Nr. Reserveonderdeel

1 terminal board

3 d e f r o s t

5 indicator light board

6 indicator light cap

7 switch for selecting level

8 control panel

9 carry handle

11 mains switch

12 button for selecting level

13 electrical box

14 condenser

15 dry filter

16 evaporator

17 inlet pipe for evaporator

18 left part of case

19 filter cover

20 dust filter

21 air inlet grid

22 water tank cover

23 float

24 condensation tank

25 condensation tray

P C B

Nr. Ersatzteil

26 frame

27 compressor condensor clip

28 compressor condensor

29 compressor

30 base of case

31 rubber cushion for compressor

32 power cord cover

33 microswitch

34 switch block

35 compressor protector

36 junction box cover for compressor

37 suction pipe

38 drainage pipe

39 wind duct

40 electric capacitor

41 fan motor

42 fan

43 right part of case

44 air outlet

45 bolt fixture

46 feet cushion

Recycling

No Pieza de recambio

1 terminal board

3 d e f r o s t

5 indicator light board

6 indicator light cap

7 switch for selecting level

8 control panel

9 carry handle

11 mains switch

12 button for selecting level

13 electrical box

14 condenser

15 dry filter

16 evaporator

17 inlet pipe for evaporator

18 left part of case

19 filter cover

20 dust filter

21 air inlet grid

22 water tank cover

23 float

24 condensation tank

25 condensation tray

P C B

N° Pieza de recambio

26 frame

27 compressor condensor clip

28 compressor condensor

29 compressor

30 base of case

31 rubber cushion for compressor

32 power cord cover

33 microswitch

34 switch block

35 compressor protector

36 junction box cover for compressor

37 suction pipe

38 drainage pipe

39 wind duct

40 electric capacitor

41 fan motor

42 fan

43 right part of case

44 air outlet

45 bolt fixture

46 feet cushion

Eliminación

N° Peça sobressalente

1 terminal board

3 d e f r o s t

5 indicator light board

6 indicator light cap

7 switch for selecting level

8 control panel

9 carry handle

11 mains switch

12 button for selecting level

13 electrical box

14 condenser

15 dry filter

16 evaporator

17 inlet pipe for evaporator

18 left part of case

19 filter cover

20 dust filter

21 air inlet grid

22 water tank cover

23 float

24 condensation tank

25 condensation tray

P C B

N° Peça sobressalente

26 frame

27 compressor condensor clip

28 compressor condensor

29 compressor

30 base of case

31 rubber cushion for compressor

32 power cord cover

33 microswitch

34 switch block

35 compressor protector

36 junction box cover for compressor

37 suction pipe

38 drainage pipe

39 wind duct

40 electric capacitor

41 fan motor

42 fan

43 right part of case

44 air outlet

45 bolt fixture

46 feet cushion

Disposicao
