USER MANUAL LO10.100H Euromac
EN - Instruction booklet
EN This symbol on your device means: do not cover!
1 - anti-stof-filter (1)
1 - anti-stofffilter
HET APPARAAT WERKT NIET:
Read and retain these instructions for future reference!
Technical specifications
| EUROM LO10.100H | |
| Power supply | 220-240 Volt / 50 Hz |
| Test condition | DB 30°C, RH 80% |
| Dehumidification capacity | 10 liter per dag |
| Power / Ampere consumption | 220 Watt - 1,23 Amp |
| Lair volume (max.) | 100 m³/eur |
| Refrigerant | R134a |
| Working range | 5 – 32°C |
| Water tank | 1,5 liter |
| Size (WxDxH) | 23 x 29 x 42,5 cm |
| Weight | 10 kg. |
Cautions before use
Always keep the unit in vertical position.
- Leave the unit to stand for one hour before connecting to the mains supply after transport or when it has been tilted (e.g. during cleaning).
- Keep all foreign objects away from the air intake or output openings.
- The mains supply must conform to the specification shown on the rating plate at the back of the unit.
- If the supply cord is damaged, it must be replaced by an approved service representative or a similar qualified person in order to avoid a hazard.
- Never use the plug to start and stop the unit. Always use switch on the control panel.
Before moving the unit, first switch off, then unplug and empty the water tank.
- Don't use bug sprays or other flammable cleaners on the unit.
- Never pour or spray water over the unit.
- This appliance is not intended for use by persons (including children) with reduces physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with appliance.
- IMPORTANT! Do not use this unit at ambient temperatures below 5oC, to prevent the possibility of a heavily ice up evaporating coil.

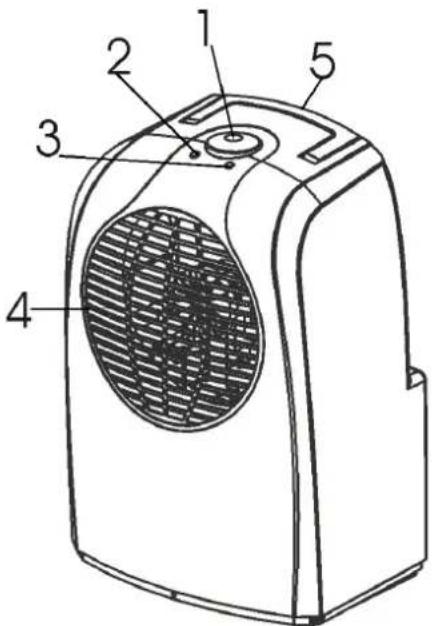

Description
1-ON/OF-button en humidity controller
2-Full water'indicator
3 - Compressor operation indicator
4-Air outlet
5- Handle

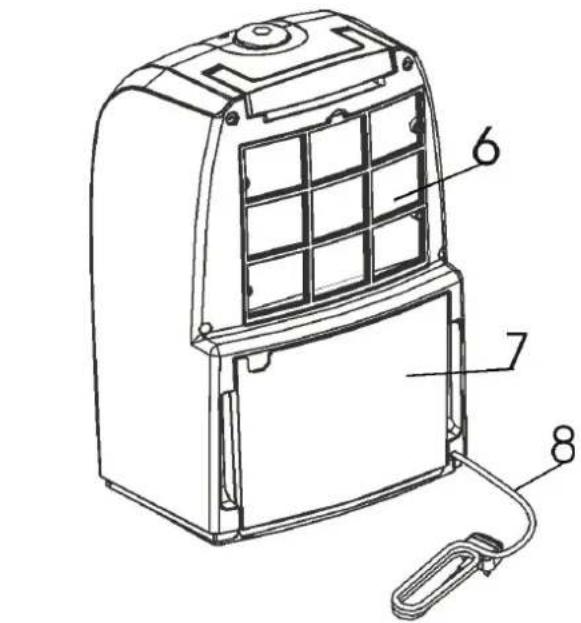

6-Air inlet & air filter
7-Water tank
8 - Power cable
Accessoire:
Active carbon filter

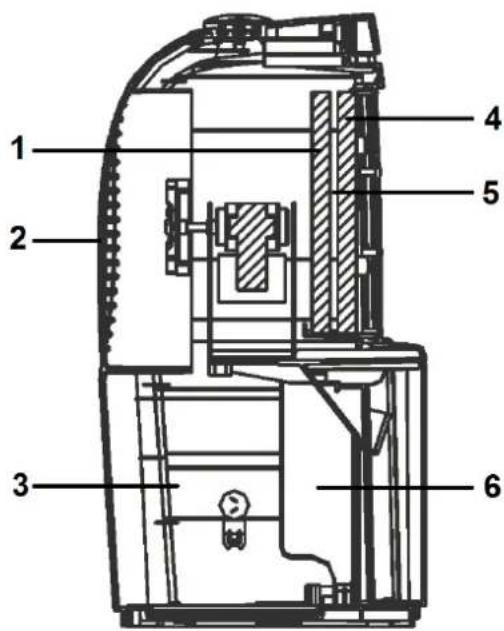

1-Condenser
2- Outlet dry warm air
3 - Compressor
4-Evaporateur
5 - Inlet moist saturated air
6-Watertank
This product is a dehumidifier. It controls relative humidity by passing the air through the unit, forcing the excess moisture to condensate over the cooling elements. Contact with this cold surface causes the moisture in the air to condense. This condensed water then drains safely into the water tank. The dried air then passes through the condenser where it is slightly warmed and re-enters the room at a slightly elevated temperature.
Position
Excess moisture will travel throughout your home, in the same way that cooking smells waft to every room in the house. For this reason, the dehumidifier should be positioned, so that it can draw this moist air towards it from all over the home.
Alternatively, if you have a serious problem in one area you can begin by positioning the dehumidifier close to this area and later moving it to a more central point.
When positioning the dehumidifier, ensure that it is placed on a level surface and that there is a minimum of 10cm (4") of space on either side of the unit to allow for efficient airflow.
If you move the unit, it should first be switched off and the water tank emptied.
We do not recommend the use of an extension lead, so please try to ensure that the unit is sufficiently close to a fixed mains socket. If it is necessary to use an extension lead, please ensure the diameter of the wires of the cable is at least 1mm2
When the dehumidifier is in operation, outside doors and windows should be closed when necessary for most efficient use.

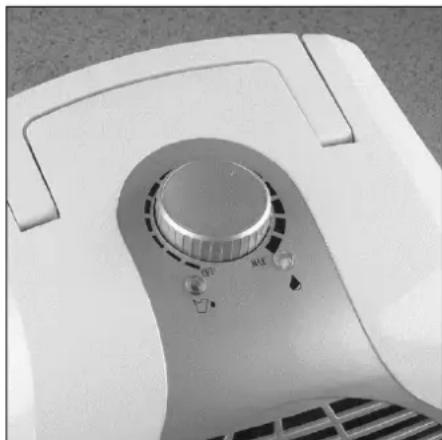

Operation
- Plug the unit into a correct mains socket. (Please refer to the rating label for correct voltage/frequency.)
- Turn ON/OFF button & humidity controller clockwise away from the OFF-position. As soos as the present humidity-level is passed, the compressor will start to work. The indicator will turn into green.
- Set the ON/OFF-button & humidity controller to the required humidity level level (the intensity of humidity extraction is increased clockwise). When the required humidity is reached, the humidifier wil stop automatically. For continuous working, set the humidistat to position 'MAX'.
- To turn off the unit, turn ON/OFF button back to 'OFF'. Unplug always after use.
Drainage
While the water tank is full, the compressor will stop for self-protection and the water full indicator will turn into red.
To move the water tank, pull it out squarely from the unit.
After empting the water tank, place the water tank into space. Make sure it is properly positioned, in order for the 'water full' sign to go out and your dehumidifier is operating.
Please note: in case, the water tank has not been positioned well, the water full indicator will turn into red. The equipment does not work.

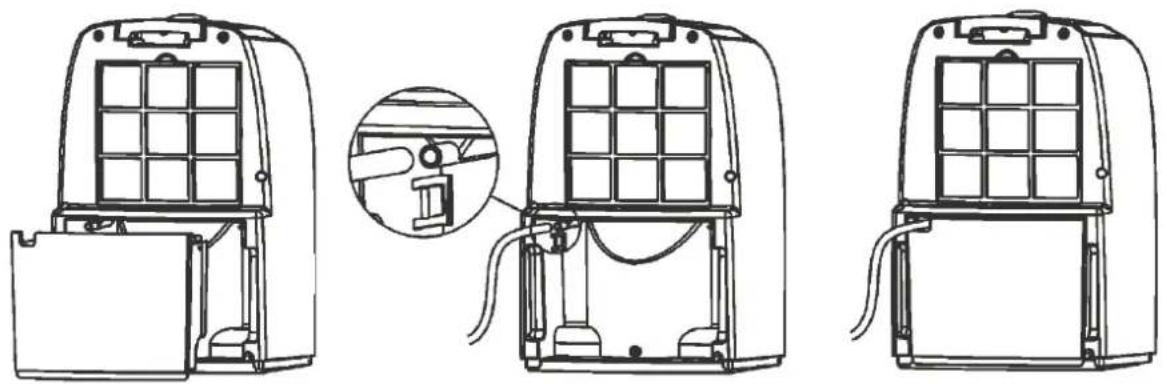

Continuous drainage
When the dehumidifier is operated at very high humidity levels, the water tank will require more frequent drainage. In this situation, it may be more convenient to set the unit up for continuous drainage with the following procedures:
- Pull out the water tank.
-
Connect the drain hole with water tube of inner diameter: 9mm. Please note: the water tube is not supplied with the unit. Lead the tube down into a drain or a big container.
-
Ensure the water will always drain away freely and the tube will remain in right place. Note! In very cold weather conditions, precautions should be taken to prevent the water tube from freezing.
-
Put the water tank back to its position. Without tank the equipment will not work.
Maintenance
Always unplug the unit from the mains before carrying out any maintenance or cleaning of the unit.
Cleaning the body
Use a soft cloth to wipe the unit clean. Don't ever use volatile chemicals, gasoline, detergents, chemically treated clothes, or other cleansing solutions. These all could possibly hurt the cabinet.

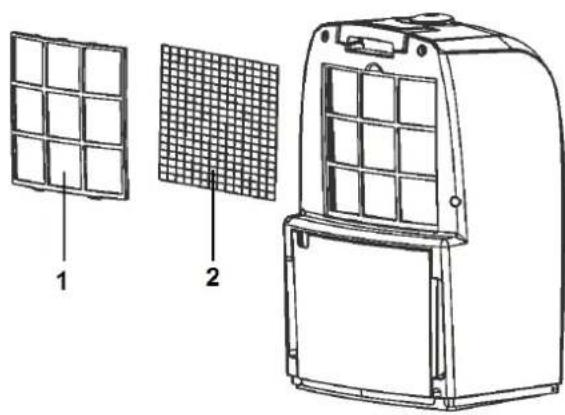

Cleaning the filter
This dehumidifier is equipped with 2 filters:
1 - anti-dust-filter (1)
2 - activ carbon filter (2).
1. Anti-dust-filter
- Extract the filter holder, remove the active carbon filter.
- Use a vacuum cleaner or tap the filter lightly for easy cleaning. If the filter is particularly dirty, use warm water with a small amount of medium strength.
Make sure the filter is completely dry before replacing. - Do not expose the filter to sunlight.
2 - activ carbon filter
This filter is for capturing the particles of dust suspended in the air and preventing the production of bacteria.
The active carbon filter placed under the anti-dust filter is not washable. Its life span is variable and depends on the ambient conditions where the unit is used. The filter should be checked periodically and replaced if necessary.
Storage
If not use the unit for an extended period of time. Please:
- Turing the unit off, unplug and tidy AC cord.
- Completely empty the water tank and wipe it clean.
- Cover the unit and store where it will not receive direct sunlight.
Trouble shooting
THE UNIT DOES NOT OPERATE:
Is the unit plugged in?
Is the house electricity on?
- Is the room temperature below 5^ or above 35^ ? If so, then it is out of the working range of the unit.
- Is the humidity controller & ON/OFF switch on a right level? On a too low level or OFF the equipment doesn't work.
- Check the water tank is positioned properly in the unit and it is not full.
- Make sure the air inlet and outlet are not obstructed.
THE UNIT SEEMS TO DO NOTHING:
Is the filter dusty, contaminated?
Is the air intake or outlet blocked up?
Is the room humidity already quite low?
THE UNIT SEEMS TO DO LITTLE:
- Are too many windows or doors open?
- Is there something in the room producing lots of humidity?
THE UNIT IS TOO NOISY:
- Check whether the unit is sitting on a level, flat and solid surface.
THE UNIT IS LEAKING:
- Make sure the unit and the watertank are not damaged and don't show cracks or deformations.
CE-statement
Euromac bv., Genemuiden-NL hereby declares that the EUROM dehumidifier, type LO10.100H, complies with the LVD guideline 2006/95/EC and the EMC guideline 2004/108/EC (amended by 93/68/EEC) and meets the following standards:
EN 60335-2-40/A13:2012
EN 55014-1/A2:2011
EN 60335-1/A11:2014
EN 55014-2/A2:2008
EN 62233 :2008
EN 61000-3-2/A2:2009
ZEK01.4-08
EN 61000-3-3:2013
