Notice BONECO 7064 - page 16
Pick your language and provide your email: we'll send you a specifically translated version.
Product typeDehumidifier
BrandBONECO
Model7064
Dimensions (W x D x H)310 x 230 x 535 mm
Weight11.6 kg
Power supply220-240 V / 50 Hz
Power consumption360 W
Dehumidification capacity18 L/day (at 30°C, 80% RH)
Water tank2.7 L
RefrigerantR134A (160 g)
Air filterWashable
Main functions24h timer, humidity setting 40-80%, 2 fan speeds, automatic defrost
Continuous drainagePossible with hose (outer diam. 14 mm, inner 10 mm)
SafetyAutomatic shut-off when tank full, temperature protection 5-35°C
Maintenance and cleaningClean the filter with warm water, do not use solvents
StorageEmpty the tank, clean the filter, store in a cool, dry place

Frequently Asked Questions - 7064 BONECO

How to set the desired humidity?
Press the humidity switch (C) repeatedly until the desired value is reached (in 5% steps, from 40% to 80%). The LED [5] lights up during adjustment.
How to use the timer (TIMER)?
To automatically turn on the device, press TIMER (B) when the device is off until the start time is displayed. To automatically turn it off, do the same when the device is operating. Set to 00 to cancel.
What to do when the water tank is full?
The device emits 15 beeps and the LED [1] lights up. Press the sides of the tank to remove it, empty it, then replace it correctly. The LED goes out.
How to set up continuous drainage?
Turn off and unplug the device. Open the drain hole in the tank (remove part A). Connect a hose (outer diam. 14 mm, inner 10 mm) to the connection (part B) and place the other end in a drain. The tank must remain in place.
How to clean the air filter?
Unplug the device. Remove the filter holder. Vacuum gently or clean with warm water and a little detergent, rinse with cold water, dry completely before reinstalling. Do not put the filter in direct sunlight or near a heat source.
The device does not turn on, what to check?
Check that the plug is connected. If the tank full LED blinks, empty and replace the tank. Ensure the room temperature is between 5°C and 35°C. Above 35°C or below 5°C, the safety prevents startup.
The dehumidification is not working, why?
Check that the air filter is not clogged (clean it if necessary). Ensure there is no obstacle in front of the air inlet or outlet. If the ambient humidity is lower than the set value, the device stops dehumidification but the fan continues.
The noise level is high, what to check?
Place the device on a flat, stable surface. Check and clean the air filter if it is clogged. A dirty filter can increase noise.
How often should the air filter be cleaned?
At least once a month, and after a period of storage. A clean filter ensures efficient operation and reduces noise.
Can I use the device at temperatures below 5°C?
No, the device must not be used below 5°C. At low temperatures, automatic defrost activates, but below 5°C, the safety prevents operation.

User questions about 7064 BONECO

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Dehumidifier in PDF format for free! Find your manual 7064 - BONECO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 7064 by BONECO.

USER MANUAL 7064 BONECO

natural_image Line drawing of a portable air purifier unit (no text or symbols)

BONECO 7064 - 1

text_image BONECO

BONECO D7064

This product contains fluorinated gases covered by the Kyoto Protocol
Chemical Name of the Gas R134A
Global Warming Potential (GWP) of the Gas 1300

Instructions for use (13 - 20)

natural_image Line drawing of a basin with a water-filled container and a handle, no text or symbols present

BONECO 7064 - 2

text_image 7

BONECO 7064 - 3

text_image 2

BONECO 7064 - 4

natural_image Diagram of a device with scissors and a tool, no text or symbols present

BONECO 7064 - 5

natural_image Diagram showing a portable air purifier connected to a door with a cross mark, no text or symbols present

BONECO 7064 - 6

text_image 3

BONECO 7064 - 7

natural_image Diagram of a device with a cross mark and a label '6' (no text or symbols on the device itself)

BONECO 7064 - 8

natural_image Line drawing of a rectangular electronic device with a cross mark symbol overlay (no text or symbols present)

Aufstellung

text_image Diagram showing a hand cleaning a chemical reactor with an AC acid container, indicating chemical protection or disinfection.

11

BONECO 7064 - Aufstellung - 1

natural_image Line drawing of a washing machine with a vertical panel and upward arrow indicating motion (no text or symbols)

12
BONECO 7064 - Aufstellung - 2

natural_image Line drawing of a washing machine with a downward arrow indicating a drop (no text or symbols present)
natural_image Line drawing of a portable air conditioner unit with cooling fan and door (no text or symbols)

14
BONECO 7064 - Aufstellung - 3

natural_image Technical line drawing of a mechanical component with motion lines indicating movement (no text or symbols)

15
BONECO 7064 - Aufstellung - 4

natural_image Technical line drawing of a device with a magnified inset showing internal components (no text or symbols)

Instructions for use

en

Preface

We would like to congratulate you on your decision to purchase a BONECO D7064 dehumidifier. If the relative humidity is too high, the air in a room cannot absorb the moisture in it. The result is that it condenses on cold surfaces (windows, badly insulated walls) or household objects.

The consequences are:

  • Mildew/fungi
  • Stains
  • Corrosion
  • Polluted air

The possible effects of fungi on health vary from problems with breathing, allergy reactions and irritated eyes to stomach complaints.

Tips for your health

The use of a dehumidifier does not replace the need to air a room regularly. The dehumidifier may absorb the excess moisture but it cannot remove harmful substances. If you think that your health complaints are connected with influences in living or working areas, you should undergo a full health examination and have yourself specially tested for the presence of harmful substances in your body. Depending on the diagnosis, it is advisable to have a biological test carried out on the areas.

Important safety directions

  • Carefully read the safety directions before using and maintaining your product.
  • Remove all packaging material from the appliance. Ensure that it does not come into the vicinity of babies or small children, thus preventing the danger of suffocation.
  • Before you connect the appliance to the power supply, you should check whether the voltage is within the limits indicated on the type plate.
  • The dehumidifier may only be used for the ends for which it was developed. PLASTON is not liable for damage arising from inappropriate use.
  • The dehumidifier is a safe appliance. But you should, in common with other electrical appliances, always use it with care.
  • Before turning on the appliance for the first time, you should ensure that it has been upright for at least 2 hours prior to operation.

BONECO 7064 - Important safety directions - 1

This appliance may not be used in temperatures lower than 5 °C.

Important!

  • The appliance has been designed for indoor use.
  • Voltage: This appliance must be connected to an earthed socket with 220 – 240 V / 50Hz.
  • The use of the appliance must meet the directives of the country in which it is used. If you are not sure whether the power socket is suitable, have it checked and, where necessary, adapted by a certified electrician.

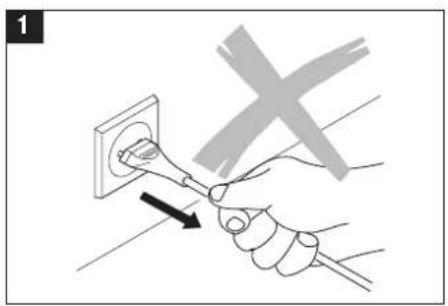

  • Remove the plug from the socket when the appliance is not in use. Never remove the plug by pulling on the lead (1).

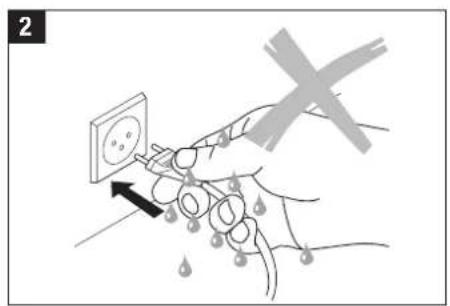

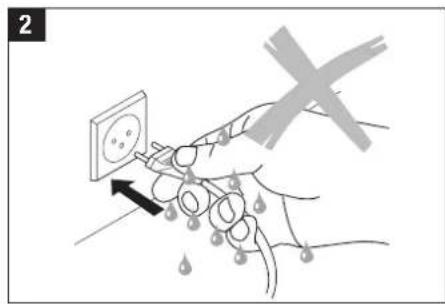

  • Do not operate the appliance with wet hands (2).

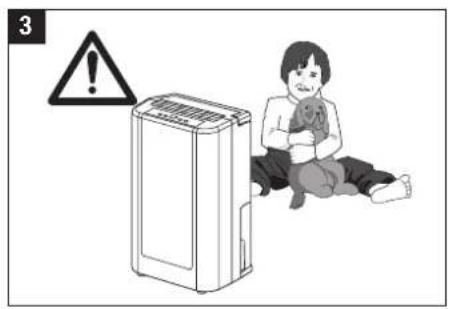

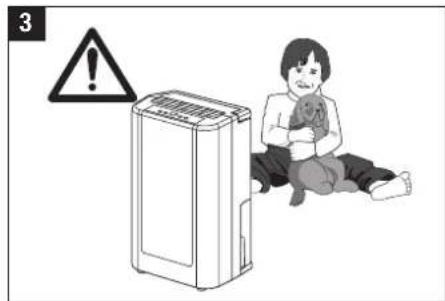

  • Do not allow children in the vicinity of the appliance (3).

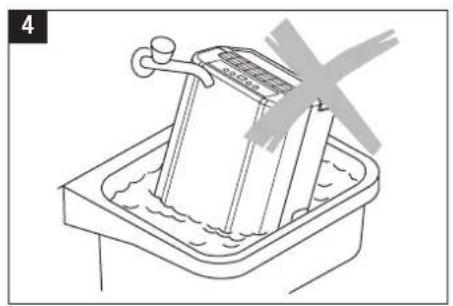

  • Do not clean the appliance with water nor immerse it in water (4).
  • Remove the plug from the socket before cleaning the appliance or parts of the appliance.

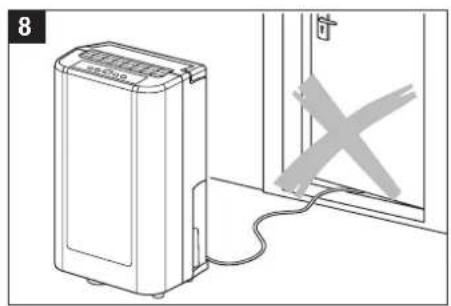

  • Do not connect the appliance with an extension cable. If there is no socket in the vicinity, you should have a new socket installed by a qualified electrician. If the electrical lead is damaged, you should have this replaced by a recognised representative of customer service or a person similarly qualified, in order to prevent the chance of injury.

BONECO 7064 - Important! - 1

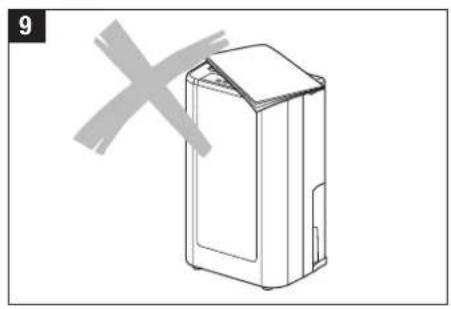

Do not use the dehumidifier in the following circumstances:

BONECO 7064 - Important! - 2

text_image 1

BONECO 7064 - Important! - 3

natural_image Line drawing of a basin with a water-filled basin and a handle, no text or symbols present

BONECO 7064 - Important! - 4

text_image 7

BONECO 7064 - Important! - 5

text_image 2

BONECO 7064 - Important! - 6

natural_image Illustration of a device with scissors and a tool, no text or symbols present

BONECO 7064 - Important! - 7

natural_image Diagram showing a device connected to a door with a crossed-out X mark (no text or symbols present)

BONECO 7064 - Important! - 8

text_image 3

BONECO 7064 - Important! - 9

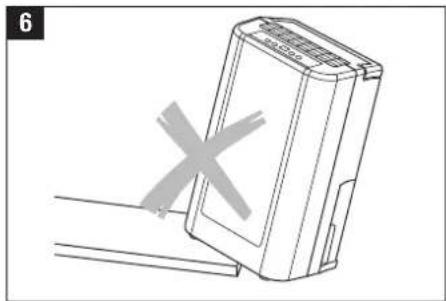

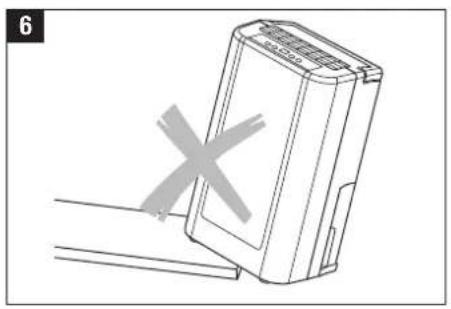

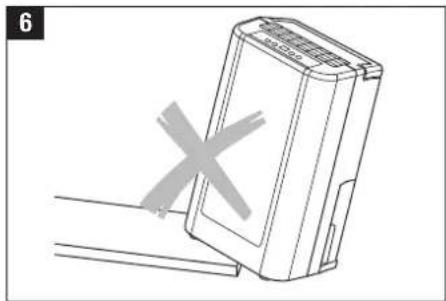

natural_image Diagram of a device with a cross mark and a label '6' (no text or symbols on the device itself)

BONECO 7064 - Important! - 10

natural_image Line drawing of a rectangular electronic device with a cross mark symbol on the left side (no text or labels)

Installation

  • Once you have switched on your appliance, the BONECO dehumidifier protects your home from the damaging effects of high humidity.
  • Surplus moisture spreads through your house in the same way as cooking smells. For this reason, the dehumidifier should be place in a central and easily accessible position, so that it can remove the moist air from all areas within the house. A heated hall or landing is an ideal place for the dehumidifier. If possible, the doors inside the house should be left open to allow air circulation.
  • If you have a special moisture problem in a particular room, you can first place the dehumidifier there and later place it in a more central position.
  • When the dehumidifier is operating, outside doors and windows should be kept closed so that the appliance can operate effectively. Make sure that the appliance is not situated directly next to a radiator or other source of heat.
  • When situating the BONECO dehumidifier, make sure that the place chosen is level and that it is sufficiently far from interior objects to allow air to circulate freely.

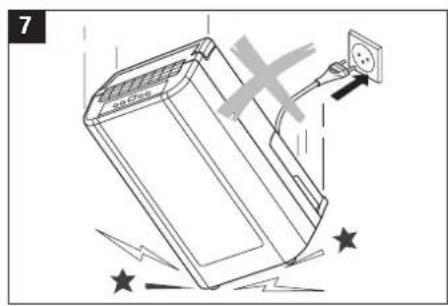

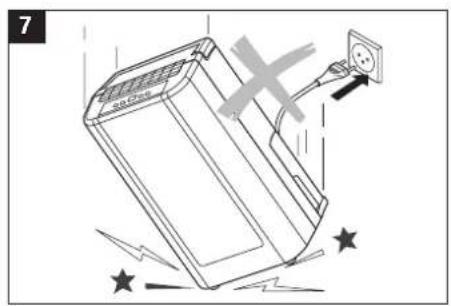

  • Before moving the appliance, it should be switched off and the water reservoir should be emptied.

BONECO 7064 - Installation - 1
Make sure that there is a distance of 0.2 metres between the appliance and all flammable materials.

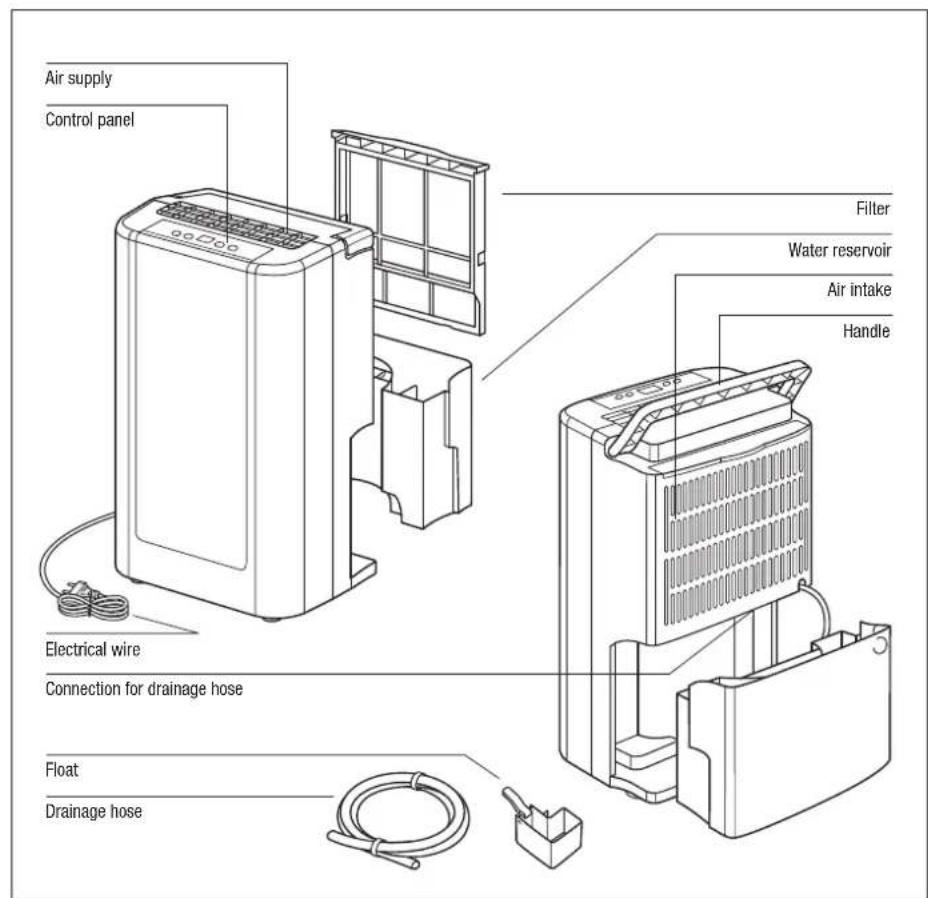

Description of the appliance
BONECO 7064 - Installation - 2

text_image Air supply Control panel Electrical wire Connection for drainage hose Float Drainage hose Filter Water reservoir Air intake Handle

Operation

Switching the appliance on and off (ON/OFF)

When the appliance is connected to the power supply, a signal is heard and the display indicates the current level of humidity in the area. Press the ON/OFF switch (A) once to turn the appliance on. It operates with the preset humidity level of 60% and with a low fan speed; LEDs [2] and [6] will light up. If the switch is pressed again, the appliance is switched off.

Setting the timer switch (TIMER)

The timer switch (B) turns the appliance automatically on and off in a period of 24 hours. If the timer is activated, LED [3] will light up.

Setting the timer to switch the appliance on – appliance is switched off

With the appliance connected to the power supply, but not switched on, press the TIMER switch (B) several times until the time [4] is indicated when the appliance must be switched on.

Setting the timer to switch the appliance off – appliance is operating

With the appliance operating, press the TIMER switch (B) several times until the time is indicated when the appliance must switch off.

Deleting the settings of the timer

To delete the settings of the timer, keep the TIMER switch (B) depressed until the timer indicates 00. LED [3] will go out.

Setting the humidity

In this appliance, the humidity can be set between 40% and 80%. Press the humidity switch (C) several times until the desired humidity level is shown (the humidity can be set in steps of 5%). The display shows the various stages of humidity in the following sequence: 60, 65...80, 40, 45...60. LED [5] will light up during adjustment. When the dehumidifier is operating, LED [2] will light up. If the humidity in the area is lower than the set humidity, the appliance will automatically switch off the humidity function. In that case, only the fan will operate.

Press the switch for fan speed (D) to set the fan speed. LED [6] lights up at low speed and LED [7] at high fan speed.

Automatic defrosting

If the ambient temperature is between 5 °C and 12 °C, the appliance will automatically switch off every 30 minutes to defrost; between 12 °C and 20 °C, the appliance switches off every 45 minutes.

BONECO 7064 - Automatic defrosting - 1

Maintenance

BONECO 7064 - Maintenance - 1

Before undertaking maintenance and cleaning, always remove the plug from the socket.

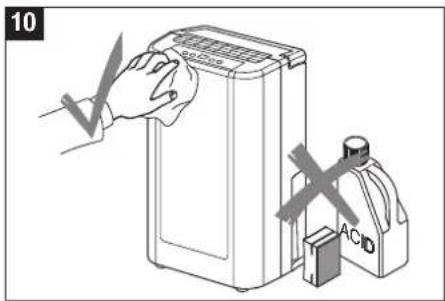

Cleaning the appliance

Use a soft cloth to clean the appliance. Do not use any chemical sprays, petrol, solvents, chemically treated cloths or other damaging cleaning product. These could damage the casing of the appliance.

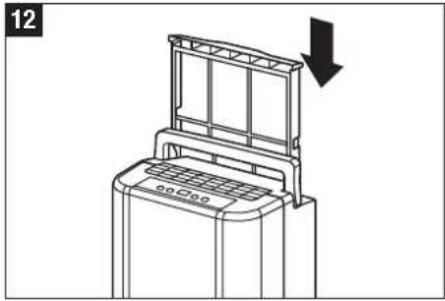

Cleaning the washable filter

This dehumidifier is fitted with a washable filter. The filter cleans the air of most pollutants and thus ensures a less oppressive living environment. We advise you to check the filter regularly (at least once a month and after storing the appliance) and if necessary to clean it as follows:

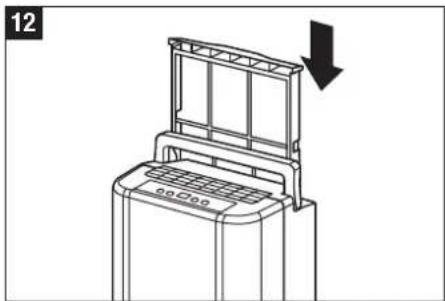

  • Pull out the filter holder
  • Use a vacuum cleaner or carefully wash the filter.

If the filter is partially polluted, use warm water and a mildly aggressive cleaning product. Rinse out the filter under running cold water. Make sure the filter is completely dry before replacing it. Never expose the filter to sunlight or other direct heat sources. This could result in the filter and frame buckling.

Storage

BONECO 7064 - Storage - 1

If you do not intend to use the appliance for a lengthy period and wish to store it, you should take the following precautions:

  1. Completely empty the water reservoir.
  2. Roll up the electrical wire and place it in the water reservoir.
  3. Clean the air filter.
  4. Store the appliance in a dry, cool place.

BONECO 7064 - Storage - 2

text_image 10 ACO₄

BONECO 7064 - Storage - 3

natural_image Line drawing of a washing machine with an upward arrow indicating motion (no text or symbols)

BONECO 7064 - Storage - 4

natural_image Line drawing of a mechanical device with a downward arrow indicating motion (no text or symbols)

Emptying the water reservoir

When the water reservoir is full, the appliance automatically switches itself off and a signal is sounded, consisting of 15 tones. LED [1] lights up and signals that the water reservoir is full. The water reservoir should be emptied as follows:

  • Using both hands, push gently against the sides of the reservoir and carefully pull it out.
  • Pour away the water and carefully replace the reservoir. The LED goes out.

Directions:

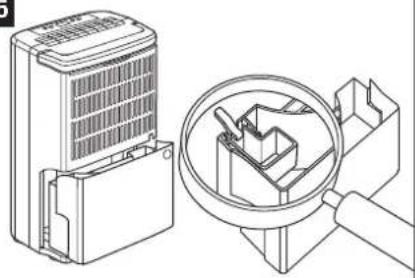

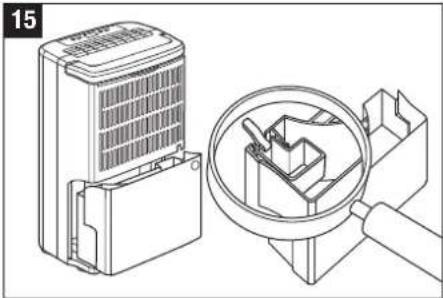

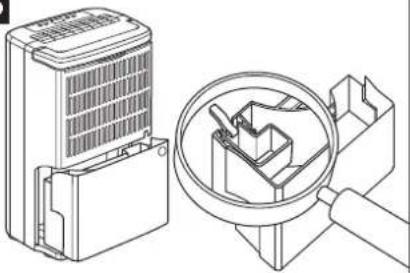

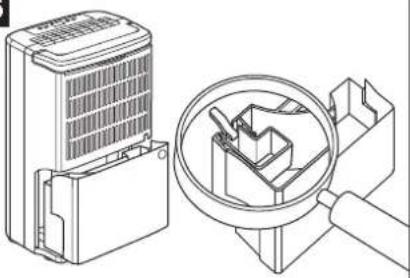

  1. Do not remove the float from the water reservoir. The sensor that measures the water level in the reservoir will not work correctly without float. If that happens, the reservoir could leak water.
  2. If the water reservoir becomes dirty, you can clean it with cold or lukewarm water. Do not use cleaning or scouring products, chemically treated cloths, petrol, thinner or other solvents, as these can scratch or damage the reservoir which can lead to it leaking water.

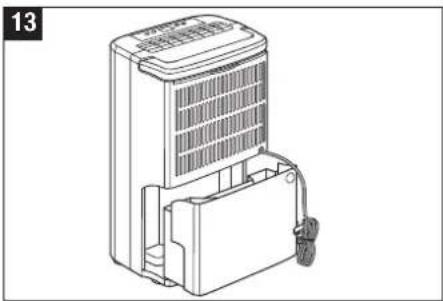

  3. When replacing the water reservoir, push it firmly using both hands into the correct position. If the reservoir is not replaced correctly, the sensor will continue to show «RESERVOIR FULL» and the dehumidifier cannot be turned on.

BONECO 7064 - Directions: - 1

natural_image Line drawing of a portable air purifier unit with cooling fan and wheels (no text or symbols)

BONECO 7064 - Directions: - 2

natural_image Technical line drawing of a mechanical component with motion lines indicating movement (no text or symbols)

BONECO 7064 - Directions: - 3

natural_image Technical illustration of a device with a magnified inset showing internal components (no text or symbols)

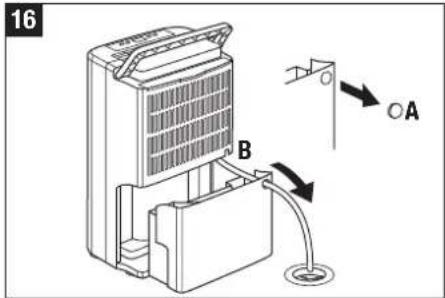

Permanent water drainage

To allow the dehumidifier to operate with continuous water drainage, the following measures should be taken (see illustration):

  1. Turn off the appliance and remove the plug from the socket.
  2. Open the hole for the water drainage pipe in the water reservoir (by removing part A).
  3. Push a water hose (outer diameter 14 mm, inner diameter 10 mm) through the hole and connect the hose to the water draining connection (part B).
  4. Place the end of the hose in the drain. Make sure the hose is not folded and is laying straight.

BONECO 7064 - Permanent water drainage - 1

When using permanent drainage, the water reservoir must remain in place.

BONECO 7064 - Permanent water drainage - 2

text_image 16 B ○A

Technical data

Voltage supply220 - 240 V / 50 Hz
Power consumption360 W
Dehumidifying power (at 30 °C, 80% RH)18 lit/day
Water reservoir2.7 l
CoolantR134A
Coolant amount160 g
Dimensions (l x w x h)310 x 230 x 535 mm
Weight11.6 kg

Don't forget

Discarded electrical appliances may never be placed with normal household refuse. Bring this product to the local refuse collection place, so that it can be disposed in a proper manner.

BONECO 7064 - Don't forget - 1

Trouble shooting

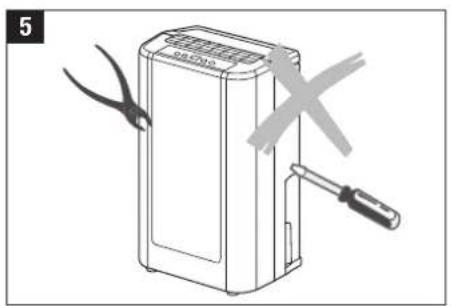

Do not try to repair or dismantle the appliance yourself. Before calling in a repairman, check the following points:

Problem Possible cause Solution
The appliance isn't working. The plug is not in the power socket. Plug in the appliance to the power socket.
The warning lamp that indicates that the water Empty the water reservoir and replace it.reservoir is full is flashing.
The ambient temperature is above 35 °C or The fuse has been activated and this ensuresbelow 5 °C. that the appliance cannot be started.
The dehumidifying does not work. The air filter is blocked. Clean the air filter as directed under«Maintenance».
The air intake or outlet is blocked. Remove the blockage in the air intake oroutlet.
No air is being circulated. The air filter is blocked. Clean the air filter as directed under«Maintenance».
The appliance is making a noise. The appliance is in an unsafe place or is Place the appliance in a firm, safe place.unstable.
The air filter is blocked. Clean the air filter as directed under«Maintenance».
natural_image Line drawing of a water basin with a valve and a cross mark, no text or symbols present

BONECO 7064 - Trouble shooting - 1

text_image 7

BONECO 7064 - Trouble shooting - 2

text_image 2

BONECO 7064 - Trouble shooting - 3

natural_image Diagram of a device with scissors and a tool, no text or symbols present

BONECO 7064 - Trouble shooting - 4

natural_image Diagram showing a device connected to a door with a warning symbol (no text or labels present)

BONECO 7064 - Trouble shooting - 5

text_image 3

BONECO 7064 - Trouble shooting - 6

natural_image Diagram of a device with a cross mark and a label '6' (no text or symbols on the device itself)

BONECO 7064 - Trouble shooting - 7

natural_image Line drawing of a rectangular electronic device with a cross mark symbol overlay (no text or symbols present)

Installation

natural_image Line drawing of a washing machine with an upward arrow indicating motion (no text or symbols)

BONECO 7064 - Installation - 1

natural_image Line drawing of a mechanical device with a downward arrow indicating motion (no text or symbols)
natural_image Line drawing of a water basin with a container and pipe, no text or symbols present

BONECO 7064 - Installation - 2

text_image 7

BONECO 7064 - Installation - 3

text_image 2

BONECO 7064 - Installation - 4

natural_image Diagram of a device with scissors and a tool, no text or symbols present

BONECO 7064 - Installation - 5

natural_image Diagram showing a portable air purifier connected to a door with a cross mark (no text or symbols)

BONECO 7064 - Installation - 6

text_image 3

BONECO 7064 - Installation - 7

natural_image Diagram of a device with a cross mark and a label '6' (no text or symbols on the device itself)

BONECO 7064 - Installation - 8

natural_image Line drawing of a rectangular electronic device with a cross mark symbol overlay (no text or symbols present)

Posizionamento

natural_image Line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

BONECO 7064 - Posizionamento - 1

natural_image Line drawing of a mechanical device with a downward arrow indicating motion (no text or symbols)
natural_image Line drawing of a portable air purifier unit with cooling fins and a door handle (no text or symbols)

14
BONECO 7064 - Posizionamento - 2

natural_image Technical line drawing of a mechanical component with motion arrows indicating movement (no text or symbols)

15
BONECO 7064 - Posizionamento - 3

natural_image Technical line drawing of a device with a magnified inset showing internal components (no text or symbols)
text_image Diagram of a device with labeled components A and B, showing airflow direction and connection points

Dati tecnici

natural_image Line drawing of a mechanical device with a handle and central shaft, partially submerged in water (no text or symbols)

BONECO 7064 - Posizionamento - 4

text_image 7

BONECO 7064 - Posizionamento - 5

text_image 2

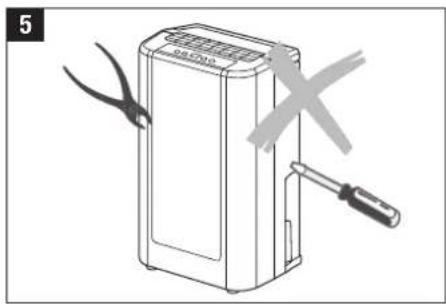

BONECO 7064 - Posizionamento - 6

natural_image Illustration of a portable electronic device with scissors and a screwdriver, no text or symbols present

BONECO 7064 - Posizionamento - 7

natural_image Diagram showing a device connected to a door with a crossed-out X mark (no text or symbols present)

BONECO 7064 - Posizionamento - 8

text_image 3

BONECO 7064 - Posizionamento - 9

natural_image Line drawing of a device with a cross mark and a label '6' (no text or symbols on the device itself)

BONECO 7064 - Posizionamento - 10

natural_image Line drawing of a rectangular electronic device with a cross mark overlay (no text or symbols)

Installatie

natural_image Line drawing of a portable air conditioner unit with an upward arrow indicating motion (no text or symbols)

BONECO 7064 - Installatie - 1

natural_image Line drawing of a mechanical device with a downward arrow indicating motion (no text or symbols)
natural_image Line drawing of a portable air conditioner unit with cooling fan and wheels (no text or symbols)

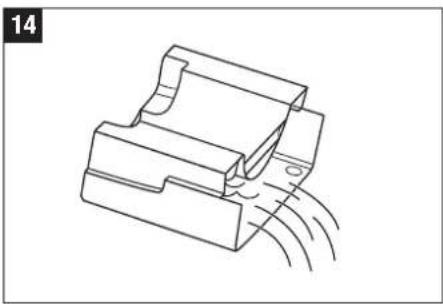

BONECO 7064 - Installatie - 2

natural_image Technical line drawing of a mechanical component with motion lines indicating movement (no text or symbols)

BONECO 7064 - Installatie - 3

natural_image Technical illustration of a device with a magnified inset showing internal components (no text or symbols)

Permanente waterafvoer

natural_image Line drawing of a mechanical device with a handle and central shaft, partially submerged in water (no text or symbols)

BONECO 7064 - Permanente waterafvoer - 1

text_image 7

BONECO 7064 - Permanente waterafvoer - 2

text_image 2

BONECO 7064 - Permanente waterafvoer - 3

natural_image Illustration of a portable electronic device with scissors and a screwdriver, no text or symbols present

BONECO 7064 - Permanente waterafvoer - 4

natural_image Diagram showing a device connected to a door with a crossed-out X mark (no text or symbols present)

BONECO 7064 - Permanente waterafvoer - 5

text_image 3

BONECO 7064 - Permanente waterafvoer - 6

natural_image Line drawing of a device with a cross mark and a label '6' (no text or symbols on the device itself)

BONECO 7064 - Permanente waterafvoer - 7

natural_image Line drawing of a rectangular electronic device with a cross mark overlay (no text or symbols)

Instalación

natural_image Line drawing of a washing machine with an upward arrow indicating motion (no text or symbols)

BONECO 7064 - Instalación - 1

natural_image Line drawing of a mechanical device with a downward arrow indicating motion (no text or symbols)
natural_image Line drawing of a portable air purifier unit with cooling fan and wheels (no text or symbols)

BONECO 7064 - Instalación - 2

natural_image Technical line drawing of a mechanical component with motion lines indicating movement (no text or symbols)

BONECO 7064 - Instalación - 3

natural_image Technical illustration of a device with a magnified inset showing internal components (no text or symbols)

Drenaje constante

natural_image Line drawing of a mechanical device with a handle and central shaft, partially submerged in water (no text or symbols)

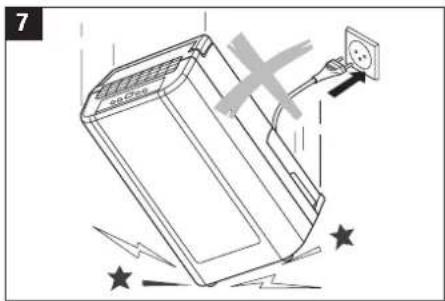

BONECO 7064 - Drenaje constante - 1

text_image 7

BONECO 7064 - Drenaje constante - 2

text_image 2

BONECO 7064 - Drenaje constante - 3

natural_image Diagram of a portable electronic device with scissors and screwdriver, no text or symbols present

BONECO 7064 - Drenaje constante - 4

natural_image Diagram showing a device connected to a door with a warning symbol (no text or labels present)

BONECO 7064 - Drenaje constante - 5

text_image 3

BONECO 7064 - Drenaje constante - 6

natural_image Line drawing of a device with a cross mark and a label '6' (no text or symbols on the device itself)

BONECO 7064 - Drenaje constante - 7

natural_image Line drawing of a rectangular electronic device with a cross mark overlay (no text or symbols)

Felállítás

text_image Diagram showing a hand using a chemical filter to clean an AC acid container, with a crossed-out X symbol indicating the chemical process.

11

BONECO 7064 - Felállítás - 1

natural_image Line drawing of a washing machine with a vertical panel and upward arrow indicating motion (no text or symbols)

12
BONECO 7064 - Felállítás - 2

natural_image Line drawing of a washing machine with a downward arrow indicating a drop (no text or symbols present)
natural_image Line drawing of a portable air purifier unit with cooling fins and a door handle (no text or symbols)

14
BONECO 7064 - Felállítás - 3

natural_image Technical line drawing of a mechanical component with motion lines indicating movement (no text or symbols)

15
BONECO 7064 - Felállítás - 4

natural_image Technical line drawing of a device with a magnified inset showing internal components (no text or symbols)

Vízelvezetés

natural_image Line drawing of a water basin with a valve and a cross mark, no text or symbols present

BONECO 7064 - Vízelvezetés - 1

text_image 7

BONECO 7064 - Vízelvezetés - 2

text_image 2

BONECO 7064 - Vízelvezetés - 3

text_image 5

BONECO 7064 - Vízelvezetés - 4

natural_image Diagram showing a device connected to a door with a crossed-out X mark (no text or symbols present)

BONECO 7064 - Vízelvezetés - 5

text_image 3

BONECO 7064 - Vízelvezetés - 6

natural_image Diagram of a device with a cross mark and a label '6' (no text or symbols on the device itself)

BONECO 7064 - Vízelvezetés - 7

natural_image Line drawing of a rectangular electronic device with a cross mark symbol on the left (no text or labels)

Ustawienie

text_image Diagram showing a hand using a washing machine to clean an AC acid container, with a crossed-out X symbol indicating the chemical process.

11

BONECO 7064 - Ustawienie - 1

natural_image Line drawing of a washing machine with a vertical panel and upward arrow indicating motion (no text or symbols)

12
BONECO 7064 - Ustawienie - 2

natural_image Line drawing of a washing machine with a downward arrow indicating compression or clearance (no text or symbols)
natural_image Line drawing of a portable air purifier unit with cooling fins and a handle (no text or symbols)

14
BONECO 7064 - Ustawienie - 3

natural_image Technical line drawing of a mechanical component with motion lines indicating movement (no text or symbols)

15
BONECO 7064 - Ustawienie - 4

natural_image Technical line drawing of a device with a magnified inset showing internal components (no text or symbols)

State odwadnianie

text_image Diagram of a refrigerant unit with labeled components A and B, showing airflow direction indicated by arrows.

Dane techniczne

natural_image Line drawing of a water basin with a valve and a cross mark, no text or symbols present

BONECO 7064 - State odwadnianie - 1

text_image 7

BONECO 7064 - State odwadnianie - 2

text_image 2

BONECO 7064 - State odwadnianie - 3

natural_image Illustration of a device with scissors and a tool, no text or symbols present

BONECO 7064 - State odwadnianie - 4

natural_image Diagram showing a device connected to a door with a warning symbol (no text or labels present)

BONECO 7064 - State odwadnianie - 5

text_image 3

BONECO 7064 - State odwadnianie - 6

natural_image Diagram of a device with a cross mark and a label '6' (no text or symbols on the device itself)

BONECO 7064 - State odwadnianie - 7

natural_image Line drawing of a rectangular electronic device with a cross mark overlay (no text or symbols)

Установка

text_image Diagram showing a hand cleaning a washing machine with a hazardous waste container labeled 'ACID' and a crossed-out mark.

11

BONECO 7064 - Установка - 1

natural_image Line drawing of a washing machine with a vertical panel and upward arrow (no text or symbols)

12
BONECO 7064 - Установка - 2

natural_image Line drawing of a washing machine with a downward arrow indicating compression or cooling (no text or symbols)
natural_image Line drawing of a portable air conditioner unit with ventilation grilles and a handle (no text or symbols)

14
BONECO 7064 - Установка - 3

natural_image Technical line drawing of a mechanical component with motion arrows indicating movement (no text or symbols)

15
BONECO 7064 - Установка - 4

natural_image Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)
text_image Diagram of a device with labeled components A and B, showing airflow direction and connection points

Техническе данные

natural_image Line drawing of a water basin with a container and pipe, no text or symbols present

BONECO 7064 - Установка - 5

text_image 7

BONECO 7064 - Установка - 6

text_image 2

BONECO 7064 - Установка - 7

natural_image Diagram of a device with scissors and a tool, no text or symbols present

BONECO 7064 - Установка - 8

natural_image Diagram showing a portable air purifier connected to a door with a cross mark (no text or symbols)

BONECO 7064 - Установка - 9

text_image 3

BONECO 7064 - Установка - 10

natural_image Diagram of a device with a cross symbol indicating a warning or hazard, no text or labels present

BONECO 7064 - Установка - 11

natural_image Line drawing of a rectangular electronic device with a cross mark symbol overlay (no text or symbols present)

Installation

natural_image Line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

BONECO 7064 - Installation - 1

natural_image Line drawing of a mechanical device with a downward arrow indicating motion (no text or symbols)
natural_image Line drawing of a portable air conditioner unit with ventilation grilles and a door handle (no text or symbols)

14
BONECO 7064 - Installation - 2

natural_image Technical line drawing of a mechanical component with motion lines indicating movement (no text or symbols)

15
BONECO 7064 - Installation - 3

natural_image Technical line drawing of a device with a magnified inset showing internal components (no text or symbols)

Konstant dränering

text_image Diagram of a refrigerant system with labeled component B and directional arrows indicating flow or movement

Teknisk specifikation

natural_image Line drawing of a water basin with a container and pipe, no text or symbols present

BONECO 7064 - Konstant dränering - 1

text_image 7

BONECO 7064 - Konstant dränering - 2

text_image 2

BONECO 7064 - Konstant dränering - 3

natural_image Diagram of a device with scissors and screwdriver, no text or symbols present

BONECO 7064 - Konstant dränering - 4

natural_image Diagram showing a device connected to a door with a cross mark, no text or symbols present

BONECO 7064 - Konstant dränering - 5

text_image 3

BONECO 7064 - Konstant dränering - 6

natural_image Diagram of a device with a cross mark and a label '6' (no text or symbols on the device itself)

BONECO 7064 - Konstant dränering - 7

natural_image Line drawing of a rectangular electronic device with a cross mark overlay (no text or symbols)

Laitteen asennus

natural_image Line drawing of a portable air conditioner unit with an upward arrow indicating motion (no text or symbols)

BONECO 7064 - Laitteen asennus - 1

natural_image Line drawing of a mechanical device with a downward arrow indicating motion (no text or symbols)
natural_image Line drawing of a portable air purifier unit with cooling fins and a door handle (no text or symbols)

14
BONECO 7064 - Laitteen asennus - 2

natural_image Technical line drawing of a mechanical component with motion arrows indicating movement (no text or symbols)

15
BONECO 7064 - Laitteen asennus - 3

natural_image Technical line drawing of a device with a magnified inset showing internal components (no text or symbols)

Jatkuva vedenpoisto

text_image Diagram of a refrigerant system with labeled components A and B, showing airflow direction arrows

Tekniset tiedot

natural_image Line drawing of a water basin with a container and pipe, no text or symbols present

BONECO 7064 - Jatkuva vedenpoisto - 1

natural_image Diagram of a device with an electrical outlet and star symbols indicating shock or damage (no text or labels)

BONECO 7064 - Jatkuva vedenpoisto - 2

text_image 2

BONECO 7064 - Jatkuva vedenpoisto - 3

natural_image Diagram of a device with scissors and screwdriver, no text or symbols present

BONECO 7064 - Jatkuva vedenpoisto - 4

natural_image Diagram showing a device connected to a door with a cross mark, no text or symbols present

BONECO 7064 - Jatkuva vedenpoisto - 5

text_image 3

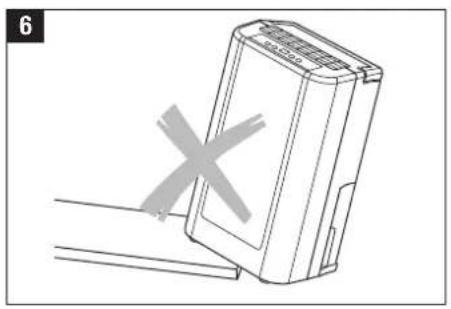

BONECO 7064 - Jatkuva vedenpoisto - 6

natural_image Diagram of a device with a cross mark and a label '6' (no text or symbols on the device itself)

BONECO 7064 - Jatkuva vedenpoisto - 7

natural_image Line drawing of a rectangular electronic device with a cross mark overlay (no text or symbols)

Optstilling

natural_image Line drawing of a portable air conditioner unit with an upward arrow indicating motion (no text or symbols)

BONECO 7064 - Optstilling - 1

natural_image Line drawing of a mechanical device with a downward arrow indicating motion (no text or symbols)
natural_image Line drawing of a portable air purifier unit with cooling fins and a door handle (no text or symbols)

14
BONECO 7064 - Optstilling - 2

natural_image Technical line drawing of a mechanical component with motion lines indicating movement (no text or symbols)

15
BONECO 7064 - Optstilling - 3

natural_image Technical line drawing of a device with a magnified inset showing internal components (no text or symbols)

Konstant afvanding

text_image Diagram of a device with labeled components A and B, showing airflow direction and connection points

Tekniske data

natural_image Line drawing of a water basin with a container and pipe, no text or symbols present

BONECO 7064 - Konstant afvanding - 1

text_image 7

BONECO 7064 - Konstant afvanding - 2

text_image 2

BONECO 7064 - Konstant afvanding - 3

natural_image Diagram of a device with scissors and screwdriver, no text or symbols present

BONECO 7064 - Konstant afvanding - 4

natural_image Diagram showing a device connected to a door with a cross mark, no text or symbols present

BONECO 7064 - Konstant afvanding - 5

text_image 3

BONECO 7064 - Konstant afvanding - 6

natural_image Diagram of a device with a cross mark and a label '6' (no text or symbols on the device itself)

BONECO 7064 - Konstant afvanding - 7

natural_image Line drawing of a rectangular electronic device with a cross mark overlay (no text or symbols)

Plassering

natural_image Line drawing of a portable air conditioner unit with an upward arrow indicating motion (no text or symbols)

BONECO 7064 - Plassering - 1

natural_image Line drawing of a mechanical device with a downward arrow indicating motion (no text or symbols)
natural_image Line drawing of a portable air purifier unit with cooling fins and a door handle (no text or symbols)

14
BONECO 7064 - Plassering - 2

natural_image Technical line drawing of a mechanical component with motion arrows indicating movement (no text or symbols)

15
BONECO 7064 - Plassering - 3

natural_image Technical line drawing of a device with a magnified inset showing internal components (no text or symbols)
text_image Diagram of a device with labeled components A and B, showing airflow direction and connection points

Tekniske angivelser

Strømforbindelse220 – 240 V / 50 Hz
Strømforbruk360 W
Tørkeeffekt (ved 30 °C, 80 % RH)18 l/dag
Vannbeholder2,7 liter
KjølemiddelR134A
Kjølemiddelmengde160 g
Størrelser (B x L x H)310 x 230 x 535 mm
Vekt11,6 kg

Glem ikke

Utbrukte elektriske apparater må ikke kastes med det vanlige husholdningsavfallet. Bring dette produktet til et resirkuleringssted, slik at det kan avfallsbehandles på faglig korrekt måte.

BONECO 7064 - Glem ikke - 1

BONECO is a brand name of PLASTON AG, Switzerland.

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : BONECO

Model : 7064

Category : Dehumidifier
