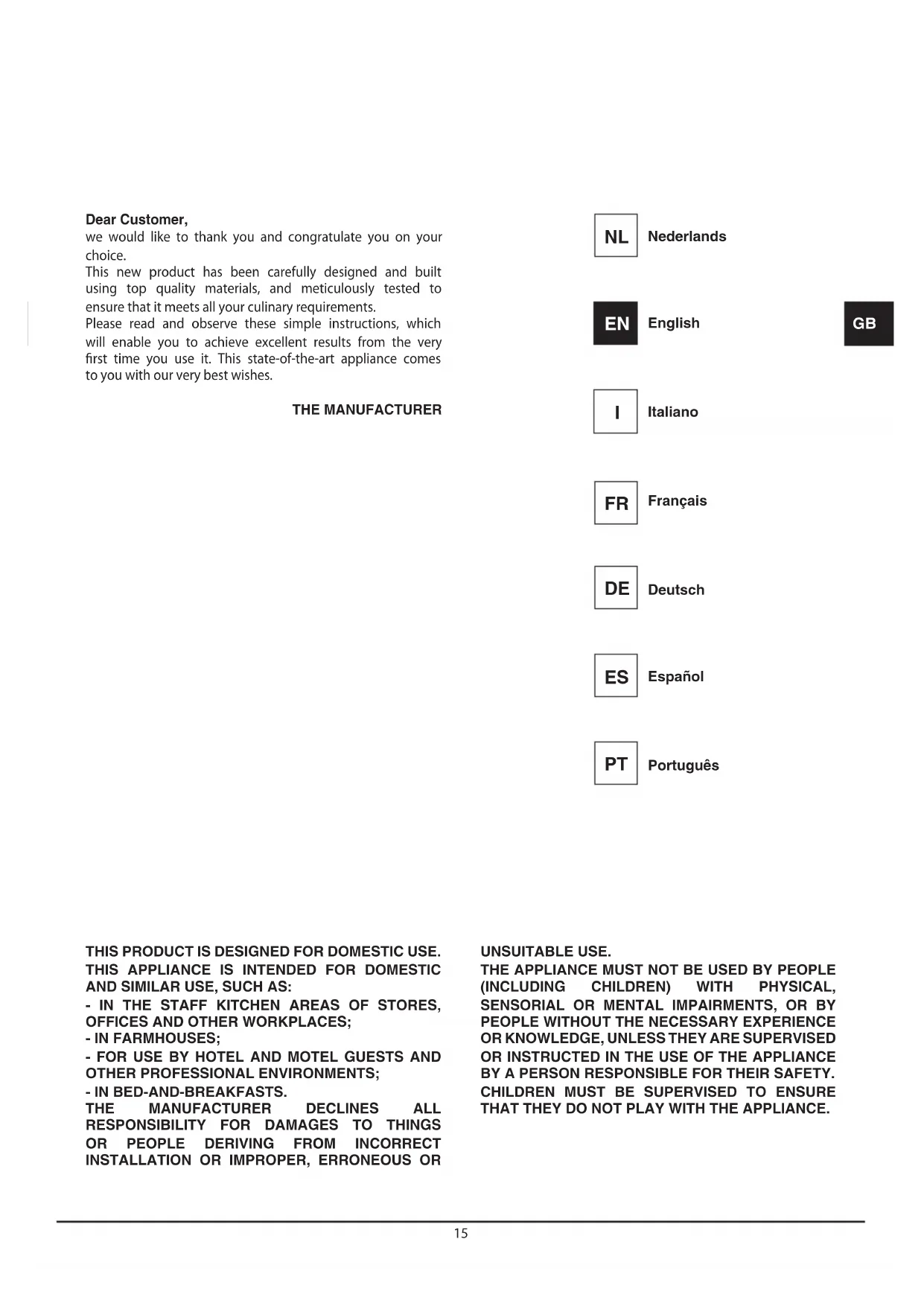

THAT THEY DO NOT PLAY WITH THE APPLIANCE. Dear Customer, we would like to thank you and congratulate you on your choice. This new product has been carefully designed and built using top quality materials, and meticulously tested to ensure that it meets all your culinary requirements. Please read and observe these simple instructions, which will enable you to achieve excellent results from the very rst time you use it. This state-of-the-art appliance comes to you with our very best wishes. THE MANUFACTURER Italiano

7. USING YOUR WARMING DRAWER

CONSUMER INSTRUCTIONS: Includes recommendations for use, description of commands and correct procedures for the care and clearing of the appliance. INSTALLATION INSTRUCTIONS: Use intended for qualied technicians.17

This guide is an integral part of the appliance. Keep these instructions with you during use of your warming drawer. Read these instructions before installing and using the appliance. Installation should be performed by qualied personnel only, in conformity with current law. This appliance is intended for domestic use only in conformity with current EEC directives. The manufacturer will not be held liable in the event of a failure to follow THESE

WARNINGS AND SAFETY INSTRUCTIONS. KEEP

THESE INSTRUCTIONS WITH THE APPLIANCE. IF

SUPPLIED WITH IT. DO NOT USE THE APPLIANCE FOR HEATING

PURPOSES. HIGHLY FLAMMABLE OBJECTS ARE

AT RISK OF CATCHING FIRE IF PLACED IN THEIR PROXIMITY DUE TO ELEVATED TEMPERATURES. DO NOT DISPOSE OF MATERIALS IN THE

HOME. SORT THE VARIOUS MATERIALS BY

CLASSIFICATION AND DISPOSE OF THEM

THE LABELS DISPLAYED ON THIS APPLICATION

Our products are made solely from non-polluting materials that do not harm the environment and are recyclable. We ask for your eort and collaboration in disposing of the packaging in a proper manner. Contact the product retailer or local organizations for further information on recycling. Dispose of the packaging properly. Parts of the package especially plastic, pose a risk for children. Your old appliance must also be disposed of properly. Important: consign the appliance to the proper local organization authorized to collect broken appliances. Proper and intelligent disposal consists of recovering materials of value. Remove the plugs or electrical cords of appliances that are no longer being used so that they no longer pose a threat to children. 3 SAFETY INSTRUCTIONS The safety measures regarding the electric, gas and functions are found in the installation section. It is in your best interest and safety and also legally required that all electrical appliances be installed and repaired exclusively by qualied personnel in conformity with current standards. Our qualied personnel can guarantee that the works will be performed correctly. Gas and electric appliances must always be disconnected by experienced personnel. Before connecting appliances to electric circuits it is important to check and compare the connection data (voltage and frequency) shown on the label to the characteristics of the local electric line. It is essential that this data coincide in order to avoid damaging the appliances. For further help and assistance please contact your local electrician. The electrical safety of the appliance is only guaranteed when attached to a ground conductor. The manufacturer will not be liable for damages caused by the absence or interruption of a ground conductor (i.e. electric shock). The appliance must be installed and connected by a specialized electrician. If necessary, contact a local electrician who is familiar with local standards and regulations. The manufacturer will not be liable for damages caused by incorrect installation or installations not conforming to local and national laws. WARNING! IN ORDER TO AVOID THE RISK OF

AND/OR MECHANICAL STRUCTURES ARE

MODIFIED, THIS COULD DAMAGE THE APPLIANCE

WARNING! THIS APPLIANCE IS NOT SUITABLE

EXPERIENCE OR KNOWLEDGE OF THE APPLIANCE

TEMPERATURES. KEEP APPLIANCE AWAY FROM

CHILDREN. APPLIANCE MAY OVERHEAT IF USED

• Do not lean or sit on the warming drawer when opened, this could cause damage to the telescopic guide. The maximum carrying weight of the warming drawer is 10kg. CLEANING:

• Never use a vacuum cleaner. The vacuum could create pressure on the components causing a short circuit. The vacuum may also damage the surface and the components of the appliance: damages for which the manufacturer will not be liable.

• For cleaning the appliance we recommend following the suggestions listed under “Cleaning and Maintenance” of the manual. REPAIRS:

• ATTENTION! Maintenance work and/or repairs must be performed exclusively by specialized personnel. Incorrect installation and maintenance can cause personal injury to the consumer for which the manufacturer will not be liable.

• ATTENTION! During the warranty period, the appliance may only be serviced by technicians authorized by the manufacturer or the warranty will be void.

• ATTENTION! Before beginning maintenance, installation, or repair work disconnect the appliance from the electrical outlet. The appliance is disconnected only if: - The electrical fuse is disconnected. - The cord of the appliance is disconnected from the electrical outlet – to disconnect the appliance from the outlet pull the cord away from the outlet, manually disconnect the cord. The manufacturer will not be liable for damage caused by a failure to follow current regulations or the use of non-original replacement parts.

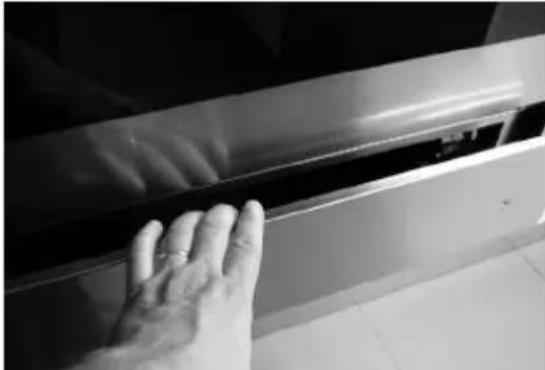

Pull the drawer (g. C) towards you until it is opened completely.

4.1 CLOSING THE DRAWER

To close the drawer, gently push the drawer back, pushing the front until it has completely gone back. Release the handle.

4.2 The appliance is equipped with a hot air ventilating

system. A fan distributes in an optimal way towards the internal space of the warming drawer. The thermostat allows the user to control and set the appliance at the desired temperature. The circulation of the air heats the drawer in a rapid and uniform way. With the protective measures in place it is not possible to accidentally touch the heating element or the fan.

Do not leave parts of the packaging in the home. Separate the remaining packaging materials by category and deliver them to your nearest recycling center. Before using the appliance for the rst time, gently clean it with a moist cloth and dry it completely as described under “Cleaning and Maintenance”. Heat the warming drawer for at least two hours. Once heated, set the temperature to 75 °C. Be sure that the kitchen is kept well ventilated during the heating period. The metal parts have been specially treated with a protective coating that can sometimes cause odors the rst time the drawer is heated. These odors will quickly dissipate and should not be considered a defect of the appliance.

7. USING YOUR WARMING DRAWER

Open the drawer. Turn the handle in order to set the desired temperature and then press the red button. A red light will turn on and will remain on throughout use. To turn o the appliance, turn the handle to the 0 position and then press the button. The red light will turn o.

Dierent factors inuence the time in which it takes to heat up:

• Thickness and material of the drawer;

• Number of drawers loaded;

• The arrangement of the loaded drawers;

• The desired temperate set. So, there is no general rule. To set the temperature above 60°C in order to have a stable temperature, follow these suggestions:20

DISHES FOR 6 PERSONS 30-35

You can also use your own experience in determining the optimal temperature setting for your needs.

8 CLEANING AND MAINTENANCE

Generally speaking, cleaning is the only form of maintenance necessary. Attention! Before you begin cleaning, disconnect the appliance from the outlet. Disconnect the cord from the outlet and turn o the appliance. Warning! Do not use harsh detergents or abrasive products and/or scrubbing pads and sponges and sharp objects as they can stain and damage the appearance of the appliance. Warning! Never use a vacuum cleaner on the internal parts of the appliance.

8.1 Front and Panel Commands

The use of a moist cloth is sucient when cleaning the appliance. In the event the appliance requires further cleaning, add drops of detergent in the water. Dry the appliance with a dry cloth. The steel front of the appliance can be cleaned with products specically designed for steel. Such products prevent the formation of dirt on the surface of the drawer. Apply a minimal amount of the product on a soft and apply it to the surface of the appliance.

To clean the inside space use a moist cloth. In the event the appliance requires further cleaning add drops of detergent to the water. Dry the surface with a dry cloth. Make sure to avoid water draining into the ventilation holes. Only use the appliance after the drawers are dry completely. 9 TROUBLESHOOTING ATTENTION! Repairs must only be performed by specialized and qualied personnel. Any repair work not performed by professional personnel may cause damage to the appliance for which the manufacturer will not be liable. The following problems can be xed by the consumer without the assistance of the Service Department. The drawer is not hot enough. Make sure that:

• The appliance is turned on;

• The correct temperature has been set;

• The opening of the ventilation fan is not blocked by plates or other large obstructions;

• The drawers have had sucient time to heat up. The drawer is not hot at all. Make sure that:

• You hear the fan running;

• If the fan is turned on this means that the heating system is working;

• If the fan does not work this means it is defective;

• The circuit fuse is blown. 10 APPLIANCE INSTALLATION

10.1 Before you begin installation

Make sure that the voltage shown on the appliance label corresponds to that of your electrical system. Open the drawer and remove all accessories and packing materials. Attention! The front of the drawer may be covered with a protective coating over it. Carefully remove the coating before using the appliance. Start by removing the protective lm from the bottom. Make sure that the drawer is not damaged. Be certain that the drawer closes properly. In case of damage, contact the Service Department. The warming drawer can only be attached and installed with the tools provided by the appliance manufacturer. The manufacturer does not guarantee the operation of the appliance if materials from a dierent manufacturer have been used. The manufacturer is not responsible for damage caused by improper use.

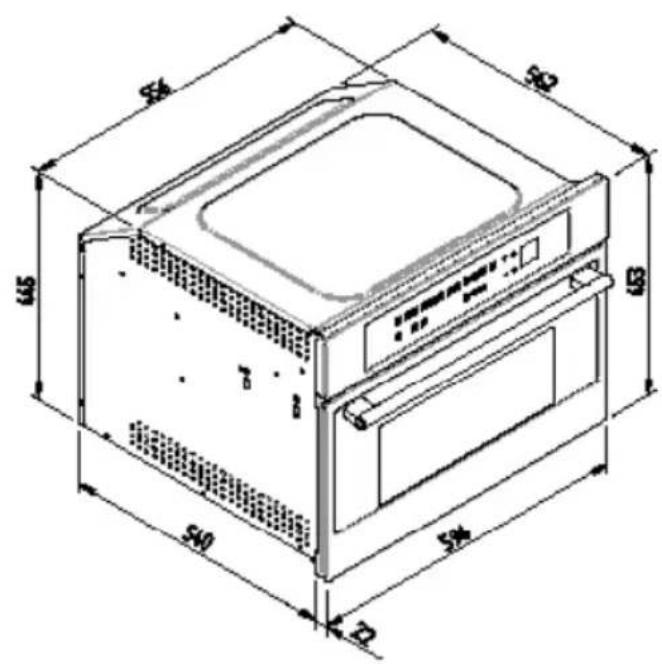

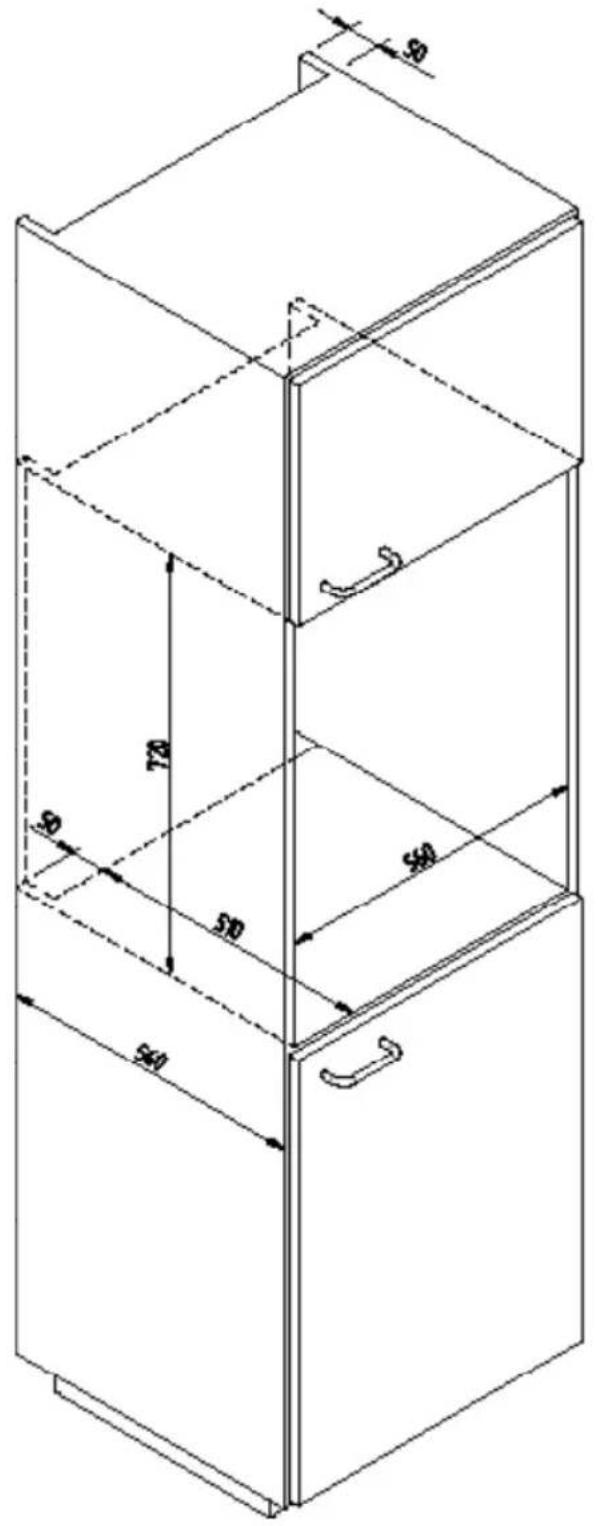

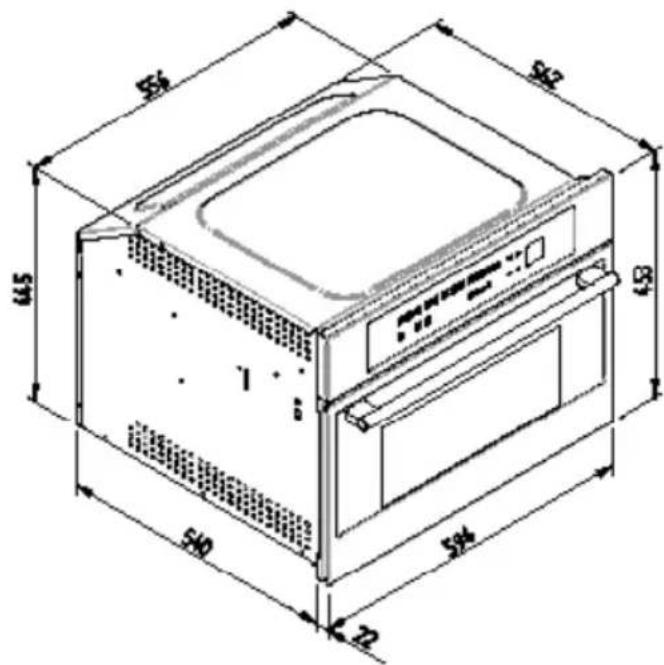

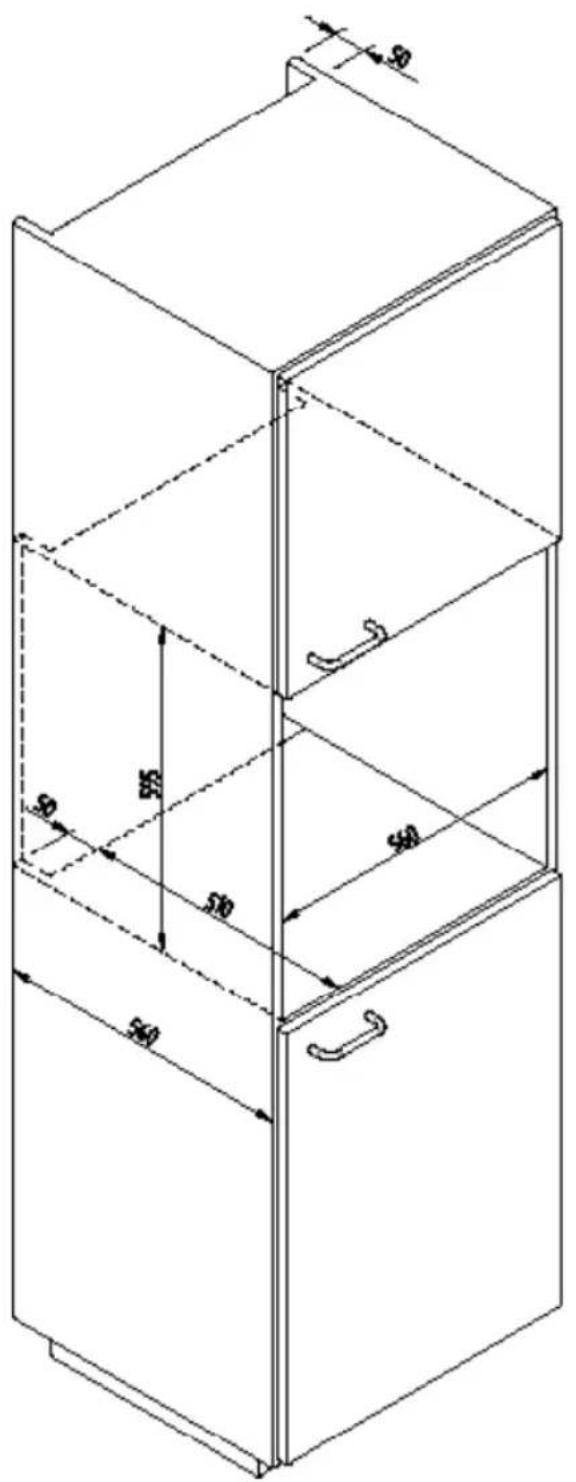

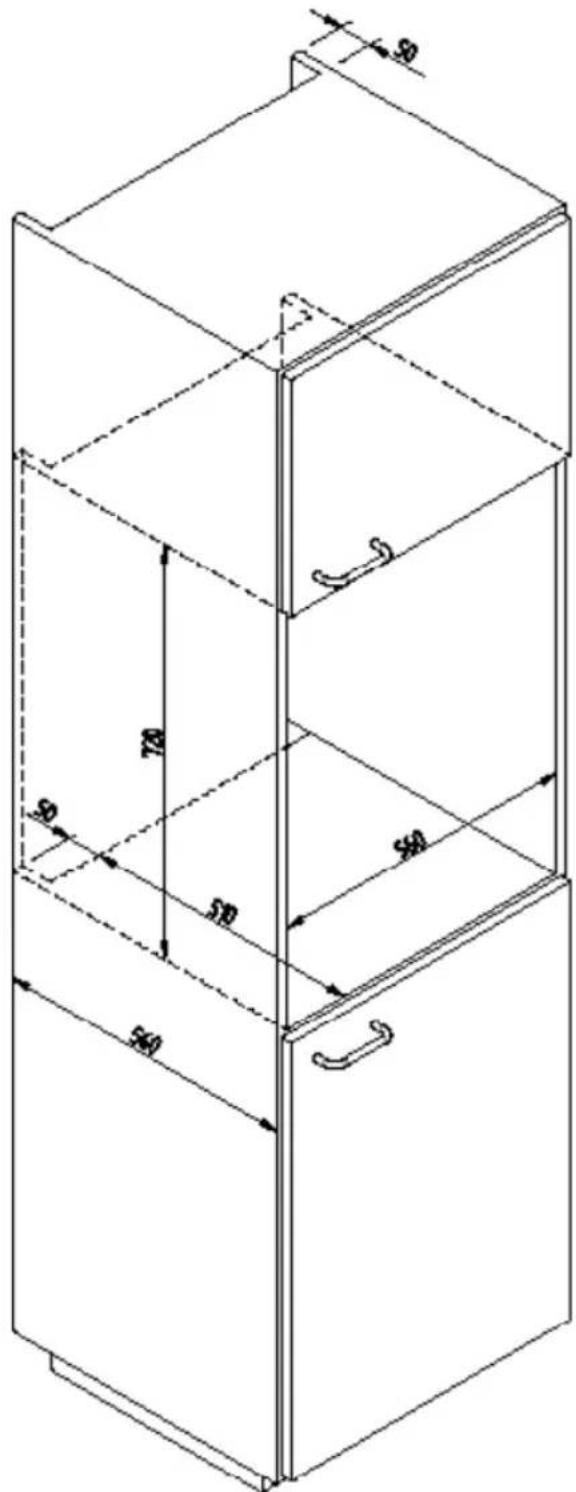

Before you begin assembling the drawers of the appliance, make sure there is enough room to t the drawer and the appliance. The precise dimensions for the installment are indicated in mm. Follow these guidelines for assembly:

• Position the drawer so that it is directly centered

• Be certain that the frame is perfectly perpendicular

• Open the drawer and x the structure to the wall with the two screws already in place

10.3 Electrical Installation

The electrical connection must be made by a qualied electrician conforming to current regulations.21

Electrical connections Before connecting the oven to the mains power supply, make sure that: - The supply voltage corresponds to the specications on the data plate on the front of the oven. - The mains supply has an ecient earth (ground) connection complying with all applicable laws and regulations. Correct earthing (grounding) is a legal requirement. The power cable should never reach a temperature 50° C above ambient temperature at any point along its length. If a xed appliance is not provided with a power cable and plug, or some other device permitting it to be disconnected from the mains electricity supply, with a gap between the contacts big enough to guarantee class III overvoltage protection, then such a device must be tted to the power supply in compliance with the regulations governing electrical installations. The socket or switch must be easily reachable with the oven fully installed.

CABLE TYPES AND MINIMAL DIAMETERS

SASO H05RR-F 3x0,75 mm² H05RR-F 3x1,5 mm² H05VV-F 3x0,75 mm² H05VV-F 3x1,5 mm² H05RN-F 3x0,75 mm² H05RN-F 3x1,5 mm² H05V2V2-F 3x0,75 mm² H05V2V2-F 3x1,5 mm² WARNING! Before connecting the warming drawer to the electrical circuit, verify that the voltage and the frequency correspond to those indicated on the label located inside the heating block, which should be kept along with this manual. The electrical attachment must be made using bipolar switch capable of powering the appliance and that has a gap of 3 mm (minimum) to guarantee disconnection in case of emergency or when cleaning the warming drawer. Connect the appliance to the ground circuit to conform to safety regulations regarding electrical systems.

ATTENTION! THE WARMING DRAWER MUST BE

CONNECTED TO THE GROUND CIRCUIT. In the event of the failure of the cable supplied with the warming drawer, replace it with an original replacement part provided by the Service Department. The manufacturer and retailers will not be liable for property damage and personal injury caused by a failure to follow the instructions provided in this manual.26 GB27
