USER MANUAL 30NXBK65D2001 NILOX

Thanks for choosing DOC 6.5 BALANCE SCOOTER.

The electronic DOC 6.5 BALANCE SCOOTER manual can be downloaded from the Nilox website at www.nilox.com. Enter the DOC 6.5 BALANCE SCOOTER code in the search eld at the top right: 30NXBK6500001 (black), 30NXBK6500002 (white), 30NXBK6500003 (yellow), search for the technical sheet and download the complete manual.

TECHNICAL SUPPORT

This product is warranted in accordance with current legislation; please contact your dealer if you require technical assistance and / or warranty service.

INSTRUCTIONS FOR THE ENVIRONMENT

This product may contain substances that can be harmful to the environment and to human health, if not disposed of properly. We therefore provide the following informaon in order

to prevent the release of such substances and to improve the use of natural resources. Electrical and electronic products should not be disposed of in normal household waste, but should be properly collected in order to be processed correctly. The symbol of the crossed bin shown on the product and in this page is to remind you of the need to properly dispose of the product at the end of its life. In this way, we can prevent a non-specific treatment of the substances contained in these products, or an improper use of parts of them

leading to harmful consequences for the environment and human health. Moreover, you can contribute to the recovery, recycling and reuse of many of the materials that make up these products. This is why manufacturers and distributors of electrical and electronic systems organize proper collecon and disposal of the equipment themselves. At the end of the product's lifespan, please contact your dealer for instrucons regarding disposal. When purchasing this product your distributor will inform you of the possibility of replacing your old device with a new one, on condion that the type of product and its funcons are the same or, if the dimensions do not exceed 25~cm , EEE (Electrical and Electronic Equipment) they can be returned without any equivalent product purchase obligaon. Disposal of the product in any other way will be liable to the penales established by the laws in force in the country where the product is disposed of. Moreover, we suggest adopng additional environmentally friendly measures: recycling the inner and outer packaging and disposing of any used baeries correctly. With your help, we can reduce the amount of natural resources used in the manufacturing of electrical and electronic equipment, minimize use of landlls for product disposal and improve quality of life by prevening the release into the environment of potenally dangerous substances.

BATTERY DISPOSAL

The product contains a baery, which must be disposed of separately from general

household waste. Throw the baery in the appropriate containers. Collecon and recycling of baeries helps protect the environment and preserve material resources, through the recovery of valuable materials.

WARRANTY INFORMATION

One year, if invoiced to a company or professional (with VAT number).
Two years, if fiscal documents indicate that it was sold to a privateizen.
This warranty applies in the event of a defect in conformity of product features.
- Product support and warranty. Visit www.nilox.com to learn more.
Warranty restricons: this warranty does not apply in the following cases:

• No proof of purchase (invoice or receipt).
• Tampering, forcing and damages on the hardware and screen, created for any reason.
• Other defects resulting from: inappropriate use, unauthorized changes, incorrect maintenance; defects due to the use of parts other than those supplied and all items not designed to be used with the product.

The above refers to legislature decree dated February 2, 2002. Implementing Directive 1999/44/EC.

BRIEF DECLARATION OF CONFORMITY

This equipment has been tested and found to comply with directives 2011/65/CE and 1999/5/EC of the European Parliament and the European Commission, referring to radio equipment and telecommuncaons and their mutual recognition. The declaraon of conformity is available at our oce and on-line at the following link: p:\p.hellatron.it (user name: declaraon@hellatron pwd: hellatron). This device may therefore be used in all countries in the European Economic Community, provided it is used in compliance with any rules and regulaons that may be applicable in the country where the device is used. Users must obtain informaon on any applicable rules and regulaons, and nd out whether use of the product on public roads or in public spaces is permied under these regulaons. Hellatron S.p.A. shall not be held liable for damages or for violaons of rules or regulaons commied by the user while using the product.

CE ( ) logo and/or WEEE ( ) logo, in some devices, is not fully compliant with minimum dimensions requirement to European Directive due to limited scker area. Keep the packaging for future references.

SUMMARY

PREFACE 4

WARNING FOR USE 4

DOC BALANCE SCOOTER: DESCRIPTION 6

Control sensors 7

Control lights. 8

SAFE USE. 9

Weight limits for the driver 9

Speed limit 9

Distances you can travel 9

Slopes 10

HOW TO DRIVE DOC. 10

To start 10

Running 11

Protecon funcons. 11

Driving pracce and safe driving. 12

BATTERY 13

Use of the Baery 13

Instructions for charging the battery 14

Temperature of the baery and specicaons 14

Transportation of the baeries. 14

MAINTENANCE 15

Cleaning 15

Conservaon 15

TECHNICAL SPECIFICATIONS 16

RULES FOR USE ON PAVEMENTS 16

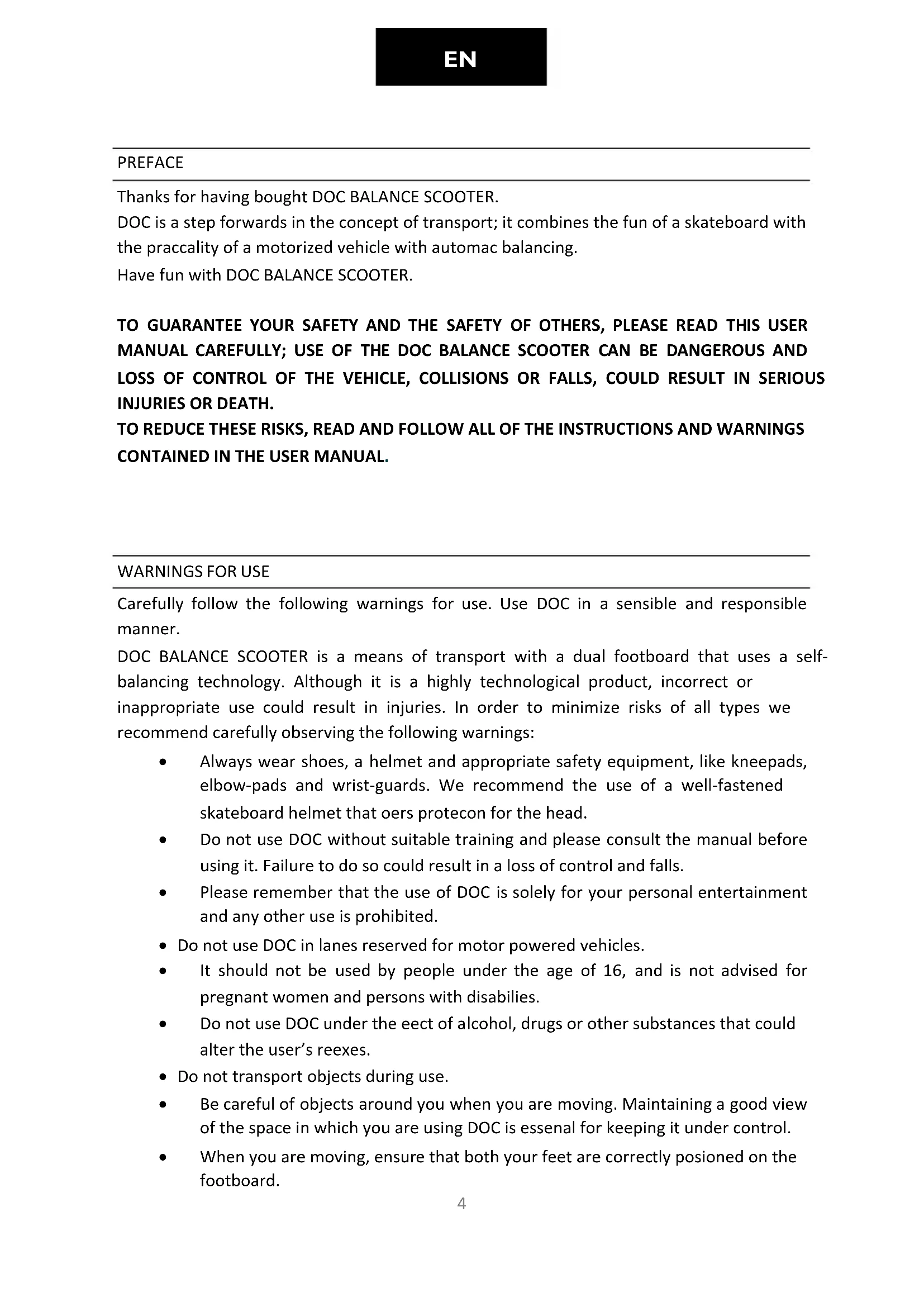

PREFACE

Thanks for having bought DOC BALANCE SCOOTER.

DOC is a step forwards in the concept of transport; it combines the fun of a skateboard with the praccality of a motorized vehicle with automac balancing.

Have fun with DOC BALANCE SCOOTER.

TO GUARantee YOUR SAFETY AND THE SAFETY OF OTHERS, PLEASE READ THIS USER MANUAL CAREFULLY; USE OF THE DOC BALANCE SCOOTER CAN BE DANGEROUS AND LOSS OF CONTROL OF THE VEHICLE, COLLISIONS OR FALLS, COULD RESULT IN SERIOUS INJURIES OR DEATH.

TO REDUCE THESE RISKS, READ AND FOLLOW ALL OF THE INSTRUCTIONS AND WARNINGS CONTAINED IN THE USER MANUAL.

WARNING FOR USE

Carefully follow the following warnings for use. Use DOC in a sensible and responsible manner.

DOC BALANCE SCOOTER is a means of transport with a dual footboard that uses a selfbalancing technology. Although it is a highly technological product, incorrect or inappropriate use could result in injuries. In order to minimize risks of all types we recommend carefully observing the following warnings:

Always wear shoes, a helmet and appropriate safety equipment, like kneepads, elbow-pads and wrist-guards. We recommend the use of a well-fastened skateboard helmet that oers protecon for the head.
- Do not use DOC without suitable training and please consult the manual before using it. Failure to do so could result in a loss of control and falls.
- Please remember that the use of DOC is solely for your personal entertainment and any other use is prohibited.
- Do not use DOC in lanes reserved for motor powered vehicles.
It should not be used by people under the age of 16, and is not advised for pregnant women and persons with disabilities.
- Do not use DOC under the ect of alcohol, drugs or other substances that could alter the user's reexes.
- Do not transport objects during use.
- Be careful of objects around you when you are moving. Maintaining a good view of the space in which you are using DOC is essenal for keeping it under control.
- When you are moving, ensure that both your feet are correctly posioned on the footboard.

EN

We recommend wearing comfortable clothing when you use DOC.
- DOC was built to transport only one person. It should not be used by more than one person at the same me.
It is advisable not to accelerate or stop the vehicle in a sudden or excessively sharp manner as this could result in a loss of control.
- Do not use DOC in dark or poorly lit places.
Make sure that the speed with which DOC is being used allows you to stop it any me and in any situaon.
We recommend that you keep a suitable safety distance from other vehicles when you are driving DOC.
- When you are standing on DOC the height of the user will be 10~cm ; take this dierence into account in the event of particularly low ceilings and doors.
- Do not use DOC if there is ice or snow, and avoid using it on stones, branches or other types of vegetaon or if other objects are present on the ground as this could compromise control of the vehicle.
- It is strictly forbidden to use DOC in combustible environments.
- Do not use at high speeds on irregular terrain or on slopes.
- Do not try tricks or feats of agility.
- Do not lean any objects on the footboards except for your feet as these could interfere with the monitoring systems.
- Do not get o the DOC when it is in moon.

It is essenal to read this manual for a correct use of DOC and to reduce potential risks of injury.

BEFORE USING, MAKE SURE THAT THE BATTERY IS FULLY CHARGED.

DOC BALANCE SCOOTER: DESCRIPTION

DOC BALANCE SCOOTER is a self-balancing electric skateboard.

The move forwards, backwards, turn and stop funcons are controlled by gentle and balanced movements on the footboards.

Very easy to use, easy to control and incredibly fun.

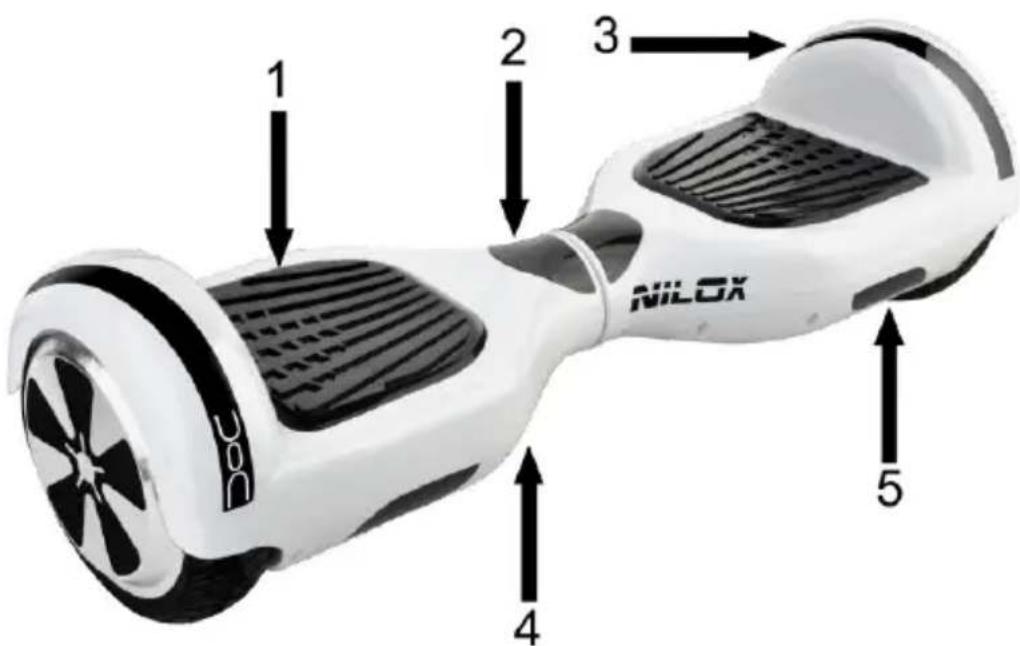

1) Foot-board
2) Status indicators
3) Mudguard
4) Proteceve shell
5) Direcon indicators

DOC moves thanks to the concept of dynamic balance. It uses an internal system of sensors and gyroscopes that allow it to move on the basis of the variaon of the centre of gravity, instructing the wheels in real time to turn forwards or backwards to remain in a position of balance. By leaning forwards, you will move forwards and the angle of inclinaon determines the speed at which you move. To turn it is sucient to gently transfer your weight to one of your feet. DOC BALANCE SCOOTER has a system of ineral stabilizaon, which helps you to maintain a vercal posion; if it noces an excessive inclinaon of your body towards either side or lack of contact of the footboard by either of your feet it will stop automatically.

BEFORE TURNING, YOU HAVE TO REDUCE THE SPEED OF DOC.

DOC has 4 sensors under the pedals.

When you climb onto the footboards DOC balances automacally.

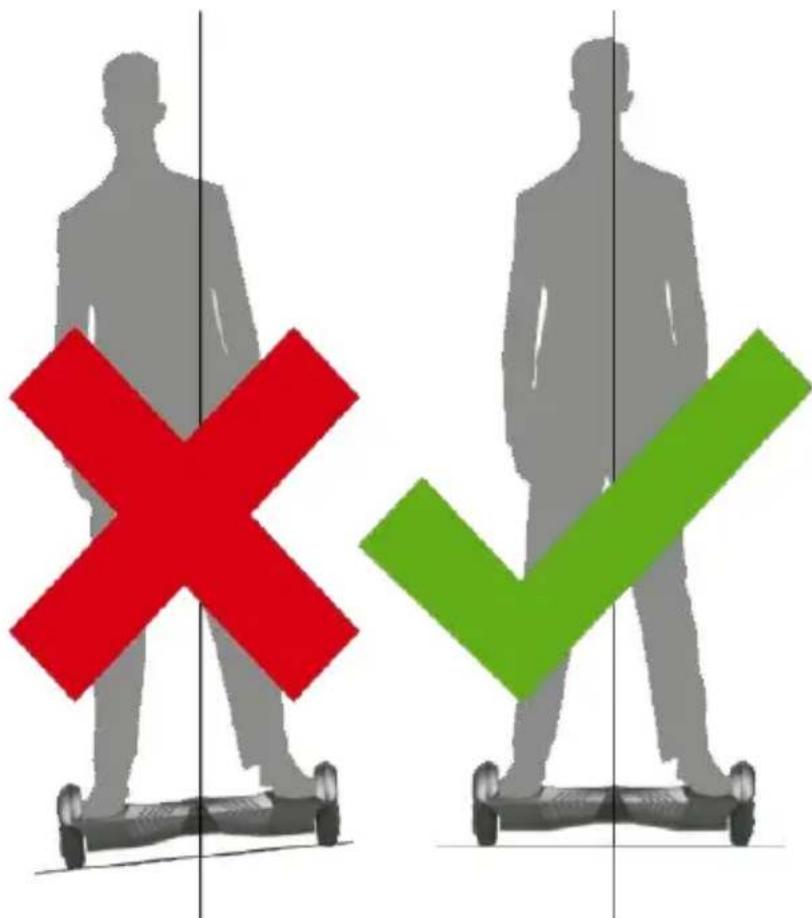

To use it you need to ensure that you are touching both the footboards.

Be careful not to place your foot on the external part of the footboards, as DOC may not realize you are there.

Do not lean forwards or backwards excessively and do not drive on a slope.

Do not lean objects on the pedals, as this will result in DOC nocing a constant presence and prevent it from stopping thus significantly increasing the possibility of falls or damage to the vehicle.

DO NOT PUT YOUR WEIGHT IN THE CENTRAL PART OF DOC BALANCE SCOOTER; THIS IS WHERE THE MECHANICAL STEERING MECHANISM IS HOUSED. AN EXCESSIVE WEIGHT COULD RESULT IN IT BREAKING OR NOT FUNCTIONING CORRECTLY.

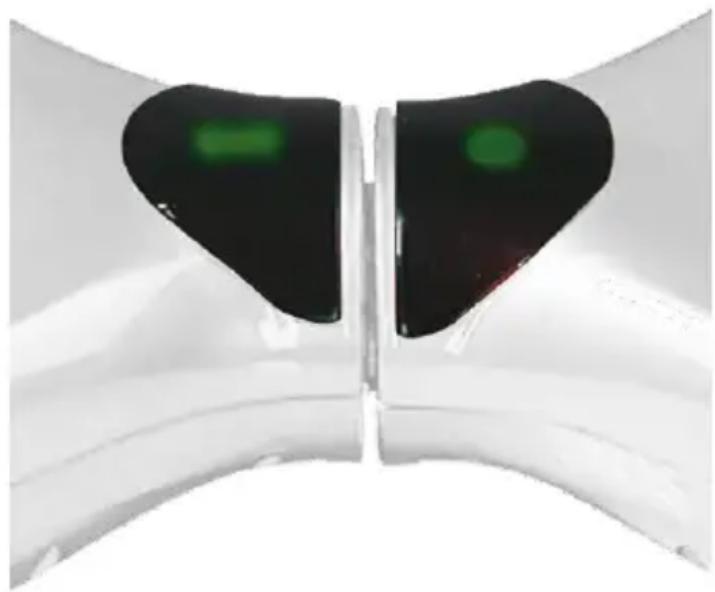

CONTROL LIGHTS

The control indicators are in the centre of your DOC BALANCE SCOOTER: a status indicator of the baery and a status indicator of the pedals.

The baery control light can be:

Green: this means that the baery is fully charged.
- Flashing green: means the baery has a charge of circa 50% .
- Red: baery with less than 20% charge. In this case, stop using DOC and charge the baery.

The pedals indicator can be:

• Green: a foot has been placed on the pedal and the balancing system is operang correctly.
• Red: a foot has been placed on the pedal, but the balancing system is not operang correctly, usually in the event of excessive lateral slopes.

IF ONE OF THE 2 INDICATORS BECOMES RED, GET OFF DOC IMMEDIATELY, AS THE SYSTEM IS UNSTABLE.

SAFE USE

We are certain that you will be able to use DOC BALANCE SCOOTER with absolute peace of mind and have a great deal of fun. All you need is a life pracce at the start, in order to fully master this new means of transport: you have probably already learned how to ride a bike, use a skateboard and ski. These experiences will help you to master your DOC BALANCE SCOOTER in a short space of me.

• Read the manual carefully.
• Before using it for the rst me, make sure that the res are not damaged and that there are no missing mechanical parts.
• Never use DOC with the aim of damaging people or things.
• Do not amend the mechanical parts. Since it is a highly technological device, any tampering or amendment could result in irregular performance.

While using the DOC balance scooter make sure to take all necessary security measures; in particular we remind, once more, that is recommended to wear a helmet, kneepads, elbow pads, gloves, etc.

There are two fundamental reasons for weight limit:
- Ensure the safety of driver.
- Reduce the overload of DOC balance scooter.

• The maximum weight of the driver is 100kg .
• The minimum weight of the driver is 20kg .

SPEEDLIMIT

• The maximum speed of DOC balance scooter is 15km/hour .
  Below this speed, DOC easily maintains the driver's balance.
• When the speed exceeds the specied limit, please slow down and bring the vehicle speed back within the safety range.
• If the maximum speed is exceeded the DOC will make an alarm sound.

DISTAN CES YOU CAN TRAVEL

If DOC is driven on at terrain, the distance that can be covered increases.
If the terrain is not at the distance you will be able to cover will be smaller.
The driver's weight acts the distance that can be covered.
- Correct charging and maintenance of the baery increase the baery life. The opposite is true in the case incorrect charging and maintenance.
- A driving style with connual accelerators and braking reduces the duraon of the baery.

SLOPES

• Do not use DOC on routes with gradients of more than 30% .
• If the gradient exceeds 30% , you risk losing control of DOC.

HOW TO DRIVE DOC

You must read the following instrucons carefully before geng onto DOC.

TO START

• Press the power buoyon to start DOC.
• As you get on, put one foot on the side of the footboard; DOC will noce the weight and will acvate the balancing system.
• Slowly li the other foot and then put it back on the ground.
• Pracce liing your foot and bringing back down to the ground for a few mes unl you are able to li it without making DOC sway from side to side.
  Try to keep your head held high as much as possible and look ahead.
• When you are easily able to lie your foot from the ground without DOC moving slowly place your other foot on the pedal.

TO GET ON SAFELY WE REMIND THE USER THAT IS PROHIBITED TO JUMP ONTO DOC.

• Get control of the frontal movements of DOC and remember that movements of the body axis must not be too broad or made through sharp and sudden movements.
  Always maintain control of lateral movements (to the right and to the le).
• Before geng o DOC, make sure it is completely staonary.
• Alight, by removing one foot at a me from the footboard.

THE FIRST TIMES YOU USE DOC IT IS QUITE NORMAL TO SWAY BACKWARDS AND FORWARDS INVOLUNTARILY.

WARNING!

GET OFF ALWAYS FROM THE REAR OF THE VEHICLE IN ORDER TO AVOID RISKS OF LOSING CONTROL OF THE VEHICLE AND FALLING.

IF THE VEHICLE DOES NOT ACTIVATE THE AUTO BALANCING, WHEN YOU GET ONTO THE FOOTBOARD THE LED ALARM LIGHT WILL SWITCH ON. DO NOT USE DOC, WAIT FOR A FEW MINUTES AND TRY AGAIN. IF YOU ARE ON A SLOPE, MOVE TO FLAT TERRAIN.

EN

RUNNING

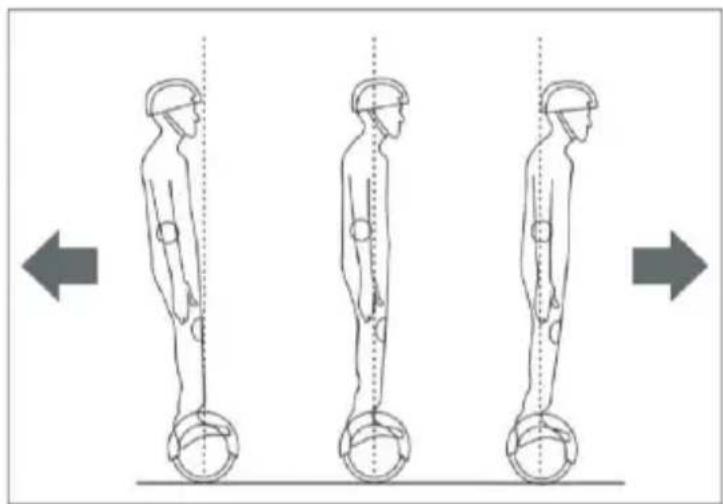

As explained above DOC BALANCE SCOOTER moves on the basis of the percepon of the body's centre of gravity upon it.

As a result:

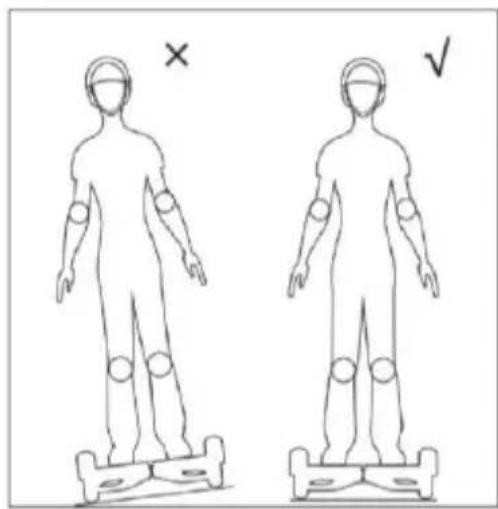

• If there is an excessive lateral inclinaon, DOC will noce more weight on the external footboard and will tend to curve.
• A perfectly vercal posion keeps DOC staonary, a slight movement forwards or backwards will make DOC start in the respecve direcon.
  The pressure on the right or le footboard will make it curve to the right or le.

DO NOT MAKE SHARP TURNS OR TURNS AT HIGH SPEEDS: THESE ARE DANGEROUS SITUATIONS FOR DRIVING DOC BALANCE SCOOTER.

DO NOT DRIVE OVER CROSS SLOPES OR IN REVERSE.

THIS TYPE OF CONDUCT AFFECTS THE DRIVING SAFETY OF DOC.

PROTECTION FUNCTION S

There follows a list of the anomalies that could lead to the protecon funcons of DOC BALANCE SCOOTER being acvated.

During use, if the system notes the presence of errors or the loss of balance, it will warn the user of these anomalies, through control lights and intermittent alarm sounds. Example:

• Driving on slopes with a gradient of more than 10 percent.
• When the voltage of the baery is too low.
• In the event of speed that is excessively high.
• In the event of the baery being exhausted.
  In the event of oscillaon forwards and backwards for more than 30 seconds.

If the system goes into protecon mode, the alarm sensors switch on and the control lights start to sound.

If the baery reaches a voltage that is lower than the minimum value of protecon, aer 15 seconds DOC will switch o automatically. In the event of the wheels becoming blocked, aer 2 seconds, DOC will switch o automatically.

In the event of acvies which involve a significant consumpon of energy (lengthy climbs, particularly steep descents), the vehicle could acvate the automac turning o mode.

IN THE ABOVE CIRCUMSTANCES STEP DOWN FROM DOC BALANCE SCOOTER AND SUSPEND USE OF IT: THE AUTO-BALANCING MIGHT NOT FUNCTION CORRECTLY AND POTENTIALLY CAUSE YOU TO FALL.

DRIVING PRACTICE AND SAFE DRIVING

Before using the vehicle on the road, or in an external area, make sure you have mastered it succinctly:

It is advisable to wear comfortable clothes and shoes in order to move more freely and exibly.
It is not advisable to use the vehicle in open spaces, if you have not learnt all of the funcons completely (movements forwards/backwards, to the right /le, start-up /stop).
- Make sure that the surface is suitable for the use of the vehicle.
- The vehicle can be used on various types of surfaces however, if it is used on irregular terrain or by users without much experience, we recommend you use it at low speeds.
- DOC is a means of transport that was designed to travel mainly on smooth surfaces; this does not mean that it cannot be used on other types of terrain. When using on surfaces that are not perfectly even, we recommend maintaining a moderate speed.
- For inexperienced users, we recommend avoiding crowded places, where there are obstacles or factors that could represent a danger for the user or other people.
Children, elderly people and pregnant women should not use DOC.
- Do not drive when drunk or under the inuence of pharmaceutical products or drugs.
Relax your legs when driving, bend your knees slightly. This will help you to keep the right balance on irregular terrain.
- Do not transport objects when driving.
Make sure that your feet are always on the footboards; loss of contact with a footboard causes the immediate imbalance of DOC.
- DOC was conceived and designed to be used by a single person. It is never to be used by more than one person at once.
- Do not start or stop suddenly.
- The weight of the driver must not exceed the maximum load specified in the instrucons; the vehicle could be damaged or users could fall.
- The weight must not be less than the minimum weight specied in the instrucons as DOC would not correctly noce the presence of a person on the sensors; be extremely careful of this especially when travelling downhill, where high speeds can be reached, without the correct control of the vehicle.
- Keep a speed that is appropriate for stopping DOC in a suitable manner.
If you are travelling close to another DOC, or a similar vehicle, you need to keep

EN

a safe distance between the 2 vehicles to avoid collisions.

• When you pass through doors, remember that your height will be about 10 cm higher.
• During bends, be careful of the centre of gravity of your body. A sudden variaon could cause a fall.
• Do not drive under the rain.
• Do not drive backwards for long distances or at high speeds.
• DOC is not a medical mobility device, and is not non-equivalent to motorized wheelchairs for disabled people or pedal assisted bicycles.
• Avoid driving in conned space or areas with obstacles.

BATTERY

USE OF THE BATTERY

We will now look at the means of charging and maintaining the baery, as well as potential problems there might be.

For the safety of the consumer and to extend the duraon and improve performance of the baery, please follow the following instrucons:

• When the battery indicator is red, it means the charge is not sucient. We recommend stopping DOC.
• When the power is low, there is not enough energy to drive normally. DOC will automatically stop and will incline the 2 pedals, in order to prevent people from geng on and thus discourage use.

• Do not use the baery in the following cases:

• Strong smell and/or excessive heat.

• If it is losing liquid.

The dismantling and maintenance of the baery must be carried out solely by an authorized professional.
- Do not touch any substance that comes out of the baery.
- Do not allow children and animals to touch the baery.
- Before installing the baery, disconnect the baery charger.
DOC cannot be used when the baery is charging.
The baeries contain dangerous substances. Do not open the baery and do not put anything inside them.
- Only use the baery charger provided by our company.
- If they are over-charged, lithium baeries can explode.
- Do not throw into a re.

INSTRUCTIONS FOR CHARGING THE BATTERY

Find the baery compartment on the back of DOC.
Make sure it is fully dry.
- Connect the baery charger to the electrical mains (100V-240V; 50,60Hz), make sure it is switched on and then connect the other end of the charger to DOC.
- The red control light on the baery-charger means that it is charging correctly.
- When the control light goes from red to green, the baery is fully charged, so unplug the baery-charger.
- Charging me is about 2 hours.
- Keep the charging contacts clean and dry.
- If the baery compartment is not dry, do not charge DOC.

PLEASE NOTE: IF THE BATTERY IS KEPT CHARGING FOR EXCESSIVELY LONG PERIODS ITS LIFE CYCLE WILL BE REDUCED.

TEMPERATURE OF THE BA TTERY AND SPECIFICATIONS

For DOC BALANCE SCOOTER to operate eciently, the temperature of the baery must be within the range shown below and the temperature, before and aer charging, must be within the recommended range.

The eciency of the charging process will be maximized if the following conditions are respected.

A temperature that is excessively high or low increases charging me and reduces eciency.

Baery Lithium Ion

Charging me circa 2-3 hours

Volts 36

Amps 4.4 Ah

Use temperature -15C, 50C

Charging temperature 0C-40C

Storage humidity 5% - 95%

TRANSPORTATION OF THE BATTERIES

Lithium baeries are considered to be dangerous material. Transportaon of lithium baeries is governed by the laws of each individual state.

Delivery of single lithium baeries is prohibited under internaional law.

If you send your DOC, the baery must be inside it.

THE BATTERY CANNOT BE SENT SEPARATELY.

MAINTENANCE

DOC BALANCE SCOOTER must be maintained and cleaned aer use.

Follow the brief instrucons below to ensure a longer duraon and correct funconing of the vehicle.

CLEANING

• Make sure that the power cable is disconnected and that DOC is o before proceeding.
• Clean the external shell of DOC with a so and dry cloth.
• DOC complies with the IP54 standard, which means it is spray resistant, but cannot be immersed in water.
• Do not allow water or other liquid to get inside DOC, as this could cause permanent damage to the electronic circuitry.
• Clean DOC aer every use and do not store in a dusty environment.

CONSERVATION

If you expect not to use DOC for a long period:

• Charge the battery completely as this will prevent it from becoming completely exhausted over me.
  Per long periods of me remove the baery and run it down /recharge it every three months.
  Cover DOC with a cloth. Dust and sand could get into the engine and damage it.
• Store indoors, at a dry and suitable temperature.
• Do not store in an unheated garage or warehouse.

ANY ATTEMPT TO REPAIR OR AMEND DOC BALANCE SCOOTER AND ALL TAMPERING WILL RESULT IN THE AUTOMATIC CANCELLATION OF THE WARRANTY.

TECHNICAL SPECIFICATIONS

Product dimensions	58.4*18.6*17.8cm
Minimum height from the ground	30mm
Height on the foot-boards	110mm
Maximum height from the ground	170mm
Weight of the product	10kg
Maximum weight supported	100kg
Minimum weight supported	20kg
Maximum speed	10km/h
Maximum distance that can be covered with full charge	20 km
Minimum radius of curvature	0°
Maximum inclinaon	30°

RULES FOR USE ON PAVEMENTS

WITH REGARD TO THE APPLICABLE LAWS IN EACH COUNTRY, THE USER IS REQUIRED TO CHECK THE LAWS ON ROAD CIRCULATION RELATING TO THE COUNTRY IN WHICH DOC BALANCED SCOOTER IS TO BE USED.

ALSO CHECK THE POSSIBILITY OF BEING ABLE TO CIRCULATE EXCLUSIVELY IN PRIVATE AREAS OR EVEN THE POSSIBILITY AND THE RESPECTIVE MEANS OF CIRCULATION ON PUBLIC LAND.

INFORMATIONS SUR LA GARANTIE

a brand of Esprinet Group

via Energy Park, 20

Vimercate - Italy

www.nilox.com

Made in China

Imported by Hellatron S.p.A.

legal: Via A. Mario, 65

20149 Milano - Italy
