USER MANUAL 30NXBK65BTN06 NILOX

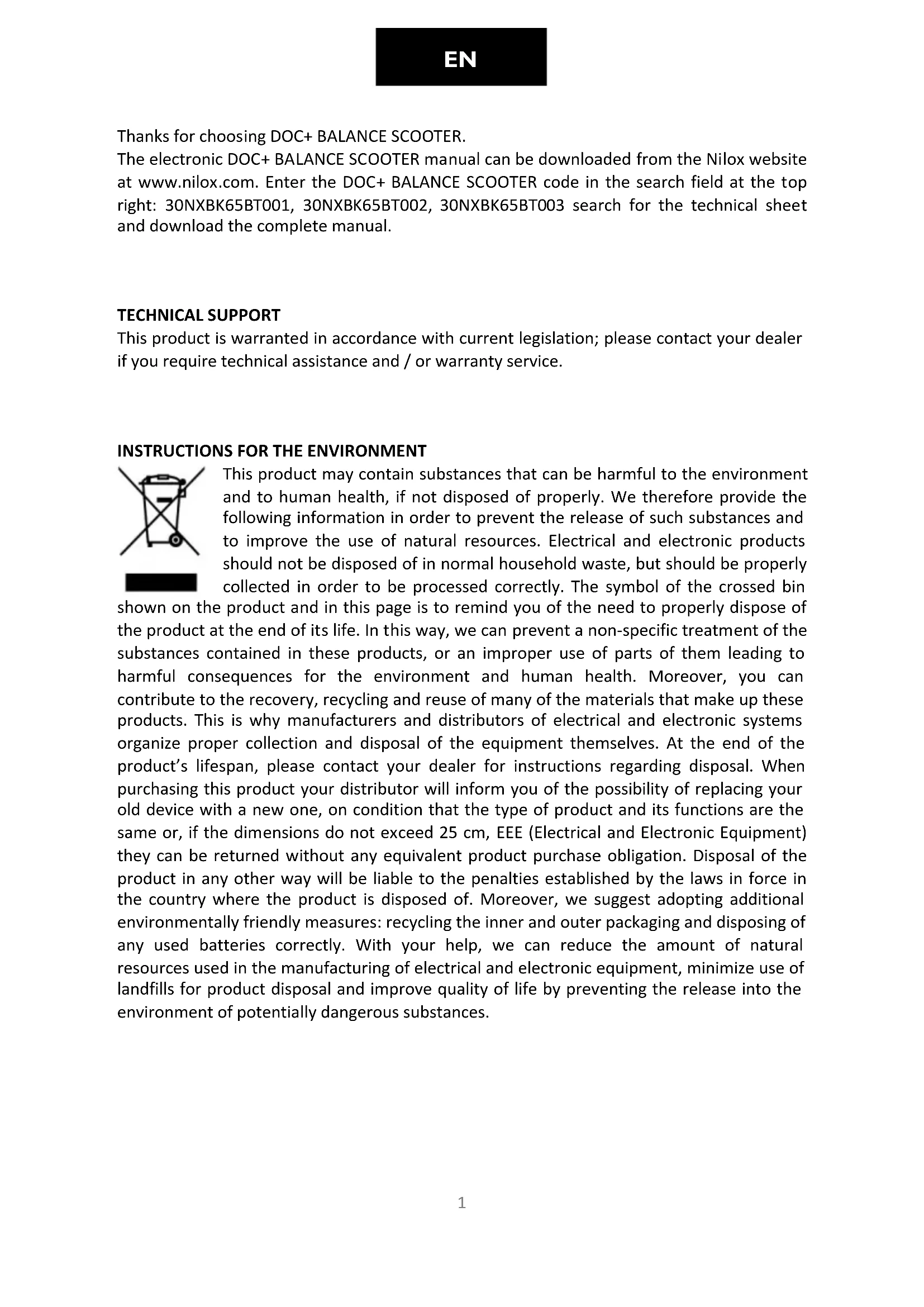

Thanks for choosing DOC+ BALANCE SCOOTER. The electronic DOC+ BALANCE SCOOTER manual can be downloaded from the Nilox website at www.nilox.com. Enter the DOC+ BALANCE SCOOTER code in the search field at the top right: 30NXBK65BT001, 30NXBK65BT002, 30NXBK65BT003 search for the technical sheet and download the complete manual.

TECHNICAL SUPPORT This product is warranted in accordance with current legislation; please contact your dealer if you require technical assistance and / or warranty service.

This product may contain substances that can be harmful to the environment and to human health, if not disposed of properly. We therefore provide the following information in order to prevent the release of such substances and to improve the use of natural resources. Electrical and electronic products should not be disposed of in normal household waste, but should be properly collected in order to be processed correctly. The symbol of the crossed bin shown on the product and in this page is to remind you of the need to properly dispose of the product at the end of its life. In this way, we can prevent a non-specific treatment of the substances contained in these products, or an improper use of parts of them leading to harmful consequences for the environment and human health. Moreover, you can contribute to the recovery, recycling and reuse of many of the materials that make up these products. This is why manufacturers and distributors of electrical and electronic systems organize proper collection and disposal of the equipment themselves. At the end of the product’s lifespan, please contact your dealer for instructions regarding disposal. When purchasing this product your distributor will inform you of the possibility of replacing your old device with a new one, on condition that the type of product and its functions are the same or, if the dimensions do not exceed 25 cm, EEE (Electrical and Electronic Equipment) they can be returned without any equivalent product purchase obligation. Disposal of the product in any other way will be liable to the penalties established by the laws in force in the country where the product is disposed of. Moreover, we suggest adopting additional environmentally friendly measures: recycling the inner and outer packaging and disposing of any used batteries correctly. With your help, we can reduce the amount of natural resources used in the manufacturing of electrical and electronic equipment, minimize use of landfills for product disposal and improve quality of life by preventing the release into the environment of potentially dangerous substances.2

BATTERY DISPOSAL The product contains a battery, which must be disposed of separately from general household waste. Throw the battery in the appropriate containers. Collection and recycling of batteries helps protect the environment and preserve material resources, through the recovery of valuable materials.

• One year, if invoiced to a company or professional (with VAT number).

• Two years, if fiscal documents indicate that it was sold to a private citizen.

• This warranty applies in the event of a defect in conformity of product features.

• Product support and warranty. Visit www.nilox.com to learn more.

• Warranty restrictions: this warranty does not apply in the following cases: - No proof of purchase (invoice or receipt). - Tampering, forcing and damages on the hardware and screen, created for any reason. - Other defects resulting from: inappropriate use, unauthorized changes, incorrect maintenance; defects due to the use of parts other than those supplied and all items not designed to be used with the product. The above refers to legislative decree dated February 24, 2002. Implementing the 1999/44/CE Directive.

BRIEF DECLARATION OF CONFORMITY

This equipment has comply to directive 1999/5/EC of the European Parliament and the European Commission, referring to radio equipment and telecommunications and their mutual recognition. The declaration of conformity is available on-line to the following link: ftp:\\ftp.hellatron.it (user name: declaration@hellatron-pwd: hellatron).3

CE ( ) logo and/or WEEE ( ) logo, in some devices, is not fully compliant with minimum dimensions requirement to European Directive due to limited sticker area. Keep the packaging for future references.4

PREFACE Thanks for having bought DOC+ BALANCE SCOOTER. DOC+ is a step forwards in the concept of transport; it combines the fun of a skateboard with the practicality of a motorized vehicle with automatic balancing. Have fun with DOC+ BALANCE SCOOTER. TO GUARANTEE YOUR SAFETY AND THE SAFETY OF OTHERS, PLEASE READ THIS USER MANUAL CAREFULLY; USE OF THE DOC+ BALANCE SCOOTER CAN BE DANGEROUS AND LOSS OF CONTROL OF THE VEHICLE, COLLISIONS OR FALLS, COULD RESULT IN SERIOUS INJURIES OR DEATH. TO REDUCE THESE RISKS, READ AND FOLLOW ALL OF THE INSTRUCTIONS AND WARNINGS CONTAINED IN THE USER MANUAL.

Carefully follow the following warnings for use. Use DOC+ in a sensible and responsible manner. DOC+ BALANCE SCOOTER is a means of transport with a dual footboard that uses a self- balancing technology. Although it is a highly technological product, incorrect or inappropriate use could result in injuries. In order to minimize risks of all types we recommend carefully observing the following warnings:

• Always wear shoes, a helmet and appropriate safety equipment, like kneepads, elbow-pads and wrist-guards. We recommend the use of a well-fastened skateboard helmet that offers protection for the head.

• Do not use DOC+ without suitable training and please consult the manual before using it. Failure to do so could result in a loss of control and falls.

• Please remember that the use of DOC+ is solely for your personal entertainment and any other use is prohibited.

• Do not use DOC+ in lanes reserved for motor powered vehicles.

• It should not be used by people under the age of 16, and is not advised for pregnant women and persons with disabilities.

• Do not use DOC+ under the effect of alcohol, drugs or other substances that could alter the user’s reflexes.

• Do not transport objects during use.

• Be careful of objects around you when you are moving. Maintaining a good view of the space in which you are using DOC+ is essential for keeping it under control.6

• When you are moving, ensure that both your feet are correctly positioned on the footboard.

• We recommend wearing comfortable clothing when you use DOC+.

• DOC+ was built to transport only one person. It should not be used by more than one person at the same time.

• It is advisable not to accelerate or stop the vehicle in a sudden or excessively sharp manner as this could result in a loss of control.

• Do not use DOC+ in dark or poorly lit places.

• Make sure that the speed with which DOC+ is being used allows you to stop it any time and in any situation.

• We recommend that you keep a suitable safety distance from other vehicles when you are driving DOC+.

• When you are standing on DOC+ the height of the user will be 10 cm; take this difference into account in the event of particularly low ceilings and doors.

• Do not use DOC+ if there is ice or snow, and avoid using it on stones, branches or other types of vegetation or if other objects are present on the ground as this could compromise control of the vehicle.

• It is strictly forbidden to use DOC+ in combustible environments.

• Do not use at high speeds on irregular terrain or on slopes.

• Do not try tricks or feats of agility.

• Do not lean any objects on the footboards except for your feet as these could interfere with the monitoring systems.

• Do not get off the DOC+ when it is in motion. It is essential to read this manual for a correct use of DOC+ and to reduce potential risks of injury. BEFORE USING, MAKE SURE THAT THE BATTERY IS FULLY CHARGED.7

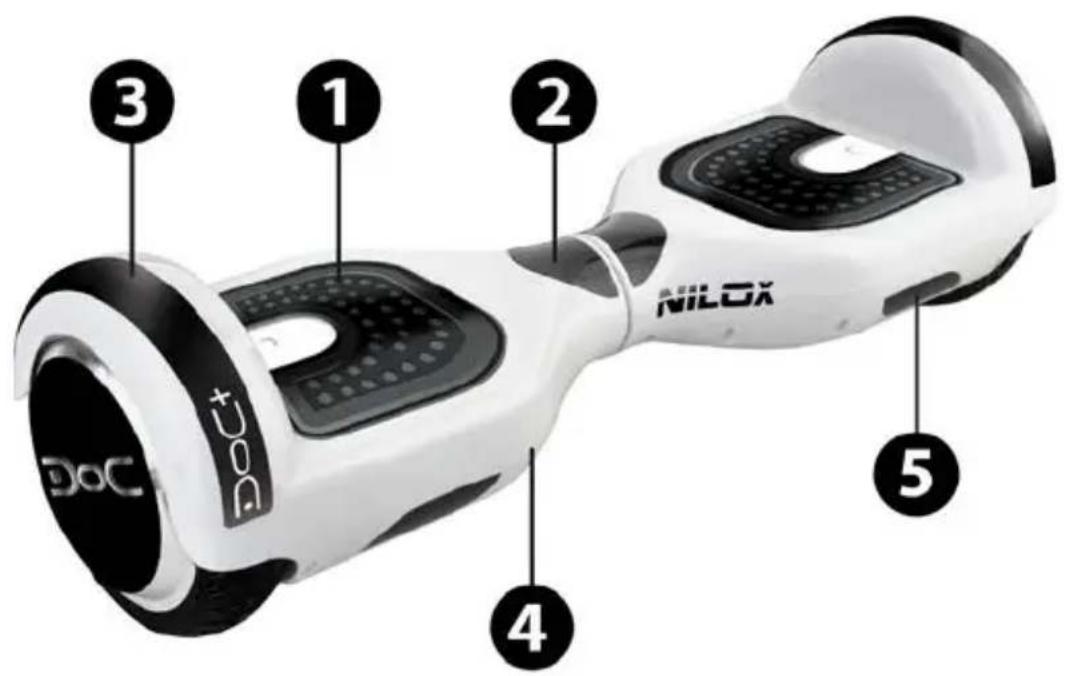

DOC+ BALANCE SCOOTER is a self-balancing electric skateboard. The move forwards, backwards, turn and stop functions are controlled by gentle and balanced movements on the footboards. Very easy to use, easy to control and incredibly fun.

DOC+ moves thanks to the concept of dynamic balance. It uses an internal system of sensors and gyroscopes that allow it to move on the basis of the variation of the centre of gravity, instructing the wheels in real time to turn forwards or backwards to remain in a position of balance. By leaning forwards, you will move forwards and the angle of inclination determines the speed at which you move. To turn it is sufficient to gently transfer your weight to one of your feet. DOC+ BALANCE SCOOTER has a system of inertial stabilization, which helps you to maintain a vertical position; if it notices an excessive inclination of your body towards either side or lack of contact of the footboard by either of your feet it will stop automatically. BEFORE TURNING, YOU HAVE TO REDUCE THE SPEED OF DOC+.8

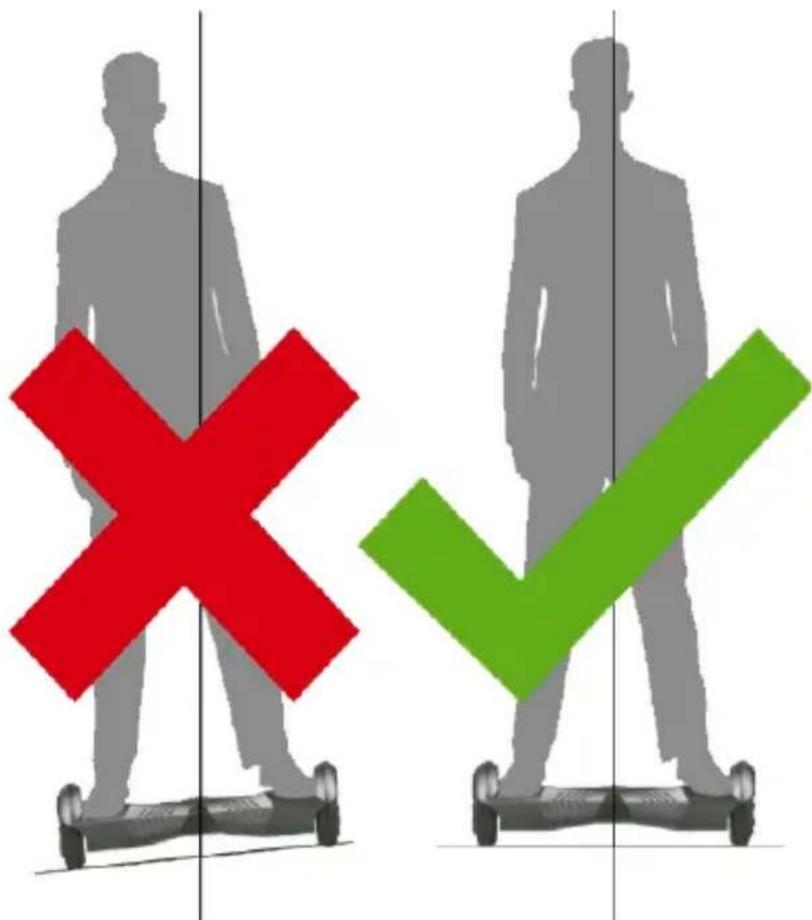

DOC+ has 4 sensors under the pedals. When you climb onto the footboards DOC+ balances automatically. To use it you need to ensure that you are touching both the footboards. Be careful not to place your foot on the external part of the footboards, as DOC+ may not realize you are there. Do not lean forwards or backwards excessively and do not drive on a slope. Do not lean objects on the pedals, as this will result in DOC+ noticing a constant presence and prevent it from stopping thus significantly increasing the possibility of falls or damage to the vehicle. DO NOT PUT YOUR WEIGHT IN THE CENTRAL PART OF DOC+ BALANCE SCOOTER; THIS IS WHERE THE MECHANICAL STEERING MECHANISM IS HOUSED. AN EXCESSIVE WEIGHT COULD RESULT IN IT BREAKING OR NOT FUNCTIONING CORRECTLY.9

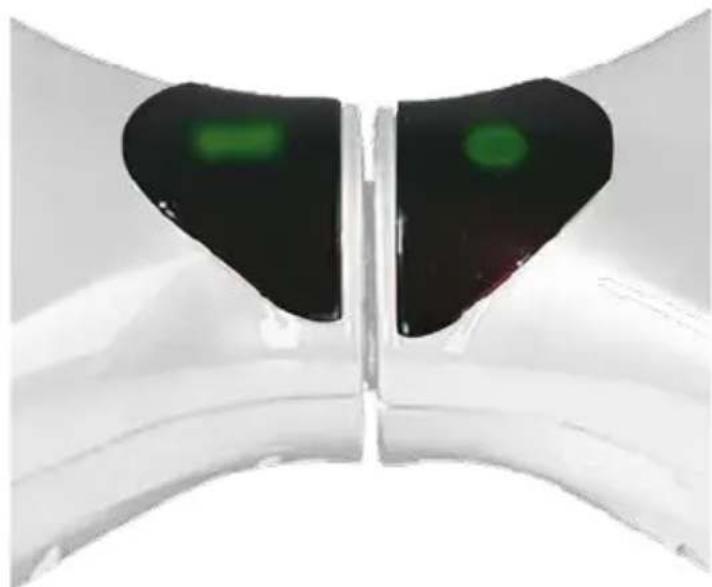

CONTROL LIGHTS The control indicators are in the centre of your DOC+ BALANCE SCOOTER: a status indicator of the battery and a status indicator of the pedals. The battery control light can be:

• Green: this means that the battery is fully charged.

• Flashing green: means the battery has a charge of circa 50%.

• Red: battery with less than 20% charge. In this case, stop using DOC+ and charge the battery. The pedals indicator can be:

• Green: a foot has been placed on the pedal and the balancing system is operating correctly.

• Red: a foot has been placed on the pedal, but the balancing system is not operating correctly, usually in the event of excessive lateral slopes. IF ONE OF THE 2 INDICATORS BECOMES RED, GET OFF DOC+ IMMEDIATELY, AS THE

SAFE USE We are certain that you will be able to use DOC+ BALANCE SCOOTER with absolute peace of mind and have a great deal of fun. All you need is a little practice at the start, in order to fully master this new means of transport: you have probably already learned how to ride a bike, use a skateboard and ski. These experiences will help you to master your DOC+ BALANCE SCOOTER in a short space of time.

• Read the manual carefully.

• Before using it for the first time, make sure that the tires are not damaged and that there are no missing mechanical parts.

• Never use DOC+ with the aim of damaging people or things.

• Do not amend the mechanical parts. Since it is a highly technological device, any tampering or amendment could result in irregular performance. While using the DOC+ balance scooter make sure to take all necessary security measures; in particular we remind, once more, that is recommended to wear a helmet, kneepads, elbow pads, gloves, etc.

WEIGHT LIMITS FOR THE DRIVER

There are two fundamental reasons for weight limit: Ensure the safety of driver. Reduce the overload of DOC+ balance scooter.

• The maximum weight of the driver is 100 kg.

• The minimum weight of the driver is 20 kg. SPEED LIMIT

• The maximum speed of DOC+ balance scooter is 15 km/hour.

• Below this speed, DOC+ easily maintains the driver’s balance.

• When the speed exceeds the specified limit, please slow down and bring the vehicle speed back within the safety range.

• If the maximum speed is exceeded the DOC+ will make an alarm sound.

DISTANCES YOU CAN TRAVEL

• If DOC+ is driven on flat terrain, the distance that can be covered increases.

• If the terrain is not flat the distance you will be able to cover will be smaller.

• The driver’s weight affects the distance that can be covered.

• Correct charging and maintenance of the battery increase the battery life. The opposite is true in the case incorrect charging and maintenance.

• A driving style with continual accelerations and braking reduces the duration of the battery.11

• Do not use DOC+ on routes with gradients of more than 30%.

• If the gradient exceeds 30%, you risk losing control of DOC+.

You must read the following instructions carefully before getting onto DOC+. TO START

• Press the power button to start DOC+.

• As you get on, put one foot on the side of the footboard; DOC+ will notice the weight and will activate the balancing system.

• Slowly lift the other foot and then put it back on the ground.

• Practice lifting your foot and bringing back down to the ground for a few times until you are able to lift it without making DOC+ sway from side to side.

• Try to keep your head held high as much as possible and look ahead.

• When you are easily able to lift your foot from the ground without DOC+ moving slowly place your other foot on the pedal. TO GET ON SAFELY WE REMIND THE USER THAT IS PROHIBITED TO JUMP ONTO DOC+.

• Get control of the frontal movements of DOC+ and remember that movements of the body axis must not be too broad or made through sharp and sudden movements.

• Always maintain control of lateral movements (to the right and to the left).

• Before getting off DOC+, make sure it is completely stationary.

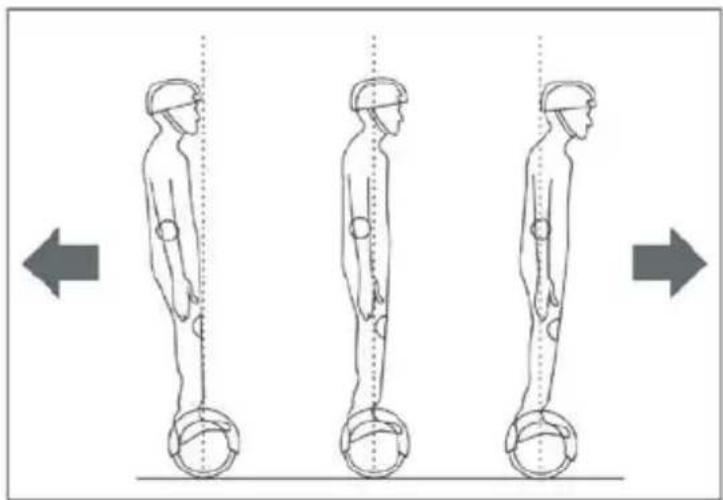

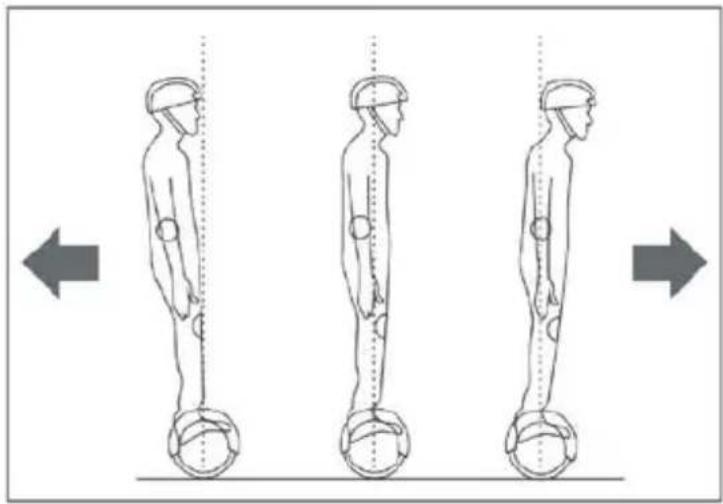

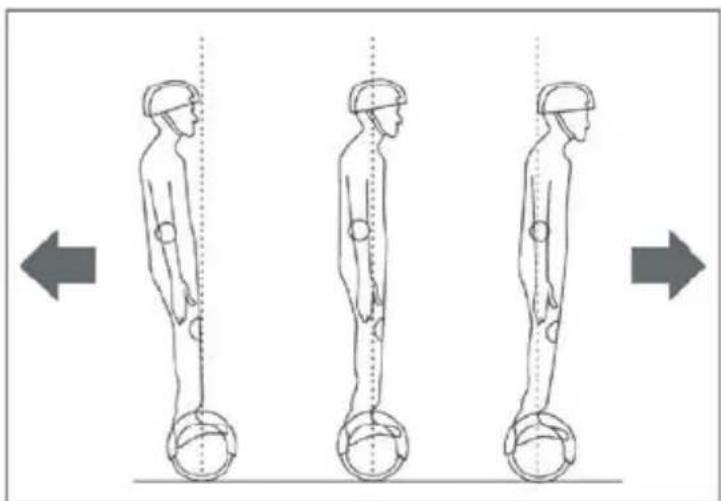

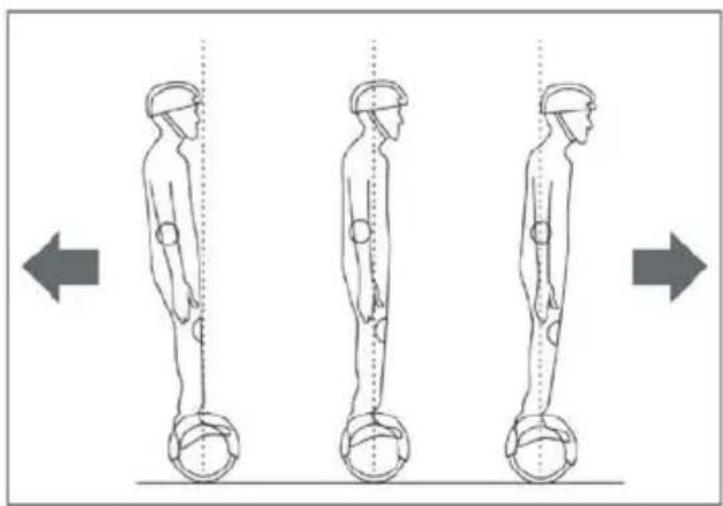

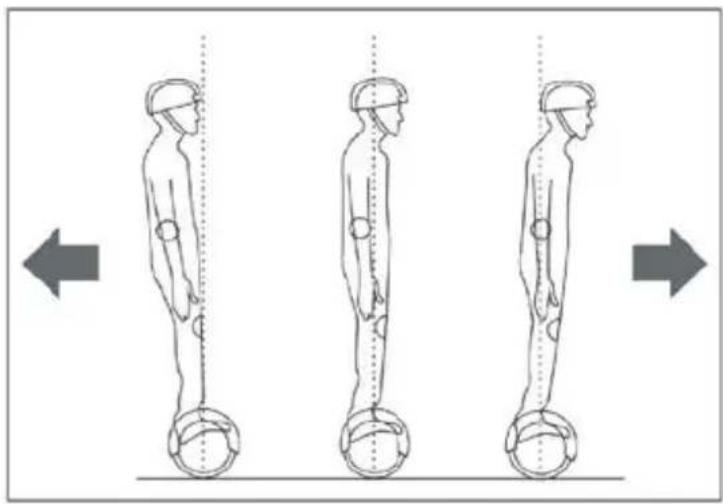

RUNNING As explained above DOC+ BALANCE SCOOTER moves on the basis of the perception of the body’s centre of gravity upon it. As a result:

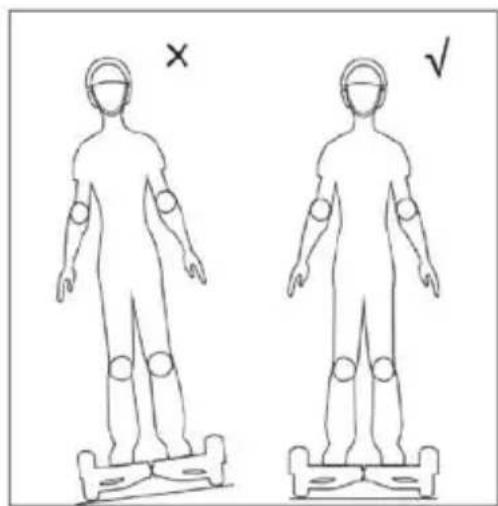

• If there is an excessive lateral inclination, DOC+ will notice more weight on the external footboard and will tend to curve.

• A perfectly vertical position keeps DOC+ stationary, a slight movement forwards or backwards will make DOC+ start in the respective direction.

• The pressure on the right or left footboard will make it curve to the right or left.

DO NOT MAKE SHARP TURNS OR TURNS AT HIGH SPEEDS: THESE ARE DANGEROUS SITUATIONS FOR DRIVING DOC+ BALANCE SCOOTER. DO NOT DRIVE OVER CROSS SLOPES OR IN REVERSE: THIS TYPE OF CONDUCT AFFECTS THE DRIVING SAFETY OF DOC+. PROTECTION FUNCTIONS There follows a list of the anomalies that could lead to the protection functions of DOC+ BALANCE SCOOTER being activated. During use, if the system notes the presence of errors or the loss of balance, it will warn the user of these anomalies, through control lights and intermittent alarm sounds. Example:

• Driving on slopes with a gradient of more than 10 percent.

• When the voltage of the battery is too low.

• In the event of speed that is excessively high.

• In the event of the battery being exhausted.

• In the event of oscillation forwards and backwards for more than 30 seconds. If the system goes into protection mode, the alarm sensors switch on and the control lights start to sound.13

If the battery reaches a voltage that is lower than the minimum value of protection, after 15 seconds DOC+ will switch off automatically. In the event of the wheels becoming blocked, after 2 seconds, DOC+ will switch off automatically. In the event of activities which involve a significant consumption of energy (lengthy climbs, particularly steep descents), the vehicle could activate the automatic turning off mode. IN THE ABOVE CIRCUMSTANCES STEP DOWN FROM DOC+ BALANCE SCOOTER AND SUSPEND USE OF IT: THE AUTO-BALANCING MIGHT NOT FUNCTION CORRECTLY AND POTENTIALLY CAUSE YOU TO FALL.

DRIVING PRACTICE AND SAFE DRIVING

Before using the vehicle on the road, or in an external area, make sure you have mastered it sufficiently:

• It is advisable to wear comfortable clothes and shoes in order to move more freely and flexibly.

• It is not advisable to use the vehicle in open spaces, if you have not learnt all of the functions completely (movements forwards/backwards, to the right /left, start-up /stop).

• Make sure that the surface is suitable for the use of the vehicle.

• The vehicle can be used on various types of surfaces however, if it is used on irregular terrain or by users without much experience, we recommend you use it at low speeds.

• DOC+ is a means of transport that was designed to travel mainly on smooth surfaces; this does not mean that it cannot be used on other types of terrain. When using on surfaces that are not perfectly even, we recommend maintaining a moderate speed.

• For inexperienced users, we recommend avoiding crowded places, where there are obstacles or factors that could represent a danger for the user or other people.

• Children, elderly people and pregnant women should not use DOC+.

• Do not drive when drunk or under the influence of pharmaceutical products or drugs.

• Relax your legs when driving, bend your knees slightly. This will help you to keep the right balance on irregular terrain.

• Do not transport objects when driving.

• Make sure that your feet are always on the footboards; loss of contact with a footboard causes the immediate imbalance of DOC+.

• DOC+ was conceived and designed to be used by a single person. It is never to be used by more than one person at once.

• Do not start or stop suddenly.14

• The weight of the driver must not exceed the maximum load specified in the instructions; the vehicle could be damaged or users could fall.

• The weight must not be less than the minimum weight specified in the instructions as DOC+ would not correctly notice the presence of a person on the sensors; be extremely careful of this especially when travelling downhill, where high speeds can be reached, without the correct control of the vehicle.

• Keep a speed that is appropriate for stopping DOC+ in a suitable manner.

• If you are travelling close to another DOC+, or a similar vehicle, you need to keep a safe distance between the 2 vehicles to avoid collisions.

• When you pass through doors, remember that your height will be about 10 cm higher.

• During bends, be careful of the centre of gravity of your body. A sudden variation could cause a fall.

• Do not drive under the rain.

• Do not drive backwards for long distances or at high speeds.

• DOC+ is not a medical mobility device, and is not non-equivalent to motorized wheelchairs for disabled people or pedal assisted bicycles.

• Avoid driving in confined space or areas with obstacles.

BLUETOOTH OPERATION Your DOC+ BALANCE SCOOTER is equipped with Bluetooth functionality to broadcast music through the built-in speaker. To pair with your Bluetooth Device, follow the steps below (the steps may vary slightly depending on your Smartphone):

• Turn on your DOC+ BALANCE SCOOTER.

• DOC+ will emit a sound signal telling you that Bluetooth is enabled.

• Go to your mobile device settings and choose Bluetooth.

• Start the pairing process on your mobile device. Your mobile device may automatically recognize DOC+ BALANCE SCOOTER without having to start the pairing process.

• Select the new Bluetooth device from your mobile device and pair.

• There is no password required for pairing with DOC+ BALANCE SCOOTER.

• DOC+ will emit a sound signal telling you the devices are paired.

• Now you can play your favourite music from your mobile device with the DOC+ BALANCE SCOOTER internal Bluetooth speaker.

• When you disconnect your mobile device, Doc will emit another sound signal to alert you.15

We will now look at the means of charging and maintaining the battery, as well as potential problems there might be. For the safety of the consumer and to extend the duration and improve performance of the battery, please follow the following instructions:

• When the battery indicator is red, it means the charge is not sufficient. We recommend stopping DOC+.

• When the power is low, there is not enough energy to drive normally. DOC+ will automatically stop and will incline the 2 pedals, in order to prevent people from getting on and thus discourage use.

• Do not use the battery in the following cases:

1. Strong smell and/or excessive heat.

2. If it is losing liquid.

• The dismantling and maintenance of the battery must be carried out solely by an authorized professional.

• Do not touch any substance that comes out of the battery.

• Do not allow children and animals to touch the battery.

• Before installing the battery, disconnect the battery charger.

• DOC+ cannot be used when the battery is charging.

• The batteries contain dangerous substances. Do not open the battery and do not put anything inside them.

• Only use the battery charger provided by our company.

• If they are over-charged, lithium batteries can explode.

• Do not throw into a fire.

INSTRUCTIONS FOR CHARGING THE BATTERY

• Find the battery compartment on the back of DOC+.

• Make sure it is fully dry.

• Connect the battery charger to the electrical mains (100V-240V; 50,60Hz), make sure it is switched on and then connect the other end of the charger to DOC+.

• The red control light on the battery-charger means that it is charging correctly.

• When the control light goes from red to green, the battery is fully charged, so unplug the battery-charger.16

• Charging time is about 2 hours.

• Keep the charging contacts clean and dry.

• If the battery compartment is not dry, do not charge DOC+. PLEASE NOTE: IF THE BATTERY IS KEPT CHARGING FOR EXCESSIVELY LONG PERIODS ITS LIFE CYCLE WILL BE REDUCED.

TEMPERATURE OF THE BATTERY AND SPECIFICATIONS

For DOC+ BALANCE SCOOTER to operate efficiently, the temperature of the battery must be within the range shown below and the temperature, before and after charging, must be within the recommended range. The efficiency of the charging process will be maximized if the following conditions are respected. A temperature that is excessively high or low increases charging time and reduces efficiency. Battery Lithium Ion Charging time circa 2 – 3 hours Volts

Lithium batteries are considered to be dangerous material. Transportation of lithium batteries is governed by the laws of each individual state. Delivery of single lithium batteries is prohibited under international law. If you send your DOC+, the battery must be inside it.

MAINTENANCE DOC+ BALANCE SCOOTER must be maintained and cleaned after use. Follow the brief instructions below to ensure a longer duration and correct functioning of the vehicle. CLEANING

• Make sure that the power cable is disconnected and that DOC+ is off before proceeding.

• Clean the external shell of DOC+ with a soft and dry cloth.

• DOC+ complies with the IP54 standard, which means it is spray resistant, but cannot be immersed in water.

• Do not allow water or other liquid to get inside DOC+, as this could cause permanent damage to the electronic circuitry.

• Clean DOC+ after every use and do not store in a dusty environment. CONSERVATION If you expect not to use DOC+ for a long period:

• Charge the battery completely as this will prevent it from becoming completely exhausted over time.

• Per long periods of time remove the battery and run it down /recharge it every three months.

• Cover DOC+ with a cloth. Dust and sand could get into the engine and damage it.

• Store indoors, at a dry and suitable temperature.

TECHNICAL SPECIFICATIONS Product dimensions 58.4*18.6*17.8 cm Minimum height from the ground 30 mm Height on the foot-boards 110 mm Maximum height from the ground 170 mm Weight of the product 10 kg Maximum weight supported 100 kg Minimum weight supported 20 kg Maximum speed 10 km/h Maximum distance that can be covered with full charge 20 km Minimum radius of curvature
