Product type	Portable battery
Brand	Mophie
Model	power reserve 1X
Battery capacity	Approximately 5000 mAh (estimated)
Charging input	Micro USB 5V/2A
Charging output	USB-A 5V/2.1A
LED indicators	4 LEDs for charge level
Charging cycles	More than 500 full cycles
Charging technology	Adaptive and intelligent charging
Protections	Short-circuit, overcharge, overheat protection
Compatibility	Common smartphones and USB devices
Weight	Approximately 150 g
Dimensions (approximate)	90 x 45 x 20 mm
Warranty	1 year from date of purchase
Package contents	External battery, micro USB cable, quick start guide
Maintenance	Keep dry, clean with a soft damp cloth
Recycling	Do not throw in trash, take to recycling center

Frequently Asked Questions - power reserve 1X Mophie

How do I charge my power reserve 1X battery?

Use the included micro USB cable and plug it into a computer or USB adapter. Full charging takes about 2 to 3 hours.

How do I check the battery charge level?

Press the status indicator button. The 4 LED lights indicate the level: 4 lights = full charge, 1 light = low battery.

Is the power reserve 1X compatible with all smartphones?

It is compatible with most smartphones and USB devices. If a device does not charge, make sure the battery is charged and check the online FAQ.

Can I use the battery while charging it?

Yes, plug your device into the USB output and press the status button to start charging.

How many charging cycles can I expect?

The battery is designed for more than 500 full charging cycles before a significant capacity decrease.

What to do if the battery overheats abnormally?

Immediately stop use. The battery has overheat protection, but if problems persist, contact customer service.

How to maintain my power reserve battery?

Keep it dry and away from moisture. Clean with a soft damp cloth. Recharge every 3 months if unused.

Can I charge the power reserve and a device at the same time?

No, the battery does not support simultaneous charging. Charge the battery first, then use it to charge your devices.

What does it mean if a light blinks?

The lights blink during charging. Once stable, they indicate the current charge level.

How to recycle my battery at end of life?

Do not throw it in the trash. Take it to a battery recycling center or check local regulations.

USER MANUAL power reserve 1X Mophie

Simplified Chinese 121

Traditional Chinese 130

EN

Welcome

Thank you for purchasing the mophie power reserve external battery. Your power reserve battery is a compact yet powerful mobile charging solution for any smartphone.

Package Contains

• mophie power reserve 1X or power reserve 2X External Battery
- Micro USB Cable
- Quick-Start Guide

Features

Your mophie power reserve external battery extends the battery life of your smartphone or other USB device for hours with more power to rock, talk, surf and send. Power through a full day with ease.

Here are just some of the reasons why your power reserve external battery is so great:

• Convenient design is small enough to fit in any pocket or handbag, making this the perfect accessory for your active lifestyle.
• Compatible with most USB devices.

• Simply connect the power reserve battery to your device and press the status button to begin charging.

• Track battery power at a glance with the integrated four-light LED status indicator. You can keep tabs on charging status and current battery life. Know before you go!

• Rechargeable for over 500 full cycles. Our battery is built to last, letting you do more, longer.
• mophie's smart adaptive charging technology identifies your connected device and always delivers the fastest, most efficient charging speeds available.
• Digital Power Management circuitry provides built-in short-circuit, overcharge and temperature protection. Safety First!

Compatibility

The mophie power reserve 1X and power reserve 2X external batteries have been designed to work with most popular smartphones and other USB devices.

- If you experience any issues with charging your particular device, ensure that the power reserve is fully charged and check the FAQ section on this website.

As always, no matter what device you have, carefully read through the Warning section in this manual and in the quick-start guide included with your power reserve before using your power reserve.

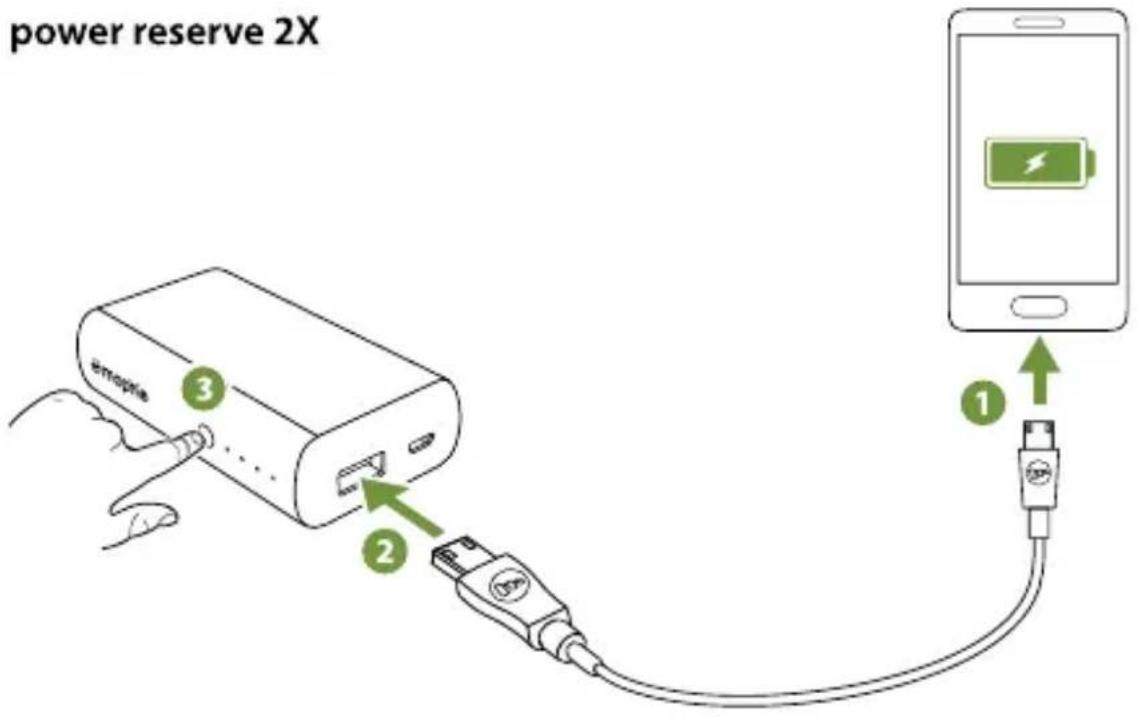

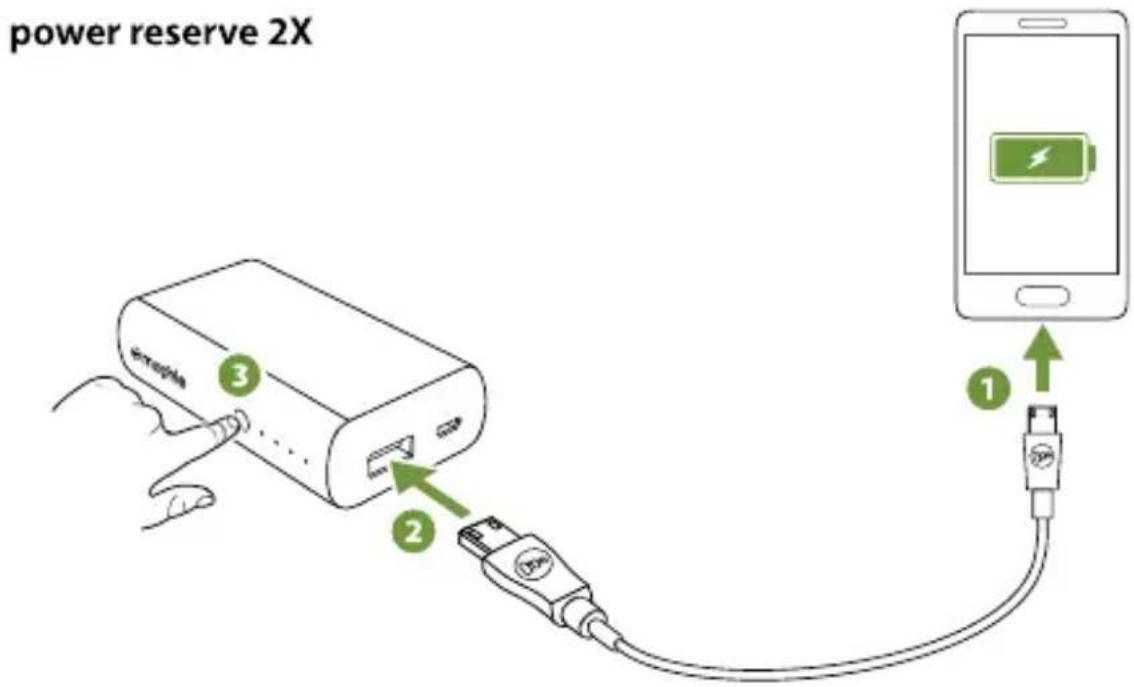

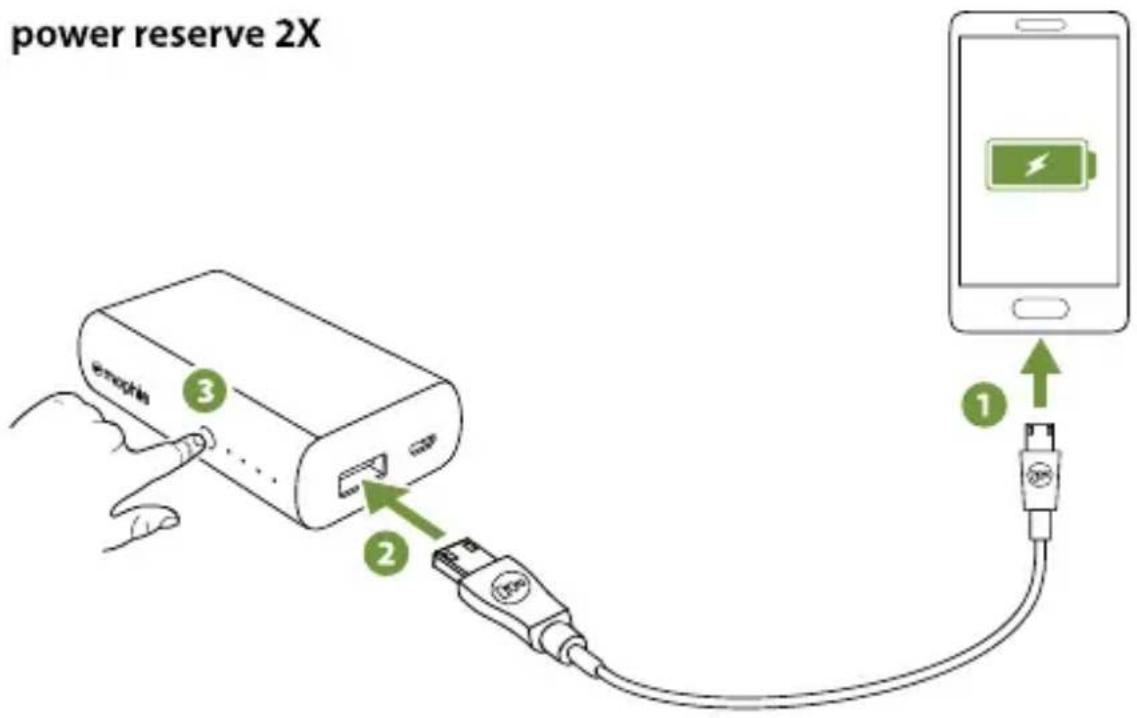

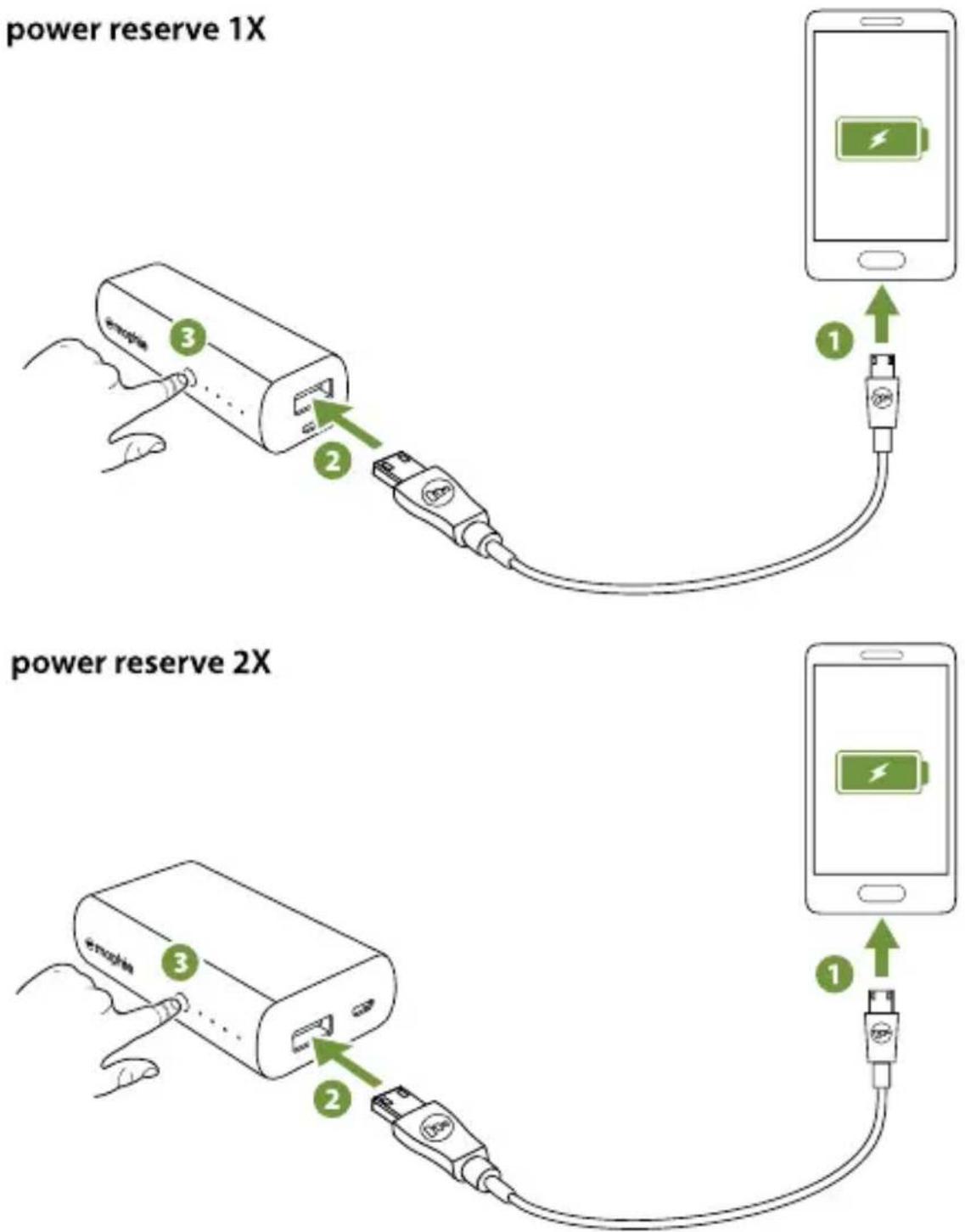

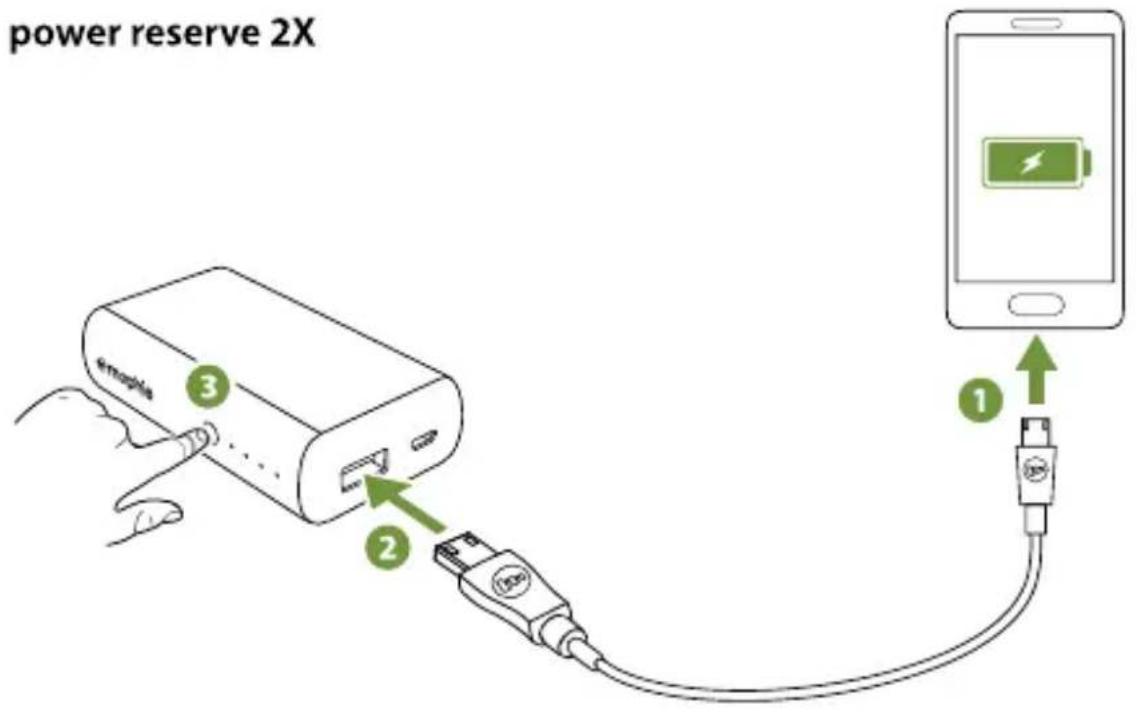

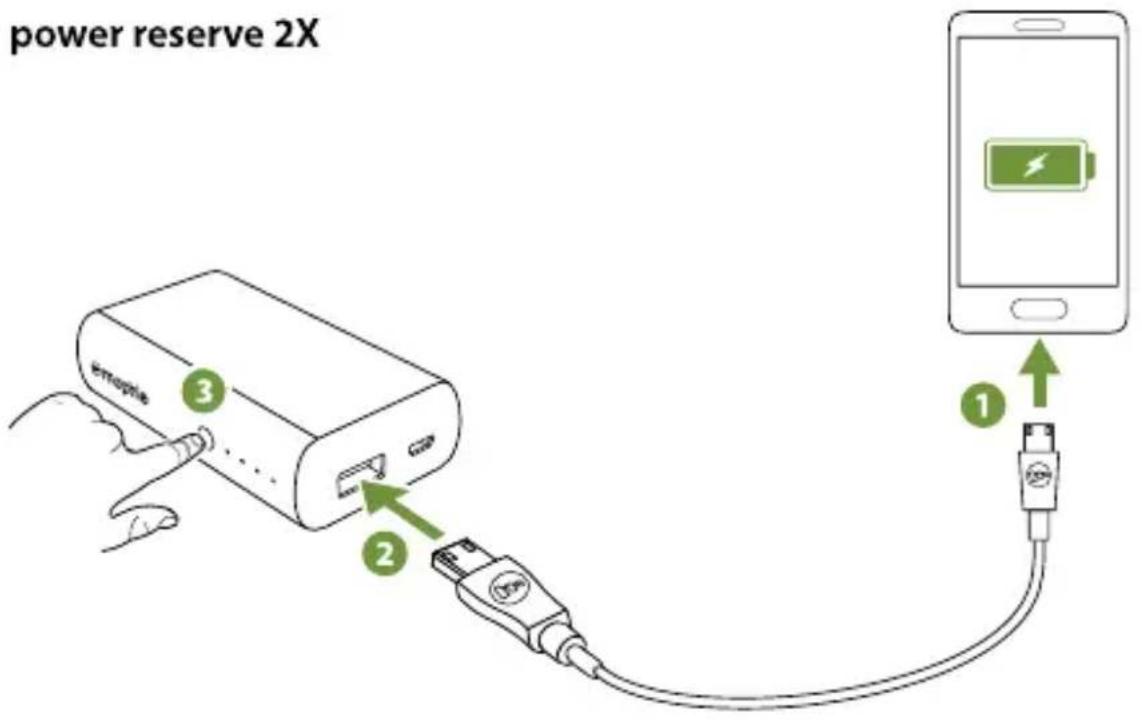

Charging your device using your power reserve battery

Connect the supplied USB cable (or the cable that came with your device) to your device and to the USB connector on the power reserve battery and press the status button to begin charging.


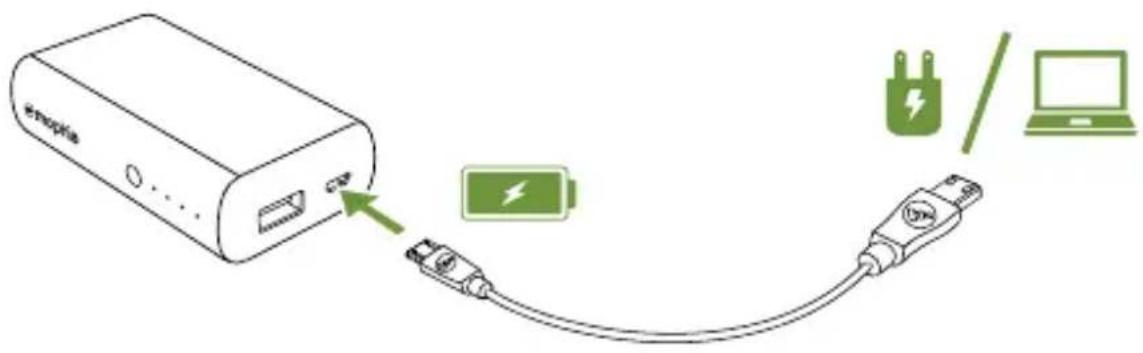

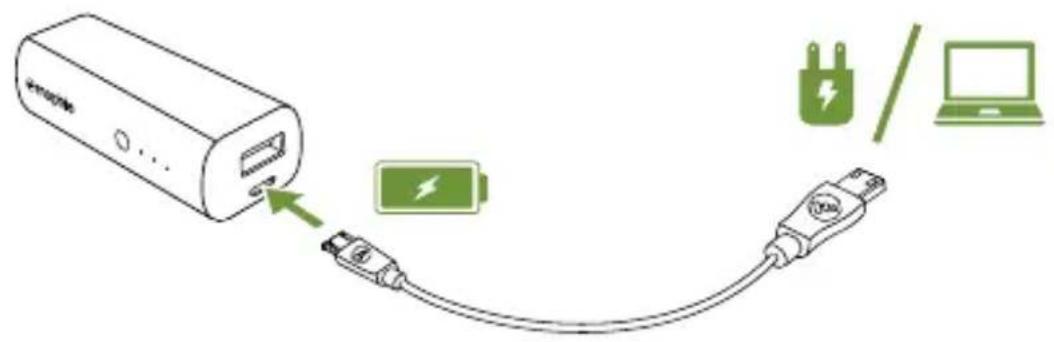

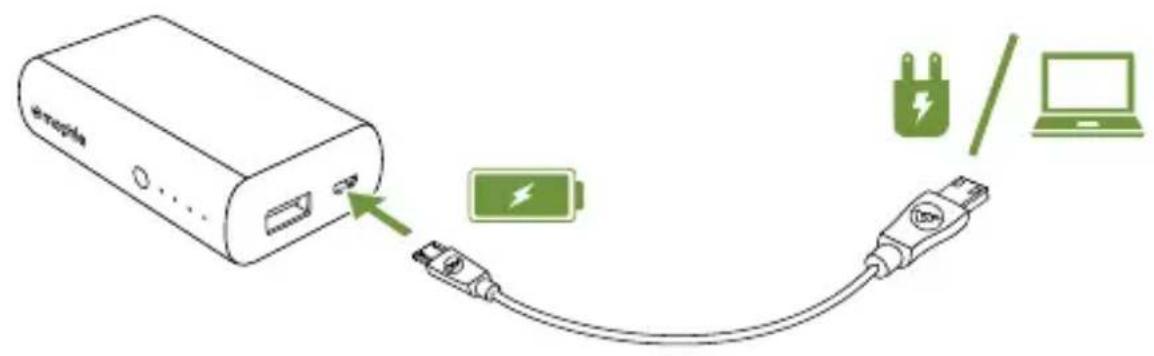

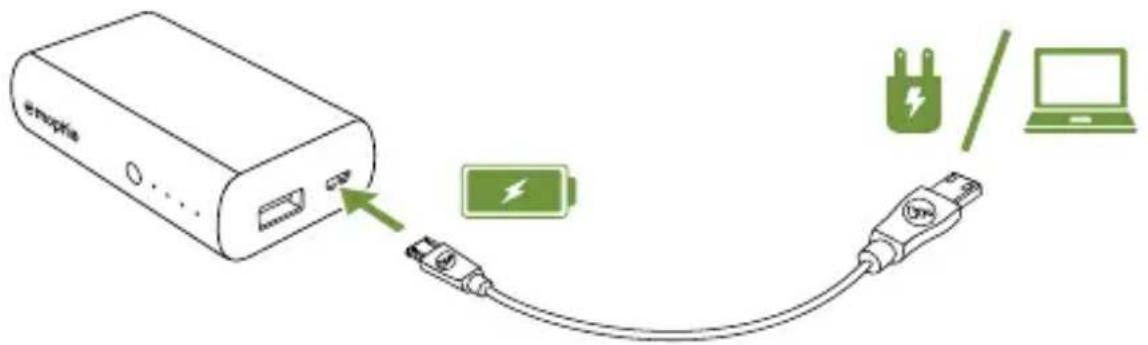

Charging your power reserve battery

Your power reserve battery comes charged and ready to go. When it does need charging, use the supplied micro USB cable to connect it to your computer or any power source with a USB out, like the USB wall adapter included with your USB device. Normal charging should take only two or three hours for maximum power.

power reserve 1X

Diagram showing connection between a battery and an electrical plug with a battery symbol, alongside a laptop icon.

power reserve 2X

eropia + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + -

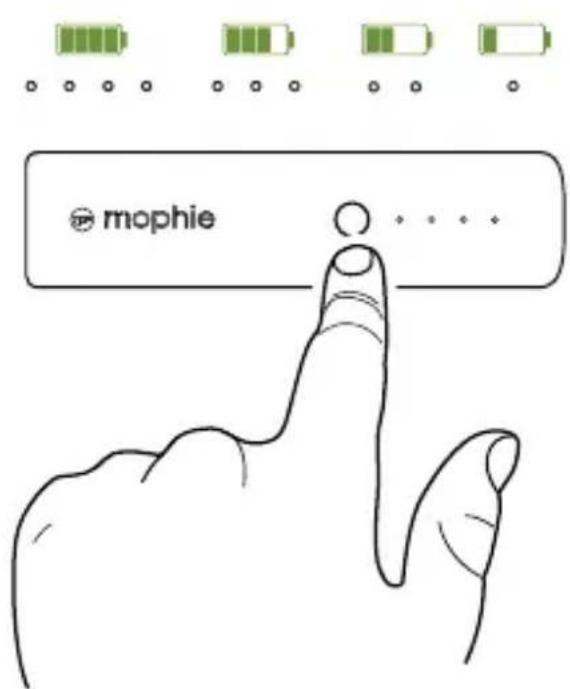

Checking your power reserve battery's charging status

Press the status button on your power reserve battery and the status LEDs will indicate its charge level. Four LEDs means that the power reserve battery is fully charged, while one LED means that it's almost empty. Know before you go!

mophie

Taking care of your power reserve external battery

- Keep your power reserve battery dry and away from moisture and corrosive materials.

- Do not clean your power reserve battery with harsh chemicals, soaps or detergents. Just wipe the case with a soft, water-dampened cloth.

- Recharge your power reserve battery once every three months when not in use. If you plan on putting it away, charge it for one hour first.

Warranty

At mophie, we are dedicated to making the best quality products we can. To back this up, this product is warranted for 1 full year from date of purchase. This warranty does not affect any statutory rights that you may be entitled to. Keep a copy of your purchase receipt as proof of purchase. Be sure to register your product at mophie.com. Failure to register your product and/or provide proof of purchase may void the warranty.

Exclusions & Limitations

Except for the limited warranty expressly set forth or to the extent restricted or prohibited by applicable law, mophie expressly disclaims any and all other warranties express or implied, including any warranty of quality, merchantability, or fitness for a particular purpose, and you specifically agree that mophie shall not be liable for any special, incidental, indirect, punitive, or consequential damages for breach of any warranty of any type on any mophie product. In addition to and without limiting the generality of the foregoing disclaimers, the limited warranty does not, under any circumstances, cover the replacement or cost of any electronic device or personal property inside or outside of the mophie product.

Customer Service

Telephone: 1-888-8mophie

International: [phone]

Web: www.mophie.com/cs

Warning

Read all instructions and warnings prior to using this product. Improper use of this product may result in product damage, excess heat, toxic fumes, fire or explosion, for which damages you ("Purchaser"), and not mophie llc ("Manufacturer") are responsible.

Do not store device in high-temperature environment, including heat caused by intense sunlight or other forms of heat. Do not place device in fire or other excessively hot environments.
Be cautious of excessive drops, bumps, abrasions, or other impacts to this device. If there is any damage to the device such as dents, punctures, tears, deformities, or corrosion due to any cause, discontinue use. Contact Manufacturer or dispose of it in an appropriate manner at your local battery-recycling center.

The power reserve should be operated only in open-air conditions. It should not be operated in an enclosed, unventilated space such as a carrying bag, pocket or purse. Failure to follow these instructions may cause damage to the power reserve by overheating.

Do not disassemble this device or attempt to re-purpose or modify it in any manner.

Do not attempt to charge this device using any method, apparatus, or connection other than the device's USB connector. For questions or instructions for the various ways to charge the device refer to the "Charging your power reserve battery" section of this manual.

Do not attempt to replace any part of this device.

If this device is intended by Purchaser to be used by a minor, purchasing adult agrees to provide detailed instructions and warnings to any minor prior to use. Failure to do so is sole responsibility of purchaser, who agrees to indemnify Manufacturer for any unintended use/misuse by a minor.

All products have gone through a thorough quality assurance inspection. If you find that your device is excessively hot, is emitting odor, is deformed, abraded, cut or is experiencing or demonstrating an abnormal phenomenon, immediately stop all product use and contact Manufacturer.

Before storing your battery for an extended period of time, charge it for one hour.

Never dispose of batteries in the garbage. Disposal of batteries in the garbage is unlawful under state and federal environmental laws and regulations. Always take used batteries to your local battery-recycling center.

This product contains chemicals known to the state of California to cause cancer and birth defects or other reproductive harm.

Legal

This product is meant for use only in conjunction with the appropriate device. Please consult your device packaging to determine whether this product is compatible with your particular device. Manufacturer is not responsible for any damages to any device incurred through the use of this product.

Manufacturer shall not in any way be liable to you or to any third party for any damages you or any third party may suffer as a result of use, intended or unintended, or misuse of this product in conjunction with any device or accessory other than the appropriate device for which this product is designed. Manufacturer will not be responsible for any damages you or any third party may suffer as a result of misuse of this product as outlined above. If you are responsible for product use with an unintended device and damages result from such use, you agree to indemnify Manufacturer for any resulting injuries to any third part(ies).

mophie, power reserve, Digital Power Management, Stay Powerful, “rock, talk, surf and send,” the five-circles design and the mophie logo are trademarks of mophie inc. Patents: mophie.com/patents.

This device complies with part 15 of the FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced technician for help.

CAUTION: To comply with the limits of the Class B digital device, pursuant to Part 15 of the FCC Rules, this device must be used with certified peripherals and shielded cables. All peripherals must be shielded and grounded. Operation with non-certified peripherals or non-shielded cables may result in interference to radio or reception.

MODIFICATION: Any changes or modifications of this device could void the warranty.

FR

Bienvenue

power reserve 1X 3 2 1

power reserve 2X 3 2 1

Diagram showing connection between a battery and an Ethernet cable with a battery icon, alongside a laptop and a plug symbol.

power reserve 2X

Diagram showing connection between a power bank and connected to an EV battery and laptop, with a green lightning bolt indicating the battery.

power reserve 1X 3 2 1

power reserve 2X Simple 3 2 1

Diagram showing connection between a power bank, battery, and laptop with labeled components

power reserve 2X

Diagram showing connection between a network device and two connected devices with battery and power indicators, including a laptop.

power reserve 1X 3 2 1

power reserve 2X 3 2 1

Diagram showing a battery connected to an AC plug via a cable, with icons for battery, charging, and laptop connection.

power reserve 2X

e-mail Battery / /

power reserve 1X 3 2 1

power reserve 2X 3 2 1

Diagram showing connection between a power bank and connected to an energy card and a laptop, with a battery icon indicating charging.

power reserve 2X

Diagram showing connection between a power bank and connected to an electronic device with battery, charging plug, and laptop

power reserve 1X 3 2 1

power reserve 2X 3 2 1

Diagram showing connection between a power bank and connected to an electronic device with battery, battery symbol, and power plug.

power reserve 2X

Diagram showing connection between a USB drive and connected to a laptop via battery and plug, with a green arrow indicating the power input.

mophie, power reserve, Digital Power Management, Stay Powerful, "rock, talk, surf and send", o

design cinco-círculos e o logotipo mophie são marcas registradas da mophie inc.

Patentes: mophie.com/patents.

power reserve 1X 3 2 1

power reserve 2X emplace ③ ② ①

Зарядка power reserve

Diagram showing connection between a battery and an Ethernet cable with a battery icon, alongside a laptop and a charging plug symbol.

power reserve 2X

Simple Battery / /

Diagram showing connection between a power bank and connected to a laptop via a battery, with a lightning bolt symbol indicating charging.

power reserve 2X

E-mail Battery Battery Laptop

Diagram showing connection between a power bank and connected to an EV plug with battery, battery symbol, and laptop icon

power reserve 2X

Diagram showing a mobile network device connected to a battery and connected to an electronic device via a cable, with icons for battery, power plug, and laptop.

本製品の充電状態を確認する方法

Diagram showing a battery connected to an AC power adapter with a battery symbol and a laptop nearby, illustrating the connection mechanism.

power reserve 2X

eTropia Battery / Laptop

Diagram showing connection between a power bank and connected to a laptop via a battery, with a lightning bolt symbol indicating charging.

power reserve 2X

e-mail + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + -

检查您的power reserve电池充电状态

power reserve 1X ① ② ③

power reserve 2X 3 2 1

Diagram showing connection between a battery and an Ethernet cable with icons for charging, battery, and laptop

power reserve 2X

Diagram showing connection between a power bank and connected to an electronic device with battery, charging plug, and laptop
