KW 1411 - Kitchen scales BOMANN - Free user manual and instructions

USER MANUAL KW 1411 BOMANN

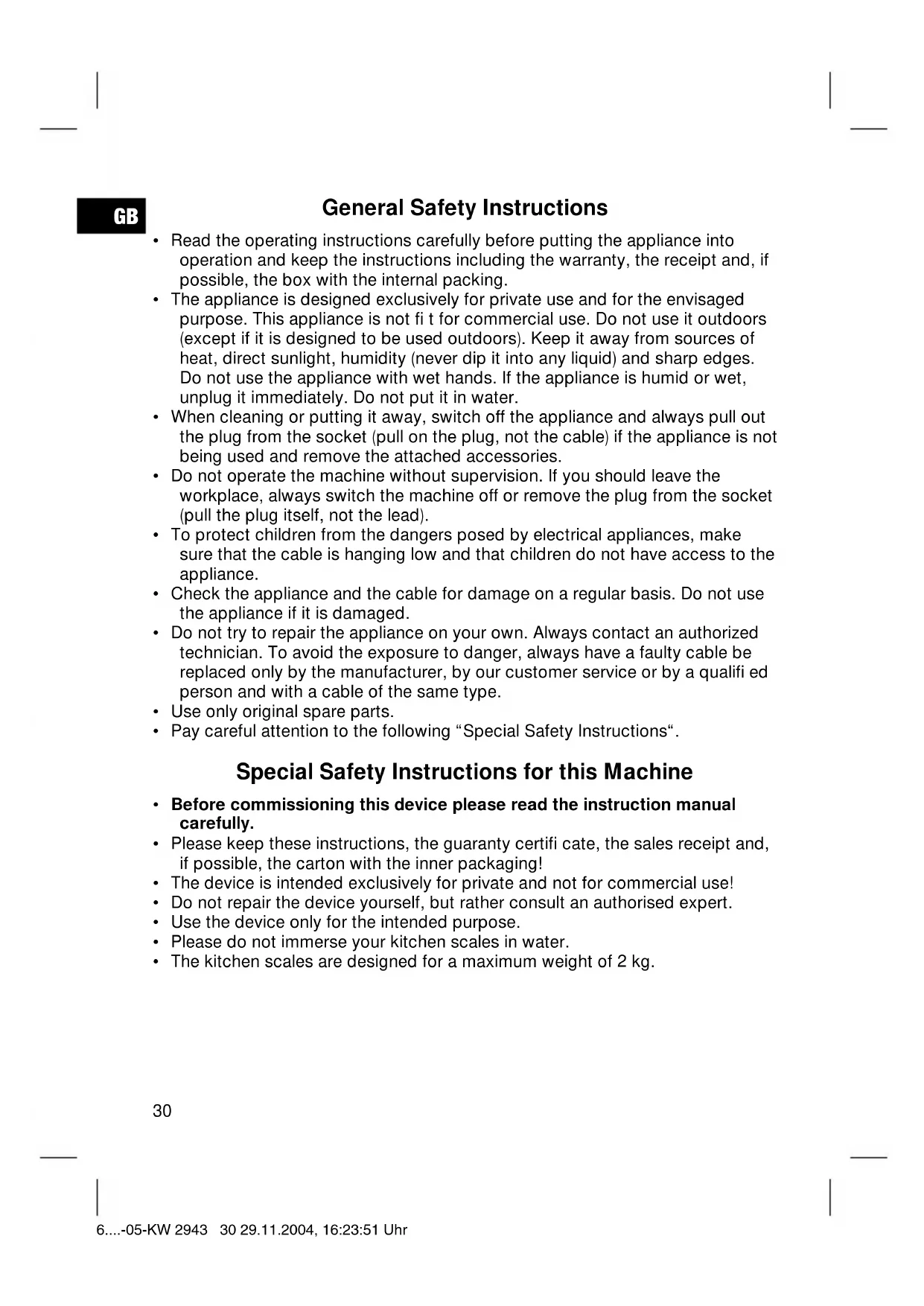

General Safety Instructions

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fi t for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.

• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.

• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).

• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.

• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.

• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualifi ed person and with a cable of the same type.

• Use only original spare parts.

• Pay careful attention to the following “Special Safety Instructions“. Special Safety Instructions for this Machine

• Before commissioning this device please read the instruction manual carefully.

• Please keep these instructions, the guaranty certifi cate, the sales receipt and, if possible, the carton with the inner packaging!

• The device is intended exclusively for private and not for commercial use!

• Do not repair the device yourself, but rather consult an authorised expert.

• Use the device only for the intended purpose.

• Please do not immerse your kitchen scales in water.

• The kitchen scales are designed for a maximum weight of 2 kg. 6....-05-KW 2943 30 29.11.2004, 16:23:51 UhrGB

Inserting the batteries (not supplied)

1. Open the battery compartment on the bottom.

2. Connect a 9 V, E compound battery to the supply connection. Please ensure

the correct polarity.

3. Close the battery compartment again.

4. If the device is not used for a prolonged period of time, please take the batte-

ries out in order to prevent leakage of battery acid.

5. A battery symbol in the display indicates that the battery should be replaced.

Note: Do not dispose of batteries in the domestic waste. Please return used batteries to the relevant collection points or the shop where they were bought. Never throw batteries into a fi re. Use The kitchen balance was developed to display the weight of food and ingredients. Please choose an appropriate location for your kitchen scales. An ideal place is a dry, fl at, non-slip surface where the device is readily accessible.

• Press the „ EIN/TARA” button in order to switch the scales on.

• For a few seconds all the segments of the display appear in the LCD, followed by the value “0”.

• Press the “KG/LB” button repeatedly to select the settings in kilograms, grams (kg, g), or pounds and ounces (lb, oz).

• Place the items to be weighed on the weighting plate. The weight is shown in the display. Weigh-in Function (TARE) If you would like to weigh further ingredients for example, use the weigh-in function.

• Press the „ EIN/TARA” button again. The display returns to “0”.

• Now place the ingredient in the pan of the scales. Only the actual weight of the added ingredient is shown in the display. Repeat the above procedure if necessary. When the scales are not being used they turn off automatically after approximate- ly 2 minutes. This prolongs the battery life. Alternatively you can press the „ AUS” button to switch the device off. Handle the balance with care. It is a precision measuring instrument. Do not make it fall and do not load it beyond the maximum weight. 6....-05-KW 2943 31 29.11.2004, 16:23:57 UhrGB

• Only use a slightly damp cloth to clean the outside of the unit.

• Do not use abrasive or aggressive cleaners. Usage and care tips

• Do not immerse the balance in water: the electronic components can be damaged.

• Remove the batterie if the balance is not to be used for a long period of time.

• Handle the balance with care. It is a precision measuring instrument. Do not make it fall and do not load it beyond the maximum weight.

• Absolutely no need for maintenance.

• If the battery symbol is shown in the display, please replace the battery.

• Do not load the appliance with more than 2 kg to avoid damaging the device.

• If the letters „EE“ appear, the weight is above 2 kg. This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations. Subject to technical changes without prior notice! Guarantee The device supplied by our Company is covered by a 24 month guarantee star- ting on the date of purchase (receipt). During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee! Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out. If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt. *) Damage to accessories does not mean automatic free replacement of the who- le machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge. Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid! 6....-05-KW 2943 32 29.11.2004, 16:23:57 UhrGB

The guarantee lapses in case of unauthorized tampering. After the expiry of the guarantee After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs. 6....-05-KW 2943 33 29.11.2004, 16:23:57 UhrPL
