TA 1343 CB - Toaster BOMANN - Free user manual and instructions

USER MANUAL TA 1343 CB BOMANN

D-47906 Kempen/Germany

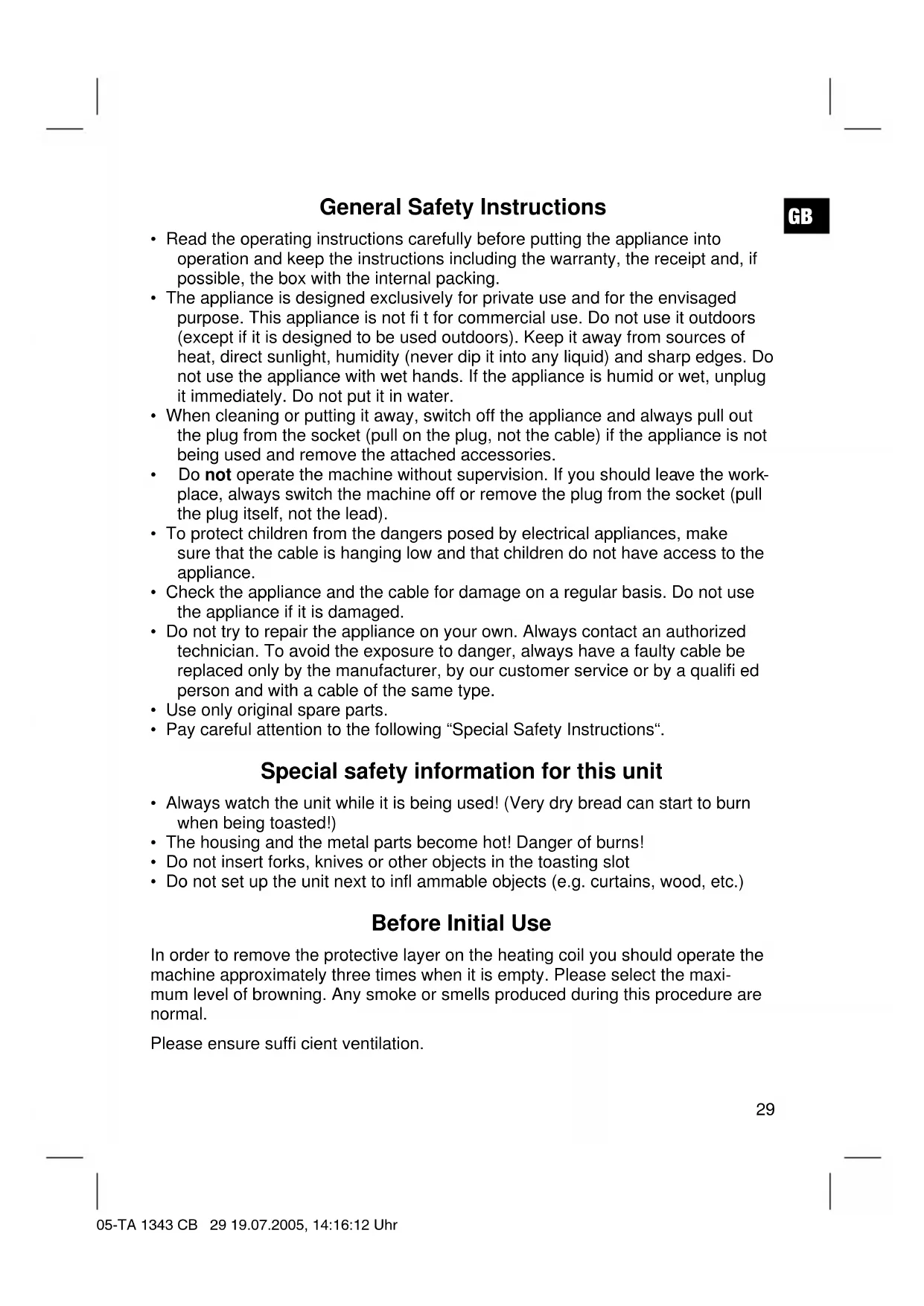

General Safety Instructions

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Special safety information for this unit

• Always watch the unit while it is being used! (Very dry bread can start to burn when being toasted!)
• The housing and the metal parts become hot! Danger of burns!
• Do not insert forks, knives or other objects in the toasting slot
• Do not set up the unit next to infl ammable objects (e.g. curtains, wood, etc.)

Before Initial Use

In order to remove the protective layer on the heating coil you should operate the machine approximately three times when it is empty. Please select the maximum level of browning. Any smoke or smells produced during this procedure are normal.

Please ensure suffi cient ventilation.

GB

Operation

1. Only connect the unit to a properly installed and earthed power socket (230 volts, 50 Hz).
2. To set the browning level, turn the selector clockwise to the preferred level starting from the lightest - level 1 - to the darkest - level 6. If you are not sure start with a lower setting. (The marking on the selection switch shows you the setting).
3. Insert the slices of bread in the toasting slot and lower the slide with the lever until it snaps into place.
4. The appliance starts the toasting. When the set level of browning is reached, the appliance switches off automatically. The slide pops up automatically.
5. As the housing and the metal parts become hot during operation, please allow the device to cool down before putting it away.

In order to use the special functions, first press down the lever and then the appropriate button (or) The accompanying control lamp shows the function.

Warming (): To warm bread already toasted.

Thawing (): To thaw and toast deep-frozen bread.

Hamburgers ( ):

For toasting "hamburger" roll halves on one side. Here only the external heating spirals of the toaster are in operation. The internal spirals remain cold. The cut surfaces of the roll must face the external sides of the toaster.

STOP ( ): To stop toasting in advance.

Removable

toasting attachment: For the toasting of bread rolls.

Cleaning

• Pull the mains plug out of the mains socket before you clean the unit and allow the unit to cool down.
• Only use a slightly damp cloth to clean the outside of the unit.
• Do not use abrasive or aggressive cleaners.
• Remove the crumb tray from the slot, remove the crumbs and insert the tray again.

Technical Data

GB

Model: TA 1343 CB

Power supply: 230 V, 50 Hz

Power consumption: 850 W

Protection class:

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

*) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

In many EU countries the disposal of electrical and electronic equipment in the domestic waste is prohibited from August 13, 2005 on. In Germany from March 23, 2006 on.

3JIeKtpoNTaHHe: 230B,50T

Ioppe6nemar mouHoctb: 850 BaTT

Klacc 3aunbl: I

3TO n3deneHne npoIIO BCE Heo6xOaIMbIe n aKTyaJIbHbIe npOBepKn, npEaHcAHbIe dIpeKTHBOI CE, K npM. Ha 3JeKTPomarHHTHyIO COBMeCTHMOCt b N COOTBeTCTBHe Tpe6OBAHnM K Hn3KOBoJbTHOH TeXnKe, OHO 6blNo TaKKe CkOHCTpyuPobAoHO I NOCTpOeHO C yYeToM NocJeDnX Tpe6OBAHn I NO TexNKe 6e3OnaCHOCTn.

Mbl octabnem 3a coob npabo Ha texhueckne n3meheHn!

TapaHTnHoe 6ra3aTeJIbCTBO

TapaHTnHbI cPOK Ha TeppntOpH N PoCCNcKo Φeepaunu yCTaHaBnBaETcA NOHOMOHyIMN PpeDCTaBNTeJIaMn.

KaccobbyuekraBnErcra rapaHTnHbIM TaHOHm.Be3 Hero HeBO3MOKeH 6ecnlaTHbI peMOHT nnn 3ameHa n3dennia.

B clyuae Bo3HKnHOBxHHn npnteH3n NO rapaHTn, ppeJbBNTe N3dJIne B nOHLHOKOMNKeTauu, C opHrHaNbHO yNaKOBKO IN KaccOBbIM YeKOM TOpROBOI TOUke, npoDaBwe 3TO n3dJIne.

*) DepeKtbl npHaIeJxHocTe He clyjkaT npuHOn IJIa ABToMaTHueCKo 3aMeHbI Bcero n3denn. B 3tOM cnyae no3BOHnte Ham, noXaynCTa, no Tropyey JInn! Pa3bIbIe cTeKJIHHbIe I NOIOMaHbIe IIACTMaCCOBbIe DeTaJIb BO3MeaOTcra ToIbKO 3a DOONHHTeBHyO ONLatY!

DepeKtI h3HaUNBaEMbIX npHnADJIeKHOCTe INI IN TpyuNXcA DeTalei (HaNPmep KOHTaKTbIe 5eTKMOTOPOB, CMEcHTeNBHbIE KpIOKN, pINBOHDhie peMHN, 3aNaCHbIe NylbTbI ynpabLeHnA, 3aNaChbIe 3y6HbIE 5eTKN, NIIbHbIe NOLOTHa I.T.D.), a TaKHe YnCTKa, TexO6ClyXKBaHne INI 3aMeHa TpyuNXc A DeTalei He NONaDAOT NOI rapaHTHIO, IN OToTMy nPoBOdTcR 3a OTdeJIbHyO ONlAty!

TapaHTn TepaETc npN BCKpbITn N3dEIN NOCTOPOHMMIuamn.

Pocne rapaHTn

Iocne OKOHaHn Cpoka rapaHTn, peMOHT n3denn npON3BOIDTCa 3a ONnATy, COOTBETCTBYUcIMM MaCTepCKmN nn NyHKtAmC cepBnCHOrO O6cnyKuBaHn.

BOMANN®

C. Bomann GmbH

Heinrich-Horten-Str. 17·47906 Kempen

Tel.: [phone] · Fax: [phone]

e-mail: [e-mail] · Internet: www.bomann.de
