CB 592 - Kettle BOMANN - Free user manual and instructions

Product type	Electric kettle
Brand	Bomann
Model	CB 592
Voltage	230 V ~ 50 Hz
Rated power	2200 W
Rated capacity	1.7 L
Material	Stainless steel
Auto shut-off	Yes
Water level indicator	Yes, with MIN and MAX marks
Anti-scale filter	Yes, removable with tab
Base	Yes, with connector
Switch	On the handle
Indicator light	Yes
Warranty	24 months
External cleaning	Damp cloth without detergent
Descaling	Product based on citric acid
Minimum capacity (MIN)	Approximately 0.5 L
Overheat protection	Yes (auto shut-off if empty)
Usage	Cold water only
Repairability	Only by authorized service center

Frequently Asked Questions - CB 592 BOMANN

How to descale my Bomann CB 592 kettle?

Use a descaling product based on citric acid available in stores. Follow the indicated amounts. Do not use vinegar.

Can I use vinegar for descaling?

No, it is recommended to use a descaling product based on citric acid rather than vinegar.

What is the capacity of the kettle?

The capacity is not specified in the manual, but the MIN and MAX marks on the water level indicator give an estimated maximum capacity of approximately 1.7 L.

How to clean the anti-scale filter?

Lift the filter by the tab located at the top, then rinse it under tap water to remove limescale deposits.

What if the kettle does not turn on?

Check that the appliance is properly plugged into a working power outlet. If the problem persists, contact the after-sales service.

Can I heat liquids other than water?

No, the kettle is designed only for heating cold water. Do not use other liquids.

How to open the lid?

Press the button located on the lid to open it.

What is the warranty period?

The kettle has a warranty of 24 months from the date of purchase, upon presentation of the receipt.

Can I use the kettle without the base?

No, the kettle must always be used with the base provided. Do not plug directly into the mains without the base.

What if the kettle leaks?

Ensure that the lid is properly closed and that the water level does not exceed the MAX mark. If the leak persists, contact the after-sales service.

USER MANUAL CB 592 BOMANN

Exterior view of a modern stainless steel water heater with black handle and brand logo (no text-heavy elements)

CB 592

CE

D

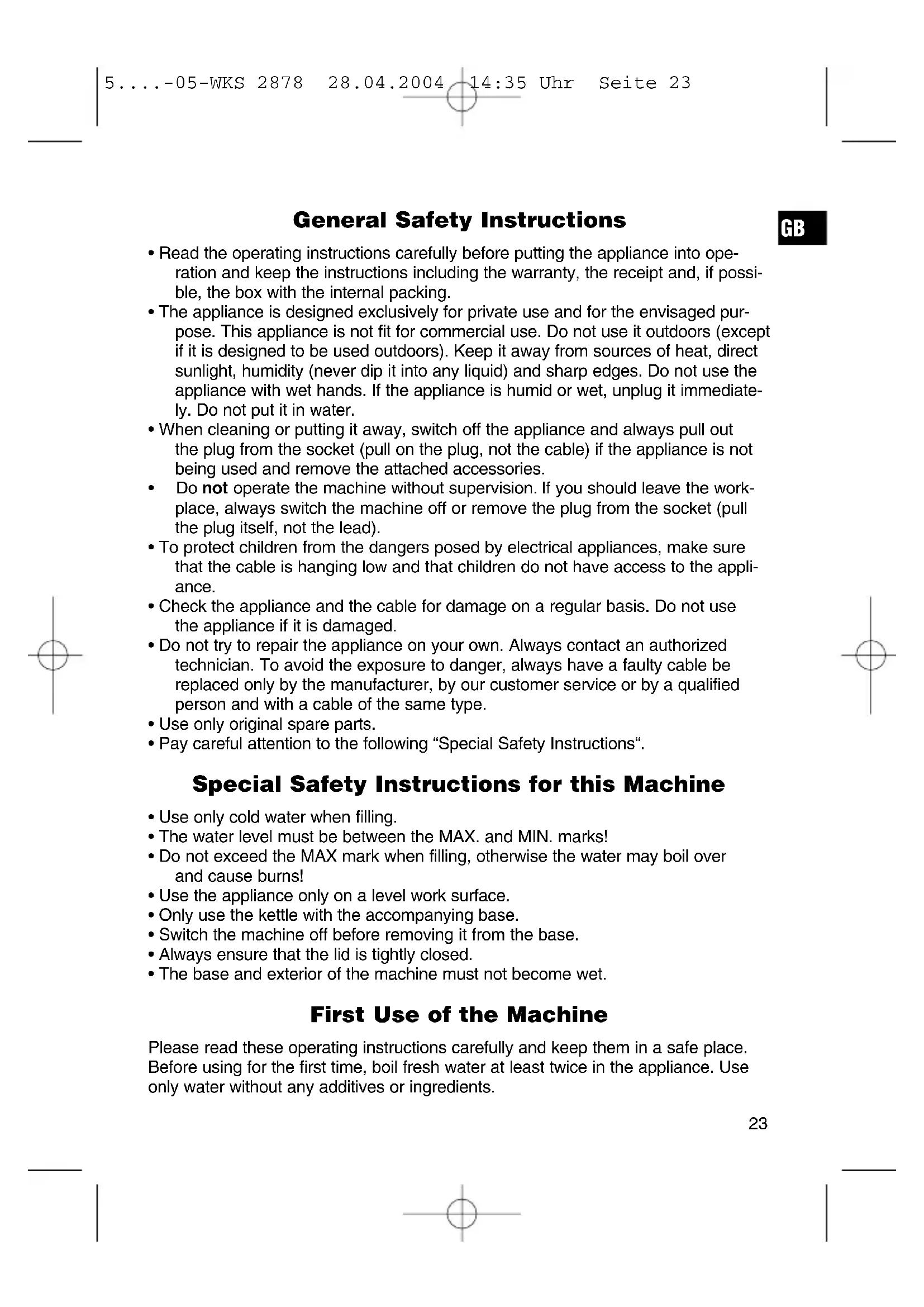

General Safety Instructions

GB

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Special Safety Instructions for this Machine

• Use only cold water when filling.
• The water level must be between the MAX. and MIN. marks!
• Do not exceed the MAX mark when filling, otherwise the water may boil over and cause burns!
• Use the appliance only on a level work surface.
• Only use the kettle with the accompanying base.
• Switch the machine off before removing it from the base.
  • Always ensure that the lid is tightly closed.
• The base and exterior of the machine must not become wet.

First Use of the Machine

Please read these operating instructions carefully and keep them in a safe place. Before using for the first time, boil fresh water at least twice in the appliance. Use only water without any additives or ingredients.

GB

Use

1. Place the machine on a flat surface.
2. Open the water boiler with the button on the lid. Fill it with water. Fill only up to the maximum mark (MAX). You can check the level on both sides of the appliance with the water level display.
3. Close the lid.
4. Place the kettle flush on the base.

5. Electrical connection

6. Check whether the electrical voltage that you intend to use is the same as that of the machine. Details are to be found on the label on the base.

7. Only connect the machine to a properly installed 230 V, 50 Hz safety socket.

8. Switch on the appliance with the switch on the handle. The LED on the kettle lights up.

9. After boiling the machine switches off automatically. Disconnect the machine from the mains electricity supply. Keep the lid closed when pouring. Danger of burning!

Cleaning

• Always pull out the plug from the socket before cleaning!
• The exterior of the machine should be cleaned, if necessary, with a slightly damp cloth without additives.
• For cleaning purposes the lime filter can be removed by pulling upwards by the tab. Remove the lime deposits by rinsing the filter under running water.

Decalcification

The frequency of the decalcifying operation depends on the hardness of the water and on how often the appliance is used.

If the machine switches off before the water boils, it probably needs to be decalcified.

Please do not use vinegar but a commercially available decalcification agent on the basis of citric acid. Only use the quantities stated in the instructions.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

*) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

PL

ning of the "Dustbin" Symbol

GB

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

In many EU countries the disposal of electrical and electronic equipment in the domestic waste is prohibited from August 13, 2005 on.

In Germany from March 23, 2006 on.
