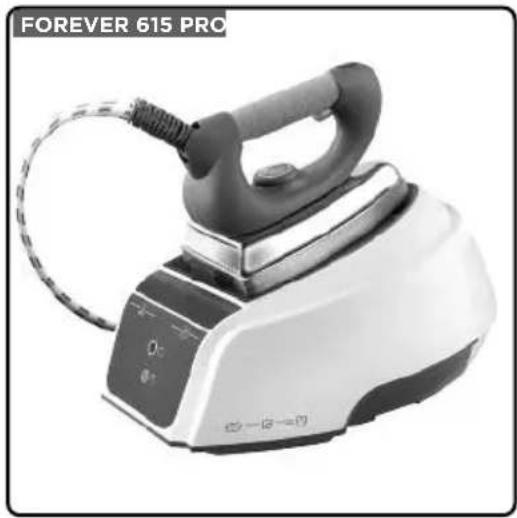

USER MANUAL Vaporella Forever 615 PRO POLTI

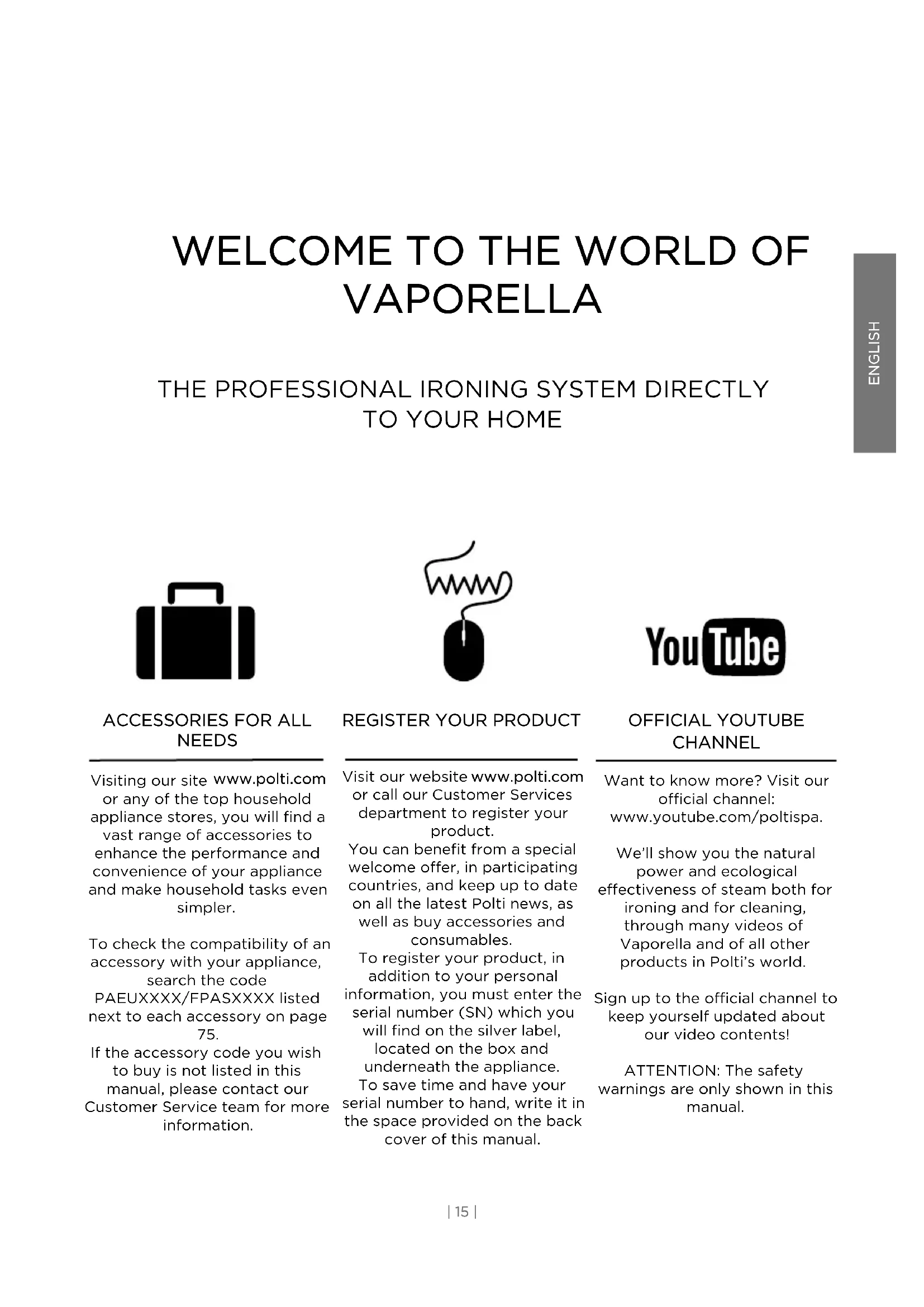

NEEDS Visiting our site www.polti.com or any of the top household appliance stores, you will find a vast range of accessories to enhance the performance and convenience of your appliance and make household tasks even simpler. To check the compatibility of an accessory with your appliance, search the code PAEUXXXX/FPASXXXX listed next to each accessory on page

If the accessory code you wish to buy is not listed in this manual, please contact our Customer Service team for more information.

REGISTER YOUR PRODUCT

Visit our website www.polti.com or call our Customer Services department to register your product. You can benefit from a special welcome offer, in participating countries, and keep up to date on all the latest Polti news, as well as buy accessories and consumables. To register your product, in addition to your personal information, you must enter the serial number (SN) which you will find on the silver label, located on the box and underneath the appliance. To save time and have your serial number to hand, write it in the space provided on the back cover of this manual. OFFICIAL YOUTUBE CHANNEL Want to know more? Visit our official channel: www.youtube.com/poltispa. We’ll show you the natural power and ecological effectiveness of steam both for ironing and for cleaning, through many videos of Vaporella and of all other products in Polti’s world. Sign up to the official channel to keep yourself updated about our video contents! ATTENTION: The safety warnings are only shown in this manual.SAFETY WARNINGS

IN THIS MANUAL, AND ON THE APPLIANCE ITSELF. Polti S.p.A. declines all liability for any accident deriving from any improper use of this appliance. Correct use of the product is only as detailed in this instruction manual. Any use which does not comply with these instructions will invalidate the warranty. SAFETY SYMBOLS:

WARNING: High temperature. Risk of scalding!

If shown on the product, do not touch as parts may be very hot.

Risk of scalding! This appliance reaches very high temperatures. Incorrect use of the device can cause scalding.

• Never disassemble or carry out maintenance on the appliance apart from that indicated in this manual. In the event of a fault or malfunction, do not try to repair the appliance yourself. In the event of a heavy knock, fall, damage or fall into water, the appliance may no longer be safe to use. Incorrect use or a lack of respect for the instructions herein may lead to serious accidents. Always contact Authorised Service Centres.

• This iron must not be used if it has been dropped, if there are visible signs of damage or if it leaks.

• The plug must be removed from the power socket before the tank/boiler is filled.

• The opening to the tank/boiler must not be opened while in use. ENGLISH | 16 |• During use there is pressure inside the boiler. Do not remove the boiler cap if the equipment is switched ON.

• To carry out any maintenance or cleaning requiring access to the boiler, ensure that the appliance is switched off at the power switch and disconnected from the mains for at least two hours.

• The appliance must not be left unattended if plugged in to the mains.

• The iron must be used and rested on a stable surface.

• When placing the iron on its stand, make sure that the surface on which the stand is placed is stable.

• The iron must be used with the ironing mat provided.

• This appliance can be used by children over 8 years old, by people with reduced physical, sensory or mental abilities or by inexperienced persons only where they are instructed in advance on its safe use and only if informed of the dangers related to the product. Children shall not play with the appliance. The cleaning and maintenance of the appliance may not be done by children without the supervision of an adult.

• Keep the appliance and the power cable out of the reach of children under 8 years of age when the appliance is switched on or during the cooling phase.

• Keep all the parts of the packaging out of the reach of children; they are not toys. Keep the plastic bag out of the reach of children: danger of suffocation.

• This appliance is designed exclusively for indoor domestic use. In order to reduce the risk of accidents, including: fires, electrocution, personal injury and scalding, both during use and during preparation, maintenance and storage, always take the fundamental precautions listed in this manual. RISKS CONNECTED TO THE POWER SUPPLY – ELECTROCUTION

• The earthing system and highly sensitive residual-current circuit breaker, complete with magnetothermic cut-out for your domestic system, guarantee safe use of electrical appliances. Therefore, for your own safety, check that the electrical ENGLISH | 17 |system to which the appliance is connected complies with current laws.

• Do not connect the appliance to the mains if the voltage does not correspond with that of the domestic electrical circuit in use.

• Do not overload sockets with adaptors and/or transformers. Only connect the product to a single socket with current that is compatible with the plug supplied.

• Electrical extension leads that are unsuitable for the power rating or which are not compliant with law may overheat and possibly lead to short circuiting, fire, power outage or damage to the equipment. Only use extension leads which are certified, suitable for the power rating, supporting 16A and earthed.

• Always turn the appliance off before unplugging it.

• To remove the plug from the socket, do not pull the power cable, but hold the plug itself to avoid damage to the plug and the cable.

• Always unplug the appliance if it is not in use and before any preparation, maintenance or cleaning operation.

• Fully unwind the cable and steam hose before connecting the appliance to the mains and before use. Always use the product with the cable and steam hose completely unwound.

• Do not pull or jerk the cable or the steam hose, or strain it (twisting, crushing or stretching). Keep the cable and steam hose away from hot and/or sharp surfaces and elements. Avoid the cable and steam hose coming into contact with the hot iron plate. Avoid crushing the cable and steam hose in doors and windows. Do not pull the cable and steam hose tight around corners. Avoid treading on the cable and steam hose. Do not walk over the cable and steam hose. Do not wind the power cable and steam hose around the appliance, especially if the appliance is hot.

• Do not change the plug on the power cable.

• If the power cable or the steam hose is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid all possible hazards. Do not use the product if the power cable and the steam hose are damaged. ENGLISH | 18 |• Do not touch or use the appliance barefoot and/or with wet body or feet.

• Do not use the appliance near containers full of water, e.g. sinks, baths and swimming pools.

• Do not immerse the appliance, including the power cable and plug, in water or other liquids.

• Steam must not be directed towards equipment containing electric or electronic components. RISKS DURING USE OF THE PRODUCT – INJURIES/SCALDING

• The product should not be used in areas where there is a danger of explosions or in the presence of toxic substances.

• Do not pour toxic substances, acids, solvents, detergents, corrosive substances and/or explosives, perfumes or scented water into the water tank and boiler.

• Only pour water or the water mix indicated in the section “Which water to use in the boiler” into the tank.

• Do not direct the steam jet or the iron onto toxic substances, acids, solvents, detergents or corrosive substances. The handling and removal of dangerous substances must be carried out according to the indications of the manufacturers of these substances.

• Do not direct the steam jet or the iron onto explosive powders or liquids, hydrocarbons, open flames and or extremely hot objects.

• Do not direct the steam jet at the ironing mat and/or the appliance itself.

• Do not position the product near sources of heat such as fireplaces, stoves and ovens.

• Do not obstruct the openings and grills on the product.

• Do not direct the steam jet or the iron onto any part of the body of people or animals.

• Do not direct the steam jet or the iron onto clothes while they are being worn.

• Cloths and fabrics which have been subjected to a deep steam reach very high temperatures, above 100°C. Take care when handling the appliance.

• During use, keep the product in a horizontal position on a stable ENGLISH | 19 |surface.

• Iron only on supports that are heat resistant and which allow the steam to permeate.

• When placing the iron on its stand, make sure that the surface on which the stand is placed, is stable.

• If the iron rest mat needs to be replaced, only use original spare parts.

• Do not rest the iron on a base without the ironing mat.

• Do not place the hot appliance on heat-sensitive surfaces.

• If ironing whilst sitting down, take care to ensure that the jet of steam is not angled towards your legs. Steam can scald.

• Before connecting the appliance to the current, ensure that the continuous steam jet button is not pressed (if present).

• Do not leave the iron unattended when the steam is activated.

• Wait until the iron has cooled down completely before storing after use. ENGLISH

| 20 |CORRECT USE OF THE PRODUCT

This appliance has been designed only for domestic use as a steam iron with a separate boiler according to descriptions and instructions provided in this manual. Please read these instructions carefully and keep them. If this manual is lost, it can be consulted and/or downloaded from the website www.polti.com. Polti S.p.A. reserves the right to make any technical or construction changes it deems necessary, without prior notice. Before leaving our factory all our products are rigorously tested. This is the reason why your Vaporella may contain some residual water in the boiler. Correct use of the product is only as detailed in this instruction manual. Any other use may damage the appliance and invalidate the warranty.

INFORMATION FOR USERS

Pursuant to European Directive 2012/19/EU, regarding electric and electronic appliances, this appliance must not be disposed of with domestic waste, but must be sent to an official collection facility. This appliance complies with EU Directive 2011/65/EU. The crossed-out bin symbol on the appliance indicates that, at the end of its useful lifespan, the product must be disposed of separately from other waste. Therefore, at the end of its life, the user must hand over the appliance to an appropriate collection centre for electric and electronic waste or, according to the legislation in force in the country, leave the used appliance with the distributor when buying a new product to replace it. Proper separate waste collection to facilitate the subsequent recycling, treatment and environmentally compatible disposal of the appliance helps to prevent negative effects on the environment and human health, and promotes recycling of the materials the product is made of. Unlawful disposal by the owner may result in the application of the administrative sanctions envisaged by current legislation.

WHICH WATER TO USE IN THE

BOILER This Vaporella has been designed to function with medium-hardness tap water between 8°f and 20°f. If the tap water is very hard, do not just use demineralised water but a mix composed of 50% tap water and 50% demineralised water which is widely available to purchase.

Warning: check the hardness of the water at

the technical office at your local council or the local water supplier. If you only use tap water, you can reduce the formation of limescale by using the special Kalstop (PAEU0094) anti-limescale product, distributed by Polti, and available for sale at all major domestic-appliance stores or online at www.polti.com. Do not use distilled water, undiluted demineralised water, rain water or water containing additives (e.g. starch, perfumes), scented water or water produced by other domestic appliances, by water softeners and filter jugs. Do not add chemical, natural, detergent, or limescale removing substances, etc.

1. PREPARATION FOR USE

1.1 Place the boiler on a firm, flat and heat-

tank with water up to the MAX level marked on the water tank (1). This operation must always be carried with the power cable disconnected from the mains. Thanks to the continuous refill system you do not need to stop the ironing and wait for the appliance to cool down because the tank can be filled as needed.

1.4 Close the cap again and reinsert the water

tank until you hear the hook click.

1.5 Connect the cable plug to an earthed

power supply of the correct voltage (3).

1.6 Press the ON/OFF switch (placed on the

side of the appliance) (4), the ON indicator light, pressure indicator light (5) and iron heating indicator light (8)-(9) will come on. You can detach the water tank from the unit 2). The sound emitted on switching on your ap- pliance and periodically during use, is due to the water refilling system and is quite normal.

WARNING: When first operating steam, the-

re may be some drops of water mixed with the steam due to temperature imbalances. Direct the first jet of steam onto a rag. ENGLISH | 21 |2. IRON TEMPERATURE ADJUSTMENT Before ironing an item of clothing, always check the symbols on its label, for the instructions provided by the manufacturer. Check, based on the following table, the most appropriate type of ironing:

3.1 Make sure that chapter 1 has been

completed and regulate the temperature of the iron (6)-(7) as described in section 2.

3.2 Wait for the “Steam Ready” indicator light

(7) and “Iron Heating” indicator light to turn off.

3.3 Press the steam button (10) on the iron to

make steam come out of the holes on the plate. Releasing the button, the flow stops. Proceed to iron the garments.

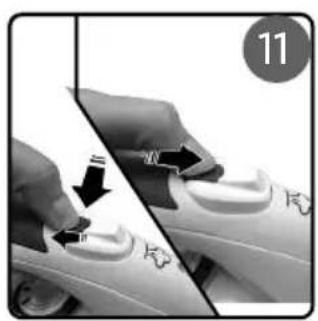

have a continuous jet of steam, press and move the continuous steam jet button backwards (11). The steam will continue to come out even when the button is released. To interrupt the supply, move the steam button forward (11). Only for Vaporella Forever 615 Pro to have a continuous jet of steam move the the continuous steam jet button forward (12). The steam will continue to come out even when the button is released. To interrupt the supply, move the button backward (12).

It is possible to use the iron vertically to remove creases from fabrics and/or to freshen up the fibres, eliminating possible residual odours. Hold the iron vertically, push the steam button (10) and touch the fabric slightly with the soleplate, if the type of fabrics allows it.

5.1 Make sure that chapter 1 has been

completed and regulate the temperature of the iron (6)-(7) as described in section 2.

The water level is always visible thanks to the transparent tank. When the water inside the tank has been used up, steam will stop being released. To restart operations just fill the water tank again as described in the section 1.

7. GENERAL MAINTENANCE

Before carrying out any maintenance on the device, always unplug it from the power mains making sure that the product has cooled down before proceeding.

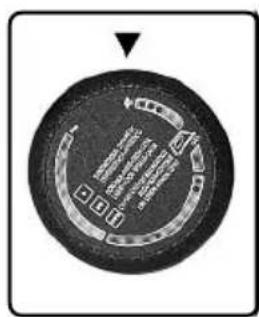

igh temperature – cotton, linen: Set the iron temperature adjustment knob to the position ••• Medium temperature – wool, silk:

et the iron temperature adjustment knob to the position •• Low temperature – synthetic, acrylic, ny- lon, polyester: Set the iron temperature adjustment knob to the position • - Do not iron - Steam ironing and steam treatment not allowed ATTENTION: For low temperature we do not recommend the use of steam since water could come out from the holes on the sole- plate. For medium temperature alternate the use of steam and dry ironing to avoid water leaking from the holes on the soleplate. Divide the laundry according to the symbols on the garment labels or according to the kind of fabric. Always start ironing with the garments that require the lowest tempera- ture, in order to reduce the waiting times and avoid the risk of burning the fabrics. When first using the steam, there may be some drops of water leaking out of the pla- te, this is due to imperfect thermal stabiliza- tion. We therefore recommend that the first jet of steam be directed onto a cloth. The indicator lights “Iron heating” and “Steam ready” turn on and off during use. This indica- tes that the electrical resistor has started to work to keep the pressure of the boiler steady. This is a normal occurrence, and it is therefore possible to continue ironing.

WARNING: Do not place the hot iron on any

surface. Vaporella is equipped with an iron rest mat with soft non-slip inserts designed to resist high temperatures. When ironing dry, pay attention not to press the steam button, since water could leak from the plate.

WARNING: This operation must always be

done after having disconnected the appliance from the mains. ENGLISH | 22 |To clean the outside of the appliance, only use a damp cloth. Do not use detergents of any type. For good maintenance of the boiler we suggest using Kalstop, the special natural- base limescale, distributed by Polti, and available for sale at all major domestic- appliance stores or online at www.polti.com. Clean the iron soleplate when it is completely cold with a damp cloth or with a non-abrasive sponge.

8. CLEANING THE BOILER

(extraordinary maintenance) To maintain optimum performance, clean the boiler every 10/20 uses depending on the amount of limestone in the water.

8.1 Unplug the appliance and let it cool down

for 2 hours at least, if it is hot.

8.2 Empty the water tank to prevent leakage.

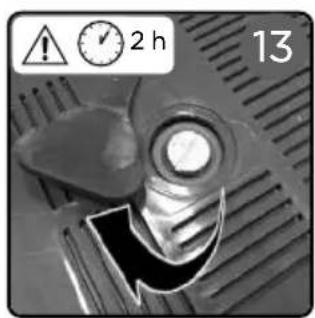

8.3 Turn the appliance upside down and lift

the rubber cover. Unscrew the cap of the boiler situated on the bottom of the appliance (13) with a suitable screwdriver.

8.4 Use the funnel (13) to pour 250 ml of cold

water into the boiler (14).

8.5 Rinse out the boiler and pour the water

away into the sink or into a container for collecting dirty water. If the water is very dirty, repeat the operation until it is clean.

8.6 Put 100 ml of water in the boiler and

screw back the cap. Make sure that the seal is in and the cap is screwed on properly.

8.7 Fill the water tank again and put the cap

8.8 Turn the appliance on again.

Before ironing, release steam into the sink or another container and check that the steam is clean. This should take a few seconds.

8.9 Resume ironing normally.

9. REPLACEMENT BOILER CAP

GASKET If the gasket of the boiler cap is damaged, replace it with the specific spare part, as described below:

9.1 Unplug the appliance and let it cool down

for 2 hours at least, if it is hot.

9.2 Empty the water from the tank to prevent

9.3 Turn the appliance upside down and lift

the rubber cover. Unscrew the cap of the boiler situated on the bottom of the appliance (13) with a suitable screwdriver.

9.4 Remove the damaged washer.

9.5 Insert the new gasket and push it in place

9.6 Screw the boiler cap back on, making

sure that it is correctly screwed on and replace the rubber cover. The spare gasket can be purchased from authorized Polti Service centres (check on www.polti.com for the updated list).

Kalstop is the limescale product for appliances with boiler for ironing and steam cleaning. Regular use of Kalstop, every time the tank is filled with water: - Extends the life of the appliance. - Allows emission of a “drier” steam - Prevents limescale build up. - Protects the walls of the boiler. - Contributes to saving energy. Kalstop is sold in packages of 20 phials at household appliance stores, at Polti authorized service centres and at www.polti.com.

11.1 Turn off the appliance and disconnect

from the mains electricity.

11.2 Wait for the appliance to cool down

completely before storing it.

WARNING: Risk of scalding! When acces-

sing the boiler (removing the cap, filling up, emptying), ensure that the appliance is swit- ched off at the power switch and disconnec- ted from the mains for at least two hours.

WARNING: Do not exceed the quantity of

water recommended and pour it slowly into the boiler, paying attention not to let it overflow.

WARNING: Risk of scalding! When

accessing the boiler (removing the cap, filling up, emptying), ensure that the appliance is switched off at the power switch and disconnected from the mains for at least two hours. ENGLISH | 23 |12. TROUBLESHOOTING

PROBLEM CAUSE SOLUTION

If water comes out from the Iron soleplate in- stead of steam. The pressure values have not been reached Check that the ready steam lamp is OFF indicating that the Vaporella has reached the right pressure Wait until the required tempera- ture and pressure are reached as shown by the indicator lights. The temperature knob on the iron is set at the mini- mum value. Adjust the temperature knob on the iron to the medium/maximum vaue. First steam release. Release onto a cloth until steam comes out from the holes on the solepate. Steam does not come out from the Iron sole- plate No power / On-Off swit- ch is off Check that the power is on and that the On/Off switch is pressed. Water tank is empty. Fill the water tank. Little steam comes from the Iron soleplate. The steam is dry, so is ba- rely visible, but is present and effective. This is normal especially in particu- lar environmental conditions. Some water drops are present on the fabric. The cover used on the Ironing board is wet since it cannot withstand the power of the steam sta- tion. Check that the Ironing board is sui- table (ironing board with grid that prevents condensation). Presence of water un- der the appliance. Boiler cap not screwed on properly. Seal of boiler cap dama- ged. Unscrew and rescrew the boiler cap (Chapter 9). Replace the damaged seal (Chap- ter 9). If problems persist or are not listed above, please contact a Polti Authorised Service Cen- tre (www.polti.com for the updated list) or contact Customer Services. ENGLISH | 24 |WARRANTY This appliance is for domestic use only and is guaranteed for two years from the date of purchase against any defects present at the time the goods are handed over; the date of purchase must be proven via a proof of purchase document valid for tax purposes and issued by the seller. For repairs, the appliance must be accompanied by proof of purchase. This warranty does not affect the consumer rights deriving from European Directive 99/44/EC as regards some aspects of sale and warranty of consumer goods, rights which the consumer should uphold with respect to the seller. This warranty is valid in the countries which adhere to European Directive 99/44/EC. For other countries, local regulations on warranties apply.

WHAT THE WARRANTY COVERS

During the warranty, Polti guarantees free repair of a product with a manufacturing or factory defect and, therefore, the client is not liable to pay for any work or materials. In case of irreparable defects, Polti may replace the product free of charge. To avail of the warranty, the customer should visit one of the Polti Authorised Service Centres with proof of purchase from the seller valid for tax purposes and bearing the date of purchase of the product. Without proof of purchase and the relative date of purchase, the work will be charged for. Store the proof of purchase document safely for the whole duration of the warranty.

WHAT THE WARRANTY DOES NOT COVER

• Any fault or damage not deriving from a manufacturing defect.

• Any fault due to improper use or use other than that indicated in the instruction booklet, an integral part of the product sales contract.

• Any defect resulting from force majeure (fires, short circuits) or caused by third parties (tampering).

• Damage caused by the use of non-original Polti parts, and repairs or modifications performed by staff or service centres not authorised by Polti.

• Damage caused by the customer.

• Parts (filter, brush, hose, etc.) damaged by use (consumable goods) or normal wear and tear.

• Any damage caused by limescale.

• Defects resulting from lack of maintenance/cleaning according to the manufacturer’s instructions.

• Assembly of non-original Polti accessories or those that have been modified or which are not suitable for the appliance. Inappropriate use and/or use not compliant with the instructions for use and any other warnings or indications contained in this manual invalidates the warranty. Polti takes no responsibility for any direct or indirect damage to people, objects or animals caused by non-compliance with the instructions indicated in this instruction booklet, regarding warnings for use and product maintenance. To see the up-to-date list of the Polti Authorised Service Centres, visit the website www.polti.com. ENGLISH | 25 || 26 |

The optional accessories are on sale at all the best domestic appliance retailers, an Authorised Polti Service Centre or online at www.polti.com
