USER MANUAL Vaporetto Pro 90 Turbo POLTI

MANUEL D'INSTRUCTIONS

MANUAL DE INSTRUÇÕES

REGISTRA IL TUO PRODOTTO

REGISTER YOUR PRODUCT

ENREGISTREZ VOTRE PRODUIT

REGISTRA TU PRODUCTO

GERÄTREGISTRIERUNG

REGISTE O SEU PRODUTO

www.polti.com

POLTI®

NATURAL HOME FEELING

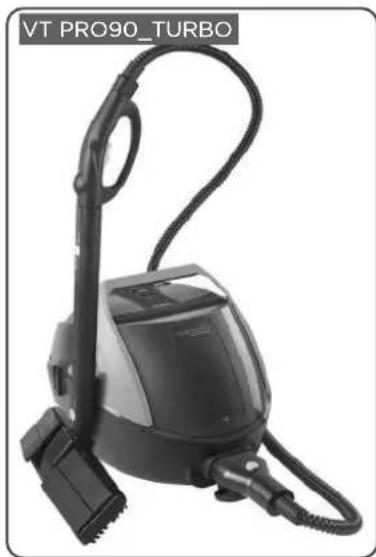

Black and white photo of a VT PRO90_TURBO vacuum cleaner with attached circuit board (no visible text or symbols on device body)

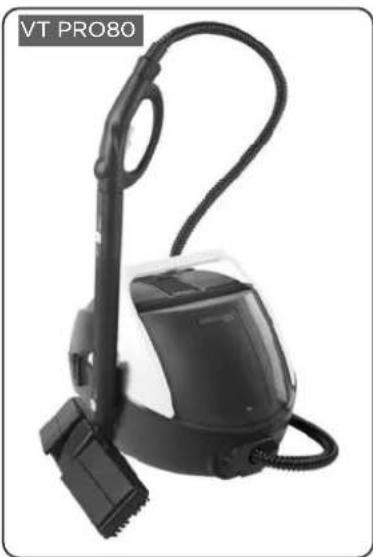

Black and white photo of a vacuum cleaner (no visible text or symbols on device body)

CUFFIA CAP BONNETTE FUNDA HAUBE PROTEÇÃO

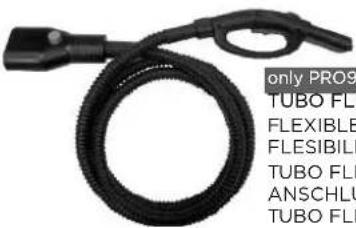

only PRO9 TUBO FLI FLEXIBLE FLEISIBLE TUBO FLI ANSCHLU TUBO FLI

only PRO90 TURBO
TUBO FLESSIBILE VAPORE FLEXIBLE STEAM HOSE FLESIBILE VAPEUR TUBO FLEXIBILE VAPOR ANSCHLUSSSCHLAUCH TUBO FLEXIBILE DE VAPOR

Kalstop

SPAZZOLA PAVIMENTI FLOOR BRUSH BROSSE POUR SOLS CEPILLO DE SUELOS FUSSBODENBÜRSTE ESCOVA PAVIMENTOS

only PRO90_TURBO LANCIA VAPORE
STEAM NOZZLE LANCIA VAPEUR BOQUILLA VAPOR DAMPFDÜSE LANÇA VAPOR

90_TURBO LAVAVETRI WINDOW CLEANER LAVE-VITRES LIMPIACRISTALES WASSERABZIEHER LIMPA-VIDROS

SPAZZOLA PICCOLA SMALL BRUSH PETITE BROSSE CEPILLO PEQUEÑO KLEINE BÜRSTE ESCOVA PEQUENA

Two black cylindrical electronic components with no visible text or symbols

Close-up of a hand pressing down on a mechanical component with an arrow indicating upward motion (no text or symbols visible)

2 only PRO90_TURBO

Hand holding a black electrical switch with a knob, no visible text or symbols

Close-up of a camera mode dial with adjustment knob and control buttons (no text or symbols visible)

5 MAX MIN

Two black plastic clips with arrows indicating movement or alignment, no text or symbols present

7

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

only PRO90_TURBO TURBO

Close-up of a mechanical component with arrows indicating motion or transformation (no text or symbols)

Close-up of a mechanical device with a label '11' and an arrow pointing to a component (no readable text or symbols)

Close-up of a hand holding a cylindrical object over a glossy surface, possibly part of a mechanical or industrial component (no visible text or symbols)

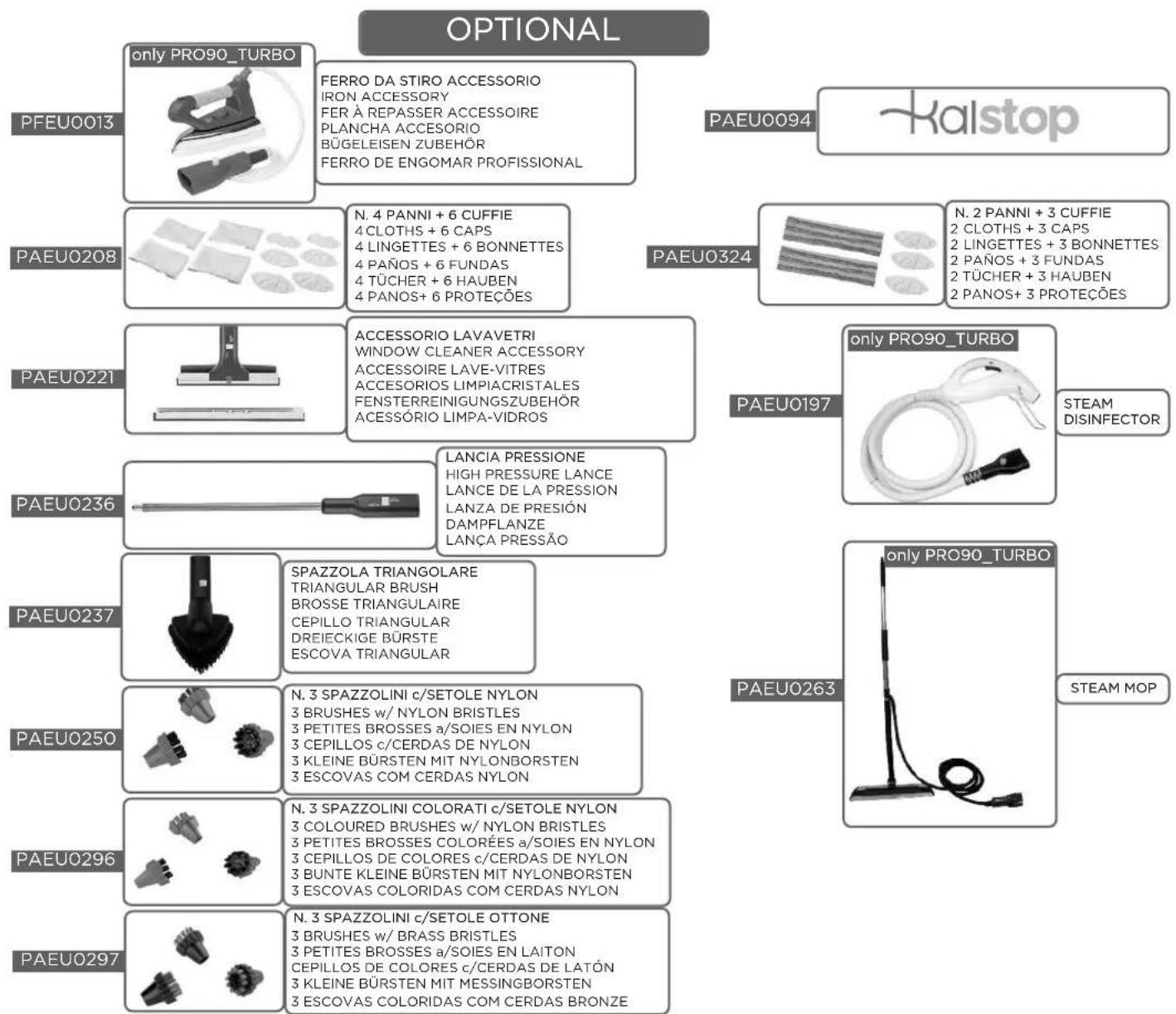

OPTIONAL PFEU0013 only PRO90_TURBO FERRO DA STIRO ACCESSORIO IRON ACCESSORY FER À REPASSER ACCESSOIRE PLANCHA ACCESORIO BÜGELEISEN ZUBEHÖR FERRO DE ENGOMAR PROFISSIONAL PAEU0094 Kalstop PAEU0208 N. 4 PANNI + 6 CUFFIE 4 CLOTHS + 6 CAPS 4 LINGETTES + 6 BONNETTES 4 PAÑOS + 6 FUNDAS 4 TÜCHER + 6 HAUBEN 4 PANOS+ 6 PROTEÇÕES PAEU0324 N. 2 PANNI + 3 CUFFIE 2 CLOTHS + 3 CAPS 2 LINGETTES + 3 BONNETTES 2 PAÑOS + 3 FUNDAS 2 TÜCHER + 3 HAUBEN 2 PANOS+ 3 PROTEÇÕES PAEU0221 ACCESSORIO LAVAVETRI WINDOW CLEANER ACCESSORY ACCESSOIRE LAVE-VITRES ACCESORIOS LIMPIACRISTALES FENSTERREINIGUNGSZUBEHÖR ACCESSÓRIO LIMPA-VIDROS PAEU0197 only PRO90_TURBO STEAM DISINFECTOR PAEU0236 LANCIA PRESSIONE HIGH PRESSURE LANCE LANCE DE LA PRESSION LANZA DE PRESIÓN DAMPFLANZE LANÇA PRESSÃO PAEU0237 SPAZZOLA TRIANGOLARE TRIANGULAR BRUSH BROSSE TRIANGULAIRE CEPILLO TRIANGULAR DREIECKIGE BÜRSTE ESCOVA TRIANGULAR PAEU0263 only PRO90_TURBO STEAM MOP PAEU0250 N. 3 SPAZZOLINI c/SETOLE NYLON 3 BRUSHES w/ NYLON BRISTLES 3 PETITES BROSSES a/SOIES EN NYLON 3 CEPILLOS c/CERDAS DE NYLON 3 KLEINE BÜRSTEN MIT NYLONBORSTEN 3 ESCOVAS COM CERDAS NYLON PAEU0296 N. 3 SPAZZOLINI COLORATI c/SETOLE NYLON 3 COLOURED BRUSHES w/ NYLON BRISTLES 3 PETITES BROSSES COLORÉES a/SOIES EN NYLON 3 CEPILLOS DE COLORES c/CERDAS DE NYLON 3 BUNTE KLEINE BÜRSTEN MIT NYLONBORSTEN 3 ESCOVAS COLORIDAS COM CERDAS NYLON PAEU0297 N. 3 SPAZZOLINI c/SETOLE OTTONE 3 BRUSHES w/ BRASS BRISTLES 3 PETITES BROSSES a/SOIES EN LAITON CEPILLOS DE COLORES c/CERDAS DE LATÓN 3 KLEINE BÜRSTEN MIT MESSINGBORSTEN 3 ESCOVAS COLORIDAS COM CERDAS BRONZE

Gli accessori optional sono disponibili all'acquisto nei migliori negozi di elettrodomestici, nei Centri Assistenza autorizzati e sul sito www.polti.com. The optional accessories are on sale at all the best domestic appliance retailers, an Authorised Polti Service Centre or online at www.polti.com Les accessoires en option sont disponibles dans les meilleurs magasins d'appareils électroménagers, un SAV agréé ou sur le site www.polti.fr Los accesorios opcionales están en venta en las mejores tiendas de electrodomésticos, Centros de Asistencia Autorizadoo en la página web www.polti.com Die optionalen Zubehörteile sind in gut geführten Haushaltsgeschäften, bei den Autorisierten Kundendienstcenter oder auf www.poltide.deerhältlich. Os acessórios opcionais estão disponíveis para compra nas melhores lojas de eletrodomésticos, um dos Centros de Assistência Autorizados ou no sitewww.polti.com

2. CONNESSIONE ACCESSORI

Close-up of a black electrical connector with a cable inserted, showing internal pinout (no text or symbols visible)

On our web site www.polti.com and in good appliance shops you will find a wide range of accessories to increase the performance and the practical applications of your appliances to make home cleaning even easier.

To check the compatibility of an accessory with your appliance, search the code PAEUXXXX/PFEUXXXX listed next to each accessory on page 3. If the accessory code you wish to buy is not listed in this manual, please contact our Customer Service team for more information.

REGISTER YOUR PRODUCT

Visit our website www.polti.com or call our Customer Services department to register your product.

You can benefit from a special welcome offer, in participating countries, and keep up to date on all the latest Polti news, as well as buy accessories and consumables.

To register your product, in addition to your personal information, you must enter the serial number (SN) which you will find on the silver label, located on the box and underneath the appliance.

To save time and have your serial number to hand, write it in the space provided on the back cover of this manual.

Want to know more? Visit our official channel: www.youtube.com/poltispa. Search the illustrative video for Vaporetto in order to see a quick and easy overview of all the features of this amazing appliance.

In addition, the video guide will lead you through use of the Vaporetto from preparation for use to simple maintenance operations.

Sign up to the official channel to keep yourself updated about our video contents!

ATTENTION: The safety warnings are only indicated on this manual.

SAFETY WARNINGS

IMPORTANT PRECAUTIONS FOR USE

WARNING! BEFORE USING THE APPLIANCE, CAREFULLY READ ALL THE INSTRUCTIONS AND WARNINGS IN THIS MANUAL, AND ON THE APPLIANCE ITSELF.

Polti S.p.A. declines all liability for any accident deriving from any improper use of this appliance.

Correct use of the product is only as detailed in this instruction manual.

Any use which does not comply with these instructions will invalidate the warranty.

SAFETY SYMBOLS:

WARNING: High temperature.

Risk of scalding!

If shown on the product, do not

touch as parts may be very hot.

WARNING: Steam.

Risk of scalding!

This appliance reaches very high temperatures. Incorrect use of the device can cause scalding.

- Never disassemble or carry out maintenance on the appliance apart from that indicated in this manual. In the event of a fault or malfunction, do

not try to repair the appliance yourself. Incorrect use or a lack of respect for the instructions herein may lead to serious accidents. Always contact Authorised Service Centres.

- This appliance must not be used if it has been dropped, if there are visible signs of damage or if it leaks.

- The plug must be removed from the socket before the tank/boiler is filled with water.

- To carry out any maintenance or cleaning requiring access to the boiler, ensure that the appliance is switched off at the power switch and disconnected from the mains for at least two hours.

- Always unplug the appliance if it is not in use.

- This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must be supervised to ensure they do not play with the appliance.

- Keep the appliance out of reach of children when it is plugged in or cooling down.

- Keep all the parts of the packaging out of the reach of children; they are not toys. Keep the plastic bag out of the reach of children: danger of suffocation.

• The appliance must not be left unattended if plugged in to the mains.
• Steam must not be directed towards equipment containing electrical components, such as the interior of ovens.
• This appliance is intended exclusively for indoor domestic use.
  In order to reduce the risk of accidents, including: fires, electrocution, personal injury and scalding, both during use and during preparation, maintenance and storage, always take the basic precautions listed in this manual.

RISKS CONNECTED TO THE POWER SUPPLY - ELECTROCUTION

• The earthing system and highly sensitive residual-current circuit breaker, complete with magnetothermic cut-out for your domestic system, guarantee safe use of electrical appliances.
  Therefore, for your own safety, check that the electrical system to which the appliance is connected complies with current laws.
• Do not connect the appliance to the mains if the voltage does not correspond with that of the domestic electrical circuit in use.

• Do not overload sockets with adaptors and/or transformers. Only connect the product to a single socket with current that is compatible with the supplied plug.

• Do not use electrical extension leads that are unsuitable for the power rating or which are not compliant with the law. They may overheat and possibly lead to short circuiting, fire, power outage or damage to the equipment. Only use extension leads which are certified, suitable for the power rating, supporting 16A and earthed.

• Always turn the appliance off at the ON/OFF switch before unplugging it.

- To remove the plug from the socket, do not pull the power cable, but hold the plug itself to avoid damage to the plug and the cable.

- Fully unwind the cable from the cable winder before connecting the appliance to the mains and before use. Always use the product with the cable completely unwound.

- Do not pull or jerk the cable or expose it to stresses (twisting, crushing or stretching). Keep the cable away from hot and/or sharp surfaces and elements. Avoid crushing the cables in doors and windows. Do not pull the cable tightly around corners. Avoid treading on the cable. Do not wind the power cable around the appliance, especially if the appliance is hot. Do not place the appliance on top of the power cable, this can be dangerous.

- Do not change the plug on the power cable.

- If the power cable is damaged, it must be replaced by the manufacturer, its

service agent or similarly qualified persons in order to avoid all possible hazards. Do not use the product if the power cable is damaged.

• Do not touch or use the appliance barefoot and/or with wet body or feet.
• Do not use the appliance near containers full of water, e.g. sinks, baths and swimming pools.
• Do not immerse the appliance, including the power cable and plug, in water or other liquids.

RISKS DURING USE OF THE PRODUCT - INJURIES/SCALDING

• The product should not be used in areas where there is a danger of explosions or in the presence of toxic substances.
• Do not pour toxic substances, acids, solvents, detergents, corrosive substances and/or explosives or perfumes into the boiler.
• Only pour water or the water mix indicated in the section “WHICH WATER TO USE” into the boiler.
• Do not direct the steam jet onto toxic substances, acids, solvents, detergents or corrosive substances.
• Do not direct the steam jet onto explosive powders or liquids, hydrocarbons, open flames or extremely hot objects.

• The handling and removal of dangerous substances must be carried out according to the indications of the manufacturers of these substances.

• Do not position the product near sources of heat such as fireplaces, e stoves and ovens.

• Do not position the product near electromagnetic fields such as induction plates.
• Re-wind the cable when the appliance is not in use.
• Use the special carry handle for transport. Do not pull the power cable. Do not use the power cable as a handle. Do not lift the appliance using the power cable or the steam hoses/vacuum tubes.
• Do not obstruct the openings and grills on the product.
• Do not direct the steam jet on any part of the body of people or animals.
• Do not direct the steam jet on clothes while they are being worn.
• Cloths, rugs and fabrics which have been subjected to a deep steam reach very high temperatures, above 100^ . Wait a few minutes and check that they have cooled before handling them.
• Therefore, avoid contact with the skin if they have just been steamed.
• During use, keep the base in a horizontal position on stable surfaces.
• The steam lock on the handle guarantees greater safety, as it prevents the accidental activation of steam delivery by children or people who are unaware of the function of the appliance. When steam is not being used, engage the steam lock.

To continue steam delivery, return the switch to its original position.

RISKS RELATED TO USE OF THE IRONING ACCESSORY

(For the PRO 90_TURBO model only)

• Iron only on surfaces that are heat resistant and which allow the steam to permeate.
• When placing the iron on its stand, make sure that the surface on which the stand is placed, is stable.
• If the iron rest mat needs to be replaced, only use original spare parts.
• The iron must be used with the ironing mat provided.
• The iron must be used and rested on a flat stable surface.
• The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.
• Do not place the hot appliance on heat-sensitive surfaces.
• If ironing whilst sitting down, take care to ensure that the jet of steam is not angled towards your legs. Steam can scald.
• Before connecting the appliance to the current, ensure that the continuous steam jet button is not pressed (if present).
• Never leave the iron unattended when it is plugged in.

CORRECT USE OF THE PRODUCT

This appliance is intended for internal domestic use as a steam cleaner, in accordance with the descriptions and instructions contained in this manual. Please read these instructions carefully and keep them. If this manual is lost, it can be consulted and/or downloaded from the website www.polti.com. Never leave the appliance exposed to weathering.

Correct use of the product is only as detailed in this instruction manual. Any other use may damage the appliance and invalidate the warranty.

POLTI S.p.A. reserves the right to make the aesthetic, technical and construction changes it deems necessary, without prior notice.

Before leaving our factory all our products are rigorously tested. This is the reason why your VAPORETTO may contain some residual water in the boiler.

INFORMATION FOR USERS

Pursuant to European Directive 2012/19/EU, regarding electric and electronic appliances, this appliance must not be disposed of with domestic waste, but sent to an official collection facility. This appliance complies with EU Directive 2011/65/EU.

The crossed-out bin symbol on the appliance indicates that, at the end of its useful lifespan, the product must be disposed of separately from other waste. Therefore, at the end of its life, the user must hand over the appliance to an appropriate collection centre for electric and electronic waste or, according to the legislation in force in the country, leave the used appliance with the distributor when buying a new product to replace it. Proper separate waste collection to facilitate the subsequent recycling, treatment and environmentally compatible disposal of the appliance helps to prevent negative effects on the environment and human health, and promotes recycling of the materials the product is made of. Unlawful disposal by the owner may result in the sanctions envisaged by current legislation.

WHICH WATER TO USE IN THE BOILER

This appliance has been designed to function with normal tap water between 8^ f and 20^ f. If the tap water contains a lot of limescale use a mix composed of 50% tap water and 50% demineralised water which is widely available to purchase. Do not use pure demineralised water.

Warning: check the hardness of the water at the technical office at your local council or the local water supplier.

If you only use tap water, you can reduce the formation of limescale by using the special Kalstop (PAEU0094) anti-limescale product, distributed by Polti, and available for sale at all major domestic-appliance stores and online at www.polti.com.

Never use distilled water, rain water or water containing additives (e.g. starch, perfumes), or water produced by other

domestic appliances, by water softeners or filter jugs. Do not add chemical, natural, detergent, or limescale removing substances, etc.

1. PREPARATION FOR USE

1.1 Open the tank closing cap (1) and fill the tank with about 1l of water, making sure that it does not overflow.

This operation must always be carried out when the boiler has cooled and with the power cable disconnected from the mains. Thanks to the continuous refill system you do not need to stop the ironing and wait for the appliance to cool down because the tank can be filled as needed.

1.2 Replace the tank closing cap.

1.3 Only for the Pro90_Turbo modelopen the door of the built-in socket and insert the built-in plug of the steam hose (2), pressing the specific button and making sure that the hooking pin is inserted perfectly in the specific locking hole on the socket.

1.4 Connect the cable plug to an earthed power supply of the correct voltage (3).

Completely unwind the power cable before plugging it into the mains and before use, and always use the appliance with the power cable completely unwound.

1.5 Press the boiler switch (9)(4) which will light up together with the "steam ready" indicator light (9).

1.6 Wait for the "ready steam" indicator light (①) to turn off. The appliance is ready for use.

WARNING: When first operating steam, there may be some drops of water mixed with the steam due to temperature imbalances.

Direct the first jet of steam onto a rag.

2. CONNECTION OF ACCESSORIES

All Vaporetto accessories can be connected directly to the handle of the steam hose or extension tubes as follows:

• Move the locking button on the accessory to the OPEN position (7).
• Attach the required accessory to the hand gun or to the extension tube.
• Move the locking button back to the position CLOSED (7).
• Check that the locking button has engaged and the accessory is fully connected.

3. STEAM ADJUSTMENT

You can optimise the steam flow by means of the steam adjustment knob. To increase the flow, turn the knob clockwise. Turning anti-clockwise reduces the flow. Here are some tips for regulating it:

• Maximum level: to remove encrustation, stains, grease and to sanitise;
• Medium level: for carpets, rugs, glass and floors;

- Minimum level: to steam plants, clean delicate fabrics, wall coverings, sofas, etc.

4. CLEANING FLOORS

Before using the appliance on delicate surfaces, ensure that the part in contact with the surface is free from foreign bodie that could cause scratches.

4.1 Make sure that Chapter 1 has been followed and connect the accessories as indicated in Chapter 2.
4.2 Connect the extension tubes to the steam hose and the floor brush to the extension tubes.
4.3 Attach the supplied cloth to the floor brush, locking it in place with the special lever hooks (8).
4.4 Adjust the intensity of the steam by turning the adjustment knob; for this type of surface we recommend Medium level steam (5).
4.5 Deactivate the steam lock (6) and continue with steam delivery, pressing the steam trigger on the handle of the steam hose (6).
4.6 Clean the floors by moving the brush.

Before removing the cloth from the brush, wait a few minutes to allow the cloth to cool.

WARNING: Do not use the appliance without the cloth.

WARNING: For additional safety, test steam delivery on a hidden part, leave the steamed part to dry to ensure that no changes in colour or deformations have occurred.

5. CLEANING RUGS AND CARPETS

WARNING: Before cleaning fabrics with steam, consult the manufacturer's instructions and always carry out a test on a hidden part or on a sample of the material. Allow the steamed part to dry to make sure that no changes in colour or deformations have occurred.

5.1 Make sure that Chapter 1 has been followed and connect the accessories as indicated in Chapter 2.
5.2 Connect the extension tubes to the steam hose and the floor brush to the extension tubes.
5.3 Adjust the intensity of the steam by turning the adjustment knob (5); for this type of surface we recommendMedium level of steam.
5.4 Deactivate the steam lock (6) and continue with steam delivery, pressing the steam trigger on the handle of the steam hose (6).
5.5 Pass the brush without cloth over the surface to bring dirt to the surface.
5.6 Attach the supplied cloth to the floor brush, locking it in place with the special lever hooks (8).
5.7 Go back over the surface to collect the dirt.

Before removing the cloth from the brush, wait a few minutes to allow the cloth to cool.

6. CLEANING GLASS, WINDOWS AND TILES

WARNING: To clean glass surfaces during cold weather, preheat the windows starting to vacuum from a distance of about 50 cm from the surface.

6.1 Make sure that Chapter 1 has been followed and connect the accessories as indicated in Chapter 2.
6.2 Adjust the intensity of the steam by turning the adjustment knob (5); for this type of surface we recommend Medium level of steam.
6.3 Ensure that the steam lock on the handle is deactivated (6).
6.4 Press and hold the steam trigger on the handle of the steam hose (6) and steam the surface thoroughly to dissolve the dirt.
6.5 For the Pro90_Turbo model go back over the surface with the window cleaner to remove the dirt, without steaming. For a more abrasive action and more effective dirt removal, the bristle supplied with the window-cleaning accessory can be used For the Pro80 model use the manual window-cleaning accessory to remove the dirt dissolved by the steam.

7. CLEANING UPHOLSTERY (mattresses, sofas, car interiors, etc.)

WARNING: Before cleaning leather or fabrics with steam, consult the manufacturer's instructions and always carry out a test on a hidden part or on a sample of the material. Allow the steamed part to dry to make sure that no changes in colour of deformations have occurred.

7.1 Make sure that Chapter 1 has been followed and connect the accessories as indicated in Chapter 2.
7.2 Connect the small brush to the hose.
7.3 Attach the cap to the small brush.
7.4 Adjust the intensity of the steam by turning the adjustment knob (5); for this type of surface we recommend Minimum level of steam.
7.5 Ensure that the steam lock on the handle is deactivated (6).
7.6 Press and hold the steam trigger on the handle of the steam hose (6) and pass over the surface.

8. CLEANING FURNITURE AND DELICATE SURFACES

WARNING: Do not direct the steam jet directly onto surfaces. Before cleaning the surface, always do a test on a hidden part and see how it reacts to the application of steam.

8.1 Ensure that Chapter 1 has been followed.
8.2 Adjust the intensity of the steam by turning the adjustment knob (5); for this type of surface we recommend Minimum level of steam.
8.3 Ensure that the steam lock on the handle is deactivated (6).
8.4 Press and hold the steam lever on the handle of the steam hose (6) and direct the jet onto a cloth.
8.5 Use the cloth previously steamed to clean the surface, avoiding prolonged use on the same spot.

9. CLEANING BATHROOM FIXTURES, GROUTING AND KITCHEN WORKTOPS

9.1 Make sure that Chapter 1 has been followed and connect the accessories as indicated in Chapter 2. 9.2 Connect the concentrator accessory, equipped with bristly round brush, to the hoseFor the Pro90_Turbo modelthe steam lance can be attached to the concentrator accessory. This is recommended for reaching the most difficult-to-reach areas, ideal for cleaning radiators, door and window frames, bathrooms and shutters.

To connect the steam lance to the steam concentrator, simply screw it on. The same operation can be carried out for the brush, which can in turn be screwed onto the steam concentrator and onto the steam lance.

For the Pro90_Turbo model the different coloured brushes allow for a different colour for each surface or environment.

9.3 Adjust the intensity of the steam by turning the adjustment knob (5); for this type of surface we recommend Maximum level of steam. 9.4 Ensure that the steam lock on the handle is deactivated (6). 9.5 Press and hold the steam trigger on the steam hose (6) to start cleaning.

10. OUT OF WATER

The lack of water in the boiler is identified by the out-of-water light coming on (5).

To resume use, simply:

• switch off and disconnect the Vaporetto.

• fill the tank as described in Chapter 1.

• connect and turn the Vaporetto back on.

WARNING: This operation must always be done after having disconnected the appliance from the mains.

11. TURBO FUNCTION

only for the PRO90_TURBO model

When the TURBO function is active, the appliance adjusts to the ideal steam pressure to remove the most stubborn dirt.

To activate the function, press the Turbo (9) button and wait for the "ready steam" indicator light (9) to turn off.

To deactivate the Turbo function, press the Turbo button again.

12. GENERAL MAINTENANCE

Before carrying out any maintenance on the device, always unplug it from the power mains making sure that the product has cooled down before proceeding.

To clean the outside of the appliance, only use a damp cloth and tap water. All accessories can be cleaned using running water, ensuring they are completely dry before the next use.

Do not use detergents of any type.

After using the brushes, we recommend letting the bristles cool down in their natural position, in order to avoid any

deformation.

Periodically check the status of the coloured washer located in the built-in socket and the connection seals of the extension tubes and the steam hose. If necessary, replace with the corresponding spare part, as described below.

Close-up of a black electrical plug with multiple ports and a separate connector (no text or symbols visible)

• Remove the damaged seal.
• Insert the new seal, attaching it on the steam nozzle and pushing it into place.
• Lubricate the gasket with silicone grease or Vaseline, or alternatively with small quantities of vegetable oils.

13. KALSTOP

Kalstop is the timescale product for appliances with boiler for ironing and steam cleaning.

Regular use of Kalstop, every time the tank is filled with water:

• Extends the life of the appliance.
• Allows emission of a "drier" steam
• Prevents limescale build up.
• Protects the walls of the boiler.
• Contributes to saving energy.

HOW TO USE KALSTOP

13.1 Dilute one phial in 5 litres of water before putting it in the tank.
13.2 Fill the tank as described in Chapter 1.
13.3 Proceed with the normal cleaning operations.

Kalstop is sold in packages of 20 phials at household appliance stores, at Polti authorized service centres and www.polti.com

14. STORAGE

14.1 Turn off the appliance and disconnect from the mains electricity.
14.2 Wait for the appliance to cool down completely before storing it.
14.3 The hoses, brush and flexible hose can be housed on the body of the appliance, sliding the hook on the floor brush into the parking system on the appliance (11).
14.4 The extension tubes can be replaced in the special tube holder compartment (12).
14.5 The small accessories can be placed in the accessories compartment. To open the compartment, press gently on the word "PUSH" (near the bottom of the lid), and open it (10).

1. TROUBLESHOOTING

PROBLEM CAUSE SOLUTION
The appliance does not turn on. No power.	Boiler switched off.	Check that the appliance has been disconnected from the mains, as indicated in Section 1.Turn on the boiler as indicated in Chapter 1.
The appliance is pressurized but little steam comes out.	No water in the boiler.Flexible hose not inserted correctly.Steam adjustment dial set to the minimum.Steam lock activated.	Fill the boiler as indicated in Chapter 1.Correctly insert the flexible hose all the way down, as indicated in Chapter 1.Adjust the position of the dial for the desired increase.Disconnect the steam lock from the steam hose handle.
Steam is dispensed mixed with drops of water.	The steam hoses are cold. Direct the steam jet onto a cloth to heat up the tubes.
Loss of steam or drops of water between the connection of the accessories.	The seals are damaged. Replace the seals, as indicated in Chapter 11.
Accessories are difficult to assemble. The seals produce friction.The blocking button is not in the correct position.		Lubricate the seals with silicone grease or Vaseline, or alternatively with a small amount of vegetable oil.Turn the blocking button to the correct position as indicated in Chapter 2.

Should the problems persist, contact an Authorised Polti Service Centre (see www.polti.com for the up-to-date list) or Customer Services.

WARRANTY

This appliance is for domestic use only and is guaranteed for two years from the date of purchase against any defects present at the time the goods are handed over; the date of purchase must be proven via a proof of purchase document valid for tax purposes and issued by the seller.

For repairs, the appliance must be accompanied by proof of purchase.

This warranty does not affect the consumer rights deriving from European Directive 99/44/EC as regards some aspects of sale and warranty of consumer goods, rights which the consumer should uphold with respect to the seller.

This warranty is valid in the countries which adhere to European Directive 99/44/EC. For other countries, local regulations on warranties apply.

WHAT THE WARRANTY COVERS

During the warranty, Polti guarantees free repair of a product with a manufacturing or factory defect and, therefore, the client is not liable to pay for any work or materials.

In case of irreparable defects, Polti may replace the product free of charge.

To avail of the warranty, the customer should visit one of the Polti Authorised Service Centres with proof of purchase from the seller valid for tax purposes and bearing the date of purchase of the product. Without proof of purchase and the relative date of purchase, the work will be charged for. Store the proof of purchase document safely for the whole duration of the warranty.

WHAT THE WARRANTY DOES NOT COVER

• Any fault or damage not deriving from a manufacturing defect.
• Any fault due to improper use or use other than that indicated in the instruction booklet, an integral part of the product sales contract.
• Any defect resulting from force majeure (fires, short circuits) or caused by third parties (tampering).
• Damage caused by the use of non-original Polti parts, and repairs or modifications performed by staff or service centres not authorised by Polti.
• Damage caused by the customer.
• Parts (filter, brush, hose, etc.) damaged by use (consumable goods) or normal wear and tear.
• Any damage caused by limescale.
• Defects resulting from lack of maintenance/cleaning according to the manufacturer's instructions.
• Assembly of non-original Polti accessories or those that have been modified or which are not suitable for the appliance.

Inappropriate use and/or use not compliant with the instructions for use and any other warnings or indications contained in this manual invalidates the warranty.

Polti takes no responsibility for any direct or indirect damage to people, objects or animals caused by non-compliance with the instructions indicated in this instruction booklet, regarding warnings for use and product maintenance.

To see the up-to-date list of the Polti Authorised Service Centres, visit the website www.polti.com.

BIENVENUE DANS LE MONDE DE VAPORETTO

LE SYSTÈME QUI NETTOIE LES SURFACE DE LA MAISON,

EN NEUTRALISANT ET EN ÉLIMINANT LES ACARIENS, LES GERMES ET LES BACTÉRIES SANS DÉTERGENTS CHIMIQUES.

DES ACCESSOIRES POUR TOUS LES BESOINS

UTILISATION CORRECTE DU PRODUIT

Close-up of a black electrical connector with four pins and an arrow indicating assembly (no text or symbols visible)

USO CORRECTO DEL PRODUCTO

1.4 Connect the cable plug to an earthed power supply of the correct voltage (3).

Completely unwind the power cable before plugging it into the mains and before use, and always use the appliance with the power cable completely unwound.

Close-up of a black automotive electrical connector with a cable outlet and cable fastener (no text or symbols visible)

Close-up of a black electrical connector with multiple pins, showing internal wiring (no text or symbols visible)

Close-up of a black electrical plug with three pins, showing internal wiring (no text or symbols visible)

Abstract gear-like symbol with concentric circles and a central arrow (no text or symbols)

POLTI®

NATURAL HOME FEELING

uaporella®

Uaporetto®

LECOASPIRA uaporetto®

Forzaspira®

UNICO

moppy®

www.polti.com

REGISTRA IL TUO PRODOTTO REGISTER YOUR PRODUCT ENREGISTREZ VOTRE PRODUIT REGISTRA TU PRODUCTO GERÄTREGISTRIERUNG REGISTE O SEU PRODUTO

SN: |—|—|—|—|—|—|—|—|—|—|—|—|—|—|—|—|—|.

CALL CENTER

22070 Bulgarograsso (CO) - Italy

www.polti.com

Follow us:
