USER MANUAL BT135 JABRA

1. Thank you 4
2. About your Jabra BT135 4 ES
   3.What your new headset can do 5
3. Getting started 5
4. Charge your headset 5
5. Turning your headset on and off 6
6. Pair it with your phone 6
   8.Wear it how you like it 6
   9.How to. 6
   10.What the lights mean 7
   11.Troubleshooting&FAQ 8
   12.Need more help? 8
7. Taking care of your headset 8
   14.Warranty 8
8. Certification and safety approvals 9
   16.Glossary 10

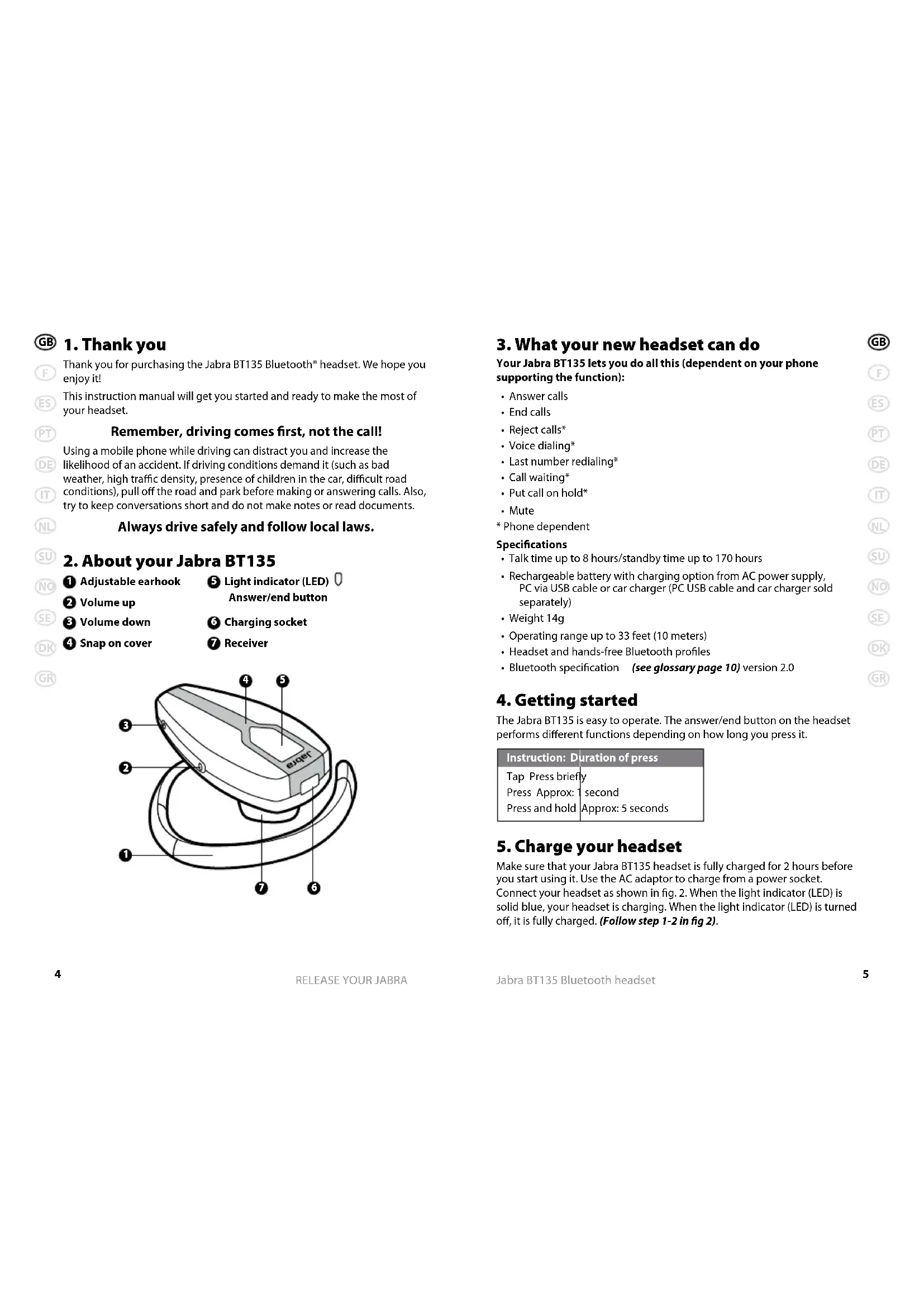

1. Thank you

Thank you for purchasing the Jabra BT135 Bluetooth® headset. We hope you enjoy it!

This instruction manual will get you started and ready to make the most of your headset.

Remember, driving comes first, not the call!

Using a mobile phone while driving can distract you and increase the likelihood of an accident. If driving conditions demand it (such as bad weather, high traffic density, presence of children in the car, difficult road conditions), pull off the road and park before making or answering calls. Also, try to keep conversations short and do not make notes or read documents.

Always drive safely and follow local laws.

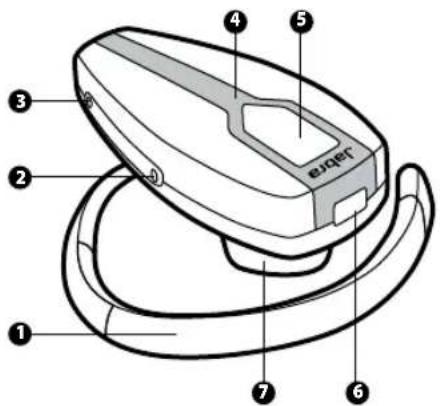

2. About your Jabra BT135

1 Adjustableearhook

Light indicator (LED)

Answer/end button

Volume up

Volume down

Charging socket

4 Snap on cover

7 Receiver

3. What your new headset can do

Your Jabra BT135 lets you do all this (dependent on your phone supporting the function):

• Answer calls
  End calls
  Reject calls
  Voice dialing

• Last number redialing
  Call waiting
  Put call on hold*
  Mute

• Phone dependent

Specifications

• Talk time up to 8 hours/standby time up to 170 hours
• Rechargeable battery with charging option from AC power supply, PC via USB cable or car charger (PC USB cable and car charger sold separately)

Weight 14g

• Operating range up to 33 feet (10 meters)
• Headset and hands-free Bluetooth profiles
• Bluetooth specification (see glossary page 10) version 2.0

4. Getting started

The Jabra BT135 is easy to operate. The answer/end button on the headset performs different functions depending on how long you press it.

Instruction: Duration of press

Tap Press briefly

Press Approx: 1 second

Press and hold |Approx: 5 seconds

5. Charge your headset

Make sure that your Jabra BT135 headset is fully charged for 2 hours before you start using it. Use the AC adaptor to charge from a power socket. Connect your headset as shown in fig. 2. When the light indicator (LED) is solid blue, your headset is charging. When the light indicator (LED) is turned off, it is fully charged. (Follow step 1-2 in fig 2).

Jabra BT135 Bluetooth headset

6. Turning your headset on and off

• Press the answer/end button to turn on your headset.

• Press and hold the answer/end button to turn off your headset.

7. Pair it with your phone

Before you use your Jabra BT135, you need to pair it with your mobile phone. (Follow step 1-4 in fig 3).

1. Put the headset in pairing mode

Make sure the headset is off

• Press and hold the answer/end button until a solid blue light comes on.

1. Set your Bluetooth phone to 'discover' the Jabra BT135

Follow your phone's instruction guide. This usually involves going to a 'setup,' 'connect' or 'Bluetooth' menu on your phone and selecting the option to 'discover' or 'add' a Bluetooth device.* (See example from a typical mobile phone in fig. 3)

1. Your phone will find the Jabra BT135

Your phone then asks if you want to pair with it. Accept by pressing 'Yes' or 'OK' on the phone and confirm with the passkey or PIN = 0000 (4 zeros). Your phone will confirm when pairing is complete. In case of unsuccessful pairing, repeat steps 1 to 3.

8. Wear it how you like it

The Jabra BT135 is ready to wear on your right ear. If you prefer the left, gently pull out the earhook, rotate the ear hook 180^ , and insert. (See fig 4). The earhook can be adjusted to fit your ear better - squeeze the back edge of the earhook for a more secure fit.

Your Jabra BT135 can be personalized by exchanging the snap-on cover. To change cover, gently pull up the cover from the front of the headset. Insert the new cover by fitting it above the charging socket. (See fig 5).

For optimal performance, wear the Jabra BT135 and your mobile phone on the same side of your body or within line of sight. In general, you will get better performance when there are no obstructions between your headset and your mobile phone. (See fig 6).

9. How to...

Answer a call

• Tap the answer/end button on your headset to answer a call.

End a call

• Tap the answer/end button to end an active call.

Make a call

• When you make a call from your mobile phone, the call will (subject to phone settings) automatically transfer to your headset. If your phone does not support this function, tap on the answer/end button on the Jabra BT135 to receive the call in the headset.

Reject a call*

• Press the answer/end button when the phone rings to reject an incoming call. Depending on your phone settings, the person who called you will either be forwarded to your voice mail or hear a busy signal.

Activate voice dialing*

• Tap the answer/end button. For best results, record the voice-dialing tag through your headset if your phone allows you to do so. Please consult your phone's user manual for more information about using this feature.

Redial last number*

• Press the answer/end button.

Adjust sound and volume

• Press the volume up or down (+ or -) to adjust the volume.

Call waiting and placing a call on hold*

This lets you put a call on hold during a conversation and answer a waiting call.

Press the answer/end button once to put the active call on hold and answer the waiting call.
- Press the answer/end button to switch between the two calls.
- Tap the answer/end button to end the active conversation.

• Phone dependent

10. What the lights mean

What you see What is the mean about your headset

Flashing blue light Flashing every second: active on a call

Flashing blue light Flashing every three seconds: in standby mode

Flashing blue light Ruhnning low on battery

Solid blue light Charging

Solid blue light In pairing mode - see section 7

11. Troubleshooting & FAQ

I hear crackling noises

For the best audio quality, always wear your headset on the same side of the body as your mobile phone.

I cannot hear anything in my headset

• Increase the volume on the headset.
• Ensure that the headset is paired with the phone.
• Make sure that the phone is connected to the headset – if it does not connect either from the phone's Bluetooth menu or by tapping the answer/end button, follow the pairing procedure (See section 7).

I have connection problems

You may have deleted your headset pairing connection in your mobile phone. Follow the pairing instructions in section 7.

Will the Jabra BT135 work with other Bluetooth equipment?

The Jabra BT135 is designed to work with Bluetooth mobile phones. It can also work with other Bluetooth devices that are compliant with Bluetooth version 1.1,1.2 or 2.0 and support a headset and/or hands-free profile.

I cannot use Reject call, Call on hold, Redial or Voice dialling

These functions are dependent on your phone supporting them. Please check your phone's manual for further details.

12. Need more help?

See the back side cover for your country's support details.

13. Taking care of your headset

Always store the Jabra BT135 with the power off and safely protected..

Avoid storage at extreme temperatures (above 45^ / 113^ - including direct sunlight - or below -10^ / 14^ ). This can shorten battery life and may affect operation. High temperatures may also degrade performance.

If exposed to water or other liquids, the device should be wiped clean from any traces of water.

14. Warranty

Jabra (GN Netcom) warrants this product against all defects in material and workmanship for a period of two years from the date of original purchase. The conditions of this warranty and our responsibilities under this warranty are as follows:

The warranty is limited to the original purchaser
- A copy of your receipt or other proof of purchase is required

• The warranty is void if the serial number, date code label or product label is removed, or if the product has been subject to physical abuse, improper installation, modification, or repair by unauthorized third parties
• The responsibility of Jabra (GN Netcom) products shall be limited to the repair or replacement of the product at its sole discretion
• Any implied warranty on Jabra (GN Netcom) products is limited to two years from the date of purchase on all parts, including any cords and connectors
• Specifically exempt from any warranty are limited-life consumable components subject to normal wear and tear, such as microphone windscreens, ear cushions, decorative finishes, batteries, and other accessories
• Jabra (GN Netcom) is not liable for any incidental or consequential damages arising from the use or misuse of any Jabra (GN Netcom) product
  This warranty gives you specific rights and you may have other rights which vary from area to area
• Unless otherwise instructed in the User Manual, the user may not, under any circumstances, attempt to perform service, adjustments or repairs on this unit, whether in or out of warranty. It must be returned to the purchase point, factory or authorized service agency for all such work
• Jabra (GN Netcom) will not assume any responsibility for any loss or damage incurred in shipping. Any repair work on Jabra (GN Netcom) products by unauthorized third parties voids any warranty

15. Certification and safety approvals

CE

This product is CE marked according to the provisions of the R & TTE Directive (99/5/EC). Hereby, GN Netcom, declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

For further information please consult http://www.jabra.com

Within the EU this device is intended to be used in Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, The Netherlands, United Kingdom, and within EFTA in Iceland, Norway and Switzerland.

Bluetooth

The Bluetooth* word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by GN Netcom is under license. Other trademarks and trade names are those of their respective owners.

GB

16. Glossary

F
ES
PT
DE
M
NL
SU
NO
SE
DK
GR

Bluetooth is a radio technology that connects devices, such as mobile phones and headsets, without wires or cords over a short distance (approx. 30 feet). Get more information at www.-bluetooth.com.
Bluetooth profiles are the different ways that Bluetooth devices communicate with other devices. Bluetooth phones support either the headset profile, the hands-free profile or both. In order to support a certain profile, a phone manufacturer must implement certain mandatory features within the phone's software.
Pairing creates a unique and encrypted link between two Bluetooth devices and lets them communicate with each other. Bluetooth devices will not work if the devices have not been paired.
Passkey or PIN is a code that you enter on your Bluetooth enabled music device (e.g. a mobile phone) to pair it with your Jabra BT135. This makes your device and the Jabra BT135 recognize each other and automatically work together.
Standby mode is when the Jabra BT135 is passively waiting for a call. When you 'end' a call on your mobile phone, the headset goes into standby mode.
