USER MANUAL BT110 JABRA

Thank you 2
1. Getting started 3
2. Using your Jabra BT110 headset 5
3. Using your Jabra BT110 with the Jabra A210 Bluetooth adapter 6
4. LED status indicators 6
5.Choosing wearing preference 7
6. Troubleshooting and frequently asked questions 7
7. Need more help? 8
8. Storage of the Jabra BT110 8
9. Warranty 8
10. Certification and safety approvals 10
11. Glossary 11

Thank you

Thank you for purchasing the Jabra BT110 Bluetooth® Headset, we hope you will be totally delighted with its operation. The Jabra BT110 is a simple and easy way to enjoy hands-free use of your Bluetooth mobile phone. The Jabra BT110 is designed to be comfortable enough to be worn all day and will provide up to 15 hours of talk time on a single AAA battery.

Please read the instruction manual to get started.

Drive safely

Using a mobile phone while driving creates a distraction to the driver which may increase the likelihood of an accident.

When using the phone while driving, keep conversations short and do not make notes or read documents. Before answering calls consider your circumstances. Pull off the road and park before making or answering calls when driving conditions require (e.g.bad weather, high traffic density, presence of children in the car, difficult junctions or manoeuvres.)

Remember, driving comes first, not the call!

Abide by local laws.

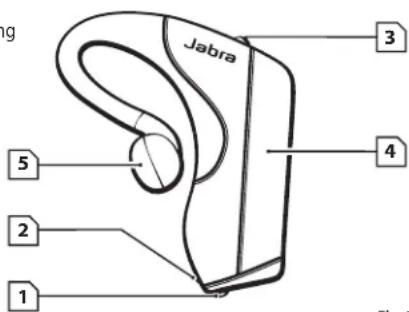

Jabra BT110 Overview

1 Answer / end button
2 Yellow light (LED) indicating pairing and low battery
3 Volume control
4 Battery panel
5 MiniGeTM

Fig.1

Summary of features

• Up to 15 hours talk time on single AAA battery
  Turns off automatically to lengthen battery life
  Total weight including battery is only 26 grams
  Range up to 10 metres (33 feet)
• Bluetooth' (See glossary) version 1.2
• Headset and hands-free Bluetooth profiles²
• Operational features:

Answer call
Call end
Supports voice-dialling (subject to phone)
Reject call

Your Jabra BT110 is compatible with most Bluetooth mobile phones. You can check whether your phone has Bluetooth capability by visiting your phone manufacturer's web site or Jabra's website (www.jabra.com)

BEFORE USING YOUR Jabra BT110 BLUETOOTH HEADSET

The Jabra BT110 is designed to be simple to operate with a minimum of control buttons. The answer/end button on the headset will provide alternative operations depending on the length of time it is pressed.

Instruction: Duration of press:

Tap Press briefly

Press Approx: 1 second
Press and hold Approx: 5 seconds

1 Getting Started

In order for your Jabra BT110 to function with your Bluetooth mobile phone, you need to establish a connection between the two devices:

1. Insert an AAA battery

Open the battery compartment by sliding the battery panel off as shown in Fig. 2

2. Pairing

The Jabra BT110 will always go into pairing mode whenever you insert / replace the battery. The yellow light will come on and remain on for approximately 5 minutes. During this time the headset can be paired (connected) to your mobile phone. To exit this mode and resume normal use just tap the answer / end button.

NOTE: It is only the first time you want to connect your BT110 with your mobile phone that you need to pair the two devices.

3. Set your Bluetooth phone to "discover" the Jabra BT110

Follow your phone's instruction guide. This usually involves going to a "setup", "connect", or "Bluetooth" menon your phone and then selecting the option to "discover a Bluetooth device". (See example from a Sony Ericsson T610 in Fig. 3)

Fig. 3

4. Your phone will find the "Jabra BT110"

The phone then asks if you want to pair with it. Confirm by pressing "yes" or "ok".

5. Enter passkey or PIN = 0000 (4 zeros), then press "yes" or "ok"

6. If pairing was successful

The yellow light (LED) will briefly flash rapidly before turning off.

7. If pairing was unsuccessful

The yellow light (LED) remains solid, and you'll need to re-attempt pairing. After five minutes the solid yellow light will turn off automatically whether you have successfully paired or not. To re-activate pairing mode remove and re-insert the battery.

• Phone-specific pairing instructions can be found online at www.jabra.com/fscs

Using your Jabra BT110 headset

You are now ready to use your Jabra BT110 headset.

1. To answer a call direct from your mobile phone

Press the answer button on your phone's keypad. You can subsequently transfer the call to your headset by a tap on the headset's answer/end button.

2. To answer a call direct from your headset

Tap once on the headset's answer/end button.

If you choose to take the call directly from the headset, the time for the call to transfer from the mobile phone to the headset will depend on the phone model. To avoid missing calls, we recommend that you answer calls on your mobile phone and then transfer the call as described above.

3. To end a call

Tap the end button on your mobile phone or the answer/end button on your headset.

4. To make a call

Use the mobile phone's keypad to dial the number, and tap once on the answer / end button on the headset to transfer the call to the Jabra BT110.

5. Voice-dialing (if supported by phone)

The voice-dial function is activated with tap on the answer/end button. For further information about using this feature, please consult your phone's user manual. You will get the best result if you record the voice dialing tag through your headset.

6. Call reject

To reject an incoming call, press the answer / end button.

7. Maximising battery life

The Jabra BT110 has been designed to give you the most talk time possible, up to 15 hours (subject to AAA battery and handset model). To maximise battery life, the Jabra BT110 automatically turns off after each call.

3 Using your Jabra BT110 with the Jabra A210 Bluetooth adapter

To Pair the Jabra BT110 with the Jabra A210

Turn on the Jabra BT110 and the Jabra A210 and place the two devices in close proximity to each other.

Set the adapter to pairing mode to connect with the headset. Consult the adapter's user manual for further information.

Turning the headset on and off

If you use your Jabra BT110 with the Jabra A210 Bluetooth adapter, your headset will not automatically turn on and off, but remain on in standby mode. Leaving the device on will affect battery life. You can manually turn the headset on and off by following the instructions below.

To turn the headset on, press the answer/end button
To turn the headset off, press and hold the answer/end button (approx. 5 sec.)

Making/answering a call

• When you make a call from your mobile phone, the call will be automatically transferred to the headset (if it is on) – you do not have to tap the answer/ end button
• You can answer a call on your headset or your mobile phone. As long as your headset is in standby mode, the call will be transferred immediately to the headset

IMPORTANT: Avoid using keypad tones on your mobile phone when using your Jabra A210 Bluetooth adapter. The tones will activate the adapter and thus use the battery power.

4 LED status indicators

Your Jabra BT110 has a yellow light (LED) which provides useful information.

• When you insert or replace the battery and turn the headset on, the yellow LED will become solid yellow. This means that the headset is in pairing mode
• When your battery is getting low, the yellow LED will flash twice every 5 seconds. You should then replace the battery
• If you use the Jabra BT110 with the Jabra A210, the yellow LED will indicate 'On' by flashing every 3 seconds

5 Choosing wearing preference

The Jabra BT110 is ready to wear on the right ear. If you prefer the left, gently rotate the MiniGel 180^ .

For optimal performance, wear the Jabra BT110 and your mobile phone on the same side of your body or within line of sight. In general, you will get better performance when there are no obstructions between the headset and the mobile phone.

6 Troubleshooting and frequently asked questions

If you can hear crackling noises;

For the best audio quality, always wear your headset on the same side of the body as your mobile phone.

If you cannot hear anything in your headset;

1. Increase the volume on the headset.
2. Ensure that the headset is paired with the phone.
3. Make sure that the phone is connecting to the headset – if it does not connect either from the phone's Bluetooth menu or by tapping the answer/end button, carry out the pairing procedure.

Will the Jabra BT110 work with other Bluetooth equipment?

The Jabra BT110 is designed to work with Bluetooth mobile phones. It can also work with other Bluetooth devices that are compliant with version 1.1 or 1.2 and support headset and/or hands-free profile.

Will my Jabra BT110 interfere with my car's electronics, radio, or computer?

The Jabra BT110 produces significantly less power than a typical mobile phone. It also only emits signals that are in compliance with the international Bluetooth standard. Therefore, you should not expect any interference with standard consumer-grade electronics equipment.

I am experiencing pairing problems even though my phone is indicating otherwise

If you have deleted your headset pairing connection in your mobile phone, the only way to successfully pair the Jabra BT110 with your mobile phone is to follow the pairing instructions in section 1 'Getting started'.

7 Need more help?

1. Web: www.jabra.com/fscs (for the latest support info and online User Manuals)
2. E-mail: Tech Support: [e-mail] Information: [e-mail]
3. Phone: [phone] (toll-free in USA and Canada)
   [phone]
4. Support Hours: Monday - Friday 8 am - 5 pm, Pacific Standard Time.

8 Storage of the Jabra BT110

1. Always store the Jabra BT110 with power off and safely protected.
2. Avoid storage at high temperatures (above 45^ / 113^ ) such as direct sunlight. (Storage at high temperatures can degrade performance and reduce battery life). Low temperatures (down to -10^ / 14^ will shorten battery life and may affect operation but should not permanently damage the Jabra BT110.
3. Do not expose the Jabra BT110 to rain or other liquids.

9 Warranty

Jabra limited product warranty. Jabra warrants to Purchaser that for a period of one (1) year after the date of purchase (the "Warranty Period") of any Jabra Product ("Product") by Purchaser, the Product will substantially conform to Jabra's published specifications for the Product on the date of Purchaser's purchase of the Product, subject to the terms herein. Purchaser shall notify Jabra of any nonconformance during the Warranty Period and obtain a written return material authorization ("RMA") and an RMA number for the nonconforming Product from Jabra and return the nonconforming Product to Jabra at: Jabra Corporation, 9171 Towne Centre Drive, Suite 500, San Diego, California 92122 USA, freight prepaid, with a statement describing the nonconformity. Jabra's exclusive obligation with respect to nonconforming Product shall be, at Jabra's option and expense, to repair or replace such Product so that it substantially conforms with its published specifications on the date of Purchaser's purchase, or, if Jabra, in Jabra's sole discretion, determines that it is not possible to repair or replace the Product, Jabra may, at Jabra's option, refund to Purchaser the purchase price paid for the Product. THE FOREGOING IS PURCHASER'S SOLE AND EXCLUSIVE REMEDY FOR BREACH OF WARRANTY BY JABRA WITH RESPECT TO THE PRODUCT. The warranty set forth above shall not apply to any Product which has not been properly used or handled in accordance with the instructions supplied by Jabra, lost or misplaced for any reason, or which

has been modified, repaired or altered, except by Jabra or at a Jabra authorized service facility, or which has been subjected to faulty installation, misuse, abuse, or which the Product defect is attributable to any failure or damage which is beyond the reasonable control of Jabra. This warranty is available only to Purchaser, and does not extend to any distributors, retailers, or other resellers of the Product. This warranty applies only to new Jabra products purchased from authorized retail sellers. This warranty does not apply to: "open box purchases", resales by private parties or any other third party purchases by unauthorized distributors. Transfer of Jabra products through any unauthorized distributor renders our manufacturer's warranty null and void. BUYER BEWARE: any Jabra product sold by a private party or unauthorized distributor and not by an authorized Jabra retail seller is sold on an "as is" or "with all faults" basis with respect to Jabra. As such, the entire risk as to the quality and performance of such products will be with the buyer if the unauthorized distributor will not cover the costs of repairing defects. Should such products prove defective following their purchase, the buyer or unauthorized distributor, and not the manufacturer or its authorized retail sellers, assumes the entire cost of all necessary servicing or repair. Therefore, buyers are strongly encouraged to purchase Jabra products only from Jabra authorized retail sellers. THE FOREGOING WARRANTY ARE THE SOLE WARRANTY, EXPRESS OR IMPLIED, GIVEN BY JABRA IN CONNECTION WITH THE PRODUCT, AND JABRA DISCLAIMS ALL OTHER WARRANTY, INCLUDING WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRIGEMENT OF THIRD PARTY RIGHTS. JABRA SHALL NOT BE LIABLE FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE PRODUCT, EVEN IF JABRA HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE LIABILITY OF JABRA HEREUNDER FOR ALL CLAIMS SHALL NOT EXCEED THE AMOUNT PAID BY PURCHASER TO JABRA FOR THE PRODUCT GIVING RISE TO JABRA'S LIABILITY.

10 Certification and safety approvals

FCC

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Users are not permitted to make changes or modify the device in any way. Changes or modifications not expressly approved by Jabra (GN Netcom) will void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The user must place the base 8^ (20cm) or more from any personnel in order to comply with FCC RF exposure requirements.

Industry Canada

Operation is subject to the following two conditions:1) This device may not cause interference and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

The term "IC:" before the certification/registration number only signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. It does not imply that Industry Canada approved the equipment.

CE

This product is CE marked according to the provisions of the R & TTE Directive (99/5/EC).

Hereby, GN Netcom, declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/S/EC.

For further information please consult http://www.gnnetcom.com

Please note that this product uses radio frequency bands not harmonised within EU. Within the EU this product is intended to be used in Austria, Belgium, Denmark, Finland, France, Germany, Greece, Ireland, Italy, Luxembourg, The Netherlands, Portugal, Spain, Sweden, United Kingdom and within EFTA in Iceland, Norway and Switzerland.

Bluetooth

The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Jabra is under license. Other trademarks and trade names are those of their respective owners.

11 Glossary

1 Bluetooth is a radio technology developed to connect devices, such as mobile phones and headsets, without wires or cords over a short distance of up to 10 metres (approx 30 feet). More information is available at www/bluetooth.com
2 Bluetooth profiles are protocols through which Bluetooth devices communicate with other devices. Your phone needs to support either the handsfree or headset profile to function with the Jabra BT110.
3 Pairing creates a unique and encrypted communication link between two Bluetooth enabled devices and allows them to communicate with each other. Bluetooth devices will not work if the devices have not been paired with each other.
Passkey or PIN is a code that needs to be entered on the phone in order to pair the mobile phone with the Jabra BT110. When you have already paired your mobile phone with the headset, the phone and the Jabra BT110 will recognize each other and the phone will bypass the discovery and authentication process and automatically accept the transmission.
5 Standby mode is when the Jabra BT110 is used with the Jabra A210 and is passively waiting for a call. When you "end" the call on your mobile phone, the headset will go into standby mode. The yellow LED will indicate standby mode by flashing every 3 seconds.

François

Merci 14

© 2004 Jabra Corporation, a GN Netcom company. All rights reserved. Patents pending. Jabra and the Jabra logo are registered trademarks of Jabra Corporation in the USA and maybe registered in other countries. The B luetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Jabra is under license. Design and specifications subject to change without notice. The Jabra BT110 Bluetooth headset may not be authorised for use in some countries.
