Product type	Range hood
Brand	Neff
Model	IBE 7944 N I79E44N0
Category	Kitchen hood
Operating modes	Air extraction / Air recirculation
Suction power	3 speeds + intensive mode (P button)
Lighting	Halogen or incandescent bulbs (depending on version)
Grease filters	Metallic, dishwasher-safe, clean once a month
Charcoal filter	Replacement recommended twice a year
Maximum weight	43 kg
Electrical supply	220-240 V, 50/60 Hz
Duct diameter	150 mm recommended (min 120 mm)
Mounting	Ceiling-mounted (suspended)
Material	Stainless steel
Included accessories	Metal filters, mounting kit, template
Warranty	See provided after-sales service manual
Repairability	Spare parts available via after-sales service and online store
Maintenance	Monthly grease filter cleaning, semi-annual charcoal change

Frequently Asked Questions - IBE 7944 N I79E44N0 NEFF

How to install the Neff IBE 7944 N hood?

Installation must be carried out by a specialist. Respect minimum distances: 550 mm above an electric hob, 650 mm above a gas hob. The hood is mounted on the ceiling using the provided support frame. Ensure the ceiling can support a weight of 43 kg. Connect the exhaust duct (Ø 150 mm recommended) and the electrical connection to an earthed socket.

How to clean the grease filters?

The metal grease filters should be cleaned once a month to prevent fire risk. You can wash them in the dishwasher (placing them flat) or by hand with hot water and mild detergent. Never use abrasive products.

When should the charcoal filter be replaced?

The activated charcoal filter should be replaced approximately twice a year, or more frequently with heavy use. It is available from the after-sales service or online store. Use only original filters.

How to replace a bulb?

Before replacing the bulb, cut off the power and allow the bulb to cool. Gently remove the bulb ring (for halogen) or cover (for incandescent). Replace with a bulb of the same type and power (see rating plate). Do not touch the glass of the halogen bulb.

What to do if the hood does not turn on?

First check the electrical supply (socket, circuit breaker). Ensure the plug is properly inserted. If the lighting does not work, check the bulbs. If the problem persists, contact the after-sales service with the EFD number (on the rating plate after removing the filters).

What is the minimum distance between the hood and the hob?

For electric hobs: 550 mm. For gas hobs: 650 mm (measured from the top edge of the grid to the bottom edge of the hood). If using both types, respect the larger distance.

Can the hood be used in recirculation mode?

Yes, the hood can operate in air recirculation mode. In this case, you must install an activated charcoal filter (optional). The filtered air is then returned to the kitchen. The complete mounting kit is available as an accessory.

How to adjust the suction power?

Use the control buttons: press 1 for low speed, 2 or 3 for higher speeds. For temporary intensive suction (strong odors or steam), press the P button. Switch off with the 0 button.

Why is the hood noisy?

Excessive noise may come from a too long exhaust duct, tight bends, or too small duct diameter (minimum 120 mm). Check that the filters are clean and properly placed. If the noise persists, contact after-sales service.

Where to buy spare parts?

Spare parts (filters, bulbs, accessories) are available from Neff after-sales service, specialized stores, or the online store. Use the part numbers indicated in the manual. Only use original parts.

USER MANUAL IBE 7944 N I79E44N0 NEFF

Operating and installation instructions

General Information 19 Information on protection of the environment 19 Before using the appliance for the first time 19 Safety Instructions 20 Intended use 20 Technical safety 20 Special information for gas cookers 21 Proper use 22 Correct installation 22 Operating modes 23 Exhaust-air mode 23 Circulating-air mode 23 Operation 24 Cleaning and Care 25 Removing and installing the grease filters 26 Removing and installing the metal-mesh grease filters 26 Installing and removing the activated carbon filters 26 Changing the bulbs 27 Installation instructions 28 Connecting Pipes 28 Electrical Connections 29 Installation 30 Installation preparations 30 Attachment 31 32

INFORMATION ON PROTECTION OF THE ENVIRONMENT

Disposal of transport packaging

Your new appliance was sent to you in protective packaging. All utilised materials are environmentally safe and recyclable. Please help us by disposing of the packaging in an environmentally friendly manner.

Packaging parts can be hazardous for children. Therefore keep them outside the reach of children.

Disposal of the old appliance

Old appliances are not worthless rubbish. Valuable raw materials can be reclaimed by recycling old appliances.

This appliance is identified according to the European Directive 2002/96/EC on waste electrical and electronic equipment – WEEE). The directive specifies the framework for an EU-wide valid return and re-use of old appliances.

Before disposing of your old appliance, render it unusable.

Never treat your old appliance as nonrecyclable waste!

Please ask your dealer or inquire at your local authority about current means of disposal.

Ensure that the old appliance is kept childproof until it is disposed of.

BEFORE USING THE APPLIANCE FOR THE FIRST TIME

NOTE: These operating instructions apply to several appliance models. It is possible that individual features are described which do not apply to your appliance.

Before switching on your new appliance, please read the operating instructions carefully. They contain important information on safety and how to use and look after the appliance.

Keep the operating instructions in a safe place and pass them on to any subsequent owner of the appliance.

Faults

Please contact customer service regarding any queries or faults.

(See list of customer service centres).

When calling, please quote:

E-no. FD

The numbers can be found on the rating plate, after removal of the grease filter, inside the extractor hood.

Enter the numbers in the above fields.

Intended use

This extractor hood complies with the stipulated safety regulations. Improper use may result in injury or damage. The extractor hood may be used in the household only. The manufacturer is not liable for damage which is caused by improper use or incorrect operation. The manufacturer cannot be made responsible for damage which can be attributed to non-observation of the safety instructions.

RISK OF INJURY

Do not allow children to play with the extractor hood! Adults and children must never operate the appliance unsupervised

• if they are not physically or mentally capable of doing so,
• or if they do not have the knowledge and experience to operate the appliance correctly and safely.

Technical safety

The extractor hood left the factory in perfect condition. Nevertheless, check the appliance for visible damage before installation. If it is damaged, do not switch it on! If the power cord of the extractor hood is damaged, it must be replaced by the manufacturer, its customer service, or a similarly qualified person to prevent hazardous situations. Only a qualified technician may install (including electrical connection), service, or repair the extractor hood. Always isolate the extractor hood by pulling out the mains plug or switching off the fuse!

If the appliance is improperly installed, serviced, or repaired, the user may be placed in considerable danger for which the manufacturer is not liable. Changes to the electrical or mechanical installation are dangerous and must not be undertaken! They may also cause the extractor hood to malfunction.

Simultaneous operation of the extractor hood with a heating appliance which is dependent on ambient air

Heating appliances which are dependent on ambient air, e.g. gas, oil, wood, or solid-fuel heaters, instantaneous water heaters, hot water boilers, hobs or ovens, and which draw combustion air out of the installation room and whose exhaust gases are conveyed to the exterior by a flue.

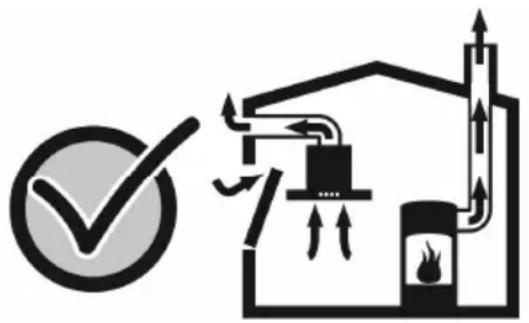

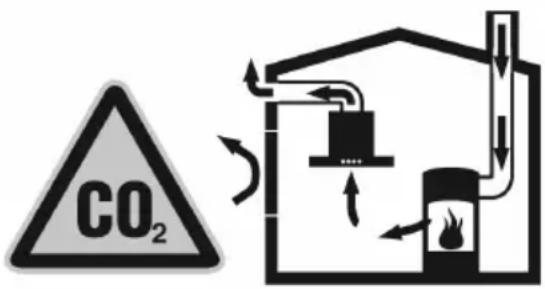

RISK OF POISONING

If the extractor hood is operated at the same time as a heating appliance which is dependent on ambient air, there is a risk of poisoning due to combustion gases being drawn back in.

• Safe operation is possible provided the low pressure in the installation room of the heating appliance does not exceed 4 Pa (0.04 mbar). This can be achieved if the combustion air can flow through non-closable openings, e.g. in doors, windows, in conjunction with air intake/exhaust air wall boxes or by other technical measures.

Adequate intake air must therefore always be provided. An intake/exhaust air wall box alone does not ensure compliance with the limit value.

NOTE: When making your evaluation, always consider the entire ventilation system in the home. Include the advice of a competent heating engineer when making your evaluation.

If the extractor hood is used in circulating air mode only, it can be operated without any restrictions.

Special information for gas cookers

When installing the extractor hood above gas hobs, observe the appropriate national statutory regulations (e.g. in Germany: Technische Regeln Gasinstallation TRGI). Observe the currently valid installation regulations and instructions of the gas appliance manufacturer. During installation, ensure that only one side of the extractor hood is situated directly next to a high-sided unit or a wall. Otherwise, there is a risk of heat build-up. The gap between the extractor hood and the wall or high-sided unit must be at least 50 mm.

RISK OF BURNS

Do not operate more than 2 gas cooking areas simultaneously over a period of max. 15 minutes at maximum thermal load. Due to the effect of the heat there is a risk of burns if the surfaces of the housing are touched!

Note that one large burner of more than 5 kW (Wok) is equivalent to the power of 2 gas burners. The extractor hood may be damaged by the intense heat. Never operate a gas cooking area without a cooking utensil on it. Regulate the flame in such a way that it does not project over the cooking utensil.

Proper use

Clean the extractor hood thoroughly before using for the first time. Before cleaning and servicing the extractor hood, isolate it from the power supply by pulling out the mains plug or switching off the fuse. Bulbs (especially halogen bulbs) become very hot during operation. Even some time after the appliance has been switched off, there is still a risk of burns! Before changing bulbs, isolate the extractor hood from the power supply and leave the bulbs to cool down! Do not operate the extractor hood without bulbs inserted. Always switch on the extractor hood if a hotplate is being used. If the extractor hood is not switched on, condensation may form. As a result, the appliance may corrode. Do not place any objects on the extractor hood.

RISK OF FIRE

Do not flambé under the extractor hood or work with a naked flame. When switched on, the extractor hood draws flames into the filter. There is a risk of fire due to deposits on the grease filter! Do not leave pans, frying pans or deep-fat fryers unattended if you are cooking food with oils or fats, e.g. chips. Overheated oils or fats can easily ignite! A risk of fire can be prevented by cleaning the grease filters regularly and changing the activated-carbon filter in good time.

Never operate the extractor hood without grease filters.

Correct installation

Check the manufacturer's specifications for the cooker to determine whether an extractor hood can be operated over it. If the manufacturer of the cooker has not specified any significant safety distances, the following minimum distances apply

• 550 mm between electric hob and the lower edge of the extractor hood, Fig. 1.
• 650 mm between gas hob (upper edge of pan support) and the lower edge of the extractor hood, Fig. 1.

If various cookers are used, the greatest indicated distance applies. The width of the extractor hood must correspond to the width of the cooking area. The extractor hood must not be installed over a solid fuel heating appliance which may be a fire risk (e.g. flying sparks) unless the heating appliance has a closed, non-detachable cover and the country-specific regulations are observed. This restriction does not apply to gas cookers and gas hobs. To avoid damaging the hob, cover it when installing the extractor hood.

The extractor hood can be used in exhaust air and circulating air mode.

Exhaust-air mode

The air which is drawn in is cleaned by the grease filters and conveyed to the exterior by a pipe system.

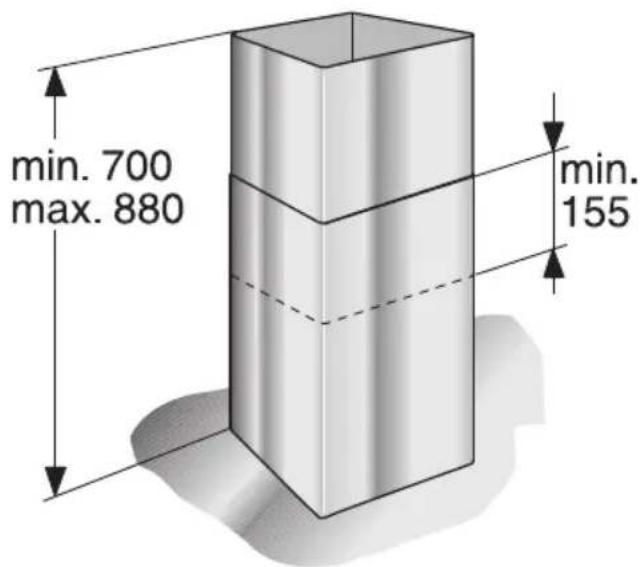

Appliance dimensions Exhaust air

Circulating-air mode

The air which is drawn in is cleaned by the grease filters and an activated carbon filter and conveyed back into the kitchen.

An activated carbon filter must be installed to bind odours in circulating-air mode (see "Removing and installing the grease filters").

The complete installation set as well as the replacement filters are available from specialist outlets, customer service or the Online Shop. The accessory number can be found at the end of the operating instructions.

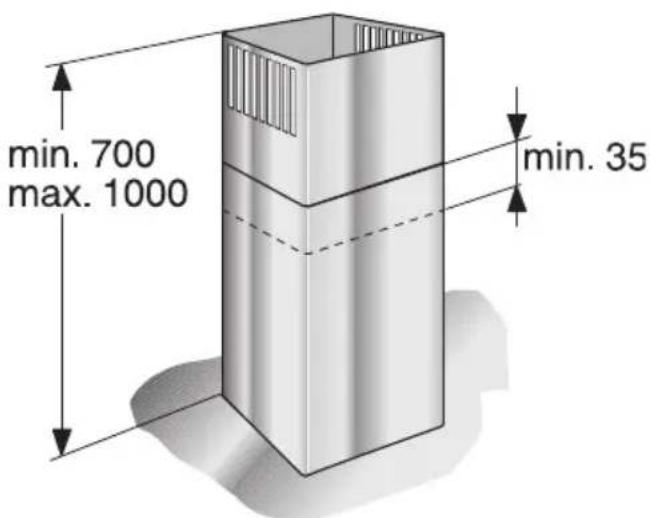

Appliance dimensions Circulating air

The description of the operation applies to several appliance models. It is possible that individual features are described which do not apply to your appliance.

Light Fan settings

Light Fan settings

NOTE: It is recommended to switch on the blower when you start cooking and not to switch it off again until several minutes after you have finished cooking. In this way the kitchen fumes are removed most effectively.

Switching on the fan and selecting the fan settings

Press button 1. If kitchen fumes are thicker, switch to setting 2 or 3.

The light can be switched on and off independently of the fan.

For appliances with Intensive setting

The Intensive setting P generates maximum performance. It can be used if thick fumes or strong odours occur temporarily.

LOOKING AFTER THE APPLIANCE

Suitable cleaning agents and care products for your appliance can be purchased via the Hotline or from the Online Shop (see cover page).

Appliance surfaces

NOTE: Observe the warranty regulations in the enclosed service booklet.

The appliance surfaces and controls are scratch-sensitive. Therefore observe the following cleaning instructions:

• Avoid cleaning the extractor hood with dry cloths, abrasive sponges, scouring agents, cleaning agents containing sand, soda, acid, chlorine or any other aggressive substances.
• Clean the appliance surfaces and controls with a soft, damp cloth, washing-up liquid or a mild window cleaner only.
• Do not scrape off dried dirt, but moisten with a damp cloth.
• Clean carefully in the area of the controls to avoid liquid from getting into the electronics.

NOTE: Clean the stainless steel surfaces in the direction of the ground surface only! Do not use stainless steel cleaner for the control buttons!

Metal-mesh grease filters

The metal-mesh grease filters absorb the grease particles from the kitchen fumes. The filter mats consist of fire-proof metal.

RISK OF FIRE

As the filters become more saturated with greasy residue, the flammability increases. The function of the extractor hood may also be impaired.

The risk of fire is prevented by cleaning the metal-mesh grease filters in good time. When cleaning the grease filters, also remove grease deposits from the accessible parts of the housing with a damp cloth.

Cleaning the metal-mesh grease filters ...

Under normal operation (daily 1 to 2 hours), the metal-mesh grease filters must be cleaned 1x month.

... in the dishwasher

The metal-mesh grease filters can be cleaned in the dishwasher. Slight discolouration may occur but this will not affect the function of the grease filters. The filters must be placed loosely in the dishwasher. They must not be wedged in.

NOTE: Do not clean heavily saturated metal-mesh grease filters together with utensils.

... by hand

When cleaning by hand, soak the grease filters in a hot detergent solution, brush off the dirt, rinse thoroughly and leave to dry. Do not use any aggressive, acidic or alkaline cleaning agents. If dirt is particularly stubborn, we recommend using a special grease solvent spray. This can be ordered via the Online Shop.

Before removing and installing the grease filters, always follow the instructions and warnings in the chapter entitled "Safety instructions"!

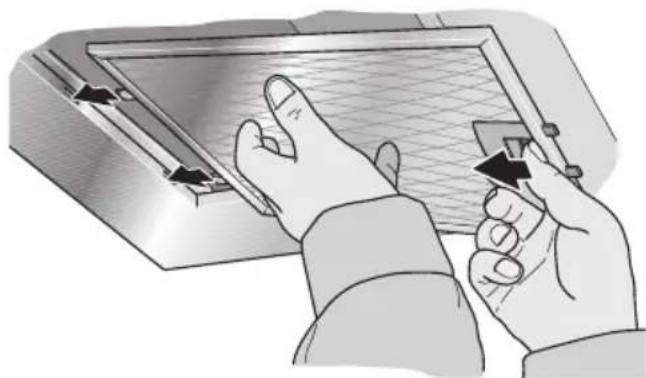

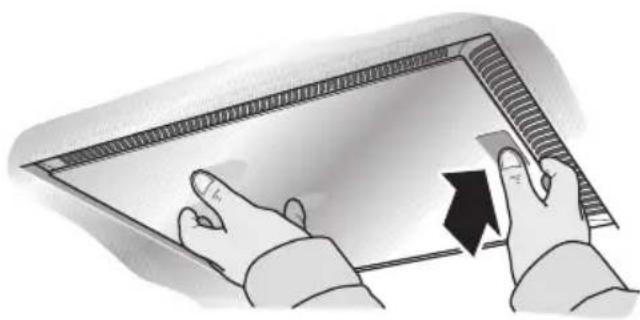

Removing and installing the metal-mesh grease filters

1. Open the lock and fold down the grease filters. In doing so, hold the underside of the grease filters with your other hand.

(for appliances with edge extraction)

1. Clean the grease filters.
2. Reinsert the cleaned grease filters.

Activated carbon filters bind the odours in circulating-air mode.

Installing and removing the activated carbon filters

1. Remove the grease filters (see Removing and installing the metal-mesh grease filters).

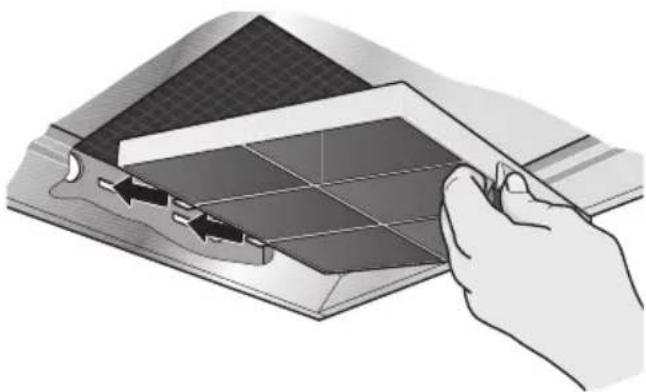

1. Insert the activated carbon filter.
2. Lock the catch.
3. Reinsert the grease filters (see Removing and installing the metal-mesh grease filters).

Changing the activated carbon filter

Under normal operation (daily 1 to 2 hours) the activated carbon filters must be replaced approximately 2x year. The activated carbon filter is available from specialist outlets, customer service or the Online Shop (see Optional accessories). Use original filters only. Activated carbon filters do not contain any pollutants. They can be disposed of in the household refuse.

Before changing the bulbs, always follow the instructions and warnings in the chapter entitled "Safety instructions"! The description of changing the bulbs applies to several appliance models.

NOTE: Observe the warranty regulations in the enclosed service booklet.

Changing the halogen bulbs

Halogen bulbs become very hot during operation. Even some time after the appliance has been switched off, there is still a risk of burns!

Before changing the halogen bulbs, ensure that they have cooled down fully.

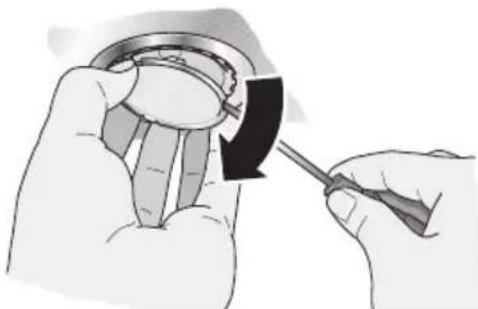

1. Carefully remove the bulb ring with a suitable tool.

1. Replace the defective bulb with a new one of the same type and equivalent power (see rating plate).

NOTE: When inserting halogen bulbs, do not touch the glass tube. Therefore use a clean cloth when inserting the bulb.

1. Reinsert the bulb cover.
2. Restore the power supply by inserting the mains plug or switching on the fuse.

Changing the filament bulbs

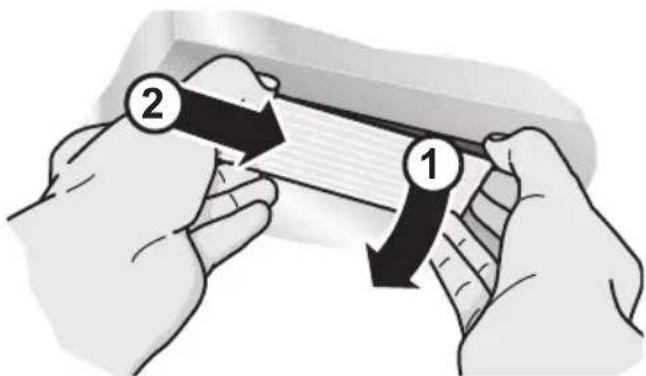

1. Lift the bulb cover slightly.
2. Push the bulb cover towards the middle of the appliance.

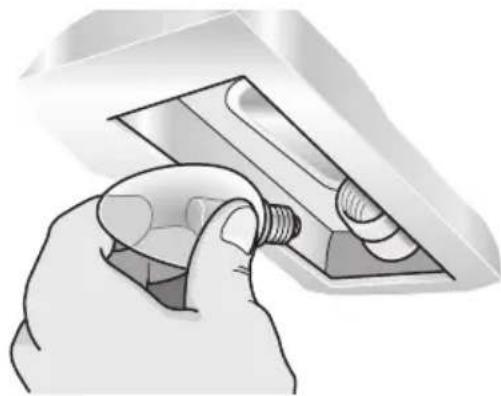

1. Replace the defective bulb with a new one of the same type and equivalent power (see rating plate).
2. Reinsert the bulb cover.

1. Restore the power supply by inserting the mains plug or switching on the fuse.

NOTE: If the light does not function, check whether the bulbs have been inserted correctly.

Defective bulbs should be replaced immediately to avoid overloading the remaining bulbs.

Prior to installation, always follow the instructions and warnings in the chapter entitled "Safety instructions"!

Exhaust-air mode

The exhaust air is conveyed upwards via a ventilation shaft or directly through the outer wall to the exterior.

NOTE: The exhaust air must not be conveyed into a functioning smoke or exhaust gas flue or into a shaft which is used to ventilate installation rooms which contain heating appliances.

Before conveying the exhaust air into a non-functioning smoke or exhaust gas flue, obtain the consent of the appropriate heating engineer. Discharge exhaust air in accordance with the official and statutory regulations (e.g. regional building laws). If the exhaust air is conveyed through the outer wall, a telescopic wall box should be used.

To ensure optimum performance, the extractor hood requires:

• a short, straight exhaust air pipe and
• the largest possible pipe diameter. If pipe bends cannot be avoided, ensure the largest possible radii. NOTE: If long, rough exhaust air pipes, a lot of pipe bends or pipe diameters less than 150 mm are used, the air capacity will be less than optimum and there will be an increase in noise. Use only pipes or hoses made of noncombustible material for installation of the exhaust air duct. The manufacturer of the extractor hoods is not responsible for complaints which can be attributed to planning and design of the pipework.

Connecting pipes

The diameter of the exhaust air pipes should not be less than 150 mm.

Round pipes:

We recommend an inner diameter of 150 mm, however at least 120 mm.

Flat ducts must have the same inner cross-section as round pipes.

There should be no sharp bends.

0 150 mm approx. 177 cm² 0 120 mm approx. 113 cm²

If pipe diameters differ:

Use sealing strips.

Connection of 150 mm Ø exhaust air pipe (recommended size)

Attach exhaust air pipe directly to the air-pipe connector and seal appropriately. If using an aluminium pipe, smooth the connection area beforehand.

Connection of 120 mm Ø exhaust air pipe

Attach reducing connector directly to the airpipe connector. Attach exhaust air pipe to the reducing connector.

Seal both joints appropriately.

ELECTRICAL CONNECTION

Before connecting the appliance to the power supply, always follow the instructions and warnings in the chapter entitled "Safety instructions"! The extractor hood may only be connected by a qualified electrician who is familiar with the regulations of the relevant electricity supply company.

RISK OF INJURY

If the power cord of the extractor hood is damaged, it must be replaced by the manufacturer, his customer service or a similarly qualified person to prevent hazardous situations.

The extractor hood may be connected to a correctly installed earthed socket only. Attach the earthed socket as directly as possible behind the flue duct.

• The earthed socket should be connected via its own circuit.
• If the earthed socket is no longer accessible following installation of the extractor hood, a disconnector must be fitted as for a permanent connection.

If a permanent connection is required

A disconnector must be provided on the installation side. Switches with a contact opening of more than 3 mm and all-pole disconnection are regarded as disconnectors. This includes LS switches, fuses and contactors.

Electrical specifications

The required connection data can be found on the rating plate inside the appliance when the grease filters have been removed.

Length of the power cord: approx. 1.30 m

This extractor hood complies with the EC interference suppression regulations.

The extractor hood is designed for installation on the kitchen ceiling or on a rigid suspended ceiling.

During installation, optional accessories may also require fitting. Observe the minimum distance between hob and extractor hood (see "Safety instructions")! Avoid damaging the sensitive surfaces!

Preparing the ceiling

The ceiling must be level and horizontal. The enclosed screws and wall plugs are suitable for concrete and natural stone. Use the appropriate fasteners for other ceiling structures.

Ensure that the ceiling has adequate load bearing capacity. Ensure that the wall plugs are secure.

Max. weight in kg: 43

Design is subject to modification in line with technical development.

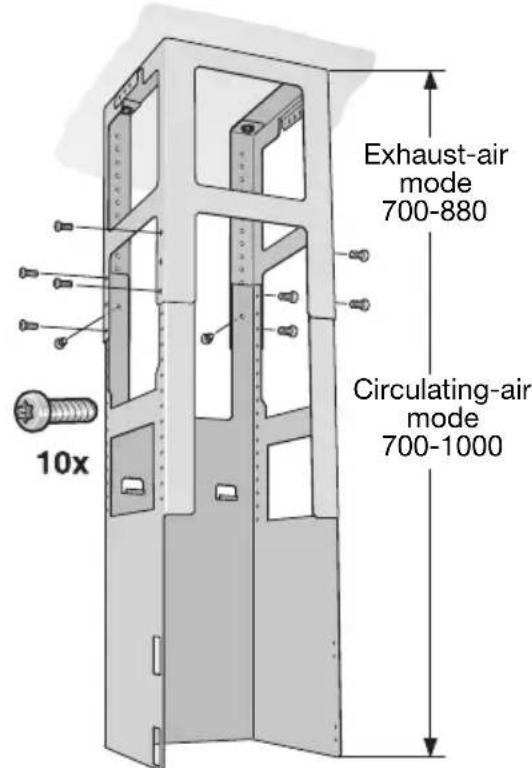

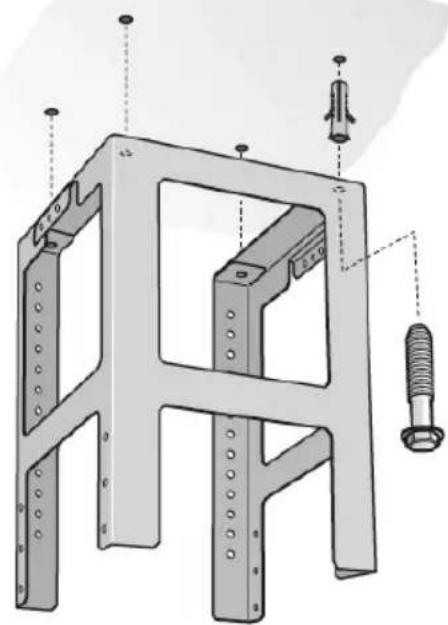

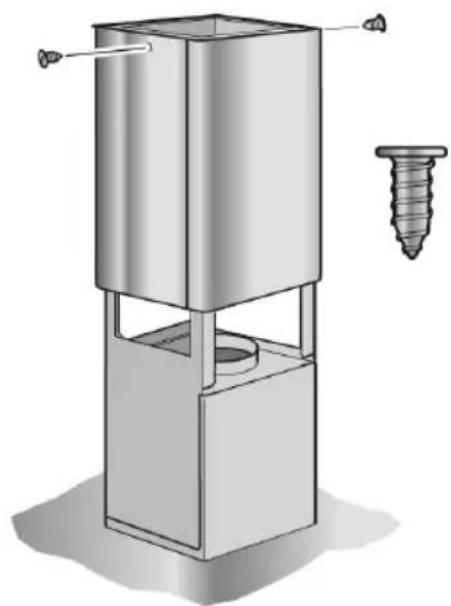

Installing the upper support frame

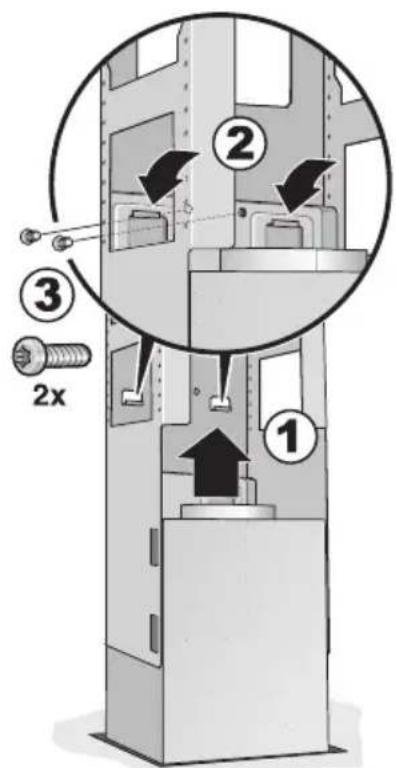

1. Specify the total height of the support frame before installation and mark the screw holes. The height of the support frame can be adjusted in 20 mm steps. The total height is measured from the height of the ceiling, the height of the worktop and the corresponding distances between the hob and extractor hood.
2. On the ceiling mark the centre point of the extractor hood.
3. Using the enclosed template, mark the positions for the screws on the ceiling.

4x

4x

1. Drill 4 x 8 mm diameter holes and press in wall plugs flush with the ceiling.
2. Attach the upper part of the support frame to the ceiling with 4 screws.
3. Ensure that the support frame is in the correct position. The middle bracket defines the preferred side. It must be facing the hob control.

Installing the lower support frame

Attach upper and lower parts of the support frame at the specified total height with 10 screws (preferred hole selection, see diagram).

Ensure that the lower support frame is in the correct position. The open side must be facing the hob control.

NOTE: The support frame can be aligned subsequently by loosening the fastening screws on the ceiling.

Installing the extractor hood

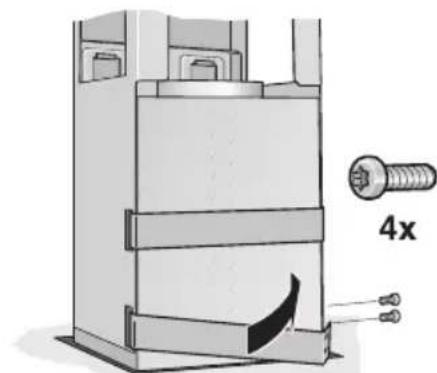

1. Hook the extractor hood from below into the support frame.

Do not trap the power cord!

1. Attach the extractor hood to the support frame with 2 securing screws.

3. Hook in retaining clip and screw tight.

1. Connect the pipes.
2. Connect the power supply.

Installing the flue ducts

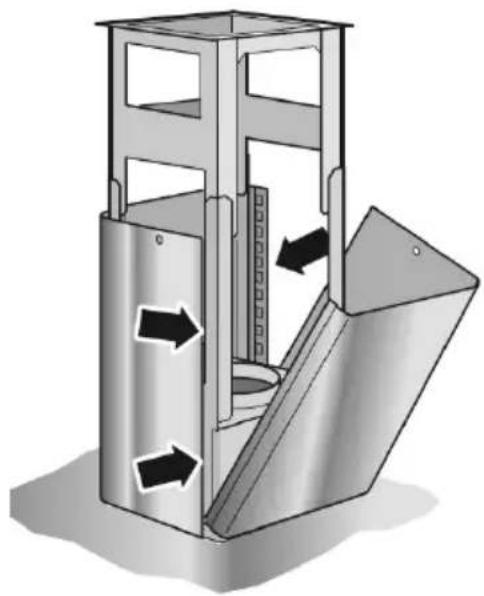

RISK OF INJURY

The insides of the flue ducts may have sharp edges. We recommend wearing protective gloves during installation.

1. Separate the flue ducts. To do this, remove the adhesive tape.
2. Remove the protective film from both flue ducts.
3. Attach both parts of the upper flue to the extractor hood and push together.

NOTE: Protect the extractor hood from damage. Avoid scratching the sensitive surfaces.

1. Push up the upper flue part and secure with 2 screws.

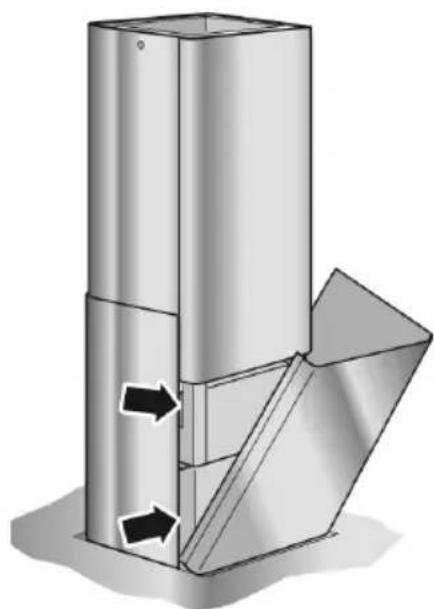

1. Insert the two lower parts of the flue and push together.

ENVIRONMENT PROTECTION

Disposal of the appliance

The appliance protects your new appliance during transport until it reaches your home. All packaging materials of the appliance are environmentally friendly and can be recycled. We ask you to contribute to the protection of the environment and to dispose of the appliance in an environmentally friendly way.

RISK OF INJURY

Do not let children play with the vacuum cleaner! Children and persons who are not allowed to operate the appliance without supervision,

- if they are not physically, sensory or mentally capable, - or if they do not have the knowledge and experience to use the appliance safely.

Technical safety

The vacuum cleaner has been manufactured in perfect condition. However, check the appliance before installation for visible damage. If it has any damage, it must not be put into operation! If the vacuum cleaner has damage to the power cord, it must be replaced by the manufacturer, the manufacturer's customer service or a similarly qualified person to avoid hazards. Installation (including electrical connection), maintenance or repair of the vacuum cleaner may only be carried out by qualified personnel. In any case, the vacuum cleaner must be disconnected from the power supply by pulling the plug out of the socket or switching off the fuse!

With improper installation, maintenance or repair, serious damage can occur to the user, for which the manufacturer is not liable. Parts of the electrical or mechanical construction are dangerous and must not be touched! They can lead to incorrect operation of the vacuum cleaner.

Simultaneous operation of the vacuum cleaner with a fireplace that is operated with room air

Fireplaces that are operated with room air (e.g. gas heaters, oil heaters, wood or coal stoves, tumble dryers, heaters, open fireplaces) that consume room air and whose exhaust gases are discharged through a chimney to the outside.

RISK OF FIRE

Do not vacuum up glowing ashes

All incandescent lamps heat up considerably during operation. Even after switching off, there is still a risk of burns!

All lamps must be completely cooled.

1. Disconnect the appliance from the power supply.

1. Replace the lamp with a new one of the same type and power (see nameplate).

NOTE: During installation, do not touch the halogen lamps with your bare hands. For this reason, use a clean cloth for installing the light source.

1. Reinstall the lamp cover.
2. Restore the appliance's power supply by plugging it in or switching on the circuit breaker.

Replacing lamps: practical instructions

RISK OF INJURY

If the protective cover of the lamp is damaged, it must be replaced by the manufacturer, the customer service department, or a qualified person to avoid hazards.

Online-Shop: www.neff-eshop.com
