USER MANUAL MG3740 PHILIPS

Close-up of a black handheld device with a textured grip and metallic clip (no visible text or symbols)

Illustration of an open book with a grid and arrow indicating text or transformation (no readable text or symbols)

-1

1_

-1

1

English 6

Dansk 21

Deutsch 36

Español 53

Français 69

Italiano 86

Nederlands 102

Norsk 118

Português 133

Suomi 149

Svenska 164

Türkçe 179

Ελληνικα 194

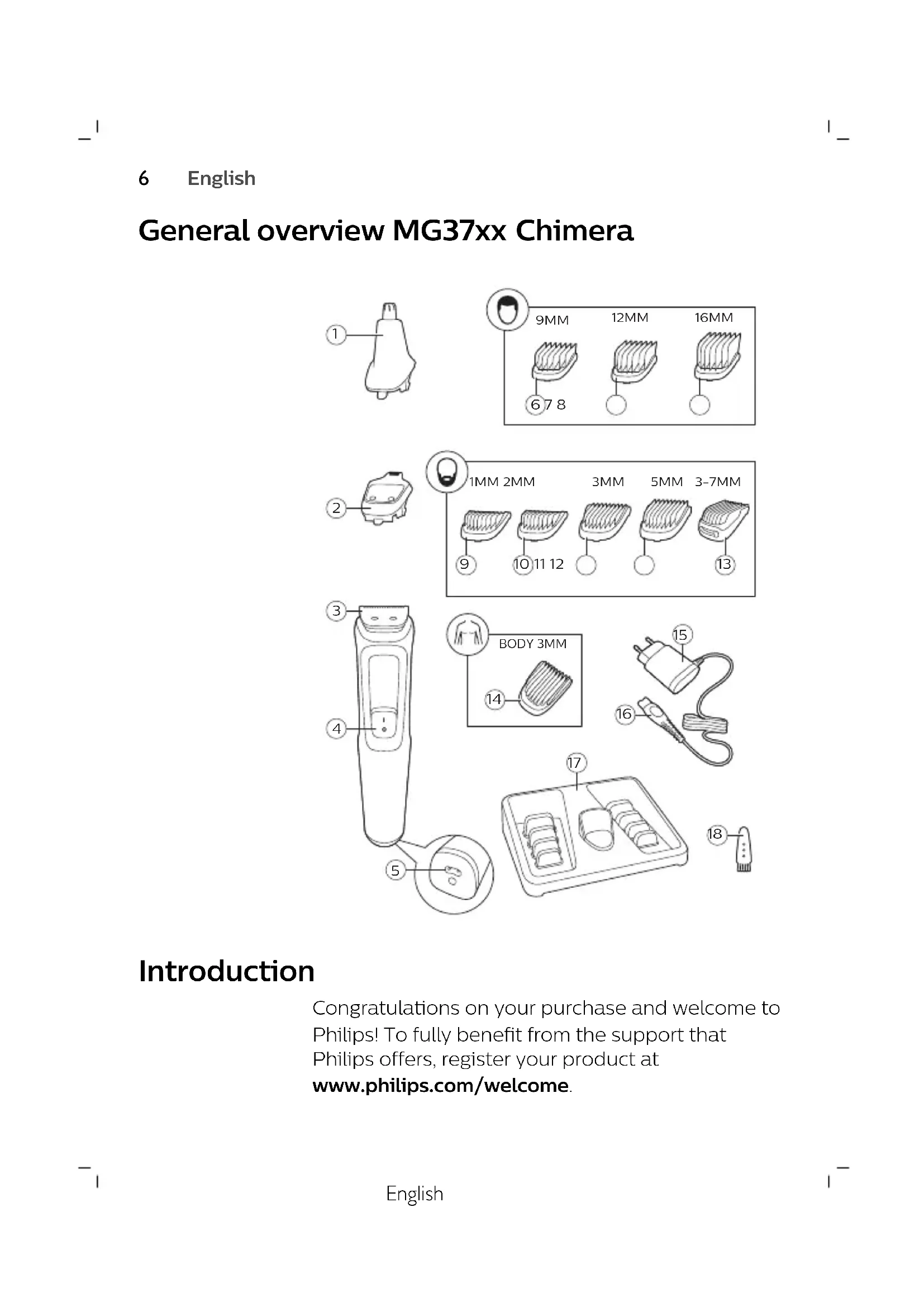

General overview MG37xx Chimera

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

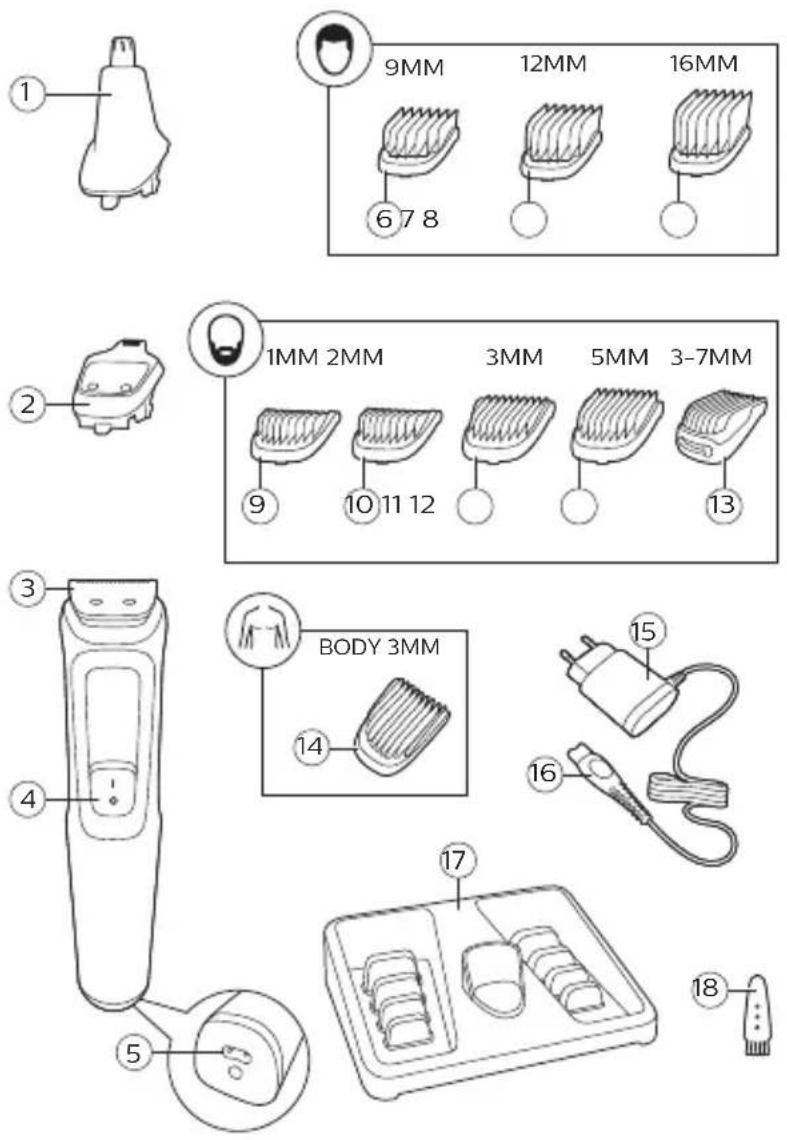

General description (Fig. 1)

1 Nose trimmer (MG3710, MG3711, MG3712, MG3721, MG3720, MG3730, MG3731, MG3740, MG3747, MG3748, MG3757 only)
2 Precision trimmer (MG3740, MG3757 only)
3 Full-size hair trimmer
4 On/off slide
5 Socket for small plug
6 Hair comb (9mm) (MG3720, MG3721, MG3730, MG3731, MG3740, MG3747, MG3748, MG3757 only)
7 Hair comb (12mm) (MG3730, MG3740, MG3747, MG3757, MG3731, MG3748 only)
8 Hair comb (16mm) (MG3730, MG3740, MG3747, MG3757, MG3731, MG3748 only)
9 Stubble comb (1mm) (MG3710, MG3711, MG3712, MG3720, MG3721, MG3730, MG3731, MG3740, MG3747, MG3748, MG3757 only)
10 Stubble comb (2mm) (MG3710, MG3711, MG3720, MG3721, MG3730, MG3731, MG3740, MG3747, MG3748, MG3757 only)
11 Stubble comb 3mm (MG3710, MG3711, MG3712, MG3720, MG3721 only)
12 Stubble comb 5mm (MG3710, MG3711, MG3712, MG3720, MG3721 only)
13 Adjustable comb (3-7mm) (MG3730, MG3731, MG3740, MG3747, MG3748, MG3757 only)
14 Body comb (3mm) (MG3747, MG3748 only)
15 Supply unit
16 Small plug
17 Storage display (MG3711, MG3712, MG3721, MG3731, MG3748 only)
18 Cleaning brush

The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

Important safety information

Read this important information carefully before you use the appliance and its accessories and save it for future reference. The accessories supplied may vary for different products.

Danger

Prohibition sign showing a faucet without raindrops, enclosed in a circle (no text)

- Keep the supply unit dry.

Warning

• To charge the battery, only use the detachable supply unit (A00390) provided with the appliance.
• The supply unit contains a transformer. Do not cut off the supply unit to replace it with another plug, as this causes a hazardous situation.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Always check the appliance before you use it. Do not use the appliance if it is damaged, as this may cause injury. Always replace a damaged part with one of the original type.

- Do not open the appliance to replace the rechargeable battery.

Caution

Prohibition sign of a faucet without any text or symbols

- This appliance is not washable. Never immerse the appliance in water and do not rinse it under the tap.

• Only use this appliance for its intended purpose as shown in the user manual.
• For hygienic reasons, the appliance should only be used by one person.
• Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.
• Do not use the supply unit in or near wall sockets that contain an electric air freshener to prevent irreparable damage to the supply unit.

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

General

• The supply unit is suitable for mains voltages ranging from 100 to 240 volts.
• The supply unit transforms 100-240 volts to a safe low voltage of less than 24 volts.

Charging

When the appliance has charged for 16 hour, it has a cordless operating time of up to 60 minutes (MG3710, MG3711, MG3712, MG3720, MG3721, MG3730, MG3731, MG3740) or 70 minutes (MG3757, MG3748, MG3747).

1 Make sure the appliance is switched off.

Illustration of a plug inserted into a socket with an arrow indicating direction (no text or symbols)

2 Insert the small plug into the appliance and put the supply unit in the wall socket.
3 After charging, remove the supply unit from the wall outlet and pull the small plug out of the appliance.

Using the appliance

Note: Switch off and clean the appliance after each use.

Detaching and attaching cutting elements

Illustration of a hand holding a tool with an arrow indicating direction (no text or symbols)

1 To detach a cutting element, push upwards against the teeth of the cutting element and take it off the handle.

Diagram showing a device with labeled parts and directional arrows indicating motion or operation

2 To attach a cutting element, insert the lug of the cutting element into the guiding slot at the front and push the back of the cutting element onto the appliance ('click').

Illustration of a hand holding a pen or stylus with an arrow indicating upward motion (no text or symbols)

Detaching the nose trimmer

1 Place your finger on the arrow at the back of the attachment and push it off the handle in the direction of the arrow.

12 English

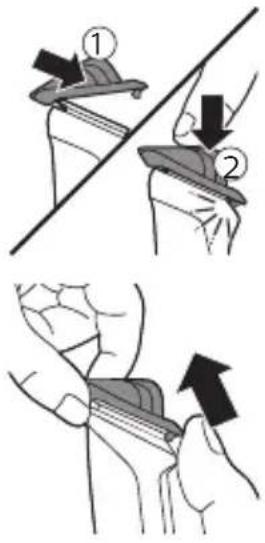

Attaching and detaching combs

Medical illustration showing two steps of a surgical procedure on a tool, with numbered instructions and directional arrows.

1 To attach any type of guard onto a cutting element, slide the front part of the guard onto the teeth of the cutting element. Then push down the center of the guard with your fingers or the palm of your hand ('click').

2 To detach any type of comb from the cutting element, carefully pull its back part off the appliance and then slide it off the cutting element.

Note: When trimming for the first time, start by using the comb with the maximum trimming length setting to familiarize yourself with the appliance.

Switching the appliance on and off

Simple line drawing of a finger with a button and arrow indicating upward motion (no text or symbols)

To switch on the appliance, slide the on/off button up.

To switch off the appliance, slide the on/off button down.

Attachments for use on beard

Full-size hair trimmer

Use the full-size hair trimmer without a comb to trim hair close to the skin (to a length of 1/32in (0.5mm) or to create clean lines around your beard, neck and sideburns.

Diagram illustrating facial recognition or facial dissection with checkmark and cross symbols indicating correct and incorrect eye movements.

1 To trim hair close to the skin, place the flat side of the cutting element against your skin and make strokes against the direction of hair growth.

2 For contouring, hold the cutting element perpendicular to the skin and move it upwards or downwards with gentle pressure.

Beard combs

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

The appliance comes with multiple stubble combs and an adjustable comb. The hair length settings are indicated on the combs. The settings correspond to the remaining hair length after trimming.

Comb mm

Stubble comb 1mm

Stubble comb 2mm

Stubble comb 3mm

Stubble comb 5mm

Adjustable comb 3-7mm

mm 4 6 5 6

Illustration of a person applying a neck massage to the lower face (no text or symbols present)

1 Attach the comb to the full-size hair trimmer.
2 Adjustable comb: Push the length selector to the left or right to select the desired hair length setting.
3 To trim the most effective way, move the comb against the direction of hair growth. Make sure the surface of the comb always stays in contact with the skin.

Attachments for use on body

• Use the green body guard to trim body hair.
• Make sure hair is clean and dry as wet hair tends to stick to the body and, when trimming sensitive areas, always use a body guard.
• Since all hairs do not grow in the same direction, you may want to try different trimming positions (i.e. upwards, downwards, or across). Practice is best for optimum results.
• Always make smooth and gentle movements and be sure the surface of the guard always stays in contact with your skin.
• When too many hairs have accumulated on the product, blow the hairs out before use, for best trimming results.

Body comb

Attach the body comb to the full-size hair trimmer to trim hairs below the neckline. The appliance comes with 1 body comb. The hair length settings is indicated on the comb. The setting corresponds to the remaining hair length after trimming.

Comb mm

Body comb (green) 3mm

Illustration of a hand holding a small object with an upward arrow, no text or symbols present

1 Attach the body comb to the full-size hair trimmer.
2 To trim in the most effective way, stretch the skin with your free hand and move the comb against the direction of hair growth. Make sure the surface of the comb always stays in contact with the skin.

Attachments for use on head

Full-size hair trimmer

Use the full-size hair trimmer without a comb to clip the hair on your head very close to the skin (1/32in (0.5mm) or to contour the neckline and area around the ears.

1 To contour the hairline around the ears, comb the hair ends over the ears.
2 Tilt the appliance in such a way that only one edge of the cutter blades touches the hair ends when you shape the contours around the ears.
3 To contour the nape of the neck or sideburns, turn the appliance and make downward strokes.
4 Move the appliance slowly and smoothly following the natural hairline.

Side profile illustration of a person's head with a hairpin inserted, showing a downward arrow indicating direction (no text or symbols)

Hair combs

Attach a hair comb to the full-size hair trimmer to evenly trim the hairs on your head. The appliance comes with 3 hair combs. The hair length settings are indicated on the combs. The settings correspond to the remaining hair length after trimming.

Comb mm

Hair comb 9mm

Hair comb 12mm

Hair comb 16mm

1 Attach a comb to the full-size hair trimmer.

Illustration of a person applying facial hair to their ear with a magnifying glass (no text or symbols)

2 Move the trimmer slowly over the crown from different directions to achieve an even result. Make sure the surface of the comb always stays in contact with the skin.

• Always move the trimmer against the direction of hair growth. Press lightly.
• Make overlapping passes over the head to ensure that all hair that should be cut has been cut.

Precision attachments for use on face

Precision trimmer

Use the precision trimmer to create fine lines and contours around your facial style, close to the skin (to a length of 1/32in./0.5mm).

Line drawing of a person's face with a stylized hairpin (no text or symbols)

1 Hold the precision trimming head perpendicular to the skin and move the trimming head upwards or downwards with gentle pressure.

Nose trimmer

Use the nose trimmer to trim your nose hair and ear hair.

• Make sure nasal passages are clean. Make sure outer ear channels are clean and free from wax.
• Do not insert the tip more than 5mm.
• Always clean the attachment after each use.

Trimming nose hair

Illustration of a person performing a neck massage technique with a tool (no text or symbols)

1 Gently move the tip in and out of nose while turning it around to remove unwanted hairs.

Illustration of a hand holding a tool interacting with two human faces (no text or symbols present)

Trimming ear hair

1 Slowly move the tip round the ear to remove hairs that stick out beyond the rim of the ear.
2 Gently move the tip in and out of the outer ear channel to remove unwanted hairs.

Cleaning

Do not rinse the handle under the tap, only the attachments can be rinsed under the tap.

Never use scouring pads, abrasive cleaning agents or aggressive liquids such as gasoline or acetone to clean the product.

Never dry the trimmer teeth with a towel or tissue, as this may damage the trimmer teeth.

After every use: cleaning under the tap

1 Turn off the appliance and disconnect from the wall socket.
2 Remove any comb or cutting element from the appliance.
3 Rinse the hair chamber under a warm tap.
4 Clean the cutting element and comb under a warm tap.
5 Carefully shake off excess water and let all parts air dry completely.

Thorough cleaning

1 Turn off the appliance and disconnect from the power outlet.
2 Wipe the handle of the appliance with a dry cloth.

3 Remove any comb or cutting element from the appliance.
4 Remove any hairs that have accumulated in the hair chamber with the cleaning brush supplied.
5 Remove any hairs that have accumulated in the cutting elements and/or combs with the cleaning brush supplied.
6 Clean the cutting elements under a warm tap.

The handle is not suitable for cleaning under the tap.

7 Clean the combs under a warm tap.
8 Carefully shake off excess water and let all parts air dry completely.

Cleaning the nose trimmer

Illustration of a medical procedure with a hand holding a bag attached to a tube (no text or symbols present)

Clean the nose trimmer immediately after use and when a lot of hair or dirt has accumulated on the nose trimmer head.

1 Rinse the nose trimmer head with hot water.
2 Turn on the appliance and rinse the nose trimmer head once more to remove any remaining hairs. Then turn off the appliance again.

For a thorough clean, immerse the nose trimmer head in a bowl with warm water for a few minutes and then turn on the appliance to remove stubborn hair/debris.

3 Carefully shake off excess water and let all parts air dry completely.

Storage

- Store the appliance in the pouch supplied.

Note: Make sure the appliance is dry before you store it in the pouch.

Ordering accessories

To buy accessories or spare parts, visit www.shop.philips.com/service or go to your Philips dealer. You can also contact the Philips Consumer Care Center in your country (see the international warranty leaflet for contact details).

Recycling

- This symbol means that this product shall not be disposed of with normal household waste (2012/19/EU).

- This symbol means that this product contains a built-in rechargeable battery which shall not be disposed of with normal household waste (2006/66/EC). Please take your product to an official collection point or a Philips service center to have a professional remove the rechargeable battery.

- Follow your country's rules for the separate collection of electrical and electronic products and rechargeable batteries. Correct disposal helps prevent negative consequences for the environment and human health.

Removing the rechargeable battery

Only remove the rechargeable battery when you discard the product. Before you remove the battery, make sure that the product is disconnected from the wall socket and that the battery is completely empty.

Take any necessary safety precautions when you handle tools to open the product

and when you dispose of the rechargeable battery.

1 Check if there are screws in the back or front of the appliance. If so, remove them.
2 Remove the back and/or front panel of the appliance with a screwdriver. If necessary, also remove additional screws and/or parts until you see the printed circuit board with the rechargeable battery.
3 Remove the rechargeable battery.

Warranty and support

If you need information or support, please visit www.philips.com/support or read the international warranty leaflet.

Warranty restrictions

Cutting units are not covered by the terms of the international warranty because they are subject to wear.

General overview MG37xx Chimera

Introduktion

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

Prohibition sign showing a faucet without raindrops, enclosed in a circle (no text)

Illustration of a plug inserted into a socket with an arrow indicating direction (no text or symbols)

Når apparatet har ladet op i 16 tuner, kan det bruges uden ledning i op til 60 minutter (MG3710, MG3711, MG3712, MG3720, MG3721, MG3730, MG3731, MG3740) eller 70 minutter (MG3757, MG3748, MG3747).

Illustration of a hand holding a piece of paper with a black arrow indicating direction (no text or symbols)

Diagram showing a device with labeled parts and directional arrows indicating motion or force

Illustration of a hand holding a pen or stylus with an arrow indicating upward motion (no text or symbols)

Diagram showing two hands holding a tray with arrows indicating movement or force, labeled ① and ②.

Illustration of a hand holding a tool with an arrow indicating direction (no text or symbols)

Simple line drawing of a finger with a shaded area and an arrow pointing upward (no text or symbols)

Tænd apparatet ved at trykke on/off-knappen opad.

Sluk apparatet ved at trykke on/off-knappen nedad.

Tilbehør til skæg

Illustration showing facial treatment technique with checkmark and cross symbols indicating correct and incorrect eye movements

mm 3 4 5 G

Illustration of a person's face with an arrow pointing to the nose area, no text or symbols present

Illustration of a hand holding a small object with an upward arrow, no text or symbols present

Side profile illustration of a person's head and neck with a downward arrow indicating pressure or force (no text or symbols)

Hårkamme

Illustration of a person applying eye care to their ear with a magnifying glass (no text or symbols)

Line drawing of a person's face with a stylized flower, no text or symbols present

Illustration of a hand holding a tool interacting with two human faces (no text or symbols present)

Illustration of a person performing a hand massage or acoustics technique (no text or symbols present)

Trimning af ørehår

Simple line drawing of a medical procedure with a bulb and tubing (no text or symbols)

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

Prohibition sign showing a faucet without raindrops (no text or symbols)

Illustration of a plug inserted into a socket with an arrow indicating direction (no text or symbols)

Illustration of a hand holding a piece of paper with a black arrow indicating direction (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, likely illustrating a process or operation.

Illustration of a hand holding a pen or stylus with an arrow indicating upward motion (no text or symbols)

Diagram showing two hand positions on a device with labeled arrows indicating movement or force direction

Illustration of a hand holding a tool with an arrow indicating direction (no text or symbols)

Diagram showing a finger pressing a button with an arrow indicating upward motion, labeled with 'i' and 'o'

Illustration showing facial profile with checkmark and cross symbols indicating correct and incorrect face areas

Illustration of a person applying a neck massage to the lower face (no text or symbols present)

Illustration of a hand holding a small object with an upward arrow, no text or symbols present

Side profile illustration of a person's head and neck with a downward arrow indicating pressure or force (no text or symbols)

Illustration of a person applying facial hair to their ear with a tool (no text or symbols)

Line drawing of a person's face with a toothbrush, no text or symbols present

Illustration of a hand holding a small object with motion arrows, against a human face and diagonal line (no text or symbols)

Illustration of a hand holding a device with directional arrows indicating motion or force (no text or symbols)

Simple line drawing of a medical or laboratory procedure with a bulb and tubing (no text or symbols)

Prohibition sign with a faucet and diagonal line, no text or symbols present

Prohibition sign showing a faucet without raindrops (no text or symbols)

Illustration of a plug inserted into a socket with an arrow indicating direction (no text or symbols)

Illustration of a hand holding a piece of paper with a black arrow indicating direction (no text or symbols)

Diagram showing a device with labeled parts and directional arrows indicating motion or force

Illustration of a hand holding a pen or stylus with an arrow indicating upward motion (no text or symbols)

Illustration showing two steps of a hand holding a tool, with numbered instructions and directional arrows indicating action.

Simple line drawing of a finger with a button and an arrow pointing to it (no text or symbols)

Illustration showing facial perception with checkmark and cross symbols indicating correct and incorrect eye movements

Diagram showing a hand using a tool to adjust a component, with a magnified inset highlighting a measurement of 6 mm.

Illustration of a person's face with an arrow pointing to the nose area, no text or symbols present

Illustration of a hand holding a small object with an upward arrow, no text or symbols present

Illustration of a person's neck and shoulder with a downward arrow indicating pressure or force (no text or symbols)

Illustration of a person applying facial hair to their ear with a brush (no text or symbols)

Line drawing of a person applying a toothbrush to their face (no text or symbols)

Illustration of a person performing a hand massage or exercise on another person's face (no text or symbols present)

Illustration of a person performing a hand massage technique on another person's face (no text or symbols present)

Illustration of a bird perched on a pole with a fish inside, no text or symbols present

Diagram of a medical procedure showing a catheter inserted into a tube with liquid droplets (no text or labels)

Prohibition sign showing a faucet without raindrops, enclosed in a circle (no text)

No sign depicting a faucet with a showerhead, enclosed in a circle (no text or symbols)

Illustration of a plug inserted into a socket with an arrow indicating direction (no text or symbols)

Illustration of a hand holding a piece of paper with a black arrow indicating direction (no text or symbols)

Diagram showing a device with labeled parts and directional arrows indicating motion or force

Illustration of a hand holding a pen or stylus with an arrow indicating upward motion (no text or symbols)

Diagram illustrating two steps of a hand holding a tool, labeled with numbered instructions and directional arrows.

Diagram showing a finger pressing a button with an arrow indicating upward motion (no text or symbols)

Illustration showing facial treatment technique with checkmark and cross symbols indicating correct and incorrect options

Diagram showing a hand using a tool to adjust a component, with a magnified inset highlighting a measurement of 6 mm.

Illustration of a person's face with an arrow pointing to the nose area, no text or symbols present

Illustration of a hand holding a small object with an upward arrow, no text or symbols present

Side profile illustration of a person's head and neck with a hairpin inserted, showing a downward arrow (no text or symbols)

Sabots cheveux

Illustration of a person applying facial hair with a brush (no text or symbols)

Line drawing of a person's face with a beard and eyebrow, no text or symbols present

Illustration of a person performing a hand massage or acoustics technique (no text or symbols present)

Illustration of a hand holding a tool interacting with a person's face, showing motion and movement (no text or symbols)

Illustration of a bird perched on a pole with a fish inside, no text or symbols present

Simple line drawing of a medical procedure with a funnel and catheter (no text or labels)

3 Retirez la pile rechargeable.

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text)

Illustration of a plug inserted into a socket with an arrow indicating direction (no text or symbols)

Illustration of a hand holding a piece of paper with a black arrow indicating rotation (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, likely illustrating a process or operation.

Illustration of a hand holding a pen or stylus with an arrow indicating upward motion (no text or symbols)

Diagram showing two hands holding a tray with arrows indicating movement, labeled ① and ②.

Illustration of a hand holding a tool with an arrow indicating direction (no text or symbols)

Simple line drawing of a finger with a button and an arrow pointing to it (no text or symbols)

Illustration showing facial perception with checkmark and cross symbols indicating correct and incorrect eye movements

Diagram showing a hand using a device to adjust a component, with a magnified inset highlighting a numbered section.

Illustration of a person applying a neck massage to the jaw (no text or symbols)

Illustration of a hand holding a small object with an upward arrow, no text or symbols present

Illustration of a person's neck and shoulder with a downward arrow indicating pressure or direction (no text or symbols)

Pettine mm

Illustration of a person applying facial hair to their ear with a brush (no text or symbols)

Line drawing of a person's face with a beard and toothbrush, no text or symbols present

Illustration of a person performing a hand gesture with a tool, no text or symbols present

Illustration of a hand holding a device with a tool, showing eye positions and motion (no text or symbols)

Illustration of a bird perched on a pole with a fish inside, no text or symbols present

Simple line drawing of a faucet with liquid and a shaded area indicating a handle (no text or symbols)

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

Prohibition sign of a faucet without any text or symbols

Illustration of a plug inserted into a socket with an arrow indicating the insertion direction (no text or symbols present)

Illustration of a hand holding a piece of paper with a black arrow indicating direction (no text or symbols)

Diagram showing a device with labeled parts and directional arrows indicating motion or operation

Illustration of a hand holding a pen or stylus with an arrow indicating upward motion (no text or symbols)

Diagram showing two hand positions with arrows indicating movement or force, labeled ① and ②.

Illustration of a hand holding a tool with an arrow indicating upward motion (no text or symbols)

Simple line drawing of a finger with a button, no text or symbols present

Illustration showing facial perception with checkmark and cross symbols indicating correct and incorrect eye movements

Illustration of a person applying a hairpin to their face (no text or symbols present)

Illustration of a hand holding an object with an upward arrow, no text or symbols present

Side profile illustration of a person's head and neck with a downward arrow indicating pressure or force (no text or symbols)

Illustration of a person applying facial hair to their ear with a device (no text or symbols)

Line drawing of a person applying a toothbrush to their face (no text or symbols)

Illustration of a person performing a medical or surgical procedure on another person's face, with no visible text or symbols.

Illustration of a person performing a hand massage or grip technique (no text or symbols present)

Oorhaar trimmen

Diagram of a medical procedure showing a catheter inserted into a tube with liquid droplets (no text or labels)

Prohibition sign showing a faucet without raindrops, enclosed in a circle (no text)

Prohibition sign showing a faucet without raindrops, enclosed in a circle (no text)

Illustration of a plug inserted into a socket with a magnified view showing the socket (no text or symbols)

MG3731, MG3740) eller 70 minutter (MG3757, MG3748, MG3747).

Illustration of a hand holding a piece of paper with a black arrow indicating direction (no text or symbols)

Diagram showing a device with labeled parts and directional arrows indicating motion or force

2 Hvis du vil sette på et klippeelementer, setter du tappen på klippeelementet inn i veiledningssporet foran og skyver på baksiden av klippeelementet til apparatet ("klikker").

Illustration of a hand holding a pen or stylus with an arrow indicating upward motion (no text or symbols)

Illustration showing two steps of a hand holding a tool, with numbered instructions and directional arrows indicating action.

1 Hvis du vil sette på en beskytter på et klippeelement, skyver du fordelen av beskytteren inn på tennene på klippeelementet. Dytt deretter ned på midten av beskytteren med fingrene eller håndflaten ("klikk"). 2 Hvis du vil ta av en hvilken som helst kam fra klippeelementet, drar du forsiktig tilbake baksiden av apparatet og skyver det deretter av klippeelementet.

Simple line drawing of a finger with a shaded area and an arrow pointing to it (no text or symbols)

Illustration showing facial perception with checkmark and cross symbols indicating correct and incorrect eye movements

Illustration of a person's face with a black arrow pointing upward, indicating a specific anatomical or directional point (no text or symbols present)

Illustration of a hand holding a small object with an upward arrow, no text or symbols present

Side profile illustration of a person's head with a hairpin inserted, showing hair density and hairline (no text or symbols)

Illustration of a person applying facial hair to their ear with a tool (no text or symbols)

Line drawing of a person's face with a beard and toothbrush, no text or symbols present

Illustration of a hand holding a small object with directional arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a medical device with directional arrows indicating motion (no text or symbols)

Trimme ørehår

Simple line drawing of a medical procedure with a bulb and tubing (no text or symbols)

Prohibition sign showing a faucet crossed out by a diagonal line, indicating no use or prohibition (no text present)

Prohibition sign showing a faucet with a diagonal line and a diagonal line, no text or symbols present.

Illustration of a plug inserted into a socket with an arrow indicating direction (no text or symbols)

Illustration of a hand holding a piece of paper with a black arrow indicating direction (no text or symbols)

Diagram showing a device with labeled parts and directional arrows indicating motion or force

Illustration of a hand holding a pen or stylus with an arrow indicating upward motion (no text or symbols)

Desencaixar o aparador para o nariz

Diagram showing two hand positions (① and ②) with arrows indicating movement or force, separated by a diagonal line.

Illustration of a hand holding a tool with an arrow indicating direction (no text or symbols)

Simple line drawing of a finger with a shaded area and an arrow pointing upward (no text or symbols)

Illustration showing facial treatment technique with checkmark and cross symbols indicating correct and incorrect responses

Diagram showing a hand using a device to adjust a surface with a 5 mm measurement indicator and a magnified view of the surface.

Illustration of a person applying a hairpin to their neck area, showing the arrow pointing upward (no text or symbols present)

Illustration of a hand holding a small object with an upward arrow, no text or symbols present

Side profile illustration of a person's head and neck showing a downward arrow (no text or symbols)

Pentes

Illustration of a person applying facial hair to their ear with a brush (no text or symbols)

Line drawing of a person applying a toothbrush to their face (no text or symbols)

Illustration of a person performing a hand gesture with a tool, showing no text or symbols

Illustration of a person performing a manual task with a tool, showing hand positioning and motion (no text or symbols)

Simple line drawing of a medical or laboratory procedure with a bulb and tubing (no text or symbols)

Encomendar acessórios

Prohibition sign showing a faucet crossed out by a diagonal line, indicating no use or prohibition (no text present)

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

Illustration of a plug inserted into a socket with an arrow indicating direction (no text or symbols)

Illustration of a hand holding a piece of paper with a black arrow indicating direction (no text or symbols)

Diagram showing a device with labeled parts and directional arrows indicating motion or force

Illustration of a hand holding a pen or stylus with an arrow indicating motion (no text or symbols)

Diagram showing two hand positions (① and ②) of a device with directional arrows indicating movement or force.

Illustration of a hand holding a tool with an arrow indicating upward motion (no text or symbols)

Simple line drawing of a finger with a button and arrow pointing to the center (no text or symbols)

Illustration showing facial treatment technique with checkmark and cross symbols indicating correct and incorrect responses

Illustration of a person applying a neck massage to the ear (no text or symbols present)

Illustration of a hand holding a small object with an upward arrow, no text or symbols present

Side profile illustration of a person's neck and shoulder with a hairpin inserted (no text or symbols)

Ohjauskammat

Illustration of a person applying facial hair to their ear with a brush (no text or symbols)

Line drawing of a person's face with a toothbrush near the mouth (no text or symbols)

Illustration of a person performing a hand massage or acoustics technique (no text or symbols present)

Illustration of a hand holding a tool interacting with two human faces (no text or symbols present)

Simple line drawing of a medical or laboratory procedure with a bulb, tubing, and a shaded area (no text or symbols)

Prohibition sign showing a faucet without raindrops, enclosed in a circle (no text)

Prohibition sign showing a faucet without raindrops, enclosed in a circle (no text)

Illustration of a plug inserted into a socket with an arrow indicating direction (no text or symbols)

MG3711, MG3712, MG3720, MG3721, MG3730, MG3731, MG3740) eller 70 minuter (MG3757, MG3748, MG3747).

Illustration of a hand holding a piece of paper with a black arrow indicating direction (no text or symbols)

Diagram showing a device with labeled parts and directional arrows indicating motion or force

Illustration of a hand holding a pen or stylus with an arrow indicating upward motion (no text or symbols)

Ta loss nästrimmern

Diagram illustrating two steps of a hand holding a device, with numbered instructions and directional arrows indicating action.

Diagram showing a finger with a pad labeled '1' and an arrow pointing to the pad area, indicating movement or force.

Illustration showing facial perception with checkmark and cross symbols indicating correct and incorrect face areas

mm A B C D E F G

Illustration of a person applying a hairpin to their face, showing the brush and mask (no text or symbols)

Illustration of a hand holding a small object with an upward arrow, no text or symbols present

Side profile illustration of a person's head showing neck and shoulder anatomy with a black arrow indicating direction (no text or symbols)

Illustration of a person applying facial hair to their ear with a brush (no text or symbols)

Line drawing of a person's face with a toothbrush, no text or symbols present

Illustration of a hand holding a medical device over a human face, with no visible text or symbols

Illustration of a person performing a medical or therapeutic procedure on another person's face, with no visible text or symbols.

Trimma öronhår

Illustration of a medical procedure with a hand holding a bulb and tubing (no text or symbols)

Prohibition sign showing a faucet without spraying water, enclosed in a circle (no text)

Prohibition sign showing a faucet without raindrops (no text or symbols)

Illustration of a plug inserted into a socket with an arrow indicating direction (no text or symbols)

Illustration of a hand holding a piece of paper with a black arrow indicating direction (no text or symbols)

Diagram showing a device with labeled parts and directional arrows indicating motion or force

Illustration of a hand holding a pen or stylus with an arrow indicating upward motion (no text or symbols)

Diagram showing two hands holding a tray with arrows indicating movement, labeled ① and ②.

Illustration of a hand holding a tool with an arrow indicating upward motion (no text or symbols)

Simple line drawing of a finger with a button and arrow pointing to the center (no text or symbols)

Illustration showing facial treatment technique with checkmark and cross symbols indicating correct and incorrect responses

mm 3 4 5 G

Illustration of a person's face with an arrow pointing to the nose area, no text or symbols present

Illustration of a hand holding an object with an upward arrow, no text or symbols present

Side profile illustration of a person's head and neck with a downward arrow indicating pressure or movement (no text or symbols)

Illustration of a person applying facial hair to their ear with a tool (no text or symbols)

Line drawing of a person's face with a toothbrush near the chin (no text or symbols)

Illustration of a person performing a manual task with a tool, showing hand positioning and facial expression (no text or symbols)

Illustration of a person performing a hand gesture with a tool, no text or symbols present

Simple line drawing of a medical procedure with a bulb and tubing (no text or symbols)

Prohibition sign showing a faucet crossed out by a diagonal line, indicating no use or prohibition (no text present)

Prohibition sign of a faucet without any text or symbols

Illustration of a plug inserted into a socket with an arrow indicating direction (no text or symbols)

Χρήση της συσκευής

Illustration of a hand holding a piece of paper with a black arrow indicating direction (no text or symbols)

Diagram showing a device with labeled parts and directional arrows indicating motion or operation

Illustration of a hand holding a pen or stylus with an arrow indicating upward motion (no text or symbols)

Diagram showing two hand positions (① and ②) of a device with directional arrows indicating movement or force.

Illustration of a hand holding a tool with an arrow indicating direction (no text or symbols)

Diagram showing a finger pressing a button with an upward arrow indicating motion or force direction

Illustration showing facial treatment with checkmark and cross symbols indicating correct and incorrect eye areas

Illustration of a person applying a neck massage to the lower face (no text or symbols present)

Illustration of a hand holding an object with an upward arrow, no text or symbols present

Side profile illustration of a person's head showing a downward arrow indicating pressure or force (no text or symbols present)

Χτένες τριχών

Illustration of a person applying eye care to the ear with a magnifying glass (no text or symbols)

Line drawing of a person's face with a toothbrush touching the cheek (no text or symbols)

Κόπτης τριχών μύτης

Illustration of a person performing a hand gesture with a tool, no text or symbols present

Κόψιμο τριχών μύτης

Illustration of a person performing a hand massage or exercise on the head, with no visible text or symbols.

Simple line drawing of a medical or laboratory procedure with a funnel and bulb (no text or symbols)

75% recycled paper

75% papier recyclé
