AW 221170 - Basket GAGGENAU - Free user manual and instructions

Product type	Extractor hood
Brand	Gaggenau
Model	AW 221170
Operating modes	Air extraction and Air recirculation
Suction power	3 speeds + intensive (5 minutes)
Lighting	Halogen or incandescent bulbs, dimmable
Grease filters	Metal, dishwasher-safe
Charcoal filter	Replacement twice a year (recirculation mode)
Saturation indicator	F flashing after 30 hours of operation
Follow-up delay	10 minutes at all speeds
Intermittent ventilation	5 minutes every hour
Minimum distance above electric hobs	550 mm
Minimum distance above gas hobs	650 mm
Maximum supported weight	40 kg
Extraction duct diameter	150 mm recommended (min 120 mm)
Power cable length	Approximately 1.30 m
Power supply	Earthed plug, dedicated circuit recommended
Material	Stainless steel
Repairability	Bulbs and filters replaceable by user
Warranty	Check after-sales service manual

Frequently Asked Questions - AW 221170 GAGGENAU

How to clean the metal grease filters?

The metal grease filters can be cleaned in the dishwasher (flat) or by hand in hot water with dish soap. Brush, rinse and drain. Do not use aggressive detergents. Clean them at least once a month if the appliance is used for 1 to 2 hours per day.

How to change the charcoal filter?

Remove the grease filters, insert the new charcoal filter by snapping the tab into place, then put the grease filters back. The charcoal filter must be replaced about twice a year in recirculation mode.

What does the flashing F light mean?

The F light flashes after 30 hours of operation to indicate that the grease filters need to be cleaned. Press the F button to turn off the light after cleaning.

How to set the follow-up delay?

First select the desired speed (1, 2, 3 or Int), then press the Ⓞ button. The hood will automatically turn off after 10 minutes, but the lighting stays on.

What is the minimum distance between the hood and the cooking surface?

For electric cooktops, the minimum distance is 550 mm. For gas cooktops, it is 650 mm (measured from the top edge of the support grid). If multiple cooking types are used, the greatest distance applies.

Can I use the hood with a gas cooker?

Yes, but respect the minimum distances (650 mm) and do not run more than two burners at full power for more than 15 minutes. Make sure the room is sufficiently ventilated.

How to replace a halogen bulb?

Power off the hood and wait for the bulbs to cool down. Carefully remove the bulb's ring with a tool, replace the faulty bulb with a bulb of the same type and wattage, without touching the glass with your fingers. Replace the cover.

How to reset the filter saturation indicator?

After cleaning or replacing the filters, press the F button (saturation indicator) to turn off the flashing light. The indicator resets automatically.

What is intermittent ventilation?

Intermittent ventilation allows the hood to turn on automatically for 5 minutes every hour. To activate, press the 0 button and the desired speed simultaneously (1, 2 or 3). To stop, press 0.

How to install the hood on the wall?

Use the template to mark the fixings. Drill and insert the plugs (for solid walls). Hang the hood on the mounting devices, adjust the horizontality, then secure with the safety screws and caps. Ensure the wall can support a weight of 40 kg.

USER MANUAL AW 221170 GAGGENAU

Safety warning sign and diagram illustrating hazard, hazard symbol, and fire extinguisher mechanism

Diagram showing a checkmark over a circular icon next to an industrial process diagram with pipes and a flame (no text or symbols)

Technical diagram showing a cylindrical component mounted on a base with a circular cross symbol (no text or labels)

BRANDGEFAHR

Simple line icon showing a house with an arrow and a cross symbol inside, representing a home or utility (no text or numbers)

Symbolic icon of a shield with crossed cross and lightning bolts inside a house outline (no text or numbers)

Illustration of hands using a computer to interact with a screen (no text or symbols visible)

Illustration of hands interacting with a digital display panel (no text or symbols visible)

Illustration of hands using a tablet device to interact with a laptop, showing a magnified view of the screen (no text or symbols present)

Illustration of a hand holding a tablet over a grid-patterned surface, with arrows indicating direction (no text or symbols)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of hands holding a small object with a metallic bowl, no text or symbols present

Diagram showing two hands holding a rectangular object with labeled arrows, illustrating a physical or mechanical process.

Hand holding a light bulb inside a white plastic enclosure (no text or symbols visible)

Stack of parallel metallic cylindrical objects with curved surfaces (no text or symbols)

Technical diagram illustrating screw assembly and mounting defects, with labeled components and warning indicators

Diagram illustrating two mechanical assembly steps (A and B) for inserting a component into a device, with arrows indicating direction of movement.

Technical diagram showing a mechanical assembly with labeled components and warning symbols, including bolts, screws, and a magnified view of a component with warning labels.

Diagram showing a washing machine with directional arrows indicating motion (no text or symbols present)

Diagram illustrating door lock mechanism with magnified views showing valve placement and adjustment steps

Illustration of a metal bracket with two screws inserted, showing mounting details (no text or symbols)

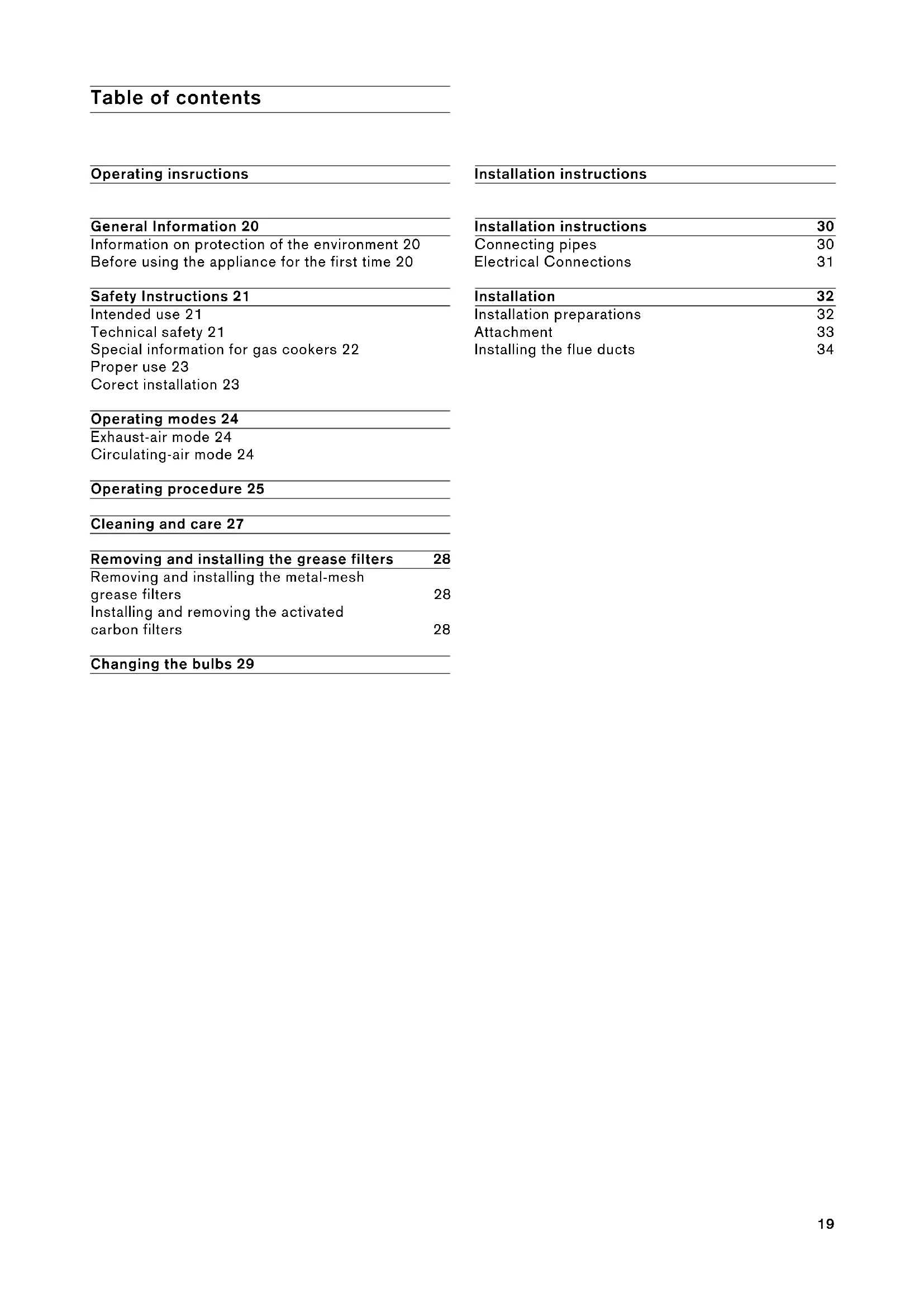

Table of contents

Operating instructions

General Information 20

Information on protection of the environment 20

Before using the appliance for the first time 20

Safety Instructions 21

Intended use 21

Technical safety 21

Special information for gas cookers 22

Proper use 23

Corect installation 23

Operating modes 24

Exhaust-air mode 24

Circulating-air mode 24

Operating procedure 25

Cleaning and care 27

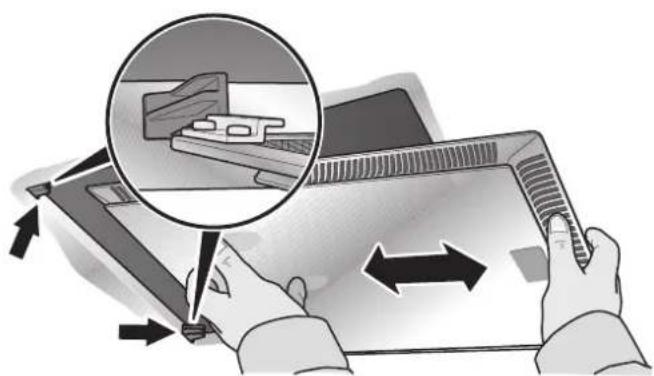

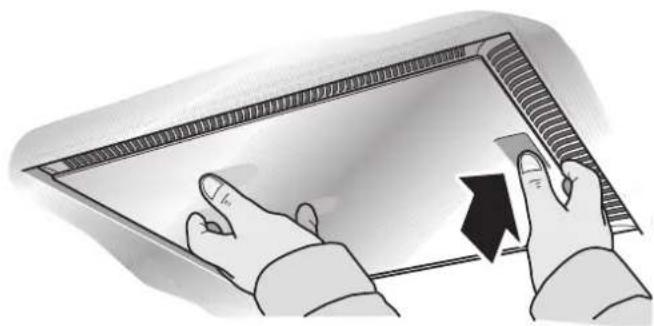

Removing and installing the grease filters 28

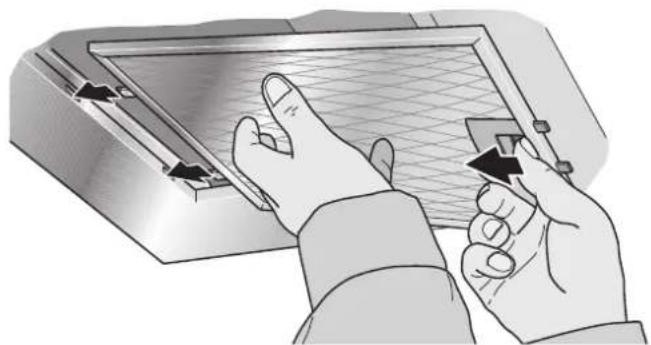

Removing and installing the metal-mesh grease filters	28

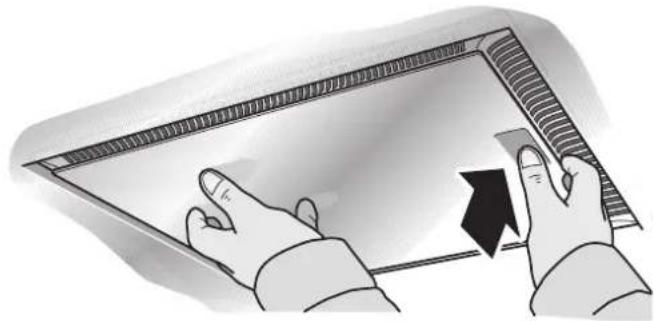

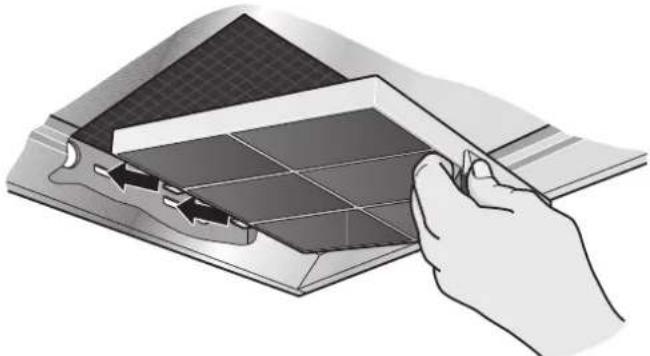

Installing and removing the activated carbon filters	28

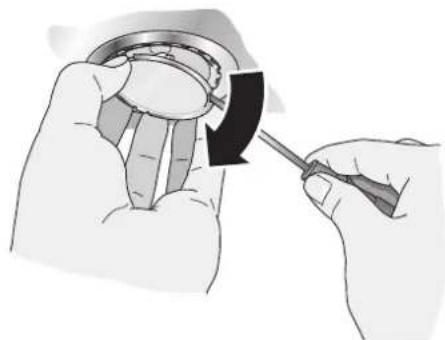

Changing the bulbs 29

Installation instructions

Installation instructions 30

Connecting pipes	30
Electrical Connections	31

Installation 32

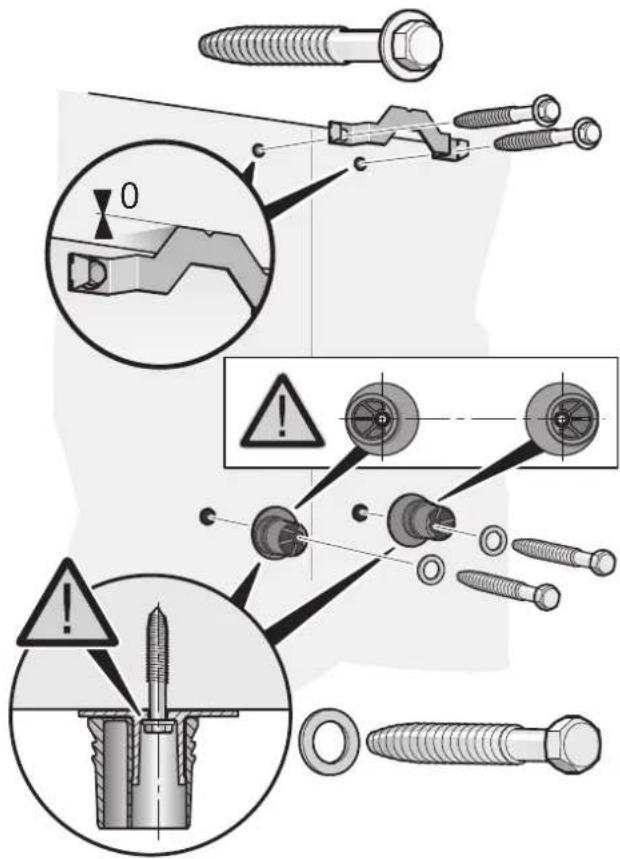

Installation preparations	32

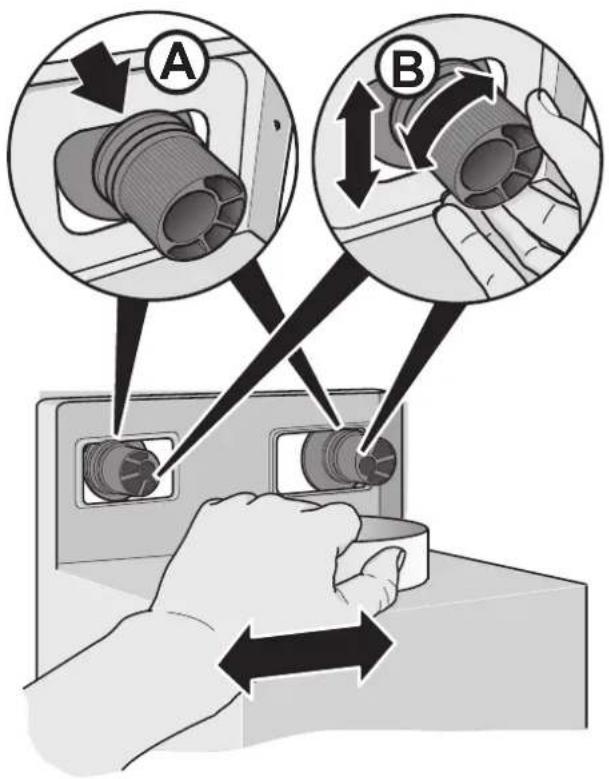

Attachment	33
Installing the flue ducts	34

Information on protection of the environment

Disposal of transport packaging

Your new appliance was sent to you in protective packaging. All utilised materials are environmentally safe and recyclable. Please help us by disposing of the packaging in an environmentally friendly manner.

RISK OF INJURY

Packaging parts can be hazardous for children. Therefore keep them outside the reach of children.

Disposal of the old appliance

Old appliances are not worthless rubbish. Valuable raw materials can be reclaimed by recycling old appliances.

This appliance is identified according to the European Directive 2002/96/EC on waste electrical and electronic equipment - WEEE). The directive specifies the

framework for an EU-wide valid return and re-use of old appliances.

Before disposing of your old appliance, render it unusable.

Never treat your old appliance as non-recyclable waste!

Please ask your dealer or inquire at your local authority about current means of disposal.

Ensure that the old appliance is kept childproof until it is disposed of.

Before using the appliance for the first time

Note: These operating instructions apply to several appliance models It is possible that individual features are described which do not apply to your appliance.

Before switching on your new appliance, please read the operating instructions carefully. They contain important information on safety and how to use and look after the appliance.

Keep the operating and instructions in a safe place and pass them on to any subsequent owner of the appliance.

Faults

If an F appears in the display:

See "Operating procedure" Section.

If is not possible to operate the extractor hood:

- Disconnect the extractor hood from the mains electricity supply by pulling out the plug or switching it off at the main fuse box. Wait for approx. 1 minute and then switch it on again.

Please contact customer service regarding any queries or faults.

(See list of customer service centres).

When calling, please quote:

E-no.

FD

The numbers can be found on the rating plate, after removal of the grease filter, inside the extractor hood.

Enter the numbered in the above fields.

Intended use

• This extractor hood complies with the stipulated safety regulations. Improper use may result in injury or damage.
• The extractor hood may be used in the household only. The manufacturer is not liable for damage which is caused by improper use or incorrect operation.
• The manufacturer cannot be made responsible for damage which can be attributed to non-observance of the safety instructions.

RISK OF INJURY

Do not allow children to play with the extractor hood! Adults and children must never operate the appliance unsupervised

• if they are not physically or mentally capable of doing so,
• or if they do not have the knowledge and experience to operate the appliance correctly and safely.

Technical safety

• The extractor hood left the factory in perfect condition. Nevertheless check the appliance for visible damage before installation. If it is damaged, do not switch it on!
• If the power cord of the extractor hood is damaged, it must be replaced by the manufacturer, his customer service or a similarly qualified person to prevent hazardous situations.

• Only a qualified technician may install (including electrical connection), service or repair the extractor hood. Always isolate the extractor hood by pulling out the mains plug or switching off the fuse!

• If the appliance is improperly installed, serviced or repaired, the user may be placed in considerable danger for which the manufacturer is not liable.

• Changes to the electrical or mechanical installation are dangerous and must not be undertaken! They may also cause the extractor hood to malfunction.

Simultaneous operation of the extractor hood with a heating appliance which is dependent on ambient air

- Heating appliances which are dependent on ambient air, e.g. gas, oil, wood, or solid-fuel heaters, instantaneous water heaters, hot water boilers, hobs or ovens, and which draw combustion air out of the installation room and whose exhaust gases are conveyed to the exterior by a flue.

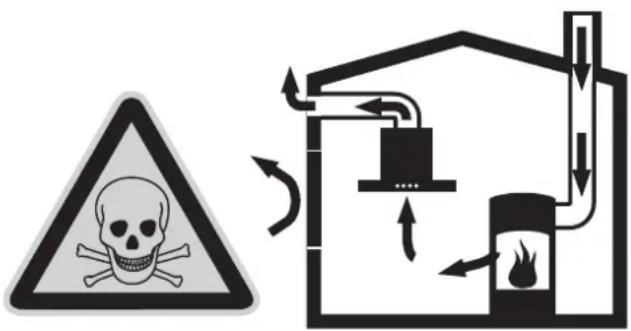

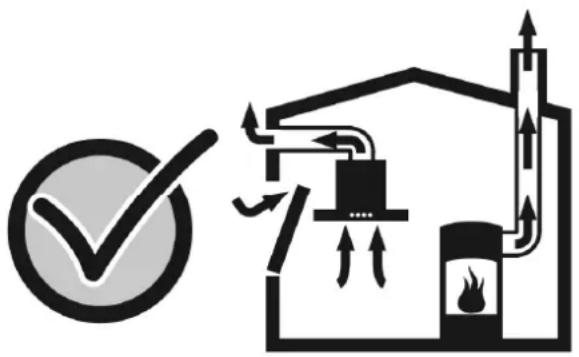

RISK OF POISONING

If the extractor hood is operated at the same time as a heating appliance which is dependent on ambient air, there is a risk of poisoning due to combustion gases being drawn back in.

Safety warning sign and diagram illustrating hazard and hazard, showing a skull symbol, airflow path, and fire extinguisher.

- Safe operation is possible provided the low pressure in the installation room of the heating appliance does not exceed 4Pa (0.04mbar). This can be achieved if the combustion air can flow through non-closable openings, e.g. in doors, windows, in conjunction with air intake/exhaust air wall boxes or by other technical measures.

Diagram showing a checkmark over a circular icon next to an electrical circuit diagram with no readable text or symbols.

• Adequate intake air must therefore always be provided.
• An intake/exhaust air wall box alone does not ensure compliance with the limit value.

Note: When making your evaluation, always consider the entire ventilation system in the home. Include the advice of a competent heating engineer when making your evaluation.

- If the extractor hood is used in circulating air mode only, it can be operated without any restrictions.

Special information for gas cookers

• When installing the extractor hood above gas hobs, observe the appropriate national statutory regulations (e.g. in Germany: Technische Regeln Gasinstallation TRGI).
• Observe the currently valid installation regulations and instructions of the gas appliance manufacturer.
• During installation, ensure that only one side of the extractor hood is situated directly next to a high-sided unit or a wall. Otherwise, there is a risk of heat build-up. The gap between the extractor hood and the wall or high-sided unit must be at least 50 mm.

RISK OF BURNS

Do not operate more than 2 gas cooking areas simultaneously over a period of max.

15 minutes at maximum thermal load. Due to the effect of the heat there is a risk of burns if the surfaces of the housing are touched!

Note that one large burner of more than 5 kW (Wok) is equivalent to the power of 2 gas burners.
- The extractor hood may be damaged by the intense heat.
- Never operate a gas cooking area without a cooking utensil on it. Regulate the flame in such a way that it does not project over the cooking utensil.

Proper use

- Clean the extractor hood thoroughly before using for the first time.

- Before cleaning and servicing the extractor hood, isolate it from the power supply by pulling out the mains plug or switching off the fuse.

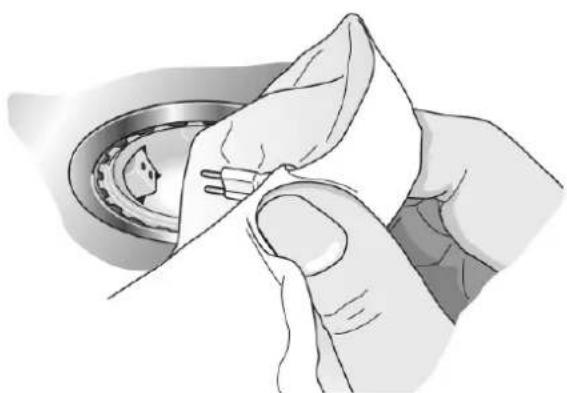

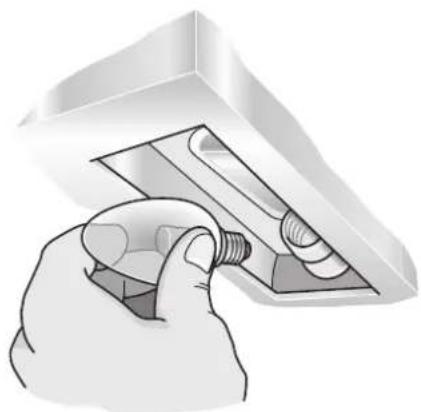

- Bulbs (especially halogen bulbs) become very hot during operation. Even some time after the appliance has been switched off, there is still a risk of burns!

- Before changing bulbs, isolate the extractor hood from the power supply and leave the bulbs to cool down!

- Do not operate the extractor hood without bulbs inserted.

● Always switch on the extractor hood if a hotplate is being used. If the extractor hood is not switched on, condensation may form. As a result, the appliance may corrode.

- Do not place any objects on the extractor hood.

Pure mechanical diagram showing a cylindrical component mounted on a base with a circular cross symbol (no text or labels)

RISK OF FIRE

Do not flambé under the extractor hood or work with a naked flame. When switched on, the extractor hood draws flames into the filter. There is a risk of fire due to deposits on the grease filter!

• Do not leave pans, frying pans or deep-fat fryers unattended if you are cooking food with oils or fats, e.g. chips. Overheated oils or fats can easily ignite!
• A risk of fire can be prevented by cleaning the grease filters regularly and changing the activated-carbon filter in good time.
• Never operate the extractor hood without grease filters.

Correct installation

• Check the manufacturer's specifications for the cooker to determine whether an extractor hood can be operated over it.
• If the manufacturer of the cooker has not specified any significant safety distances, the following minimum distances apply
• 550 mm between electric hob and the lower edge of the extractor hood, Fig. 1.

- 650 mm between gas hob (upper edge of pan support) and the lower edge of the extractor hood, Fig. 1.

- If various cookers are used, the greatest indicated distance applies.

- The width of the extractor hood must correspond to the width of the cooking area.

- The extractor hood must not be installed over a solid fuel heating appliance which may be a fire risk (e.g. flying sparks) unless the heating appliance has a closed, non-detachable cover and the country-specific regulations are observed. This restriction does not apply to gas cookers and gas hobs.

- To avoid damaging the hob, cover it when installing the extractor hood.

Operating modes

- The extractor hood can be used in exhaust air and circulating air mode. The standard setting is exhaust air mode.

Exhaust-air mode

Simple line icon of a house with an arrow and a cross symbol inside, representing a home or utility (no text or numbers)

The air which is drawn in is cleaned by the grease filters and conveyed to the exterior by a pipe system.

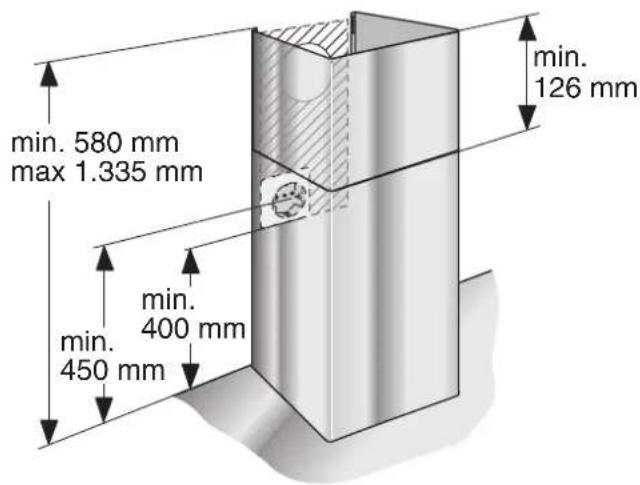

Appliance dimensions Exhaust air

Symbolic icon of a crossed hammer and sickle inside a house outline, representing insecurity or resistance (no text present)

The air which is drawn in is cleaned by the grease filters and an activated carbon filter and conveyed back into the kitchen.

An activated carbon filter must be installed to bind odours in circulating-air mode (see "Removing and installing the grease filters").

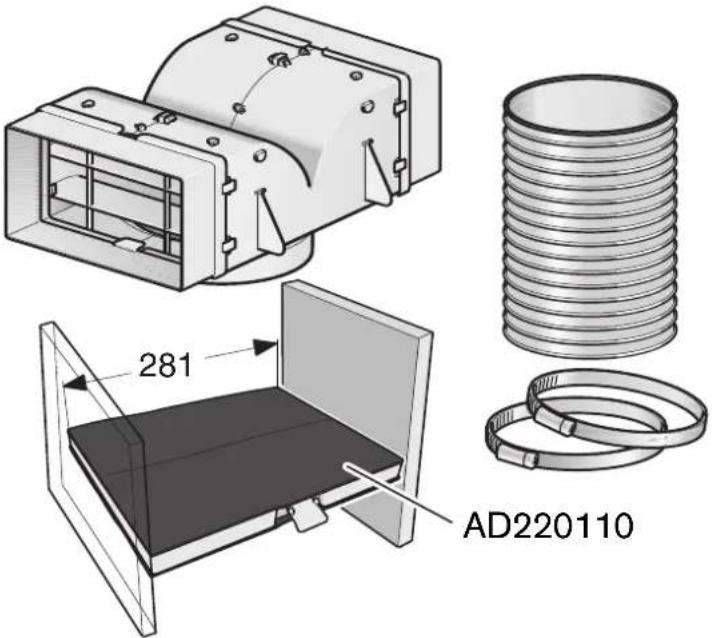

The complete installation set as well as the replacement filters are available from specialist outlets, customer service or the Online Shop. The accessory number can be found at the end of the operating instructions.

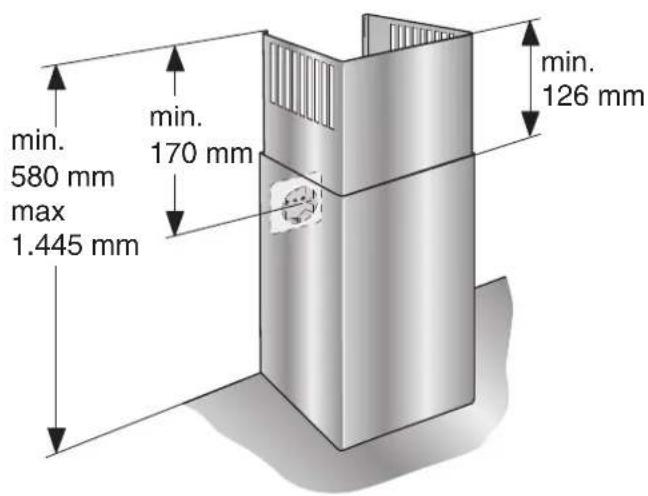

The socket must be attached at least 170 mm below the ceiling.

Appliance dimensions Circulating air

min. 580 mm max 1.445 mm min. 170 mm min. 126 mm

Operating procedure

The most effective method of removing vapours produced during cooking is to:

• Switch the ventilator ON as soon as you begin cooking.
• Switch the ventilator OFF a few minutes after you have finished cooking.

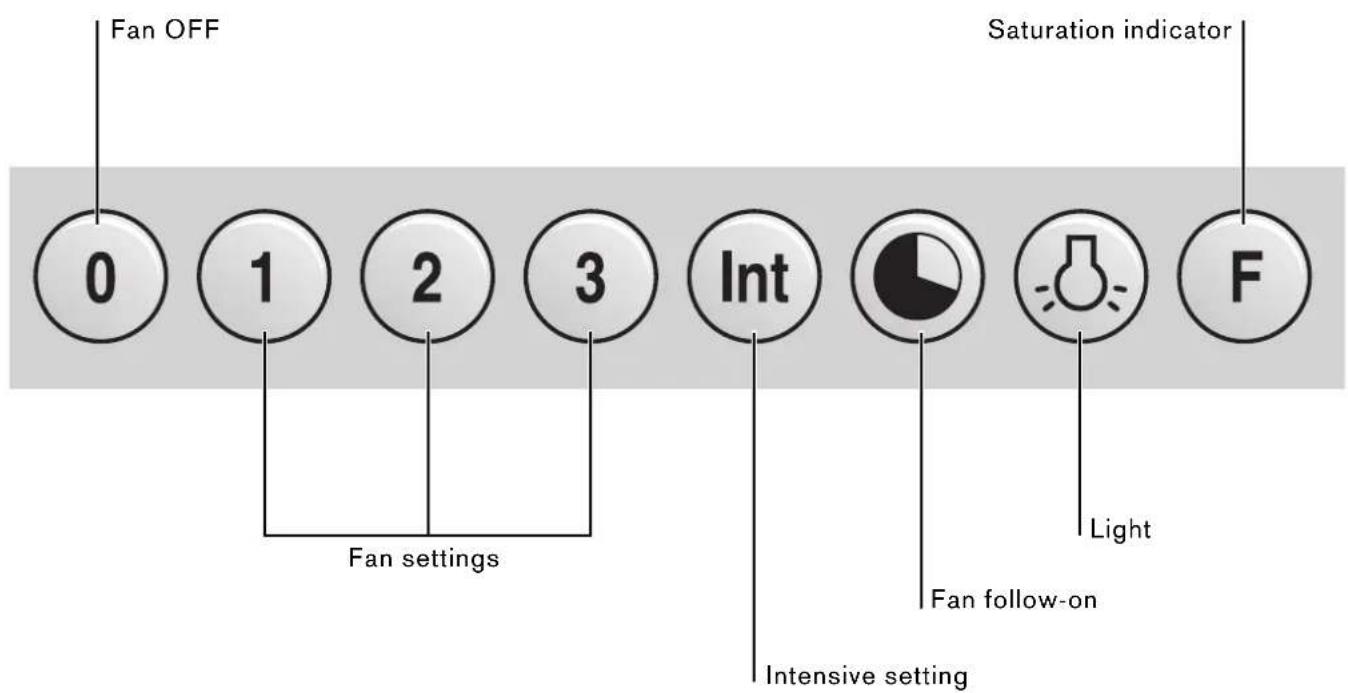

Fan OFF 0 1 2 3 Int Saturation indicator Fan settings Intensive setting Light Fan follow-on

Maximum power is obtained at the intensive setting. It is only required for short intervals.

• The Int key for the intensive level should be pressed when browning and frying in an open pan.
  If you have switched on the hood by selecting the intensive level, it will be switched off again automatically after 5 minutes.
• If you press the Int key while the hood is running at fan level 1, 2 or 3, the electronic control will switch back automatically to the previously selected fan level after 5 minutes.
• If you would like to end the intensive level before the five minutes have elapsed, press the 0 key ("Motor off") or select a different level. It is possible to switch off the extraction function at any time by pressing the 0 key (motor "off").

Special functions

Intensive time:

- You can set the intensive level running time to 3, 5 or 10 minutes by simultaneously pressing the Int key and the 1, 2 or 3 key and you can store this setting. When delivered, the appliance is set to five minutes, i.e. the combination of the Int key and the key 2.

Fan follow-on:

- Delayed shut-off is possible at any level. First press the required key 1, 2, 3 or Int and then press the key.

The delayed shut-off time for all levels is ten minu-tes. After these ten minutes, the ventilation switches off, but the lighting stays on.

Interval ventilation:

- Interval ventilation is a special feature of this appliance which periodically activates the fan for five minutes every hour. You can activate this function by simultaneously pressing the 0 key and, depending on the required extraction capacity, the 1, 2 or 3 key.

This mode of operation is indicated by alternating illumination of the key together with the corresponding fan level indicator.

You can switch off interval ventilation by pressing the 0 key.

Lighting:

• Briefly press the button to switch the light on and off.
• The light can be switched on at any time, even though the fan is switched off.
• Adjusting the brightness: Hold down the button until the desired brightness is obtained.

Saturation indicator: F

• The grease filter saturation display F flashes after an operating time of 30 hours to you indicate to you that you should clean the grease filter. The grease filters can of course be cleaned at any time, even if the grease filter saturation display has not started to flash.
• To cancel the display, press the F button.

RISK OF INJURY

Suitable cleaning agents and care products for your appliance can be purchased via the Hotline or from the Online Shop (see cover page).

Appliance surfaces

Note: Observe the warranty regulations in the enclosed service booklet.

• The appliance surfaces and controls are scratch-sensitive. Therefore observe the following cleaning instructions:
• Avoid cleaning the extractor hood with dry cloths, abrasive sponges, scouring agents, cleaning agents containing sand, soda, acid, chlorine or any other aggressive substances.
• Clean the appliance surfaces and controls with a soft, damp cloth, washing-up liquid or a mild window cleaner only.
• Do not scrape off dried dirt, but moisten with a damp cloth.
• Clean carefully in the area of the controls to avoid liquid from getting into the electronics.

Note: Clean the stainless steel surfaces in the direction of the ground surface only! Do not use stainless steel cleaner for the control buttons!

Looking after the appliance

- Suitable cleaning agents and care products for your appliance can be purchased via the Hotline or from the Online Shop (see cover page).

Metal-mesh grease filters

• The metal-mesh grease filters absorb the grease particles from the kitchen fumes.
  ● The filter mats consist of fire-proof metal.

RISK OF FIRE

As the filters become more saturated with greasy residue, the flammability increases. The function of the extractor hood may also be impaired.

• The risk of fire is prevented by cleaning the metal-mesh grease filters in good time.
• When cleaning the grease filters, also remove grease deposits from the accessible parts of the housing with a damp cloth.

Cleaning the metal-mesh grease filters ...

- Under normal operation (daily 1 to 2 hours), the metal-mesh grease filters must be cleaned 1x month.

... in the dishwasher

• The metal-mesh grease filters can be cleaned in the dishwasher. Slight discolouration may occur but this will not affect the function of the grease filters.
• The filters must be placed loosely in the dishwasher. They must not be wedged in.

Note: Do not clean heavily saturated metal-mesh grease filters together with utensils.

... by hand

• When cleaning by hand, soak the grease filters in a hot detergent solution, brush off the dirt, rinse thoroughly and leave to dry.
• Do not use any aggressive, acidic or alkaline cleaning agents.
• If dirt is particularly stubborn, we recommend using a special grease solvent spray. This can be ordered via the Online Shop.

Removing and installing the grease

filter

RISK OF INJURY

Before removing and installing the grease filters, always follow the instructions and warnings in the chapter entitled "Safety instructions"!

Removing and installing the metal-mesh grease filters

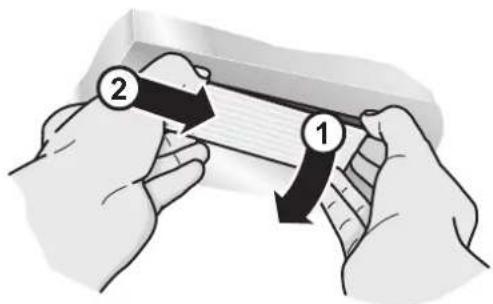

1 Open the lock and fold down the grease filters. In doing so, hold the underside of the grease filters with your other hand.

Illustration of hands using a tool to interact with a screen or tablet device (no text or symbols visible)

Illustration of hands interacting with a digital tablet device (no text or symbols visible)

Illustration of hands using a tablet device to interact with a laptop, showing a magnified view of the screen (no text or symbols present)

(for appliances with edge extraction)

2 Clean the grease filters.
3 Reinsert the cleaned grease filters.

Activated carbon filter

• Activated carbon filters bind the odours in circulating-air mode.
  ● Under normal operation (daily 1 to 2 hours) the activated carbon filters must be replaced approximately 2x year.
• The activated carbon filter is available from specialist outlets, customer service or the Online Shop (see Optional accessories). Use original filters only.
• Activated carbon filters do not contain any pollutants. They can be disposed of in the household refuse.

Installing and removing the activated carbon filters

1 Remove the grease filters (see Removing and installing the metal-mesh grease filters).

Illustration of a hand holding a rectangular object over a grid-patterned surface, with arrows indicating direction (no text or symbols)

2 Insert the activated carbon filter.
3 Lock the catch.
4 Reinsert the grease filters (see Removing and installing the metal-mesh grease filters).

Changing the bulbs

Before changing the bulbs, always follow the instructions and warnings in the chapter entitled "Safety instructions"!
● The description of changing the bulbs applies to several appliance models.

Note: Observe the warranty regulations in the enclosed service booklet.

Changing the halogen bulbs

RISK OF INJURY

Halogen bulbs become very hot during operation. Even some time after the appliance has been switched off, there is still a risk of burns!

● Defective bulbs should be replaced immediately to avoid overloading the remaining bulbs.
Before changing the halogen bulbs, ensure that they have cooled down fully.

1 Carefully remove the bulb ring with a suitable tool.

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

2 Replace the defective bulb with a new one of the same type and equivalent power (see rating plate).

Illustration of hands holding a ball bearing, no text or symbols present

Note: When inserting halogen bulbs, do not touch the glass tube. Therefore use a clean cloth when inserting the bulb.

3 Reinsert the bulb cover.
4 Restore the power supply by inserting the mains plug or switching on the fuse.

Changing the filament bulbs

RISK OF INJURY

Filament bulbs become very hot when switched on. Even some time after filament bulbs have been switched off, there is still a risk of burns!

● Before changing filament bulbs, wait until they have completely cooled down.

1 Lift the bulb cover slightly.
2 Push the bulb cover towards the middle of the appliance.

Illustration of two hands holding a rectangular object with arrows indicating direction (no text or symbols)

3 Replace the defective bulb with a new one of the same type and equivalent power (see rating plate).

Hand holding a bulb inserted into a light bulb inside a white ceiling fixture (no text or symbols visible)

4 Reinsert the bulb cover.
5 Restore the power supply by inserting the mains plug or switching on the fuse.

Note: If the light does not function, check whether the bulbs have been inserted correctly.

Installation instructions

- Prior to installation, always follow the instructions and warnings in the chapter entitled "Safety instructions"!

Exhaust-air mode

- The exhaust air is conveyed upwards via a ventilation shaft or directly through the outer wall to the exterior.

Note: The exhaust air must not be conveyed into a functioning smoke or exhaust gas flue or into a shaft which is used to ventilate installation rooms which contain heating appliances.

• Before conveying the exhaust air into a non-functioning smoke or exhaust gas flue, obtain the consent of the appropriate heating engineer.
• Discharge exhaust air in accordance with the official and statutory regulations (e.g. regional building laws).
• If the exhaust air is conveyed through the outer wall, a telescopic wall box should be used.

To ensure optimum performance, the extractor hood requires:

- a short, straight exhaust air pipe and

- the largest possible pipe diameter.

- If pipe bends cannot be avoided, ensure the largest possible radii.

Note: If long, rough exhaust air pipes, a lot of pipe bends or pipe diameters less than 150 mm are used, the air capacity will be less than optimum and there will be an increase in noise.

• Use only pipes or hoses made of non-combustible material for installation of the exhaust air duct.
• The manufacturer of the extractor hoods is not responsible for complaints which can be attributed to planning and design of the pipework.

Connecting pipes

• The diameter of the exhaust air pipes should not be less than 150 mm.
  Round pipes: We recommend an inner diameter of 150 mm, however at least 120 mm.
• Flat ducts must have the same inner cross-section as round pipes. There should be no sharp bends. Ø 150 mm approx. 177 cm ^2 Ø 120 mm approx. 113 cm ^2
• If pipe diameters differ: Use sealing strips.

Connection of 150 mm ∅ exhaust air pipe (recommended size)

- Attach exhaust air pipe directly to the air-pipe connector and seal appropriately. If using an aluminium pipe, smooth the connection area beforehand.

Stack of five parallel cylindrical objects with rounded ends, no text or symbols visible

Connection of 120 mm ∅ exhaust air pipe

• Attach reducing connector directly to the air-pipe connector.
• Attach exhaust air pipe to the reducing connector.
  Seal both joints appropriately.

Electrical connection

• Before connecting the appliance to the power supply, always follow the instructions and warnings in the chapter entitled "Safety instructions"!
• The extractor hood may only be connected by a qualified electrician who is familiar with the regulations of the relevant electricity supply company.

RISK OF INJURY

• If the power cord of the extractor hood is damaged, it must be replaced by the manufacturer, his customer service or a similarly qualified person to prevent hazardous situations.
• The extractor hood may be connected to a correctly installed earthed socket only.
• Attach the earthed socket as directly as possible behind the flue duct.

- The earthed socket should be connected via its own circuit.

- If the earthed socket is no longer accessible following installation of the extractor hood, a disconnector must be fitted as for a permanent connection.

If a permanent connection is required

- A disconnector must be provided on the installation side. Switches with a contact opening of more than 3 mm and all-pole disconnection are regarded as disconnectors. This includes LS switches, fuses and contactors.

Electrical specifications

The required connection data can be found on the rating plate inside the appliance when the grease filters have been removed.

Length of the power cord: approx. 1.30 m.

This extractor hood complies with the EC interference suppression regulations.

Installation

The extractor hood is designed to be mounted on the wall.

• During installation, optional accessories may also require fitting.
• Observe the minimum distance between hob and extractor hood (see "Safety instructions")!
• Avoid damaging the sensitive surfaces!

Preparing the wall

⚠️ RISK OF INJURY, DAMAGE TO PROPERTY

Before drilling the holes for the designated installation location, check for concealed electrical cables and other lines.

● The wall must be level and vertical.
- The enclosed screws and wall plugs are suitable for solid brickwork. Use the appropriate fixing materials for other wall structures (e.g. plaster board, porous concrete, poroton bricks).

Ensure that the wall has adequate load bearing capacity.

• Ensure that the depth of the drilled holes corresponds with the length of the screws.
• Ensure that the wall plugs are secure.

Max. weight: 40 kg.

Design subject to modification in line with technical development.

Installation preparations

1 Mark a centre line on the wall from the ceiling to the lower edge of the extractor hood.
2 Using the enclosed template, mark positions for the screws and, to facilitate attachment, the contour of the attachment area. The lower edge of the template corresponds to the lower edge of the extractor hood.
3 Drill 2x 8 mm holes for attachment of the extractor hood and 2x 8 mm holes for the fixing bracket for the flue duct and press in wall plugs flush with the wall.
4 Screw on the fixing bracket for the flue duct.

Technical diagram illustrating screw assembly and mounting defects, with labeled components and warning indicators

5 Screw on the brackets for the extractor hood: hand tight, max. 3 Nm.

Ensure that the washers and brackets are positioned correctly!

Attachment and alignment

1 Initially remove the protective foil from the back of the extractor hood and, following installation, remove foil completely.
2 Mount the extractor hood, ensuring that the back is attached firmly to the brackets Ⓐ.
3 Align the extractor hood horizontally by turning the brackets..

If required, the extractor hood can be moved to the right or left Ⓑ.

Diagram illustrating two mechanical assembly steps (A and B) for inserting a component into a device, with arrows indicating direction of movement.

Locking screws and locking caps

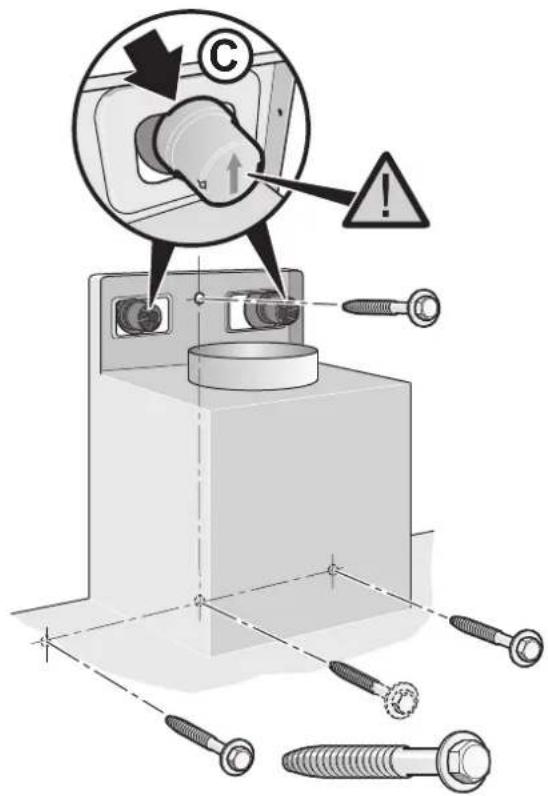

1 Mark the holes for the safety screws. Detach the extractor hood, drill holes for the safety screws and press in wall plugs flush with the wall.
2 Attach the extractor hood and screw in the safety screws tightly.
3 Press the safety caps with the arrow upwards onto the brackets until they click into position ©.

Technical diagram showing a mechanical assembly with labeled components and warning symbols, including bolts, screws, and a magnified view of a component with warning labels.

RISK OF INJURY

Check that all locking screws and locking caps have been attached securely!

4 Connect the pipes (see "Connecting pipes").
5 Connect to the power supply (see "Electrical connection").

Removing the safety caps

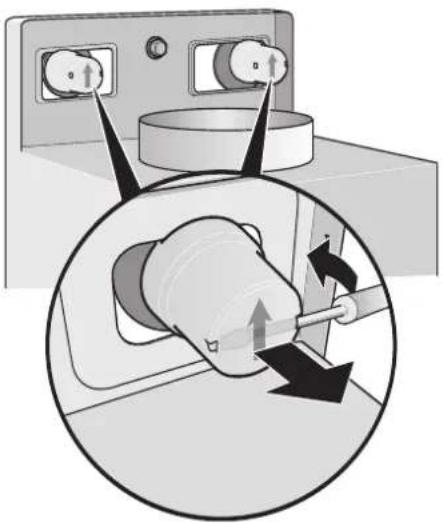

- Remove the locking caps from the brackets using a suitable tool, e.g. a flat-blade screwdriver.

Diagram showing a washing machine with directional arrows indicating motion or force (no text or symbols present)

Installing the flue duct

RISK OF INJURY

The insides of the flue ducts may have sharp edges. We recommend wearing protective gloves during installation.

1 Separate the flue ducts. To do this, remove the adhesive tape.

2 Remove the protective film from both flue ducts.

3 Insert one flue duct into the other.

Note: Avoid scratching the flue ducts when inserting them, e.g. by placing the installation template as protection over the edge of the outer flue duct.

Note the position of the slots in the flue duct!

- Exhaust-air mode: Slots of the inner flue duct downwards.

- Circulating-air mode: Slots of the inner flue duct upwards.

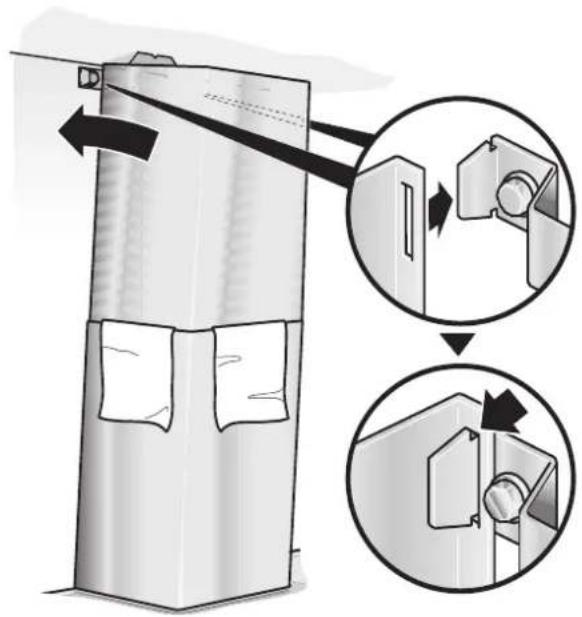

4 Place flue ducts on the extractor hood, push the inner flue duct upwards and attach the left and right sides to the fixing bracket.

Diagram illustrating a door lock mechanism with labeled components and directional arrows indicating motion or assembly.

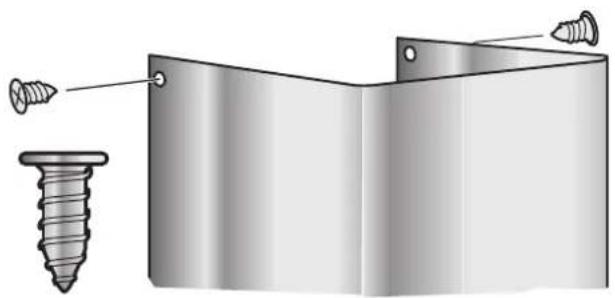

5 Screw the inner flue duct with 2 screws to the sides of the fixing bracket.

Illustration of a metal bracket with two screws inserted, showing mounting holes (no text or symbols)

Tabel de matières

Mode d'emploi

Safety warning symbol and diagram showing a skull hazard and a gas stove with flame, indicating hazardous safety.

Diagram showing a checkmark over a circular icon next to an industrial process diagram with pipes and a flame (no text or symbols)

Pure technical diagram showing a cylindrical component mounted on a base with a crosshair overlay (no text or symbols)

RISQUE D'INCENDIE

Simple line icon of a house with an arrow and a cross symbol inside, no text or labels present.

Symbolic icon of a house with crossed doors and arrows, representing a hazard or safety symbol (no text present)

Ventilation intensive

Ventilation intermittent:

Illustration of hands using a computer to interact with a screen (no text or symbols visible)

Illustration of hands interacting with a digital tablet or screen device (no text or symbols visible)

Illustration of hands using a tablet device to interact with a laptop, showing a magnified inset of the screen (no text or symbols present)

Illustration of a hand holding a tablet with a grid overlay, no text or symbols present

Illustration of hands using a screwdriver to adjust a mechanical component (no text or symbols visible)

Illustration of hands holding a piece of bread next to a bowl (no text or symbols)

Diagram showing two hands holding a rectangular object with arrows labeled 1 and 2, indicating direction or movement.

Hand holding a light bulb inside a ceiling fixture (no text or symbols visible)

Stack of three parallel cylindrical objects with curved surfaces (no text or symbols)

Technical diagram illustrating screw assembly and safety warning, showing bolt disassembly and mounting defects with labeled components.

Diagram illustrating two mechanical assembly steps (A and B) for inserting a component into a device, with arrows indicating direction of movement.

Technical diagram showing a mechanical assembly with labeled components and warning symbols, including a magnified view of a component being inserted.

RISQUE DE BLESSURES

Diagram showing a washing machine with directional arrows indicating motion (no text or symbols present)

Diagram illustrating door handle mechanism with magnified views showing adjustment of a door handle component

Illustration of a metal bracket with two screws inserted, showing bolt holes (no text or symbols)

Inhoudsopgave

Gebruiksaanwijzing

Safety warning sign and diagram illustrating hazard and hazard, showing a skull symbol and electrical circuit with smoke.

Diagram showing a checkmark over a circular icon next to an industrial process diagram with pipes and a flame (no text or symbols)

Pure technical diagram showing a cylindrical component mounted on a base with a circular cross symbol overlay (no text or labels)

BRANDGEVAAR

Simple line icon of a house with an arrow and crossed-out door, symbolizing home renovation or safety (no text)

Symbolic icon of a house with crossed and unshipped tools, no text or numbers present

Illustration of hands operating a computer monitor with a grid screen (no text or symbols visible)

Illustration of hands interacting with a curved electronic device (no text or symbols visible)

Illustration of hands using a tablet device to interact with a laptop, showing a magnified view of the screen (no text or symbols present)

Illustration of a hand holding a rectangular object over a grid-patterned surface, with no visible text or symbols.

Illustration of hands using a screwdriver to adjust a mechanical component (no text or symbols visible)

Illustration of hands holding a small object with a tool, partially enclosed in a metal bowl (no text or symbols visible)

Illustration of two hands holding a rectangular object with arrows indicating direction (no text or symbols)

Hand inserting a bulb into a light bulb inside a ceiling fixture (no text or symbols visible)

4 Breng de lampafscherming weer aan.

Stack of three parallel cylindrical objects with curved surfaces (no text or symbols)

Technical diagram illustrating screw assembly and mounting defects, with magnified views of mechanical components and warning labels.

Diagram illustrating two mechanical assembly steps (A and B) with labeled components and directional arrows indicating movement or assembly.

Technical diagram showing a mechanical assembly with labeled components and warning symbols, including bolts, screws, and a magnified view of a component with warning labels.

⚠️ VERWONDINGSGEVAAR

Diagram showing a washing machine with directional arrows indicating motion (no text or symbols present)

Diagram showing a door handle mechanism with two circular insets illustrating the process (no text or symbols present)

Illustration of a metal bracket with two screws inserted, showing mounting holes (no text or symbols)

Indice

Istruzioni d'uso

and electronic equipment- WEEE).

Safety warning sign and diagram illustrating hazard, hazard symbol, and fire extinguisher mechanism

Diagram showing a checkmark over a circular icon next to an industrial process diagram with pipes, tanks, and a flame (no text or symbols)

Pure mechanical diagram showing a cylindrical component mounted on a base with a circular cross symbol (no text or labels)

PERICOLO D'INCENDIO

Simple line icon of a house with an arrow and a cross symbol inside, no text or labels present.

Symbolic icon of a house with crossed hammer and sickle, no text or numbers present

Illustration of hands using a computer to interact with a screen (no text or symbols visible)

Illustration of hands interacting with a digital display panel (no text or symbols visible)

Illustration of hands using a tablet device to interact with a laptop, showing a magnified view of the screen (no text or symbols present)

Illustration of a hand holding a tablet with a grid overlay, no text or symbols present

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of hands holding a small object with a tool, partially covered by a metallic bowl (no text or symbols visible)

Diagram showing two hands holding a rectangular object with arrows labeled 1 and 2, indicating direction or movement.

Hand holding a bulb inserted into a light bulb inside a 3D printer (no text or symbols visible)

Stack of five parallel cylindrical objects with rounded ends, no text or symbols visible

Technical diagram illustrating screw assembly and mounting process with labeled components and warning indicators

Diagram illustrating two mechanical assembly steps labeled A and B, showing hand positioning of a component with arrows indicating direction.

Technical diagram showing a mechanical assembly with labeled components and warning symbols, including bolts, screws, and a magnified inset of a bolt head.

Diagram showing a washing machine with directional arrows indicating motion (no text or symbols present)

Diagram illustrating a door lock mechanism with labeled components and directional arrows indicating movement or assembly.

Illustration of a metal bracket with two screws inserted, showing mounting holes (no text or symbols)

Contenido

Safety warning symbol and diagram showing hazard, airflow, and electrical circuit with smokestack

Diagram showing a checkmark over a circular icon next to an industrial process diagram with pipes, tanks, and a flame (no text or symbols)

Simple 3D diagram of a mechanical assembly with a cylindrical component and a crosshair symbol (no text or labels)

⚠️ PELIGRO DE INCENDIO

Simple line icon of a house with arrows indicating direction and a cross symbol inside (no text or labels)

Symbolic icon of a shield with crossed arrows and a cross, representing protection or hazard (no text present)

Illustration of hands operating a computer monitor with a grid screen (no text or symbols visible)

Illustration of two hands interacting with a curved electronic device, showing a black arrow indicating rotation (no text or symbols present)

Illustration of hands using a tablet to interact with a device, showing a magnified inset of a mechanical component (no text or symbols present)

Illustration of a hand holding a tablet with a grid and arrows, no text or symbols present

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of hands holding a small object with a pen, partially covered by a metallic bowl (no text or symbols visible)

Diagram showing two hands holding a rectangular object with arrows indicating direction, labeled 1 and 2.

Hand holding a bulb inserted into a ceiling fixture (no text or symbols visible)

Stack of three parallel cylindrical objects with curved surfaces (no text or symbols)

Technical diagram illustrating screw assembly and safety warning, showing disassembly and disassembly steps with labeled components.

Diagram illustrating two mechanical assembly steps (A and B) with labeled components and directional arrows indicating movement or assembly.

Technical diagram showing a mechanical assembly with labeled components and warning symbols, including bolts, screws, and a magnified view of a component with warning labels.

PELIGRO DE LESIONES

Diagram showing a washing machine with directional arrows indicating motion (no text or symbols present)

Diagram illustrating a door lock mechanism with labeled components and directional arrows indicating movement or assembly.

Illustration of a metal bracket with screw fasteners and mounting holes (no text or symbols)

Índice

Safety warning symbol and diagram showing a skull hazard and a gas stove with flame, indicating hazardous safety.

Diagram showing a checkmark over a circular icon next to an industrial process diagram with pipes, tanks, and a flame (no text or symbols)

Pure mechanical diagram showing a cylindrical component mounted on a base with a crosshair overlay (no text or symbols)

⚠️ PERIGO DE INCÊNDIO

Simple line icon showing a house with an arrow and a cross symbol inside, representing a home or utility (no text or numbers)

Symbolic icon of a crossed hammer and sickle inside a house outline, with arrows indicating direction (no text or numbers present)

Illustration of hands operating a computer monitor with a grid screen (no text or symbols visible)

Illustration of hands holding a rectangular object with a black arrow pointing to it, no text or symbols present.

Illustration of hands using a tablet device to interact with a laptop, showing a magnified view of the screen (no text or symbols present)

Illustration of a hand holding a tablet over a grid-patterned surface (no text or symbols)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of hands holding a small object with a metallic bowl, no text or symbols present

Diagram showing two hands holding a rectangular object with labeled arrows, illustrating a physical or mechanical process.

Hand holding a bulb inserted into a light bulb inside a white enclosure (no text or symbols visible)

Stack of parallel cylindrical objects with curved surfaces (no text or symbols)

Technical diagram illustrating screw assembly and mounting defects, with labeled components and warning indicators

Diagram illustrating two mechanical assembly steps (A and B) with labeled components and directional arrows indicating process flow.

Technical diagram showing a mechanical assembly with labeled components and warning symbols, including bolts, screws, and a magnified view of a component with warning label.

Diagram showing a kitchen appliance with directional arrows indicating motion or movement (no text or symbols present)

Diagram illustrating a mechanical device with directional arrows and magnified views of the component, likely illustrating a cutting or assembly process.

Illustration of a metal bracket with two screws inserted, showing mounting holes (no text or symbols)

			AD220182
	AD220312	AD22032
	AD221312	AD22132
